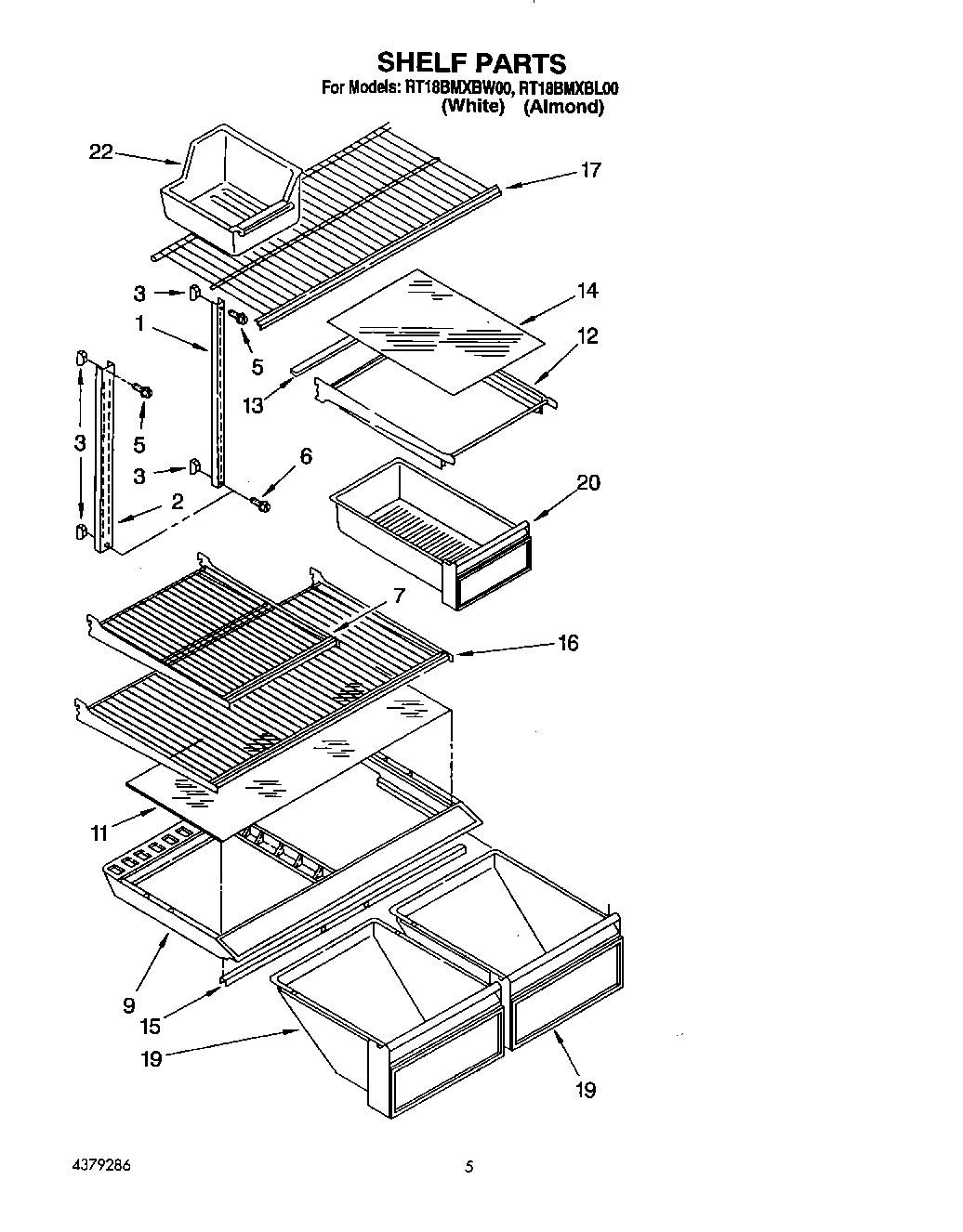

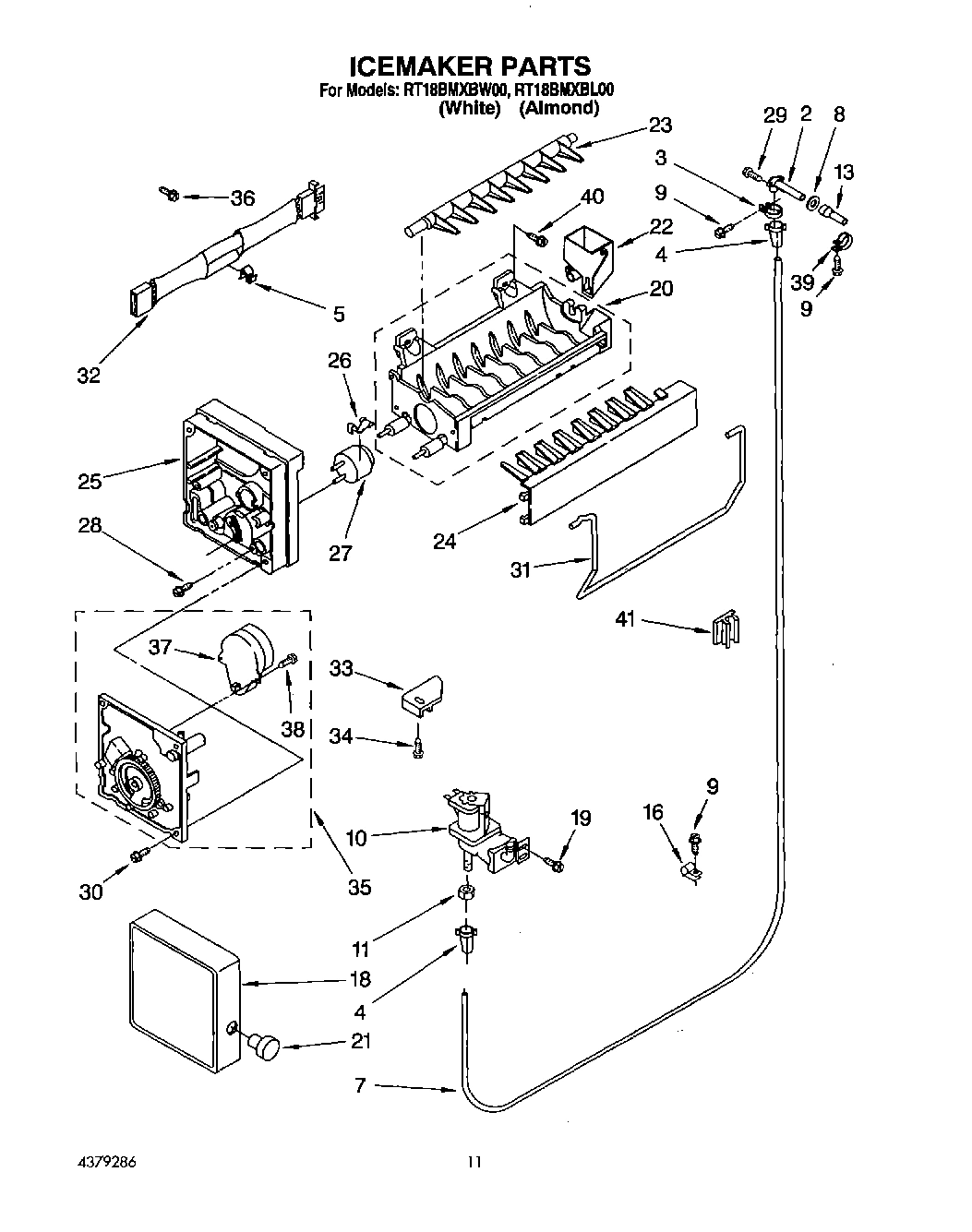

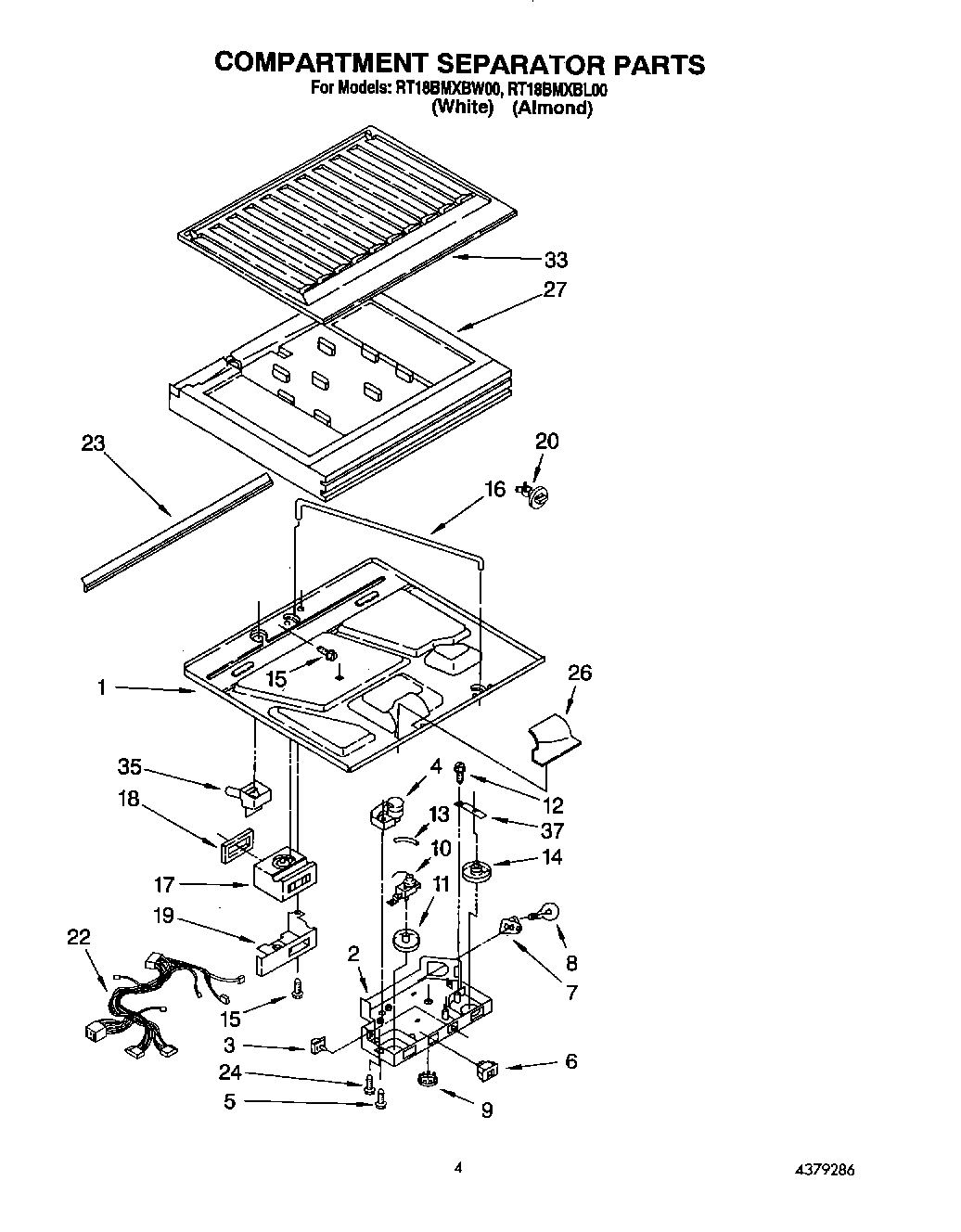

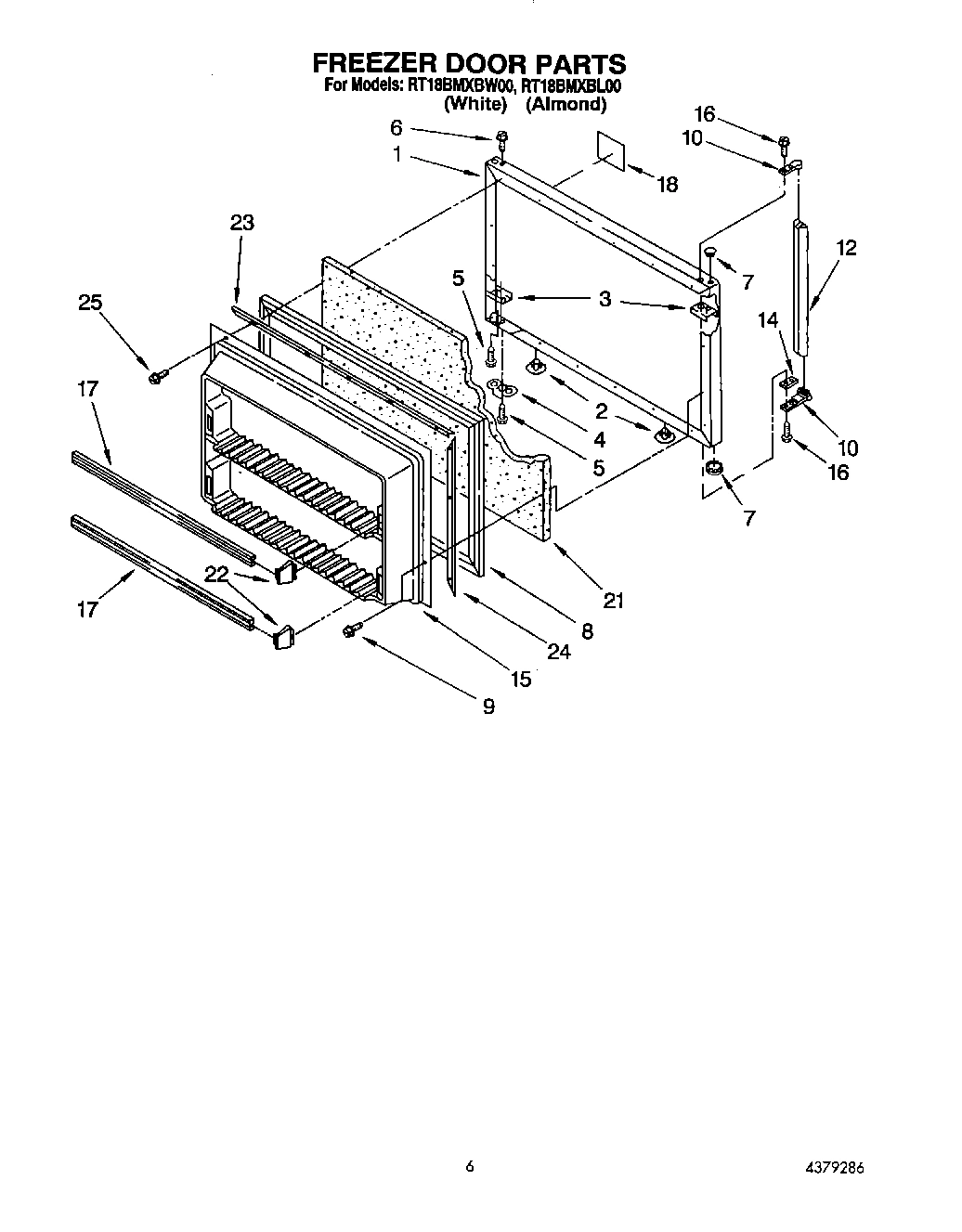

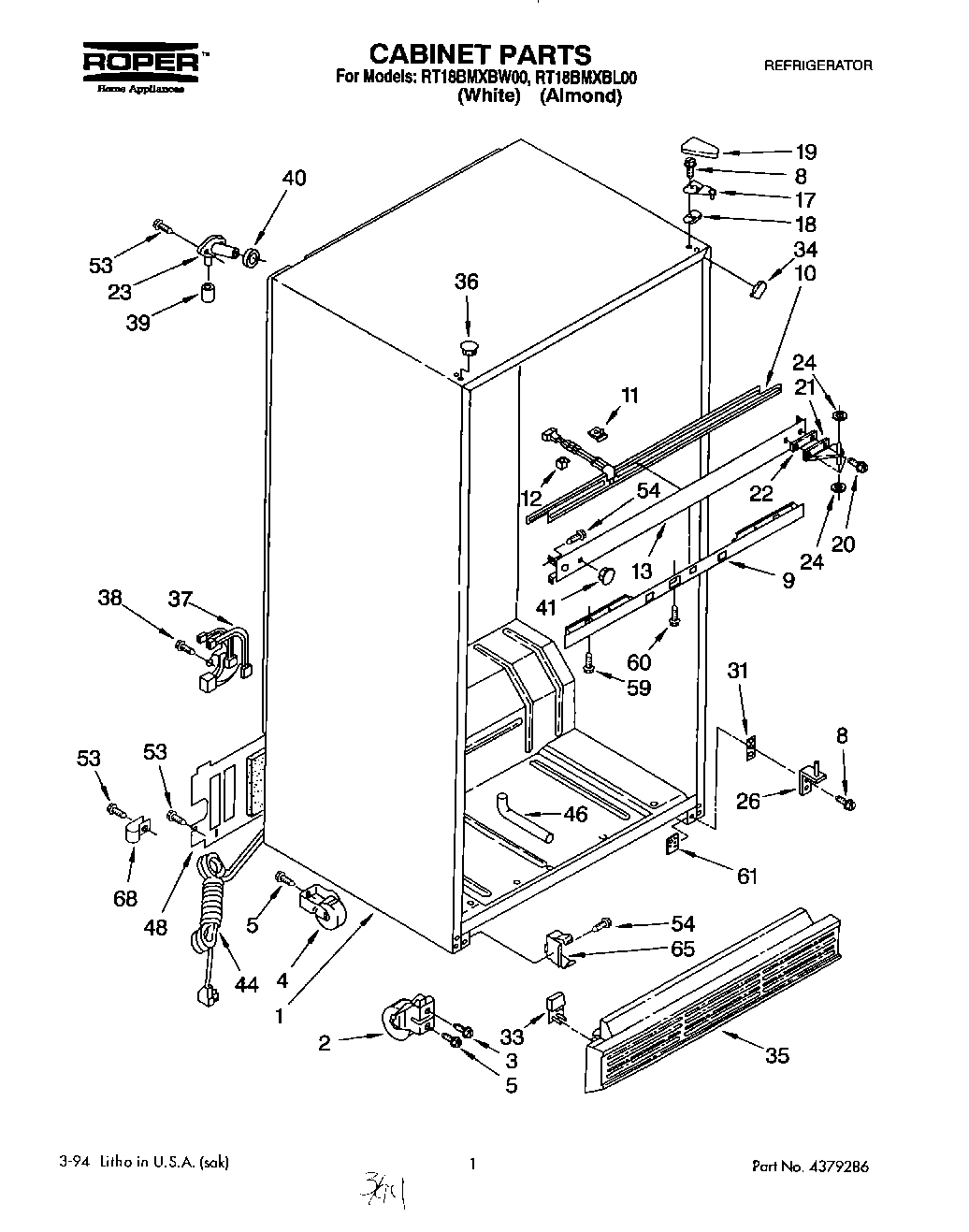

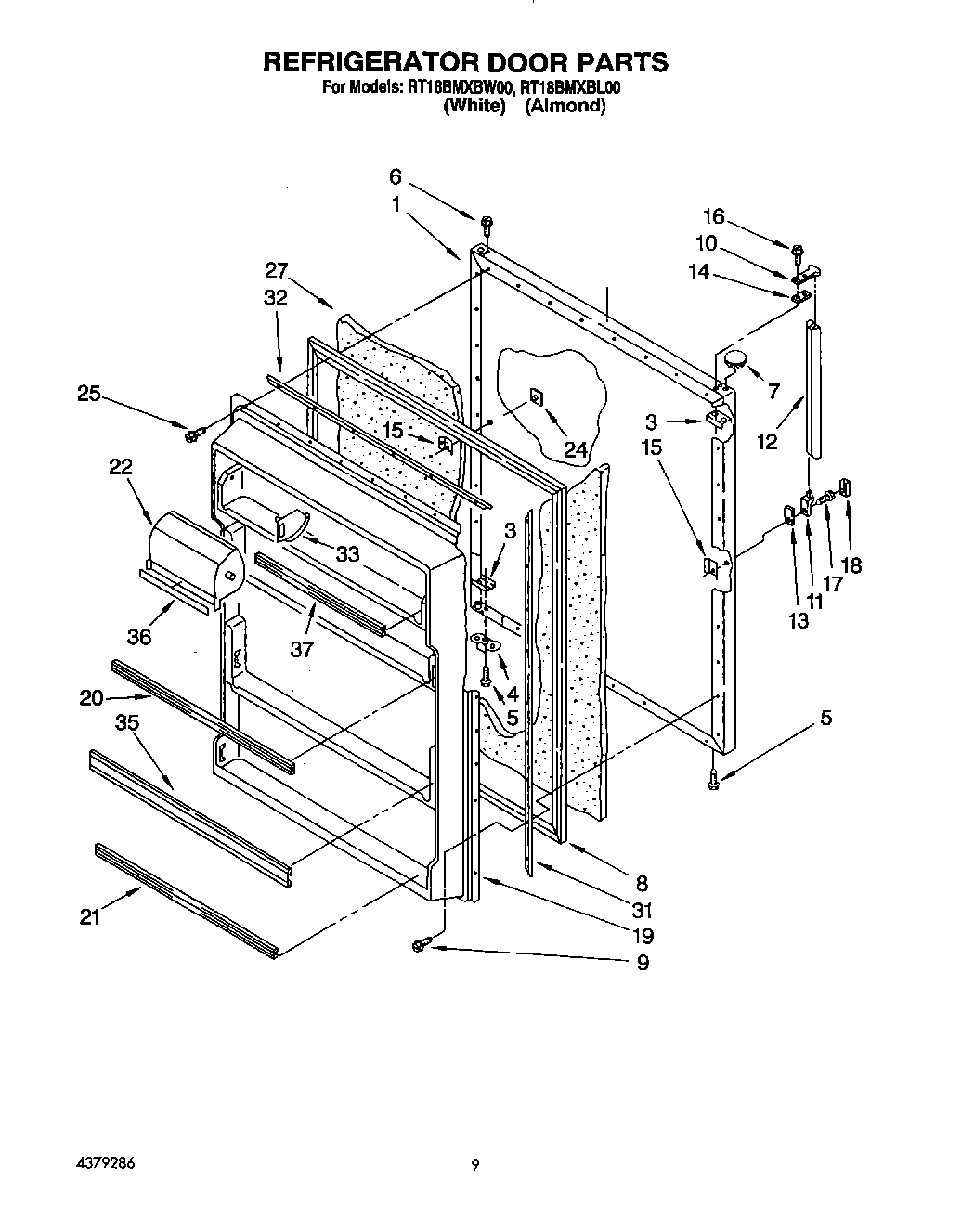

Model Whirlpool RT18BMXBW00 – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2154075 WPL LIT2154075 Contact Us For Availability

WPL LIT2157983 WPL LIT2157983 Contact Us For Availability

WPL LIT2157995 WPL LIT2157995 Contact Us For Availability

WPL LIT628370 WPL LIT628370 Contact Us For Availability

1

Shelf, Ladder (2) WPL 1114466 Contact Us For Availability

1

Cabinet (Not A Serviceable Part) WPL ARI126811A Contact Us For Availability

1

Bottom, Compartment Separator WPL 2172814 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Whi WPL 2157708 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 2157711 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 27) WPL 1116575 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 27) WPL 1116578 Contact Us For Availability

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Shelf, Ladder Center WPL 1114465 Contact Us For Availability

2

Roller, Front WPL 2152011 Contact Us For Availability

2

Box, Control WPL 2151992 Contact Us For Availability

2

Hole Plug (2) (White) WPL 534927 Contact Us For Availability

2

Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

3

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

3

Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

4

WP2183400 Whirlpool Defrost Timer In Stock WPL WP2183400 $46.85

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

4

Bracket, Door Stop WPL 1115910 Contact Us For Availability

5

W10854959 Whirlpool Refrigerator Shelf Stud Backorder WPL W10854959 $4.23

5

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability

5

Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

6

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

6

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

Shelf, Cantilever WPL 2163242 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

8

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

8

Door Gasket Magnetic WPL 1116735 Contact Us For Availability

8

Door Gasket, Magnetic WPL 1116734 Contact Us For Availability

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

9

Crisper Cover WPL 2163655 Contact Us For Availability

9

Control, Front Cover WPL 2148582 Contact Us For Availability

1123394 Whirlpool Refrigerator Cold Control T Backorder WPL 1123394 $89.70

WP2315576 Whirlpool Water Inlet Valve In Stock WPL WP2315576 $42.13

Heater, Mullion WPL 2154064 Contact Us For Availability

Handle End, Top WPL 944157 Contact Us For Availability

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Glass, Crisper Cover WPL 2163596 Contact Us For Availability

Clip, Center Rail (3) WPL 1129018 Contact Us For Availability

Knob, Thermostat WPL 2148150 Contact Us For Availability

Handle End, Bottom WPL 935105 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Pan Shelf, Cantilever WPL 2163595 Contact Us For Availability

Spacer (3) WPL 2149077 Contact Us For Availability

Handle, Center WPL 2163218 Contact Us For Availability

Handle, Center WPL 1109181 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

Retainer, Glass WPL 1118119 Contact Us For Availability

Center Rail WPL 2172701 Contact Us For Availability

Tube, Water Inlet WPL 939027 Contact Us For Availability

Shim, Handle WPL 935076 Contact Us For Availability

14

Spacer, Handle Door WPL 943188 Contact Us For Availability

14

Glass, Meat Cover WPL 2163584 Contact Us For Availability

14

Knob, Air Control WPL 2148151 Contact Us For Availability

15

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $50.82

15

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

15

Interior Door Panel WPL 1116610 Contact Us For Availability

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

Shelf, Full Cantilever WPL 2163243 Contact Us For Availability

Rod, Connecting WPL 1116565 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $27.58

WP2189412 Whirlpool Refrigerator Door Hinge Backorder WPL WP2189412 $37.95

WP2201061 Whirlpool Refrigerator Door Trim In Stock WPL WP2201061 $38.41

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Shelf, Freezer WPL 2163241 Contact Us For Availability

Air Diffuser Assembly WPL 2157252 Contact Us For Availability

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

Shim, Hinge Top WPL 2157269 Contact Us For Availability

Gasket, Air Diffuser WPL 2157255 Contact Us For Availability

Nameplate WPL 2163676 Contact Us For Availability

Cover, End Cap WPL 987873 Contact Us For Availability

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Grommet (2) WPL 531933 Contact Us For Availability

Pan, Crisper WPL 2163652 Contact Us For Availability

Hinge Cover (Almond) WPL 2160404 Contact Us For Availability

Cover, Air Diffuser WPL 1108176 Contact Us For Availability

Interior Door Panel WPL 2160165 Contact Us For Availability

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

Pan, Meat WPL 2157976 Contact Us For Availability

Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability

Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability

Screw WPL 489168 Contact Us For Availability

Hinge, Center WPL 2151453 Contact Us For Availability

Knob WPL 627992 Contact Us For Availability

W11625904 Whirlpool Refrigerator Ice Pan In Stock WPL W11625904 $24.25

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

EndCap, Trim (4) WPL 1106862 Contact Us For Availability

Shim, Hinge Center WPL 836155 Contact Us For Availability

Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability

Compartment Door, Utility WPL 2163223 Contact Us For Availability

23

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

23

Scroll, Fan WPL 1116598 Contact Us For Availability

23

Gasket, Bottom Separator WPL 2159733 Contact Us For Availability

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

Evaporator Cover WPL 2151668 Contact Us For Availability

Retainer, Gasket Side (2) WPL 1115138 Contact Us For Availability

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $15.98

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Insulation, Filler WPL 1108196 Contact Us For Availability

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

27

Insulation, Compartment Separator WPL 1116569 Contact Us For Availability

27

Cement Alumilastic) WPL 542369 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $35.26

31

Spacer WPL 2172744 Contact Us For Availability

31

Retainer, Gasket Side (2) WPL 1115136 Contact Us For Availability

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $43.83

32

Retainer, Gasket Top & Bottom (2) WPL 1115137 Contact Us For Availability

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

Corner Filler, Grille WPL 1118078 Contact Us For Availability

Separator, Compartment (Top) WPL 2157398 Contact Us For Availability

Hinge Pin, Center WPL 2160051 Contact Us For Availability

34

Filler, Wrapper Corner (2) (White) WPL 1118058 Contact Us For Availability

34

Filler, Wrapper Corner (2) (Almond) WPL 1118059 Contact Us For Availability

34

Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability

35

Grille WPL 1118079 Contact Us For Availability

35

Cup, Drain WPL 937065 Contact Us For Availability

35

Trim, Door Shelf WPL 2163635 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability

Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability

Trim, Compartment Door WPL 2157988 Contact Us For Availability

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

37

Wiring Assy. Intermediate WPL 2153994 Contact Us For Availability

37

Bracket, Control Knob WPL 1105457 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

39

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

40

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

W11501419 Whirlpool Refrigerator Clip Backorder WPL W11501419 $4.19

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Hole Plug WPL 1129062 Contact Us For Availability

Door Reversal Instructions WPL 2172761 Contact Us For Availability

xEnamel, Gold (13 Oz. Spray Can) WPL 261890 Contact Us For Availability

Enamel, Gold (1 Qt. Uncut) WPL 261891 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

44

Cord, Service WPL 937360 Contact Us For Availability

46

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

46

Fitting, Drain WPL 2154118 Contact Us For Availability

48

Cover, Unit WPL 2172766 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

60

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

61

Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

68

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94
