Model Whirlpool RT18AKXDN00 REFRIGERATOR – Common Parts & Diagrams

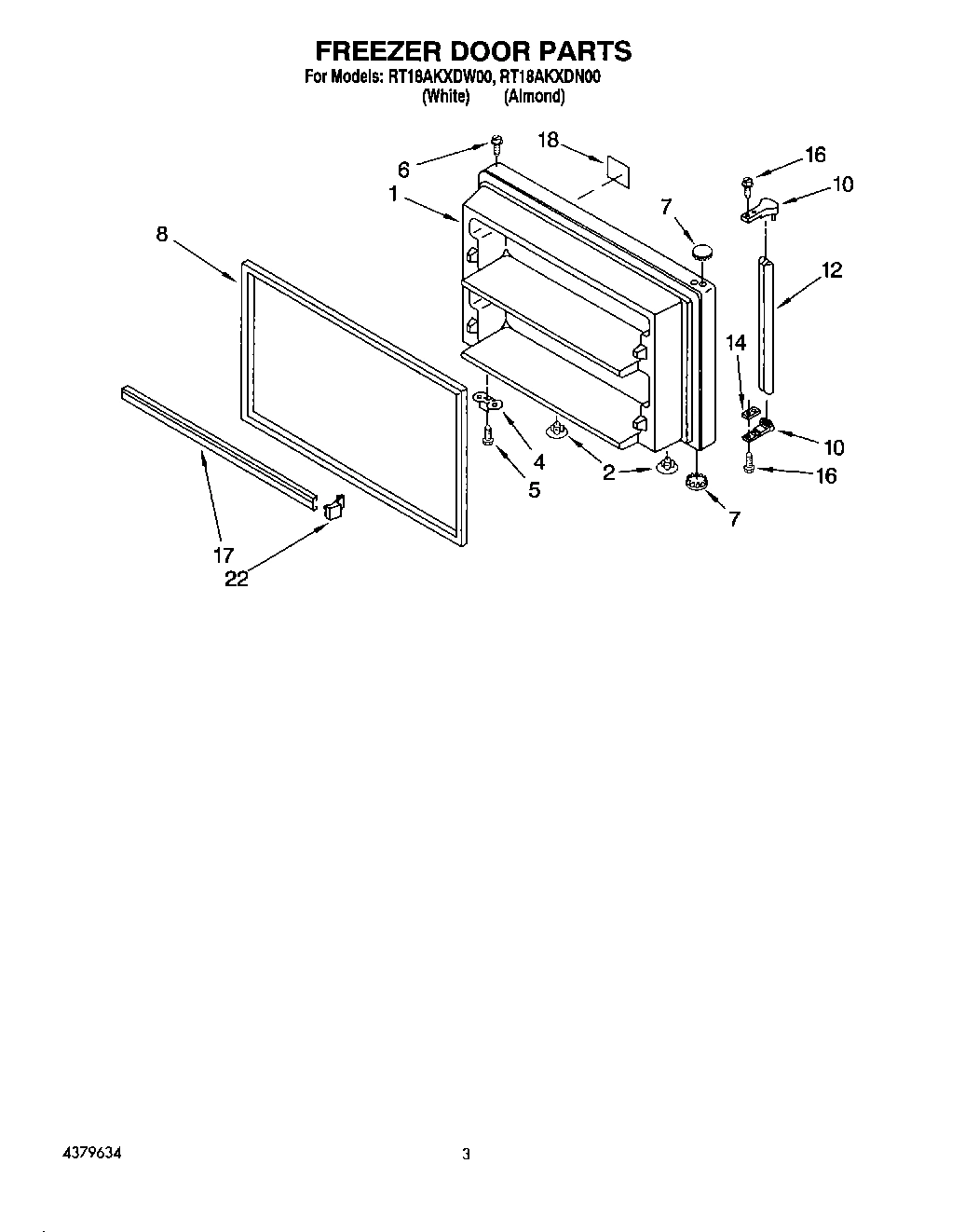

02 - FREEZER DOOR

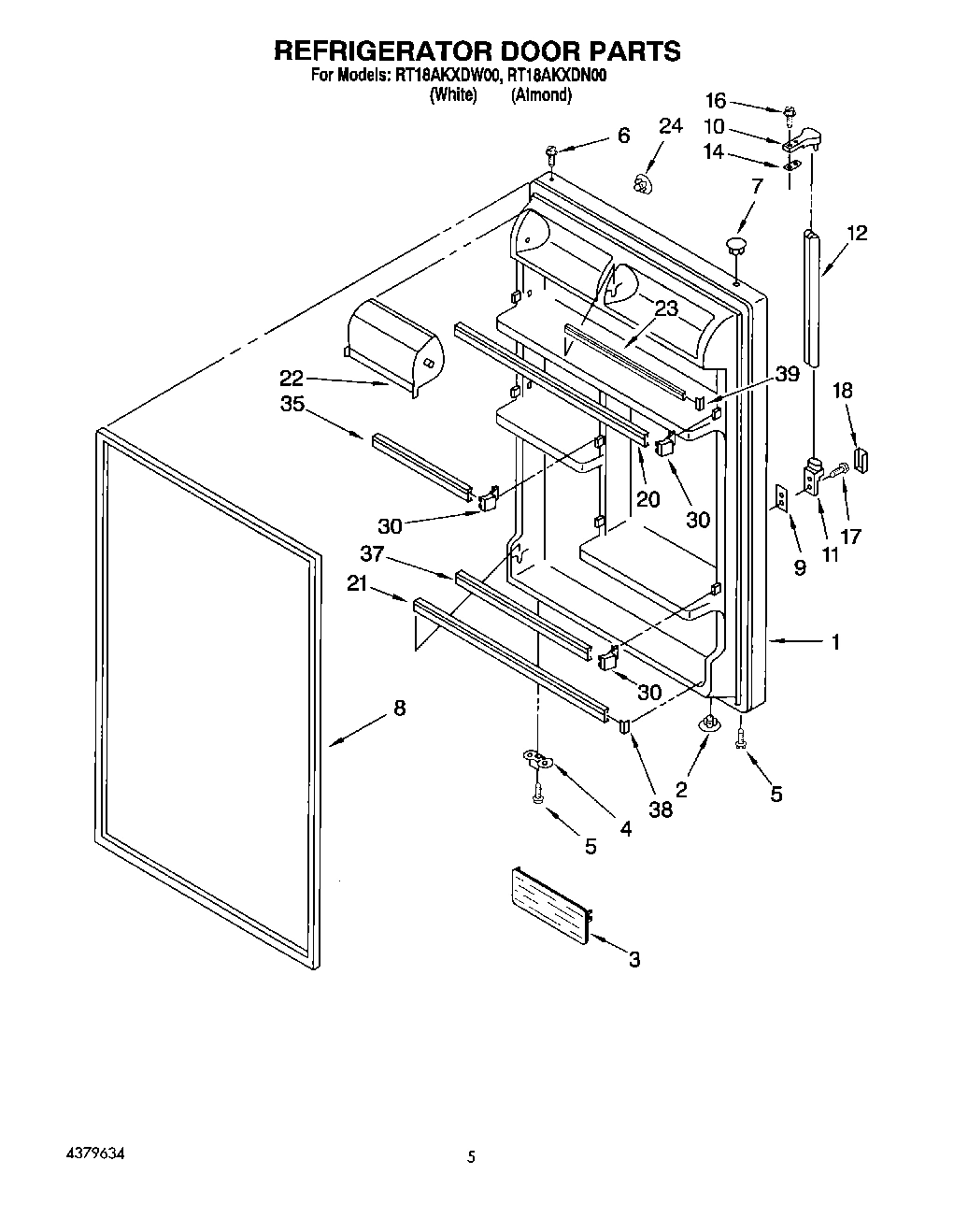

04 - REFRIGERATOR DOOR

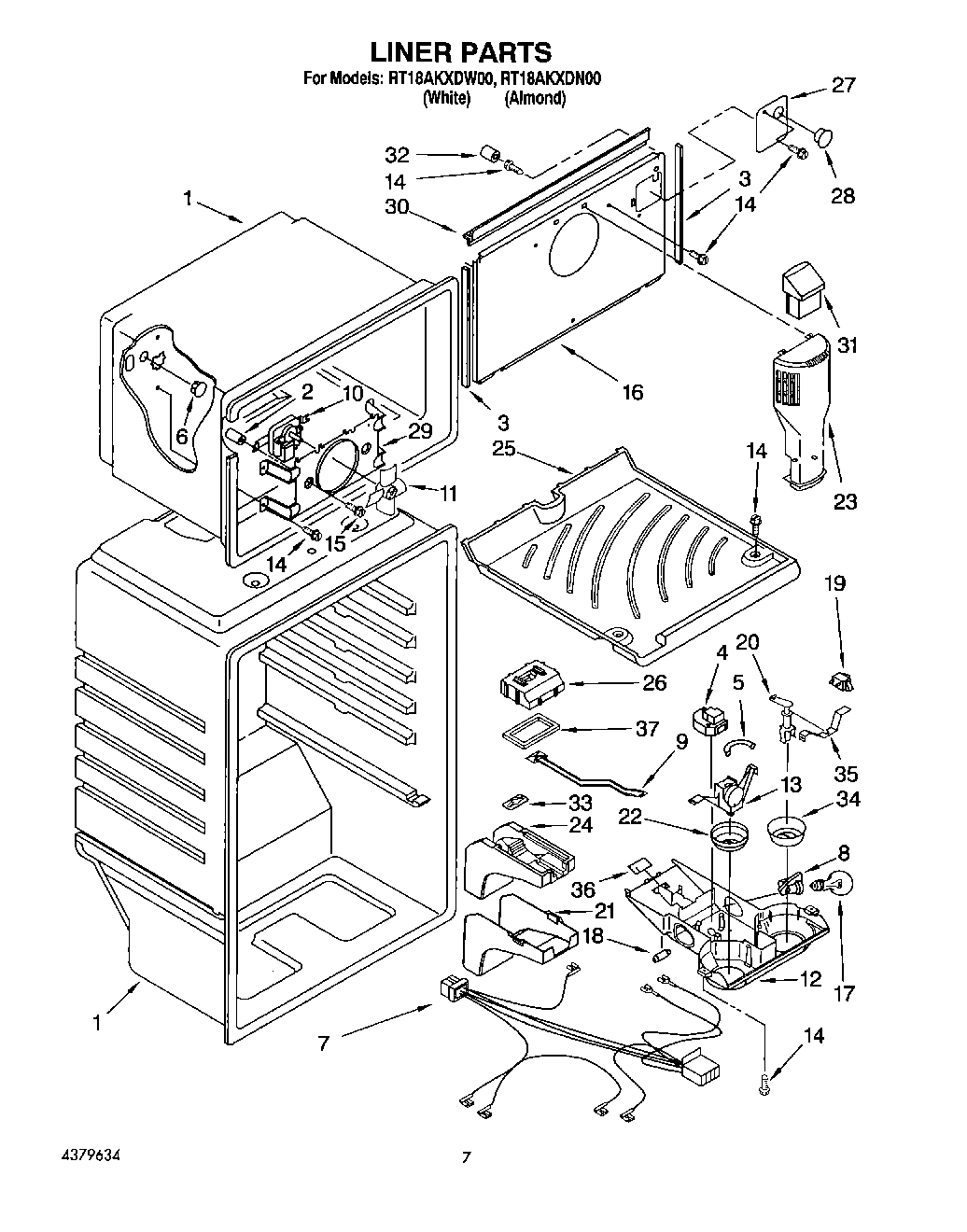

05 - LINER

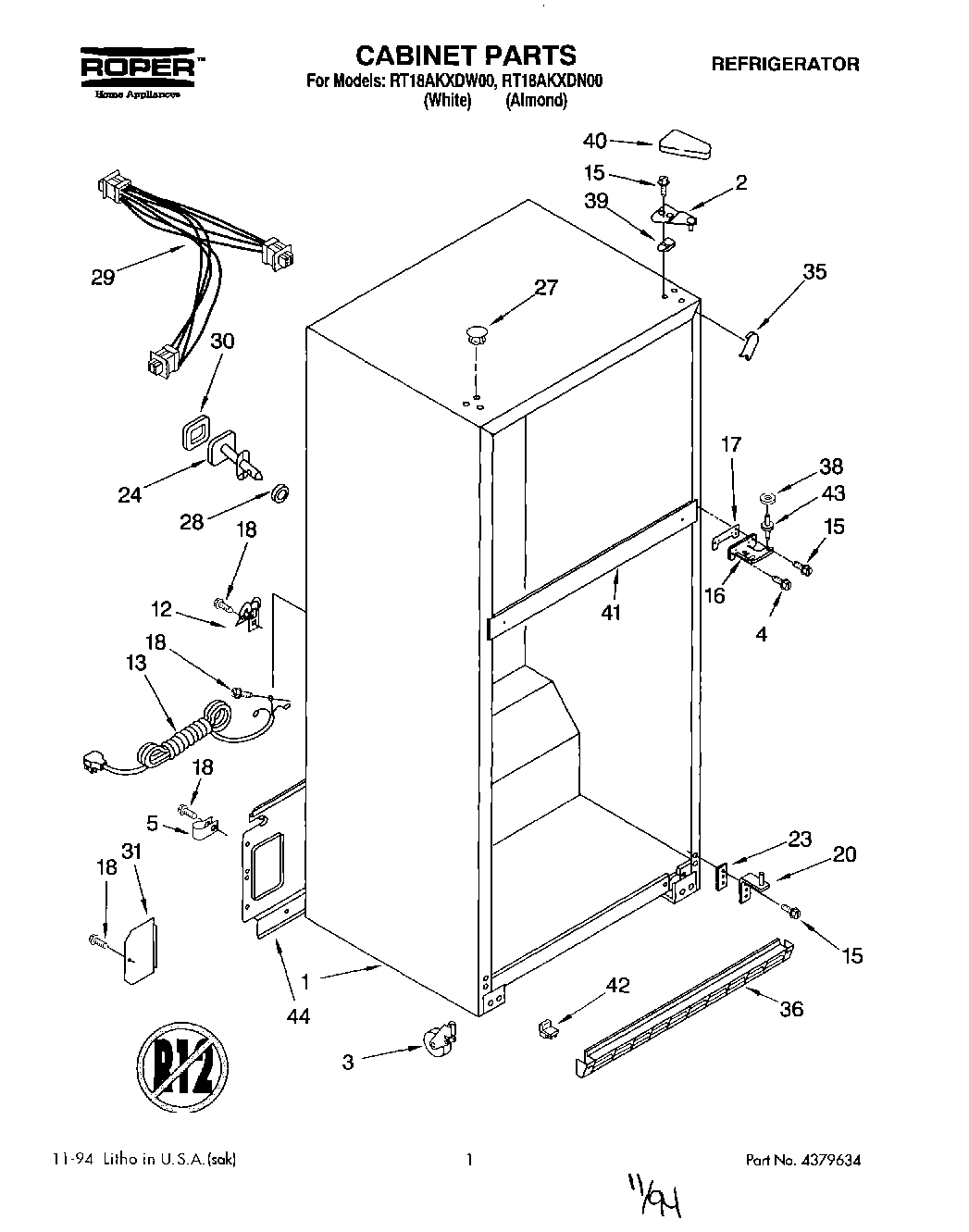

01 - CABINET

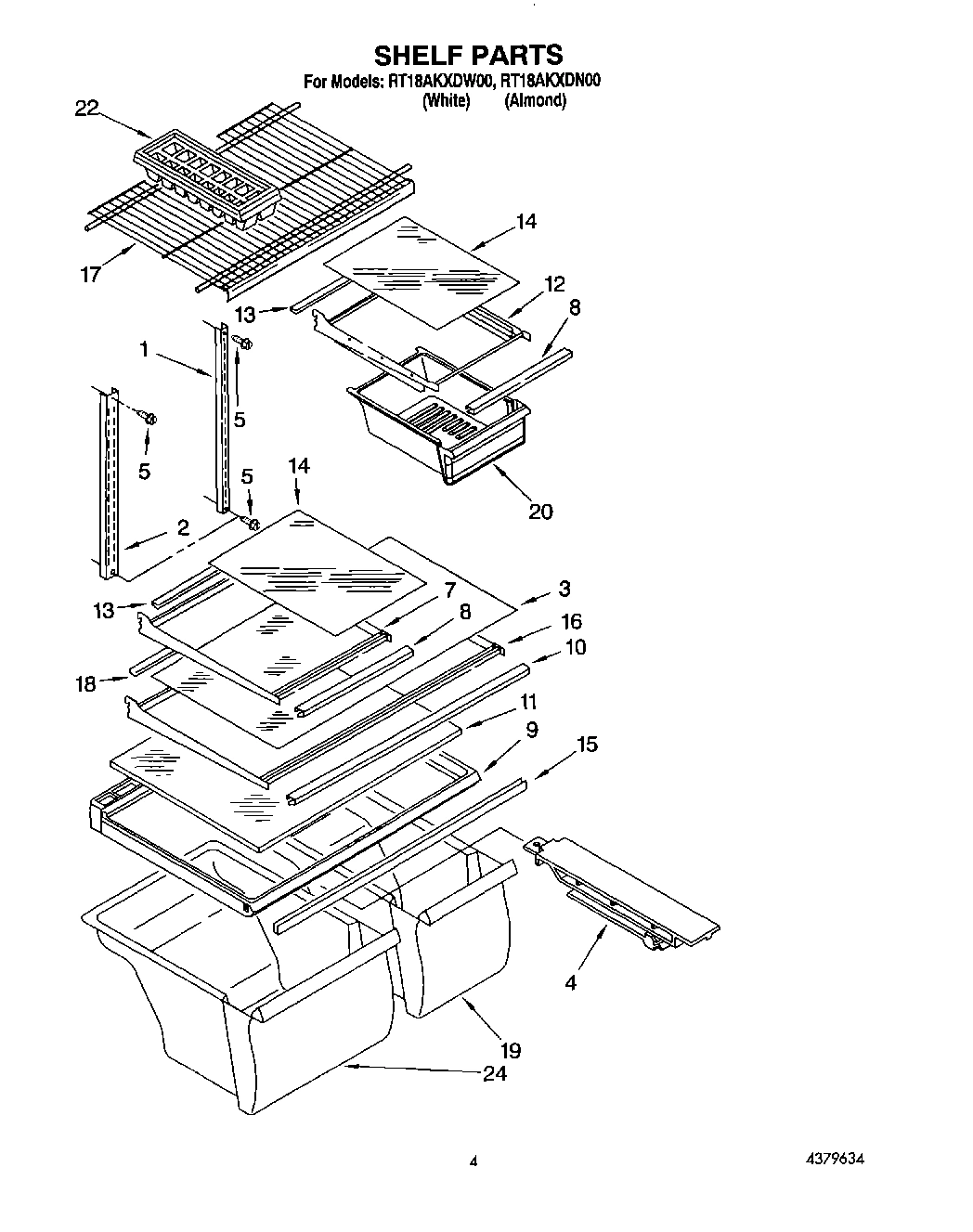

03 - SHELF

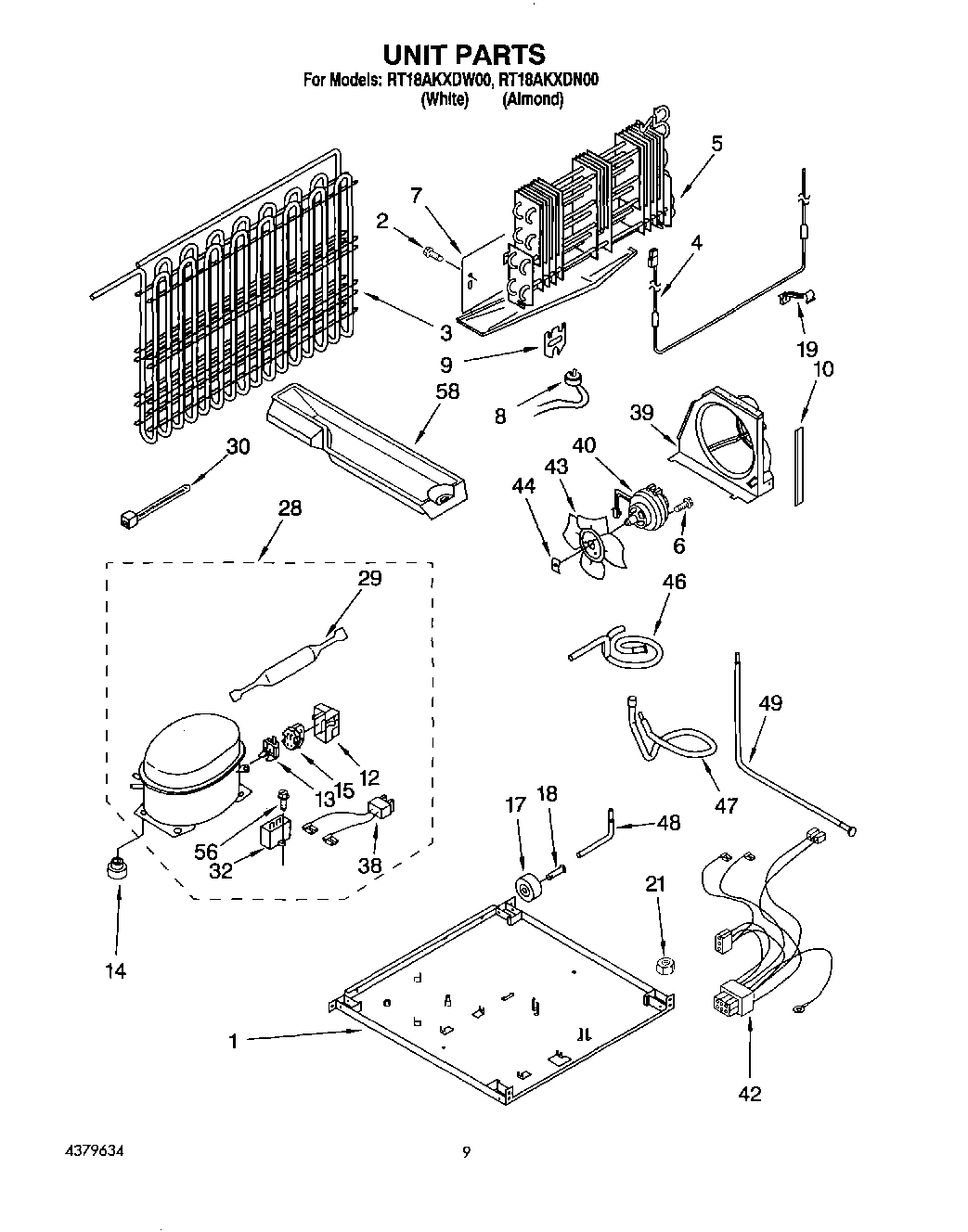

06 - UNIT, LIT/OPTIONAL
Common parts from model Whirlpool RT18AKXDN00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2172667 WPL LIT2172667 Contact Us For Availability
WPL LIT2173304 WPL LIT2173304 Contact Us For Availability
WPL LIT2173308 WPL LIT2173308 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI162281A Contact Us For Availability
1
Shelf, Ladder (2) WPL 2172637 Contact Us For Availability
1
Plate, Unit Mounting WPL 2174620 Contact Us For Availability
2
Shelf, Ladder Center WPL 2172638 Contact Us For Availability
3
Glass, Full Shelf WPL 2173334 Contact Us For Availability
3
Condenser WPL 2172670 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
5
Evaporator Assy. WPL 2176337 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Shelf, Cantilever WPL 2163859 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
8
Trim, Shelf WPL 2176262 Contact Us For Availability
9
Damper, Air WPL 2172570 Contact Us For Availability
9
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Fan Motor WPL 2176298 Contact Us For Availability
10
Trim, Shelf Front WPL 2163867 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
12
Control Box WPL 2176347 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 2176305 Contact Us For Availability
13
Cord, Service WPL 937360 Contact Us For Availability
13
Retainer, Glass WPL 2163882 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Glass, Shelf WPL 2173297 Contact Us For Availability
14
Grommet (4) (Production) WPL 2174621 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
15
Relay (See Overload) WPL ARI162287A Contact Us For Availability
16
Cover - Evaporator WPL 2163818 Contact Us For Availability
16
Shelf, Full Cantilever WPL 2163862 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
18
Trim, Shelf Rear WPL 2163884 Contact Us For Availability
19
Clip, Heater WPL 2166244 Contact Us For Availability
20
Post, Damper WPL 2163809 Contact Us For Availability
20
Hinge Butt WPL 2172577 Contact Us For Availability
20
Pan, Meat WPL 2173312 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI162288A Contact Us For Availability
22
Knob, Thermostat WPL 2174605 Contact Us For Availability
23
Air Tower WPL 2172575 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI162282A Contact Us For Availability
25
Freezer Floor WPL 2172679 Contact Us For Availability
26
Air Diffuser, Top WPL 2172563 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug WPL 1103725 Contact Us For Availability
28
Seal, Front (Not Serviced) WPL ARI162283A Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
29
Cabinet, Wiring Assembly WPL 2176382 Contact Us For Availability
30
Seal, Rear (Not Serviced) WPL ARI162284A Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Capacitor (Service Only) WPL 2169137 Contact Us For Availability
33
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
34
Knob, Damper WPL 2174604 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
36
Grille WPL 2166134 Contact Us For Availability
37
Gasket, Air Diffuser WPL 2172594 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
39
Air Baffle WPL 2172697 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI162285A Contact Us For Availability
42
Corner Filler, Grille WPL 2166205 Contact Us For Availability
42
Wire Assy. Unit WPL 2176279 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
44
Cover, Unit WPL 2176272 Contact Us For Availability
46
Tube, Discharge WPL 2172660 Contact Us For Availability
47
Tube, Suction WPL 2172662 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
WPL 978029 WPL 978029 Contact Us For Availability
58
WPL 876029 WPL 876029 Contact Us For Availability
58
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
58
WPL 799344 WPL 799344 Contact Us For Availability
58
Door Reversal Instructions WPL 2172516 Contact Us For Availability
58
Evap. Tray WPL 2176339 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
58
WPL 799832 WPL 799832 Contact Us For Availability
58
WPL 799833 WPL 799833 Contact Us For Availability
58
WPL 978028 WPL 978028 Contact Us For Availability
58
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
