Model Whirlpool RT17DKXBL00 – Common Parts & Diagrams
02 - DOOR
05 - SHELF, LIT/OPTIONAL

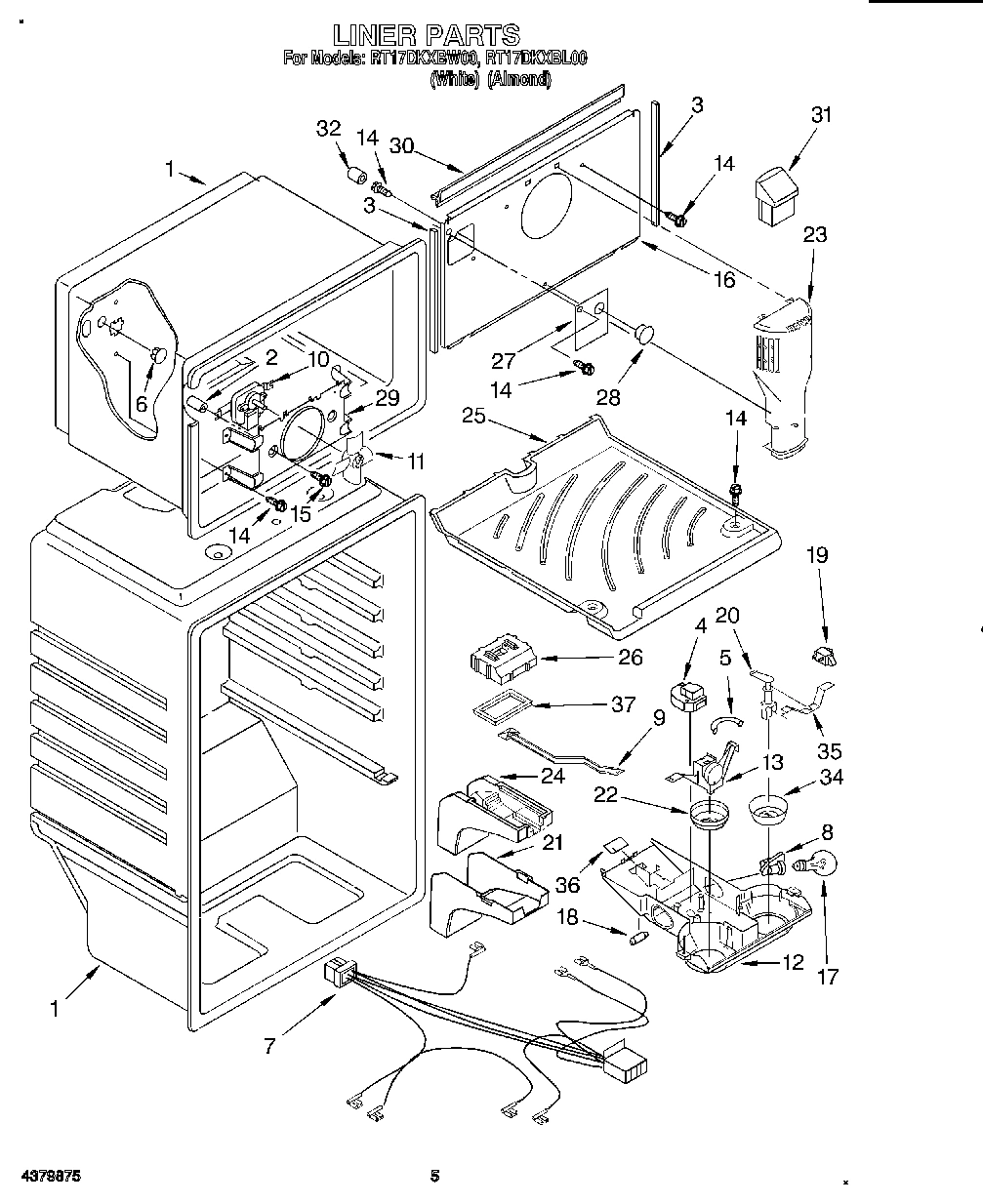

03 - LINER

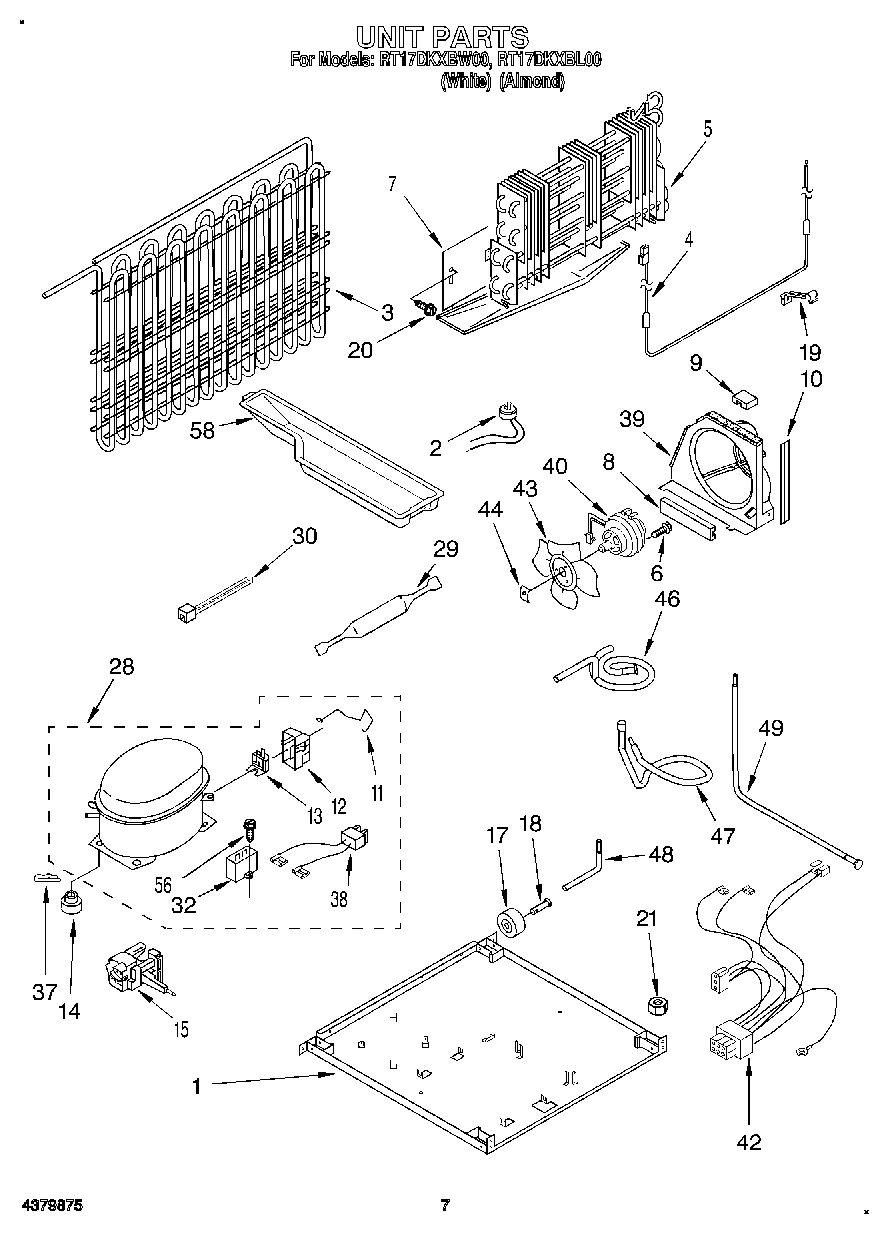

04 - UNIT

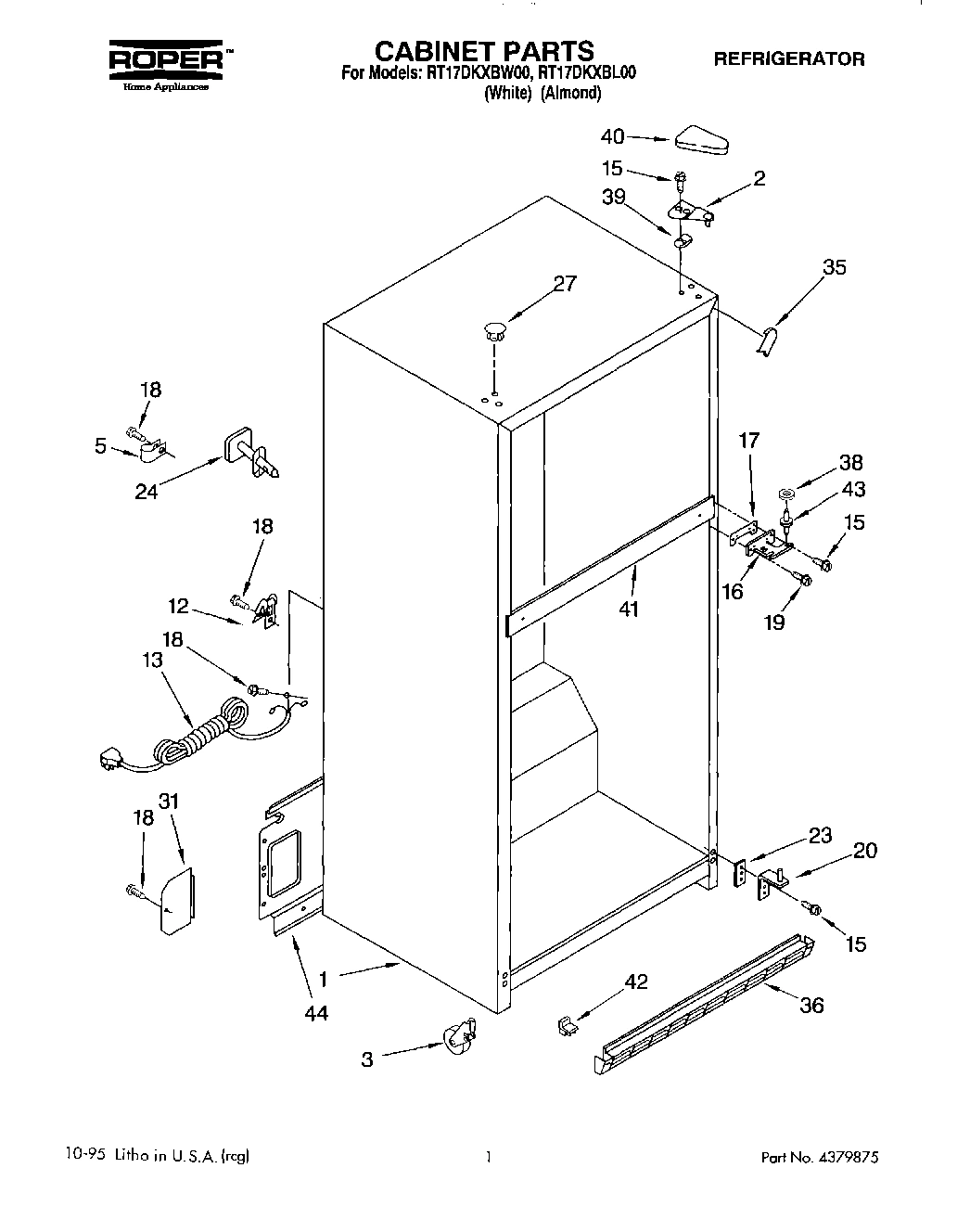

01 - CABINET
Common parts from model Whirlpool RT17DKXBL00
1
Liner (Not A Serviceable Part) WPL ARI126344A Contact Us For Availability
1
Plate, Unit Mounting WPL 2176202 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI126341A Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
3
Condenser WPL 2172670 Contact Us For Availability
4
Timer, Defrost (8 Hr.) WPL 2154983 Contact Us For Availability
5
Evaporator Assy. WPL 2166176 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
7
Heat Shield and Drain Pan WPL 2172589 Contact Us For Availability
8
Support, Air Baffle (Bottom) WPL 2174612 Contact Us For Availability
9
Damper, Air WPL 2172570 Contact Us For Availability
9
Support, Air Baffle (Top) WPL 2174613 Contact Us For Availability
10
Insert WPL 2166149 Contact Us For Availability
10
Fan Motor WPL 2163766 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
11
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
11
Torx Key WPL 1117510 Contact Us For Availability
11
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
11
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
11
Clamp (Production Only) WPL 2162400 Contact Us For Availability
12
Control Box WPL 2172566 Contact Us For Availability
12
Cover (Service Compressor Only) WPL 1108115 Contact Us For Availability
13
Overload WPL 2154758 Contact Us For Availability
13
Cord, Service WPL 937360 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
15
Module WPL 2163892 Contact Us For Availability
16
Cover-Evaporator WPL 2163816 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2166244 Contact Us For Availability
19
Screw WPL 489426 Contact Us For Availability
20
Post, Damper WPL 2163809 Contact Us For Availability
20
Hinge Butt WPL 2172577 Contact Us For Availability
21
Cover, Air Diffuser WPL 2172560 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI126345A Contact Us For Availability
22
Knob, Thermostat WPL 2163800 Contact Us For Availability
23
Air Tower WPL 2172574 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
24
Air Diffuser, Bottom WPL 2172564 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI126342A Contact Us For Availability
25
Freezer Floor WPL 2172679 Contact Us For Availability
26
Air Diffuser, Top WPL 2172563 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug WPL 1103725 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 32, 38 WPL 2162441 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
30
Gasket, Evaporator Cover (Top) WPL 2166192 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
34
Knob, Dampener WPL 2163801 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
36
Grille WPL 2166134 Contact Us For Availability
37
Gasket, Air Diffuser WPL 2172594 Contact Us For Availability
37
Clip WPL 2163787 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
39
Air Baffle WPL 2172697 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI126343A Contact Us For Availability
42
Wire Assy., Unit WPL 2172600 Contact Us For Availability
42
Corner Filler, Grille WPL 2166205 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
44
Cover, Unit WPL 2163814 Contact Us For Availability
46
Tube, Discharge WPL 2172673 Contact Us For Availability
47
Tube, Suction WPL 2172677 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
