Model Whirlpool RT16DKYXW00 – Common Parts & Diagrams
02 - CABINET
05 - SHELF

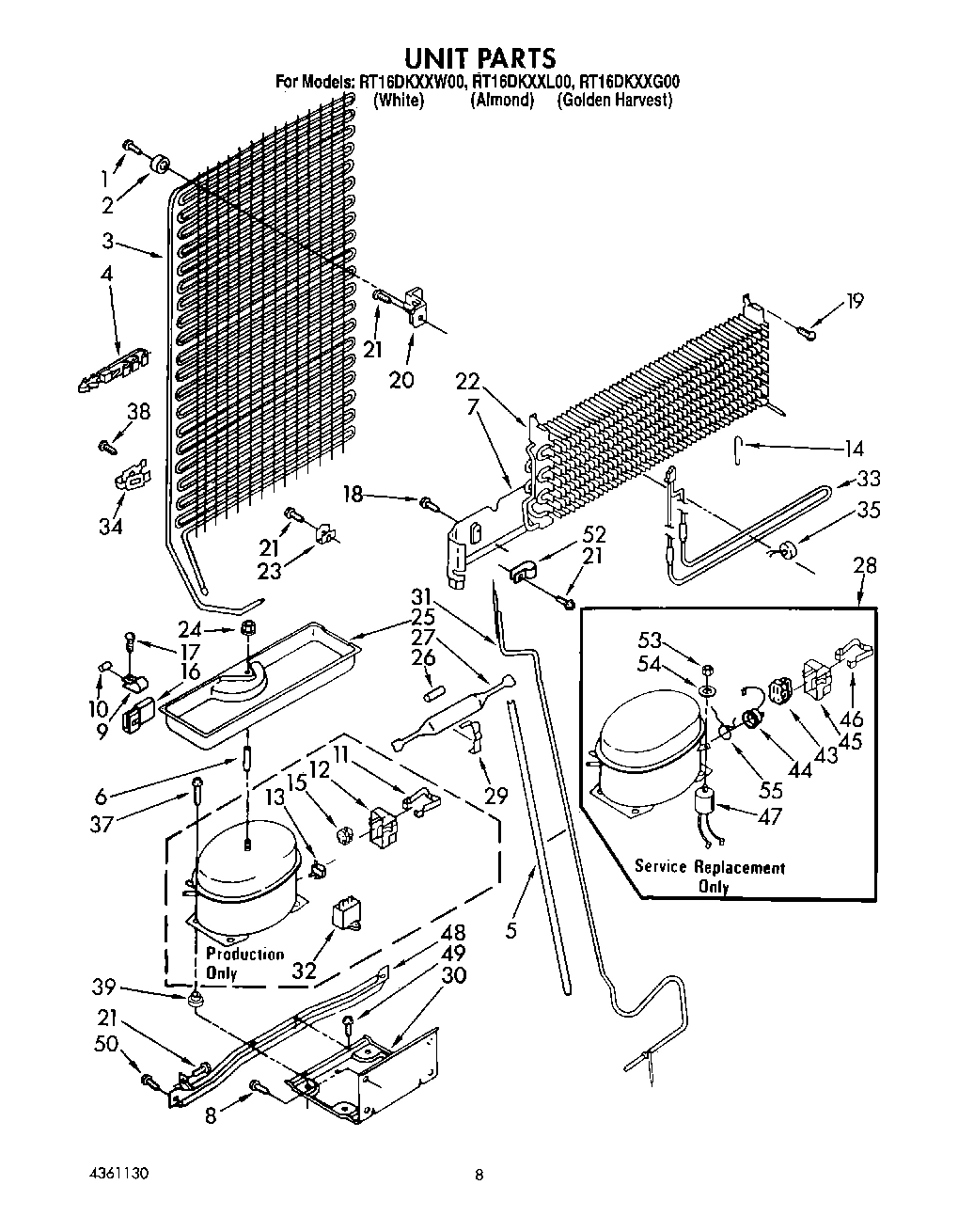

07 - UNIT

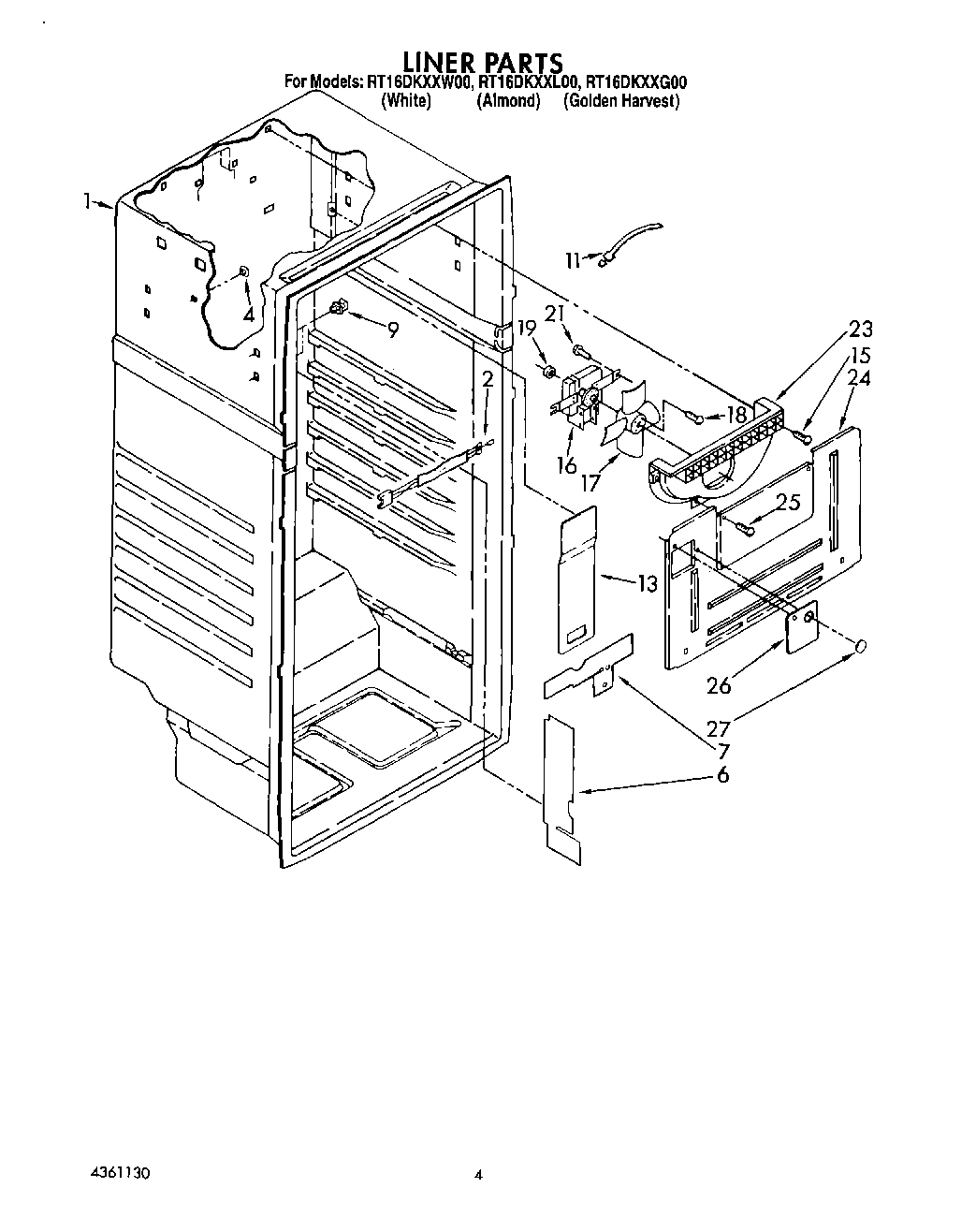

03 - LINER

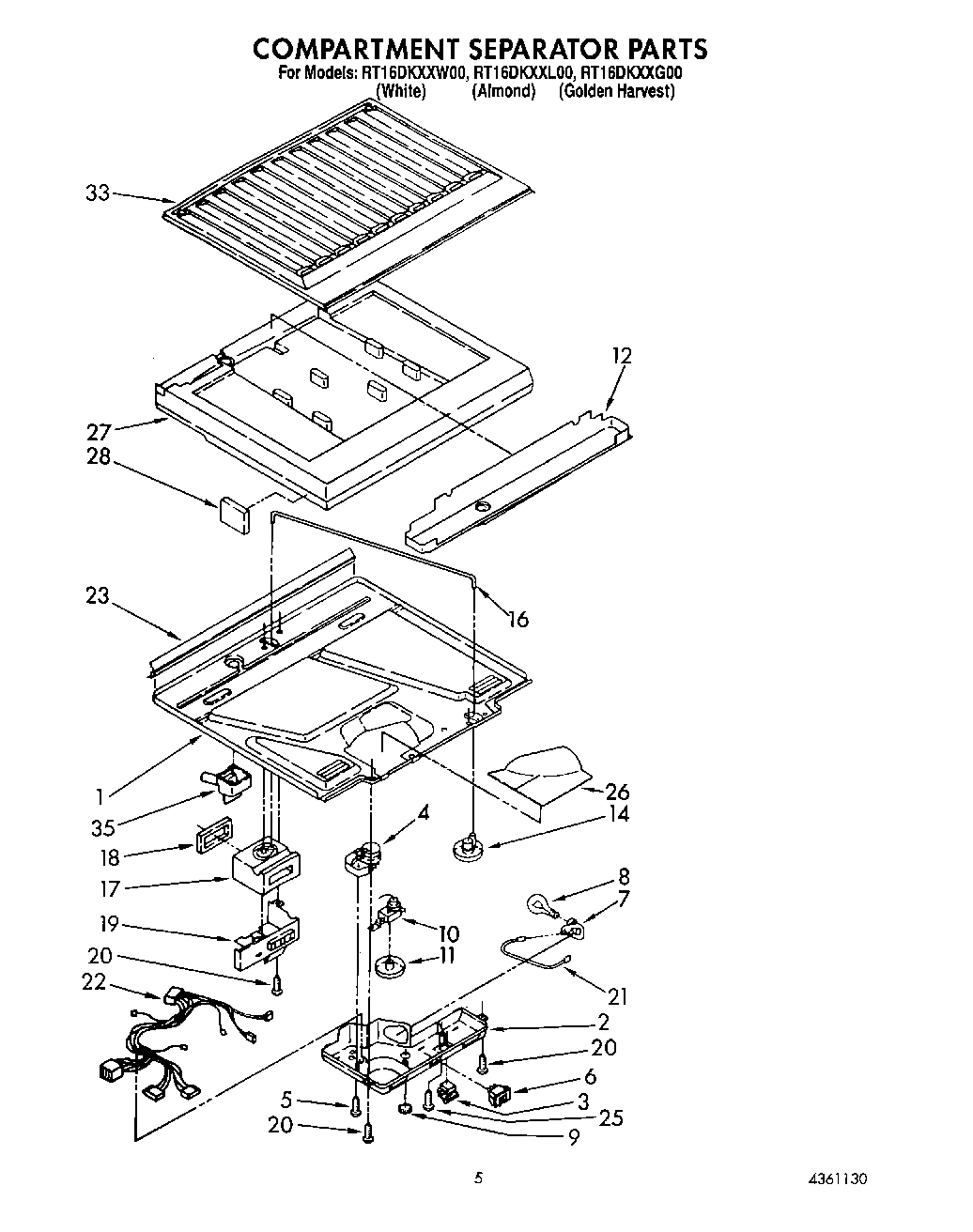

04 - COMPARTMENT SEPARATOR

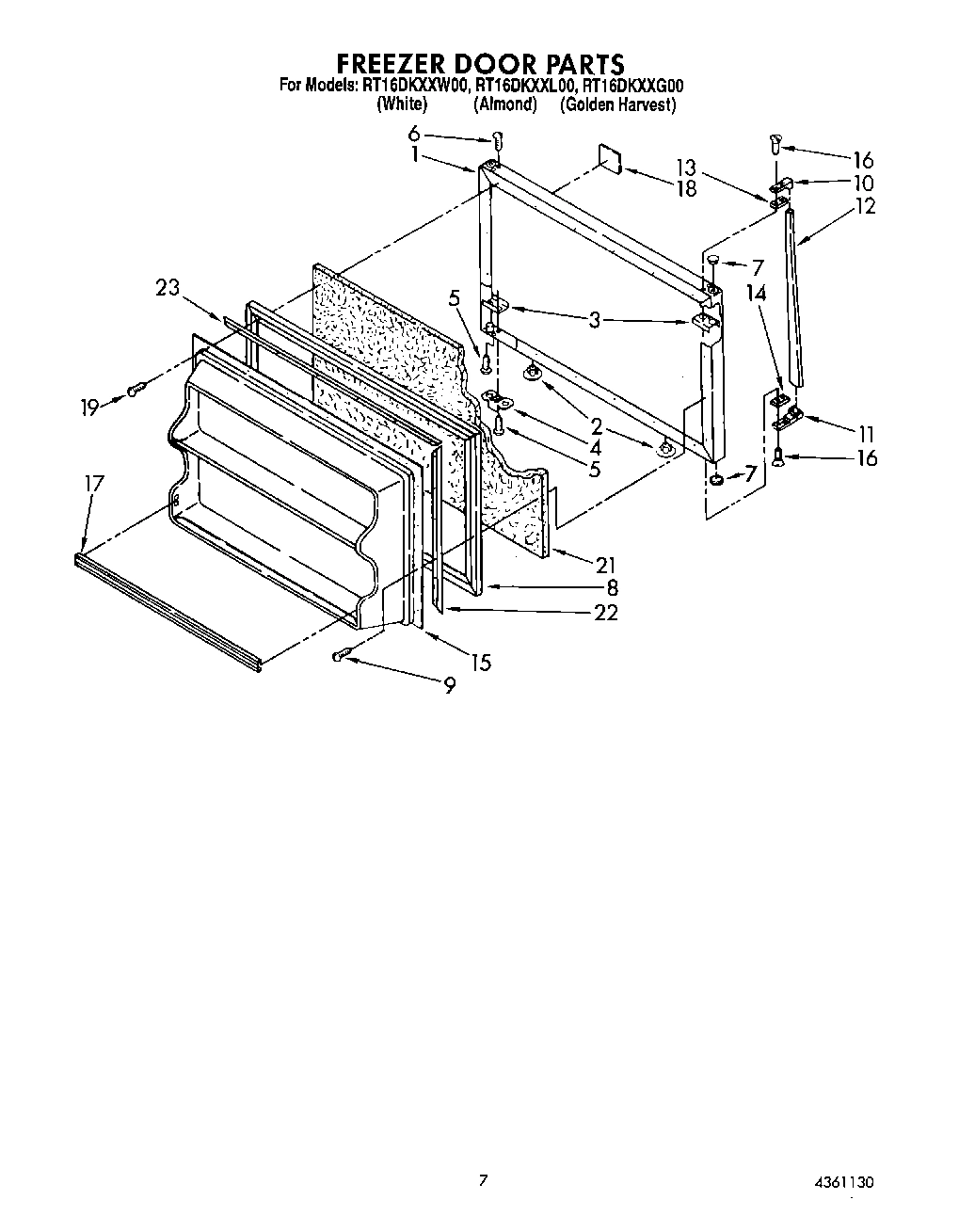

06 - FREEZER DOOR

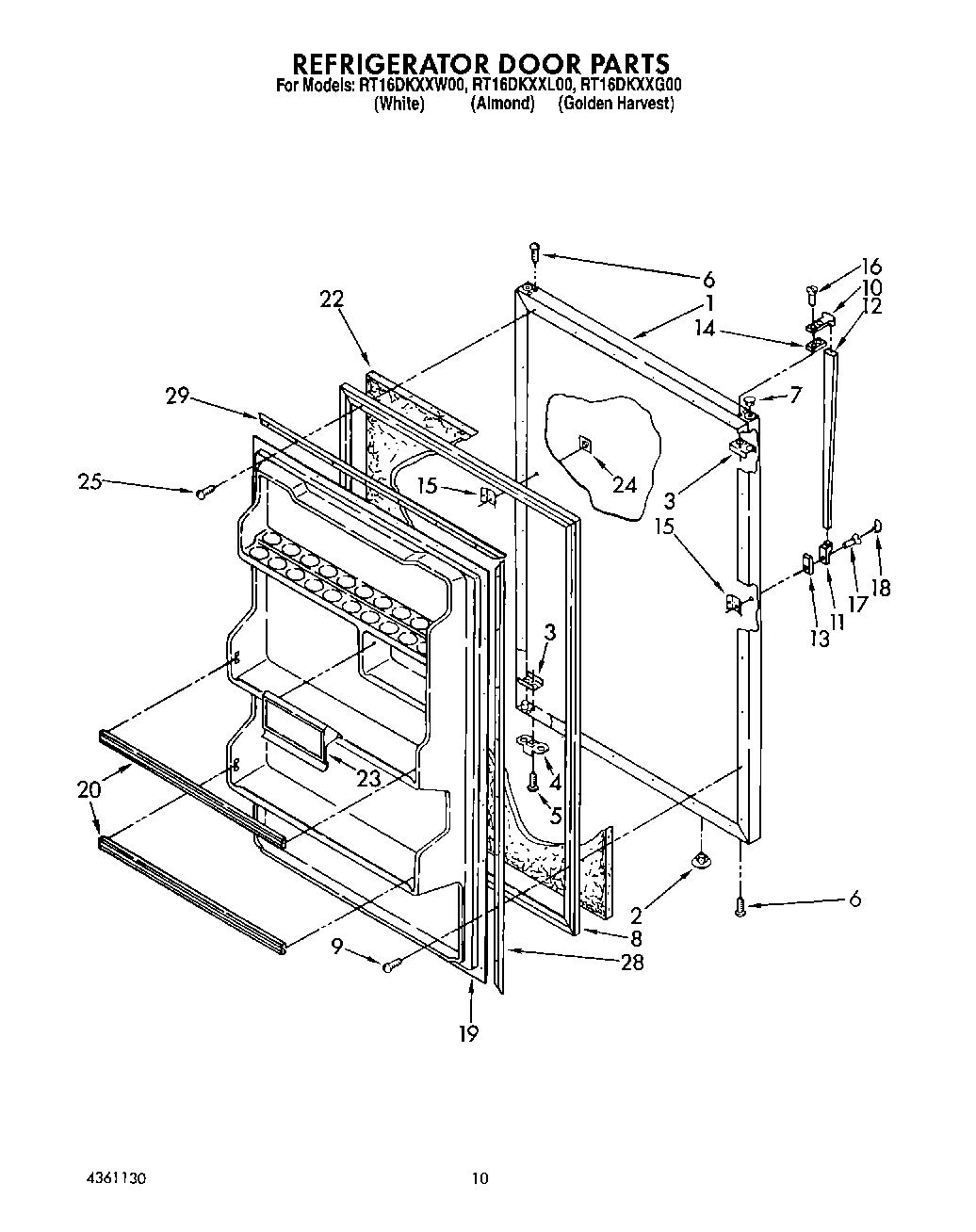

08 - REFRIGERATOR DOOR , LIT/OPTIONAL
Common parts from model Whirlpool RT16DKYXW00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2150256 WPL LIT2150256 Contact Us For Availability
WPL LIT2152446 WPL LIT2152446 Contact Us For Availability
WPL LIT2154703 WPL LIT2154703 Contact Us For Availability
WPL LIT4361130 WPL LIT4361130 Contact Us For Availability
1
Shelf, Pullout (2) WPL 943785 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI126254A Contact Us For Availability
1
Bottom, Compartment Separator WPL 1111794 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1103940 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Gol WPL 1103941 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1103942 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 22) WPL 1103917 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 22) WPL 1103918 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 22) WPL 1103919 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Support, Crisper Cover WPL 1103731 Contact Us For Availability
2
Bumper (2) WPL 944772 Contact Us For Availability
2
Box, Control WPL 1126703 Contact Us For Availability
2
Hole Plug WPL 534927 Contact Us For Availability
2
Hole Plug (Almond) WPL 989197 Contact Us For Availability
2
Hole Plug (Golden Harvest) WPL 989879 Contact Us For Availability
3
Roller, Front & Rear WPL 2152014 Contact Us For Availability
3
Cover, Crisper WPL 1124388 Contact Us For Availability
3
Condenser WPL 2154869 Contact Us For Availability
4
Post, Crisper WPL 836410 Contact Us For Availability
4
Clip, Tube (2) WPL 1118652 Contact Us For Availability
4
Timer, Defrost (8 Hour) WPL 1127571 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
6
Shelf, Ice Pan WPL 2151427 Contact Us For Availability
6
Spacer WPL 2154438 Contact Us For Availability
6
Side, Electric Shield WPL 942751 Contact Us For Availability
7
Heat Shield Evaporator WPL 1108169 Contact Us For Availability
7
Top, Electric Shield WPL 1129067 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Pan, Crisper (2) WPL 1124389 Contact Us For Availability
9
Stud Hook (2) WPL 939065 Contact Us For Availability
9
Tube Clamp WPL 510716 Contact Us For Availability
10
Dampener WPL 945593 Contact Us For Availability
11
Clip, Strap WPL 1123230 Contact Us For Availability
11
Knob, Thermostat WPL 2148148 Contact Us For Availability
12
Case, Relay WPL 1108115 Contact Us For Availability
12
Drain Pan WPL 1108170 Contact Us For Availability
12
Handle, Center WPL 1109171 Contact Us For Availability
12
Handle, Center WPL 1109166 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle End (Side) WPL 992872 Contact Us For Availability
13
Overload WPL 1105172 Contact Us For Availability
13
Cover, Air Duct WPL 1118775 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Support, Heater WPL 1108172 Contact Us For Availability
14
Knob, Air Control WPL 2148149 Contact Us For Availability
15
Panel, Interior Door (Freezer) WPL 1120629 Contact Us For Availability
16
Rod, Connecting WPL 1111271 Contact Us For Availability
17
Screw WPL 489050 Contact Us For Availability
17
Air Diffuser Assembly WPL 1118774 Contact Us For Availability
17
Trim, Door Shelf WPL 1116038 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
18
Nameplate WPL 2160005 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Interior Door Panel WPL 1120628 Contact Us For Availability
20
Bracket, Condenser (2) WPL 944791 Contact Us For Availability
20
Trim, Door (Top) (2) WPL 1116031 Contact Us For Availability
21
Screw (2) WPL 489168 Contact Us For Availability
21
Wiring Assembly WPL 937078 Contact Us For Availability
22
Evaporator WPL 942866 Contact Us For Availability
22
Wiring Assembly, Control Box & Cabinet WPL 2154705 Contact Us For Availability
22
Gasket Retainer, Side (2) WPL 1120613 Contact Us For Availability
23
Scroll, Fan WPL 1122814 Contact Us For Availability
23
Gasket, Bottom Separator WPL 1123916 Contact Us For Availability
23
Compartment, Butter Door WPL 1124313 Contact Us For Availability
24
Evaporator Cover WPL 2151569 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Hole Plug, Handle (Golden Harvest) WPL 1122694 Contact Us For Availability
25
Evaporator Tray WPL 1101002 Contact Us For Availability
25
Screw, 8 x 1-3/8 WPL 488678 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1123390 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Compressor (Includes Items 43, 44, 45, 46, 47 WPL 482981 Contact Us For Availability
28
Pad (2) WPL 946367 Contact Us For Availability
28
Gasket Retainer, Side (2) WPL 1120615 Contact Us For Availability
29
WPL 876029 WPL 876029 Contact Us For Availability
29
WPL 479502 WPL 479502 Contact Us For Availability
29
WPL 799344 WPL 799344 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
29
Gasket Retainer, Top & Bottom (2) WPL 1120614 Contact Us For Availability
29
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
29
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
29
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
29
WPL 542639 WPL 542639 Contact Us For Availability
29
WPL 799340 WPL 799340 Contact Us For Availability
29
WPL 799833 WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
30
Unit Mounting Plate WPL 1118781 Contact Us For Availability
31
Exchanger, Heat WPL 1127874 Contact Us For Availability
33
Heater, Defrost WPL 1127659 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1119324 Contact Us For Availability
34
Clip, Tube WPL 1105406 Contact Us For Availability
35
Cup, Drain WPL 939191 Contact Us For Availability
39
Cover WPL 942845 Contact Us For Availability
40
WPL 1122929 WPL 1122929 Contact Us For Availability
40
WPL 1126569 WPL 1126569 Contact Us For Availability
40
WPL 1126571 WPL 1126571 Contact Us For Availability
44
WPL 937360 WPL 937360 Contact Us For Availability
44
Overload WPL 483037 Contact Us For Availability
45
WPL 937357 WPL 937357 Contact Us For Availability
45
Cover, Terminal WPL 1105015 Contact Us For Availability
46
WPL 942813 WPL 942813 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
47
WPL 1106507 WPL 1106507 Contact Us For Availability
47
Capacitor WPL 482996 Contact Us For Availability
48
Unit Mounting Rail WPL 1118782 Contact Us For Availability
49
WPL 1106511 WPL 1106511 Contact Us For Availability
50
Screw, 1/4-28 x 1 (2) WPL 488973 Contact Us For Availability
52
WPL 519405 WPL 519405 Contact Us For Availability
52
Tube, Clamp WPL 489151 Contact Us For Availability
53
Nut WPL 489142 Contact Us For Availability
54
WPL 2147312 WPL 2147312 Contact Us For Availability
54
Washer WPL 489143 Contact Us For Availability
55
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
55
Overload Spring WPL 1114190 Contact Us For Availability
55
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
57
WPL 1120224 WPL 1120224 Contact Us For Availability
58
WPL 1106510 WPL 1106510 Contact Us For Availability
× ![]()
