Model Whirlpool RT16DKYVW11 – Common Parts & Diagrams

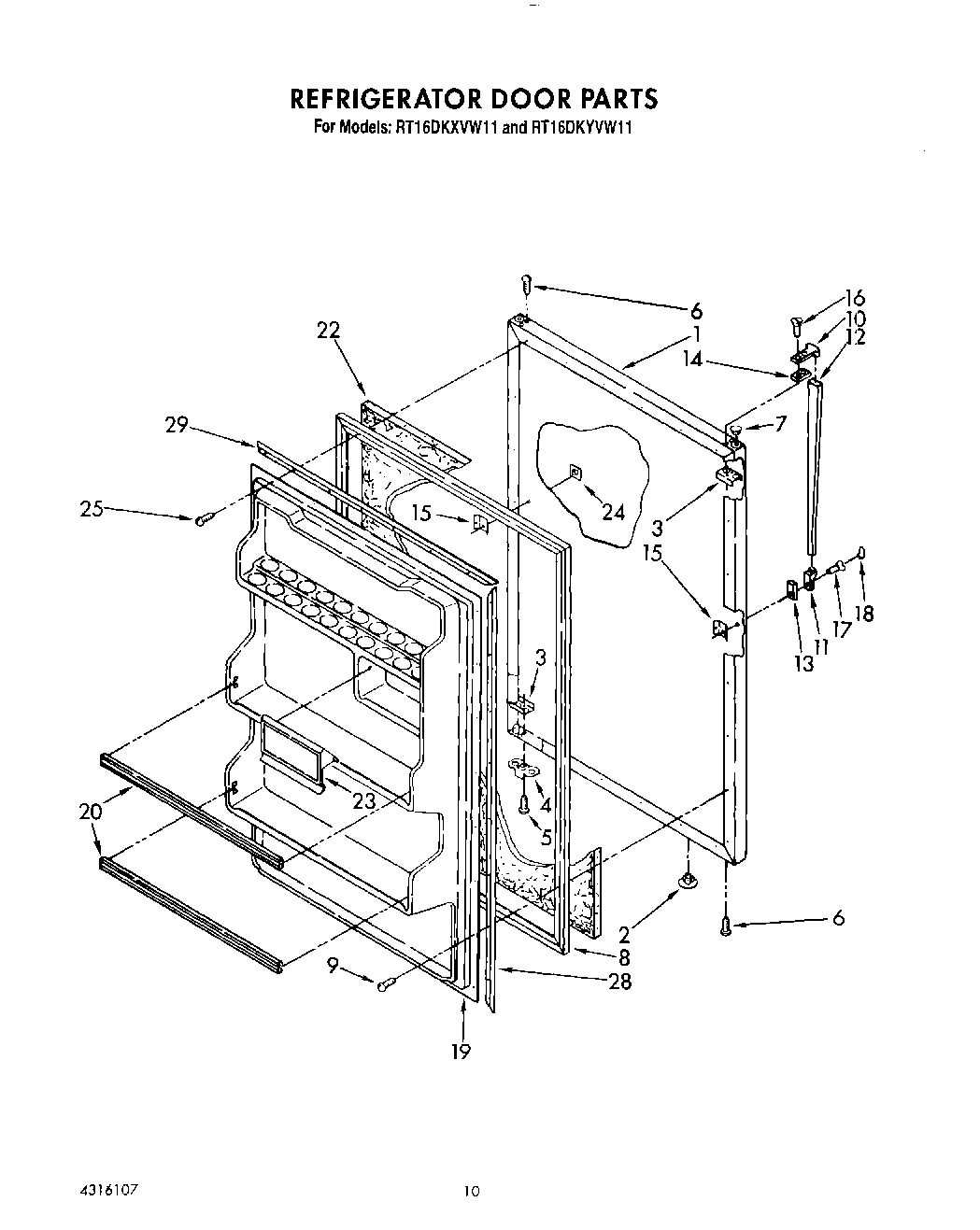

08 - REFRIGERATOR DOOR, LIT/OPTIONAL

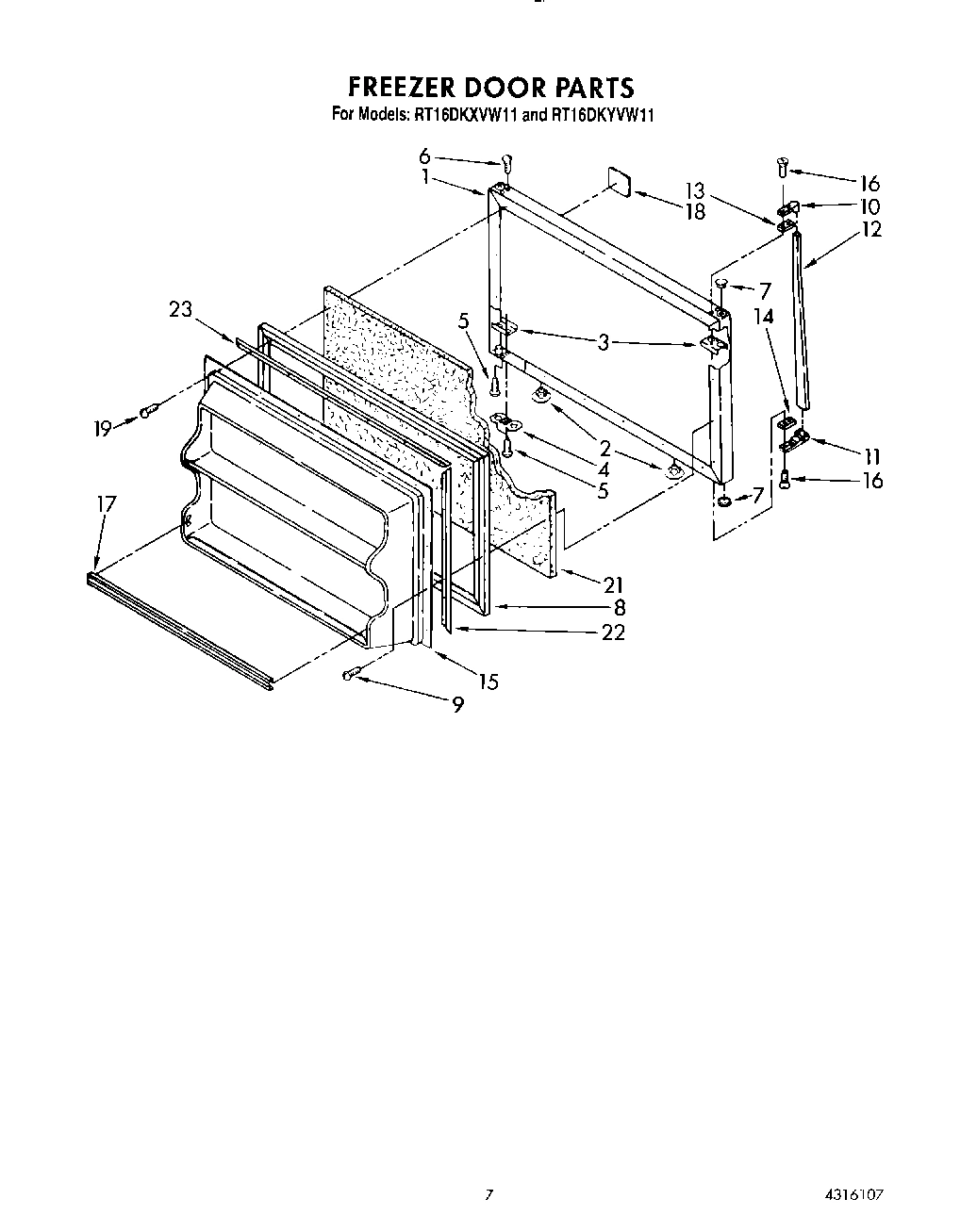

06 - FREEZER DOOR
07 - UNIT
Common parts from model Whirlpool RT16DKYVW11
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1103940 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Gol WPL 1103941 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1103942 Contact Us For Availability
2
Hole Plug (White) WPL 534927 Contact Us For Availability
2
Hole Plug (Almond) WPL 989197 Contact Us For Availability
2
Hole Plug (Golden Harvest) WPL 989879 Contact Us For Availability
2
Bumper (2) WPL 944772 Contact Us For Availability
3
Condenser & Precooler Assembly WPL 1105138 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Clip, Tube (2) WPL 1118652 Contact Us For Availability
6
Spacer WPL 1105130 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Heat Shield Evaporator WPL 1108169 Contact Us For Availability
9
Tube Clamp WPL 510716 Contact Us For Availability
10
Dampener WPL 945593 Contact Us For Availability
12
Handle, Center WPL 1109171 Contact Us For Availability
12
Case, Relay WPL 1108115 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle End (Side) WPL 992872 Contact Us For Availability
13
Overload WPL 1105172 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Support, Heater WPL 1108172 Contact Us For Availability
15
Panel, Interior Door (Freezer) WPL 1120629 Contact Us For Availability
17
Trim, Door Shelf WPL 1116038 Contact Us For Availability
17
Screw WPL 489050 Contact Us For Availability
18
Nameplate WPL 1124315 Contact Us For Availability
20
Bracket, Condenser (2) WPL 944791 Contact Us For Availability
21
Insulation Foam (Required When Replacing Exte WPL 876029 Contact Us For Availability
22
Gasket Retainer, Side (2) WPL 1120613 Contact Us For Availability
22
Evaporator WPL 942866 Contact Us For Availability
23
Gasket Retainer, Top & Bottom (2) WPL 1120614 Contact Us For Availability
25
Evaporator Tray WPL 1101002 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
28
Compressor (Includes Items 43, 44, 45, 46, 47 WPL 482981 Contact Us For Availability
29
WPL 479502 WPL 479502 Contact Us For Availability
29
WPL 799344 WPL 799344 Contact Us For Availability
29
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
29
WPL 542639 WPL 542639 Contact Us For Availability
29
WPL 799340 WPL 799340 Contact Us For Availability
29
WPL 799833 WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
30
Unit Mounting Plate WPL 1118781 Contact Us For Availability
31
Exchanger, Heat WPL 1127874 Contact Us For Availability
33
Heater, Defrost WPL 1127659 Contact Us For Availability
36
Clamp WPL 942873 Contact Us For Availability
44
Overload WPL 483037 Contact Us For Availability
45
Cover, Terminal WPL 1105015 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
47
Capacitor WPL 482996 Contact Us For Availability
48
Unit Mounting Rail WPL 1118782 Contact Us For Availability
50
Screw, 1/4-28 x 1 (2) WPL 488973 Contact Us For Availability
52
Tube, Clamp WPL 489151 Contact Us For Availability
53
Nut WPL 489142 Contact Us For Availability
54
Washer WPL 489143 Contact Us For Availability
55
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
55
Overload Spring WPL 1114190 Contact Us For Availability
55
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
