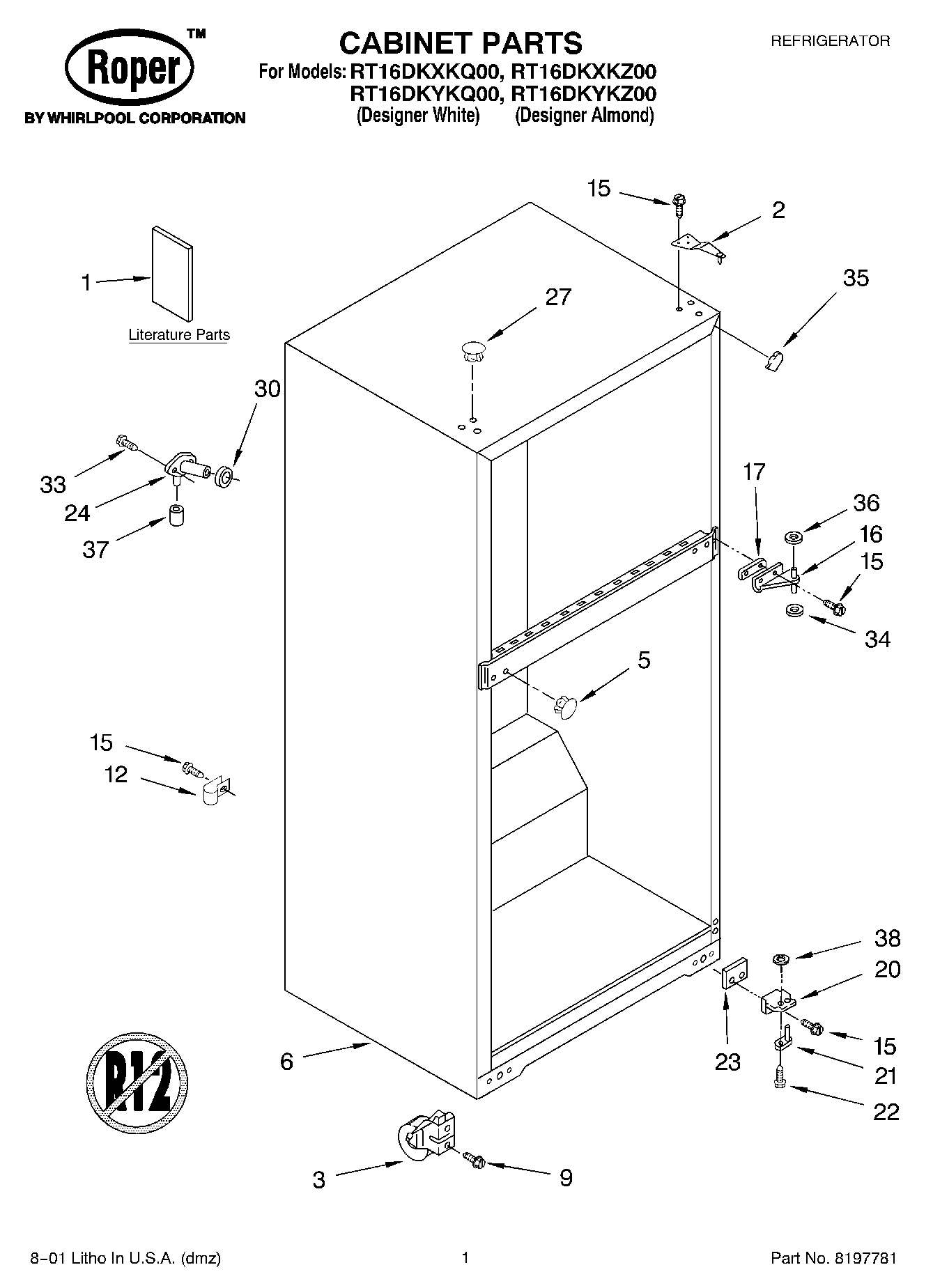

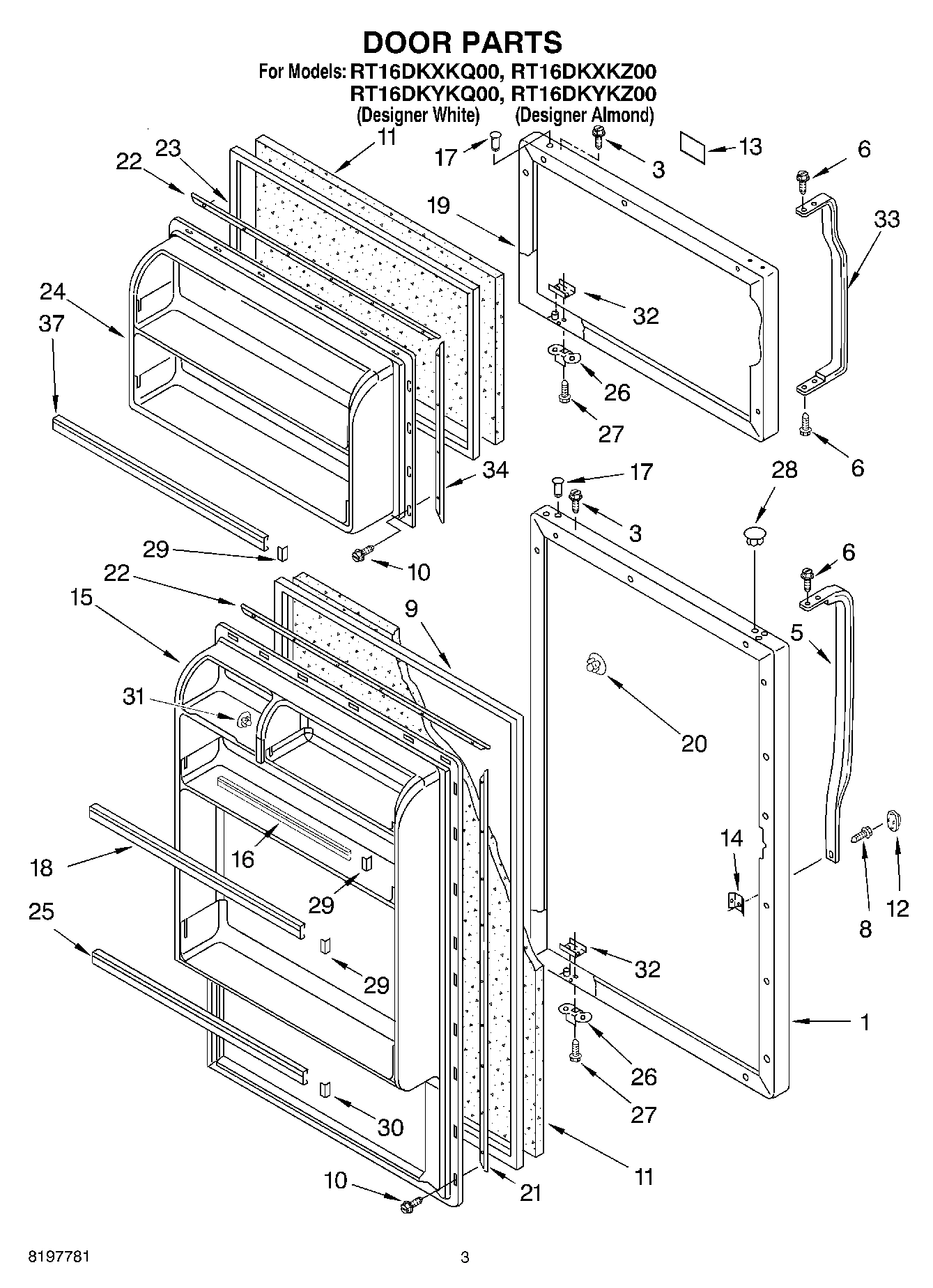

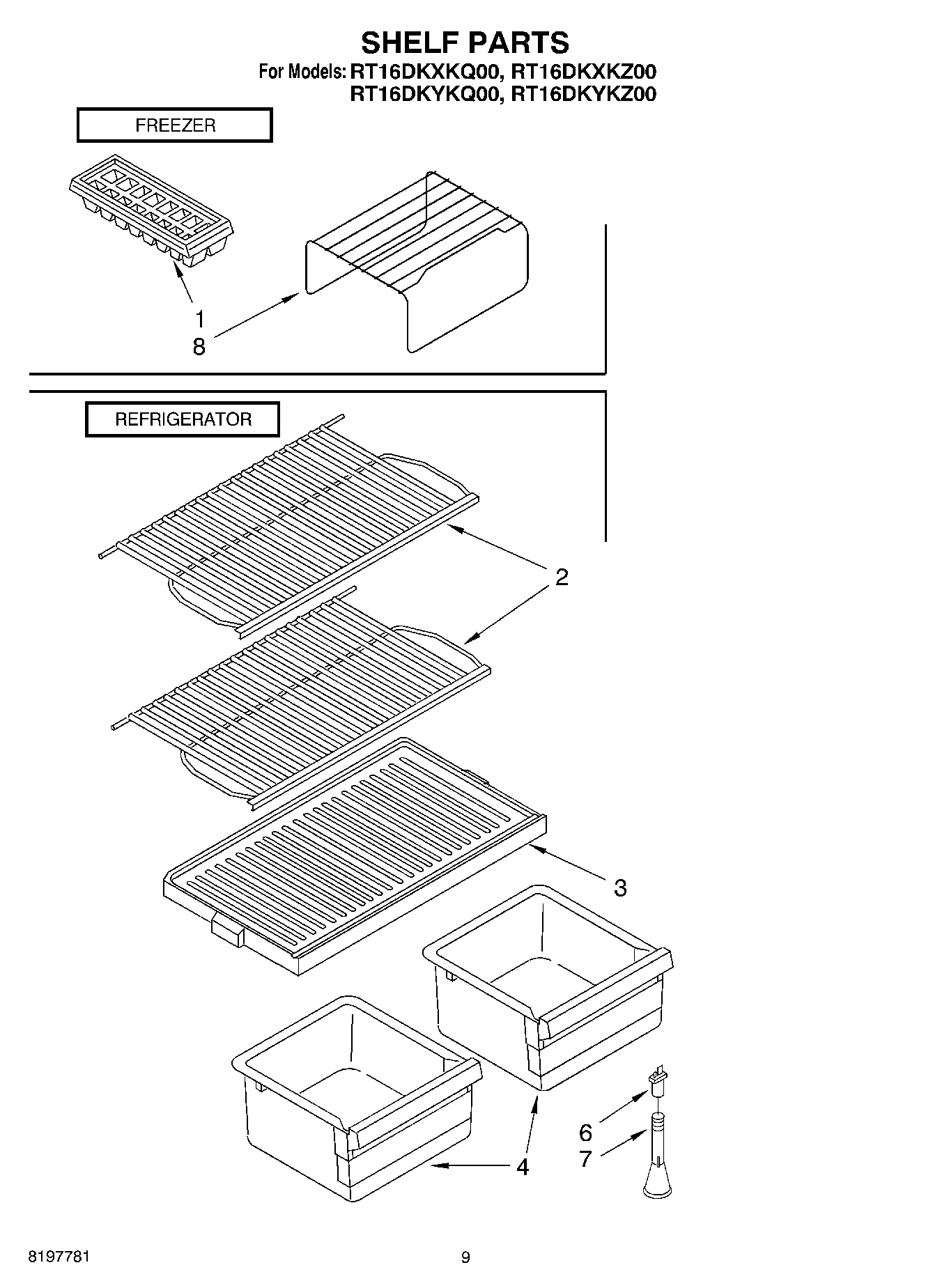

Model Whirlpool RT16DKYKQ00 REFRIGERATOR – Common Parts &amp; Diagrams

Torx Key WPL 1117510 Contact Us For Availability

Do-It-Yourself Manual Ref./Fzr. WPL LIT677969 Contact Us For Availability

1

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

2

WP2192515 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2192515 $72.33

3

W11547193 Whirlpool Drawer Cover In Stock WPL W11547193 $86.74

3

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $2.51

3

Cover, Air Diffuser WPL 2183061 Contact Us For Availability

4

WP2164186 Whirlpool Crisper Pan In Stock WPL WP2164186 $84.02

5

WP2202807W Whirlpool Handle Door In Stock WPL WP2202807W $89.09

5

Hole Plug WPL 2159365 Contact Us For Availability

6

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

6

Support, Crisper WPL 9791824 Contact Us For Availability

7

2176927 Whirlpool Refrigerator Wire Harness Backorder WPL 2176927 $53.56

7

Post, Crisper WPL 836410 Contact Us For Availability

8

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

8

285006 Whirlpool Spray In Stock WPL 285006 $28.82

8

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

8

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

8

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

8

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

8

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

8

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

8

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.93

8

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

8

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

8

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

8

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

8

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

8

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

8

WP8281146 Whirlpool Screw Backorder WPL WP8281146 $2.51

8

WPW10401596 Whirlpool Refrigerator Wire Shelf In Stock WPL WPW10401596 $40.97

8

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

8

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

8

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

8

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

8

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

8

Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability

8

Door Reversal Instructions WPL 9791757 Contact Us For Availability

9

WP2174706 Whirlpool Refrigerator Pin Hitch Backorder WPL WP2174706 $4.63

10

Fan Mounting Bracket WPL 2197405 Contact Us For Availability

11

Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability

12

2215213 Whirlpool Refrigerator Control Box Backorder WPL 2215213 $40.72

12

WP2202819W Whirlpool Refrigerator Cover Backorder WPL WP2202819W $3.70

13

WP2214067 Whirlpool Refrigerator Overload Rel Backorder WPL WP2214067 $53.11

14

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

14

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

17

2166043 Whirlpool Refrigerator Shim Backorder WPL 2166043 $23.81

17

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

18

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

20

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

20

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

21

WP2192096 Whirlpool Refrigerator Wire Harness Backorder WPL WP2192096 $121.65

21

Hinge-Pin Bott. WPL 9791682 Contact Us For Availability

22

WP2202885 Whirlpool Refrigerator Thermal Knob Backorder WPL WP2202885 $8.88

22

WP3428970 Whirlpool Refrigerator Screw Backorder WPL WP3428970 $4.56

23

2188462A Whirlpool Refrigerator Door Gasket In Stock WPL 2188462A $52.74

23

WP2201567 Whirlpool Hinge Shim Backorder WPL WP2201567 $3.70

23

Air Tower WPL 9790408 Contact Us For Availability

24

Interior Door Panel (Freezer) WPL 2197159 Contact Us For Availability

25

WP2197356 Whirlpool Refrigerator Door Trim Backorder WPL WP2197356 $53.77

25

Freezer Floor WPL 2174798 Contact Us For Availability

26

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

27

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $3.70

Installation Kit WPL 482801 Contact Us For Availability

Hole Plug (Almond) WPL 2213324 Contact Us For Availability

29

WP2156007 Whirlpool Refrigerator Endcap Trim In Stock WPL WP2156007 $3.70

29

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

30

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

30

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

31

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

31

Hole Plug WPL 2163372 Contact Us For Availability

32

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

32

Plate, Tap WPL 2183000 Contact Us For Availability

33

WP2202098 Whirlpool Refrigerator Handle In Stock WPL WP2202098 $74.17

33

Handle, F.C. (Almond) WPL 2202099 Contact Us For Availability

34

Retainer, Gasket WPL 1122553 Contact Us For Availability

36

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

37

WP2163629 Whirlpool Refrigerator Door Trim In Stock WPL WP2163629 $24.49

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

38

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

43

Tray, Evaporator WPL 2201801 Contact Us For Availability

45

W11661102 Whirlpool Tube Backorder WPL W11661102 $11.11

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
