Model Whirlpool RT16DKXVL11 – Common Parts & Diagrams
07 - UNIT
05 - SHELF

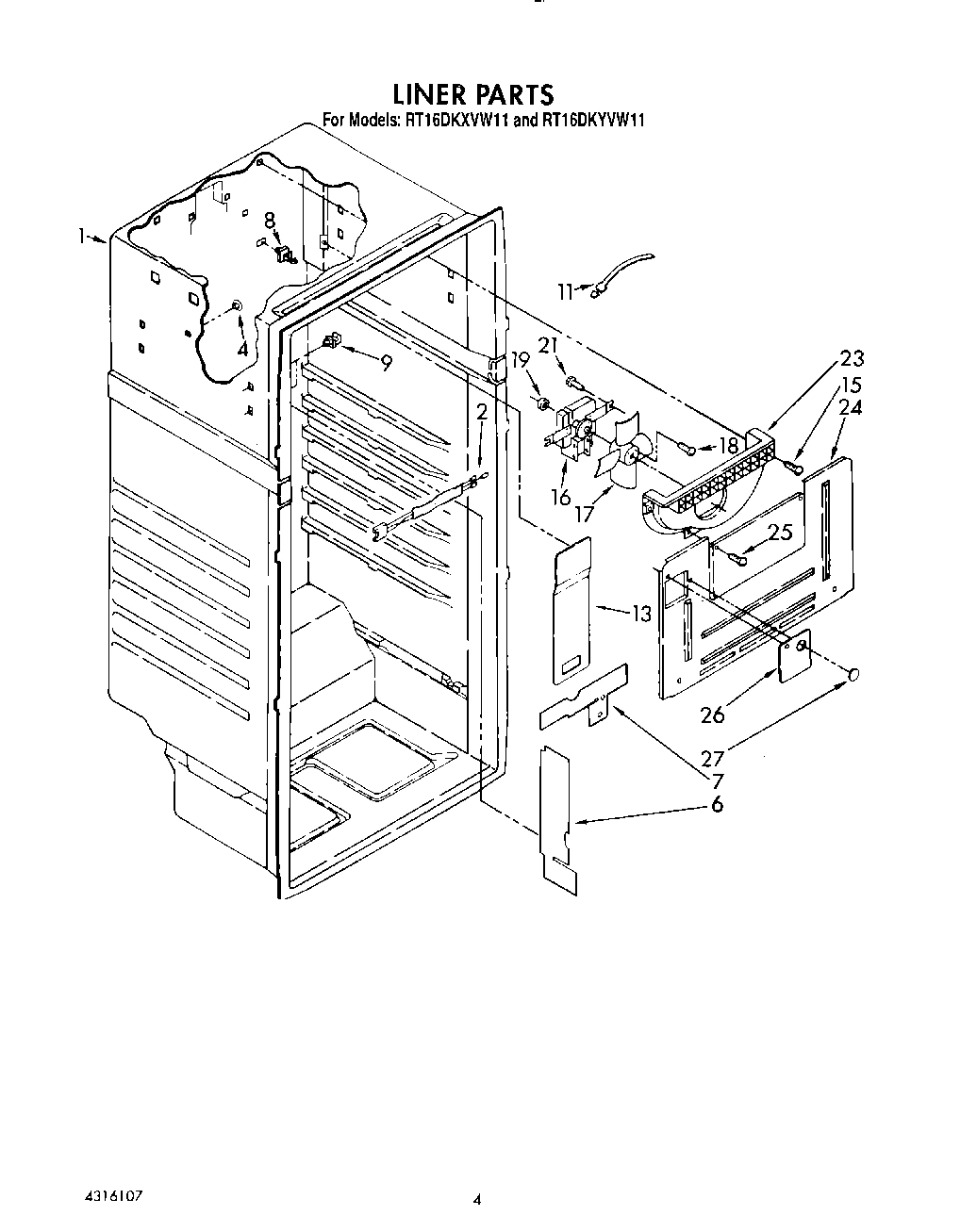

03 - LINER

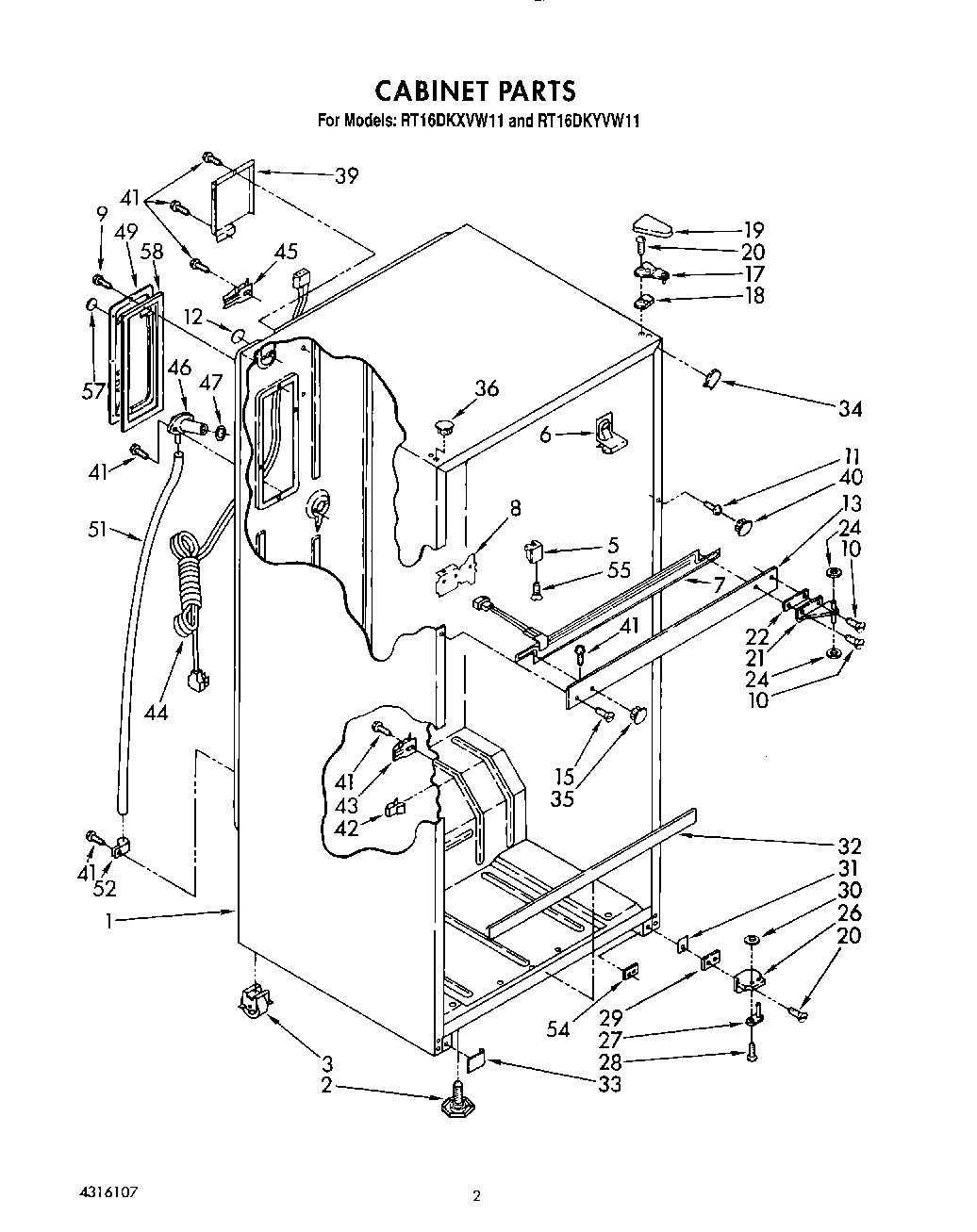

02 - CABINET

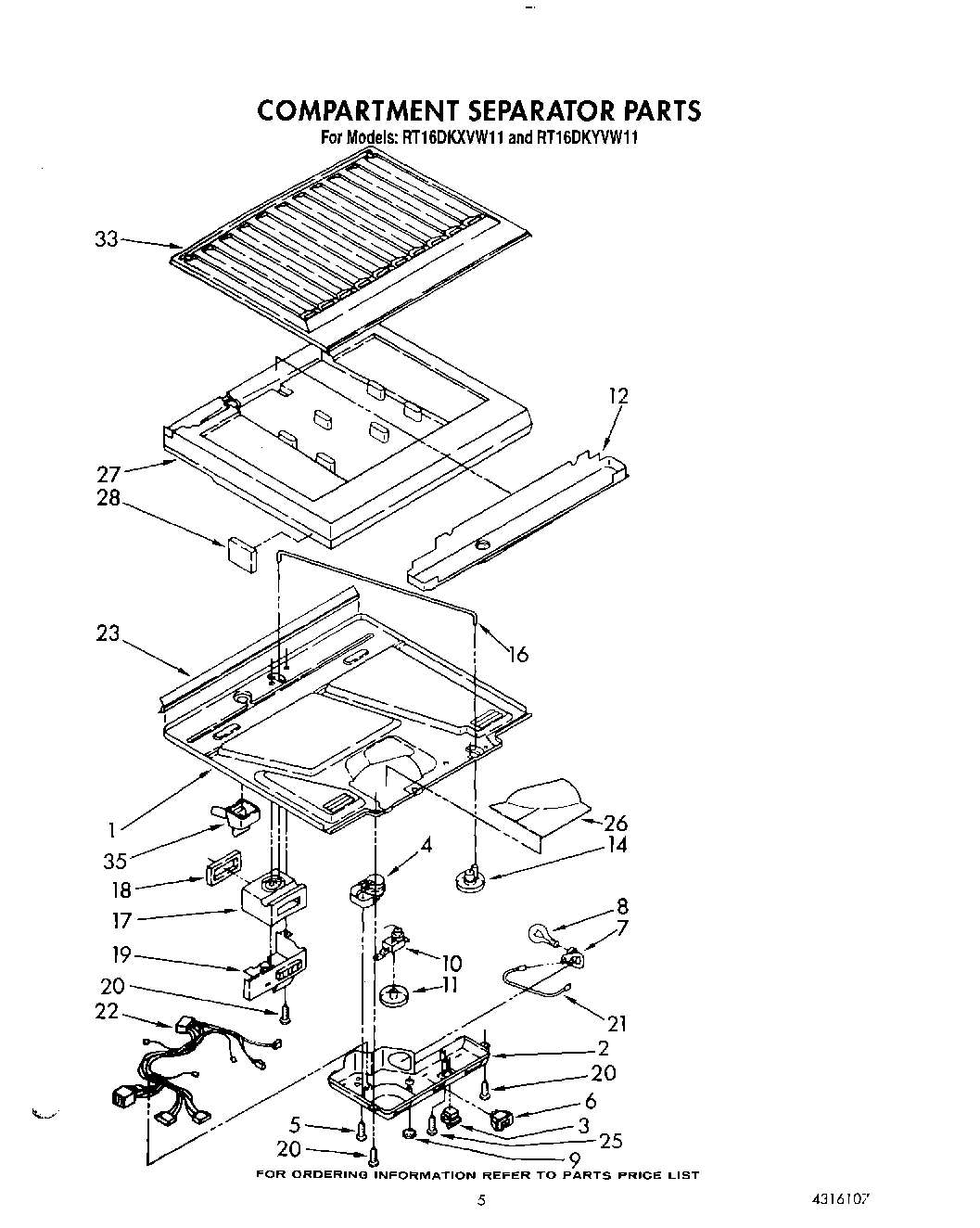

04 - COMPARTMENT SEPARATOR

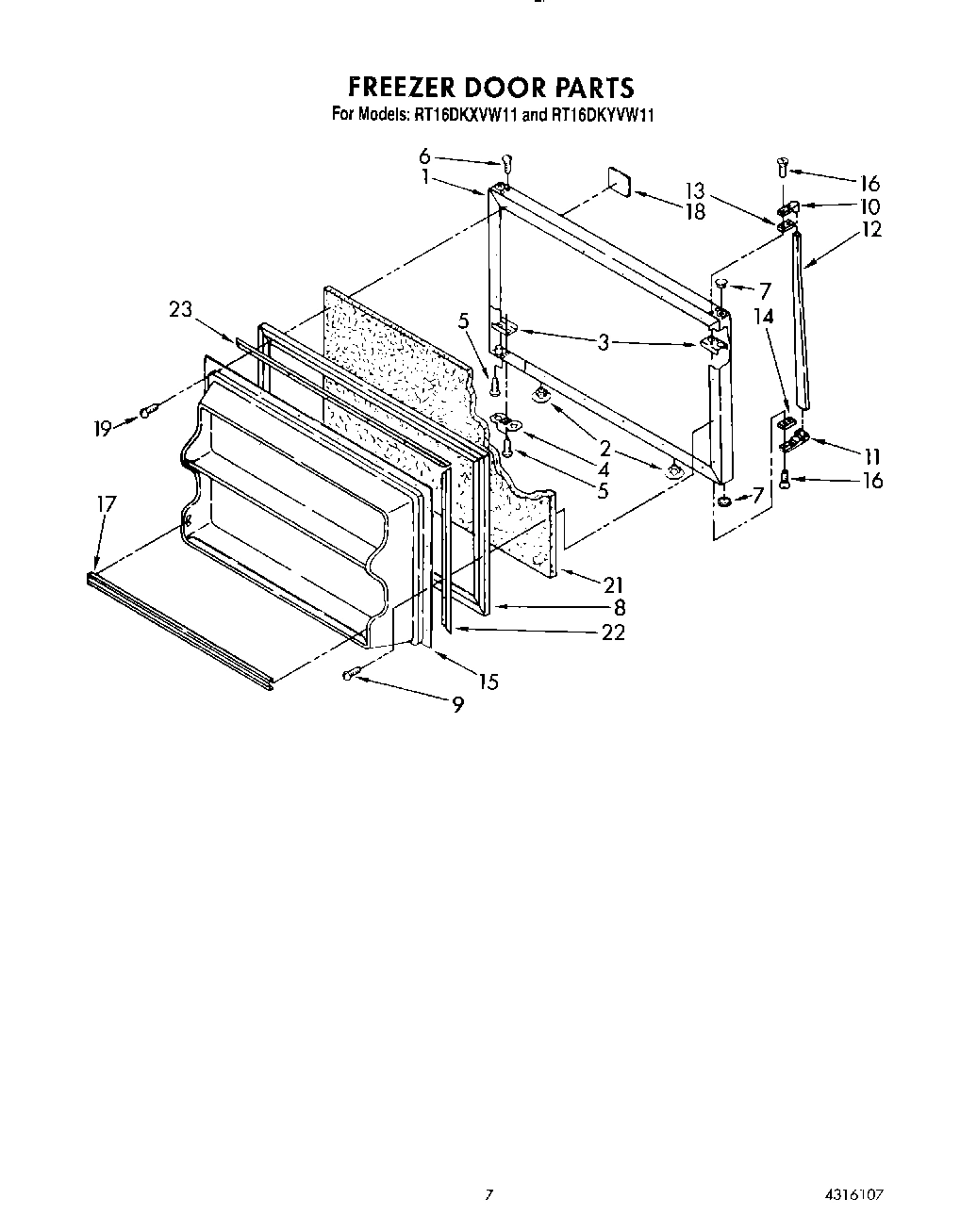

06 - FREEZER DOOR

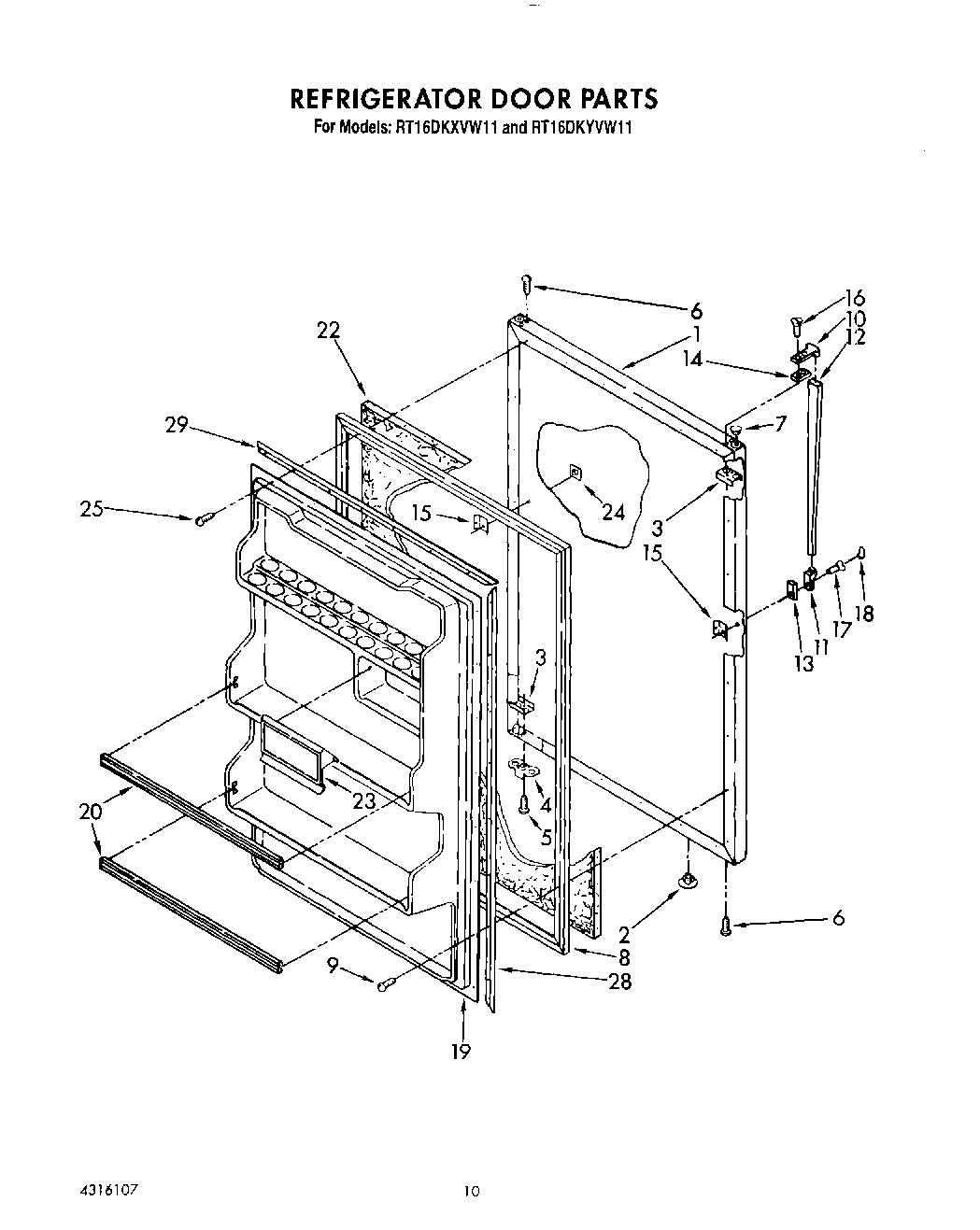

08 - REFRIGERATOR DOOR, LIT/OPTIONAL
Common parts from model Whirlpool RT16DKXVL11
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT1124321 WPL LIT1124321 Contact Us For Availability
WPL LIT1124903 WPL LIT1124903 Contact Us For Availability
WPL LIT2149680 WPL LIT2149680 Contact Us For Availability
WPL LIT4316107 WPL LIT4316107 Contact Us For Availability
1
Shelf, Pullout (2) WPL 943785 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI126162A Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI126161A Contact Us For Availability
1
Bottom, Compartment Separator WPL 1111794 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1103940 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Gol WPL 1103941 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1103942 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 22) WPL 1103917 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 22) WPL 1103918 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 22) WPL 1103919 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Support, Crisper Cover WPL 1103731 Contact Us For Availability
2
Leveler (2) WPL 944766 Contact Us For Availability
2
Box, Control WPL 1126703 Contact Us For Availability
2
Hole Plug WPL 534927 Contact Us For Availability
2
Hole Plug (Almond) WPL 989197 Contact Us For Availability
2
Hole Plug (Golden Harvest) WPL 989879 Contact Us For Availability
3
Cover, Crisper WPL 1124388 Contact Us For Availability
3
Roller, Front & Rear WPL 937216 Contact Us For Availability
4
Post, Crisper WPL 836410 Contact Us For Availability
4
Timer, Defrost (8 Hour) WPL 1127571 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
5
Spacer (2) WPL 2149077 Contact Us For Availability
6
Shelf, Ice Pan WPL 1120714 Contact Us For Availability
6
Side, Electric Shield WPL 942751 Contact Us For Availability
6
Clip, Center Rail WPL 1129018 Contact Us For Availability
7
Top, Electric Shield WPL 1129067 Contact Us For Availability
7
Heater, Mullion WPL 1118897 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Pan, Crisper (2) WPL 1124389 Contact Us For Availability
8
Stud, Evaporator (2) WPL 942750 Contact Us For Availability
8
Center Rail, Bracket (2) WPL 1110231 Contact Us For Availability
9
Stud Hook (2) WPL 939065 Contact Us For Availability
11
Clip, Strap WPL 1123230 Contact Us For Availability
11
Screw, 8-32 x 1/2 WPL 488844 Contact Us For Availability
11
Knob, Thermostat WPL 943798 Contact Us For Availability
12
Hole Seal WPL 1129056 Contact Us For Availability
12
Drain Pan WPL 1108170 Contact Us For Availability
12
Handle, Center WPL 1109171 Contact Us For Availability
12
Handle, Center WPL 1109166 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle End (Side) WPL 992872 Contact Us For Availability
13
Cover, Air Duct WPL 1118775 Contact Us For Availability
13
Center Rail (White) WPL 1111510 Contact Us For Availability
13
Center Rail (Golden Harvest) WPL 1111511 Contact Us For Availability
13
Center Rail (Almond) WPL 1111512 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Knob, Air Control WPL 1126710 Contact Us For Availability
15
Screw WPL 489319 Contact Us For Availability
15
Panel, Interior Door (Freezer) WPL 1120629 Contact Us For Availability
16
Rod, Connecting WPL 1111271 Contact Us For Availability
17
Hinge, Top WPL 1129045 Contact Us For Availability
17
Air Diffuser Assembly WPL 1118774 Contact Us For Availability
17
Trim, Door Shelf WPL 1116038 Contact Us For Availability
18
Shim, Hinge Top WPL 1100511 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
18
Nameplate WPL 1124315 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Interior Door Panel WPL 1120628 Contact Us For Availability
20
Screw (Repair) WPL 489297 Contact Us For Availability
20
Screw WPL 489327 Contact Us For Availability
20
Trim, Door (Top) (2) WPL 1116031 Contact Us For Availability
21
Screw (2) WPL 489168 Contact Us For Availability
21
Hinge, Center WPL 1129047 Contact Us For Availability
21
Wiring Assembly WPL 937078 Contact Us For Availability
22
Shim, Hinge Center WPL 836194 Contact Us For Availability
22
Wiring Assembly, Control Box & Cabinet WPL 2149659 Contact Us For Availability
22
Gasket Retainer, Side (2) WPL 1120613 Contact Us For Availability
23
Scroll, Fan WPL 1122814 Contact Us For Availability
23
Gasket, Bottom Separator WPL 1123916 Contact Us For Availability
23
Compartment, Butter Door WPL 1124313 Contact Us For Availability
24
Evaporator Cover WPL 2151618 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Hole Plug, Handle (Golden Harvest) WPL 1122694 Contact Us For Availability
25
Screw, 8 x 1-3/8 WPL 488678 Contact Us For Availability
26
Hinge Butt, Bottom WPL 1123882 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1123390 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Pad (2) WPL 946367 Contact Us For Availability
28
Gasket Retainer, Side (2) WPL 1120615 Contact Us For Availability
29
WPL 876029 WPL 876029 Contact Us For Availability
29
WPL 479502 WPL 479502 Contact Us For Availability
29
Shim, Bottom WPL 943708 Contact Us For Availability
29
Gasket Retainer, Top & Bottom (2) WPL 1120614 Contact Us For Availability
29
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
29
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
29
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
29
WPL 542639 WPL 542639 Contact Us For Availability
29
WPL 799340 WPL 799340 Contact Us For Availability
29
WPL 799833 WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
30
Washer, 7/64 WPL 489201 Contact Us For Availability
31
Cover, Glider Rail (White) WPL 2151421 Contact Us For Availability
31
Cover, Glider Rail (Almond) WPL 2151422 Contact Us For Availability
31
Cover, Glider Rail (Golden Harvest) WPL 2151423 Contact Us For Availability
32
Cover, Deck Rail (White) WPL 1109359 Contact Us For Availability
32
Cover, Deck Rail (Golden Harvest) WPL 1109361 Contact Us For Availability
32
Cover, Deck Rail (Almond) WPL 1109363 Contact Us For Availability
33
Cover, Glider Rail (White) WPL 943552 Contact Us For Availability
33
Cover, Glider Rail (Almond) WPL 944831 Contact Us For Availability
33
Cover, Glider Rail (Golden Harvest) WPL 944833 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1119324 Contact Us For Availability
34
Filler, Wrap Corner (2) (White) WPL 1110684 Contact Us For Availability
34
Filler, Wrap Corner (2) (Almond) WPL 1110685 Contact Us For Availability
34
Filler, Wrap Corner (2) (Golden Harvest) WPL 1110686 Contact Us For Availability
35
Cup, Drain WPL 939191 Contact Us For Availability
35
Hole Plug (White) WPL 1119707 Contact Us For Availability
35
Hole Plug (Golden Harvest) WPL 1119708 Contact Us For Availability
35
Hole Plug (Almond) WPL 1119709 Contact Us For Availability
36
Hole Plug (2) (White) WPL 842031 Contact Us For Availability
36
Hole Plug (2) (Almond) WPL 989195 Contact Us For Availability
36
Hole Plug (2) (Golden Ha WPL 989876 Contact Us For Availability
39
WPL 942845 WPL 942845 Contact Us For Availability
40
WPL 1122929 WPL 1122929 Contact Us For Availability
40
WPL 1126569 WPL 1126569 Contact Us For Availability
40
WPL 1126571 WPL 1126571 Contact Us For Availability
44
WPL 937360 WPL 937360 Contact Us For Availability
45
WPL 937357 WPL 937357 Contact Us For Availability
46
WPL 942813 WPL 942813 Contact Us For Availability
47
WPL 1106507 WPL 1106507 Contact Us For Availability
49
WPL 1106511 WPL 1106511 Contact Us For Availability
50
Screw, 1/4-28 x 1 (2) WPL 488973 Contact Us For Availability
52
Tube, Clamp WPL 489151 Contact Us For Availability
52
WPL 519405 WPL 519405 Contact Us For Availability
53
Nut WPL 489142 Contact Us For Availability
54
Washer WPL 489143 Contact Us For Availability
54
WPL 2147312 WPL 2147312 Contact Us For Availability
55
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
55
Overload Spring WPL 1114190 Contact Us For Availability
55
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
57
WPL 1120224 WPL 1120224 Contact Us For Availability
58
WPL 1106510 WPL 1106510 Contact Us For Availability
× ![]()
