Model Whirlpool RT16DKXBW00 – Common Parts & Diagrams

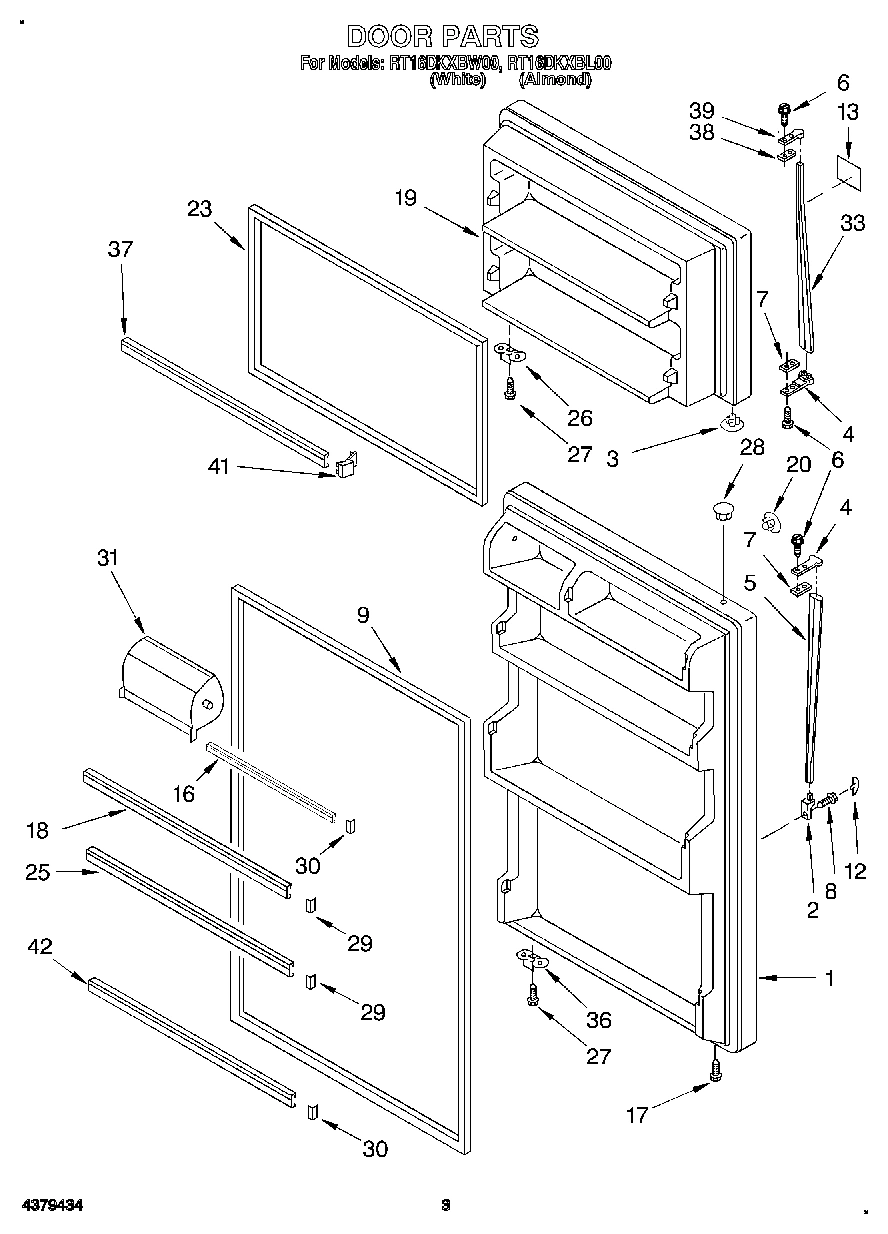

02 - DOOR

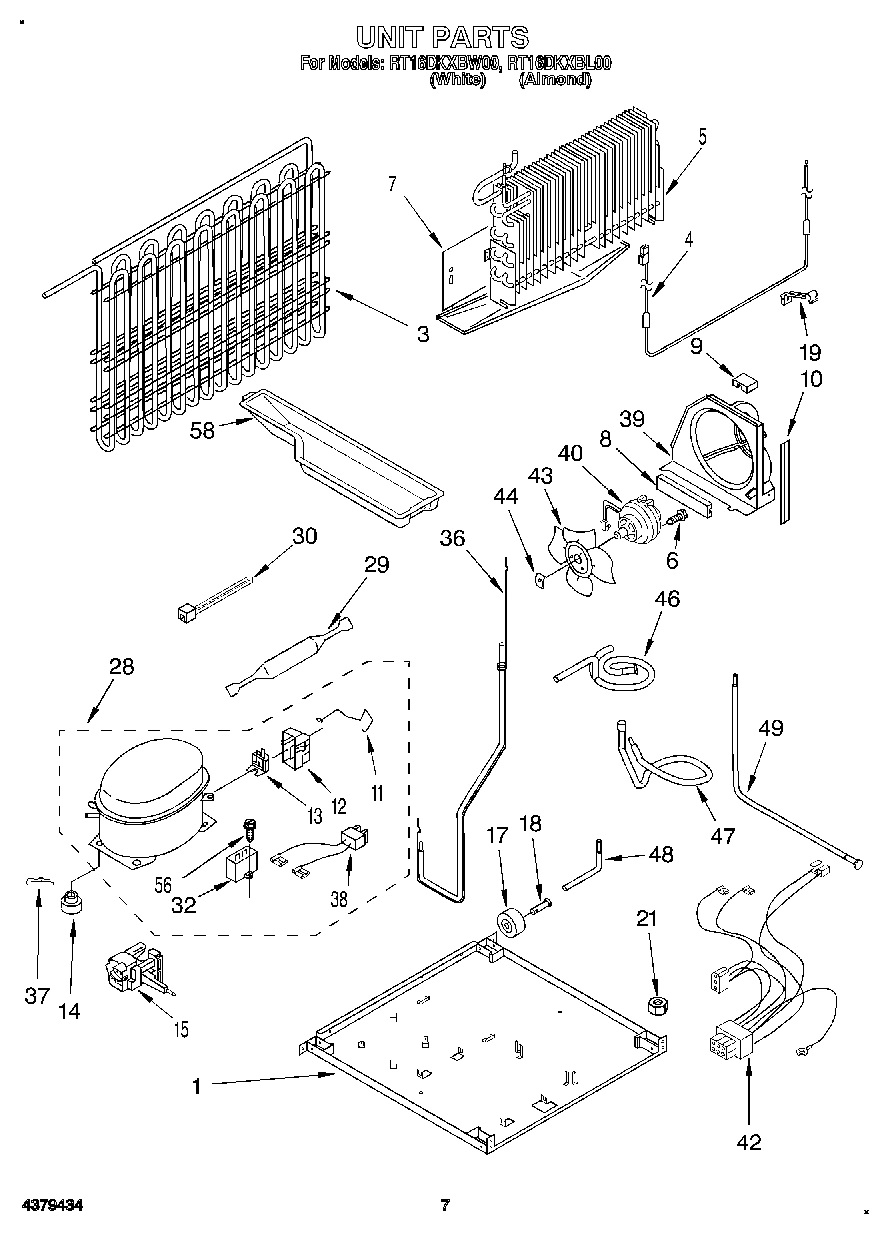

04 - UNIT

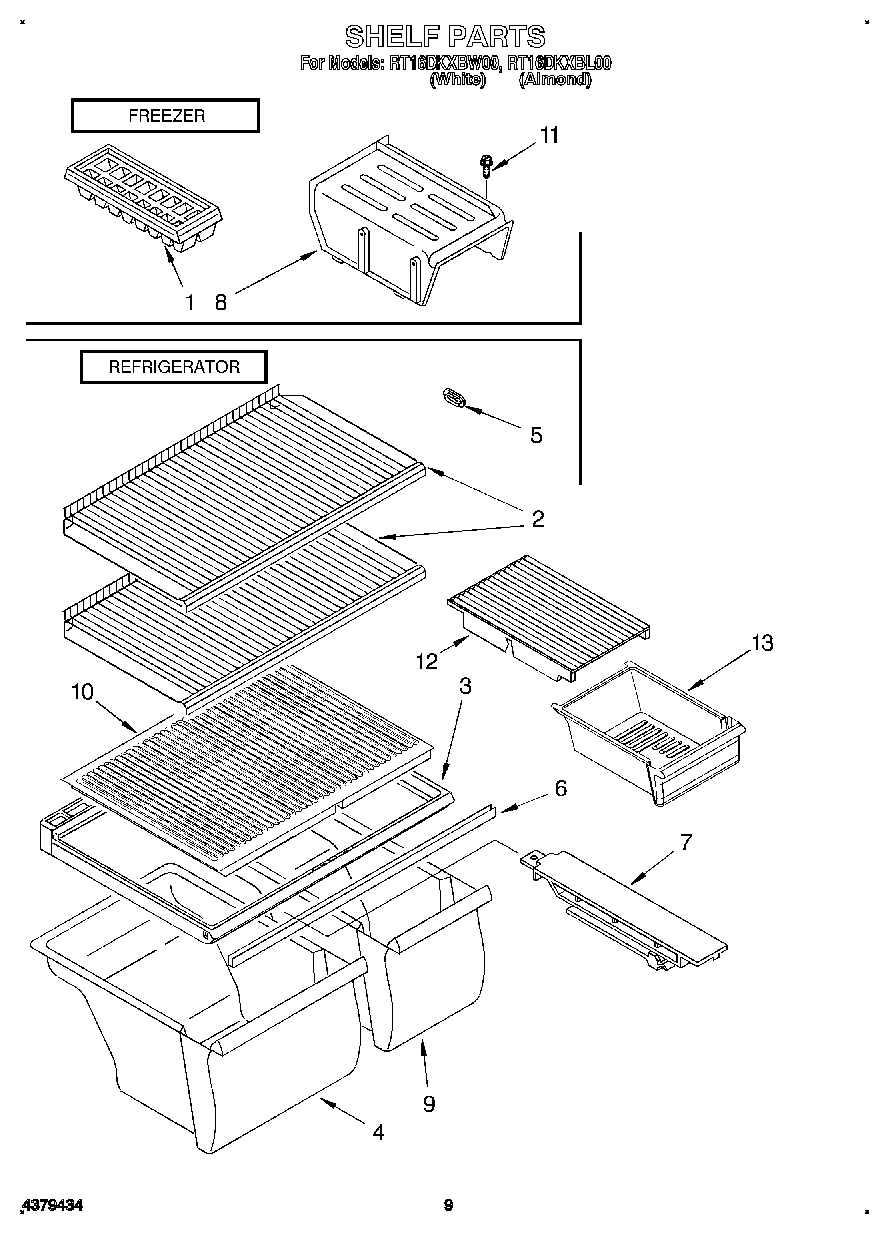

05 - SHELF, LIT\OPTIONAL

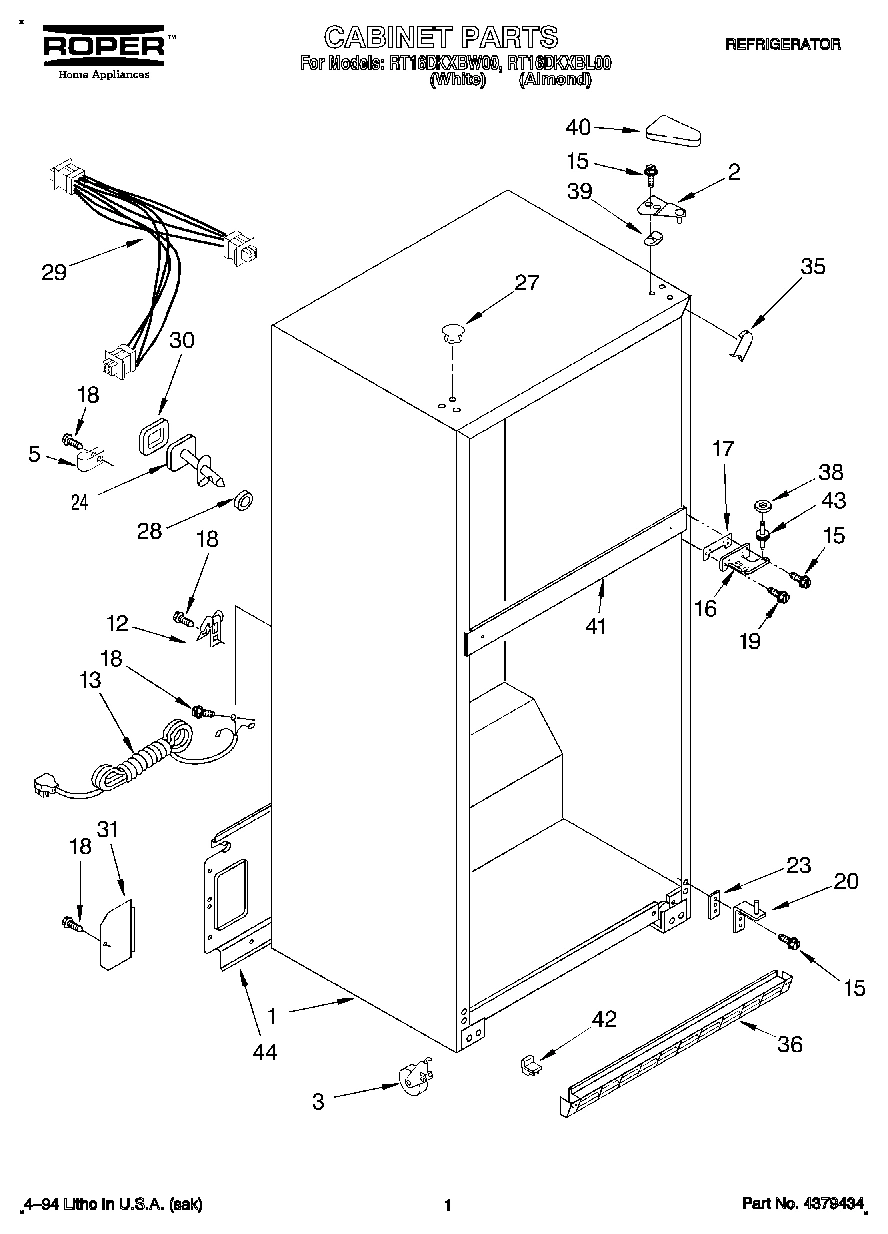

01 - CABINET

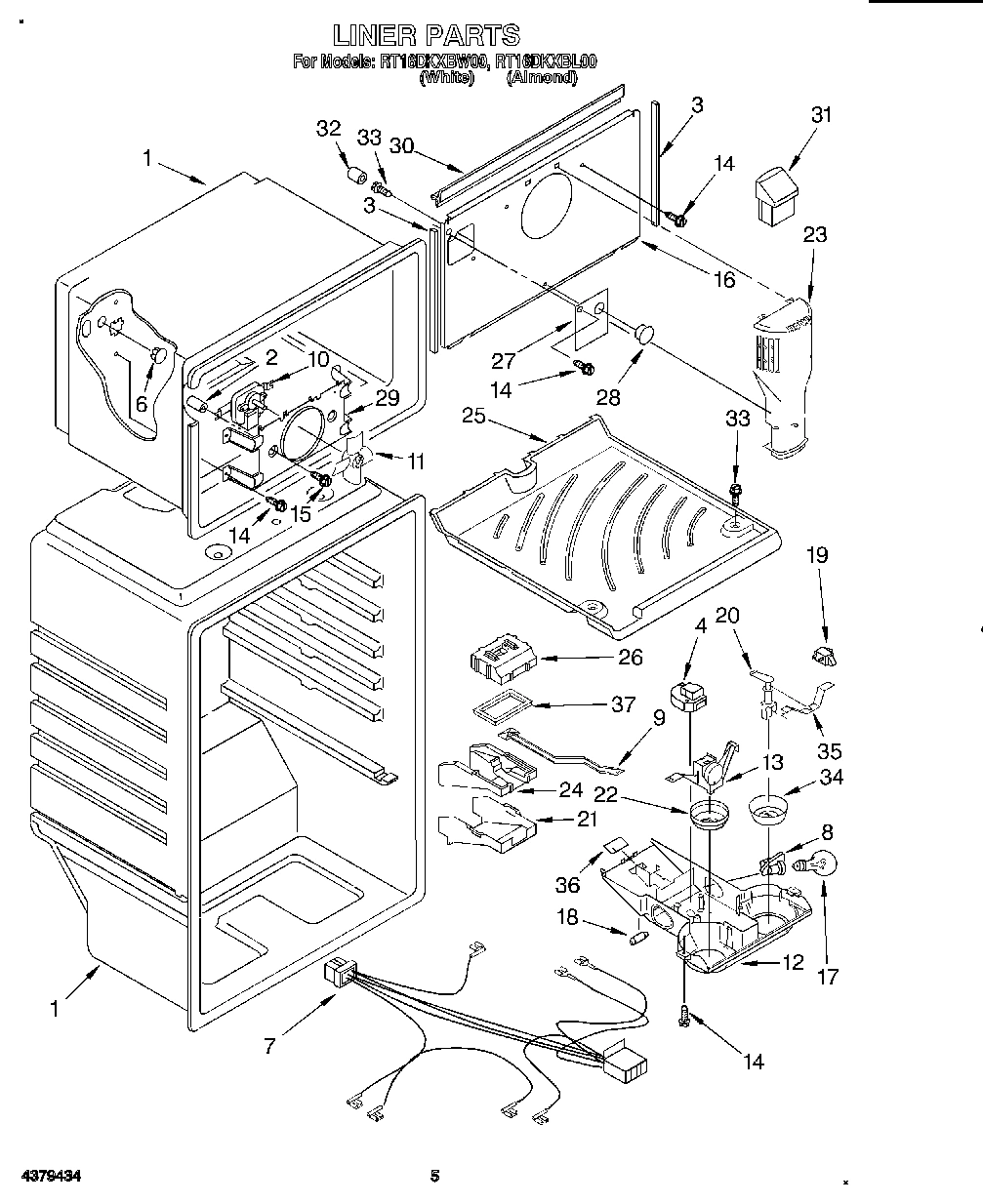

03 - LINER
Common parts from model Whirlpool RT16DKXBW00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2166248 WPL LIT2166248 Contact Us For Availability
WPL LIT2173221 WPL LIT2173221 Contact Us For Availability
WPL LIT2173249 WPL LIT2173249 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI126029A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI126034A Contact Us For Availability
2
Shelf (2) WPL 2166147 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
4
Timer, Defrost WPL 2154983 Contact Us For Availability
5
Plug, Shelf Cup WPL 2166255 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
8
Shelf, Ice Tray WPL 2172569 Contact Us For Availability
9
Damper, Air WPL 2172570 Contact Us For Availability
10
Insert WPL 2166149 Contact Us For Availability
10
Fan Motor WPL 2163766 Contact Us For Availability
12
Cover, Meat Pan WPL 2163848 Contact Us For Availability
12
Control Box WPL 2172566 Contact Us For Availability
13
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
13
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
13
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
13
Meat Pan WPL 2166480 Contact Us For Availability
13
Door Reversal Instructions WPL 2172516 Contact Us For Availability
13
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
13
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
13
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
13
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
13
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
13
Cord, Service WPL 937360 Contact Us For Availability
14
Screw WPL 486214 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Cover-Evaporator WPL 2163816 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2166244 Contact Us For Availability
19
Screw WPL 489426 Contact Us For Availability
20
Hinge Butt WPL 2172577 Contact Us For Availability
20
Post, Damper WPL 2163809 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI126035A Contact Us For Availability
21
Cover, Air Diffuser WPL 2172560 Contact Us For Availability
22
Control Knob WPL 2163800 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
23
Air Tower WPL 2172574 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI126030A Contact Us For Availability
24
Air Diffuser, Bottom WPL 2172564 Contact Us For Availability
25
Freezer Floor WPL 2172679 Contact Us For Availability
26
Air Diffuser, Top WPL 2172563 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Compressor (Also Order) WPL 2162441 Contact Us For Availability
28
Seal, Front (Not Serviced) WPL ARI126031A Contact Us For Availability
28
Hole Plug WPL 1103725 Contact Us For Availability
29
Cabinet, Wiring Assembly WPL 2163763 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
30
Seal, Rear (Not Serviced) WPL ARI126032A Contact Us For Availability
30
Gasket, Evaporator Cover (Top) WPL 2166192 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
34
Knob, Dampener WPL 2163801 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
36
Heat Exchanger WPL 2163759 Contact Us For Availability
36
Grille WPL 2166134 Contact Us For Availability
37
Clip, Compressor WPL 2163787 Contact Us For Availability
37
Gasket, Air Diffuser WPL 2172594 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
39
Air Baffle WPL 2172685 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI126033A Contact Us For Availability
42
Wire Assy., Unit WPL 2172600 Contact Us For Availability
42
Corner Filler, Grille WPL 2166205 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
44
Cover, Unit WPL 2163814 Contact Us For Availability
46
Tube, Discharge WPL 2172673 Contact Us For Availability
47
Tube, Suction WPL 2172677 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
