Model Whirlpool RT14VKYDL00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

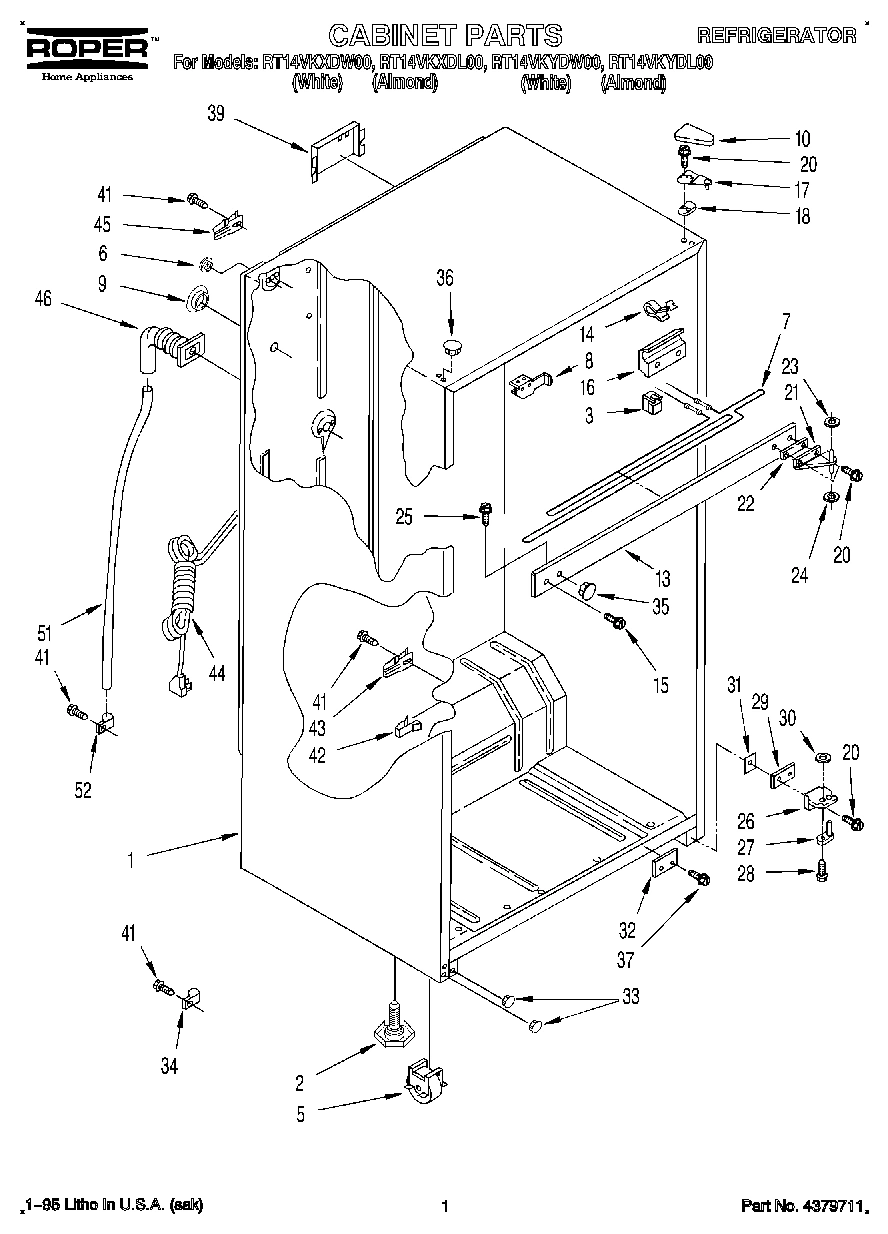

01 - CABINET

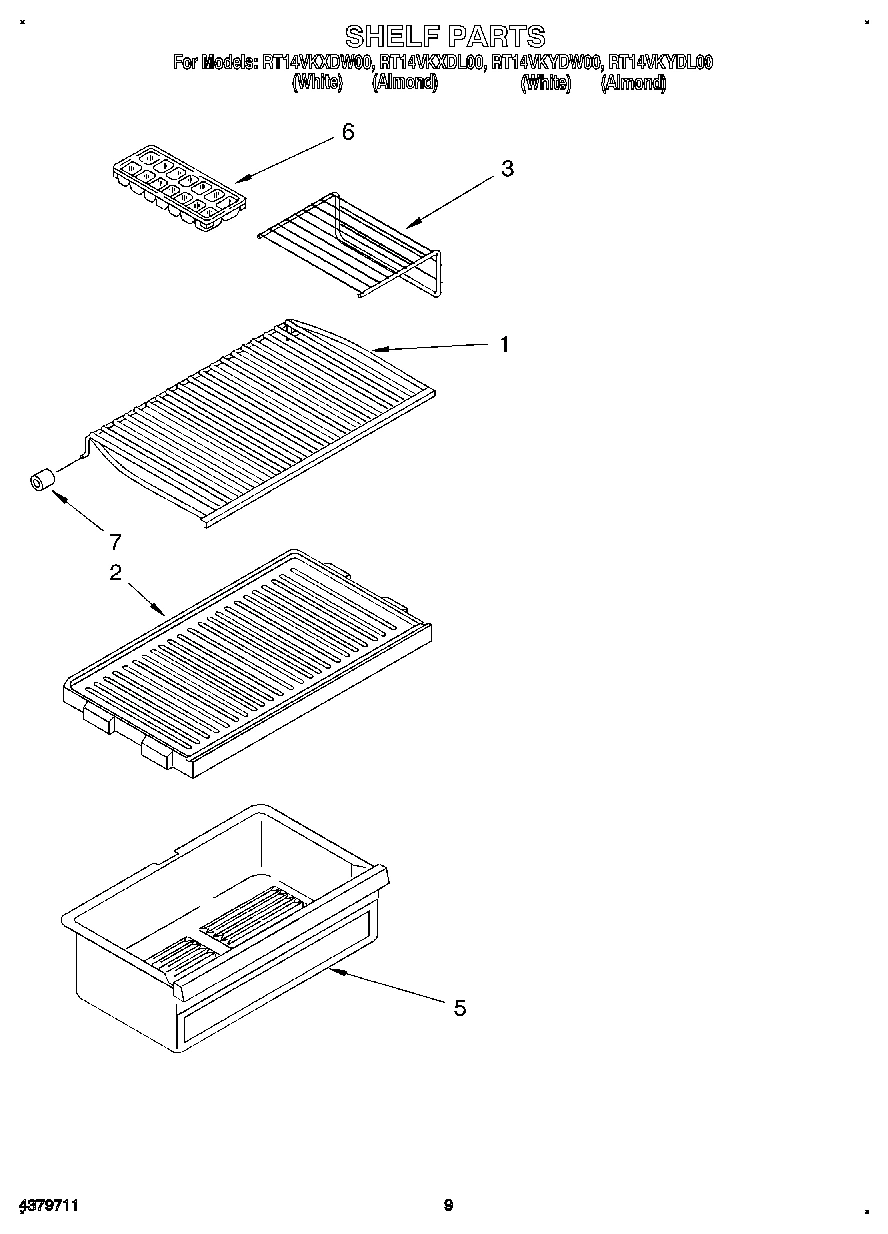

06 - SHELF

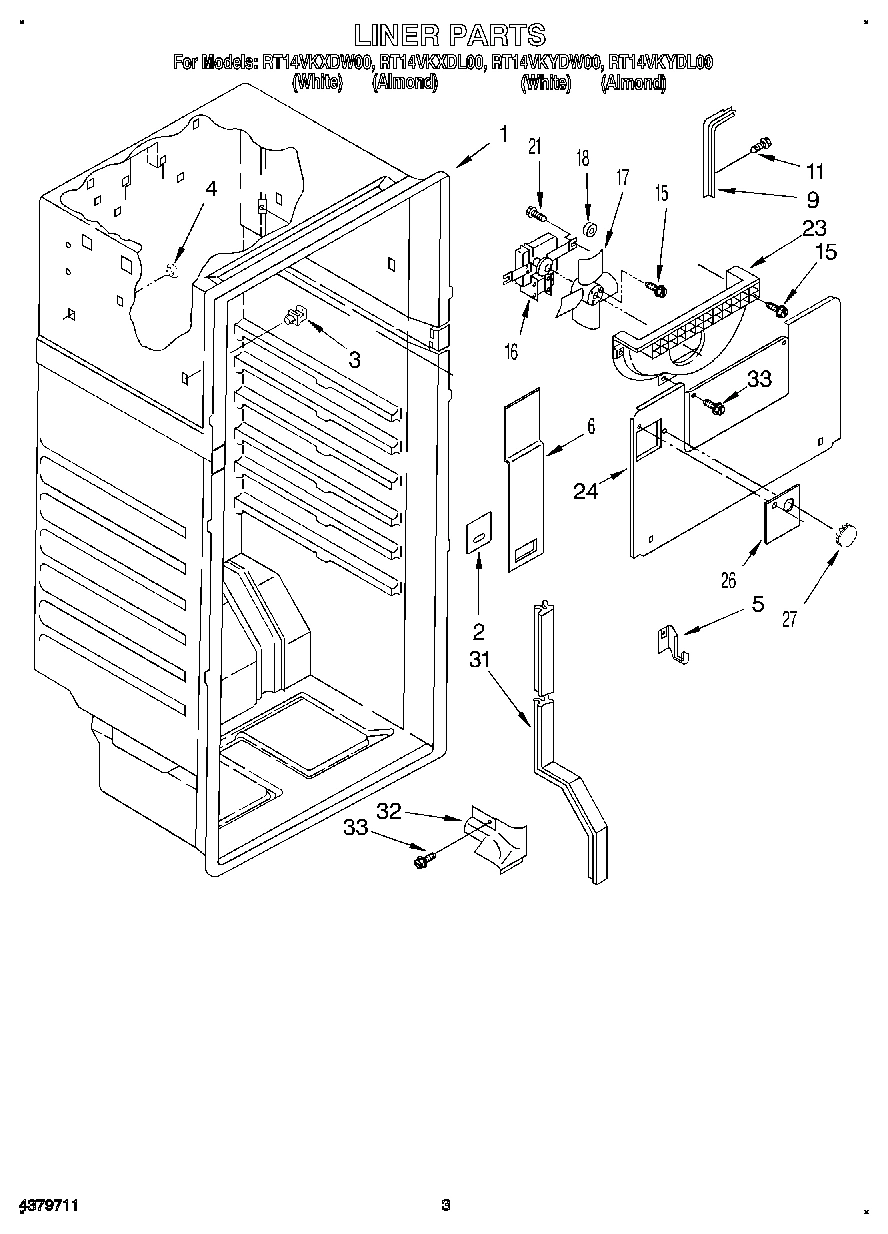

02 - LINER

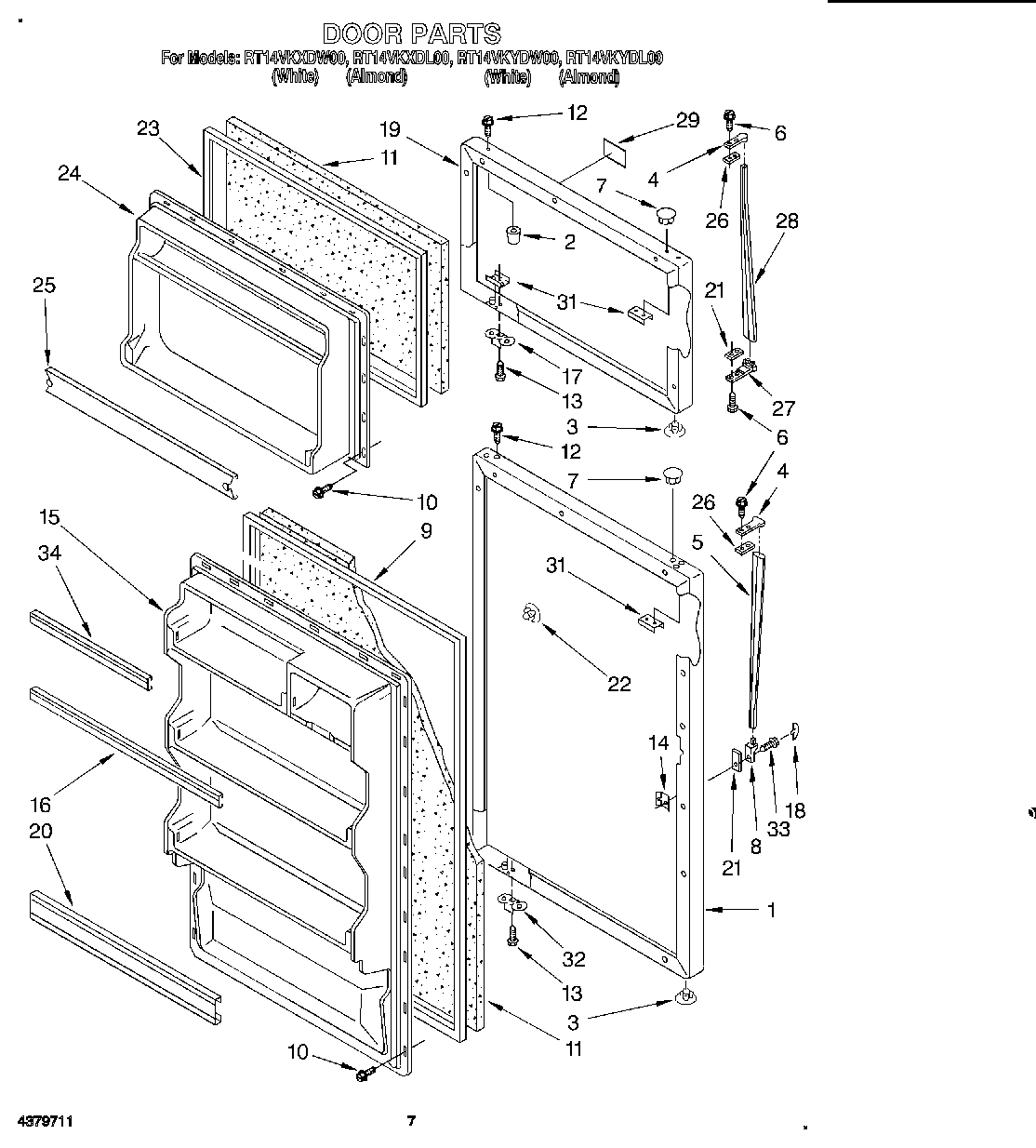

05 - DOOR, LIT/OPTIONAL

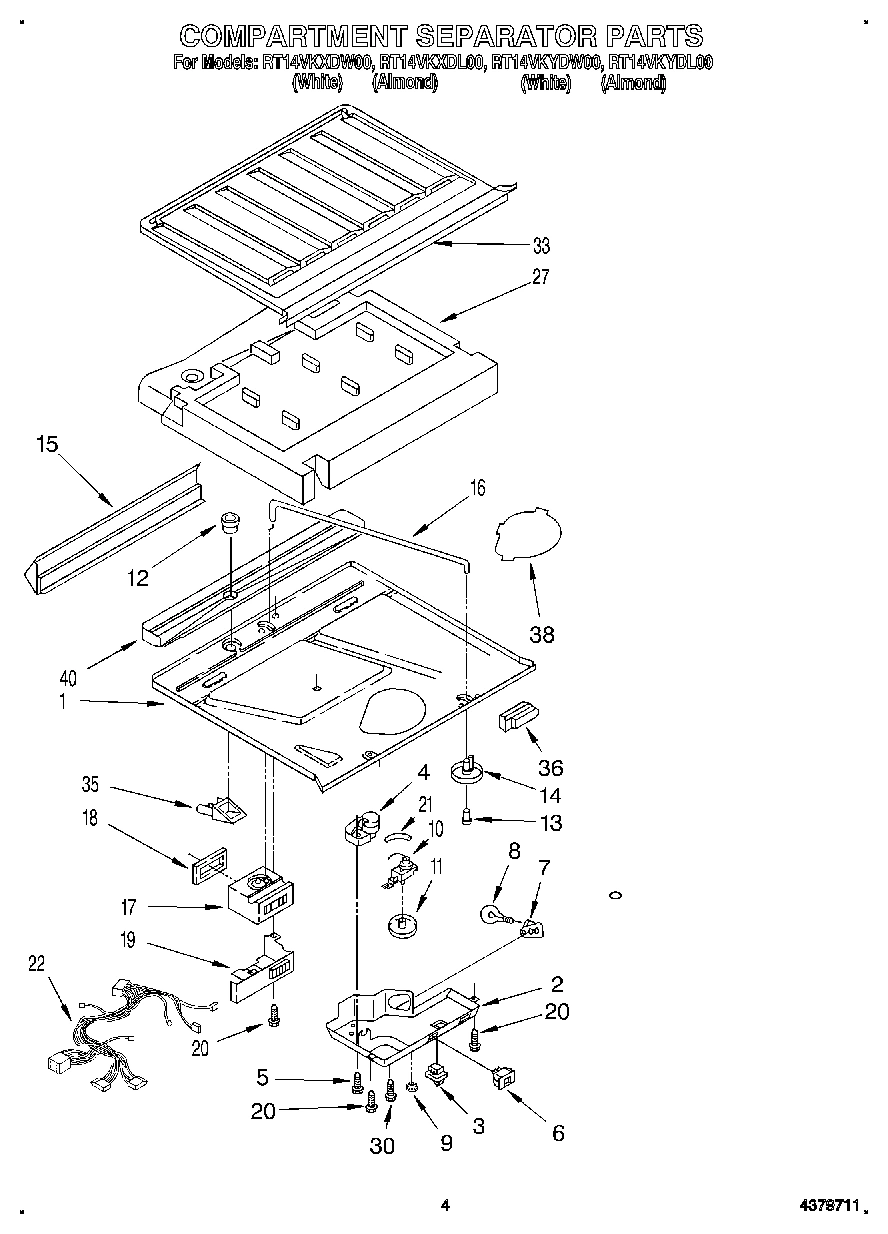

03 - COMPARTMENT SEPARATOR

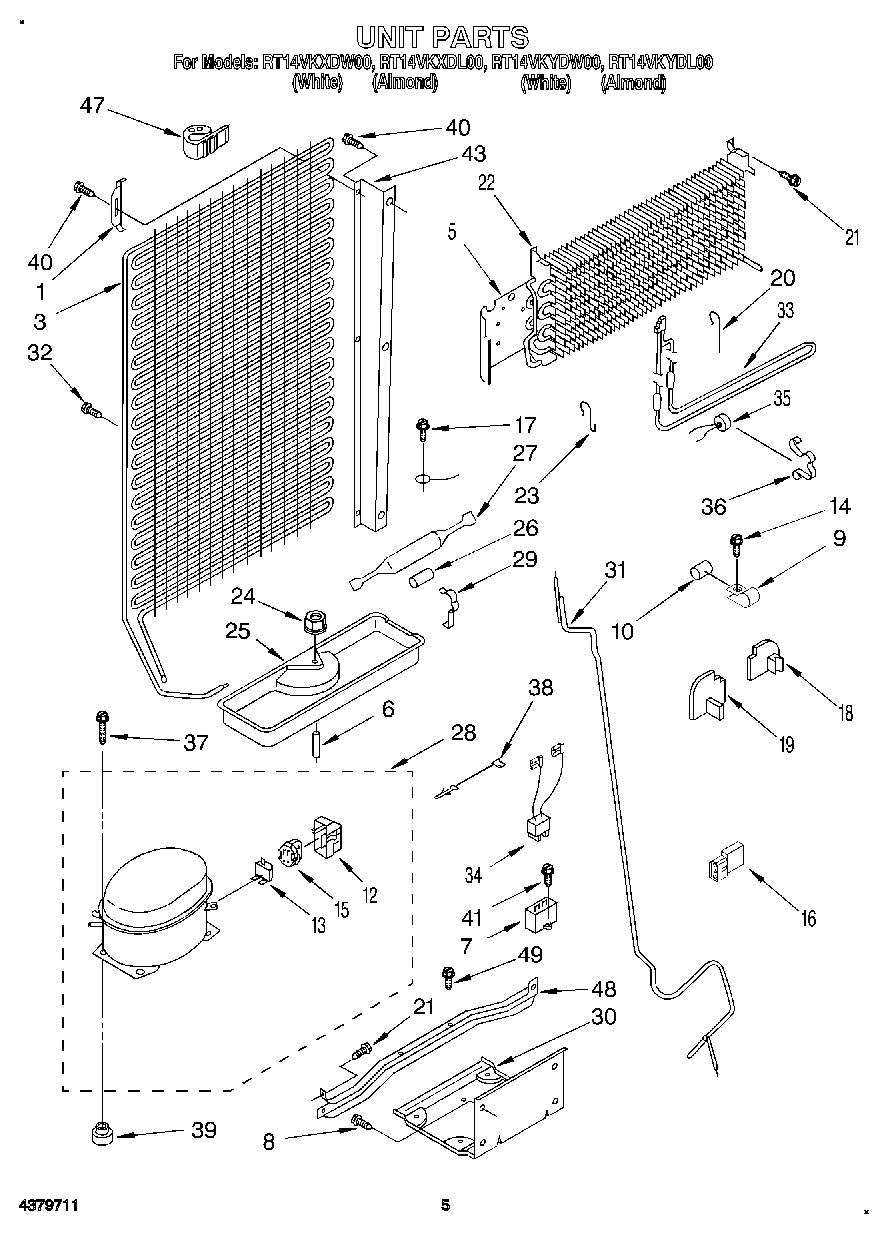

04 - UNIT
Common parts from model Whirlpool RT14VKYDL00 TOP MOUNT REFRIGERATOR
WPL LIT2150611 WPL LIT2150611 Contact Us For Availability
WPL LIT2151307 WPL LIT2151307 Contact Us For Availability
WPL LIT2173245 WPL LIT2173245 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI125775A Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 944095 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 944099 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1116091 Contact Us For Availability
1
Bracket WPL 2150555 Contact Us For Availability
2
Shield, Wiring WPL 946207 Contact Us For Availability
2
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
2
Box, Control WPL 2151325 Contact Us For Availability
3
Stud Hook WPL 939065 Contact Us For Availability
3
Cover, Ice Tray WPL 2147583 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Condenser Assembly WPL 2151005 Contact Us For Availability
5
Roller WPL 2152014 Contact Us For Availability
5
Pan, Crisper WPL 2172388 Contact Us For Availability
5
Evaporator, Support WPL 935700 Contact Us For Availability
5
Handle, Center WPL 1109166 Contact Us For Availability
5
Heat Shield WPL 935699 Contact Us For Availability
6
Cover, Air Duct WPL 2151247 Contact Us For Availability
6
Spacer WPL 938275 Contact Us For Availability
7
Bumper WPL 845287 Contact Us For Availability
7
Hole Plug (2) (Almond) WPL 989196 Contact Us For Availability
7
Running Capacitor WPL 2169137 Contact Us For Availability
9
Air Deflector Side (2) WPL 2150905 Contact Us For Availability
9
Tube Clamp WPL 510716 Contact Us For Availability
10
Dampener WPL 1108064 Contact Us For Availability
11
Screw, 8-32 WPL 2151280 Contact Us For Availability
11
Knob, Thermostat WPL 937144 Contact Us For Availability
12
Drain Insert WPL 937359 Contact Us For Availability
13
Retainer, Knob WPL 1111792 Contact Us For Availability
13
Overload (Production (Includes Relay)) WPL 2150966 Contact Us For Availability
14
Knob, Air Control WPL 1111737 Contact Us For Availability
15
Interior Door Panel (Refrigerator) WPL 2151299 Contact Us For Availability
15
Gasket, Bottom Separator WPL 2151234 Contact Us For Availability
15
Relay (See Overload) WPL ARI125776A Contact Us For Availability
16
Rod, Connecting WPL 1111438 Contact Us For Availability
17
Bracket, Door Stop WPL 944035 Contact Us For Availability
17
Air Diffuser Assembly WPL 1118973 Contact Us For Availability
18
Grommet WPL 531933 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
18
Side Block, Right Evaporator WPL 2151218 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Whit WPL 944101 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Almo WPL 944105 Contact Us For Availability
19
Cover, Air Diffuser WPL 937226 Contact Us For Availability
19
Side Block, Left Evaporator WPL 2151219 Contact Us For Availability
20
Trim, Door Shelf WPL 2151345 Contact Us For Availability
20
Clip, Heater WPL 850721 Contact Us For Availability
21
Spacer, Handle WPL 943188 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
22
Hole Plug (2) (Almond) WPL 1122654 Contact Us For Availability
22
Wiring, Assembly Control Box WPL 2151217 Contact Us For Availability
22
Evaporator WPL 938360 Contact Us For Availability
23
Scroll, Fan WPL 1122814 Contact Us For Availability
23
Support, Heater WPL 851358 Contact Us For Availability
24
Evaporator Cover WPL 2152289 Contact Us For Availability
24
Interior Door Panel (Freezer) WPL 2151203 Contact Us For Availability
25
Tray, Evaporator WPL 935781 Contact Us For Availability
26
Shim WPL 943187 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
27
Pin, Hinge WPL 654366 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
Insulation, Compartment Separator WPL 939272 Contact Us For Availability
28
Tray Mounting Kit WPL 482801 Contact Us For Availability
28
Screw (Bottom L.H.) WPL 488714 Contact Us For Availability
28
Handle, Center WPL 1109171 Contact Us For Availability
28
Compressor (Includes Items 7, 12, 13, 15, 34, WPL 2162442 Contact Us For Availability
29
Nameplate WPL 2163676 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
30
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
30
Unit Mounting Plate WPL 942860 Contact Us For Availability
31
Cover Tube, Rear WPL 935704 Contact Us For Availability
31
Exchanger, Heat WPL 2172369 Contact Us For Availability
32
Cover Tube, Bottom WPL 941776 Contact Us For Availability
32
Bracket, Door Stop WPL 1115910 Contact Us For Availability
33
Top, Compartment Separator WPL 935717 Contact Us For Availability
33
Heater, Defrost WPL 2151216 Contact Us For Availability
34
WPL 876029 WPL 876029 Contact Us For Availability
34
TAPE, VINYL (3/4 X 10 WPL 479502 Contact Us For Availability
34
Door Reversal Instructions WPL 2148984 Contact Us For Availability
34
WPL 542639 WPL 542639 Contact Us For Availability
34
WPL 799340 WPL 799340 Contact Us For Availability
34
WPL 799833 WPL 799833 Contact Us For Availability
34
WPL 978883 WPL 978883 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
Rear Corner, Block WPL 939056 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
38
Heat Shield WPL 937227 Contact Us For Availability
38
Overload Wiring (White) WPL 1101124 Contact Us For Availability
38
Overload Wiring (Red) WPL 1101125 Contact Us For Availability
40
Drain Pan WPL 935718 Contact Us For Availability
43
Channel, Condenser (Right) WPL 2150553 Contact Us For Availability
43
Channel, Condenser (Left) WPL 2150554 Contact Us For Availability
47
Bumper (2) WPL 2150954 Contact Us For Availability
48
Unit Mounting Rail WPL 945448 Contact Us For Availability
49
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
49
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
