Model Whirlpool RT14VKXBL00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
02 - LINER
01 - CABINET

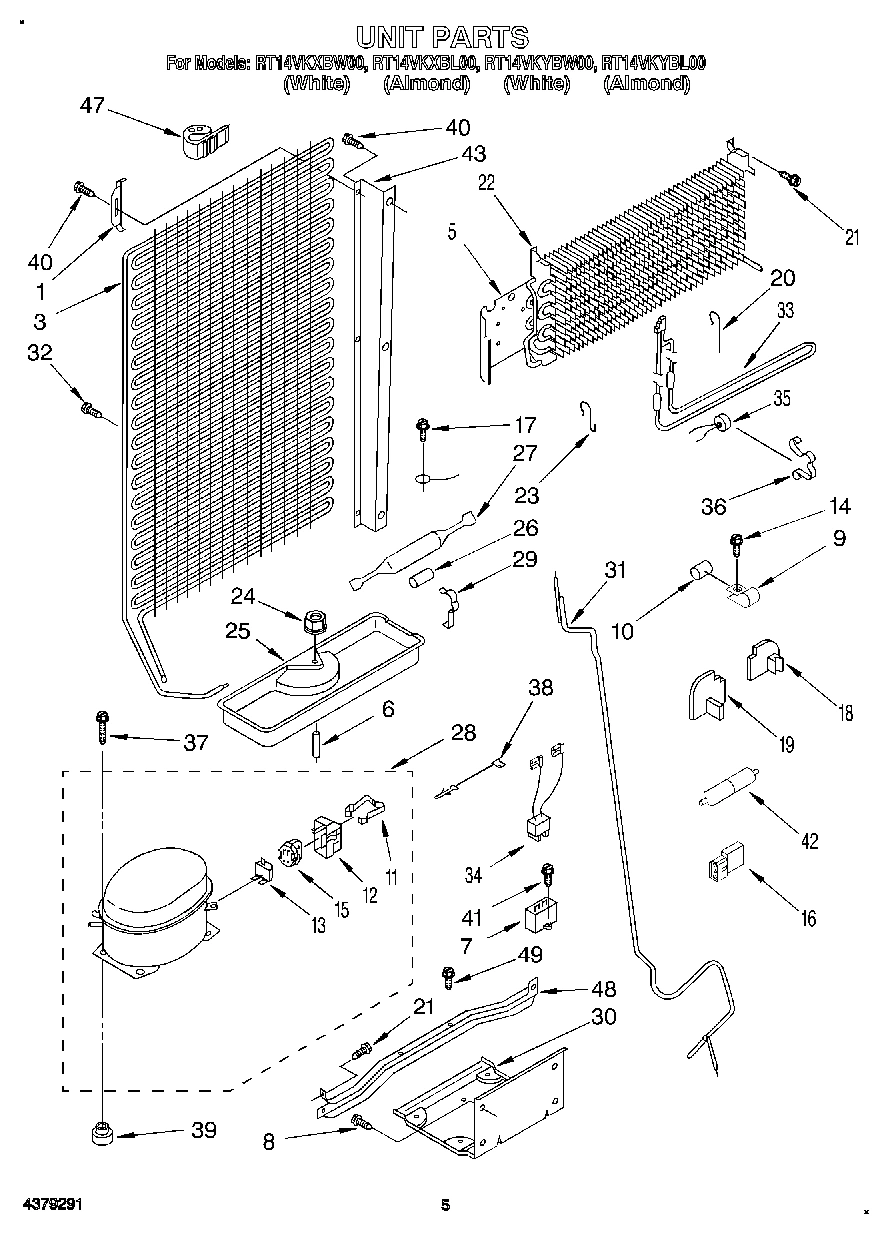

04 - UNIT

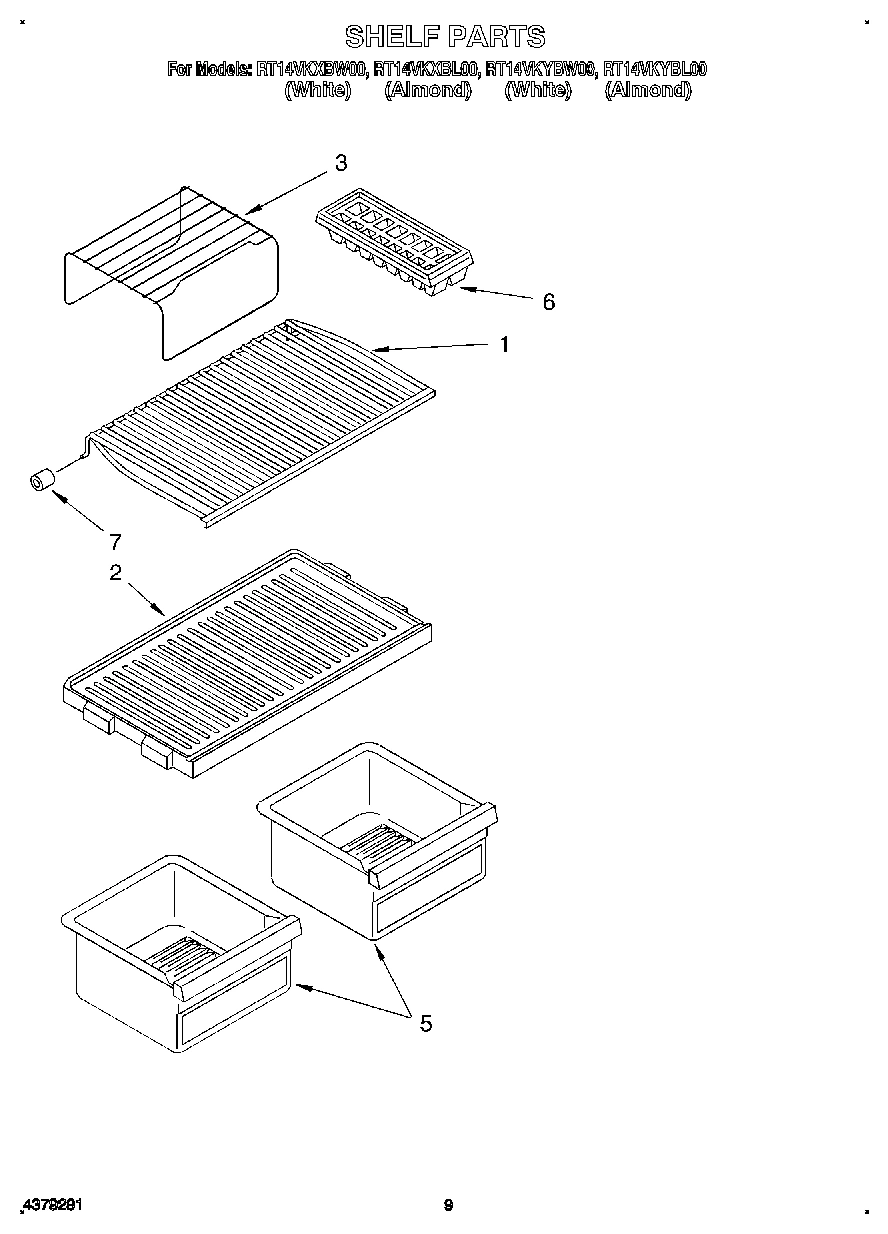

06 - SHELF

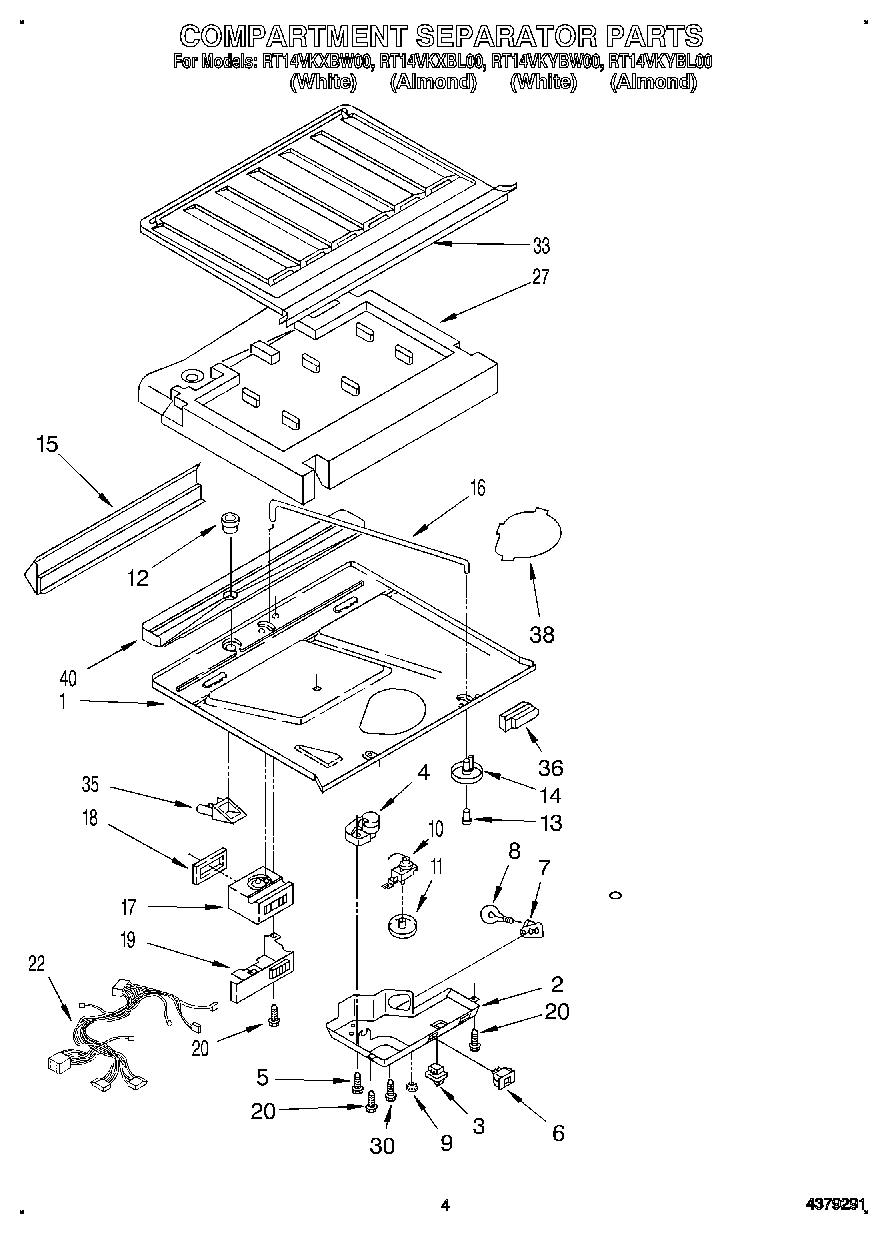

03 - COMPARTMENT SEPARATOR

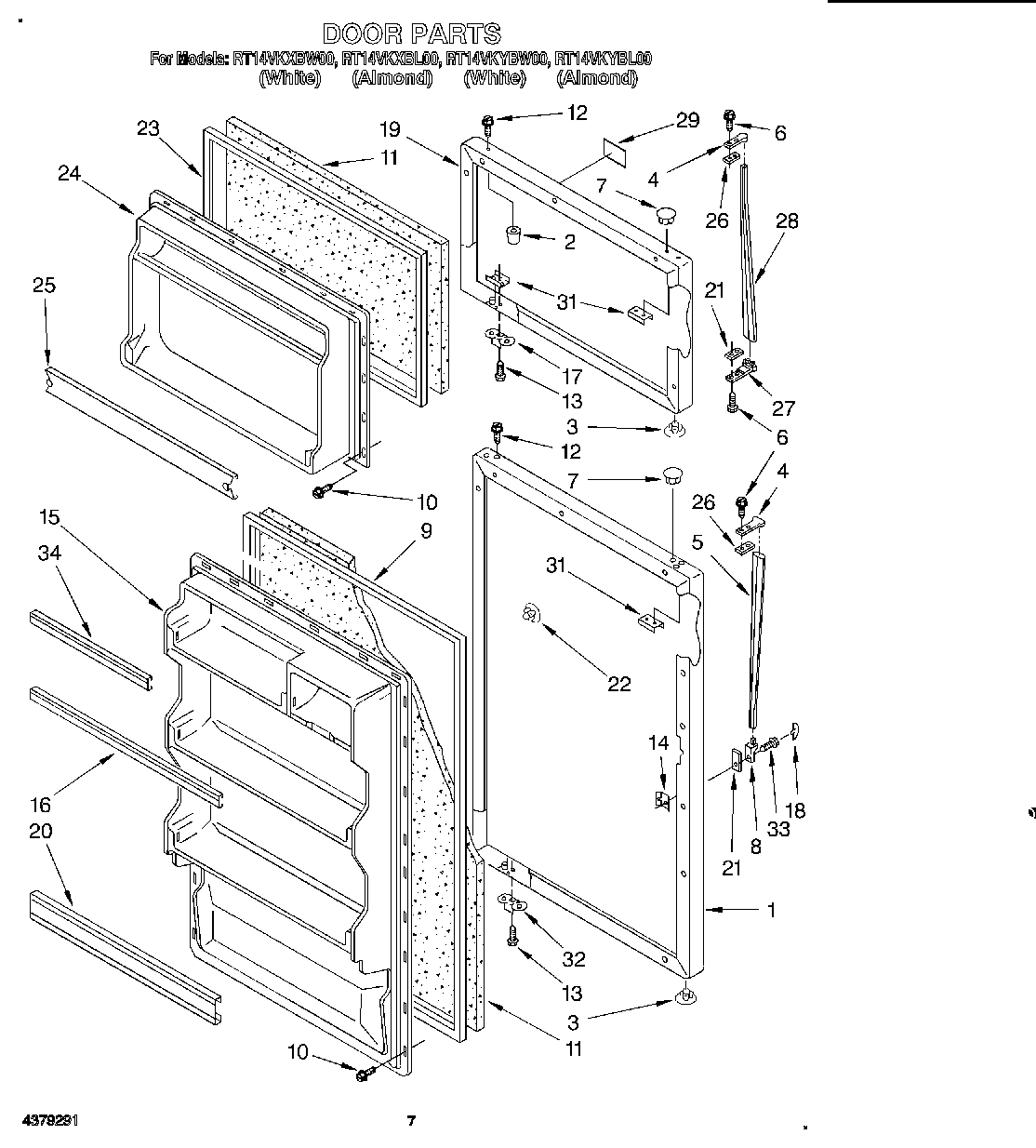

05 - DOOR, LIT/OPTIONAL
Common parts from model Whirlpool RT14VKXBL00 TOP MOUNT REFRIGERATOR
WPL LIT2150611 WPL LIT2150611 Contact Us For Availability
WPL LIT2151307 WPL LIT2151307 Contact Us For Availability
WPL LIT2151355 WPL LIT2151355 Contact Us For Availability
1
Bracket WPL 2150555 Contact Us For Availability
1
Shelf, Pullout (2) WPL 940006 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1116091 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 944095 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 944099 Contact Us For Availability
2
Cover, Crisper WPL 2151348 Contact Us For Availability
2
Box, Control WPL 2151325 Contact Us For Availability
2
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
3
Condenser Assembly WPL 2151005 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
5
Roller WPL 2152014 Contact Us For Availability
5
Heat Shield WPL 935699 Contact Us For Availability
5
Pan, Crisper (2) WPL 2151349 Contact Us For Availability
5
Handle, Center WPL 1109166 Contact Us For Availability
6
Spacer WPL 938275 Contact Us For Availability
7
Running Capacitor WPL 2154565 Contact Us For Availability
7
Bumper WPL 845287 Contact Us For Availability
7
Hole Plug (2) (Almond) WPL 989196 Contact Us For Availability
9
Tube Clamp WPL 510716 Contact Us For Availability
10
Dampener WPL 1108064 Contact Us For Availability
11
Spring, Relay Case WPL 938384 Contact Us For Availability
11
Knob, Thermostat WPL 937144 Contact Us For Availability
12
Case, Relay WPL 1108115 Contact Us For Availability
12
Drain Insert WPL 937359 Contact Us For Availability
13
Overload (Production (Includes Relay)) WPL 2150966 Contact Us For Availability
13
Retainer, Knob WPL 1111792 Contact Us For Availability
14
Knob, Air Control WPL 1111737 Contact Us For Availability
15
Relay (See Overload) WPL ARI125746A Contact Us For Availability
15
Gasket, Bottom Separator WPL 2151234 Contact Us For Availability
15
Interior Door Panel (Refrigerator) WPL 2151299 Contact Us For Availability
16
Rod, Connecting WPL 1111438 Contact Us For Availability
17
Air Diffuser Assembly WPL 1118973 Contact Us For Availability
17
Bracket, Door Stop WPL 944035 Contact Us For Availability
18
Side Block, Right Evaporator WPL 2151218 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
19
Side Block, Left Evaporator WPL 2151219 Contact Us For Availability
19
Cover, Air Diffuser WPL 937226 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Whit WPL 944101 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Almo WPL 944105 Contact Us For Availability
20
Clip, Heater WPL 850721 Contact Us For Availability
20
Trim, Door Shelf WPL 2151345 Contact Us For Availability
21
Spacer, Handle WPL 943188 Contact Us For Availability
22
Evaporator WPL 938360 Contact Us For Availability
22
Wiring, Assembly Control Box WPL 2151217 Contact Us For Availability
22
Hole Plug (2) (Almond) WPL 1122654 Contact Us For Availability
23
Support, Heater WPL 851358 Contact Us For Availability
24
Interior Door Panel (Freezer) WPL 2151203 Contact Us For Availability
25
Tray, Evaporator WPL 935781 Contact Us For Availability
26
Shim WPL 943187 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
27
Pin, Hinge WPL 654366 Contact Us For Availability
27
Insulation, Compartment Separator WPL 939272 Contact Us For Availability
28
Tray Mounting Kit WPL 482801 Contact Us For Availability
28
Screw (Bottom L.H.) WPL 488714 Contact Us For Availability
28
Compressor (Includes Items 7, 11, 12, 13, 15, WPL 2154556 Contact Us For Availability
28
Handle, Center WPL 1109171 Contact Us For Availability
29
Shim, Bottom WPL 935737 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
29
Nameplate WPL 2163676 Contact Us For Availability
30
Unit Mounting Plate WPL 942860 Contact Us For Availability
30
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
31
Tap Plate WPL 935743 Contact Us For Availability
31
Exchanger, Heat WPL 2150490 Contact Us For Availability
32
Rail, Cover (White) WPL 935707 Contact Us For Availability
32
Rail, Cover (Almond) WPL 935711 Contact Us For Availability
32
Bracket, Door Stop WPL 1115910 Contact Us For Availability
33
Hole, Plug (2) (White) WPL 941416 Contact Us For Availability
33
Hole, Plug (2) (Almond) WPL 941417 Contact Us For Availability
33
Heater, Defrost WPL 2151216 Contact Us For Availability
33
Top, Compartment Separator WPL 935717 Contact Us For Availability
34
WPL 876029 WPL 876029 Contact Us For Availability
34
TAPE, VINYL (3/4 X 10 WPL 479502 Contact Us For Availability
34
WPL 799344 WPL 799344 Contact Us For Availability
34
Door Reversal Instructions WPL 2148984 Contact Us For Availability
34
WPL 542639 WPL 542639 Contact Us For Availability
34
WPL 799340 WPL 799340 Contact Us For Availability
34
WPL 799833 WPL 799833 Contact Us For Availability
34
WPL 978883 WPL 978883 Contact Us For Availability
35
Hole Plug WPL 1119707 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
Hole Plug (2) (White) WPL 842031 Contact Us For Availability
36
Hole Plug (2) (Almond) WPL 989195 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
36
Rear Corner, Block WPL 939056 Contact Us For Availability
37
Screw WPL 488895 Contact Us For Availability
38
Overload Wiring (White) WPL 1101124 Contact Us For Availability
38
Overload Wiring (Red) WPL 1101125 Contact Us For Availability
38
Heat Shield WPL 937227 Contact Us For Availability
39
Cover, Wiring WPL 946218 Contact Us For Availability
40
Drain Pan WPL 935718 Contact Us For Availability
42
Muffler WPL 1116650 Contact Us For Availability
43
Channel, Condenser (Right) WPL 2150553 Contact Us For Availability
43
Channel, Condenser (Left) WPL 2150554 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Clamp WPL 937357 Contact Us For Availability
46
Fitting, Drain WPL 2150543 Contact Us For Availability
47
Bumper (2) WPL 2150954 Contact Us For Availability
48
Unit Mounting Rail WPL 945448 Contact Us For Availability
49
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
49
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
