Model Whirlpool RT14DKXAL00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
06 - SHELF
02 - DOOR

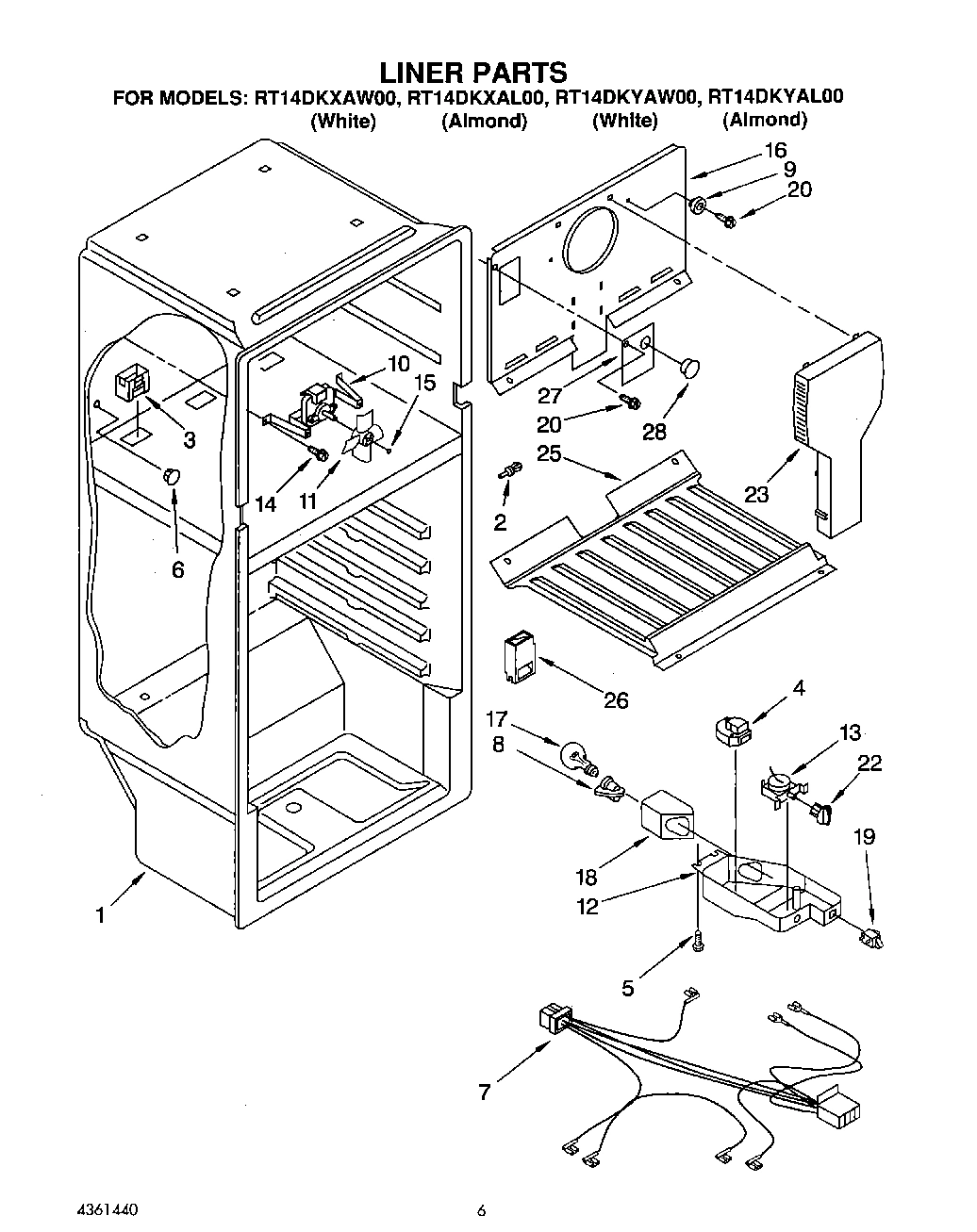

04 - LINER, LIT/OPTIONAL

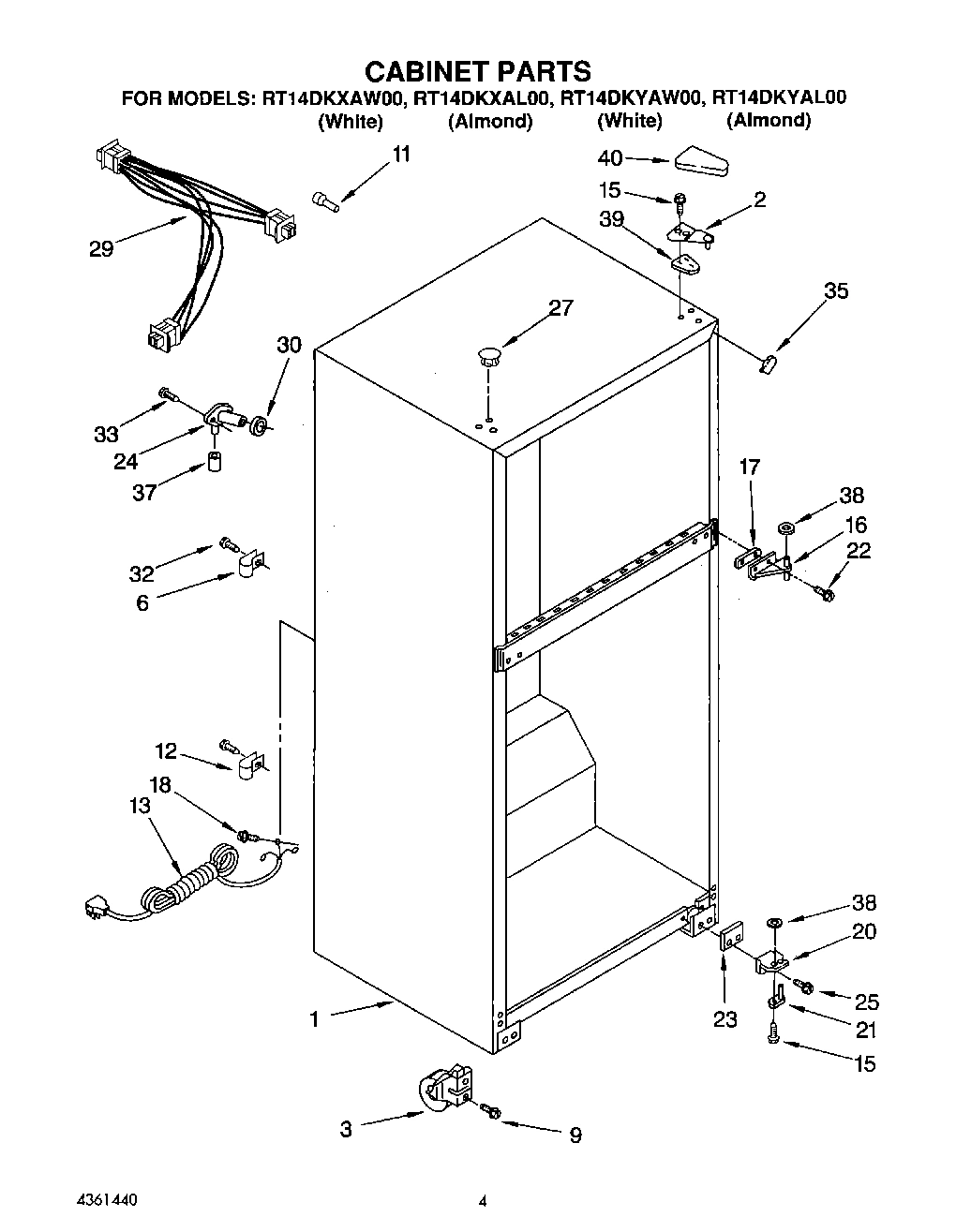

03 - CABINET
05 - UNIT
Common parts from model Whirlpool RT14DKXAL00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT9791409 WPL LIT9791409 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI125054A Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI125053A Contact Us For Availability
2
Bumper (2) WPL 944772 Contact Us For Availability
3
Diffuser-Air WPL 9791377 Contact Us For Availability
3
Roller-Front WPL 9790461 Contact Us For Availability
3
Condenser WPL 9790413 Contact Us For Availability
6
Support, Crisper WPL 9791824 Contact Us For Availability
7
Shim WPL 943187 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Post, Crisper WPL 836410 Contact Us For Availability
7
Heat Shield WPL 9791383 Contact Us For Availability
8
Spacer WPL 1105130 Contact Us For Availability
9
Grommet WPL 531933 Contact Us For Availability
9
Screw (2) WPL 9791768 Contact Us For Availability
9
Clip-Pin WPL 20150912 Contact Us For Availability
10
Fan Motor & Bracket Assy. WPL 2166013 Contact Us For Availability
11
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
11
Fan Blade WPL 2160471 Contact Us For Availability
11
Tube, Water Inlet WPL 836490 Contact Us For Availability
13
Thermostat WPL 9790409 Contact Us For Availability
13
Cord, Service WPL 937360 Contact Us For Availability
13
Overload WPL 2154758 Contact Us For Availability
15
Ring, Compression WPL 992953 Contact Us For Availability
15
Screw WPL 489327 Contact Us For Availability
16
Cover-Evaporator WPL 9790382 Contact Us For Availability
17
Shim, Hinge Center WPL 9791480 Contact Us For Availability
18
Pin-Roller WPL 20150911 Contact Us For Availability
21
Hinge-Pin Bott. WPL 9791682 Contact Us For Availability
22
Screw WPL 488714 Contact Us For Availability
23
Air Tower WPL 2166026 Contact Us For Availability
23
Shim, Bottom Hinge WPL 9791716 Contact Us For Availability
25
Freezer Floor WPL 9790380 Contact Us For Availability
26
Air Diffuser WPL 9790402 Contact Us For Availability
26
Bracket, Condenser WPL 944791 Contact Us For Availability
27
Hole Plug (3) (Almond) WPL 2151653 Contact Us For Availability
28
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
28
Hole Plug WPL 1103725 Contact Us For Availability
28
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
28
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
28
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
28
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
28
WPL 978883 WPL 978883 Contact Us For Availability
28
Compressor (Also Order 482801 Installation Ki WPL 4317960 Contact Us For Availability
29
Cabinet, Wiring Assembly WPL 9790418 Contact Us For Availability
30
Clamp WPL 851095 Contact Us For Availability
33
Handle, F.C. WPL 1111547 Contact Us For Availability
34
Retainer, Gasket WPL 1122553 Contact Us For Availability
35
Corner Filler (Almond) WPL 2166004 Contact Us For Availability
35
Clip, Tube WPL 1105406 Contact Us For Availability
36
Heat Exchanger WPL 9791825 Contact Us For Availability
37
Clip, Compressor WPL 24364001 Contact Us For Availability
39
Shim WPL 2157272 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
42
Wire Assy. Unit WPL 9790416 Contact Us For Availability
44
Overload WPL 1108114 Contact Us For Availability
45
Cover, Terminal WPL 1108115 Contact Us For Availability
46
Retainer WPL 938384 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evaporator Tray WPL 1101002 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
