Model Whirlpool RT14DCXVG11 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

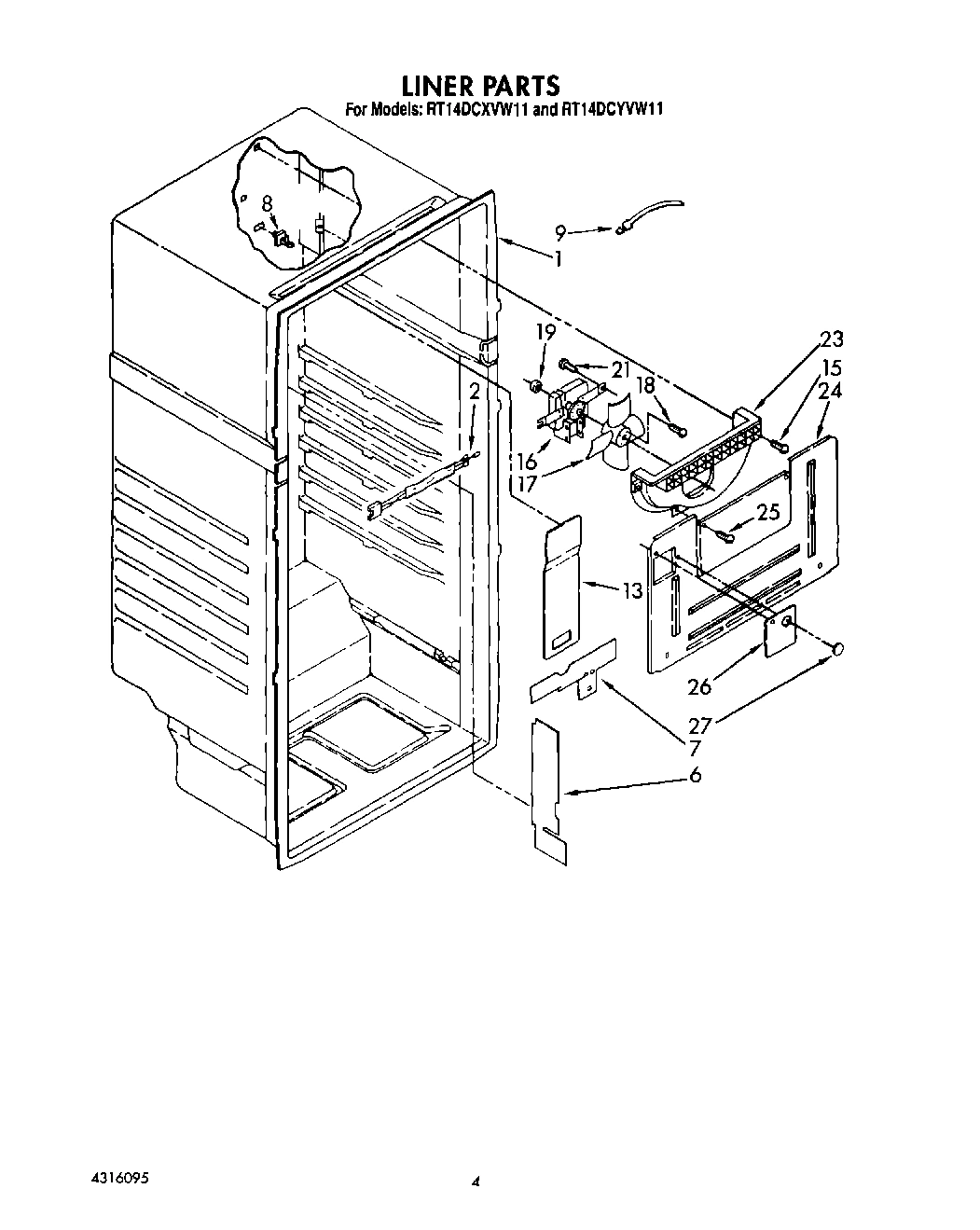

03 - LINER

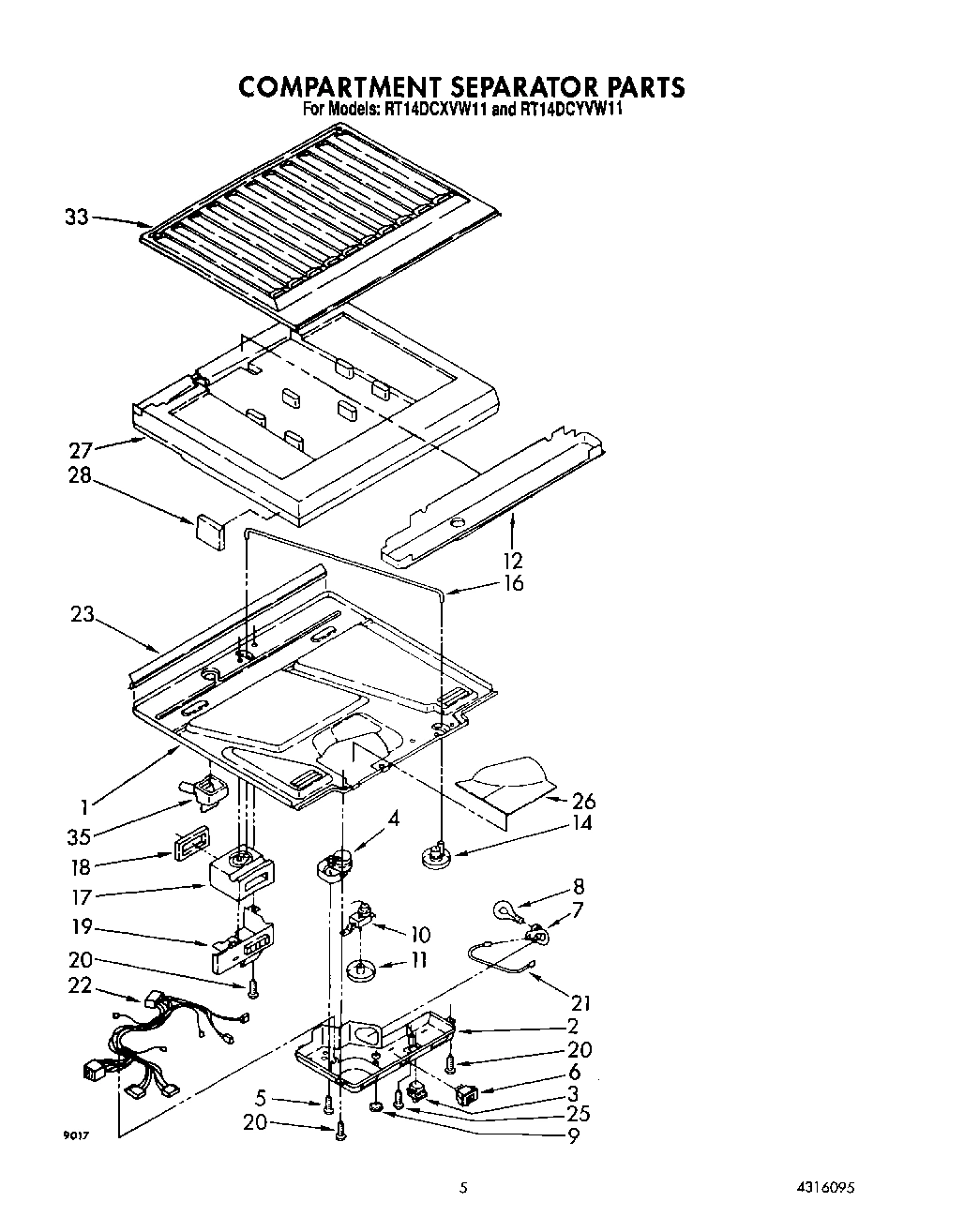

04 - COMPARTMENT SEPARATOR

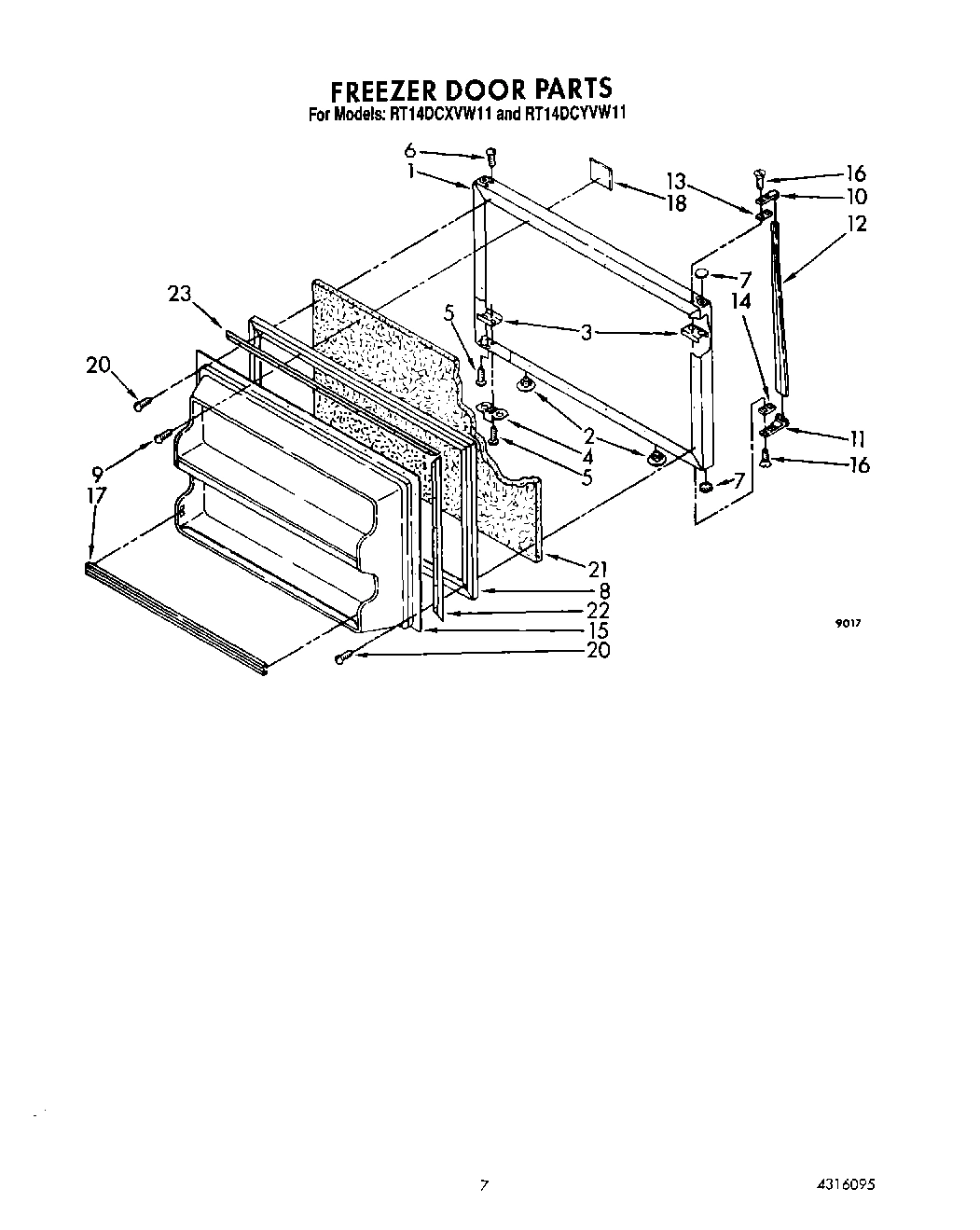

06 - FREEZER DOOR

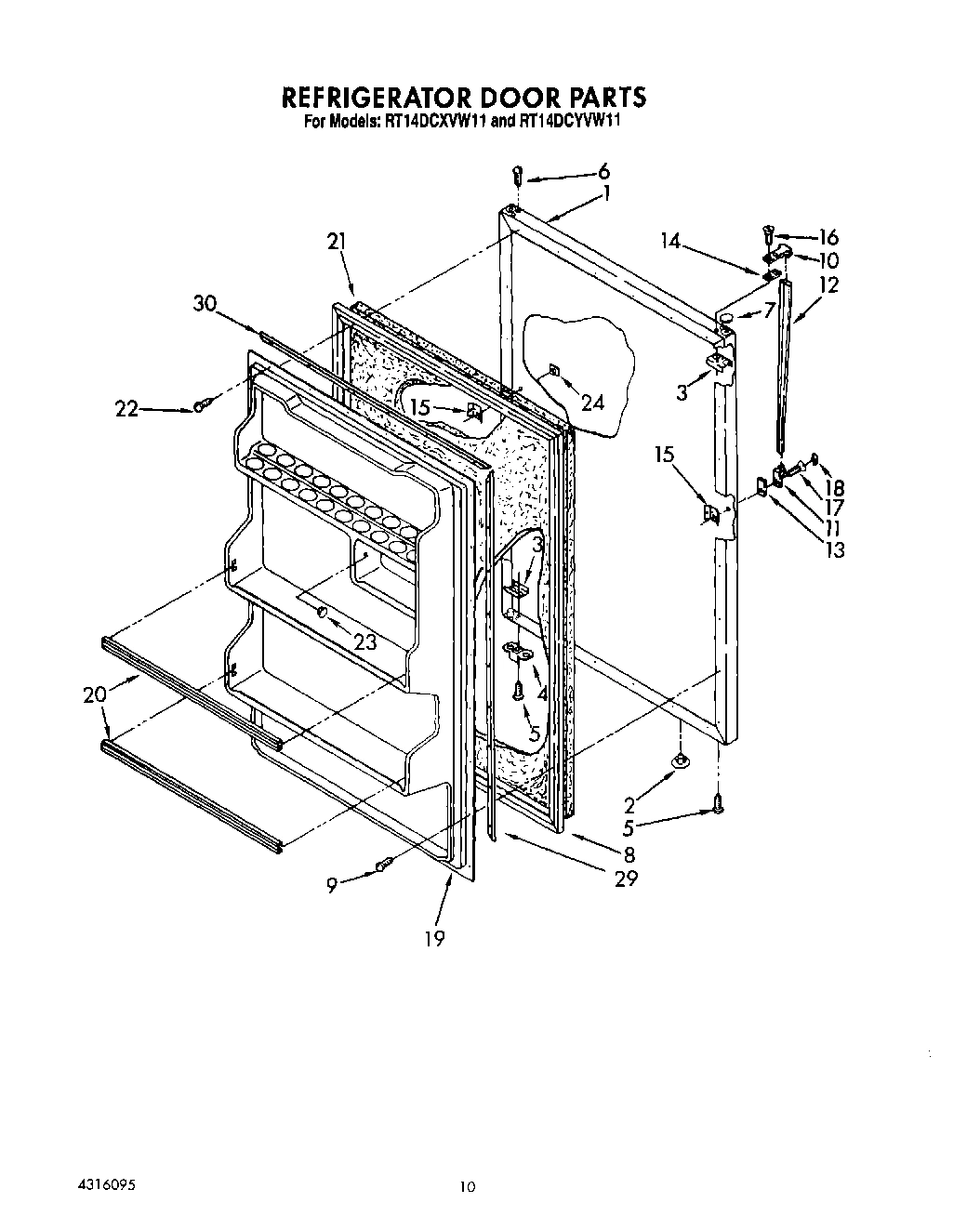

08 - REFRIGERATOR DOOR, LIT/OPTIONAL

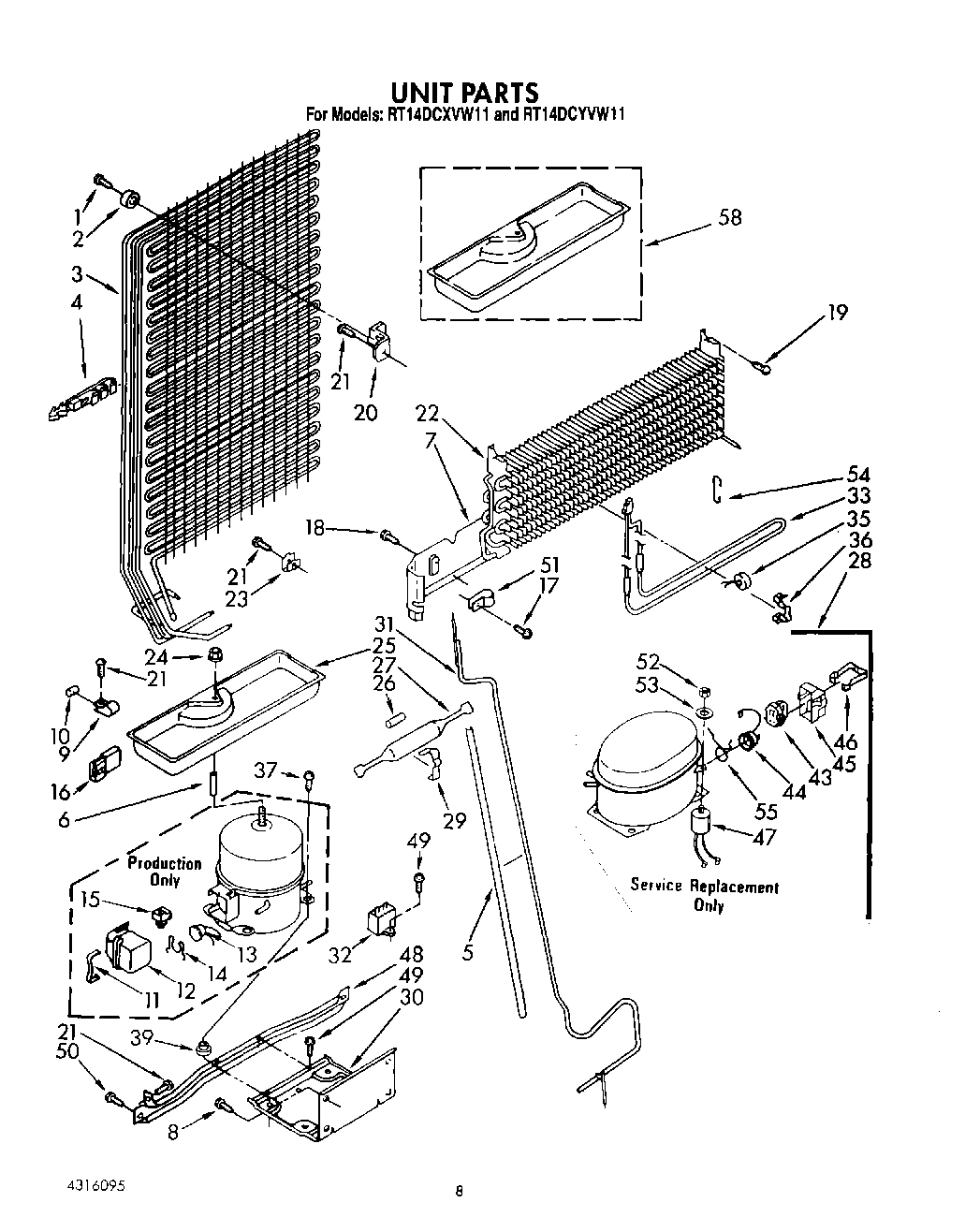

07 - UNIT

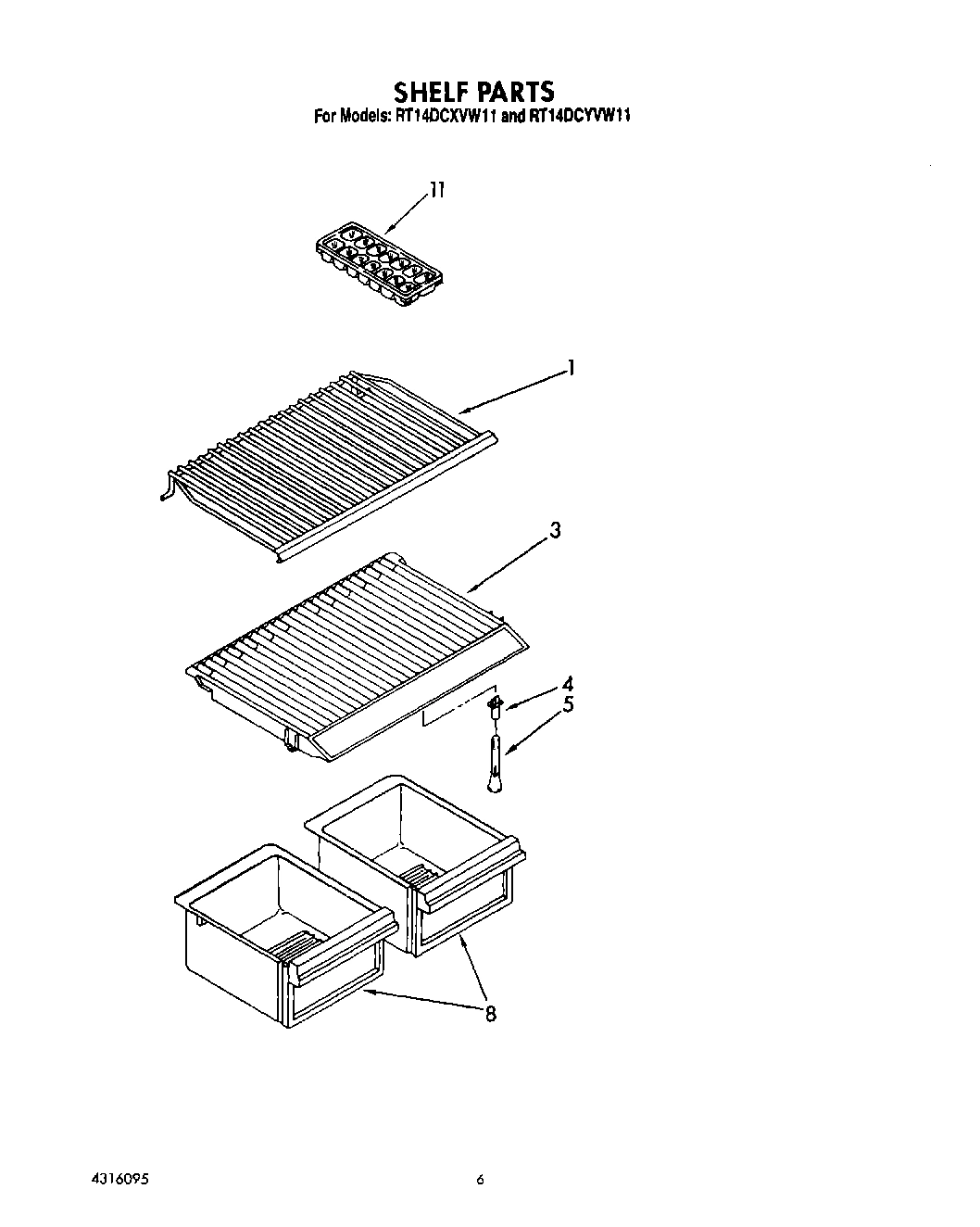

05 - SHELF

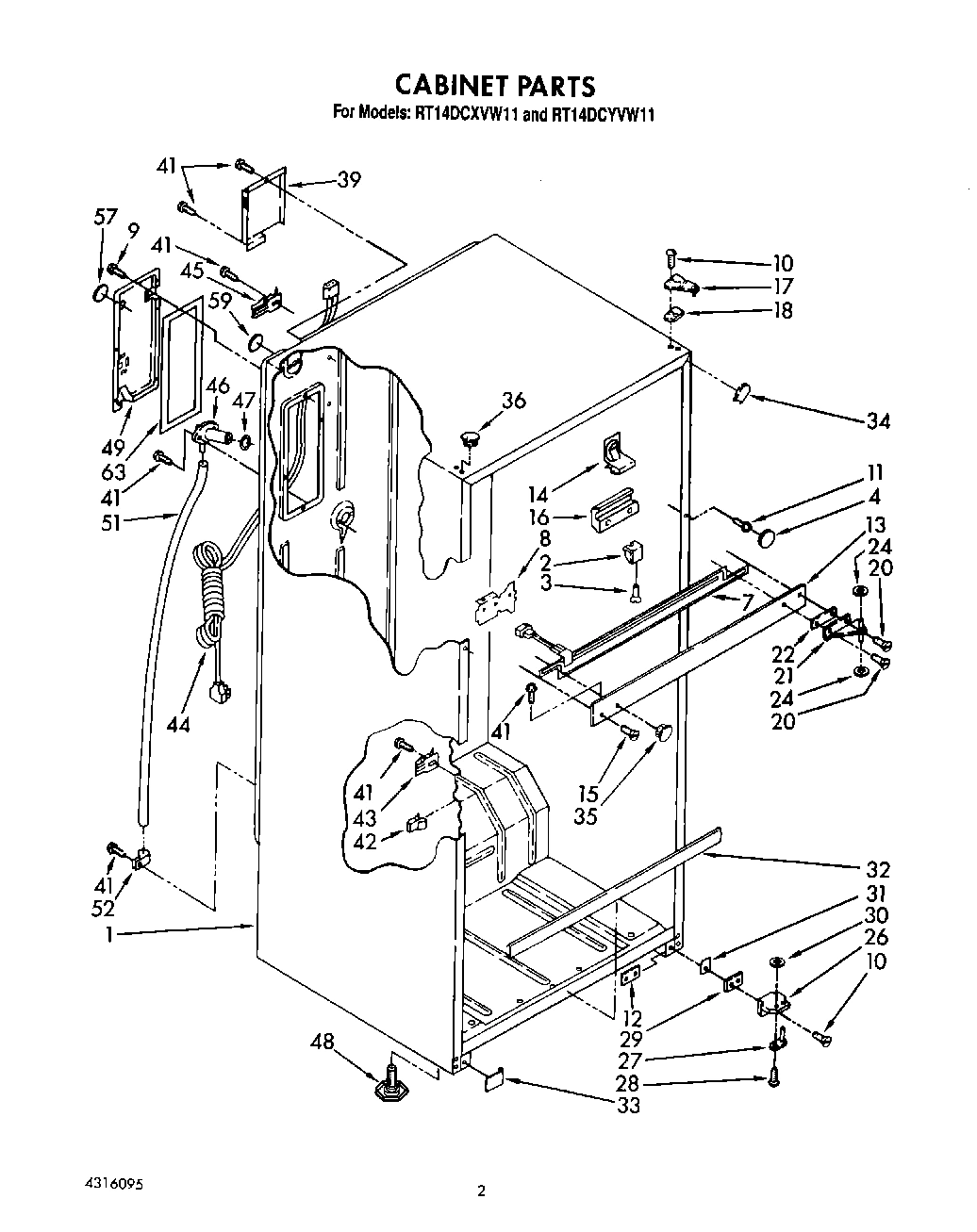

02 - CABINET
Common parts from model Whirlpool RT14DCXVG11 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT1124901 WPL LIT1124901 Contact Us For Availability
WPL LIT2149681 WPL LIT2149681 Contact Us For Availability
WPL LIT2150138 WPL LIT2150138 Contact Us For Availability
WPL LIT4316095 WPL LIT4316095 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1103940 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Gol WPL 1103941 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1103942 Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 1103917 Contact Us For Availability
1
Panel, Refrigerator Door (Golden Harvest) WPL 1103918 Contact Us For Availability
1
Panel, Refrigerator Door (Almond) (Also Order WPL 1103919 Contact Us For Availability
1
Shelf, Pullout (2) WPL 1104455 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI125027A Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug WPL 534927 Contact Us For Availability
2
Hole Plug (Almond) WPL 989197 Contact Us For Availability
2
Hole Plug (Golden Harvest) WPL 989879 Contact Us For Availability
2
Bumper (2) WPL 944772 Contact Us For Availability
2
Spacer WPL 2149077 Contact Us For Availability
3
Condenser & Precooler Assembly WPL 1127953 Contact Us For Availability
3
Cover, Crisper WPL 1124673 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
4
Clip, Tube (2) WPL 1118652 Contact Us For Availability
4
Support, Crisper Cover WPL 1103731 Contact Us For Availability
4
Hole Plug (2) (White) WPL 1122929 Contact Us For Availability
4
Hole Plug (2) (Golden Harvest) WPL 1126569 Contact Us For Availability
4
Hole Plug (2) (Almond) WPL 1126571 Contact Us For Availability
5
Post, Cripser Cover WPL 836410 Contact Us For Availability
6
Spacer WPL 1105130 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Heat Shield Evaporator WPL 1108169 Contact Us For Availability
7
Heater, Mullion WPL 1118897 Contact Us For Availability
8
Pan, Crisper (2) WPL 1124674 Contact Us For Availability
8
Center Rail, Bracket (2) WPL 1110231 Contact Us For Availability
9
Tube Clamp WPL 510716 Contact Us For Availability
10
Dampener WPL 945593 Contact Us For Availability
10
Screw WPL 489327 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
11
Screw, 8-32 1/2 WPL 488844 Contact Us For Availability
12
Handle, Center WPL 1109171 Contact Us For Availability
12
Handle, Center WPL 1109166 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
12
Tap Plate (2) WPL 2147312 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle End (Side) WPL 992872 Contact Us For Availability
13
Overload WPL 1127963 Contact Us For Availability
13
Center Rail (White) WPL 1111510 Contact Us For Availability
13
Center Rail (Golden Harvest) WPL 1111511 Contact Us For Availability
13
Center Rail (Almond) WPL 1111512 Contact Us For Availability
14
Spacer, Hand Door WPL 943188 Contact Us For Availability
14
Overload Spring WPL 943320 Contact Us For Availability
14
Clip, Center Rail WPL 1129018 Contact Us For Availability
15
Panel, Interior Door (Freezer) WPL 1120629 Contact Us For Availability
15
Relay WPL 945507 Contact Us For Availability
15
Screw WPL 489319 Contact Us For Availability
16
Center, Rail Shim WPL 2151428 Contact Us For Availability
17
Trim, Door Shelf WPL 1116038 Contact Us For Availability
17
Screw WPL 489050 Contact Us For Availability
17
Hinge, Top WPL 1129045 Contact Us For Availability
18
Nameplate WPL 1124315 Contact Us For Availability
18
Shim, Hinge Top WPL 1100511 Contact Us For Availability
19
Interior Door Panel WPL 1120628 Contact Us For Availability
20
Trim, Door (Top) (2) WPL 1116031 Contact Us For Availability
20
Bracket, Condenser (2) WPL 944791 Contact Us For Availability
20
Screw (Repair) WPL 489297 Contact Us For Availability
21
Hinge, Center WPL 1129047 Contact Us For Availability
22
Gasket Retainer, Side (2) WPL 1120613 Contact Us For Availability
22
Evaporator WPL 1108180 Contact Us For Availability
22
Shim, Hinge Center WPL 836194 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Hole Plug, Handle (Golden Harvest) WPL 1122694 Contact Us For Availability
25
Tray, Evaporator WPL 942875 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
26
Hinge Butt, Bottom (R.H) WPL 1123882 Contact Us For Availability
27
Pin, Hinge WPL 654366 Contact Us For Availability
28
Tray Mounting Kit WPL 482801 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Pad (2) WPL 946367 Contact Us For Availability
28
Compressor (Includes Items 43, 44, 45, 46, 47 WPL 482980 Contact Us For Availability
29
Gasket Retainer, Side (2) WPL 1120615 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
29
Shim, Bottom WPL 943708 Contact Us For Availability
30
WPL 876029 WPL 876029 Contact Us For Availability
30
TAPE, WPL 479502 Contact Us For Availability
30
WPL 799344 WPL 799344 Contact Us For Availability
30
Gasket Retainer, Top & Bottom (2) WPL 1120614 Contact Us For Availability
30
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
30
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
30
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
30
WPL 542639 WPL 542639 Contact Us For Availability
30
WPL 799340 WPL 799340 Contact Us For Availability
30
WPL 799833 WPL 799833 Contact Us For Availability
30
WPL 978883 WPL 978883 Contact Us For Availability
30
Unit Mounting Plate WPL 1118781 Contact Us For Availability
30
Washer, 7/64 WPL 489201 Contact Us For Availability
31
Exchanger, Heat WPL 1127957 Contact Us For Availability
31
Cover, Glide Rail (White) WPL 2151421 Contact Us For Availability
31
Cover, Glide Rail (Almond) WPL 2151422 Contact Us For Availability
31
Cover, Glide Rail (Golden Harvest) WPL 2151423 Contact Us For Availability
32
Cover, Deck Rail (White) WPL 1109359 Contact Us For Availability
32
Cover, Deck Rail (Golden Harvest) WPL 1109361 Contact Us For Availability
32
Cover, Deck Rail (Almond) WPL 1109363 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1119323 Contact Us For Availability
33
Heater, Defrost WPL 1127659 Contact Us For Availability
33
Cover, Glider Rail (White) WPL 943552 Contact Us For Availability
33
Cover, Glider Rail (Almond) WPL 944831 Contact Us For Availability
33
Cover, Glider Rail (Golden Harvest) WPL 944833 Contact Us For Availability
34
Filler, Wrap Corner (2) (White) WPL 1110684 Contact Us For Availability
34
Filler, Wrap Corner (2) (Almond) WPL 1110685 Contact Us For Availability
34
Filler, Wrap Corner (2) (Golden Harvest) WPL 1110686 Contact Us For Availability
35
Cup, Drain WPL 939191 Contact Us For Availability
35
Hole Plug (White) WPL 1119707 Contact Us For Availability
35
Hole Plug (Golden Harvest) WPL 1119708 Contact Us For Availability
35
Hole Plug (Almond) WPL 1119709 Contact Us For Availability
36
Clamp WPL 942873 Contact Us For Availability
36
Hole Plug (2) (White) WPL 842031 Contact Us For Availability
36
Hole Plug (2) (Almond) WPL 989195 Contact Us For Availability
36
Hole Plug (2) (Golden Harvest WPL 989876 Contact Us For Availability
39
WPL 942845 WPL 942845 Contact Us For Availability
44
Overload WPL 483036 Contact Us For Availability
44
WPL 937360 WPL 937360 Contact Us For Availability
45
Cover, Terminal WPL 1105015 Contact Us For Availability
45
WPL 937357 WPL 937357 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
46
WPL 942813 WPL 942813 Contact Us For Availability
47
Capacitor WPL 482996 Contact Us For Availability
47
WPL 1106507 WPL 1106507 Contact Us For Availability
48
Unit Mounting Rail WPL 1118782 Contact Us For Availability
48
WPL 944766 WPL 944766 Contact Us For Availability
49
WPL 1106511 WPL 1106511 Contact Us For Availability
50
Screw, 1/4-28 x 1 (2) WPL 488973 Contact Us For Availability
51
Clamp WPL 489151 Contact Us For Availability
52
Nut WPL 489142 Contact Us For Availability
52
WPL 519405 WPL 519405 Contact Us For Availability
53
Washer WPL 489143 Contact Us For Availability
54
Support, Heater WPL 1108172 Contact Us For Availability
55
Overload Spring WPL 1114190 Contact Us For Availability
57
WPL 1120224 WPL 1120224 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evaporator Tray (Required When Replacing Comp WPL 1101002 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
59
WPL 1105408 WPL 1105408 Contact Us For Availability
63
WPL 1106510 WPL 1106510 Contact Us For Availability
× ![]()
