Model Whirlpool RT12DKYDL00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
01 - CABINET
03 - COMPARTMENT SEPARATOR

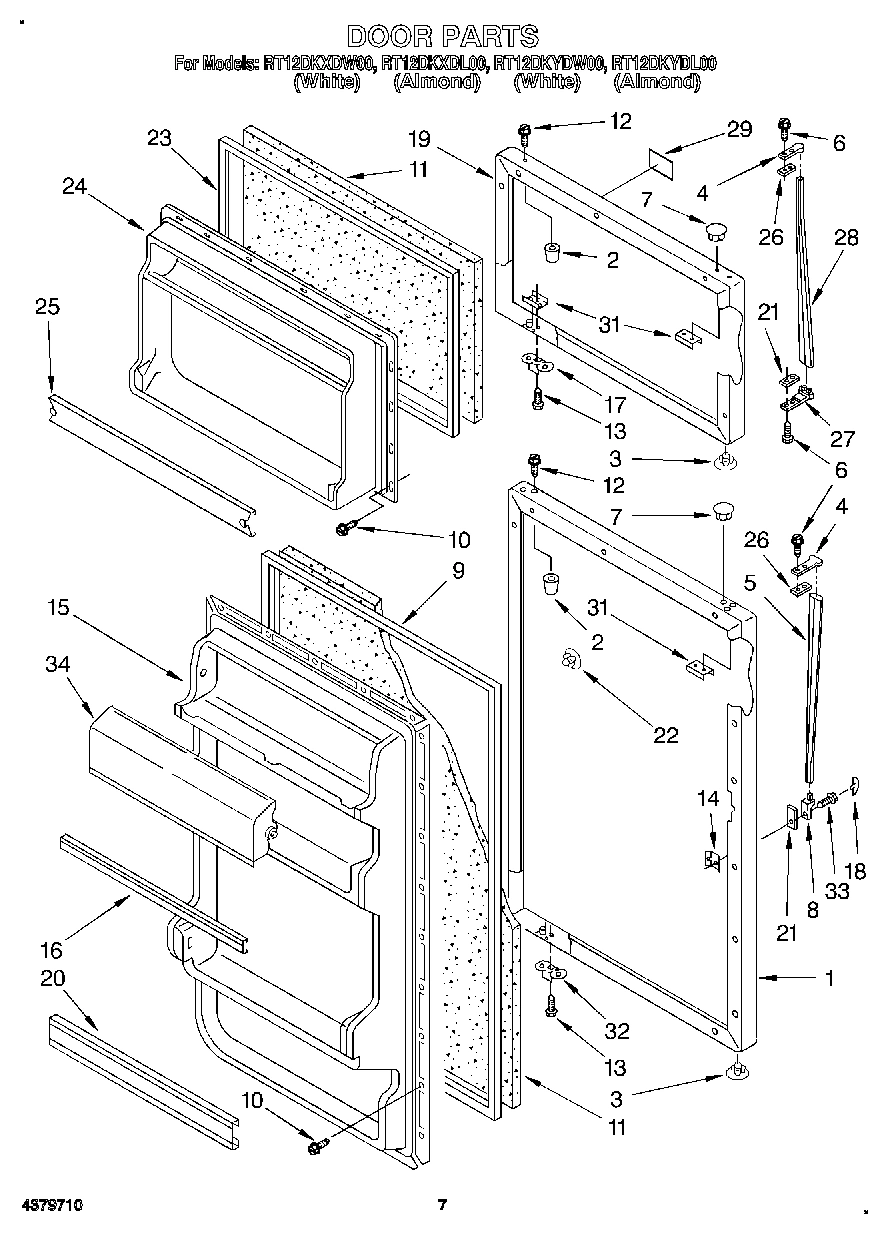

05 - DOOR, LIT/OPTIONAL

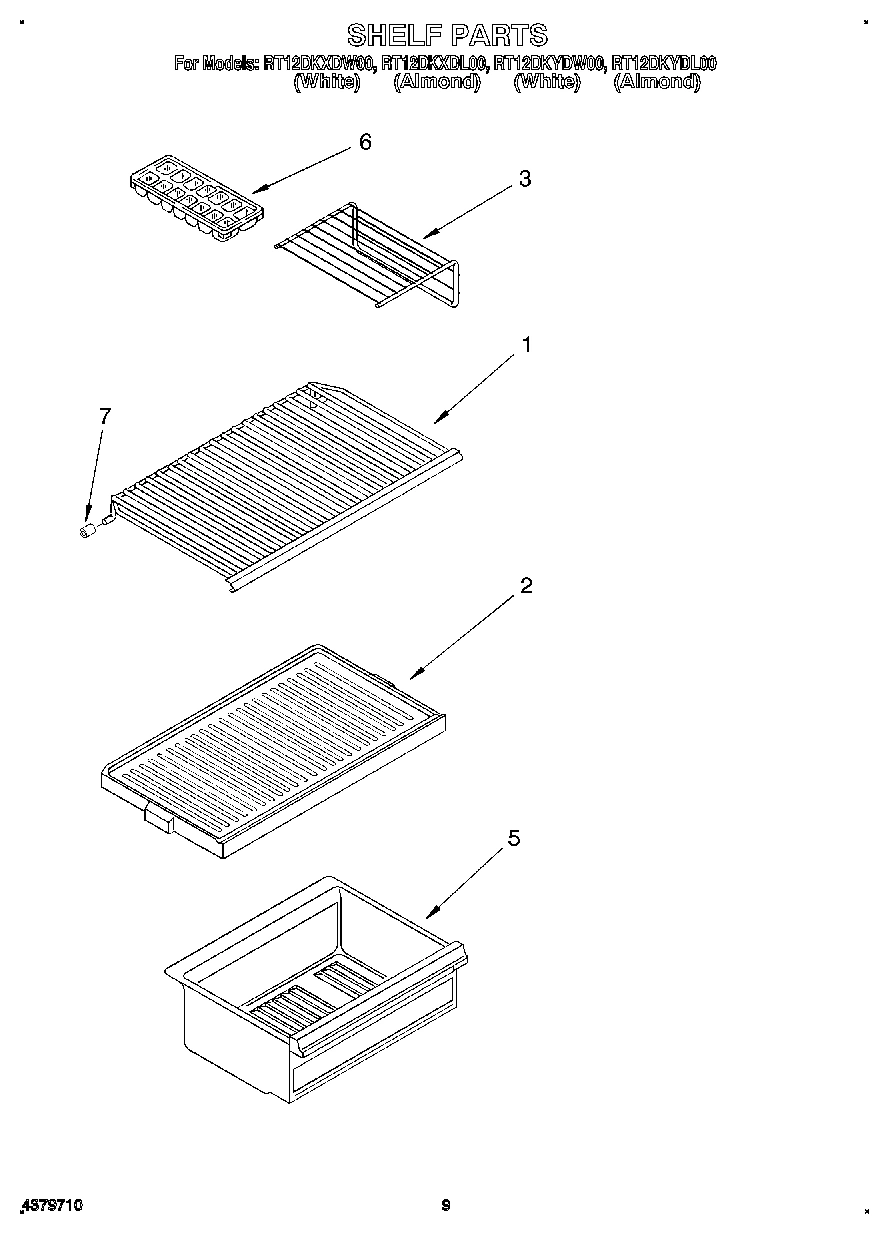

06 - SHELF

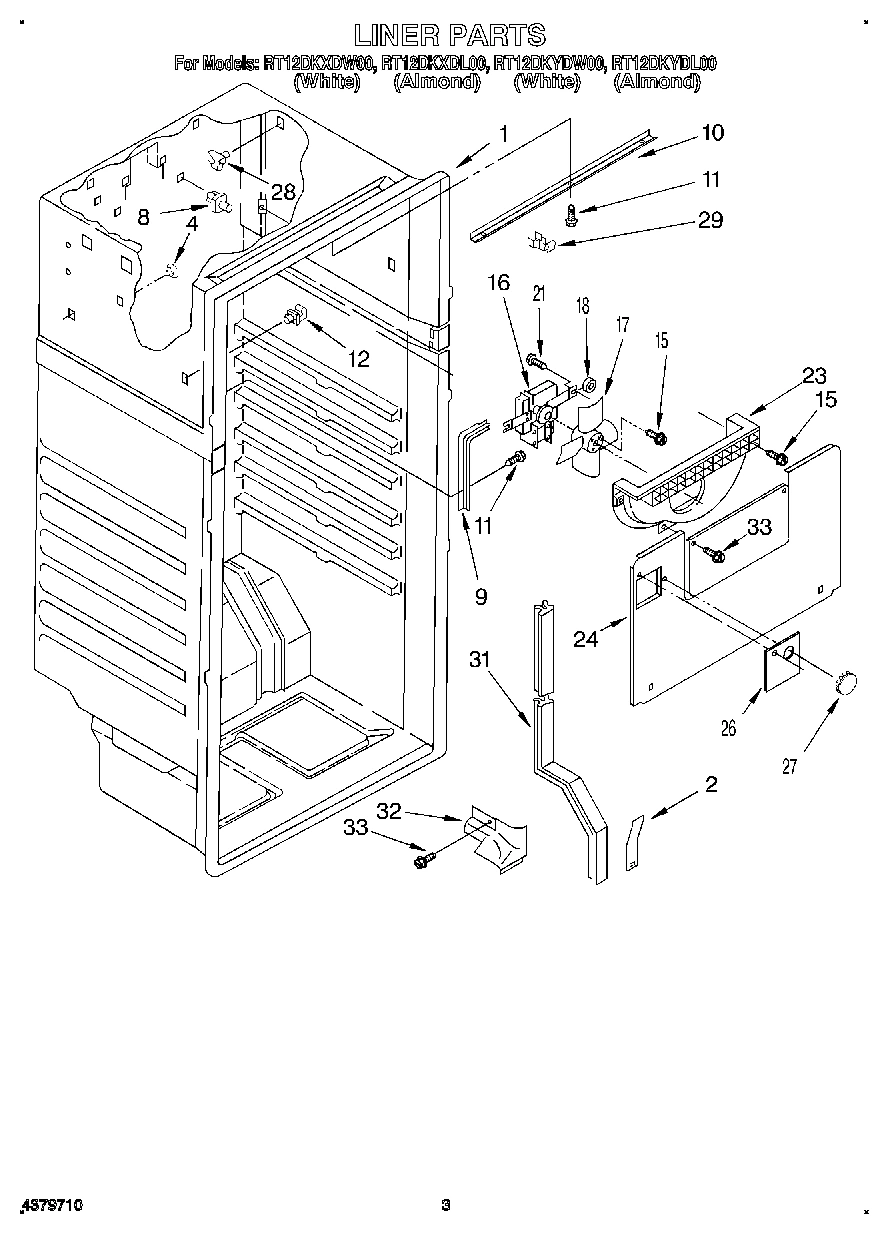

02 - LINER

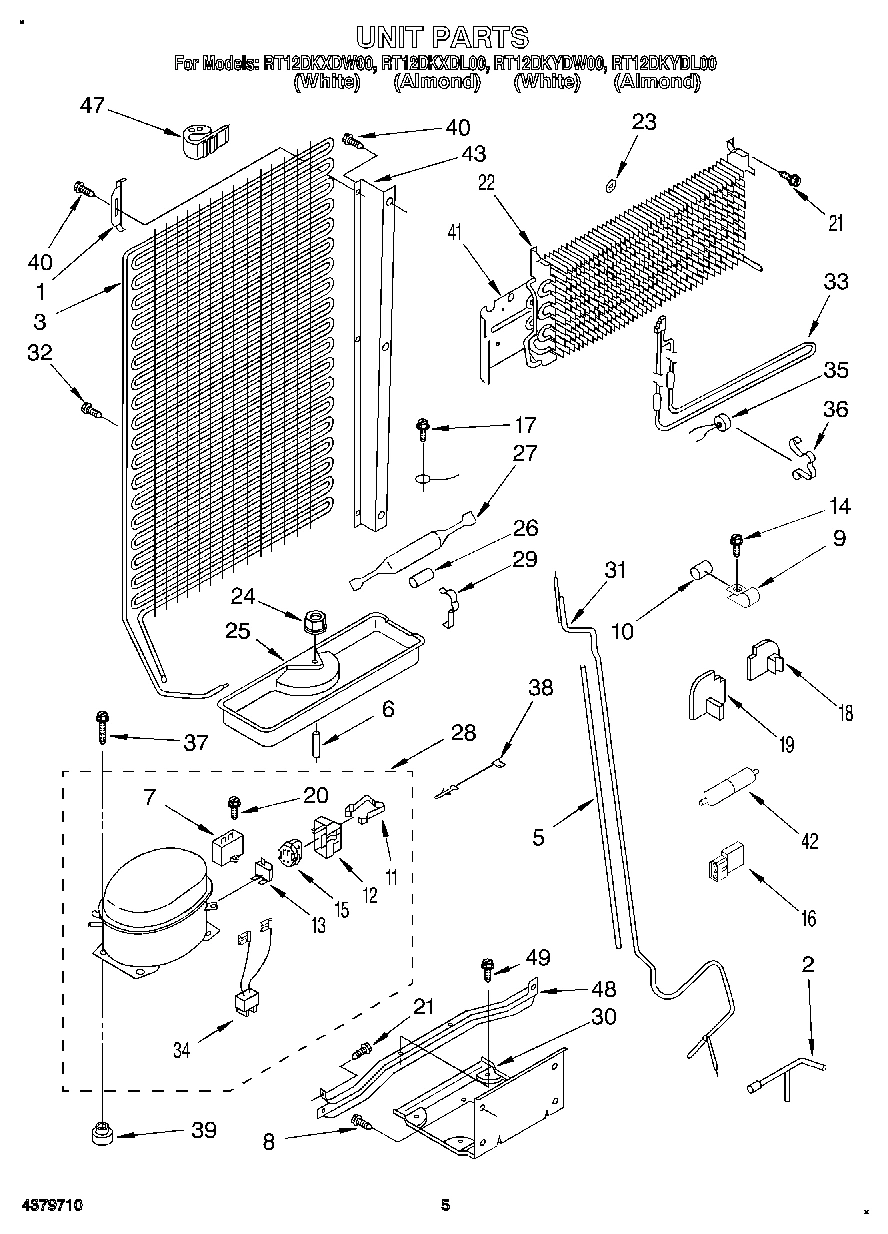

04 - UNIT
Common parts from model Whirlpool RT12DKYDL00 TOP MOUNT REFRIGERATOR
WPL LIT2150548 WPL LIT2150548 Contact Us For Availability
WPL LIT2151074 WPL LIT2151074 Contact Us For Availability
WPL LIT2151371 WPL LIT2151371 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 946391 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 946469 Contact Us For Availability
1
Shelf, Pullout (2) WPL 2172200 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI124801A Contact Us For Availability
1
Bracket WPL 2150555 Contact Us For Availability
2
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
2
Cover, Crisper WPL 1128423 Contact Us For Availability
2
Cover, Air Duct WPL 2151181 Contact Us For Availability
2
Tube Extension Assembly WPL 2172204 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Shelf, Freezer WPL 2147583 Contact Us For Availability
3
Condenser Assembly WPL 2151362 Contact Us For Availability
5
Roller WPL 2152014 Contact Us For Availability
5
Handle, Center WPL 1109166 Contact Us For Availability
5
Pan, Crisper WPL 1126583 Contact Us For Availability
6
Spacer WPL 938275 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Bumper WPL 845287 Contact Us For Availability
8
Stud, Evaporator WPL 1108519 Contact Us For Availability
9
Door Gasket, Magnetic WPL 1128061 Contact Us For Availability
9
Air Deflector Side WPL 2150905 Contact Us For Availability
9
Tube Clamp WPL 510716 Contact Us For Availability
10
Air Deflector Top WPL 2150906 Contact Us For Availability
10
Dampener WPL 1108064 Contact Us For Availability
11
Knob, Thermostat WPL 937144 Contact Us For Availability
11
Screw, 8-32 WPL 2151280 Contact Us For Availability
11
Retainer (Service Only) WPL 938384 Contact Us For Availability
12
Stud Hook WPL 939065 Contact Us For Availability
12
Cover, Terminal (Service) WPL 1108115 Contact Us For Availability
13
Retainer, Knob WPL 1111792 Contact Us For Availability
13
Overload (Includes Relay) WPL 2154758 Contact Us For Availability
14
Knob, Air Control WPL 1111737 Contact Us For Availability
15
Gasket, Bottom Seperator WPL 2151233 Contact Us For Availability
15
Interior Door Panel (Refrigerator) WPL 2151209 Contact Us For Availability
15
Relay (See Overload) WPL ARI124802A Contact Us For Availability
16
Rod, Connecting WPL 1111270 Contact Us For Availability
17
Air Diffuser Assembly WPL 935721 Contact Us For Availability
17
Bracket, Door Stop WPL 944035 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
18
Grommet WPL 531933 Contact Us For Availability
18
Side Block, Right Evaporator WPL 2150558 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108522 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Whit WPL 946393 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Almo WPL 946473 Contact Us For Availability
19
Side Block, Left Evaporator WPL 2150946 Contact Us For Availability
20
Trim, Door Shelf WPL 2151330 Contact Us For Availability
21
Spacer, Handle WPL 943188 Contact Us For Availability
21
Hinge, Center WPL 944788 Contact Us For Availability
21
Separator, Drain Insert WPL 937359 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
22
Wiring, Assembly Control Box WPL 2151194 Contact Us For Availability
22
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
22
Evaporator WPL 1108531 Contact Us For Availability
23
Door Gasket, Magnetic WPL 1128064 Contact Us For Availability
23
Scroll, Fan WPL 1122814 Contact Us For Availability
23
Retainer, Evaporator WPL 1108520 Contact Us For Availability
24
Interior Door Panel (Freezer) WPL 2151210 Contact Us For Availability
24
Evaporator Cover WPL 1108509 Contact Us For Availability
25
Tray, Evaporator WPL 935781 Contact Us For Availability
26
Shim WPL 943187 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
27
Pin, Hinge WPL 654366 Contact Us For Availability
27
Insulation, Compartment WPL 1114430 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
28
Tray Mounting Kit WPL 482801 Contact Us For Availability
28
Screw (Bottom L.H.) WPL 488714 Contact Us For Availability
28
Handle, Center WPL 1109171 Contact Us For Availability
28
Support, Stud WPL 939203 Contact Us For Availability
28
Compressor (Includes Items 7, 11, 12, 13, 15, WPL 2162441 Contact Us For Availability
29
Nameplate WPL 2163676 Contact Us For Availability
29
Clip, Ground WPL 1108523 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
30
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
30
Unit Mounting Plate WPL 942860 Contact Us For Availability
31
Hood, Air Return WPL 1108521 Contact Us For Availability
31
Cover Tube, Rear WPL 1110678 Contact Us For Availability
31
Exchanger, Heat WPL 1116647 Contact Us For Availability
32
Bracket, Door Stop WPL 1115910 Contact Us For Availability
32
Cover Tube, Bottom WPL 941776 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1128228 Contact Us For Availability
33
Heater, Defrost WPL 2151192 Contact Us For Availability
34
WPL 876029 WPL 876029 Contact Us For Availability
34
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
34
WPL 799344 WPL 799344 Contact Us For Availability
34
Door Reversal Instructions WPL 2148984 Contact Us For Availability
34
Compartment Door WPL 2151088 Contact Us For Availability
34
WPL 542639 WPL 542639 Contact Us For Availability
34
WPL 799340 WPL 799340 Contact Us For Availability
34
WPL 799833 WPL 799833 Contact Us For Availability
34
WPL 978883 WPL 978883 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Bi-Metal, Defrost WPL 2151193 Contact Us For Availability
36
Rear Corner, Block WPL 939056 Contact Us For Availability
36
Clamp WPL 1110548 Contact Us For Availability
37
Gasket WPL 1114468 Contact Us For Availability
38
Heat Shield WPL 937227 Contact Us For Availability
38
Overload Wiring (White) WPL 1101124 Contact Us For Availability
38
Overload Wiring (Red) WPL 1101125 Contact Us For Availability
40
Drain Pan WPL 1108512 Contact Us For Availability
41
Heat Shield, Evaporator WPL 1108486 Contact Us For Availability
42
Muffler WPL 1116650 Contact Us For Availability
43
Channel, Condenser (Right) WPL 2150553 Contact Us For Availability
43
Channel, Condenser (Left) WPL 2150554 Contact Us For Availability
47
Bumper (2) WPL 2150954 Contact Us For Availability
48
Unit Mounting Rail WPL 945449 Contact Us For Availability
49
WPL 978029 WPL 978029 Contact Us For Availability
49
VALVE, ACCESS (1/2` WPL 978028 Contact Us For Availability
× ![]()
