Model Whirlpool RT12DKXAL00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

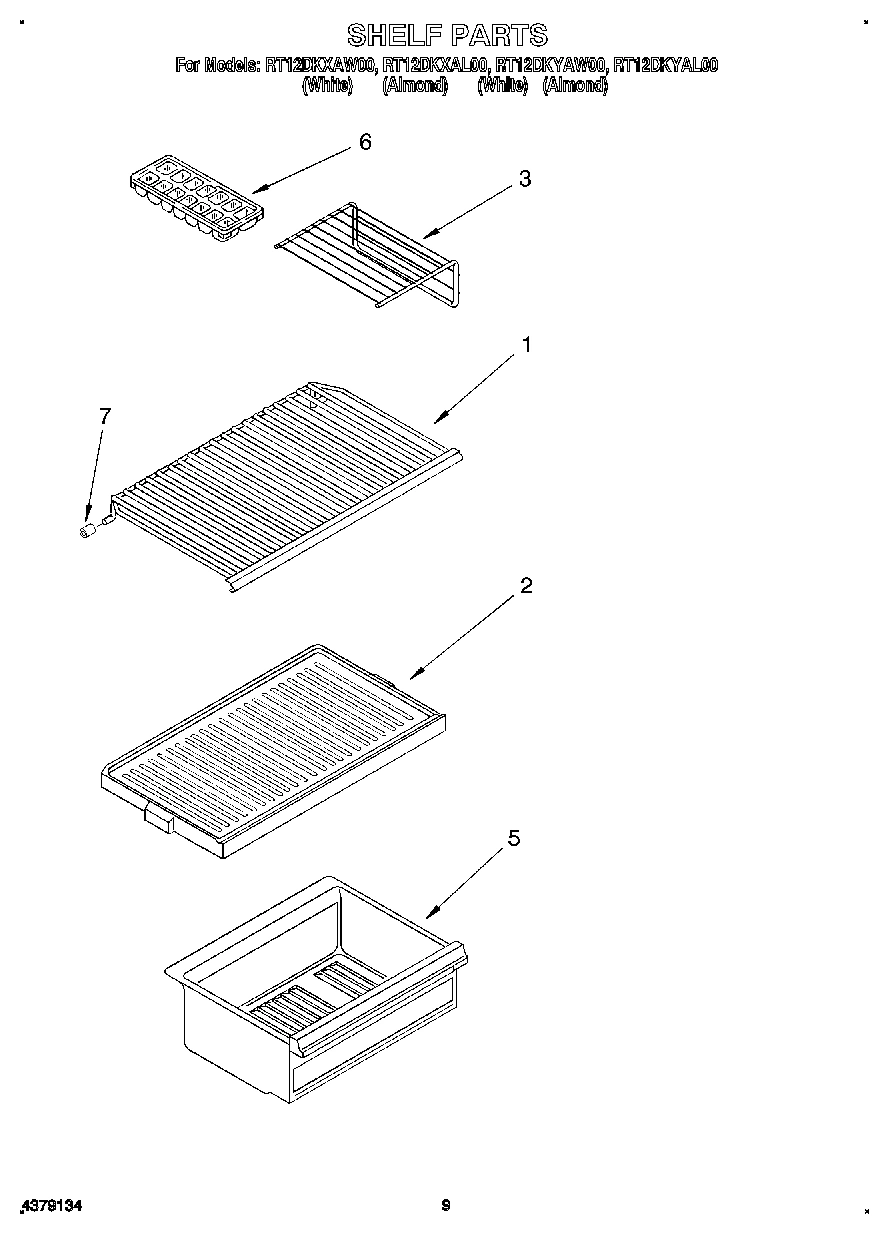

06 - SHELF

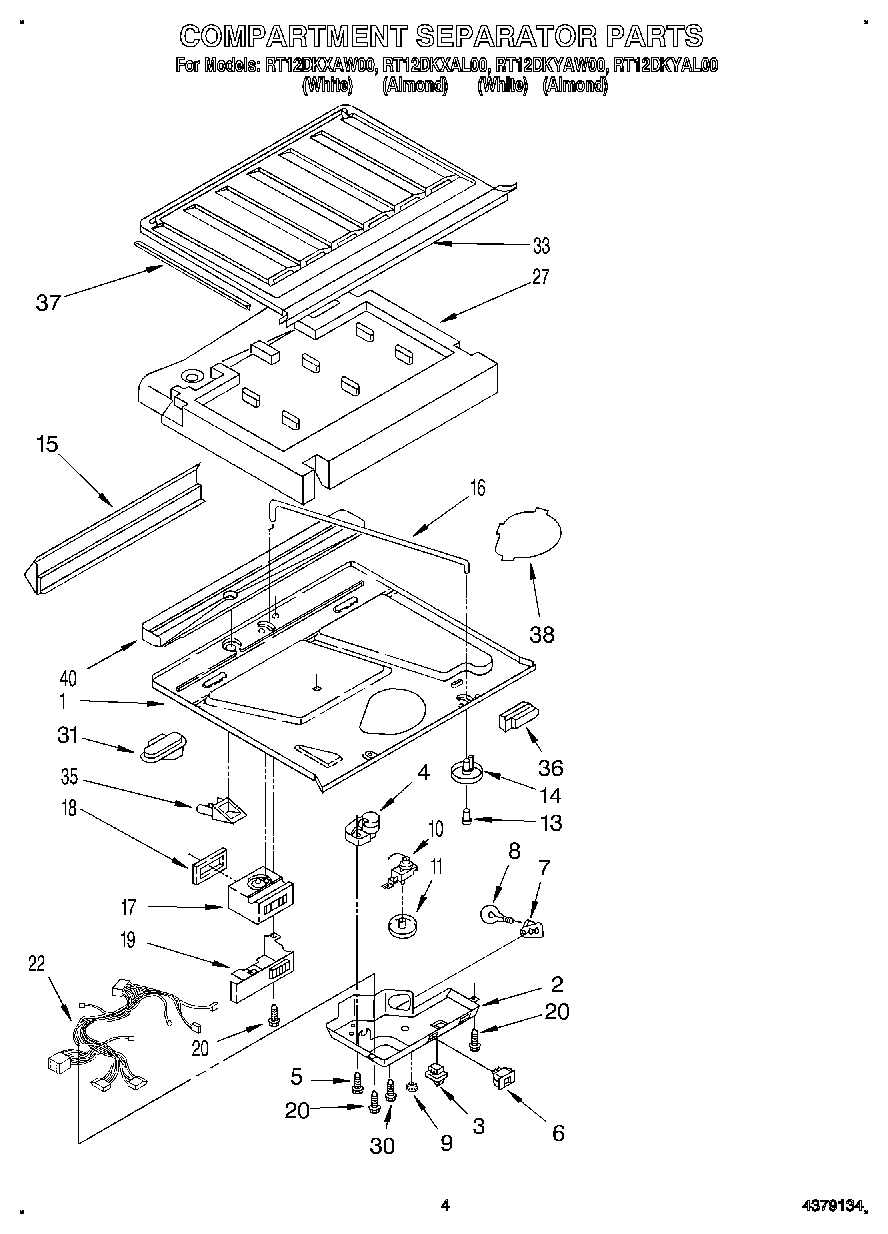

03 - COMPARTMENT SEPARATOR

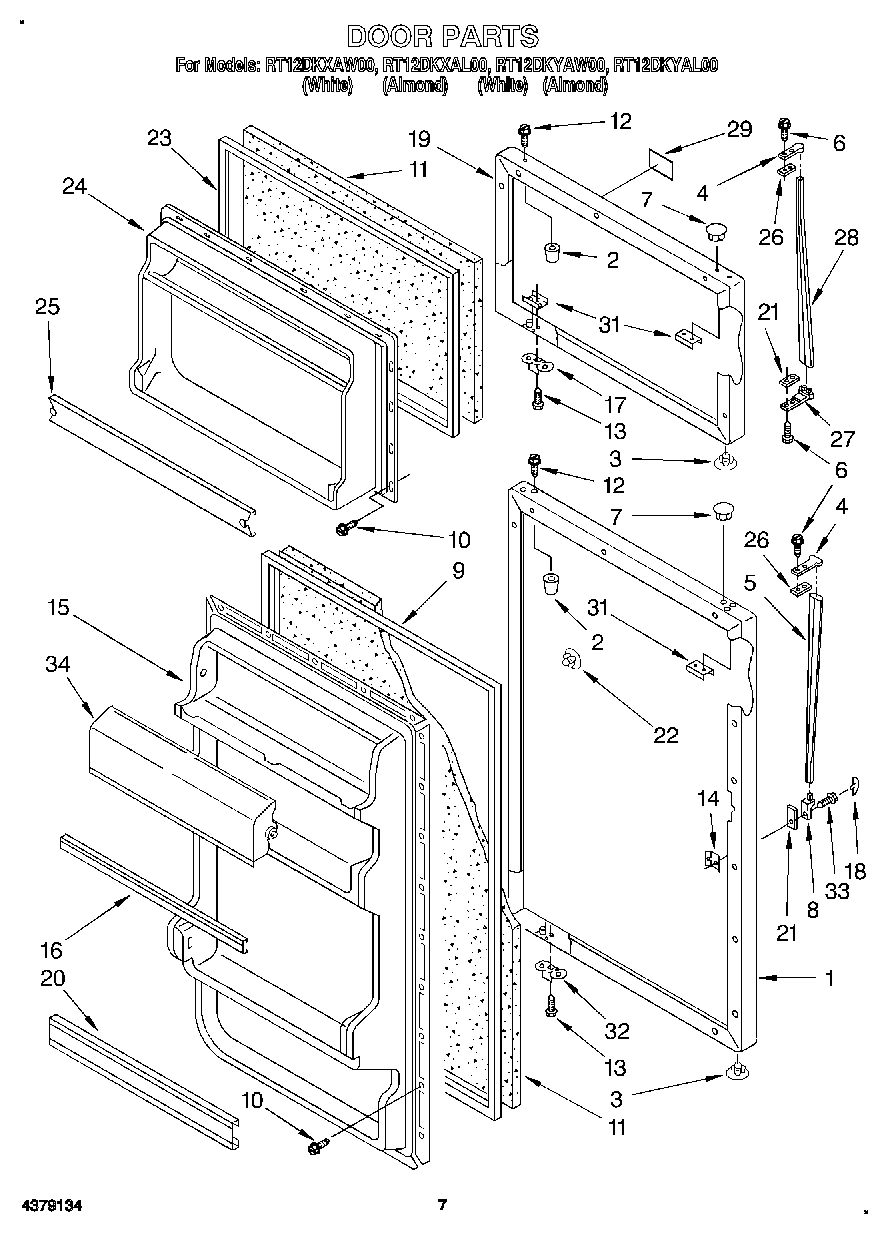

05 - DOOR, LIT/OPTIONAL

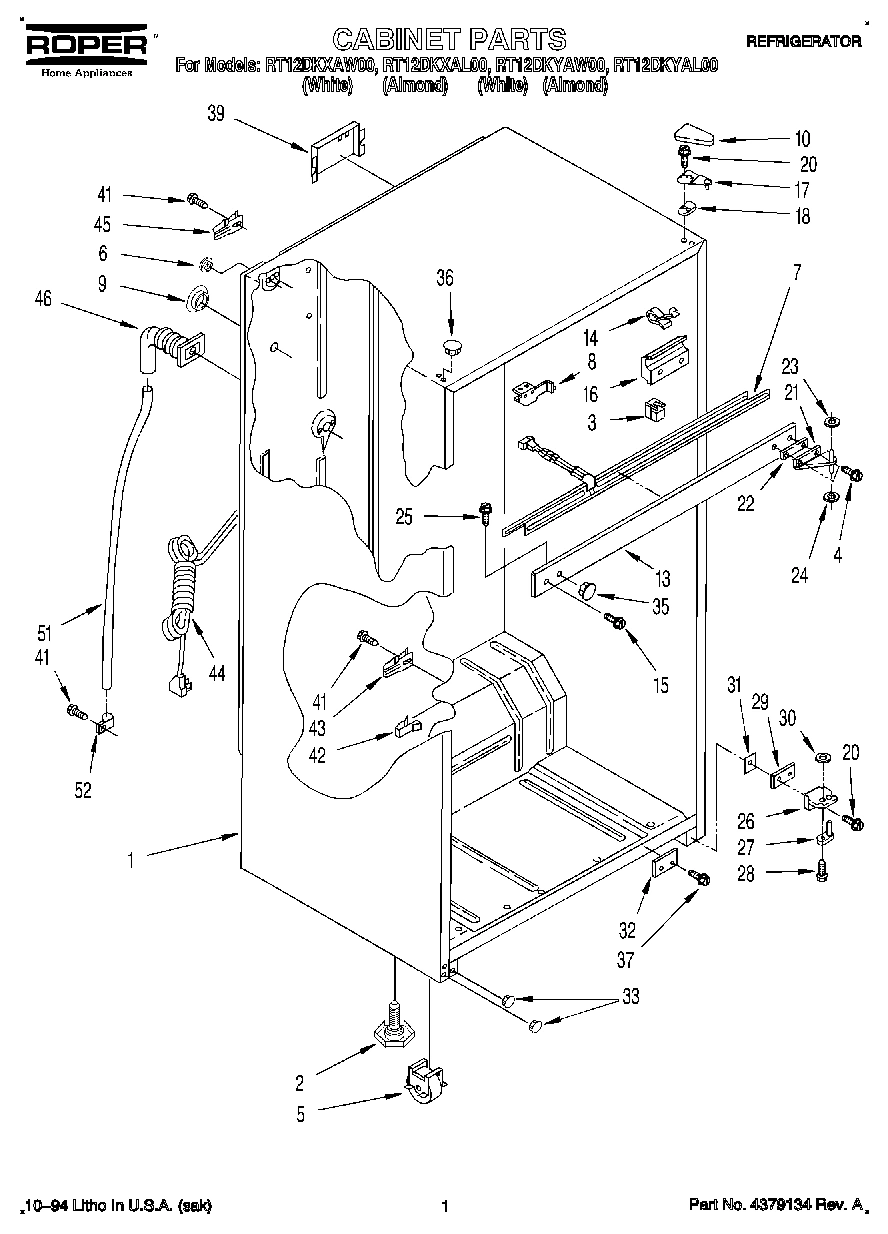

01 - CABINET

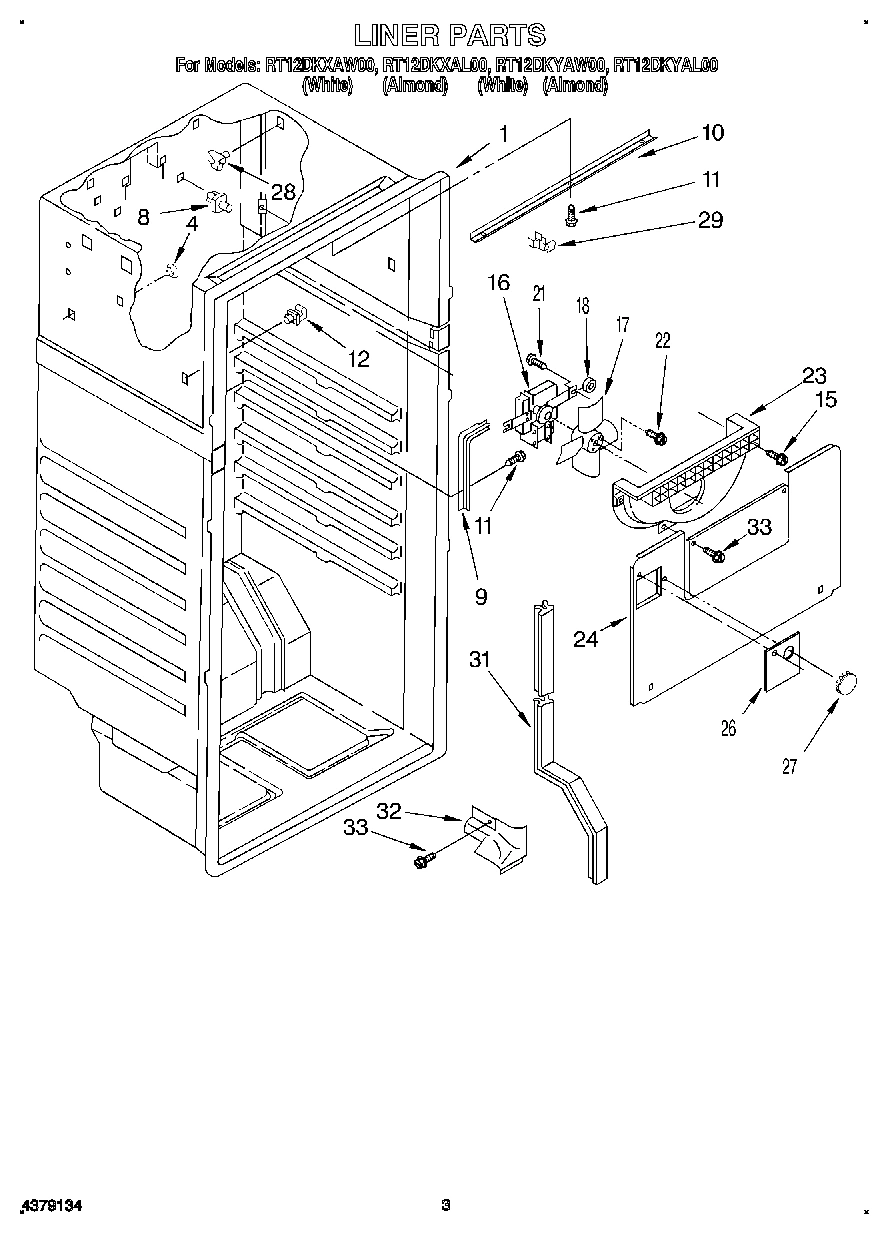

02 - LINER

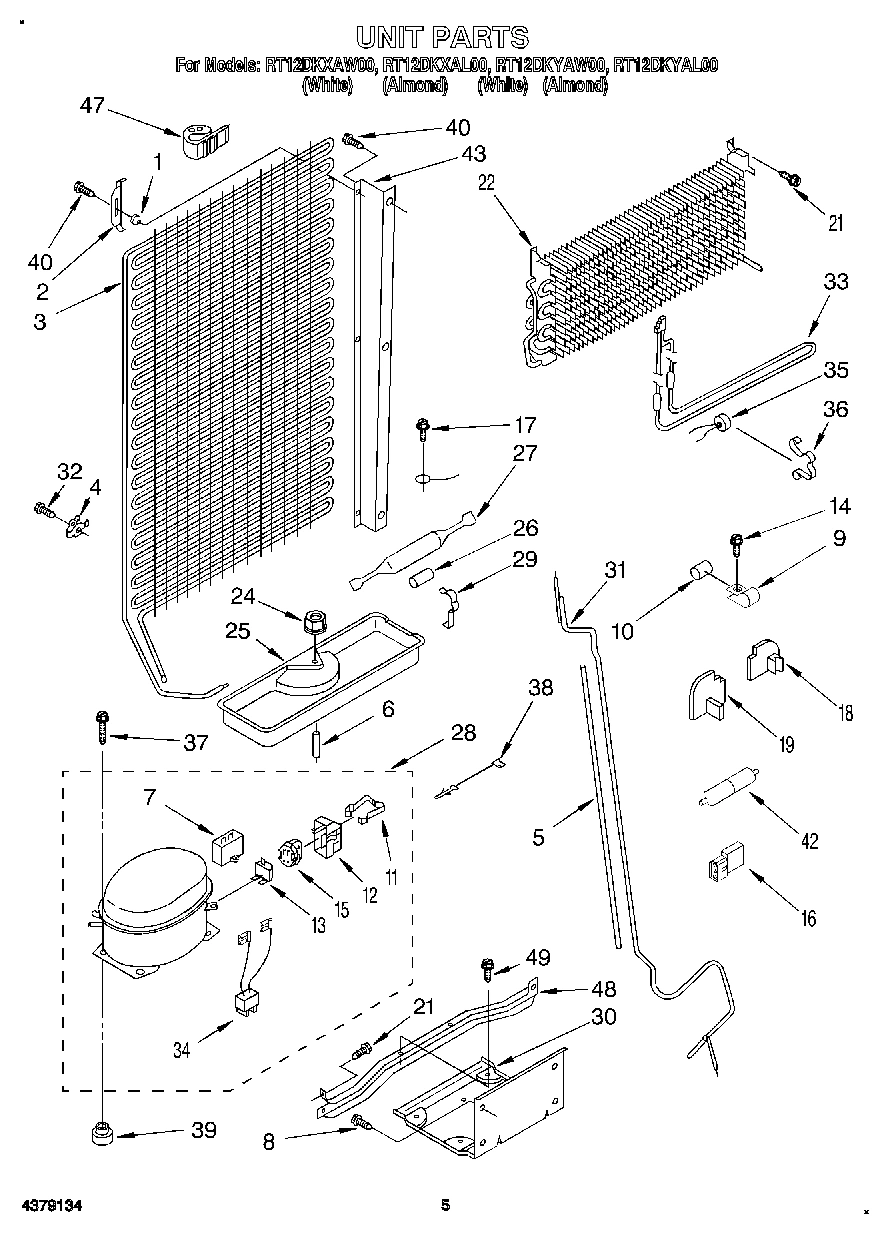

04 - UNIT
Common parts from model Whirlpool RT12DKXAL00 TOP MOUNT REFRIGERATOR
WPL LIT2163496 WPL LIT2163496 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 2150568 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 2150569 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI124764A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI124765A Contact Us For Availability
1
Spacer (6) WPL 817001 Contact Us For Availability
2
Cap, Hinge Sleeve (4) WPL 509929 Contact Us For Availability
2
Bracket (6) WPL 2150555 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Spacer (2) WPL 1116484 Contact Us For Availability
3
Condenser & Precooler Assembly WPL 2150939 Contact Us For Availability
4
Screw WPL 489179 Contact Us For Availability
4
Clip, Tube (2) WPL 510414 Contact Us For Availability
5
Roller (4) WPL 2152014 Contact Us For Availability
5
Handle, Center WPL 1109166 Contact Us For Availability
6
Spacer WPL 938275 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Heater, Mullion WPL 2150547 Contact Us For Availability
7
Running Capacitor WPL 2154565 Contact Us For Availability
8
Center Rail, Bracket (2) WPL 935692 Contact Us For Availability
8
Stud, Evaporator (2) WPL 1108519 Contact Us For Availability
9
Door Gasket, Magnetic WPL 1128061 Contact Us For Availability
9
Hole Plug WPL 655411 Contact Us For Availability
9
Air Deflector Side (2) WPL 2150905 Contact Us For Availability
9
Tube Clamp WPL 510716 Contact Us For Availability
10
Air Deflector Top WPL 2150906 Contact Us For Availability
10
Dampener WPL 1108064 Contact Us For Availability
11
Plug Fastner (11) WPL 2151175 Contact Us For Availability
11
Spring, Relay Case WPL 938384 Contact Us For Availability
12
Stud Hook (2) WPL 939065 Contact Us For Availability
12
Case, Relay WPL 1108115 Contact Us For Availability
13
Center, Rail (White) WPL 944868 Contact Us For Availability
13
Center, Rail (Almond) WPL 944873 Contact Us For Availability
13
Overload (Production (Includes Relay)) WPL 2150966 Contact Us For Availability
14
Breaker, Trim Clip WPL 1114428 Contact Us For Availability
15
Interior Door Panel (Refrigerator) WPL 2151209 Contact Us For Availability
15
Relay (See Overload) WPL ARI124766A Contact Us For Availability
16
Center, Rail Shim WPL 2151428 Contact Us For Availability
17
Bracket, Door Stop WPL 2157749 Contact Us For Availability
17
Shim, Hinge Top WPL 1100513 Contact Us For Availability
18
Shim, Top Hinge WPL 1100509 Contact Us For Availability
18
Shim, Hinge Top WPL 1100511 Contact Us For Availability
18
Grommet (2) WPL 531933 Contact Us For Availability
18
Side Block, Right Evaporator WPL 2150558 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Whit WPL 2150576 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Almo WPL 2150577 Contact Us For Availability
19
Side Block, Left Evaporator WPL 2150946 Contact Us For Availability
20
Trim, Door Shelf WPL 2163537 Contact Us For Availability
21
Spacer, Handle WPL 943188 Contact Us For Availability
21
Hinge, Center WPL 944788 Contact Us For Availability
21
Screw (2) WPL 489168 Contact Us For Availability
22
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
22
Shim, Hinge Center (Shim) WPL 836155 Contact Us For Availability
22
Shim, Hinge Center (Shim) WPL 841604 Contact Us For Availability
22
Evaporator WPL 1108531 Contact Us For Availability
23
Door Gasket, Magnetic WPL 1128064 Contact Us For Availability
23
Scroll, Fan WPL 1122814 Contact Us For Availability
24
Interior Door Panel (Freezer) WPL 2151210 Contact Us For Availability
24
Evaporator Cover WPL 1108509 Contact Us For Availability
25
Tray, Evaporator WPL 935781 Contact Us For Availability
26
Shim WPL 943187 Contact Us For Availability
26
Hinge Butt, Bottom WPL 2150995 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
27
Pin, Hinge WPL 654366 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
28
Tray Mounting Kit WPL 482801 Contact Us For Availability
28
Screw (Bottom L.H.) WPL 488714 Contact Us For Availability
28
Handle, Center WPL 1109171 Contact Us For Availability
28
Compressor (Includes Items 7, 11, 12, 13, 15, WPL 2154556 Contact Us For Availability
29
Nameplate WPL 2160005 Contact Us For Availability
29
Shim, Bottom WPL 935737 Contact Us For Availability
29
Clip, Ground WPL 1108523 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
30
Unit Mounting Plate WPL 942860 Contact Us For Availability
31
Tap Plate (4) WPL 1123568 Contact Us For Availability
31
Tap Plate WPL 935743 Contact Us For Availability
31
Cover Tube, Rear WPL 1110678 Contact Us For Availability
31
Exchanger, Heat WPL 1116647 Contact Us For Availability
32
Bracket, Door Stop WPL 2157748 Contact Us For Availability
32
Rail, Cover (White) WPL 935707 Contact Us For Availability
32
Rail, Cover (Almond) WPL 935711 Contact Us For Availability
32
Cover Tube, Bottom WPL 941776 Contact Us For Availability
33
Hole, Plug (2) (White) WPL 941416 Contact Us For Availability
33
Hole, Plug (2) (Almond) WPL 941417 Contact Us For Availability
33
Heater, Defrost WPL 2151192 Contact Us For Availability
34
WPL 876029 WPL 876029 Contact Us For Availability
34
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
34
Compartment Door WPL 2148606 Contact Us For Availability
34
WPL 542639 WPL 542639 Contact Us For Availability
34
WPL 799340 WPL 799340 Contact Us For Availability
34
WPL 799833 WPL 799833 Contact Us For Availability
34
WPL 978883 WPL 978883 Contact Us For Availability
35
Hole Plug (2) (White) WPL 1119707 Contact Us For Availability
35
Hole Plug (2) (Almond) WPL 1119709 Contact Us For Availability
35
Bi-Metal, Defrost WPL 2151193 Contact Us For Availability
36
Hole Plug (3) (White) WPL 1129062 Contact Us For Availability
36
Hole Plug (3) (Almond) WPL 1129063 Contact Us For Availability
36
Clamp WPL 1110548 Contact Us For Availability
37
Screw WPL 488895 Contact Us For Availability
38
Overload Wiring (White) WPL 1101124 Contact Us For Availability
38
Overload Wiring (Red) WPL 1101125 Contact Us For Availability
39
Cover, Wiring WPL 946218 Contact Us For Availability
42
Muffler WPL 1116650 Contact Us For Availability
43
Channel, Condenser (Right) WPL 2150553 Contact Us For Availability
43
Channel, Condenser (Left) WPL 2150554 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Clamp WPL 937357 Contact Us For Availability
46
Fitting, Drain WPL 2150543 Contact Us For Availability
47
Bumper (2) WPL 1120596 Contact Us For Availability
48
Unit Mounting Rail WPL 945449 Contact Us For Availability
49
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
49
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
