Model Whirlpool RST2400EAE REFRIGERATOR – Common Parts & Diagrams

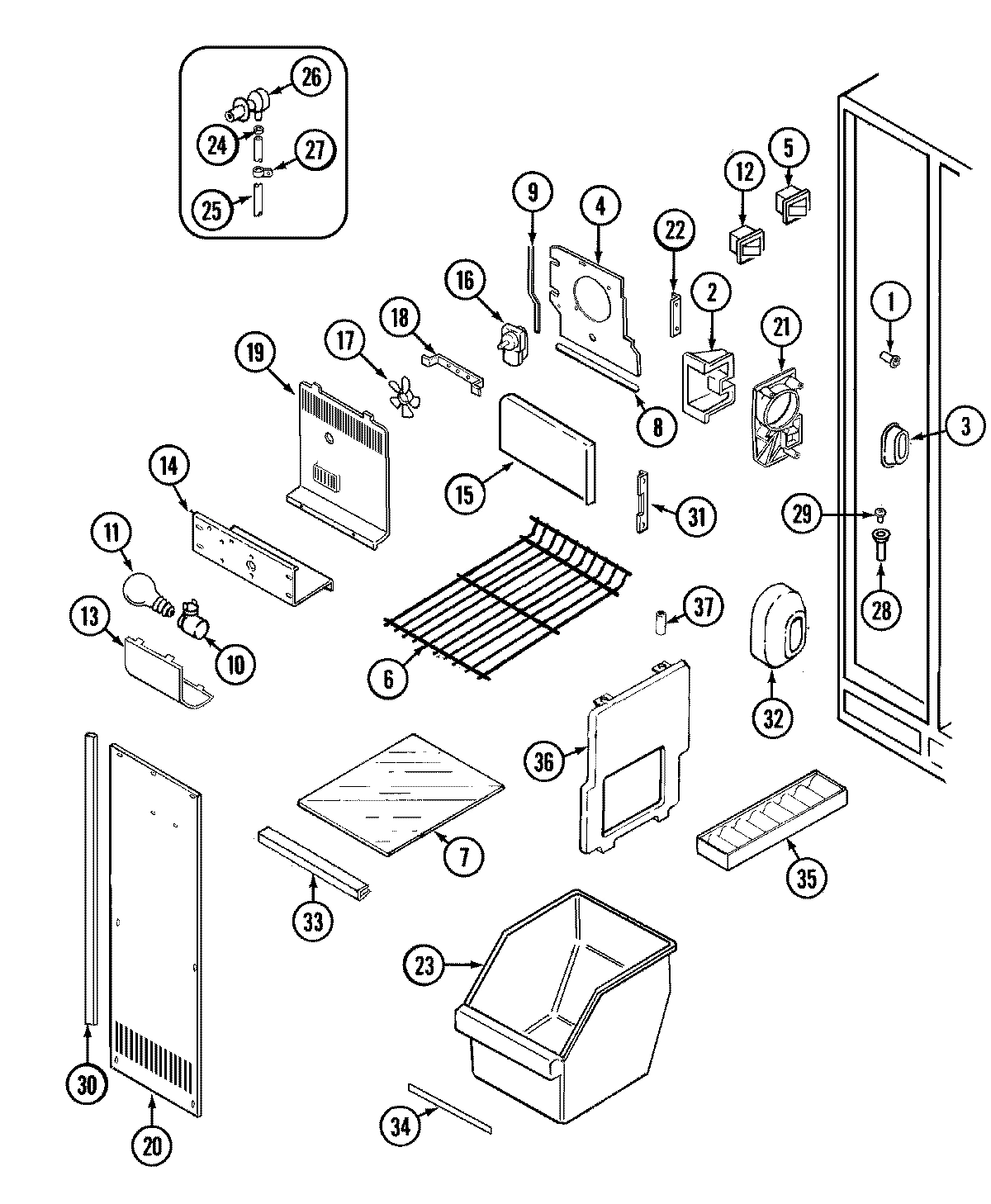

01 - FREEZER COMPARTMENT

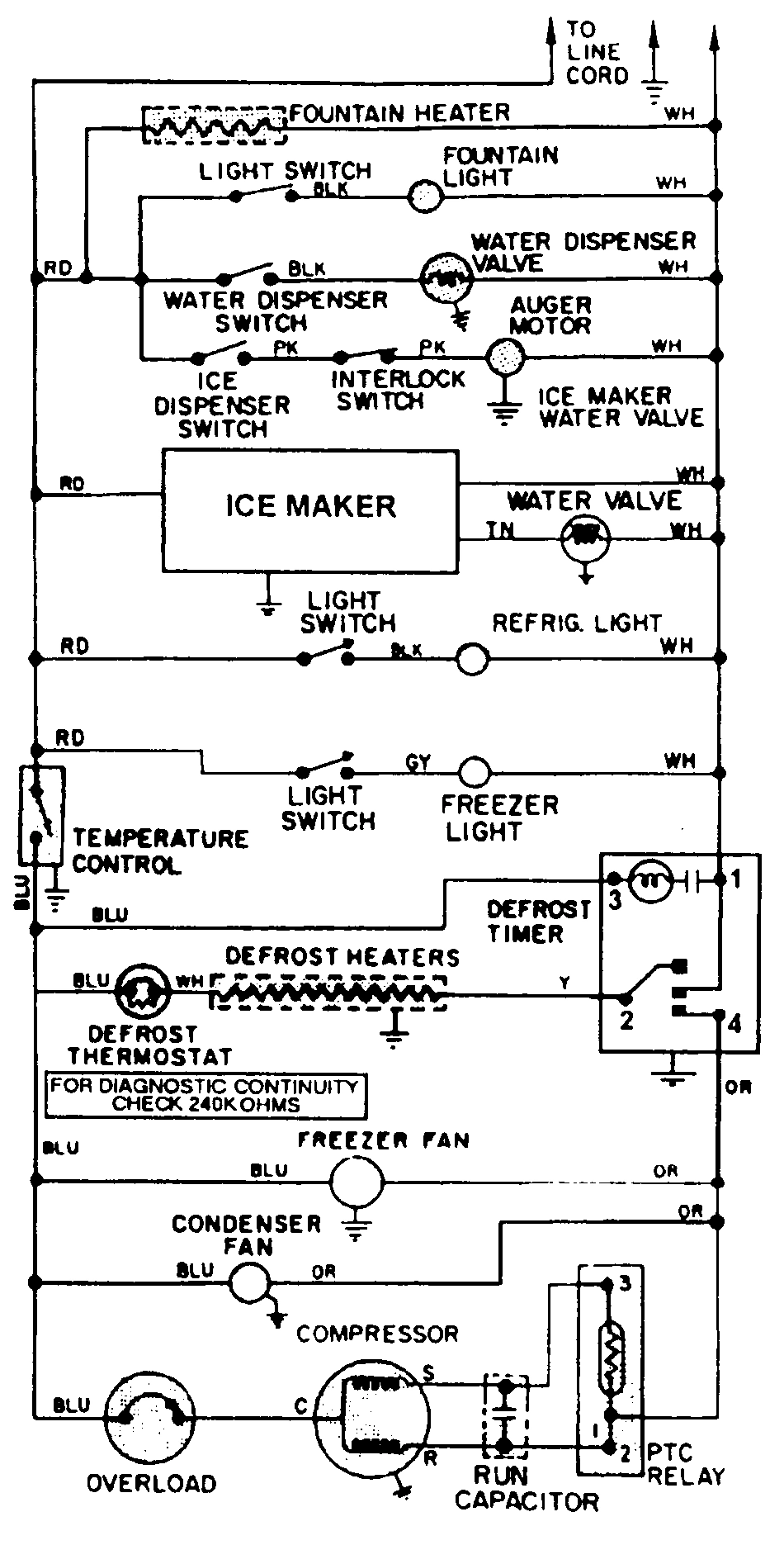

12 - WIRING INFORMATION

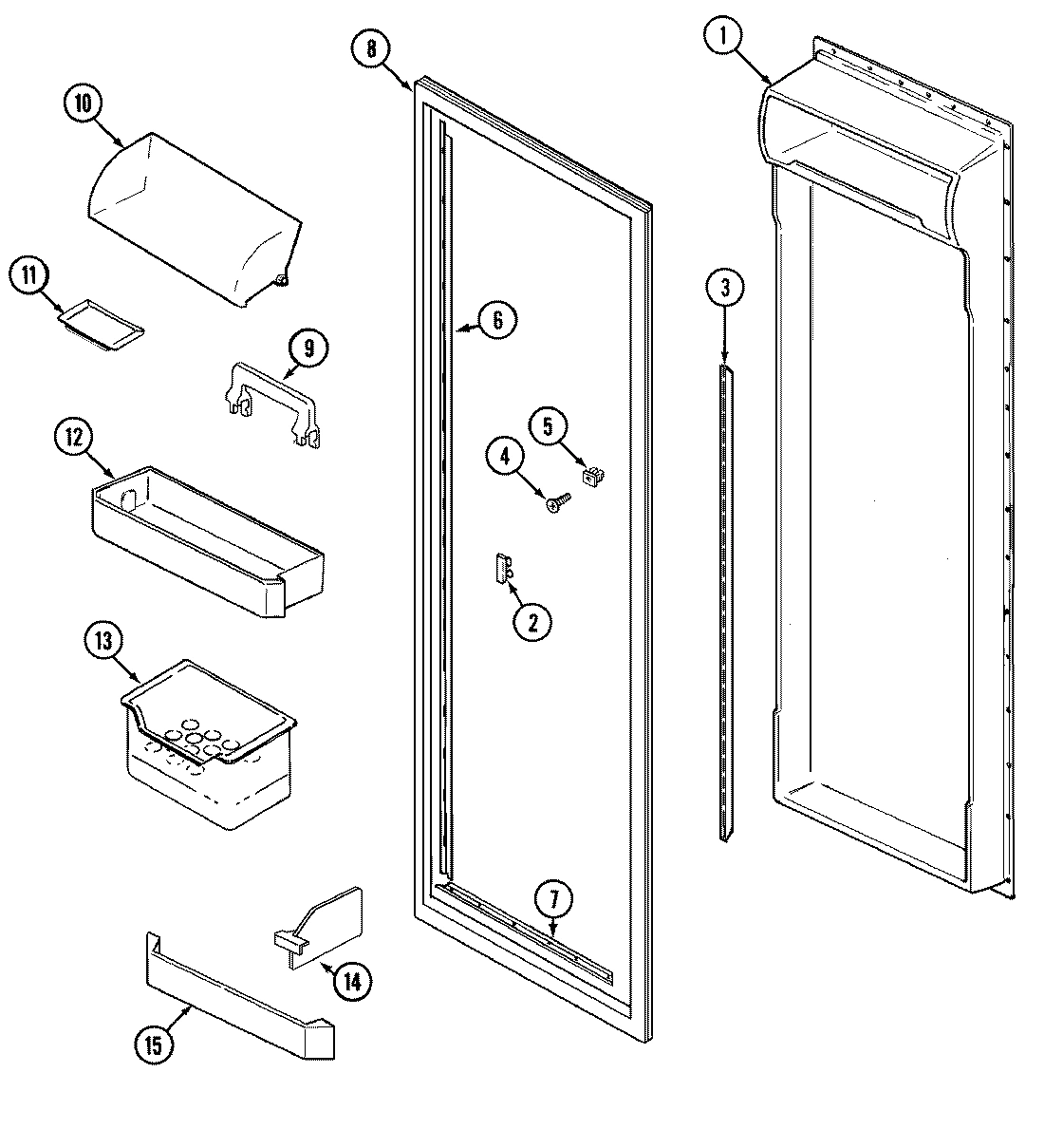

05 - FRESH FOOD INNER DOOR

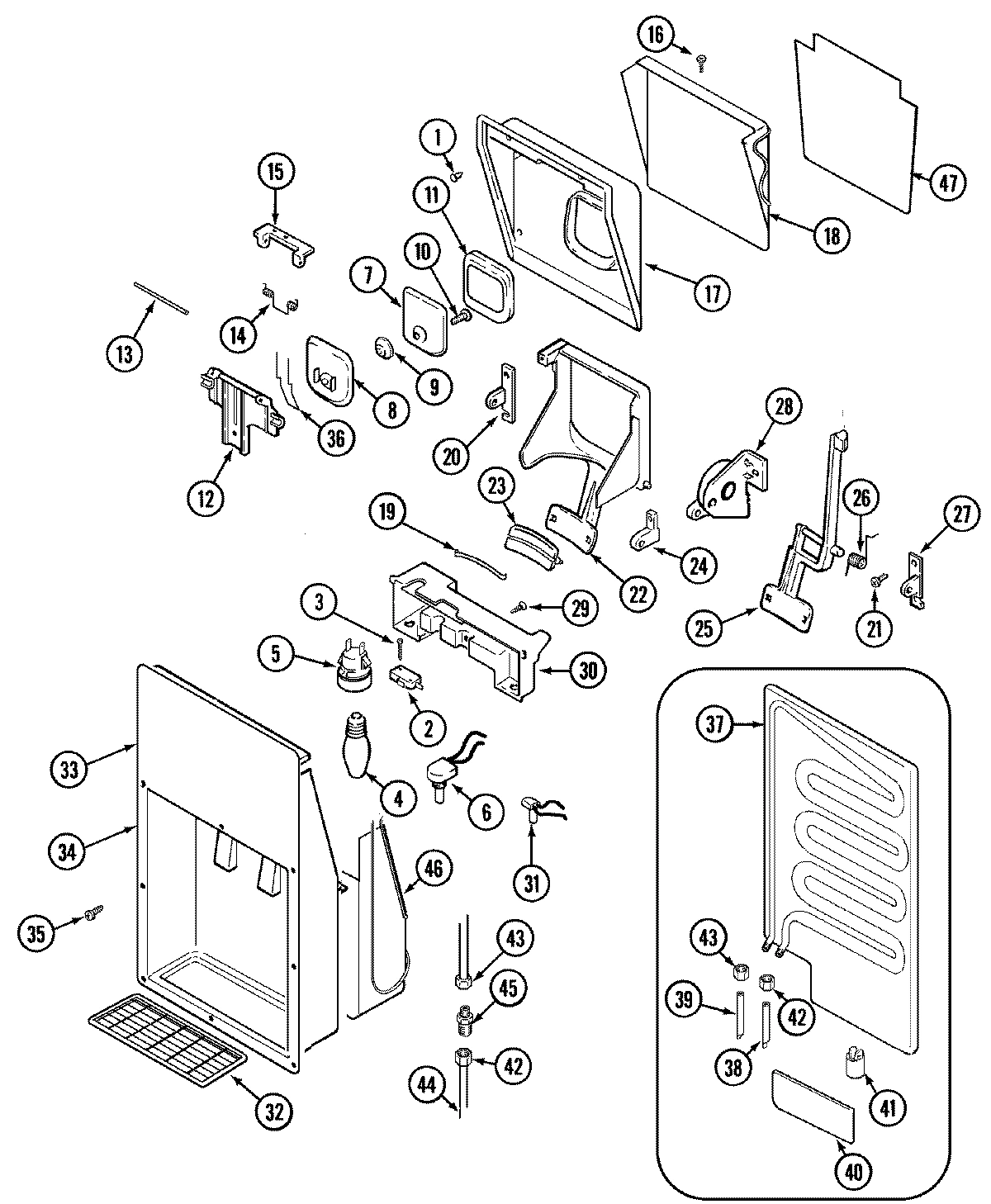

07 - ICE & WATER DISPENSER

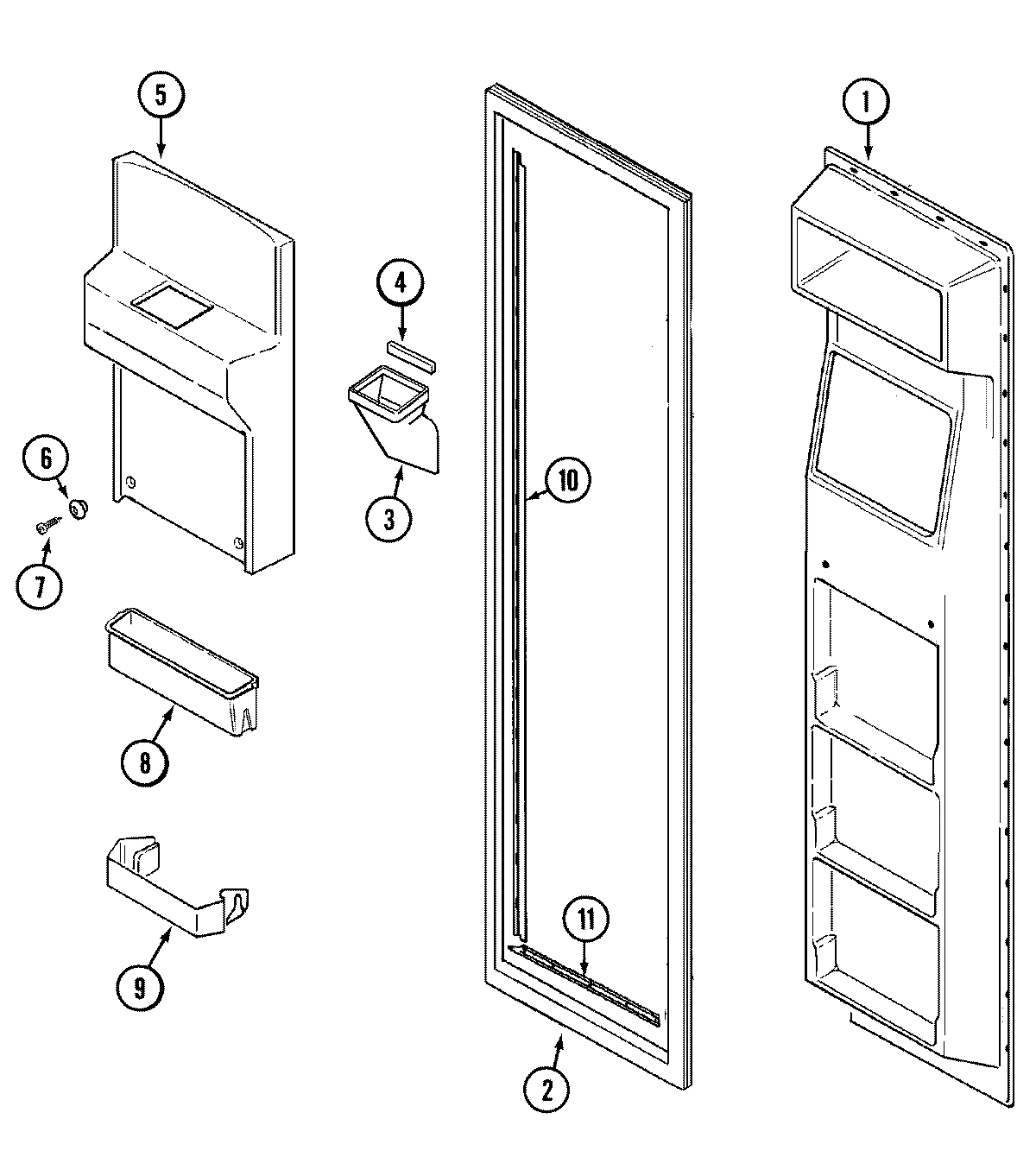

02 - FREEZER INNER DOOR

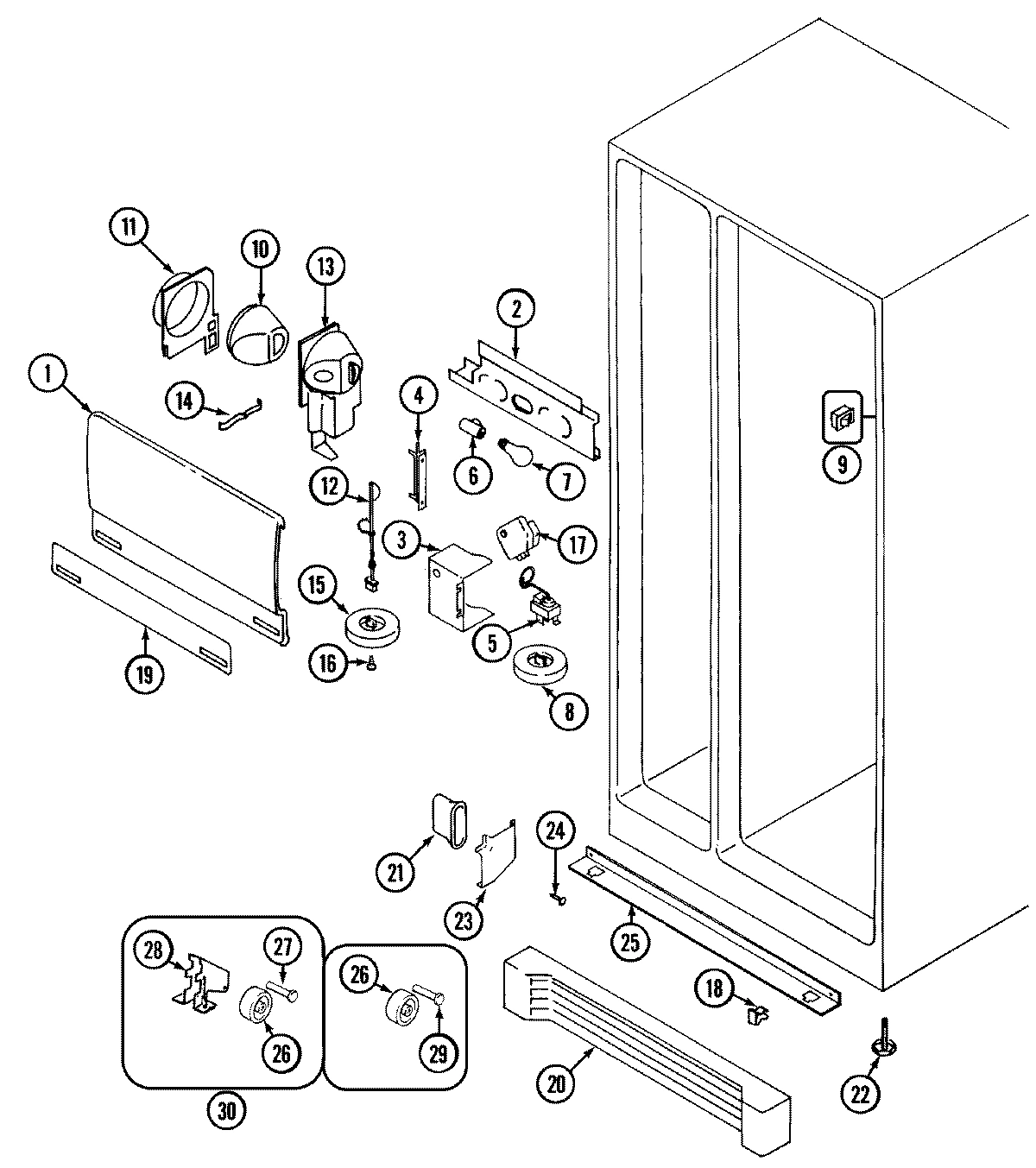

04 - FRESH FOOD COMPARTMENT

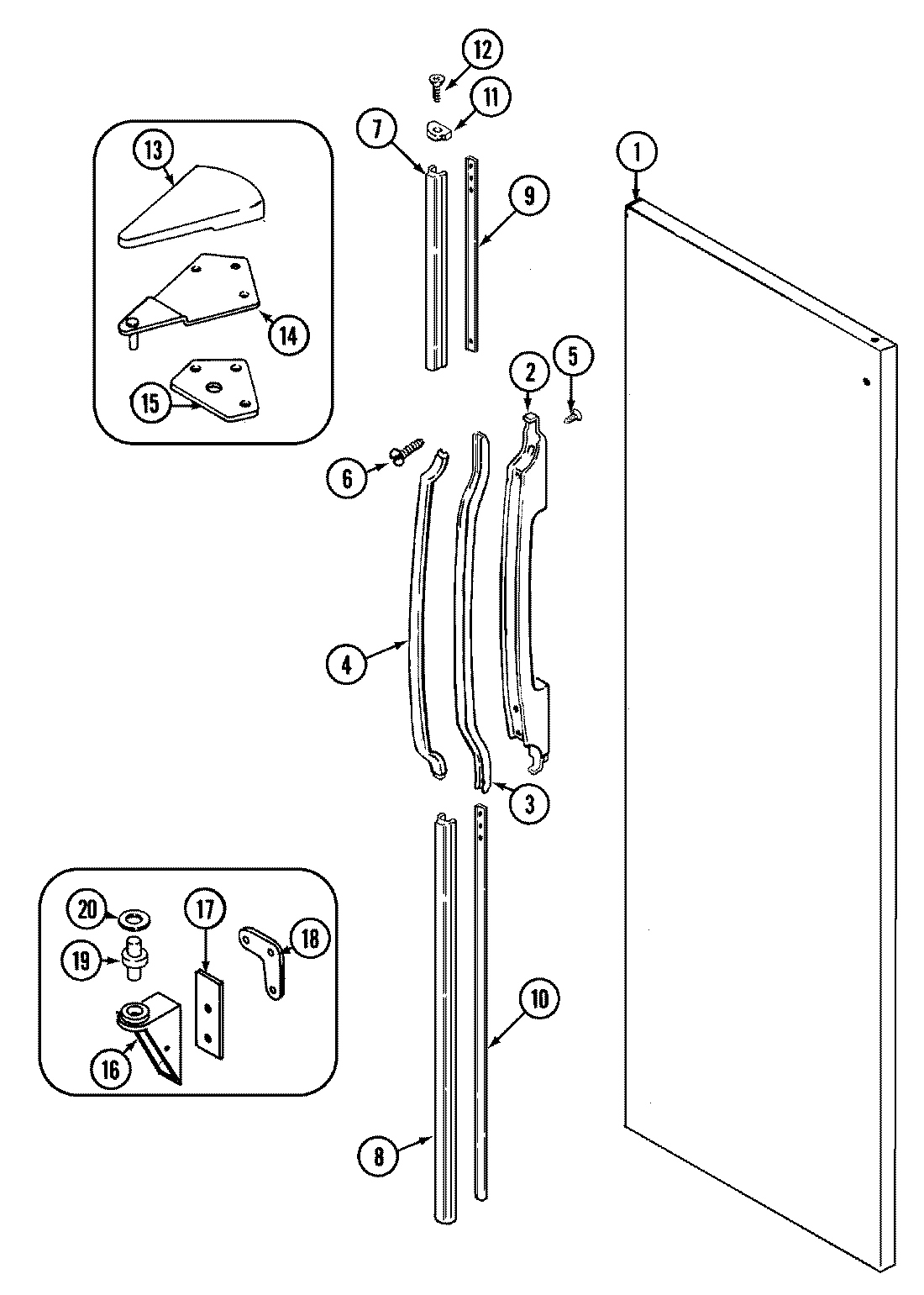

06 - FRESH FOOD OUTER DOOR

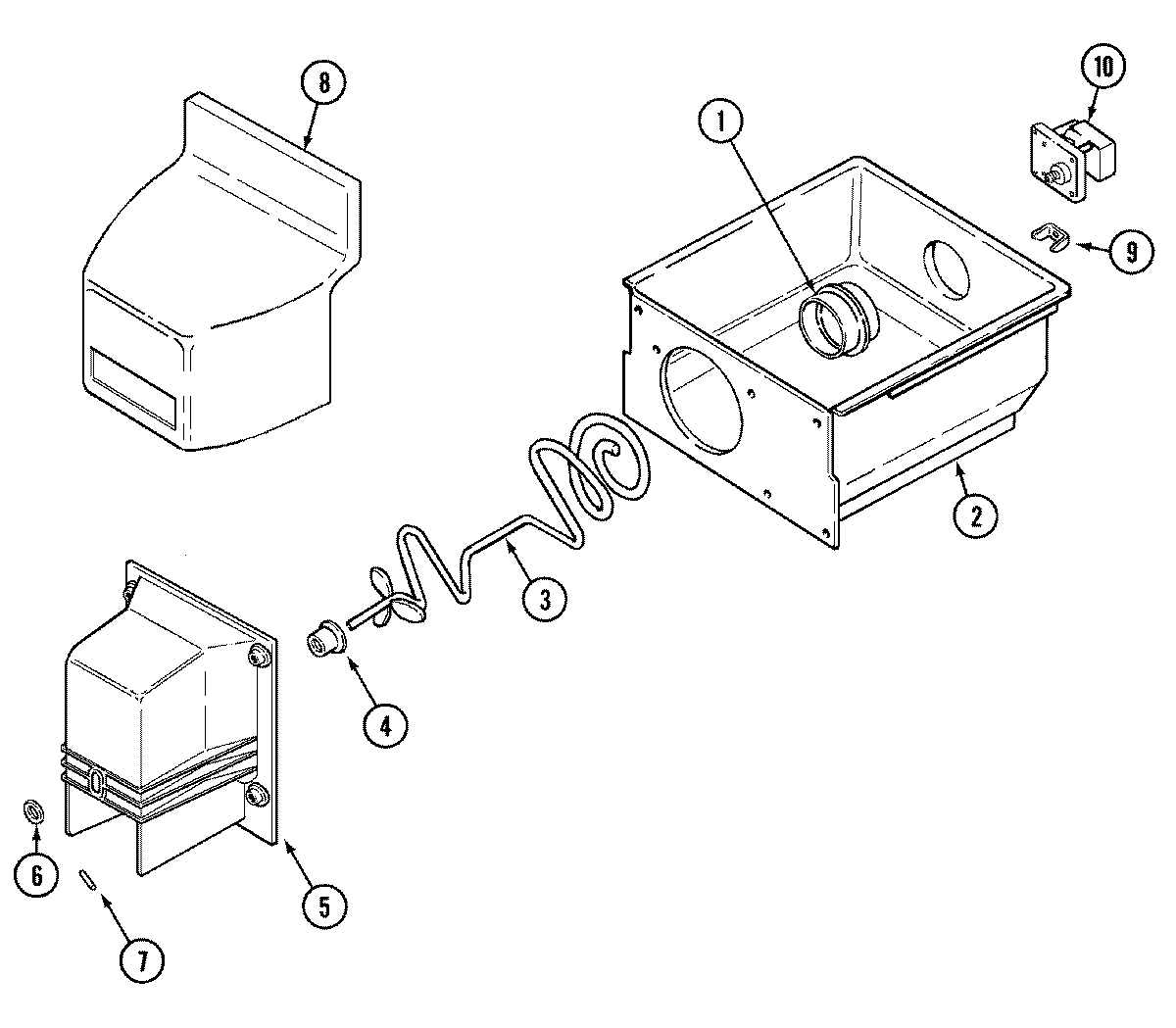

08 - ICE BIN
09 - ICE MAKER
11 - UNIT COMPARTMENT & SYSTEM

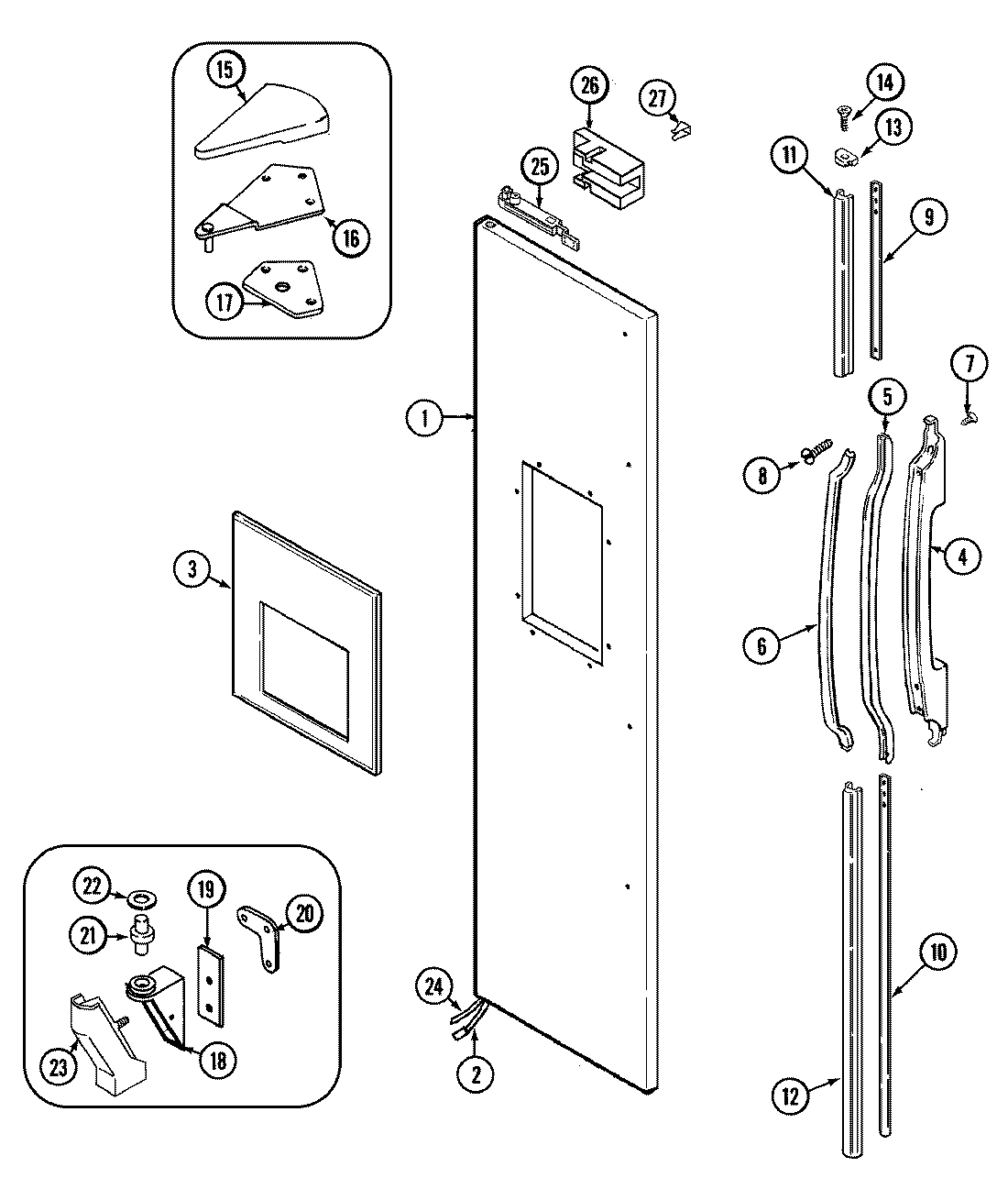

03 - FREEZER OUTER DOOR

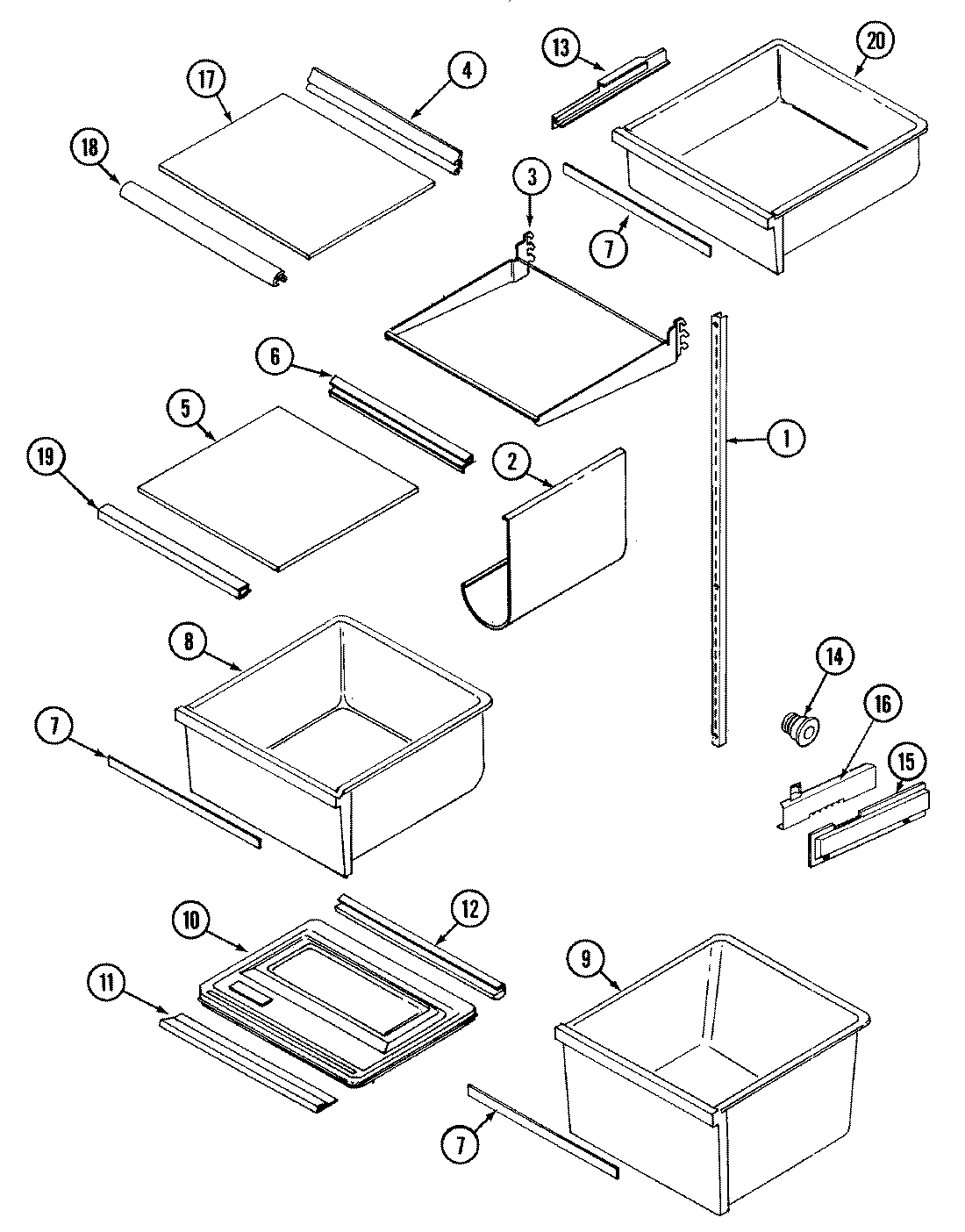

10 - SHELVES & ACCESSORIES
Common parts from model Whirlpool RST2400EAE REFRIGERATOR
1
LINER, F.F. DOOR WPL 692411 Contact Us For Availability
1
BUMPER, DOOR WPL 282726 Contact Us For Availability
1
LINER, DOOR WPL 692541 Contact Us For Availability
1
SHIELD, LIGHT WPL 671134 Contact Us For Availability
1
PLUG BUTTON, DOOR WPL 495034900 Contact Us For Availability
1
PANEL, F.F. DOOR (WHT) WPL 723412WW Contact Us For Availability
1
RING, DRIVE WPL 700272 Contact Us For Availability
1
SCREW WPL 4000311 Contact Us For Availability
1
ICEMAKER WPL 951091 Contact Us For Availability
1
KIT, COMPRESSOR WPL 12000059 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 61001017 Contact Us For Availability
1
PANEL, FRZ. DOOR (WHT) WPL 7234630WW Contact Us For Availability
1
SCREW WPL 40003728 Contact Us For Availability
1
RAIL, SHELF SUPPORT WPL 673111 Contact Us For Availability
2
SHIELD, AIR DIRECTIONAL WPL 673531 Contact Us For Availability
2
RIVET WPL 5992017 Contact Us For Availability
2
HOOK, P.O. SHELF (LT.-LT.SHF) WPL 670435 Contact Us For Availability
2
HOOK, P.O. SHELF (RT.-RT.SHF.) WPL 670436 Contact Us For Availability
2
SWITCH, ICE & WATER WPL 554402 Contact Us For Availability
2
GASKET, FRZ. DOOR WPL 700242 Contact Us For Availability
2
HOUSING, LITE & WIRE WPL 691932 Contact Us For Availability
2
BIN WPL 678261 Contact Us For Availability
2
COVER, ICE MAKER WPL 61001239 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
WIRE HARNESS, DOOR WPL 698659 Contact Us For Availability
2
HOLDER, WINE BOTTLE WPL 61001622 Contact Us For Availability
3
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
3
RETAINER, AIR RETURN WPL 700341 Contact Us For Availability
3
RAIL, SHELF SUPPORT WPL 61001705 Contact Us For Availability
3
SCREW WPL 4050711 Contact Us For Availability
3
CHUTE, ICE WPL 692241 Contact Us For Availability
3
HOUSING, TEMPERATURE CONTROL WPL 701781 Contact Us For Availability
3
AUGER WPL 678331 Contact Us For Availability
3
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
3
SCREW WPL 951061 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
3
SCREW WPL 40500435 Contact Us For Availability
3
ESCUTCHEON (WHT) WPL 61001576 Contact Us For Availability
3
FRAME, DELI SHELF WPL 656187 Contact Us For Availability
3
FRAME, SHELF WPL 701067 Contact Us For Availability
4
COVER, COIL UPPER WPL 672976 Contact Us For Availability
4
SCREW WPL 40002728 Contact Us For Availability
4
BULB, LIGHT WPL 631791 Contact Us For Availability
4
SEAL WPL 5207726 Contact Us For Availability
4
SUPPORT, LIGHT SHIELD WPL 671251 Contact Us For Availability
4
HANDLE WPL 679221 Contact Us For Availability
4
BEARING WPL 671722 Contact Us For Availability
4
SCREW WPL 4010181 Contact Us For Availability
4
VALVE, WATER (120V) WPL 61001021 Contact Us For Availability
4
RELAY, START WPL 688572 Contact Us For Availability
4
TRIM, SHELF (REAR) WPL 701105 Contact Us For Availability
5
SWITCH, INTERLOCK WPL 680581 Contact Us For Availability
5
RECEPTACLE, BULB WPL 701191 Contact Us For Availability
5
INSULATION WPL 687682 Contact Us For Availability
5
INSULATION WPL 687701 Contact Us For Availability
5
PANEL, ACCESS WPL 692251 Contact Us For Availability
5
SCREW WPL 4010241 Contact Us For Availability
5
CONTROL, TEMPERATURE WPL 696943 Contact Us For Availability
5
FRAME,HANDLE WPL 679201 Contact Us For Availability
5
ICE DAM WPL 678291 Contact Us For Availability
5
TUBE, WATER ENTRY WPL 676661 Contact Us For Availability
5
OVERLOAD WPL 691053 Contact Us For Availability
5
CRISPER SHELF(GLASS) WPL 6813923 Contact Us For Availability
6
SHELF, DISPENSER WPL 686306 Contact Us For Availability
6
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
6
NUT, WIRE WPL 271165 Contact Us For Availability
6
WIRE HARNESS, SWITCH WPL 684911 Contact Us For Availability
6
SWITCH, LIGHT WPL 698325 Contact Us For Availability
6
NUT, COMPRESSION (5/16``) WPL 695832 Contact Us For Availability
6
STUD WPL 687862 Contact Us For Availability
6
INSERT, HANDLE (WHT) WPL 679242 Contact Us For Availability
6
WASHER, THRUST WPL 678342 Contact Us For Availability
6
CAPACITOR, RUN WPL 658894 Contact Us For Availability
6
SEAL, CRISPER PAN (REAR) WPL 681572 Contact Us For Availability
7
SHELF WPL 6813925 Contact Us For Availability
7
GROMMET, PICK-OFF WPL 671441 Contact Us For Availability
7
RETAINER, GASKET WPL 699922 Contact Us For Availability
7
INSULATION, ICE DOOR WPL 685571 Contact Us For Availability
7
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
7
SCREW WPL 40002135 Contact Us For Availability
7
BULB, LIGHT (60W) WPL 557712 Contact Us For Availability
7
SCREW WPL 6527544 Contact Us For Availability
7
PIN, COTTER WPL 492007703 Contact Us For Availability
7
COVER, TERMINAL WPL 697541 Contact Us For Availability
7
INSERT, CRISPER PAN WPL 61001572 Contact Us For Availability
8
SEAL WPL 689466 Contact Us For Availability
8
GASKET, F.F. DOOR (WHT) WPL 700244 Contact Us For Availability
8
SCREW WPL 40502335 Contact Us For Availability
8
DOOR, ICE WPL 689572 Contact Us For Availability
8
SCREW WPL 41501335 Contact Us For Availability
8
SHELF, PICK-OFF WPL 6987323 Contact Us For Availability
8
KNOB, CONTROL WPL 671455 Contact Us For Availability
8
SCREW WPL 6527580 Contact Us For Availability
8
FRONT, ICE BIN WPL 696121 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 595961 Contact Us For Availability
8
PAN, CRISPER WPL 61001573 Contact Us For Availability
9
SEAL WPL 6632520 Contact Us For Availability
9
SWITCH, LIGHT WPL 669871 Contact Us For Availability
9
RETAINER, BOTTLE WPL 697951 Contact Us For Availability
9
RETAINER WPL 685661 Contact Us For Availability
9
FRONT, PICK OFF WPL 6987033 Contact Us For Availability
9
SHIM, TRIM LOCK (UPR) WPL 679261 Contact Us For Availability
9
YOKE, ICE DISPENSER WPL 630522 Contact Us For Availability
9
CORD, POWER WPL 528903 Contact Us For Availability
9
PAN, MEAT WPL 61001574 Contact Us For Availability
10
RETAINER, GASKET WPL 699921 Contact Us For Availability
10
DOOR, DAIRY WPL 699182 Contact Us For Availability
10
SCREW WPL 40511635 Contact Us For Availability
10
INSULATION, HOUSING WPL 587671 Contact Us For Availability
10
SHIM, TRIM LOCK (LWR) WPL 679262 Contact Us For Availability
10
SCREW WPL 406026103 Contact Us For Availability
10
MOTOR, AUGER WPL 651861 Contact Us For Availability
10
WIRE HARNESS, AUGER MOTOR WPL 690481 Contact Us For Availability
10
SCREW WPL 4140011 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL 649981 Contact Us For Availability
10
COVER, MEAT PAN WPL 656086 Contact Us For Availability
11
BULB, LIGHT WPL 319561 Contact Us For Availability
11
TRAY, BUTTER WPL 299362 Contact Us For Availability
11
SEAL, ICE DOOR WPL 698671 Contact Us For Availability
11
RETAINER, GASKET WPL 699924 Contact Us For Availability
11
ORIFICE, FRZ. CONTROL (INLET) WPL 61001230 Contact Us For Availability
11
TRIM, EXTENSION (UPR - WHT) WPL 679328 Contact Us For Availability
11
SLEEVE, BRASS WPL 694311 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
SEAL, MEAT PAN (FRONT) WPL 656482 Contact Us For Availability
12
SCREW WPL 998645 Contact Us For Availability
12
SHELF, PICK-OFF WPL 698724 Contact Us For Availability
12
STRIKE, ICE DOOR WPL 685632 Contact Us For Availability
12
DAMPER, FRZ. CONTROL WPL 676091 Contact Us For Availability
12
TRIM, EXTENSION (LWR - WHT) WPL 679329 Contact Us For Availability
12
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 61001533 Contact Us For Availability
12
SEAL, MEAT PAN (REAR) WPL 656492 Contact Us For Availability
13
SHIELD, LIGHT WPL 672921 Contact Us For Availability
13
TRAY, EGG WPL 672152 Contact Us For Availability
13
SHAFT WPL 685641 Contact Us For Availability
13
SCREW WPL 4150171 Contact Us For Availability
13
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
13
ENDCAP, HANDLE WPL 679282 Contact Us For Availability
13
THERMOSTAT WPL 950921 Contact Us For Availability
13
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
13
SCREW WPL 6527533 Contact Us For Availability
13
RAIL, DELI PAN WPL 688052 Contact Us For Availability
14
BRACKET, MOTOR WPL 685511 Contact Us For Availability
14
ORGANIZER, P.O. SHELF WPL 670276 Contact Us For Availability
14
SPRING WPL 687651 Contact Us For Availability
14
SPRING, BAFFLE WPL 526481 Contact Us For Availability
14
HINGE, UPPER WPL 5370928 Contact Us For Availability
14
INLET, WATER WPL 951001 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 699582 Contact Us For Availability
14
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
15
DOOR, ICE ACCESS WPL 696111 Contact Us For Availability
15
FRONT, PICK-OFF WPL 698715 Contact Us For Availability
15
BRACKET, PIVOT WPL 689581 Contact Us For Availability
15
KNOB, CONTROL WPL 671456 Contact Us For Availability
15
COVER, UPPER HINGE (WHT) WPL 701214 Contact Us For Availability
15
EJECTOR, ICE WPL 951011 Contact Us For Availability
15
WASHER, FAN BLADE WPL 61001686 Contact Us For Availability
15
CLIP, SECONDARY SEAL WPL 566865 Contact Us For Availability
15
CONTROL HOUSING WPL 657372 Contact Us For Availability
16
SCREW WPL 4030671 Contact Us For Availability
16
SCREW WPL 4000011 Contact Us For Availability
16
SCREW, UPPER HINGE WPL 6527586 Contact Us For Availability
16
HINGE, LOWER (BLK) WPL 695162 Contact Us For Availability
16
ARM, SENSOR WPL 701421 Contact Us For Availability
16
HINGE UPPER WPL 5370926 Contact Us For Availability
16
SLIDE CONTROL, (MEAT) WPL 657361 Contact Us For Availability
17
BLADE, EVAPORATOR FAN WPL 521204 Contact Us For Availability
17
SCREW WPL 41501435 Contact Us For Availability
17
BACK, FOUNTAIN (WHT) WPL 685672 Contact Us For Availability
17
SCREW WPL 4050071 Contact Us For Availability
17
TIMER, DEFROST WPL 682333 Contact Us For Availability
17
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
17
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
17
GLASS, CANTILEVER SHELF WPL 6813922 Contact Us For Availability
17
GLASS, DELI WPL 6813928 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
18
HEATER, FOUNTAIN BACK WPL 689371 Contact Us For Availability
18
CLIP, KICKPLATE WPL 702851 Contact Us For Availability
18
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
18
STRIPPER, ICE WPL 951021 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
18
HINGE, LOWER (BLK) WPL 695161 Contact Us For Availability
18
TRIM, SHELF (FRONT) WPL 61001660 Contact Us For Availability
19
SHIELD, FAN WPL 672253 Contact Us For Availability
19
TRIM, PADDLE PAD WPL 687631 Contact Us For Availability
19
INSERT, LIGHT SHIELD WPL 6747610 Contact Us For Availability
19
SHIM, LOWER HINGE WPL 695101 Contact Us For Availability
19
PIN, LOWER HINGE WPL 698451 Contact Us For Availability
19
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
19
SCREW, BRACKET WPL 951081 Contact Us For Availability
19
COVER WPL 663811 Contact Us For Availability
19
WIRE HARNESS, MAIN WPL 702661 Contact Us For Availability
19
SEAL, CRISPER PAN (FRONT) WPL 666502 Contact Us For Availability
20
SCREW WPL 40001536 Contact Us For Availability
20
COVER, COIL LOWER WPL 673353 Contact Us For Availability
20
PIVOT, ACTUATOR (LT) WPL 686271 Contact Us For Availability
20
KICKPLATE W/CLIPS (WHT) WPL 702889 Contact Us For Availability
20
SCREW WPL 6527559 Contact Us For Availability
20
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
20
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
20
WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability
20
PAN, DELI WPL 61001451 Contact Us For Availability
21
ORIFICE, FRZ. CONTROL (OUTLET) WPL 673521 Contact Us For Availability
21
TUNNEL, AIR RETURN WPL 676841 Contact Us For Availability
21
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
21
PIN, HINGE WPL 700601 Contact Us For Availability
22
BRACKET, MOUNTING WPL 672881 Contact Us For Availability
22
PADDLE, ICE (WHT) WPL 691122 Contact Us For Availability
22
LEG, LEVELING WPL 686641 Contact Us For Availability
22
PAN, DRAIN WPL 682361 Contact Us For Availability
22
WASHER, DOOR SPACER WPL 674833 Contact Us For Availability
23
DRAWER, FRZ. WPL 61001456 Contact Us For Availability
23
PAD, PADDLE (WHT) WPL 691742 Contact Us For Availability
23
COVER, AIR RETURN WPL 699821 Contact Us For Availability
23
TROUGH, DRAIN WPL 535232 Contact Us For Availability
23
SCREW, HINGE COVER (BLACK) WPL 6527547 Contact Us For Availability
23
COVER, LOWER HINGE (BLK) WPL 689781 Contact Us For Availability
24
PIVOT, ACTUATOR (CENTER) WPL 687641 Contact Us For Availability
24
TUBING, DOOR WPL 671878 Contact Us For Availability
24
HOSE, DRAIN WPL 2691125 Contact Us For Availability
25
FUNNEL-KIT WPL 675792 Contact Us For Availability
25
PADDLE, WATER (WHT) WPL 685582 Contact Us For Availability
25
RAIL, HORIZONTAL SUPPORT WPL 61001032 Contact Us For Availability
25
SCREW WPL 6527542 Contact Us For Availability
25
SCREW WPL 41400435 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
25
CLOSER, DOOR WPL 692581 Contact Us For Availability
26
GROMMET WPL 692191 Contact Us For Availability
26
SPRING, PADDLE RETURN WPL 687671 Contact Us For Availability
26
WHEEL WPL 698121 Contact Us For Availability
26
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
26
INSULATION, CLOSER WPL 526131 Contact Us For Availability
26
ELEMENT WPL 700491 Contact Us For Availability
27
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
27
SCREW WPL 652755 Contact Us For Availability
27
PIVOT, ACTUATOR (RT)---NA WPL 686281 Contact Us For Availability
27
PIN, WHEEL WPL 649651 Contact Us For Availability
27
COVER, UNIT COMPARTMENT WPL 61001228 Contact Us For Availability
27
BRACKET, CLOSER WPL 692611 Contact Us For Availability
28
TUBE, DRAIN WPL 2652711 Contact Us For Availability
28
MOTOR, INTERIA----NA WPL 692751 Contact Us For Availability
28
SCREW WPL 4000621 Contact Us For Availability
28
BRACKET WPL 528461 Contact Us For Availability
28
SLEEVE WPL 2608823 Contact Us For Availability
28
HEAT EXCHANGER WPL 61001039 Contact Us For Availability
28
WIRE TIE WPL 662231 Contact Us For Availability
29
GROMMET WPL 525261 Contact Us For Availability
29
PIN, WHEEL (REAR) WPL 649653 Contact Us For Availability
29
DRIER WPL 139001 Contact Us For Availability
30
CLIP WPL 693141 Contact Us For Availability
30
BRACKET, SWITCH WPL 686262 Contact Us For Availability
30
NUT WPL 701761 Contact Us For Availability
30
WHEEL ASSY. (FRONT) WPL 720191 Contact Us For Availability
30
THERMOSTAT, DEFROST WPL 5208529 Contact Us For Availability
31
SCREW WPL 4000161 Contact Us For Availability
31
LATCH WPL 685721 Contact Us For Availability
31
PLUNGER WPL 685682 Contact Us For Availability
31
EVAPORATOR WPL 5255122 Contact Us For Availability
32
INSULATION, AIR RETURN WPL 678371 Contact Us For Availability
32
GRILL WPL 686311 Contact Us For Availability
32
HOUSING, EVAPORATOR WPL 688342 Contact Us For Availability
33
TRIM, SHELF WPL 701372 Contact Us For Availability
33
FRONT, FOUNTAIN WPL 689551 Contact Us For Availability
33
BOARD, TERMINAL WPL 558781 Contact Us For Availability
34
TRIM, DRAWER WPL 61001575 Contact Us For Availability
34
SEAL WPL 6632518 Contact Us For Availability
35
DIVIDER SHELF WPL 686291 Contact Us For Availability
35
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
36
DIVIDER WPL 686541 Contact Us For Availability
36
SPRING, ICE DOOR WPL 698681 Contact Us For Availability
36
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
37
SCREW WPL 4000171 Contact Us For Availability
37
SCREW WPL 61001028 Contact Us For Availability
37
SPACER, DIVIDER WPL 688231 Contact Us For Availability
37
SCREW WPL 40004828 Contact Us For Availability
37
TANK, WATER WPL 690658 Contact Us For Availability
37
SHIELD, DEFROST HEATER WPL 2991513 Contact Us For Availability
38
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
40
RETAINER, NAMEPLATE WPL 293561 Contact Us For Availability
40
COVER, WATER LINE CONN. WPL 685221 Contact Us For Availability
41
NYLON NUT WPL 1953036 Contact Us For Availability
45
UNION, REDUCING WPL 676121 Contact Us For Availability
46
HEATER, FOUNTAIN WPL 689361 Contact Us For Availability
47
INSULATION, FOIL WPL 687141 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001864 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 61001570 Contact Us For Availability
× ![]()
Login and Registration Form
