Model Electrolux RSE37BAW5 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS

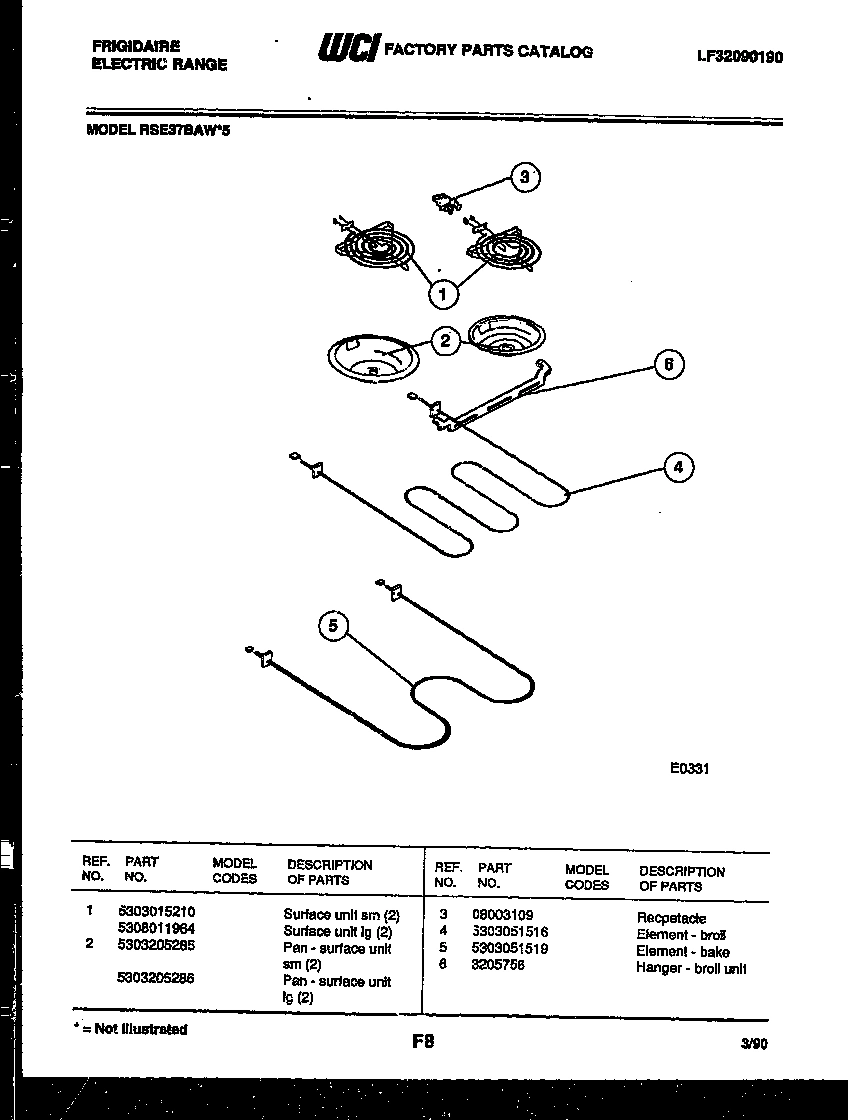

04 - BROILER PARTS

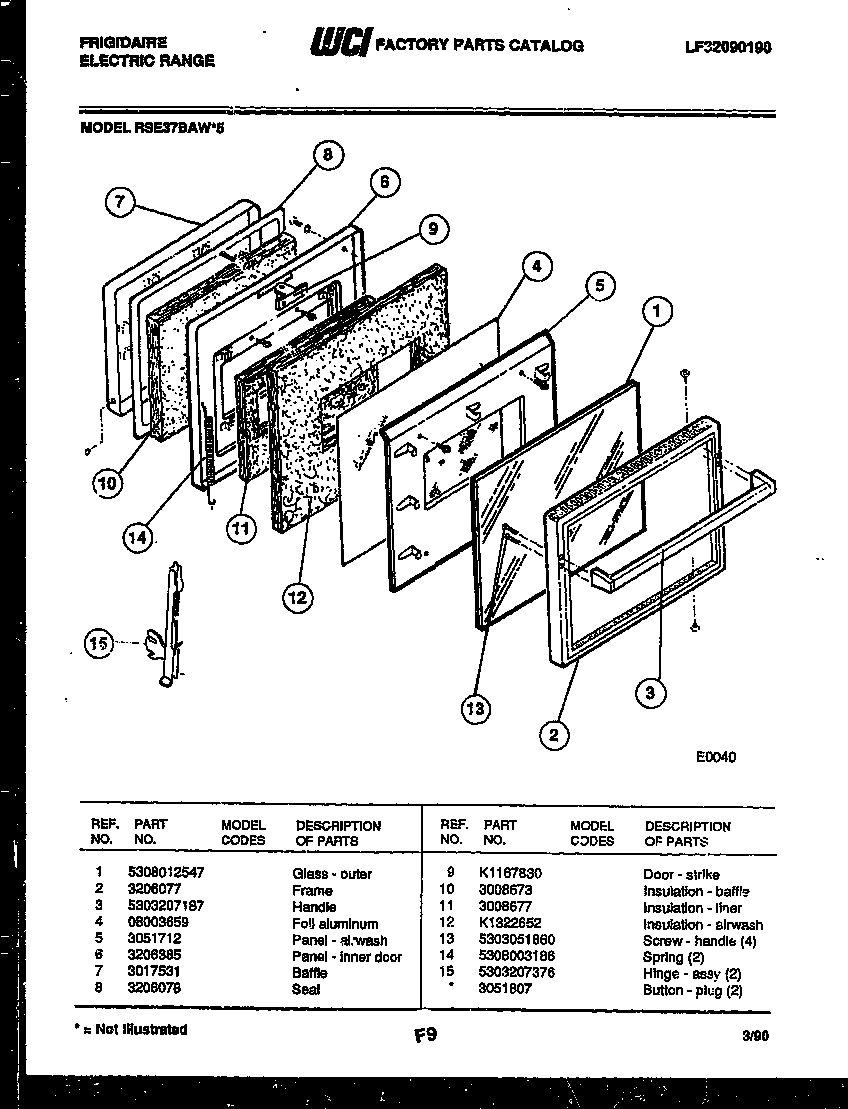

05 - DOOR PARTS

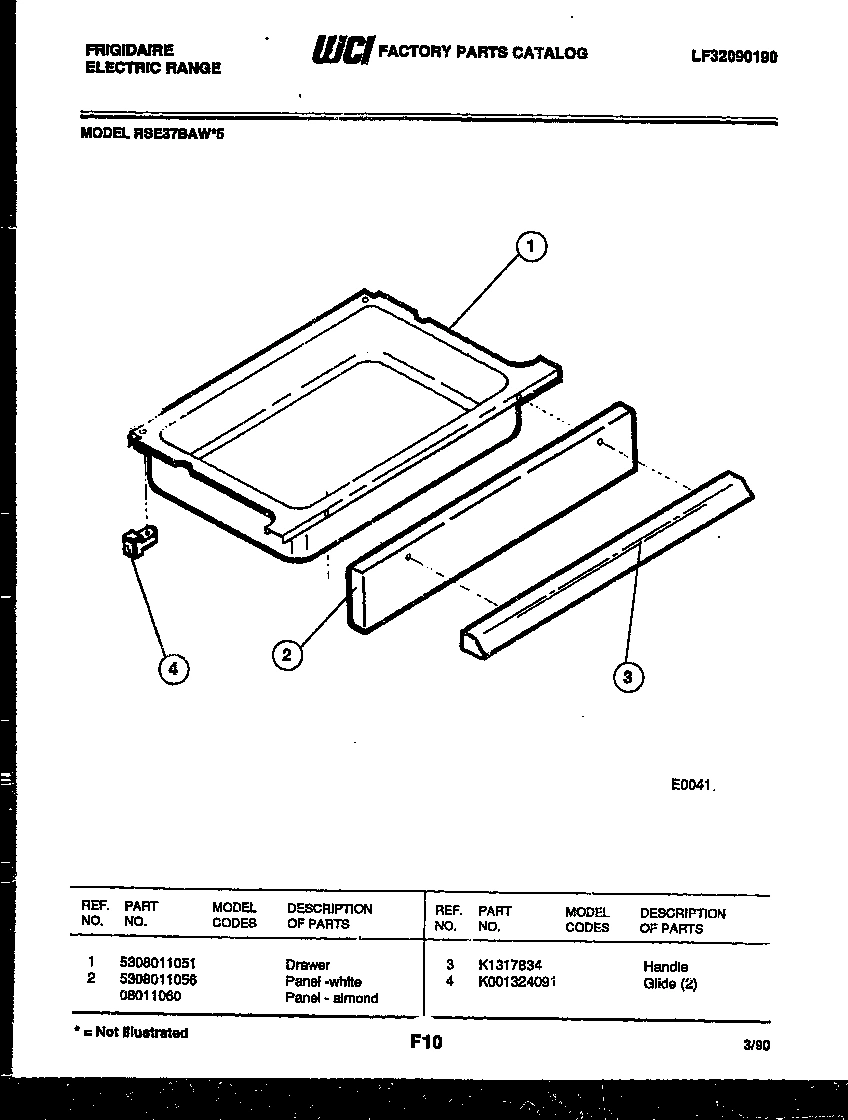

06 - DRAWER PARTS

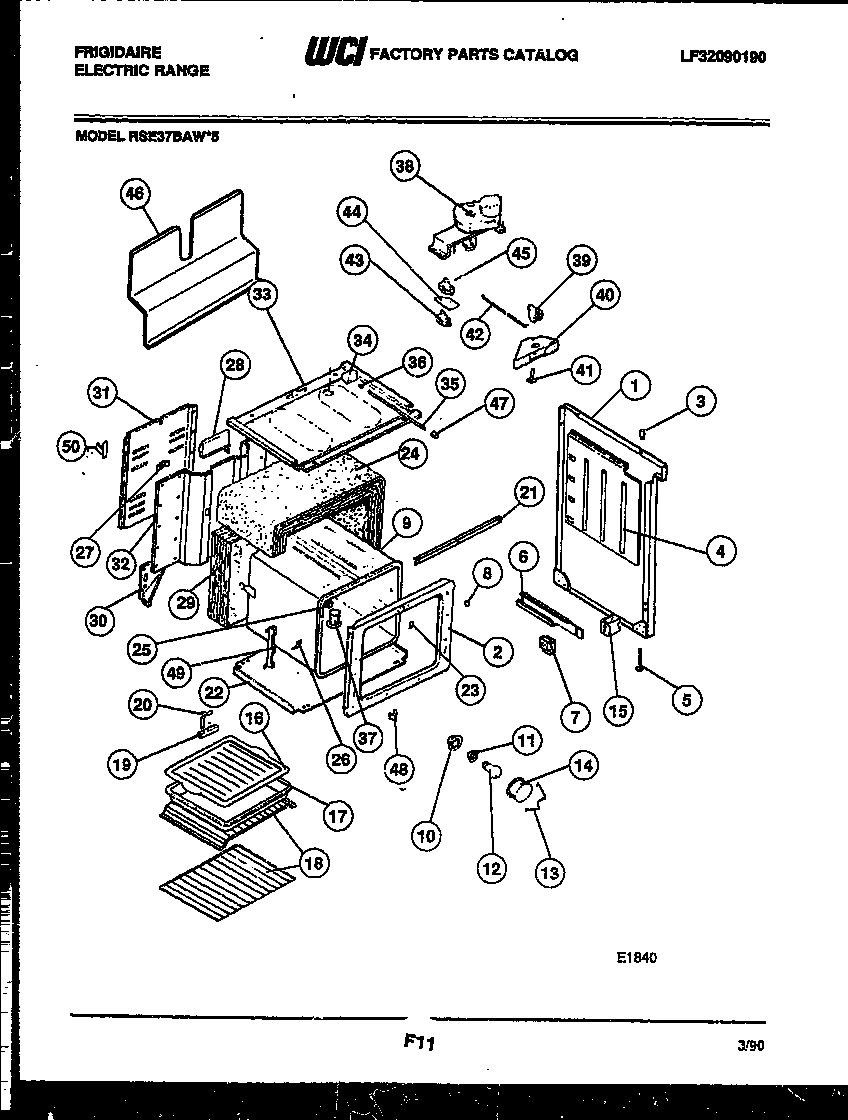

07 - BODY PARTS
Common parts from model Electrolux RSE37BAW5 RANGE
*62648
WCI 3051807 WCI 3051807 Contact Us For Availability
1
WCI 08012523 WCI 08012523 Contact Us For Availability
1
WCI 5308012522 WCI 5308012522 Contact Us For Availability
1
WCI 5308012547 WCI 5308012547 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
1
SIDE PNL, RH (WHITE) WCI 5308012527 Contact Us For Availability
1A
SIDE PNL, LH (WHITE) WCI 5308012528 Contact Us For Availability
2
PIN, HINGE (2) WCI 08012537 Contact Us For Availability
2
WCI 3206077 WCI 3206077 Contact Us For Availability
2
PANEL, WHITE WCI 5308011056 Contact Us For Availability
2
WCI 5303207390 WCI 5303207390 Contact Us For Availability
3
ROD, COOKTOP SUPPORT WCI 3051554 Contact Us For Availability
3
WCI 5303207187 WCI 5303207187 Contact Us For Availability
3
HANDLE WCI K1317834 Contact Us For Availability
3
BUMPER, COOKTOP (4) WCI 5308003107 Contact Us For Availability
4
WCI 08003659 WCI 08003659 Contact Us For Availability
4
GLIDE (2) WCI K001324091 Contact Us For Availability
4
RETAINER, INSULATION (2) WCI 3051632 Contact Us For Availability
5
LENS - IND LIGHT (3) WCI 5308006417 Contact Us For Availability
5
WCI 3051712 WCI 3051712 Contact Us For Availability
5
LEG, LEVELLER (4) WCI 3205294 Contact Us For Availability
6
WCI 3205756 WCI 3205756 Contact Us For Availability
6
WCI 3206385 WCI 3206385 Contact Us For Availability
6
WCI 5308015746 WCI 5308015746 Contact Us For Availability
6A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
7
BAFFLE WCI 3017531 Contact Us For Availability
7
GUIDE - DRWR FRONT (2) WCI 3051654 Contact Us For Availability
8
WCI 3206078 WCI 3206078 Contact Us For Availability
8
PLUG BUTTON, OVEN LIGHT HOLE WCI 3204817 Contact Us For Availability
9
SHIELD - LIGHT WCI K5137401 Contact Us For Availability
9
DOOR - STRIKE WCI K1167830 Contact Us For Availability
9
OVEN LINER WCI 3206079 Contact Us For Availability
10
WCI 3051511 WCI 3051511 Contact Us For Availability
10
BRACKET, LAMP (2) WCI 08012748 Contact Us For Availability
10
WCI 3008673 WCI 3008673 Contact Us For Availability
11
WCI 08012577 WCI 08012577 Contact Us For Availability
11
WCI 3008677 WCI 3008677 Contact Us For Availability
12
BRACKET - CLOCK WCI K5296301 Contact Us For Availability
12
WCI K1322652 WCI K1322652 Contact Us For Availability
13
WCI 5303051860 WCI 5303051860 Contact Us For Availability
13
SWITCH, FLUORESCENT WCI 5308012754 Contact Us For Availability
13
RETAINER-LENS WCI 5303205904 Contact Us For Availability
14
WCI 08012745 WCI 08012745 Contact Us For Availability
14
SPRING (2) WCI 5308003186 Contact Us For Availability
14A
WCI 08012746 WCI 08012746 Contact Us For Availability
15
WCI 08015966 WCI 08015966 Contact Us For Availability
15
WCI 5303207376 WCI 5303207376 Contact Us For Availability
15
SPACER, DRWR RAIL (2) WCI 3051653 Contact Us For Availability
15A
WCI 08015967 WCI 08015967 Contact Us For Availability
16
BRACKET, HINGE (2) WCI 5308012538 Contact Us For Availability
16
GRILLE, BROILER WCI 3206091 Contact Us For Availability
17
NUT-SWITCH MTG WCI 3051832 Contact Us For Availability
17
WCI 3205539 WCI 3205539 Contact Us For Availability
18
KNOB, S/U (6) WCI 5308015741 Contact Us For Availability
18A
RACK-OVEN, OFFSET WCI 08014219 Contact Us For Availability
19
KNOB - CLOCK WCI 3016387 Contact Us For Availability
20
WCI 5308004154 WCI 5308004154 Contact Us For Availability
20
STRAP-GROUND WCI K1145190 Contact Us For Availability
21
NUT-SW. MTG. KNURLED WCI 08012572 Contact Us For Availability
21
WCI 5303207391 WCI 5303207391 Contact Us For Availability
22
WCI 3206275 WCI 3206275 Contact Us For Availability
23
WCI 3202082 WCI 3202082 Contact Us For Availability
25
WCI 3016334 WCI 3016334 Contact Us For Availability
26
WCI 3201632 WCI 3201632 Contact Us For Availability
27
WCI 3016281 WCI 3016281 Contact Us For Availability
28
WCI 3051634 WCI 3051634 Contact Us For Availability
29
INSULATION, OVEN BACK WCI 5303051630 Contact Us For Availability
30
WCI 3017481 WCI 3017481 Contact Us For Availability
30A
WCI 3017482 WCI 3017482 Contact Us For Availability
31
WCI 5303051856 WCI 5303051856 Contact Us For Availability
32
WCI 3205757 WCI 3205757 Contact Us For Availability
33
WCI 08012542 WCI 08012542 Contact Us For Availability
34
SWITCH, DOOR WCI 5308003081 Contact Us For Availability
35
WCI 08007445 WCI 08007445 Contact Us For Availability
36
WCI 08007444 WCI 08007444 Contact Us For Availability
37
WCI 08012574 WCI 08012574 Contact Us For Availability
38
LATCH, MOTOR WCI 5308015743 Contact Us For Availability
39
LATCH, DOOR WCI 3202387 Contact Us For Availability
40
HOUSING-DOOR LATCH WCI 3051647 Contact Us For Availability
41
AXLE WCI 5308012004 Contact Us For Availability
42
WCI 3051649 WCI 3051649 Contact Us For Availability
43
SWITCH, LOWER WCI 5308006582 Contact Us For Availability
44
WCI 08003090 WCI 08003090 Contact Us For Availability
45
SWITCH, UPPER WCI 5303051740 Contact Us For Availability
46
WCI 3206095 WCI 3206095 Contact Us For Availability
47
COVER, ROD END WCI 3051251 Contact Us For Availability
48
WCI 3019063 WCI 3019063 Contact Us For Availability
48A
ANTI-TIP KIT, (NON-ILLUSTRATED) WCI 3934063 Contact Us For Availability
48B
WCI 5300009126 WCI 5300009126 Contact Us For Availability
49
CHANNEL ASSY, HINGE (2) WCI 3201631 Contact Us For Availability
50
WCI 3017556 WCI 3017556 Contact Us For Availability
× ![]()
