Model Whirlpool RS696PXGQ12 30`` ELECTRIC DROP-IN RANGE SELF CLEANING OVEN – Common Parts & Diagrams
04 - OVEN DOOR PARTS
05 - TOP VENTING PARTS

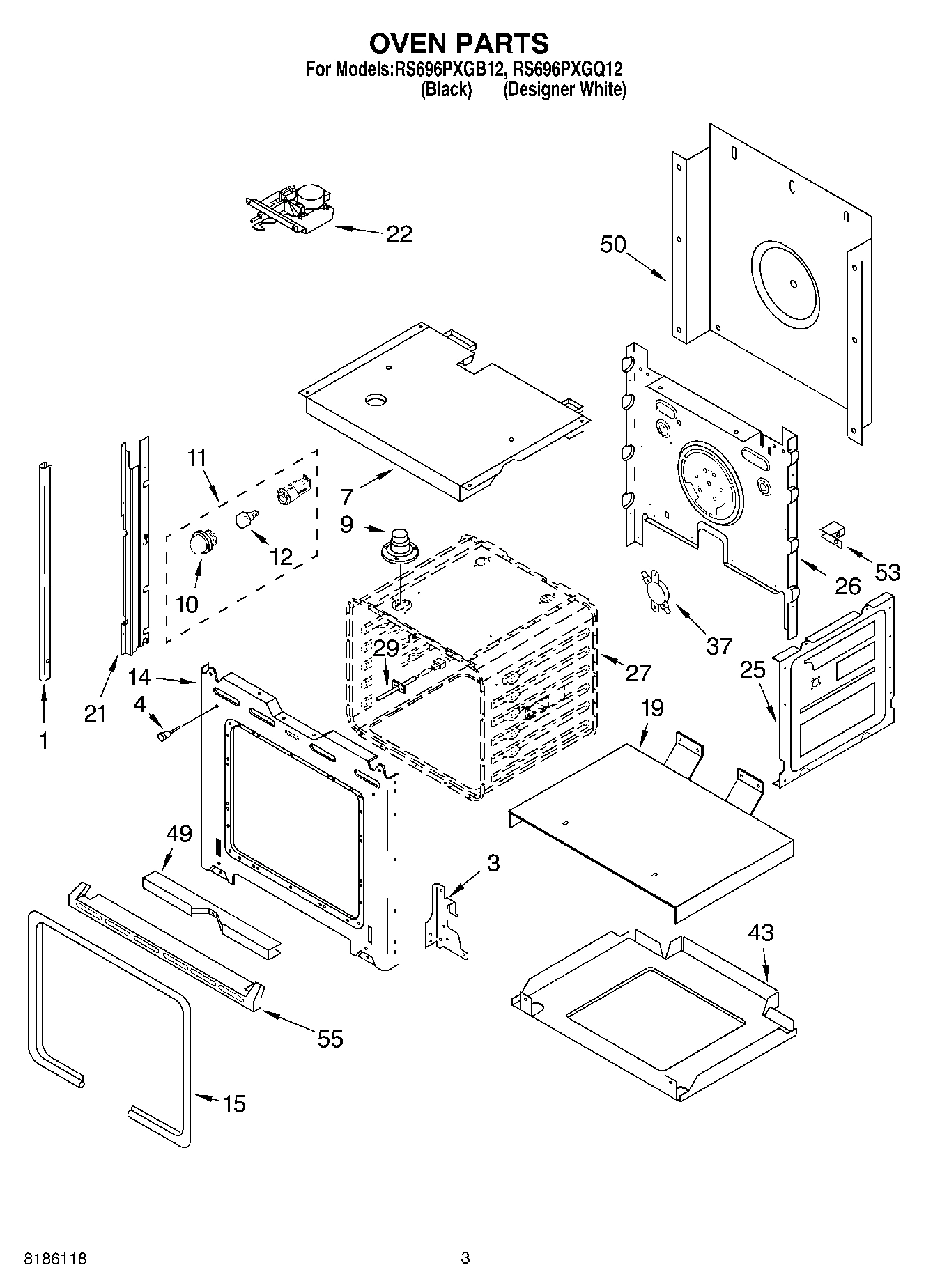

02 - OVEN PARTS

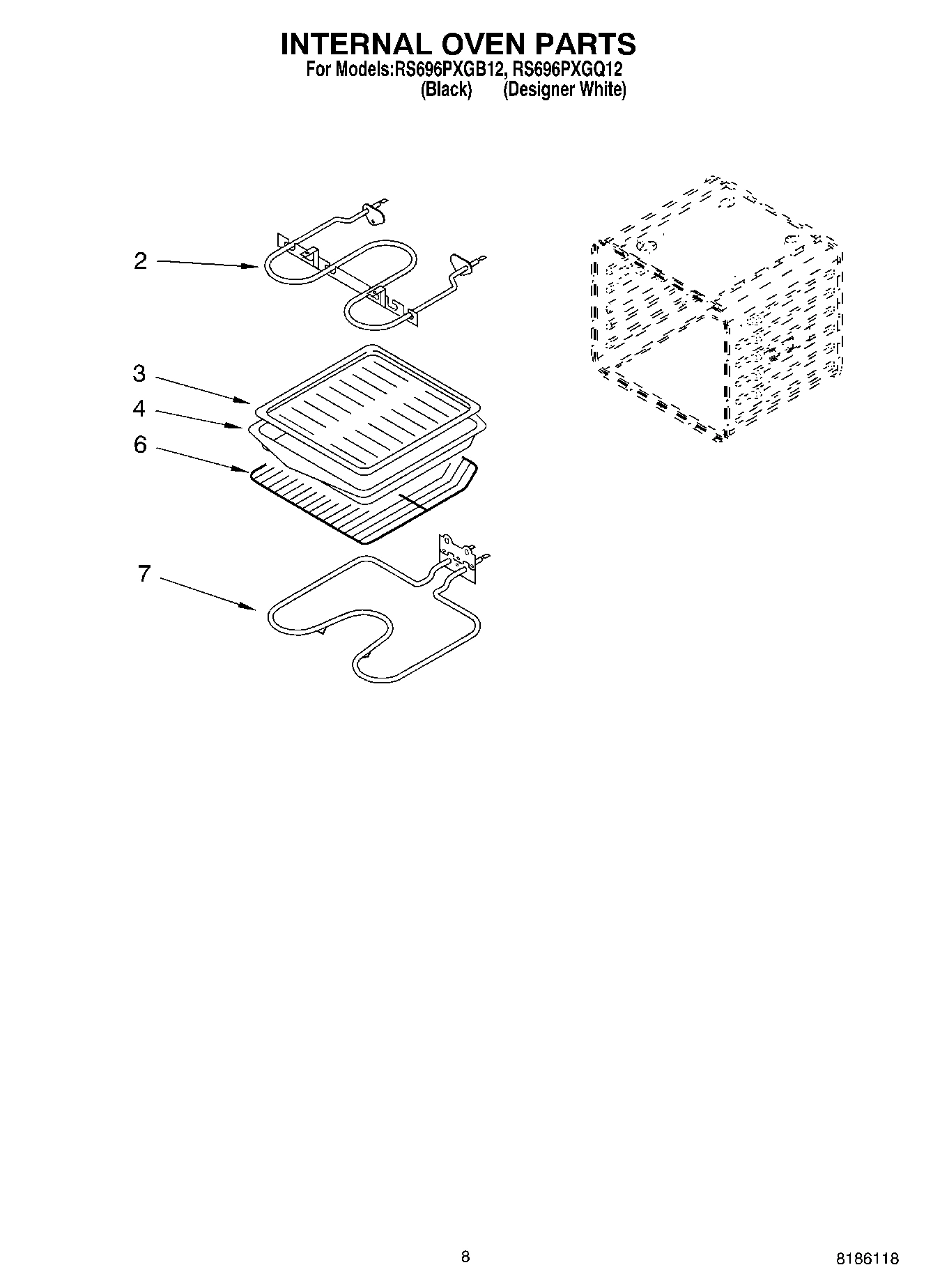

06 - INTERNAL OVEN PARTS, OPTIONAL PARTS

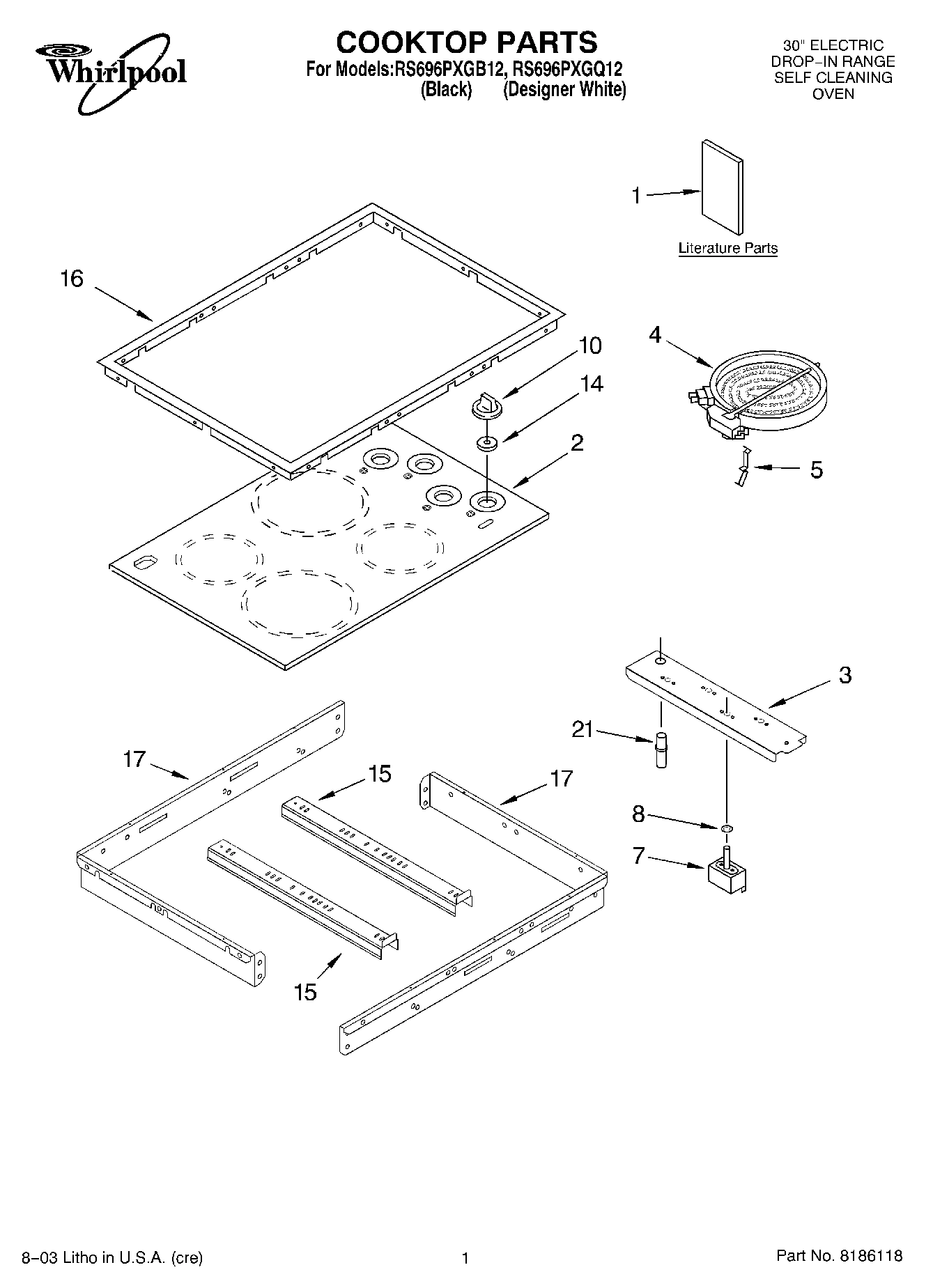

01 - COOKTOP PARTS

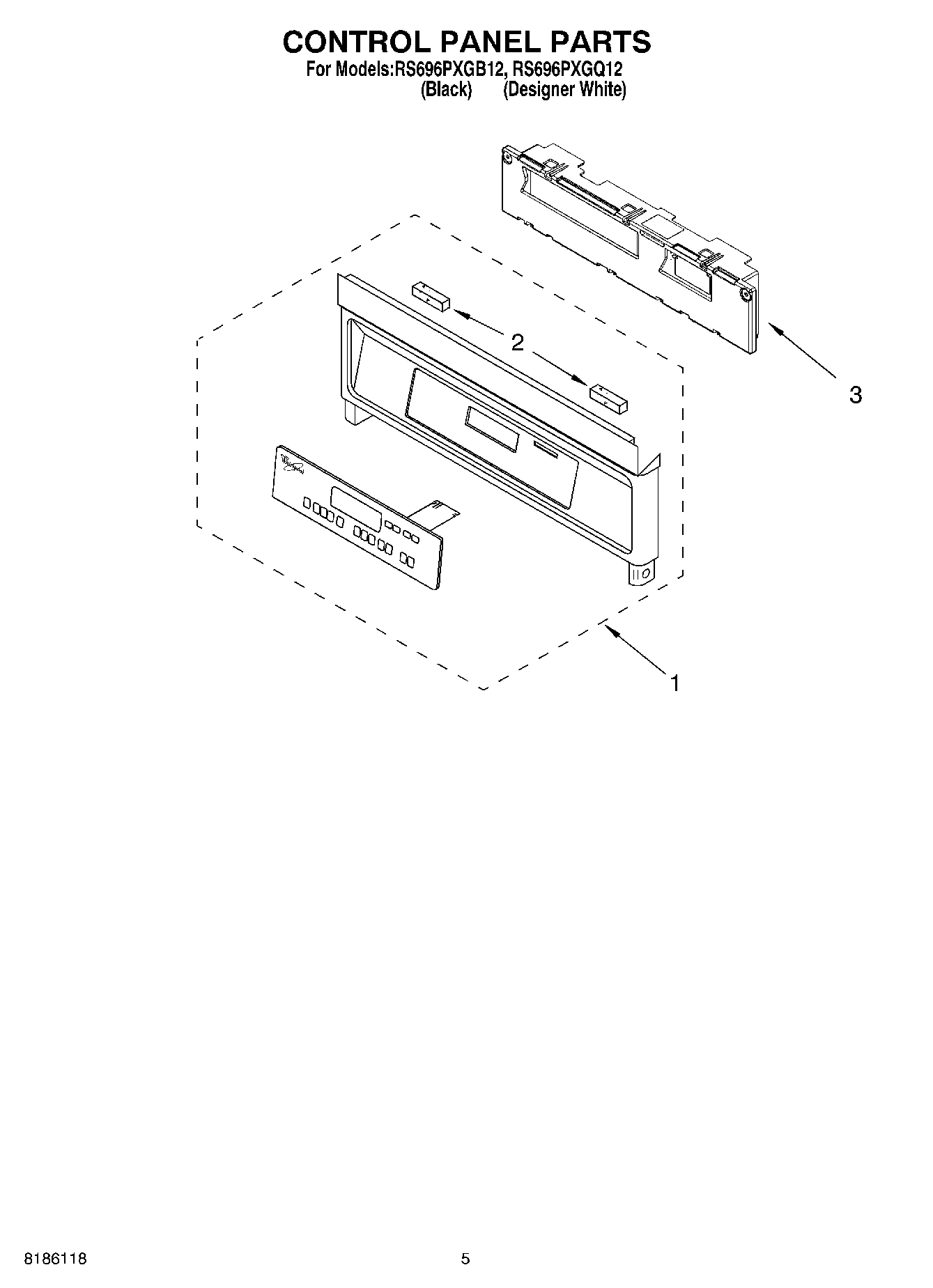

03 - CONTROL PANEL PARTS
Common parts from model Whirlpool RS696PXGQ12 30`` ELECTRIC DROP-IN RANGE SELF CLEANING OVEN
Harness, Wire (Main) WPL 8301876 Contact Us For Availability
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
Harness, Wire (Infinite Switch) WPL 3191956 Contact Us For Availability
Conduit WPL 4451163 Contact Us For Availability
Spacer, Harness WPL 4452222 Contact Us For Availability
Harness, Wire (Burners) WPL 4455280 Contact Us For Availability
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
ADHESIVE WPL ARI124712A Contact Us For Availability
SPLICING WIRES--25FT. LENGTH WPL ARI124713A Contact Us For Availability
WIRING HARNESS PARTS WPL ARI124714A Contact Us For Availability
Miscellaneous WPL ARI124715A Contact Us For Availability
NOTE: The screws and nuts required to attach WPL ARI124705A Contact Us For Availability
NOTE: The screws and nuts required to attach WPL ARI124709A Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Black WPL 4456312 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (White WPL 4456311 Contact Us For Availability
1
Screw WPL 4449040 Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Use & Care Guide WPL LIT8300666 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT8300770 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8302073 Contact Us For Availability
2
Cooktop, Glass (White) WPL 3191189 Contact Us For Availability
2
Cooktop, Glass (Black) WPL 3191843 Contact Us For Availability
2
Gasket, Control Panel WPL 4451034 Contact Us For Availability
3
Blower WPL 4455334 Contact Us For Availability
3
Bracket, Switch Mounting WPL 3191310 Contact Us For Availability
3
Assy, Control WPL 8301919 Contact Us For Availability
5
Spring, Locator WPL 3191791 Contact Us For Availability
11
Screw WPL 3400080 Contact Us For Availability
13
Door Handle (Black Model) WPL 4448854 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
15
Bracket, Support Element WPL 3191515 Contact Us For Availability
16
Trim Ring, Cooktop (White) WPL 3193227 Contact Us For Availability
16
Trim Ring, Cooktop (Black) WPL 3193228 Contact Us For Availability
17
Frame, Cooktop WPL 3192452 Contact Us For Availability
21
Lamp, Indicator WPL 3191952 Contact Us For Availability
21
Bumper, Rubber WPL 3191953 Contact Us For Availability
21
Bumper, Door WPL 9750835 Contact Us For Availability
24
Glass, Inner WPL 8300974 Contact Us For Availability
55
Trim, Bottom (Black Model) WPL 4448477 Contact Us For Availability
55
Trim, Bottom (White Model) WPL 4448478 Contact Us For Availability
55
Insulation, Back WPL 4450365 Contact Us For Availability
55
FOLLOWING PARTS NOT ILLUSTRATED INSULATION WPL ARI124708A Contact Us For Availability
× ![]()
