Model Whirlpool RS696PXEB0 – Common Parts &amp; Diagrams

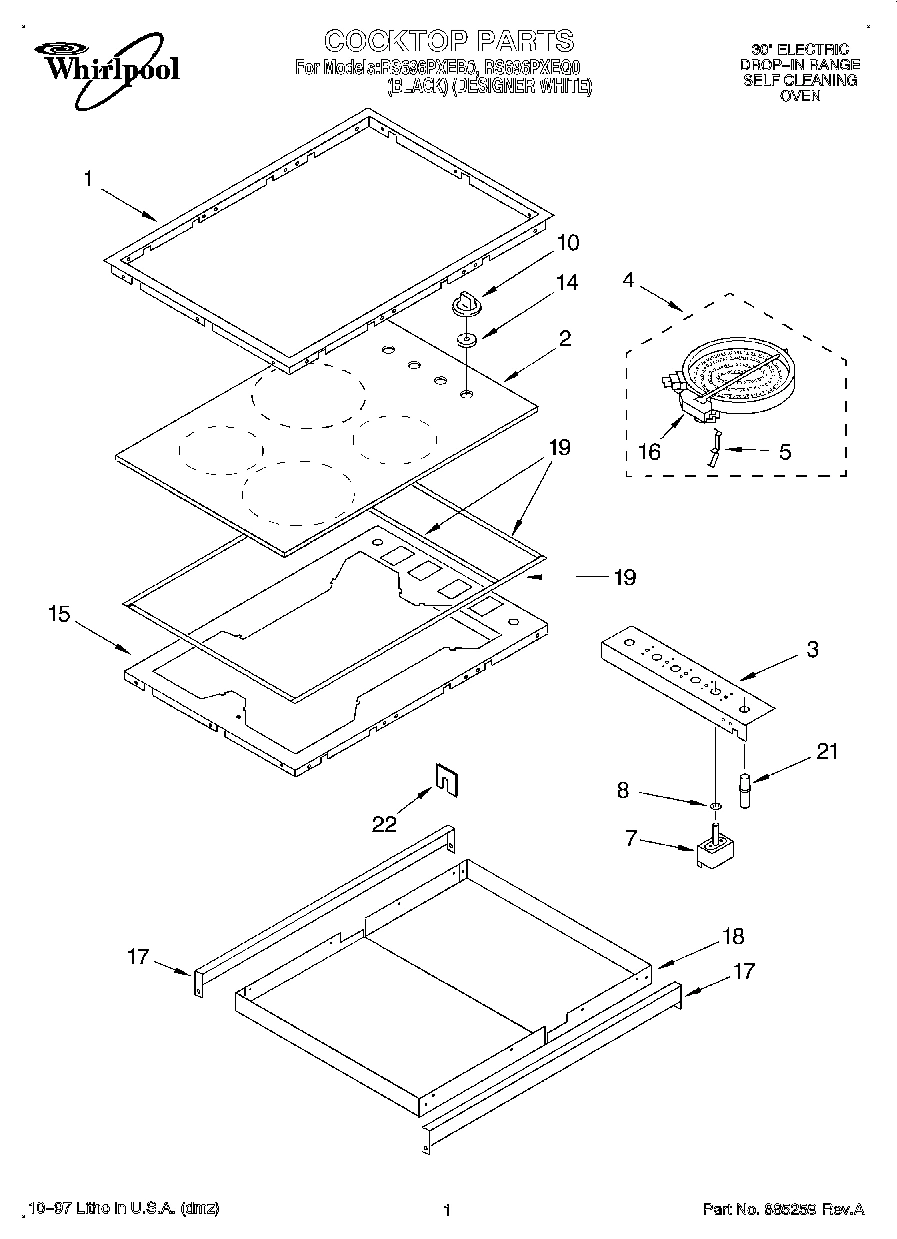

1

Trim Ring, Cooktop (Screw (10)) WPL 4168863 Contact Us For Availability

1

Trim Ring, Cooktop (Black) WPL 4449978 Contact Us For Availability

1

Trim Ring, Cooktop (White) WPL 4449979 Contact Us For Availability

1

Trim, Side (Right Hand) (Screw) WPL 4449041 Contact Us For Availability

1

Trim, Side (Right Hand) (Black Model) WPL 4450844 Contact Us For Availability

1

Trim, Side (White, Right) WPL 4450845 Contact Us For Availability

1

Trim, Side (Left Hand) (Black Model) WPL 4450847 Contact Us For Availability

1

Trim, Side (Left Hand) (White Model) WPL 4450848 Contact Us For Availability

2

WP9760767 Whirlpool Range Wall Oven Broil Ele In Stock WPL WP9760767 $65.29

2

Cooktop, Glass (Black) WPL 4450276 Contact Us For Availability

2

Cooktop, Glass (White) WPL 4450278 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $79.44

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

3

Bracket, Switch Mounting WPL 3190334 Contact Us For Availability

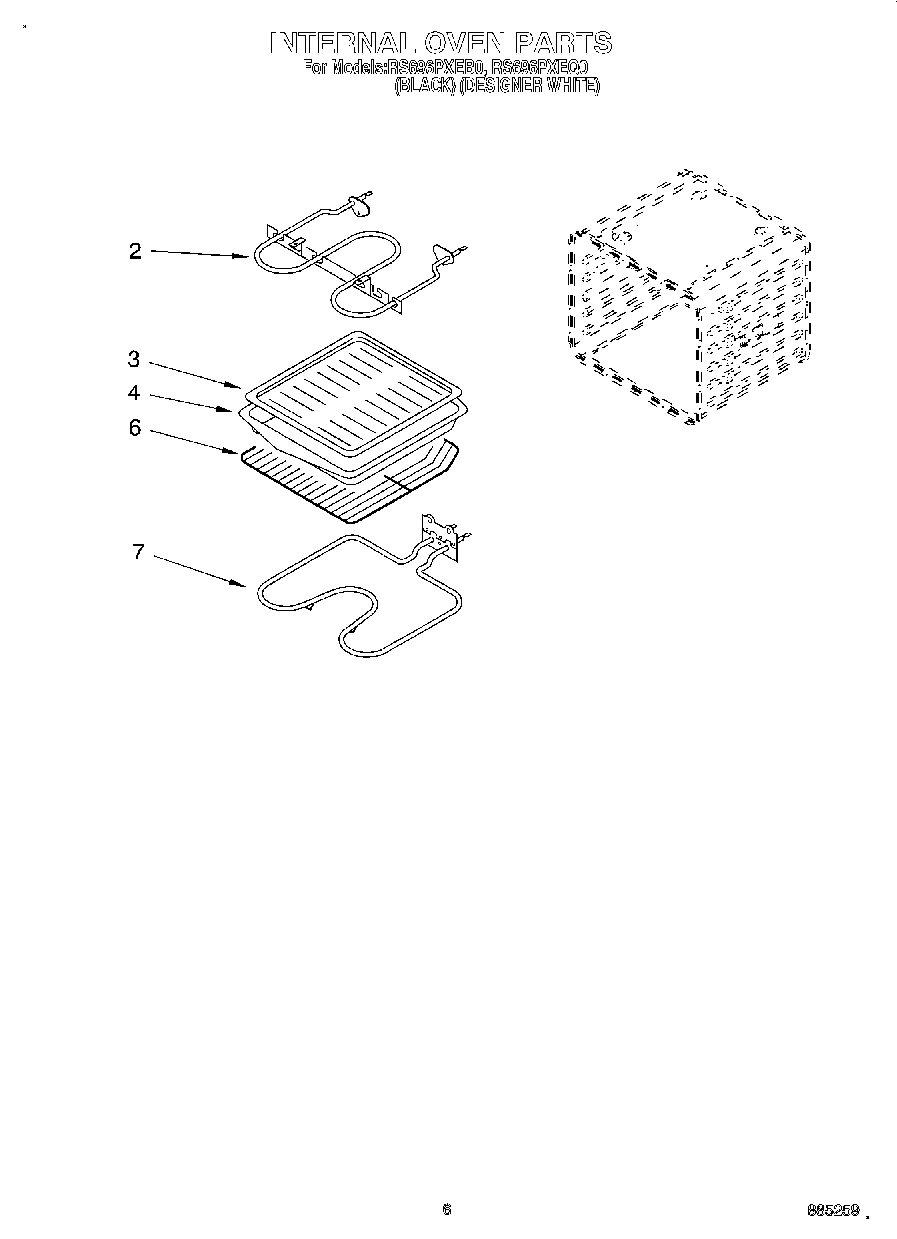

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

Element, Surface (1400W Left Rear) WPL 3189894 Contact Us For Availability

4

Element, Surface (1700W Right Front) WPL 3189895 Contact Us For Availability

4

Element, Surface (2100W Right Rear) WPL 3189896 Contact Us For Availability

4

Element, Surface (2400W Left Front) WPL 3189897 Contact Us For Availability

5

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 $2.51

5

Spring, Locator (8) WPL 3189165 Contact Us For Availability

6

WPW10179152 Whirlpool Rack Oven In Stock WPL WPW10179152 $63.24

6

Divider, Vent WPL 4451039 Contact Us For Availability

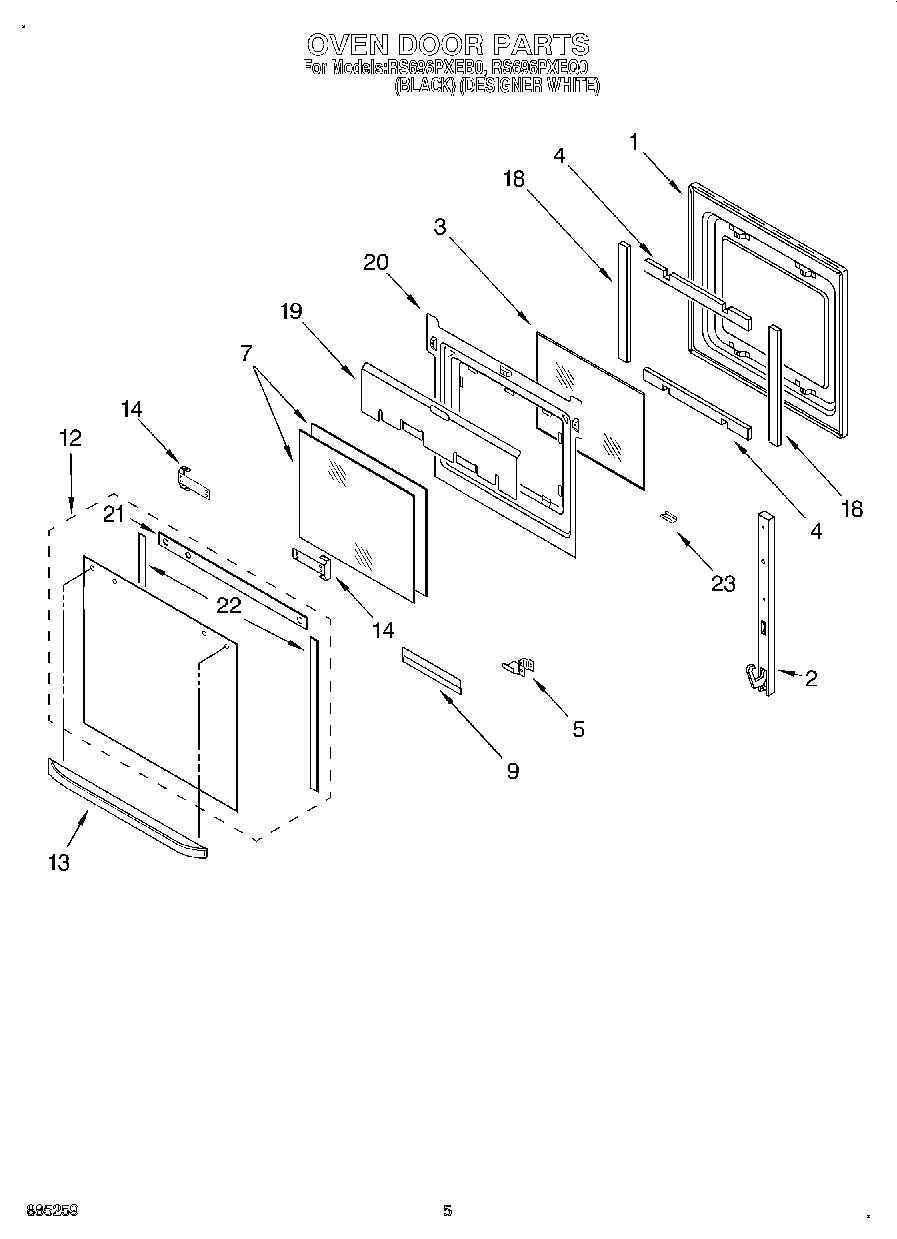

7

WP4449263 Whirlpool Inner Door Glass Backorder WPL WP4449263 $80.64

7

WPW10207397 Whirlpool Oven Bake Element In Stock WPL WPW10207397 $45.71

7

Switch, Infinite (Use W/1400W Left Rear Burne WPL 4454535 Contact Us For Availability

7

Switch, Infinite (Use W/1700W Right Front Bur WPL 4454536 Contact Us For Availability

7

Switch, Infinite (Use W/2400W Left Front Burn WPL 4454537 Contact Us For Availability

7

Partition WPL 4454833 Contact Us For Availability

8

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

8

Seal, Switch Cover WPL 309839 Contact Us For Availability

9

Tube, Vent WPL 4449009 Contact Us For Availability

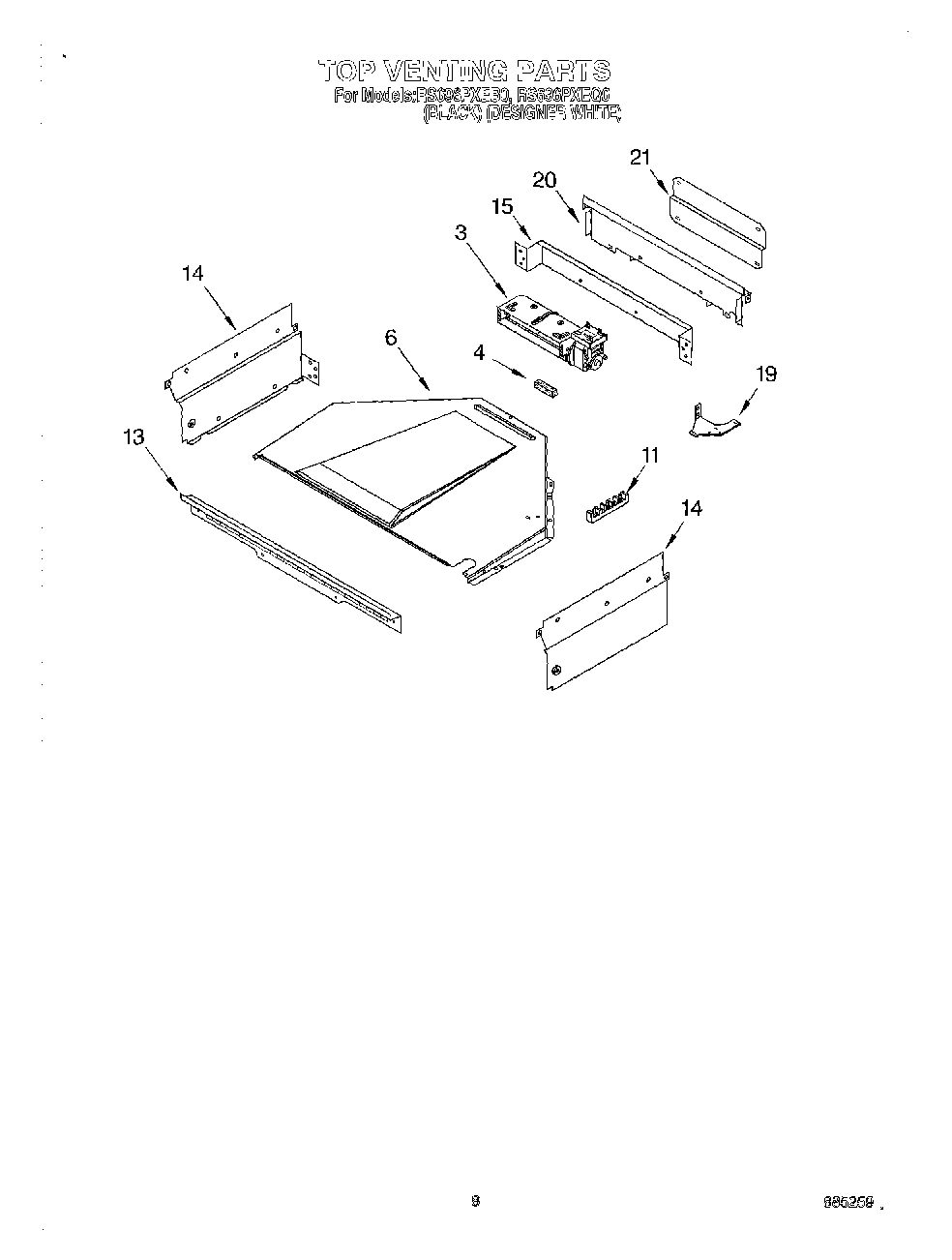

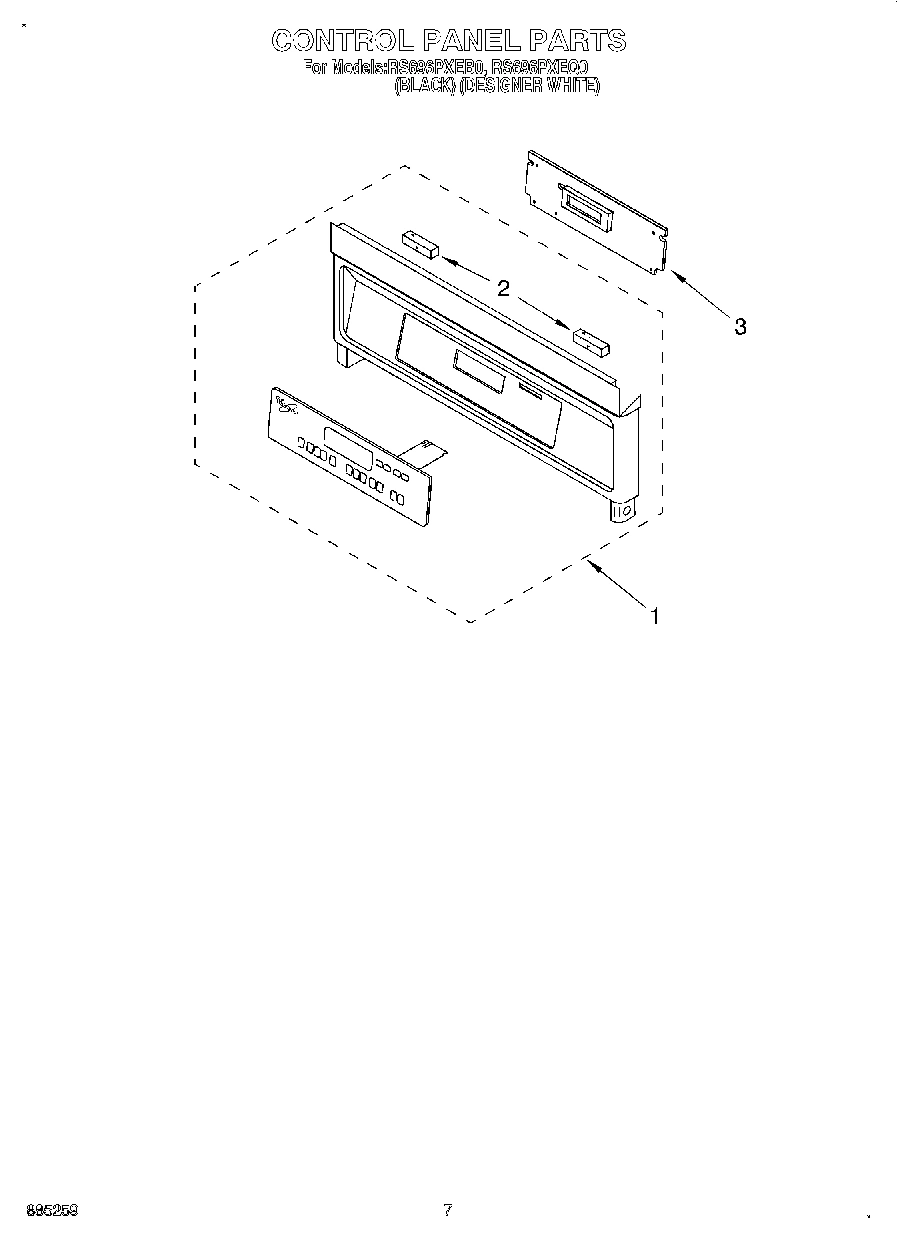

10

WP3183119 Whirlpool Knob Assembly Backorder WPL WP3183119 $24.85

10

Knob, Control (4) (Black) WPL 3183120 Contact Us For Availability

11

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

11

WPW10734065 Whirlpool Light Backorder WPL WPW10734065 $35.32

13

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

13

Door Handle (Black Model) WPL 4448854 Contact Us For Availability

13

Vent, Control Panel WPL 4448549 Contact Us For Availability

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

Bracket, Handle WPL 4450813 Contact Us For Availability

Seal, Switch (4) WPL 3182435 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Side, Control Compt. (Right) WPL 4451535 Contact Us For Availability

Side, Control Compt. (Left) WPL 4451536 Contact Us For Availability

Frame, Front WPL 4450417 Contact Us For Availability

15

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $25.44

15

Back, Control WPL 4450658 Contact Us For Availability

15

Plate, Backer WPL 4449981 Contact Us For Availability

Limiter, Temperature (Use W/3189895 Element) WPL 3190250 Contact Us For Availability

Limiter, Temperature (Use W/3189897 Element) WPL 3190251 Contact Us For Availability

Limiter, Temperature (Use W/3189896 Element) WPL 3190252 Contact Us For Availability

Limiter, Temperature (Use W/3189894 Element) WPL 3190253 Contact Us For Availability

17

Bracket, Support WPL 4451410 Contact Us For Availability

18

Screw WPL 3148443 Contact Us For Availability

18

Shield, Heat WPL 3187753 Contact Us For Availability

Bracket, Blower WPL 4450545 Contact Us For Availability

Seal, Silicone (Small (3)) WPL 3185589 Contact Us For Availability

Seal, Silicone (Large (2)) WPL 3185590 Contact Us For Availability

Support, Insulation WPL 4450542 Contact Us For Availability

20

Cover, Rear WPL 4449973 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $11.62

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $10.25

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814371 Whirlpool Oven Rail Mount Backorder WPL 814371 $38.69

814372 Whirlpool Oven Rail Mount Backorder WPL 814372 $40.88

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $2.51

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Wire, Tie WPL 3179589 Contact Us For Availability

Harness, Wire (Infinite Switch) WPL 3188566 Contact Us For Availability

Conduit WPL 4451163 Contact Us For Availability

Plate, Support WPL 4451407 Contact Us For Availability

Harness, Wire (Burners) WPL 4454594 Contact Us For Availability

Harness, Wire (Latch) WPL 4454709 Contact Us For Availability

Harness, Wire (Door Switch) (Also, order Mai WPL 4454871 Contact Us For Availability

Harness, Wire (Main) (Also, order Door Switc WPL 4454872 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

WPL 814387 WPL 814387 Contact Us For Availability

Lamp, Hot Surface Indicator WPL 4454437 Contact Us For Availability

22

Grommet, Wire Way WPL 3188533 Contact Us For Availability

22

Screw WPL 4450289 Contact Us For Availability

22

Shield, Latch WPL 4451036 Contact Us For Availability

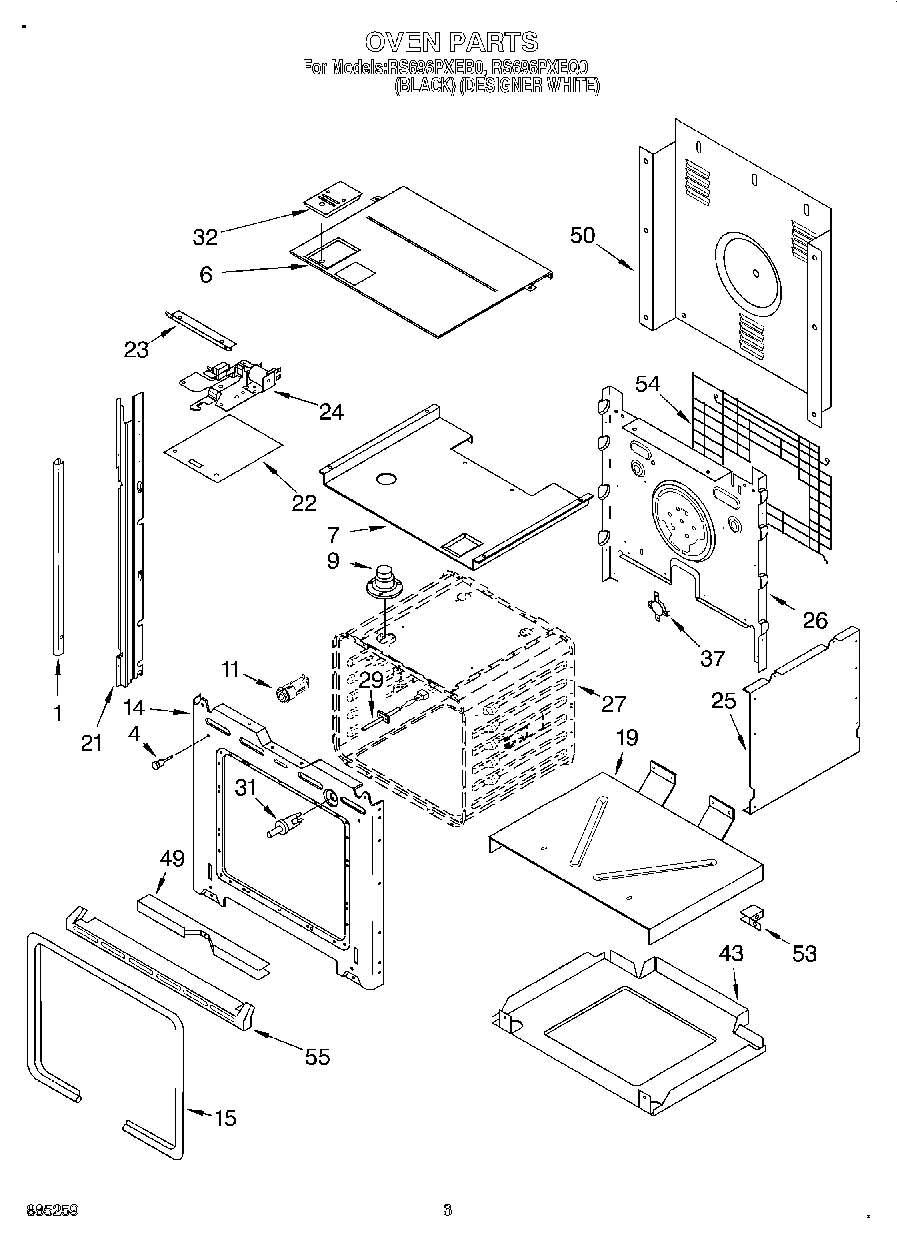

23

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

23

Deflector, Latch WPL 4450051 Contact Us For Availability

24

Latch Assy WPL 4454710 Contact Us For Availability

25

Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability

26

Back, Chassis WPL 4451169 Contact Us For Availability

27

Liner, Oven (Not a Serviceable Part) WPL ARI124650A Contact Us For Availability

29

Sensor WPL 4450026 Contact Us For Availability

31

Switch, Door WPL 4450819 Contact Us For Availability

32

Vent Box Assy WPL 4449369 Contact Us For Availability

37

WP4450249 Whirlpool Thermostat Backorder WPL WP4450249 $77.29

43

Base, Chassis WPL 4451398 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

50

Cover, Back WPL 4450544 Contact Us For Availability

53

BRACKET-SUPPORT WPL 4449845 Contact Us For Availability

54

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

54

Spacer, Harness WPL 4451002 Contact Us For Availability

W11684730 Whirlpool Insulation Backorder WPL W11684730 $45.31

Trim, Bottom (Black Model) WPL 4448477 Contact Us For Availability

Trim, Bottom (White Model) WPL 4448478 Contact Us For Availability

Insulation, Back WPL 4450365 Contact Us For Availability
