Model Whirlpool RS696PXBB1 – Common Parts & Diagrams
04 - WIRING HARNESS, LIT/OPTIONAL
05 - COOKTOP

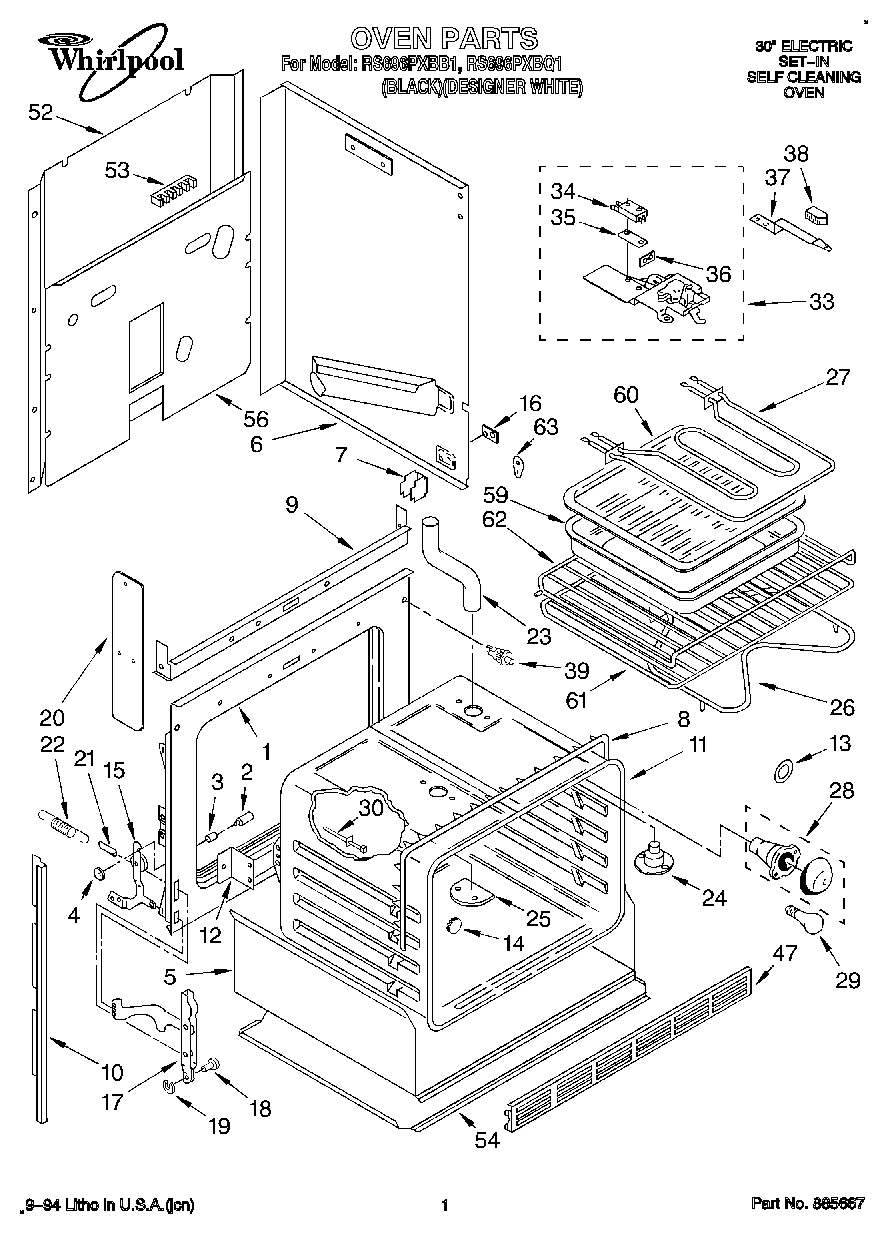

01 - OVEN

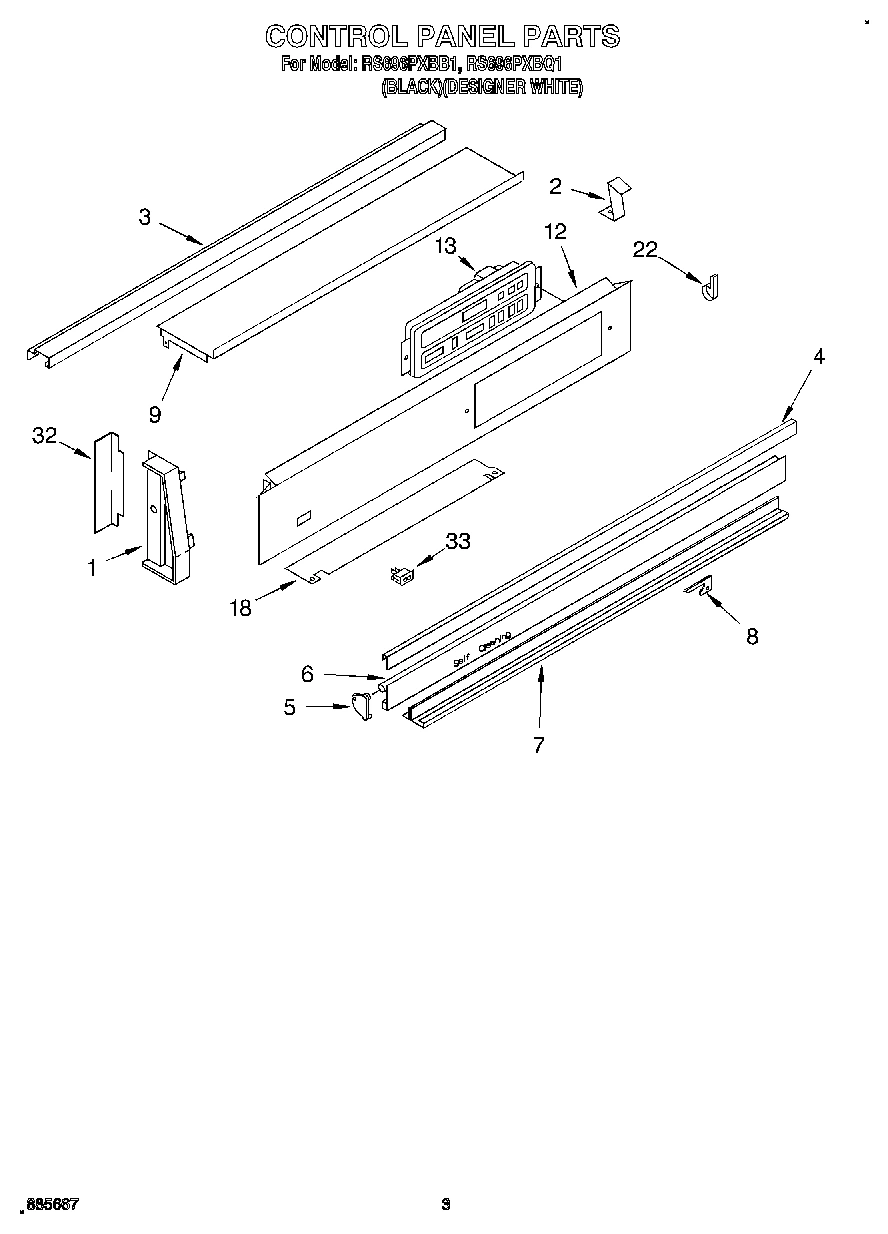

02 - CONTROL PANEL

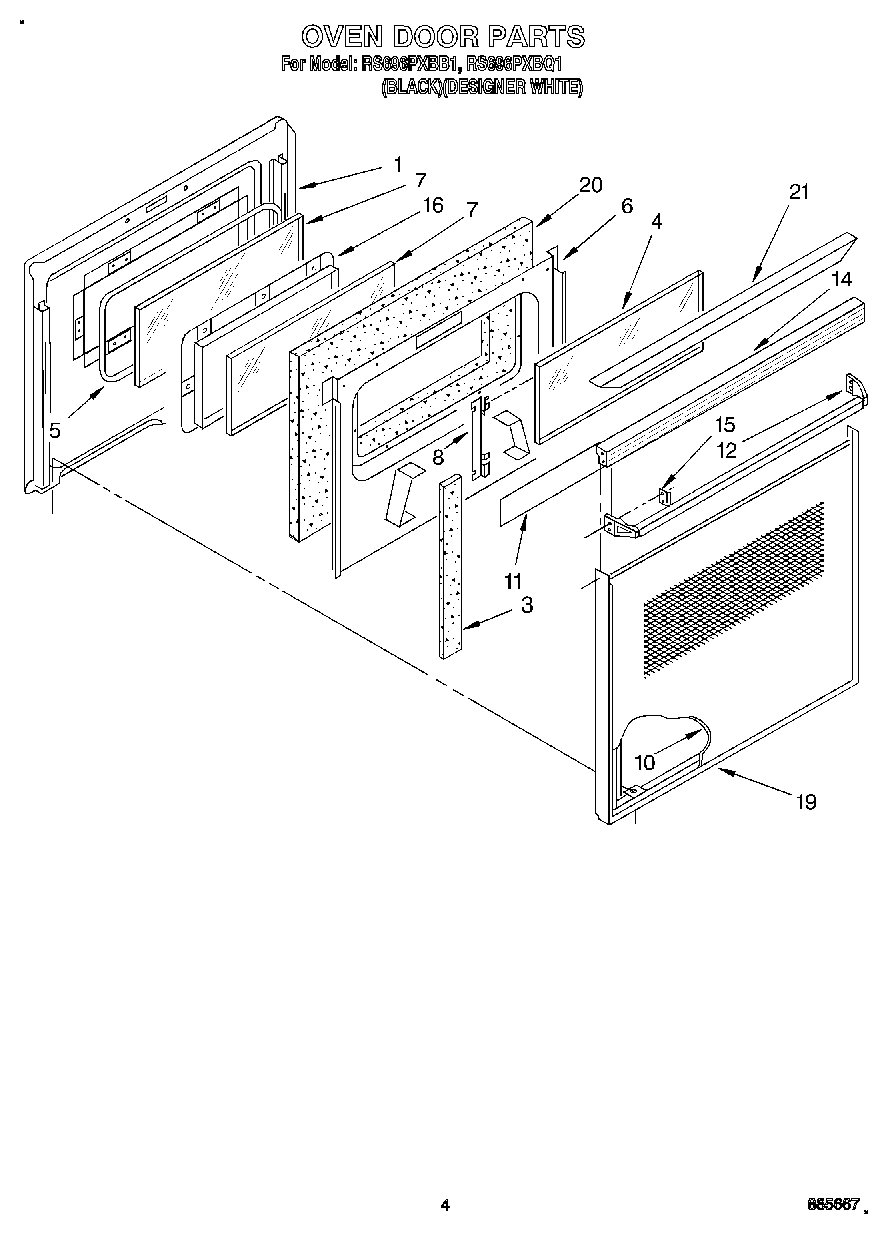

03 - OVEN DOOR
Common parts from model Whirlpool RS696PXBB1
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
1
Trim Ring, Cooktop (Black) WPL 3187744 Contact Us For Availability
1
Trim Ring, Cooktop (White) WPL 3187745 Contact Us For Availability
1
Frame, Front WPL 3176705 Contact Us For Availability
1
End Cap (Right Hand (Black)) WPL 3148444 Contact Us For Availability
1
End Cap (Left Hand (Black)) WPL 3148445 Contact Us For Availability
1
End Cap (Left Hand (White)) WPL 3150013 Contact Us For Availability
1
End Cap (Right Hand (White)) WPL 3150014 Contact Us For Availability
1
Liner, Door WPL 3172218 Contact Us For Availability
2
Cooktop, Glass (Black) WPL 3187760 Contact Us For Availability
2
Cooktop, Glass (White) WPL 3187761 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Bracket, Control WPL 3184395 Contact Us For Availability
3
Harness, Wire (Infinite Switch) WPL 3188566 Contact Us For Availability
3
Bracket, Switch Mounting WPL 3187584 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Rail, Top WPL 3148616 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
4
Element, Surface (1400W Left Rear) WPL 3184951 Contact Us For Availability
4
Element, Surface (1700W Right Front) WPL 3184953 Contact Us For Availability
4
Element, Surface (2100W Right Rear) WPL 3184956 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Trim, Center (Black) WPL 3148620 Contact Us For Availability
4
Trim, Center (White) WPL 3149350 Contact Us For Availability
4
Glass, Clear WPL 3169202 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Spring Locator (8) WPL 3187707 Contact Us For Availability
5
Insulation Tray WPL 3185944 Contact Us For Availability
5
Trim, Vent Door (Left Hand (Rosemont Grey)) WPL 3148471 Contact Us For Availability
5
Trim, Vent Door (Right Hand (Rosemont Grey)) WPL 3148472 Contact Us For Availability
5
Trim, Vent Door Left Hand (Black) WPL 3148697 Contact Us For Availability
5
Trim, Vent Door (Right Hand (Black)) WPL 3148698 Contact Us For Availability
6
Seal, Cooktop (2) WPL 3185617 Contact Us For Availability
6
Side Wrapper R.H. WPL 3185954 Contact Us For Availability
6
Side Wrapper L.H. WPL 3185957 Contact Us For Availability
6
Door, Vent (Black) WPL 3183505 Contact Us For Availability
6
Door, Vent (Brushed Aluminum) WPL 3183506 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Screw (4) WPL 4173601 Contact Us For Availability
7
Switch, Infinite (Use W/1700W Right Front Bur WPL 3148949 Contact Us For Availability
7
Switch, Infinite (Use W/2100W Right Rear Burn WPL 3148950 Contact Us For Availability
7
Switch, Infinite (Use W/2400W Left Front Burn WPL 3148958 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Screw (4) WPL 342043 Contact Us For Availability
7
Trim, Bottom WPL 3148618 Contact Us For Availability
8
Seal, Switch Cover WPL 309839 Contact Us For Availability
8
Gasket, Door WPL 3185197 Contact Us For Availability
8
Shield, Air WPL 3149142 Contact Us For Availability
8
Retainer, Glass (2) WPL 3188720 Contact Us For Availability
9
Cover, Vent (Black) WPL 3182496 Contact Us For Availability
9
Cover, Vent (White) WPL 3182497 Contact Us For Availability
9
Baffle, Top WPL 3183796 Contact Us For Availability
9
Shield, Heat WPL 3188534 Contact Us For Availability
10
Knob, Control (4) (Black) WPL 3183120 Contact Us For Availability
10
Side Trim (Left Hand) WPL 310685 Contact Us For Availability
10
Side Trim (Right Hand) WPL 310689 Contact Us For Availability
10
Glass, Panel (White Model) WPL 3188053 Contact Us For Availability
10
Glass, Panel (Black) WPL 3188054 Contact Us For Availability
11
Cover, Rear WPL 3188528 Contact Us For Availability
11
Oven (30`` Pyro) WPL 3182032 Contact Us For Availability
11
Foil, Door WPL 3188706 Contact Us For Availability
12
Handle, Door (White) WPL 3187941 Contact Us For Availability
12
Handle, Door (Black) WPL 3187940 Contact Us For Availability
12
Plate, Mounting WPL 3188527 Contact Us For Availability
12
Bracket, Oven WPL 310713 Contact Us For Availability
12
Panel, Control (Black) WPL 3182301 Contact Us For Availability
12
Panel, Control (White) WPL 3182302 Contact Us For Availability
13
Seal, Vent Tube WPL 3187523 Contact Us For Availability
13
Control, Electronic (Screw (2)) WPL 98520 Contact Us For Availability
13
Control, Electronic (Black) WPL 3169256 Contact Us For Availability
13
Control, Electronic (White) WPL 3169257 Contact Us For Availability
14
Seal, Switch (4) WPL 3182435 Contact Us For Availability
14
Button, Plug WPL 3182814 Contact Us For Availability
14
Top, Door (Black) WPL 3148223 Contact Us For Availability
14
Top, Door (Grey) WPL 3149355 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Screw WPL 3149333 Contact Us For Availability
15
Plate, Mounting WPL 3188432 Contact Us For Availability
15
Hinge, Ear (Right Side) WPL 3185662 Contact Us For Availability
15
Hinge, Ear (Left Side) WPL 3185663 Contact Us For Availability
16
Limiter, Temperature (Use W/3184951 Element) WPL 3187528 Contact Us For Availability
16
Limiter, Temperature (Use W/3184953 Element) WPL 3187529 Contact Us For Availability
16
Limiter, Temperature (Use W/3184956 Element) WPL 3187532 Contact Us For Availability
16
Limiter, Temperature (Use W/3184959 Element) WPL 3187534 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
Screw (6) WPL 3185647 Contact Us For Availability
16
Frame, Glass WPL 3148234 Contact Us For Availability
17
Channel Arm (2) WPL 3185664 Contact Us For Availability
17
Screw WPL 4168863 Contact Us For Availability
17
Bracket, Support WPL 3188526 Contact Us For Availability
18
Screw WPL 3148443 Contact Us For Availability
18
Shield, Heat WPL 3187753 Contact Us For Availability
18
Shield, Control WPL 3183992 Contact Us For Availability
19
Seal, Silicone (Small (3)) WPL 3185589 Contact Us For Availability
19
Seal, Silicone (Large (2) WPL 3185590 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Frame, Glass Panel WPL 3148235 Contact Us For Availability
20
Baffle, Insulation WPL 311256 Contact Us For Availability
20
Screw (2) WPL 3148442 Contact Us For Availability
20
Insulation WPL 3147951 Contact Us For Availability
21
WPL 3150304 WPL 3150304 Contact Us For Availability
21
Cap, Top WPL 3181363 Contact Us For Availability
22
WPL 3187754 WPL 3187754 Contact Us For Availability
23
Tube, Vent WPL 3184323 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
27
Screw (4) WPL 3150532 Contact Us For Availability
30
Sensor, Heat WPL 3148440 Contact Us For Availability
32
Trim, End Cap (Black) WPL 3149900 Contact Us For Availability
32
Trim, End Cap (White) WPL 3149901 Contact Us For Availability
33
Screw (2) WPL 311056 Contact Us For Availability
33
Latch Assembly WPL 3183801 Contact Us For Availability
33
Switch, Rocker (Black) WPL 3182717 Contact Us For Availability
33
Switch, Rocker (White) WPL 3182718 Contact Us For Availability
34
Safety Switch WPL 3178671 Contact Us For Availability
34
Screw (2) WPL 98106 Contact Us For Availability
35
Insulator, Switch WPL 309245 Contact Us For Availability
36
Screw (2) WPL 309258 Contact Us For Availability
36
Terminal, Shield WPL 313035 Contact Us For Availability
37
Screw (4) WPL 308422 Contact Us For Availability
37
Latch, Handle WPL 310825 Contact Us For Availability
38
Screw WPL 3183294 Contact Us For Availability
38
Knob, Latch WPL 3184039 Contact Us For Availability
39
Switch, Door WPL 310345 Contact Us For Availability
47
Bottom Grill (Black) WPL 310668 Contact Us For Availability
47
Bottom Grill (White) WPL 3149359 Contact Us For Availability
52
Cover, Rear WPL 3185960 Contact Us For Availability
53
Screw (2) WPL 308043 Contact Us For Availability
54
Cover, Plate WPL 3185945 Contact Us For Availability
56
WPL 3182052 WPL 3182052 Contact Us For Availability
61
WPL 3185641 WPL 3185641 Contact Us For Availability
62
WPL 3185640 WPL 3185640 Contact Us For Availability
63
WPL 310433 WPL 310433 Contact Us For Availability
63
WPL 310435 WPL 310435 Contact Us For Availability
63
WPL 3149328 WPL 3149328 Contact Us For Availability
63
WPL 3183005 WPL 3183005 Contact Us For Availability
× ![]()
