Model Whirlpool RS677PXV2 – Common Parts & Diagrams
03 - CONTROL PANEL
05 - WIRING HARNESS, LIT/OPTIONAL
02 - OVEN

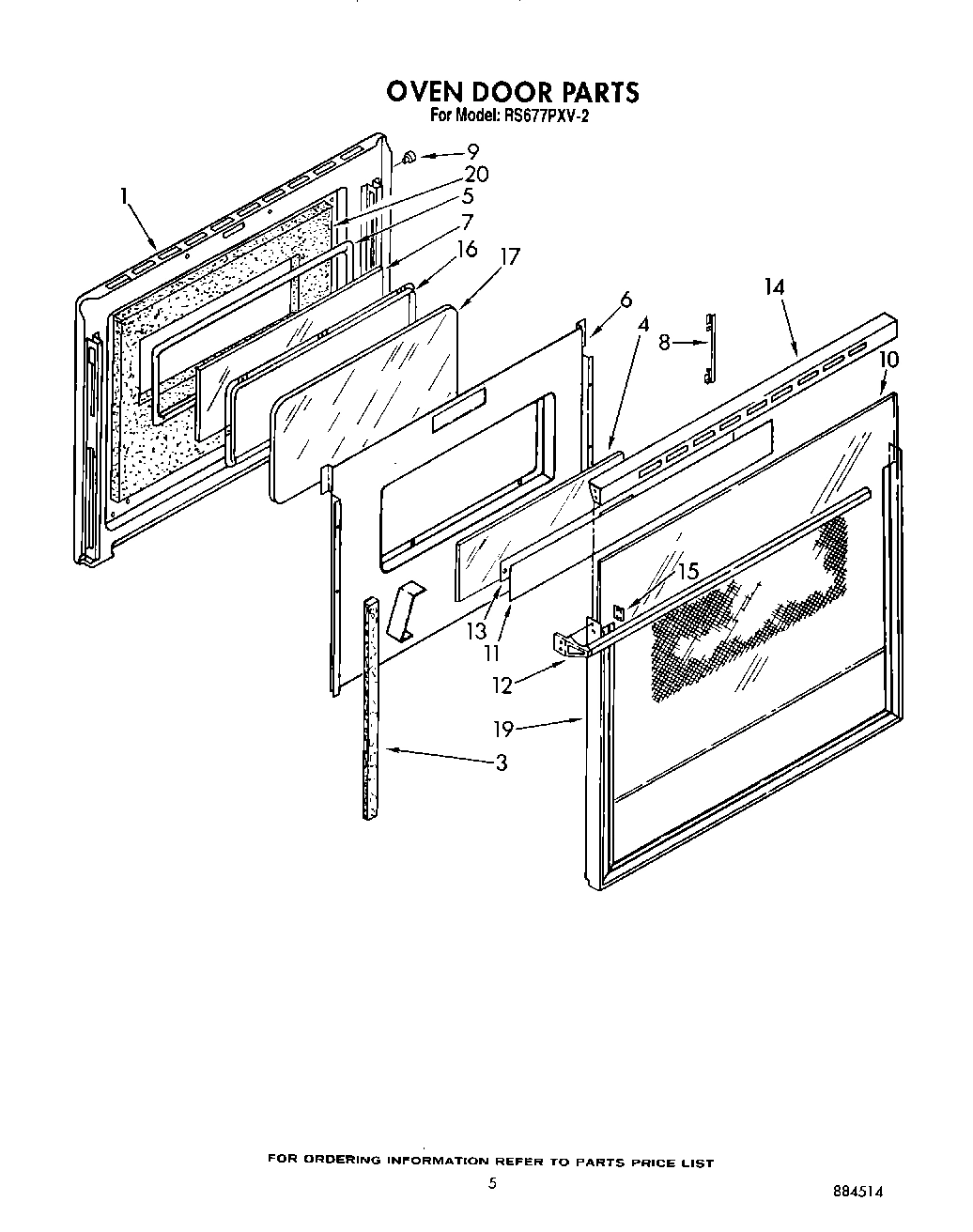

04 - OVEN DOOR

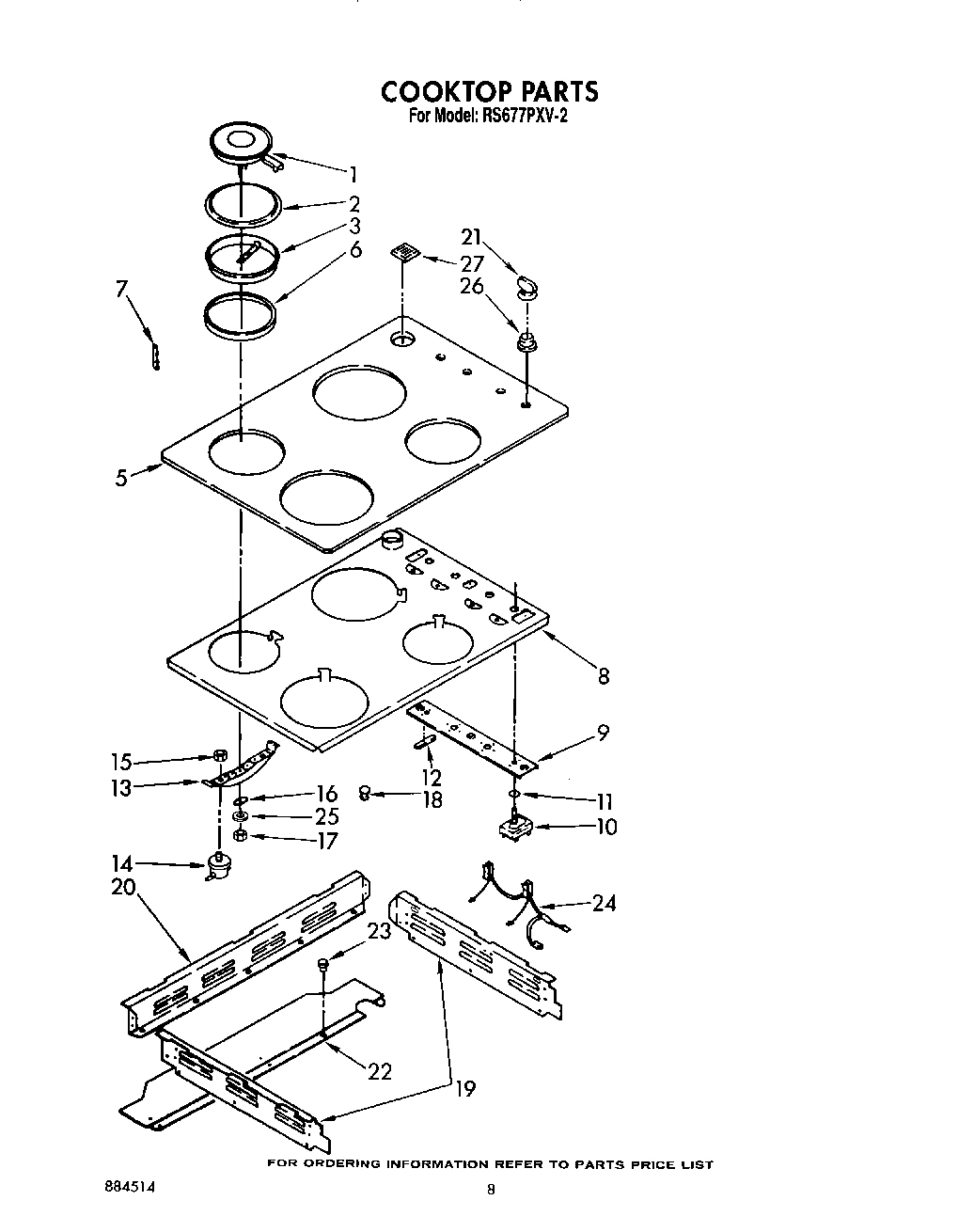

06 - COOKTOP
Common parts from model Whirlpool RS677PXV2
WPL LIT313358 WPL LIT313358 Contact Us For Availability
WPL LIT3147390 WPL LIT3147390 Contact Us For Availability
WPL LIT3148643 WPL LIT3148643 Contact Us For Availability
WPL LIT3149927 WPL LIT3149927 Contact Us For Availability
WPL LIT884514 WPL LIT884514 Contact Us For Availability
WPL 3150532 WPL 3150532 Contact Us For Availability
1
Wiring Harness (Main) WPL 3148595 Contact Us For Availability
1
Frame, Front WPL 3172194 Contact Us For Availability
1
Liner, Door WPL 3172218 Contact Us For Availability
2
Harness, Wire (Surface Elements) WPL 3147825 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Ring, Intermediate (6`` (2)) WPL 3147185 Contact Us For Availability
2
Ring, Intermediate (8`` (2)) WPL 3147186 Contact Us For Availability
3
Harness, Wire (Infinite Switch) WPL 3147269 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
3
Gasket (6`` (2)) WPL 3147187 Contact Us For Availability
3
Gasket (8`` (2)) WPL 3147188 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Glass, Reflective WPL 3148178 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
5
Glass, Top WPL 3148923 Contact Us For Availability
6
Side Wrapper (Right Side) WPL 311006 Contact Us For Availability
6
Side Wrapper (Left Side) WPL 311009 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Seal (6`` (2)) WPL 3148561 Contact Us For Availability
6
Seal (8`` (2)) WPL 3148562 Contact Us For Availability
7
Screw (2) WPL 308504 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Hook, Seal (4) WPL 3148563 Contact Us For Availability
8
WPL 799344 WPL 799344 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
8
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
8
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
8
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
8
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
8
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
8
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
8
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
8
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
8
Rotisserie Kit WPL 261881 Contact Us For Availability
8
Harvest Gold WPL 261890 Contact Us For Availability
8
Harvest Gold WPL 261891 Contact Us For Availability
8
Toast WPL 285365 Contact Us For Availability
8
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
8
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
8
Platinum WPL 285368 Contact Us For Availability
8
Terminal, Adapter WPL 3147832 Contact Us For Availability
8
Leveler (Primer) WPL 350941 Contact Us For Availability
8
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
8
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
8
PAINT, PRESSURIZED SPRAY (12 oz.) WPL 786020 Contact Us For Availability
8
WPL 786032 WPL 786032 Contact Us For Availability
8
WPL 799832 WPL 799832 Contact Us For Availability
8
WPL 832985 WPL 832985 Contact Us For Availability
8
WPL 978883 WPL 978883 Contact Us For Availability
8
Gasket, Door WPL 3148284 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
8
Plate, Backup WPL 3147038 Contact Us For Availability
9
Baffle, Top Insulation WPL 310693 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
9
Screw (3) WPL 254225 Contact Us For Availability
9
Bracket, Switch WPL 3147735 Contact Us For Availability
10
Switch, Infinite (6`` (2)) WPL 3148949 Contact Us For Availability
10
Switch, Infinite (8`` (2)) WPL 3148950 Contact Us For Availability
10
Side Trim L.H. WPL 310685 Contact Us For Availability
10
Side Trim (R.H.) WPL 310689 Contact Us For Availability
10
Glass, Panel WPL 3148185 Contact Us For Availability
11
Oven (30`` Pyro) WPL 3185062 Contact Us For Availability
11
Foil, Door WPL 3148184 Contact Us For Availability
11
Seal, Shaft (4) WPL 3149894 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Handle, Door WPL 3148228 Contact Us For Availability
12
Tape, Foam WPL 3147485 Contact Us For Availability
13
Shield, Door WPL 3148680 Contact Us For Availability
13
Bracket, Mounting 6``(2) WPL 3147703 Contact Us For Availability
13
Bracket, Mounting 8`` (2) WPL 3147704 Contact Us For Availability
14
screw (3) WPL 307748 Contact Us For Availability
14
Trim, Panel WPL 3148223 Contact Us For Availability
14
Protector (4) WPL 3148397 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
15
Nut (4) WPL 3147190 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
screw (6) WPL 3148443 Contact Us For Availability
16
Frame, Inner Glass WPL 3148234 Contact Us For Availability
16
Spring, Leaf (4) WPL 3147191 Contact Us For Availability
17
Channel Arm (2) WPL 329713 Contact Us For Availability
17
Nut (4) WPL 3147189 Contact Us For Availability
18
Lens (2) WPL 309221 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Frame, Glass Panel WPL 3148235 Contact Us For Availability
19
Rail, Support (L.H.) WPL 3147024 Contact Us For Availability
19
Rail, Support (R.H.) WPL 3147025 Contact Us For Availability
20
Screw (5) WPL 3149333 Contact Us For Availability
20
Baffle, Insulation WPL 311256 Contact Us For Availability
20
Screw (2) WPL 3148442 Contact Us For Availability
20
Insulation, Door WPL 3147951 Contact Us For Availability
20
Rail, Back WPL 3147061 Contact Us For Availability
21
Knob, Control (4) WPL 3150374 Contact Us For Availability
22
Cover, Top WPL 3147566 Contact Us For Availability
23
Escutcheon, Thermostat WPL 311066 Contact Us For Availability
23
Tube, Vent Extension WPL 3147220 Contact Us For Availability
23
Bushing WPL 258109 Contact Us For Availability
24
screw, 8A x 5/16 WPL 98520 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
24
Light, Indicator WPL 3149039 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
25
Washer (4) WPL 3148615 Contact Us For Availability
26
Knob, Bit Generator WPL 313523 Contact Us For Availability
26
Seal, Switch WPL 3149899 Contact Us For Availability
27
Cover, Vent WPL 3147037 Contact Us For Availability
33
Bracket, Control WPL 313865 Contact Us For Availability
33
Screw (2) WPL 311056 Contact Us For Availability
33
Latch Assembly WPL 3171148 Contact Us For Availability
34
Trim, End Cap WPL 3149900 Contact Us For Availability
34
Safety Switch WPL 308185 Contact Us For Availability
34
Screw (2) WPL 98106 Contact Us For Availability
35
Insulator, Switch WPL 309245 Contact Us For Availability
36
Screw, 6 x 3/8 (2) WPL 309258 Contact Us For Availability
36
Termina WPL 313035 Contact Us For Availability
37
WPL 308422 WPL 308422 Contact Us For Availability
37
WPL 310825 WPL 310825 Contact Us For Availability
38
WPL 246135 WPL 246135 Contact Us For Availability
38
WPL 311253 WPL 311253 Contact Us For Availability
39
WPL 310345 WPL 310345 Contact Us For Availability
40
WPL 314209 WPL 314209 Contact Us For Availability
41
WPL 314215 WPL 314215 Contact Us For Availability
41
WPL 314210 WPL 314210 Contact Us For Availability
42
WPL 3148669 WPL 3148669 Contact Us For Availability
43
WPL 3147864 WPL 3147864 Contact Us For Availability
47
WPL 309029 WPL 309029 Contact Us For Availability
47
WPL 310668 WPL 310668 Contact Us For Availability
52
WPL 311012 WPL 311012 Contact Us For Availability
53
WPL 308043 WPL 308043 Contact Us For Availability
54
WPL 310458 WPL 310458 Contact Us For Availability
55
WPL 311592 WPL 311592 Contact Us For Availability
56
WPL 3149542 WPL 3149542 Contact Us For Availability
61
WPL 308173 WPL 308173 Contact Us For Availability
62
WPL 308172 WPL 308172 Contact Us For Availability
63
WPL 310433 WPL 310433 Contact Us For Availability
63
WPL 310434 WPL 310434 Contact Us For Availability
63
WPL 311982 WPL 311982 Contact Us For Availability
63
WPL 312318 WPL 312318 Contact Us For Availability
63
WPL 3149328 WPL 3149328 Contact Us For Availability
× ![]()
