Model Whirlpool RS677PXV0 – Common Parts & Diagrams

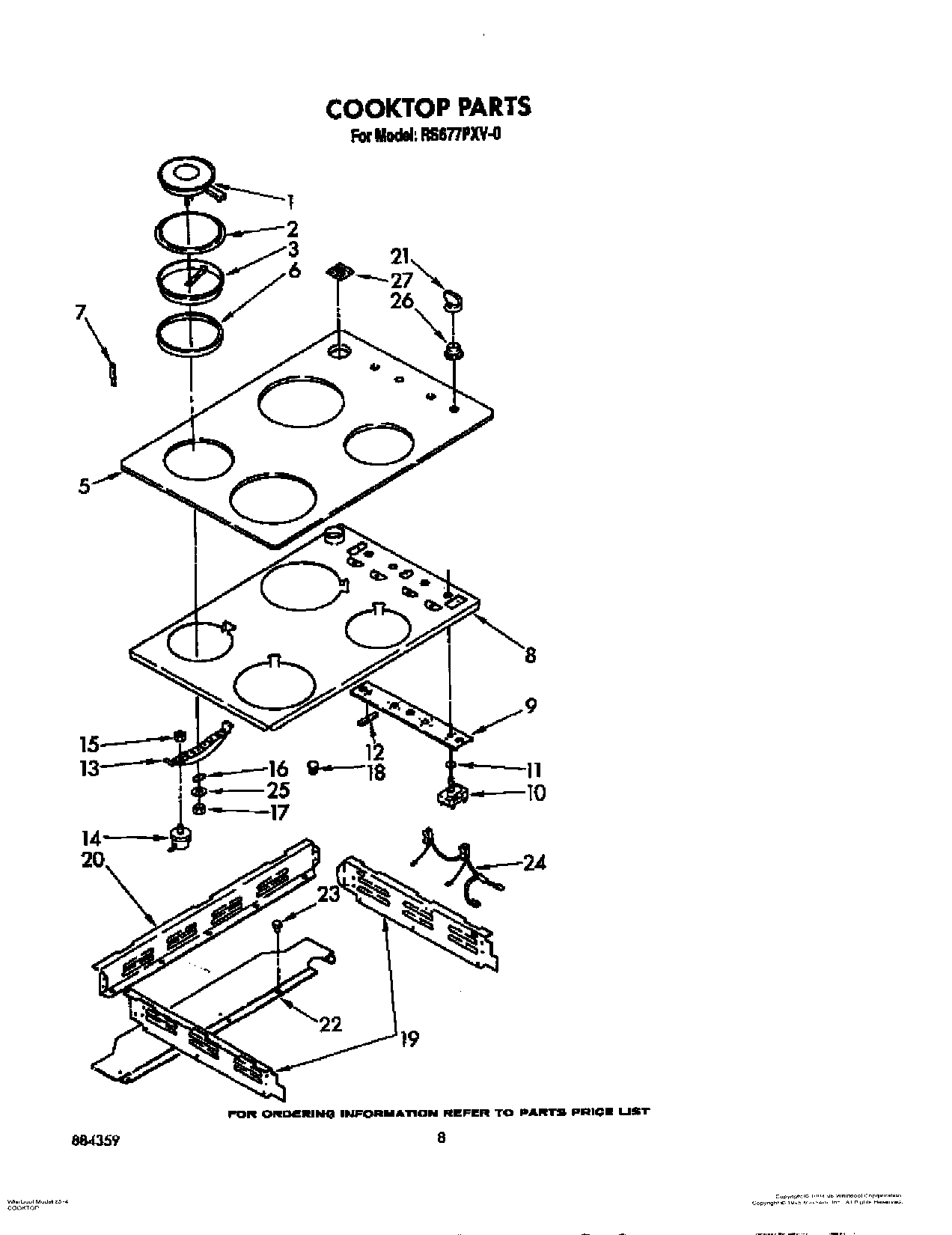

06 - COOKTOP, LIT/OPTIONAL

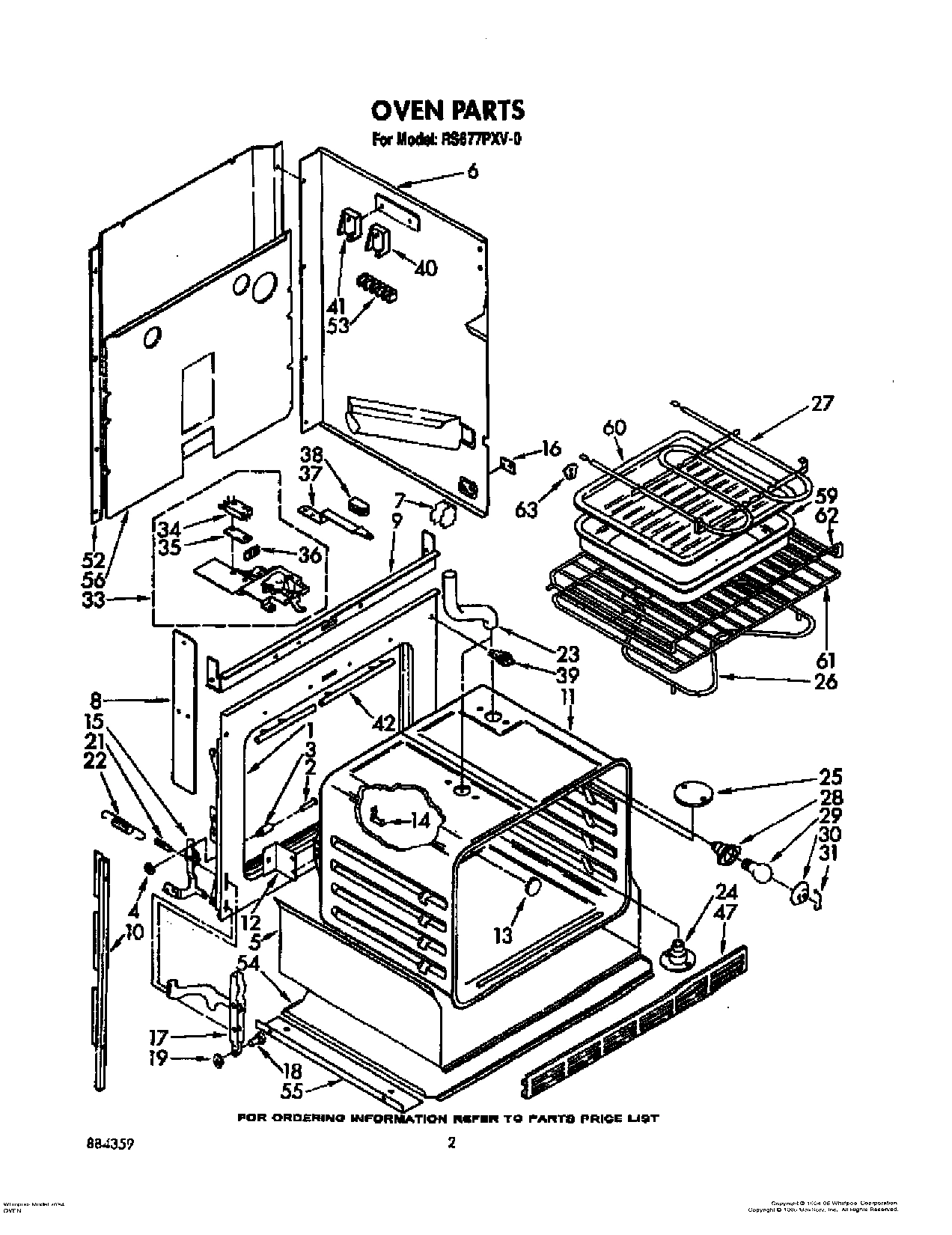

02 - OVEN
04 - DOOR
03 - CONTROL PANEL
05 - WIRING HARNESS, OPTIONAL
Common parts from model Whirlpool RS677PXV0
WPL 308043 WPL 308043 Contact Us For Availability
WPL 3150532 WPL 3150532 Contact Us For Availability
Cooking Guide WPL LIT313358 Contact Us For Availability
Instructions, Installation WPL LIT3147390 Contact Us For Availability
Tech Sheet WPL LIT3148643 Contact Us For Availability
Use & Care Guide WPL LIT3149927 Contact Us For Availability
List, Parts WPL LIT884359 Contact Us For Availability
1
Frame, Front WPL 3170856 Contact Us For Availability
1
Screw (2) WPL 311056 Contact Us For Availability
1
Liner, Door WPL 3170706 Contact Us For Availability
1
End Cap (R.H.) WPL 3148444 Contact Us For Availability
1
End Cap (L.H.) WPL 3148445 Contact Us For Availability
1
Wiring Harness (Main) WPL 3148595 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Control Panel, Glass WPL 3148636 Contact Us For Availability
2
Harness, Wire (Surface Elements) WPL 3147825 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Seal, Foam Flange (2) WPL 3148441 Contact Us For Availability
3
Trim, Top WPL 3148616 Contact Us For Availability
3
Harness, Wire (Infinite Switch) WPL 3147269 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Glass, Reflective WPL 3148178 Contact Us For Availability
4
Trim, Center WPL 3148620 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
5
End Trim, Vent Door R.H. WPL 3148697 Contact Us For Availability
5
End Trim, Vent Door L.H. WPL 3148698 Contact Us For Availability
6
Side Wrapper (Right Side) WPL 311006 Contact Us For Availability
6
Side Wrapper (Left Side) WPL 311009 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Door, Vent WPL 3148617 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Screw (4) WPL 342043 Contact Us For Availability
7
Trim, Bottom WPL 3148618 Contact Us For Availability
7
Screw (2) WPL 308504 Contact Us For Availability
8
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
8
Baffle, Insulation WPL 311256 Contact Us For Availability
8
Screw (2) WPL 3148442 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
8
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
8
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
8
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
8
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
8
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
8
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
8
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
8
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
8
Grease WPL 261582 Contact Us For Availability
8
Rotisserie Kit WPL 261881 Contact Us For Availability
8
Terminal, Adapter WPL 3147832 Contact Us For Availability
9
Baffle, Top Insulation WPL 310693 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
9
Retainer, Glass (4) WPL 3149882 Contact Us For Availability
10
Switch, Infinite (6`` (2)) WPL 3148949 Contact Us For Availability
10
Switch, Infinite (8`` (2)) WPL 3148950 Contact Us For Availability
10
Side Trim L.H. WPL 310685 Contact Us For Availability
10
Side Trim (R.H.) WPL 310689 Contact Us For Availability
10
Glass, Panel WPL 3148185 Contact Us For Availability
10
Bracket, Control Panel (2) WPL 3148634 Contact Us For Availability
11
Oven (30`` Pyro) WPL 328756 Contact Us For Availability
11
Foil, Door WPL 3148184 Contact Us For Availability
12
Screw (5) WPL 3149333 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Handle, Door WPL 3148228 Contact Us For Availability
12
Bracket, Control WPL 330500 Contact Us For Availability
13
Plug Button WPL 257314 Contact Us For Availability
13
Shield, Door WPL 3148680 Contact Us For Availability
13
Timer, Digital (Includes Illus. 26) WPL 3149806 Contact Us For Availability
14
screw (3) WPL 307748 Contact Us For Availability
14
Trim, Panel WPL 3148223 Contact Us For Availability
14
Sheild, Air WPL 3149142 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
15
Bracket, Timer WPL 313864 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
screw (6) WPL 3148443 Contact Us For Availability
16
Frame, Inner Glass WPL 3148234 Contact Us For Availability
16
Light, Indicator WPL 3148720 Contact Us For Availability
17
Channel Arm (2) WPL 329713 Contact Us For Availability
17
Thermostat, Oven WPL 3148934 Contact Us For Availability
17
screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability
18
Lens (2) WPL 309221 Contact Us For Availability
18
Selector Switch WPL 310006 Contact Us For Availability
19
Rail, Support (L.H.) WPL 3147024 Contact Us For Availability
19
Rail, Support (R.H.) WPL 3147025 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Frame, Glass Panel WPL 3148235 Contact Us For Availability
19
Light Indicator Oven, Lock & Clean (3) WPL 311802 Contact Us For Availability
20
Rail, Front & Rear WPL 3147061 Contact Us For Availability
20
Insulation, Door WPL 3147951 Contact Us For Availability
20
Switch, Oven Light WPL 312581 Contact Us For Availability
20
Washer WPL 312796 Contact Us For Availability
21
Knob, Control (4) WPL 3148162 Contact Us For Availability
21
Bezel Switch WPL 313030 Contact Us For Availability
22
Cover, Top WPL 3147566 Contact Us For Availability
22
screw, 8A x 5/16 WPL 98520 Contact Us For Availability
23
Escutcheon, Thermostat WPL 311066 Contact Us For Availability
23
Bushing WPL 258109 Contact Us For Availability
23
Tube, Vent Extension WPL 3147220 Contact Us For Availability
24
Light, Indicator WPL 3149039 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
24
Screw 8BT x 1/4 (2) WPL 254225 Contact Us For Availability
25
Washer (4) WPL 3148615 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
26
Knob, Bit Generator WPL 313523 Contact Us For Availability
26
Seal, Inf.Switch WPL 3149899 Contact Us For Availability
27
Cover, Vent WPL 3147037 Contact Us For Availability
28
Socket, Oven Light (Alt.) WPL 307856 Contact Us For Availability
28
Socket, Oven Light (Alt.) WPL 310208 Contact Us For Availability
28
Socket, Oven Light WPL 660556 Contact Us For Availability
30
Cover, Light WPL 308039 Contact Us For Availability
31
Retainer, Light WPL 308038 Contact Us For Availability
31
Support, Top Rail WPL 312752 Contact Us For Availability
32
Set, Button (4) WPL 313958 Contact Us For Availability
33
Latch Assembly WPL 3171148 Contact Us For Availability
33
Bracket, Control WPL 313865 Contact Us For Availability
34
Safety Switch WPL 308185 Contact Us For Availability
34
Screw (2) WPL 98106 Contact Us For Availability
34
Trim, End Cap WPL 3149900 Contact Us For Availability
35
WPL 309245 WPL 309245 Contact Us For Availability
35
Shaft, Bit Generator WPL 3149320 Contact Us For Availability
36
WPL 309258 WPL 309258 Contact Us For Availability
36
WPL 313035 WPL 313035 Contact Us For Availability
37
WPL 308422 WPL 308422 Contact Us For Availability
37
WPL 310825 WPL 310825 Contact Us For Availability
38
WPL 246135 WPL 246135 Contact Us For Availability
38
WPL 311253 WPL 311253 Contact Us For Availability
39
WPL 310345 WPL 310345 Contact Us For Availability
40
WPL 314209 WPL 314209 Contact Us For Availability
41
WPL 314215 WPL 314215 Contact Us For Availability
41
WPL 314210 WPL 314210 Contact Us For Availability
42
WPL 3148284 WPL 3148284 Contact Us For Availability
47
WPL 309029 WPL 309029 Contact Us For Availability
47
WPL 310668 WPL 310668 Contact Us For Availability
52
WPL 311012 WPL 311012 Contact Us For Availability
54
WPL 310458 WPL 310458 Contact Us For Availability
55
WPL 311592 WPL 311592 Contact Us For Availability
56
WPL 3149542 WPL 3149542 Contact Us For Availability
61
WPL 308173 WPL 308173 Contact Us For Availability
62
WPL 308172 WPL 308172 Contact Us For Availability
63
WPL 310433 WPL 310433 Contact Us For Availability
63
WPL 310434 WPL 310434 Contact Us For Availability
63
WPL 311982 WPL 311982 Contact Us For Availability
63
WPL 3149328 WPL 3149328 Contact Us For Availability
× ![]()
