Model Whirlpool RS675PXYQ0 COOKTOP – Common Parts & Diagrams

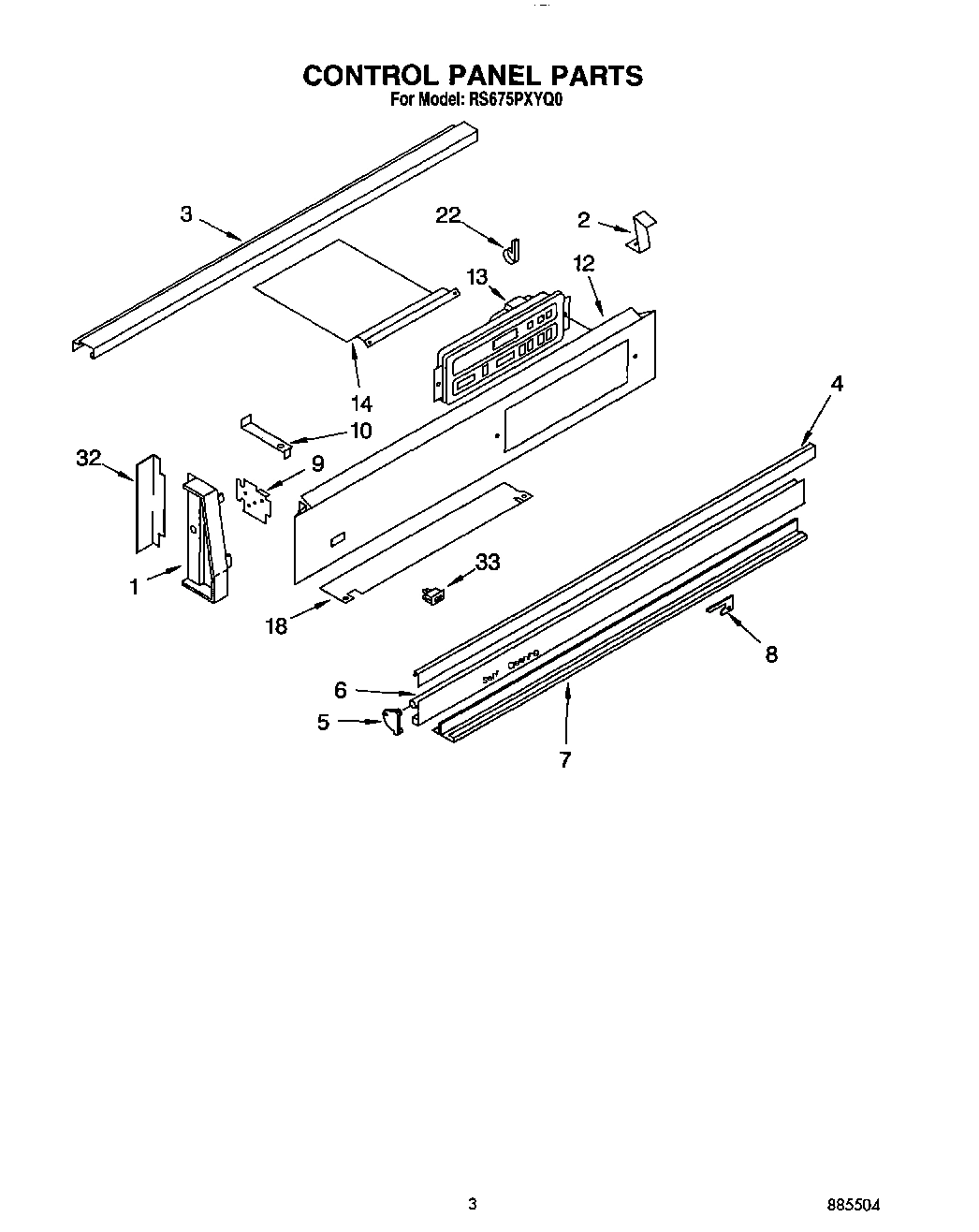

03 - CONTROL PANEL

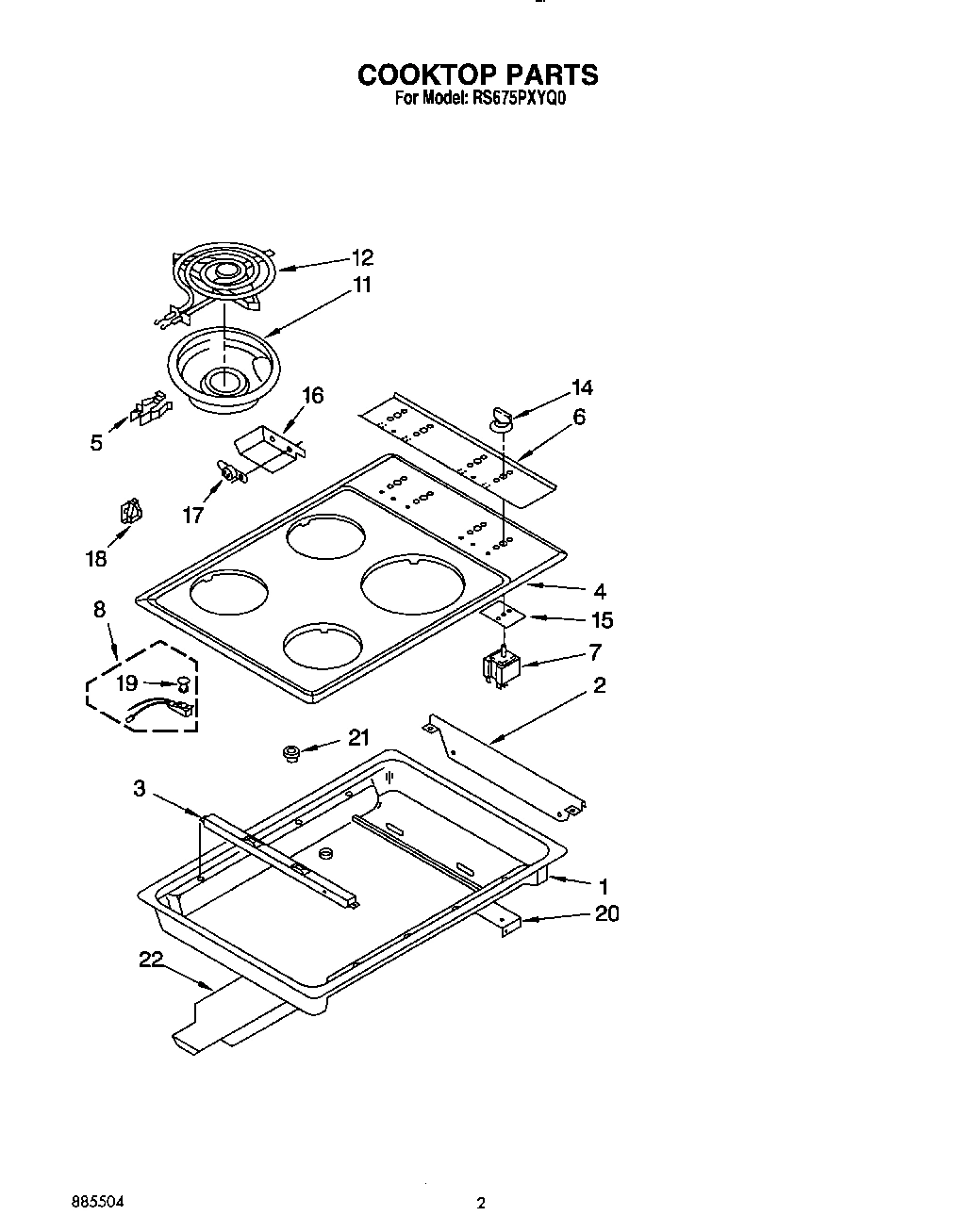

02 - COOKTOP
05 - WIRING HARNESS, OPTIONAL
04 - OVEN, LIT/OPTIONAL
06 - OVEN DOOR
Common parts from model Whirlpool RS675PXYQ0 COOKTOP
WPL LIT3147396 WPL LIT3147396 Contact Us For Availability
WPL LIT3182752 WPL LIT3182752 Contact Us For Availability
WPL LIT3183768 WPL LIT3183768 Contact Us For Availability
WPL LIT885504 WPL LIT885504 Contact Us For Availability
1
Burner Box WPL 311019 Contact Us For Availability
1
Harness, Wire (Main) WPL 3183289 Contact Us For Availability
1
Screw (9) WPL 307748 Contact Us For Availability
1
Frame, Front WPL 3172194 Contact Us For Availability
1
Liner, Door WPL 3170706 Contact Us For Availability
2
Shield, Switch WPL 310716 Contact Us For Availability
2
Harness, Wire (Surface Elements) WPL 3147828 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
3
Support, Cooktop WPL 310717 Contact Us For Availability
3
Harness, Wire (Infinite Switch) WPL 313464 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
4
Cooktop (White) WPL 3148754 Contact Us For Availability
4
Cooktop (Brushed Chrome) WPL 3183904 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Glass, Clear WPL 3169202 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
6
Panel, Control (Black) WPL 3183218 Contact Us For Availability
6
Panel, Control (White) WPL 3183219 Contact Us For Availability
6
Side Wrapper (Right Side) WPL 311006 Contact Us For Availability
6
Side Wrapper (Left Side) WPL 311009 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
7
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
7
Switch, Infinite (6`` Unit (2)) WPL 3148967 Contact Us For Availability
7
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
7
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
7
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
7
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
7
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
7
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
7
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
7
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
7
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
7
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
7
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
7
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
7
Grease WPL 261582 Contact Us For Availability
7
Screw (2) WPL 308504 Contact Us For Availability
7
Mounting Hardware (RS675PXYB0) WPL 3171507 Contact Us For Availability
7
Mounting Hardware (RS675PXYQ0) WPL 3183146 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
8
Light, Indicator (Includes No. 19) WPL 313462 Contact Us For Availability
8
Gasket, Door WPL 3148284 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
9
Baffle, Top Insulation WPL 3183796 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
10
Bracket, Support WPL 312752 Contact Us For Availability
10
Side Trim L.H. WPL 310685 Contact Us For Availability
10
Side Trim (R.H.) WPL 310689 Contact Us For Availability
10
Glass, Panel (Black) WPL 3148185 Contact Us For Availability
10
Glass, Panel (White) WPL 3149049 Contact Us For Availability
11
Oven (30`` Pyro) WPL 3182032 Contact Us For Availability
11
Foil, Door WPL 3148184 Contact Us For Availability
12
Panel, Control (Black) WPL 3182301 Contact Us For Availability
12
Panel, Control (White) WPL 3182302 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Handle, Door (Black) WPL 3148228 Contact Us For Availability
12
Handle, Door (Platinum) WPL 3149354 Contact Us For Availability
13
Control, Electronic (Black) WPL 3182391 Contact Us For Availability
13
Control, Electronic (White) WPL 3182392 Contact Us For Availability
13
screw (2) WPL 254225 Contact Us For Availability
13
Shield, Door WPL 3148680 Contact Us For Availability
14
Knob, Control (Black) WPL 3183120 Contact Us For Availability
14
Shield, Heat WPL 3149419 Contact Us For Availability
14
Sensor, Heat WPL 3148440 Contact Us For Availability
14
Top, Door (Screw (2)) WPL 3182345 Contact Us For Availability
14
Top, Door (Black) WPL 3148223 Contact Us For Availability
14
Top, Door (Grey) WPL 3149355 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
16
Bracket, Sensor WPL 3147830 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
screw (6) WPL 3148443 Contact Us For Availability
16
Frame, Glass WPL 3148234 Contact Us For Availability
17
Thermostat WPL 3147833 Contact Us For Availability
17
Channel Arm (2) WPL 329713 Contact Us For Availability
18
Shield, Control WPL 3183992 Contact Us For Availability
19
Light Lens (2) WPL 313602 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Frame, Glass Panel WPL 3148235 Contact Us For Availability
20
Support, Burner box WPL 310718 Contact Us For Availability
20
Button, Plug WPL 3182814 Contact Us For Availability
20
Insulation, Door WPL 3147951 Contact Us For Availability
21
Bushing WPL 258109 Contact Us For Availability
21
Cap, Top WPL 3181363 Contact Us For Availability
22
Cover, Top Rear WPL 3147565 Contact Us For Availability
23
Tube, Vent Extension WPL 310835 Contact Us For Availability
24
screw, 8A x 5/16 WPL 98520 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
27
Screw, 10-32 x 5/8 (4) WPL 3150532 Contact Us For Availability
32
Trim, End Cap (Black) WPL 3149900 Contact Us For Availability
32
Trim, End Cap (White) WPL 3149901 Contact Us For Availability
33
Switch, Rocker (Black) WPL 3182717 Contact Us For Availability
33
Switch, Rocker (White) WPL 3182718 Contact Us For Availability
33
Screw (2) WPL 311056 Contact Us For Availability
33
Latch Assembly WPL 3183801 Contact Us For Availability
34
Safety Switch WPL 3178671 Contact Us For Availability
34
Screw (2) WPL 98106 Contact Us For Availability
35
Insulator, Switch WPL 309245 Contact Us For Availability
36
Screw, 6 x 3/8 (2) WPL 309258 Contact Us For Availability
36
Terminal, Shield WPL 313035 Contact Us For Availability
37
Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability
37
Latc WPL 310825 Contact Us For Availability
38
WPL 3183294 WPL 3183294 Contact Us For Availability
38
WPL 3184039 WPL 3184039 Contact Us For Availability
39
WPL 310345 WPL 310345 Contact Us For Availability
45
WPL 311256 WPL 311256 Contact Us For Availability
47
WPL 309029 WPL 309029 Contact Us For Availability
47
WPL 310668 WPL 310668 Contact Us For Availability
47
WPL 3149359 WPL 3149359 Contact Us For Availability
52
WPL 311012 WPL 311012 Contact Us For Availability
53
WPL 308043 WPL 308043 Contact Us For Availability
54
WPL 310458 WPL 310458 Contact Us For Availability
56
WPL 3182052 WPL 3182052 Contact Us For Availability
61
WPL 308173 WPL 308173 Contact Us For Availability
62
WPL 308172 WPL 308172 Contact Us For Availability
63
WPL 310433 WPL 310433 Contact Us For Availability
63
WPL 310435 WPL 310435 Contact Us For Availability
63
WPL 3149328 WPL 3149328 Contact Us For Availability
63
WPL 3183005 WPL 3183005 Contact Us For Availability
× ![]()
