Model Whirlpool RS6755XYW0 – Common Parts & Diagrams
04 - OVEN
05 - WIRING HARNESS, OPTIONAL

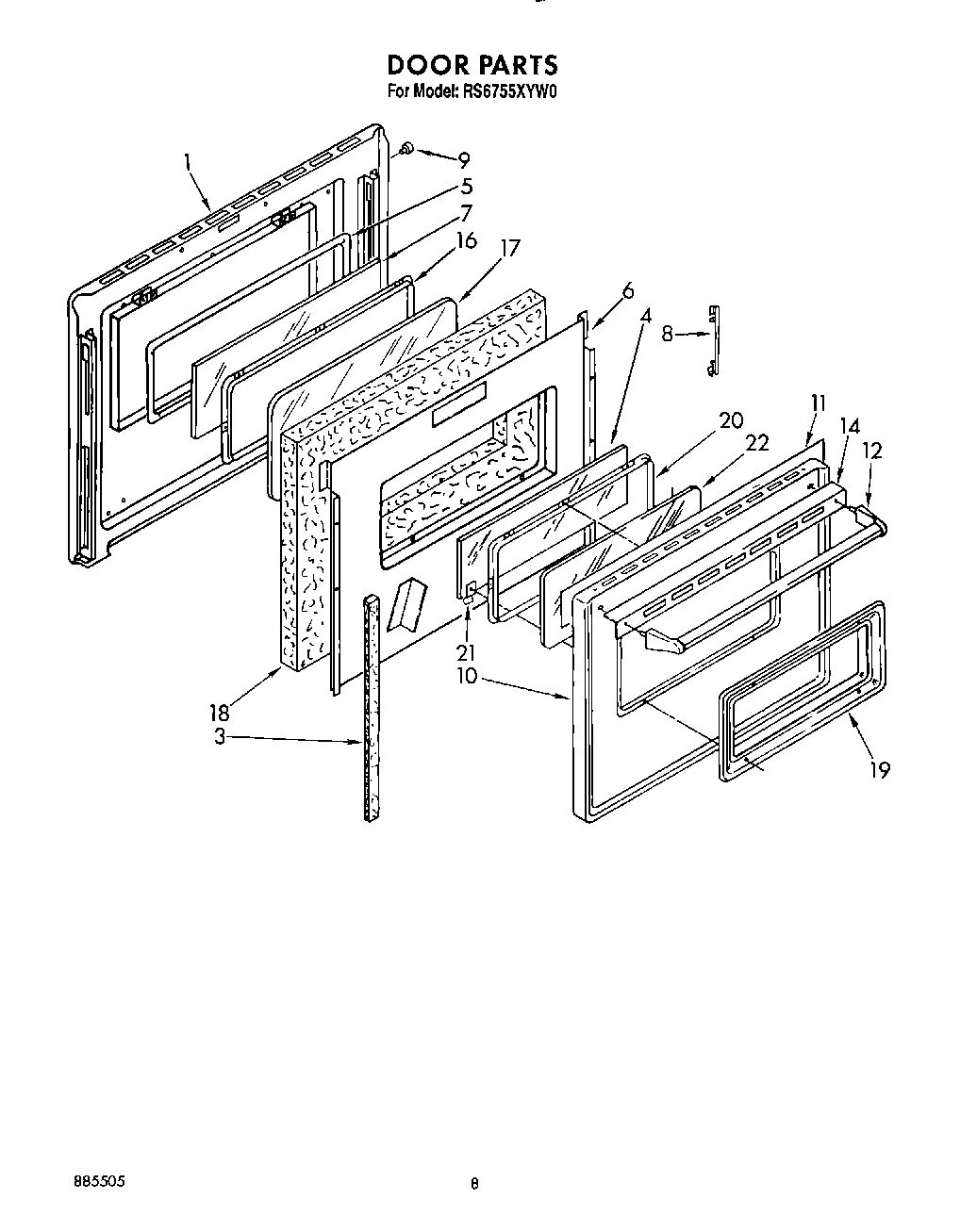

06 - DOOR, LIT/OPTIONAL

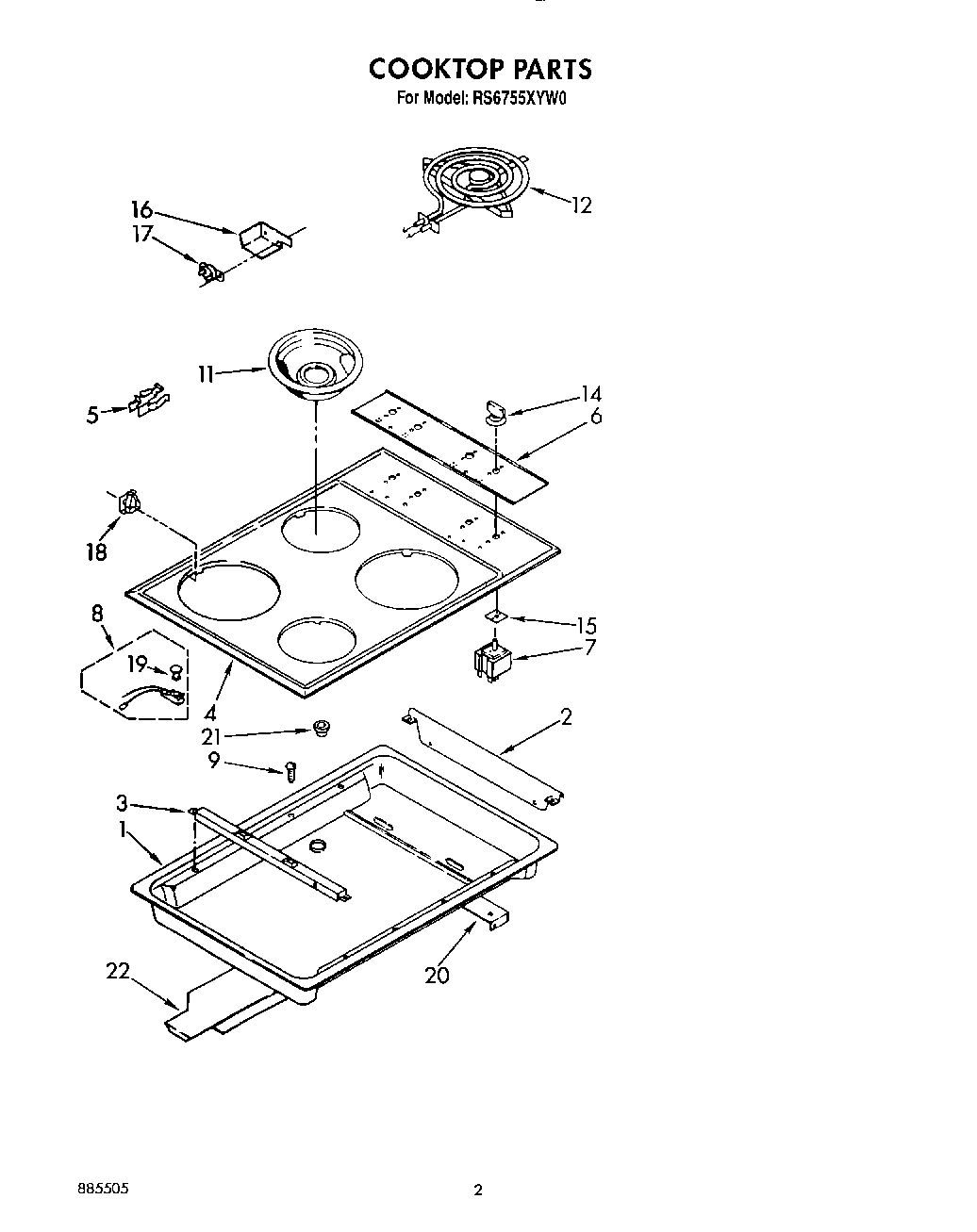

02 - COOKTOP

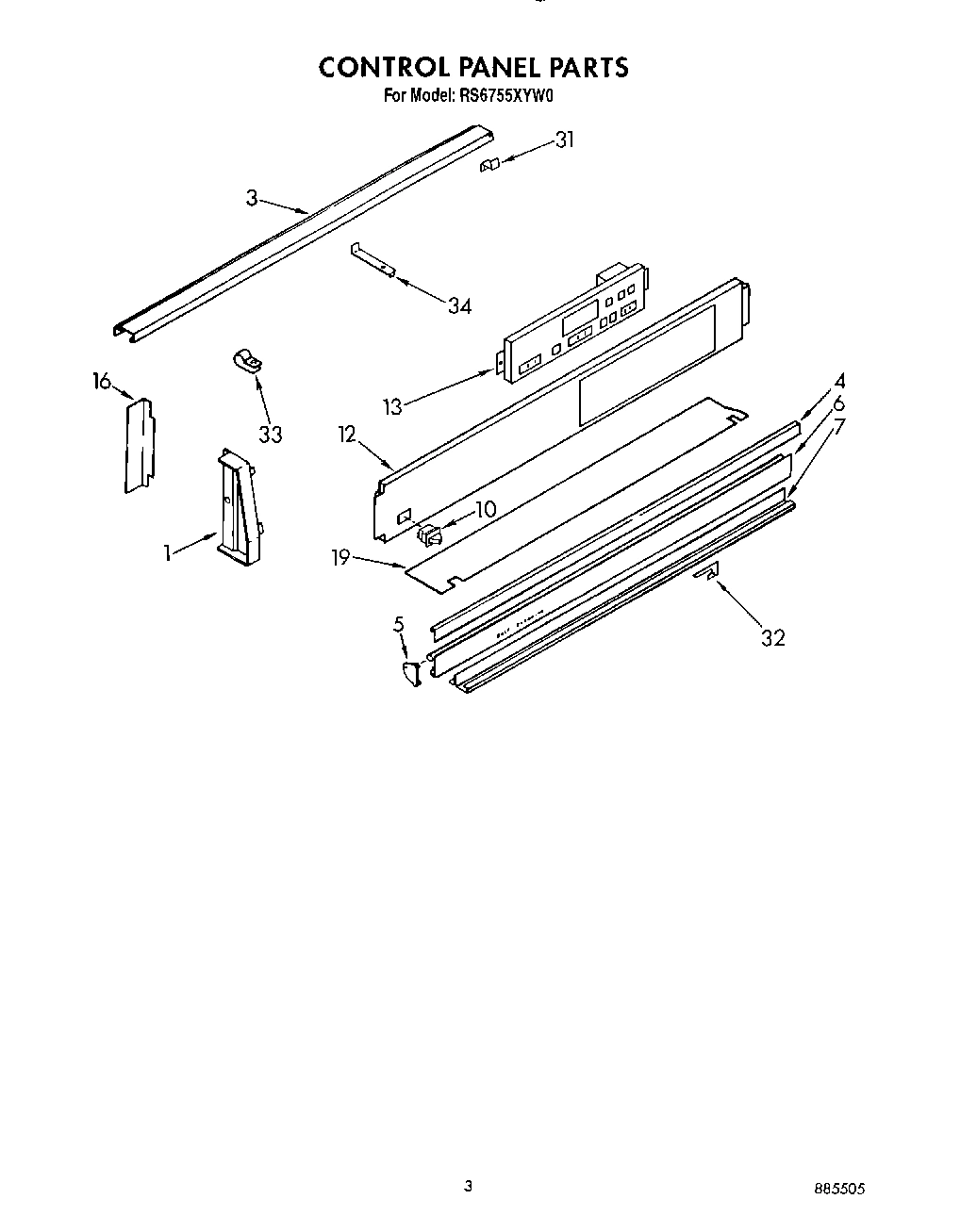

03 - CONTROL PANEL
Common parts from model Whirlpool RS6755XYW0
Installation Instructions WPL LIT3147396 Contact Us For Availability
Tech Sheet WPL LIT3182752 Contact Us For Availability
Use & Care Guide WPL LIT3183768 Contact Us For Availability
Repair Parts List WPL LIT885505 Contact Us For Availability
1
Harness, Wire (Main) WPL 3183289 Contact Us For Availability
1
Screw No.10x1/2 (2) WPL 307748 Contact Us For Availability
1
Liner, Door WPL 3172218 Contact Us For Availability
1
Burner Box WPL 311019 Contact Us For Availability
1
End Cap (R.H.) WPL 3148444 Contact Us For Availability
1
End Cap (L.H.) WPL 3148445 Contact Us For Availability
2
Harness, Wire (Surface Elements) WPL 3147828 Contact Us For Availability
2
Shield, Switch WPL 310716 Contact Us For Availability
3
Screw (2) WPL 98520 Contact Us For Availability
3
Harness, Wire (Infinite Switch) WPL 313464 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
3
Support, Cooktop WPL 310717 Contact Us For Availability
3
Rail, Top WPL 3148616 Contact Us For Availability
4
Glass, Reflective WPL 3148178 Contact Us For Availability
4
Cooktop (White) WPL 3148754 Contact Us For Availability
4
Cooktop (Almond) WPL 3148755 Contact Us For Availability
4
Trim, Center WPL 3181929 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
End Trim, Vent (R.H.) WPL 3148697 Contact Us For Availability
5
End Trim, Vent (L.H.) WPL 3148698 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Panel, Control WPL 3183218 Contact Us For Availability
6
Door, Vent WPL 3183505 Contact Us For Availability
7
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
7
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
7
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
7
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
7
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
7
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
7
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
7
14 Ga. 200`C (Wire, White) WPL 242826 Contact Us For Availability
7
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
7
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
7
14 Ga. 150`C (Wire, Red) WPL 242829 Contact Us For Availability
7
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
7
14 Ga. 150`C (Wire, Yellow) WPL 242832 Contact Us For Availability
7
Grease WPL 261582 Contact Us For Availability
7
Mounting Hardware WPL 3171507 Contact Us For Availability
7
Switch, Infinite (6`` Unit (2)) WPL 3148967 Contact Us For Availability
7
Screw (4) WPL 342043 Contact Us For Availability
7
Trim, Bottom WPL 3148618 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
8
Light, Indicator (Includes No. 19) WPL 313462 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
9
Screw WPL 166681 Contact Us For Availability
10
Panel, Door (Fastener (2)) WPL 3148181 Contact Us For Availability
10
Panel, Door (White) WPL 3148201 Contact Us For Availability
10
Panel, Door (Almond) WPL 3148205 Contact Us For Availability
10
Switch, Rocker WPL 3182717 Contact Us For Availability
11
Foil, Door WPL 3148184 Contact Us For Availability
12
Handle, Door WPL 311563 Contact Us For Availability
12
Bracket, Control WPL 3182301 Contact Us For Availability
13
Control, Electronic WPL 3182391 Contact Us For Availability
14
Knob, Control WPL 3183120 Contact Us For Availability
14
Screw (3) WPL 3149333 Contact Us For Availability
14
Top, Door WPL 3148188 Contact Us For Availability
15
Shield, Heat WPL 3149419 Contact Us For Availability
16
screw (6) WPL 3148443 Contact Us For Availability
16
Frame, Inner Glass WPL 3148234 Contact Us For Availability
16
Bracket, Sensor WPL 3147830 Contact Us For Availability
16
Trim, End Cap WPL 3149900 Contact Us For Availability
17
Thermostat WPL 3147833 Contact Us For Availability
18
Insulation WPL 3147951 Contact Us For Availability
19
Window, Frame WPL 3149277 Contact Us For Availability
19
Screw (2) WPL 309133 Contact Us For Availability
19
Lens, Light WPL 313602 Contact Us For Availability
19
Shield, Control WPL 3183992 Contact Us For Availability
20
Retainer, Glass WPL 307792 Contact Us For Availability
20
Support, Burner box WPL 310718 Contact Us For Availability
21
Clip, Frame WPL 307731 Contact Us For Availability
21
Bushing WPL 258109 Contact Us For Availability
22
Glass, Outer WPL 307732 Contact Us For Availability
22
Screw (8) WPL 313045 Contact Us For Availability
22
Cover, Top Rear WPL 3147565 Contact Us For Availability
23
Tube, Vent WPL 310835 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
27
Screw, 10-32 x 1/2 (4) WPL 312318 Contact Us For Availability
31
Bracket, Control WPL 3184395 Contact Us For Availability
32
Switch, Lock WPL 3178671 Contact Us For Availability
32
Shield, Air WPL 3149142 Contact Us For Availability
33
Screw (2) WPL 311056 Contact Us For Availability
33
Latch Assembly WPL 3183801 Contact Us For Availability
33
Screw WPL 98106 Contact Us For Availability
34
Support, Top Rail WPL 312752 Contact Us For Availability
35
Insulator, Switch WPL 309245 Contact Us For Availability
36
Screw, 6 x 3/8 (2) WPL 309258 Contact Us For Availability
36
Terminal, Shield WPL 313035 Contact Us For Availability
37
Screw (4) WPL 308422 Contact Us For Availability
37
Latch, Handle WPL 310825 Contact Us For Availability
38
Screw, 8 x 5/16 WPL 3183294 Contact Us For Availability
38
Knob, Latch WPL 3184039 Contact Us For Availability
39
Switch, Door WPL 310345 Contact Us For Availability
45
Seal, Pyro WPL 3148284 Contact Us For Availability
47
screw, 8-15 x 1/2 (3) WPL 309029 Contact Us For Availability
47
Bottom Grill WPL 310668 Contact Us For Availability
52
Screw (2) WPL 247326 Contact Us For Availability
52
Cover, Rear WPL 311012 Contact Us For Availability
53
WPL 308043 WPL 308043 Contact Us For Availability
54
WPL 310458 WPL 310458 Contact Us For Availability
56
WPL 3182052 WPL 3182052 Contact Us For Availability
61
WPL 308173 WPL 308173 Contact Us For Availability
62
WPL 308172 WPL 308172 Contact Us For Availability
63
WPL 3150532 WPL 3150532 Contact Us For Availability
63
WPL 3183005 WPL 3183005 Contact Us For Availability
64
WPL 3182814 WPL 3182814 Contact Us For Availability
65
WPL 3148440 WPL 3148440 Contact Us For Availability
66
WPL 310433 WPL 310433 Contact Us For Availability
66
WPL 310435 WPL 310435 Contact Us For Availability
66
WPL 3149328 WPL 3149328 Contact Us For Availability
× ![]()
