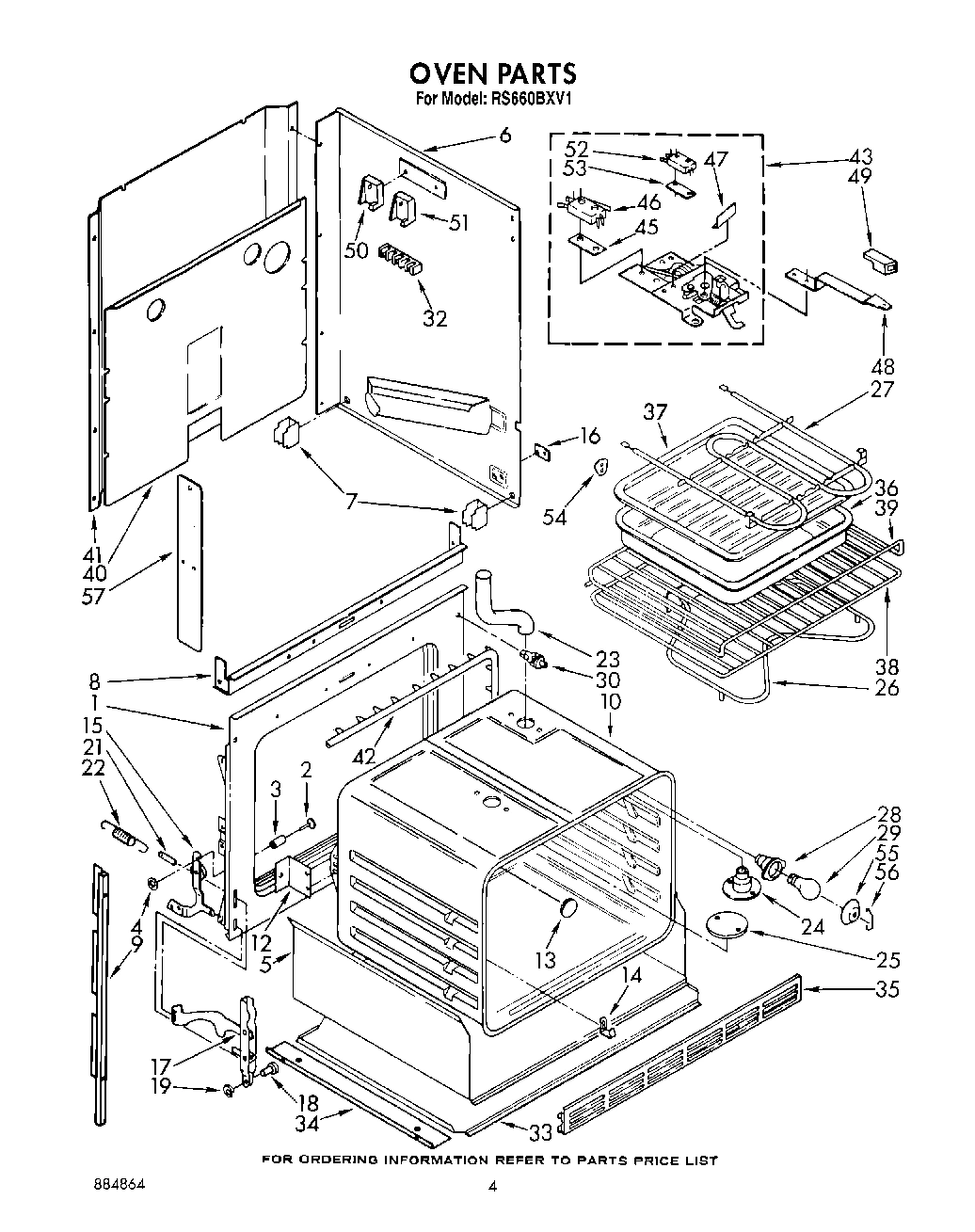

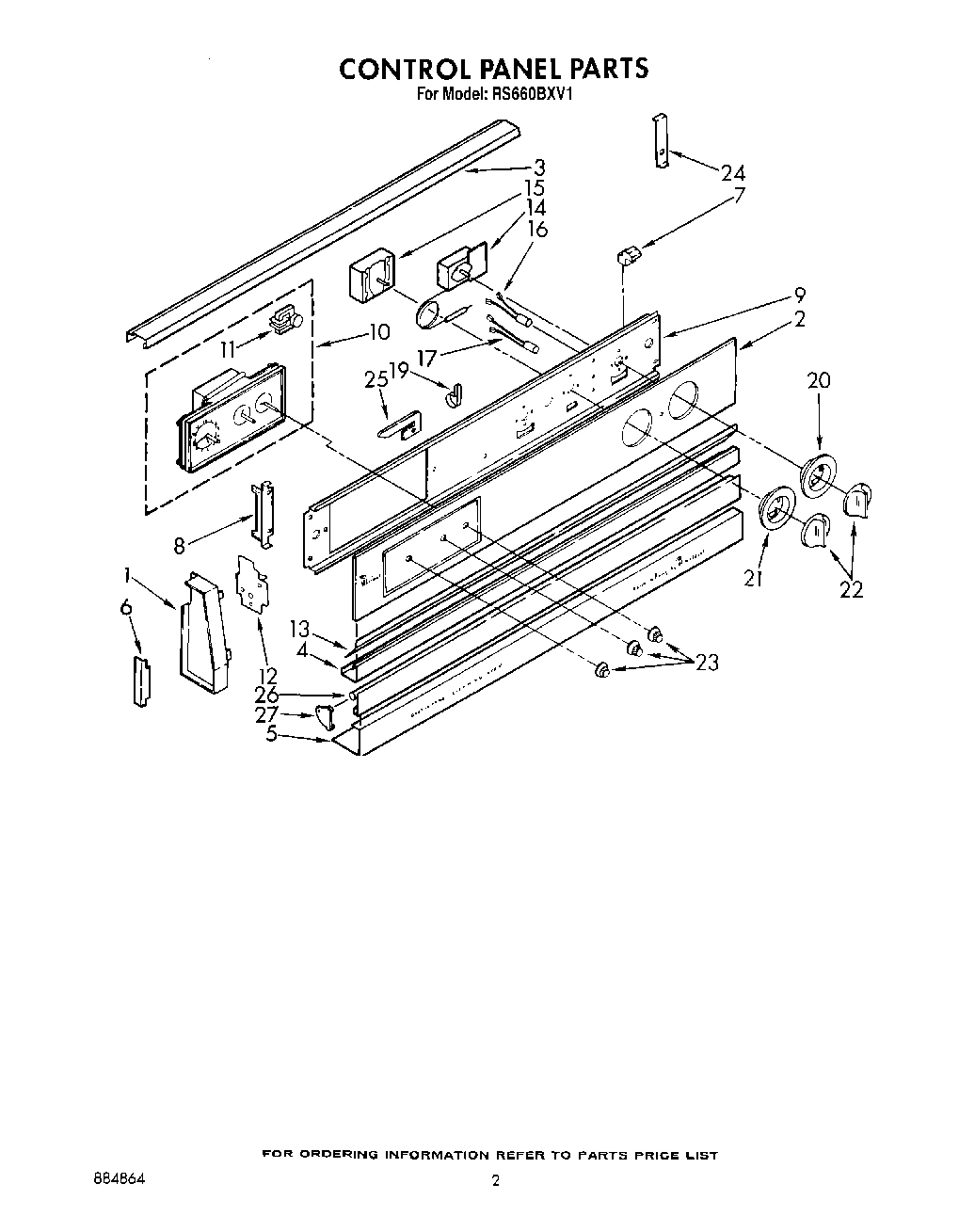

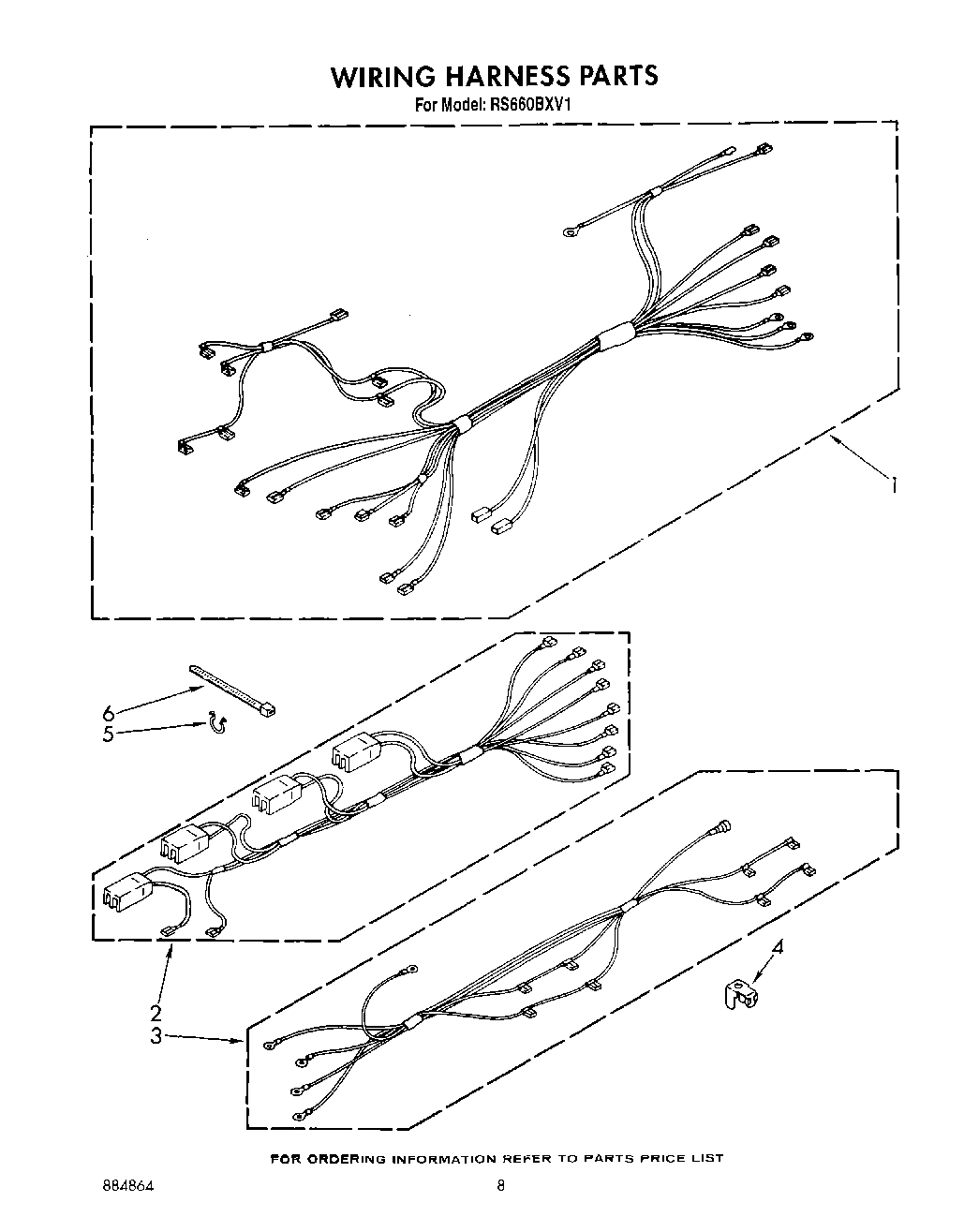

Model Whirlpool RS660BXV1 – Common Parts &amp; Diagrams

WPL 3171507 WPL 3171507 Contact Us For Availability

WPL 814128 WPL 814128 Contact Us For Availability

WPL LIT313358 WPL LIT313358 Contact Us For Availability

WPL LIT3147390 WPL LIT3147390 Contact Us For Availability

WPL LIT3148324 WPL LIT3148324 Contact Us For Availability

WPL LIT3148602 WPL LIT3148602 Contact Us For Availability

WPL LIT884864 WPL LIT884864 Contact Us For Availability

WPL 308043 WPL 308043 Contact Us For Availability

WPL 3150532 WPL 3150532 Contact Us For Availability

1

Screw (5) WPL 3149333 Contact Us For Availability

1

Liner, Door WPL 3172219 Contact Us For Availability

1

End Cap (R.H.) WPL 3148444 Contact Us For Availability

1

End Cap (L.H.) WPL 3148445 Contact Us For Availability

1

Frame, Front WPL 3172194 Contact Us For Availability

1

Harness, Wire (Oven) WPL 3148596 Contact Us For Availability

2

Shield, Door WPL 3148680 Contact Us For Availability

2

Control Panel, Glass WPL 3148640 Contact Us For Availability

2

Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability

2

Harness, Wire (Surface Unit) WPL 3147828 Contact Us For Availability

3

Rail, Top WPL 3148616 Contact Us For Availability

3

Snubber, Door (2) WPL 309111 Contact Us For Availability

3

Harness, Wire (Infinite Switch) WPL 313464 Contact Us For Availability

4

Retainer, Insulation WPL 3148160 Contact Us For Availability

4

Screw (4) WPL 3148443 Contact Us For Availability

4

Trim, Center WPL 3148620 Contact Us For Availability

4

Pushnut (2) WPL 308306 Contact Us For Availability

4

Adaptor, Terminal WPL 3147832 Contact Us For Availability

5

16515 Whirlpool Clip Backorder WPL 16515 $11.62

5

Clip, Handle Mtg. (2) WPL 3148282 Contact Us For Availability

5

Rail, Bottom WPL 3148618 Contact Us For Availability

5

Screw (4) WPL 342043 Contact Us For Availability

5

Insulation Tray WPL 310770 Contact Us For Availability

5

Screw (2) WPL 308504 Contact Us For Availability

6

Bumper, Door WPL 3148182 Contact Us For Availability

6

Trim, End Cap WPL 3149900 Contact Us For Availability

6

Side Wrapper (Right Side) WPL 311006 Contact Us For Availability

6

Side Wrapper (Left Side) WPL 311009 Contact Us For Availability

7

Insulation, Door WPL 3147951 Contact Us For Availability

7

Retainer, Glass (4) WPL 3149882 Contact Us For Availability

7

Support, Side Wrapper (4) WPL 311774 Contact Us For Availability

8

Frame, Door WPL 3148235 Contact Us For Availability

8

Bracket, Control Panel (2) WPL 3148634 Contact Us For Availability

8

Baffle, Top Insulation WPL 310693 Contact Us For Availability

9

Glass, Outer Pano WPL 3148186 Contact Us For Availability

9

Bracket, Control WPL 313314 Contact Us For Availability

9

Clip (2) WPL 313381 Contact Us For Availability

9

Side Trim R.S. WPL 310685 Contact Us For Availability

9

Side Trim L.S. WPL 310689 Contact Us For Availability

10

Timer WPL 3148053 Contact Us For Availability

10

Oven 30`` WPL 3172450 Contact Us For Availability

11

Screw WPL 307748 Contact Us For Availability

11

Top, Door Frame WPL 3148223 Contact Us For Availability

11

Motor, Timer WPL 309822 Contact Us For Availability

Switch, Infinite (Use W/8`` Surface Unit (2)) WPL 3148947 Contact Us For Availability

Cover, R.H. Side WPL 3149027 Contact Us For Availability

Cover, L.H. Side WPL 3149028 Contact Us For Availability

Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability

13

Seal, Backguard WPL 313316 Contact Us For Availability

13

Plug Button WPL 257314 Contact Us For Availability

14

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

14

Thermostat, Oven WPL 3148934 Contact Us For Availability

14

screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

Switch, Selector (5 Position) WPL 661450 Contact Us For Availability

Hinge Ear, R.H. WPL 328801 Contact Us For Availability

Hinge Ear, L.H. WPL 328802 Contact Us For Availability

16

WP308544 Whirlpool Screw Backorder WPL WP308544 $2.51

16

Light, Indicator (250 V) WPL 311802 Contact Us For Availability

16

Plate, Side Panel (2) WPL 310659 Contact Us For Availability

17

Light, Indicator WPL 3148720 Contact Us For Availability

17

Channel Arm (2) WPL 329713 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Touch-Up, Oven (1/2 Pt.) WPL 261810 Contact Us For Availability

rotisserie kit WPL 261880 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

Coffee (Uncut) WPL 261887 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

New Avocado (Uncut) WPL 261889 Contact Us For Availability

Harvest Gold WPL 261890 Contact Us For Availability

Harvest Gold (Uncut) WPL 261891 Contact Us For Availability

Insulation, Wrap WPL 310433 Contact Us For Availability

Insulation, Oven WPL 310434 Contact Us For Availability

Handle, Oven Door WPL 3148228 Contact Us For Availability

Insulation, Top WPL 3149328 Contact Us For Availability

Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Screw WPL 98520 Contact Us For Availability

Screw, 10-32 x 5/16 WPL 166681 Contact Us For Availability

Retainer Ring (2) WPL 307594 Contact Us For Availability

20

Escutcheon, Thermostat WPL 311066 Contact Us For Availability

21

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

21

WP311068 Whirlpool Dial Knob Black Backorder WPL WP311068 $26.48

21

Screw, 8 x 1/4 (2) WPL 254225 Contact Us For Availability

22

WP3150371 Whirlpool Control Knob In Stock WPL WP3150371 $10.05

22

Knob, Control (4) WPL 3150373 Contact Us For Availability

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

WP3169181 Whirlpool Knob In Stock WPL WP3169181 $9.28

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Spring WPL 313311 Contact Us For Availability

Extension, Vent WPL 310835 Contact Us For Availability

24

Thermostat WPL 3147833 Contact Us For Availability

24

Support, Top Rail WPL 312752 Contact Us For Availability

24

Eliminator, Smoke WPL 310839 Contact Us For Availability

25

Shield, Air WPL 3149142 Contact Us For Availability

25

Plate, Cover WPL 310662 Contact Us For Availability

26

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

26

Door, Vent WPL 3148617 Contact Us For Availability

27

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

27

End, Trim (Left Hand) WPL 3148697 Contact Us For Availability

27

End, Trim (Right Hand) WPL 3148698 Contact Us For Availability

28

Socket, Oven Light (Alt.) WPL 307856 Contact Us For Availability

28

Socket, Oven Light (Alt.) WPL 310208 Contact Us For Availability

28

Socket, Oven Light WPL 660556 Contact Us For Availability

29

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

30

Switch, Door WPL 310345 Contact Us For Availability

32

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

32

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

33

Cover, Bottom & Top WPL 310458 Contact Us For Availability

34

Angle, Support (2) WPL 311592 Contact Us For Availability

35

Screw, Black 8-15 x 1/2 (3) WPL 309029 Contact Us For Availability

35

Grill, Bottom WPL 310668 Contact Us For Availability

37

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

38

Rack, Oven (Straight) WPL 308173 Contact Us For Availability

39

Rack, Oven (Offset) WPL 308172 Contact Us For Availability

40

Panel, Back WPL 3149542 Contact Us For Availability

41

Cover, Rear WPL 311012 Contact Us For Availability

42

Seal, WPL 3148284 Contact Us For Availability

43

WPL 3171148 WPL 3171148 Contact Us For Availability

45

WPL 309245 WPL 309245 Contact Us For Availability

46

WPL 308185 WPL 308185 Contact Us For Availability

46

WPL 98106 WPL 98106 Contact Us For Availability

47

WPL 311056 WPL 311056 Contact Us For Availability

47

WPL 309258 WPL 309258 Contact Us For Availability

47

WPL 313035 WPL 313035 Contact Us For Availability

48

WPL 308422 WPL 308422 Contact Us For Availability

48

WPL 310825 WPL 310825 Contact Us For Availability

49

WPL 246135 WPL 246135 Contact Us For Availability

49

WPL 311253 WPL 311253 Contact Us For Availability

50

WPL 314209 WPL 314209 Contact Us For Availability

51

WPL 314215 WPL 314215 Contact Us For Availability

51

WPL 314210 WPL 314210 Contact Us For Availability

52

WPL 3148669 WPL 3148669 Contact Us For Availability

53

WPL 3147864 WPL 3147864 Contact Us For Availability

54

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

54

WPL 311982 WPL 311982 Contact Us For Availability

55

WPL 308039 WPL 308039 Contact Us For Availability

56

WPL 308038 WPL 308038 Contact Us For Availability

57

WPL 311256 WPL 311256 Contact Us For Availability

57

WPL 3148442 WPL 3148442 Contact Us For Availability
