Model Whirlpool RS630PXYH1 – Common Parts & Diagrams
03 - OVEN
01 - CONTROL PANEL, LIT/OPTIONAL

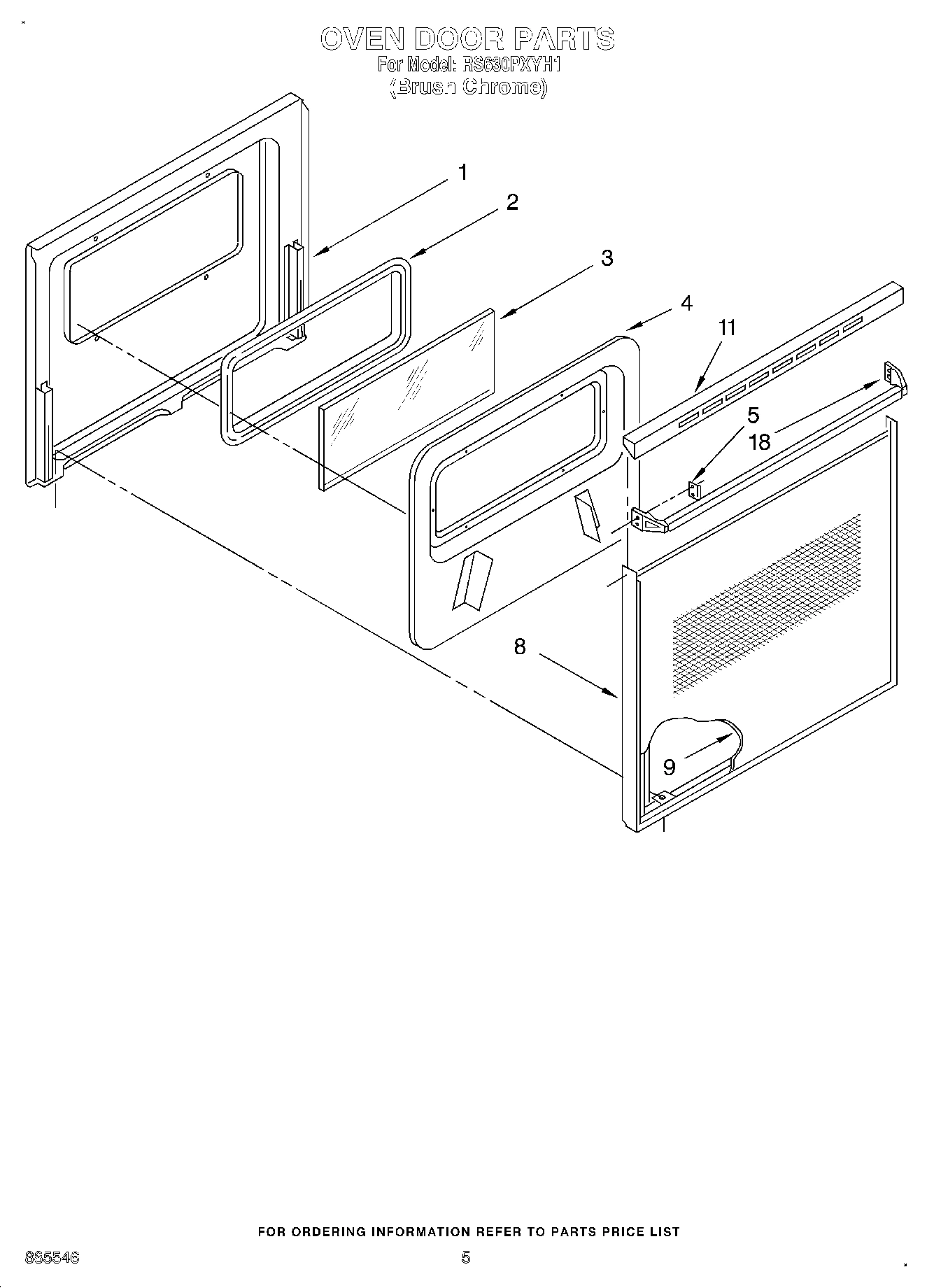

04 - OVEN DOOR

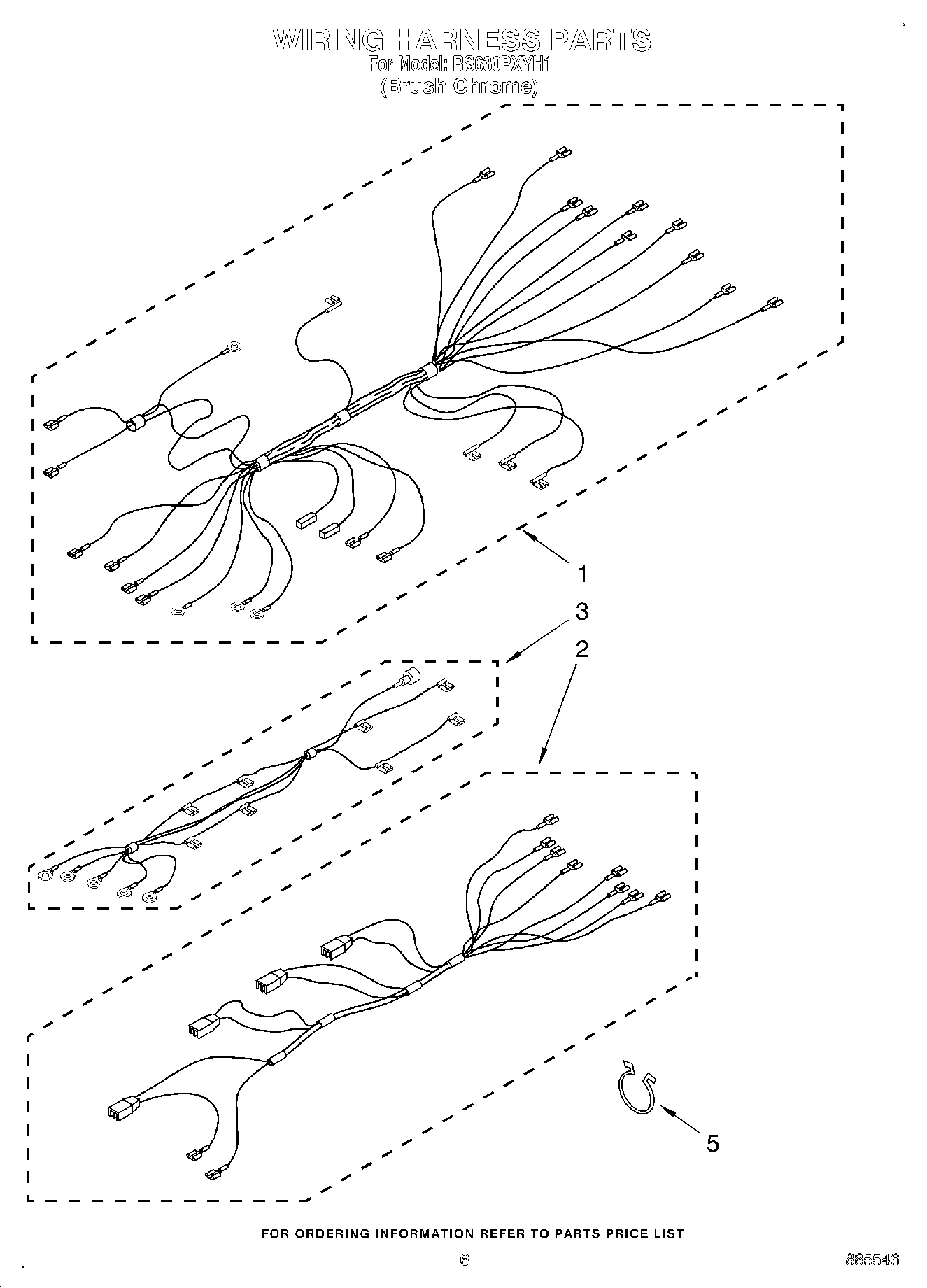

05 - WIRING HARNESS, OPTIONAL

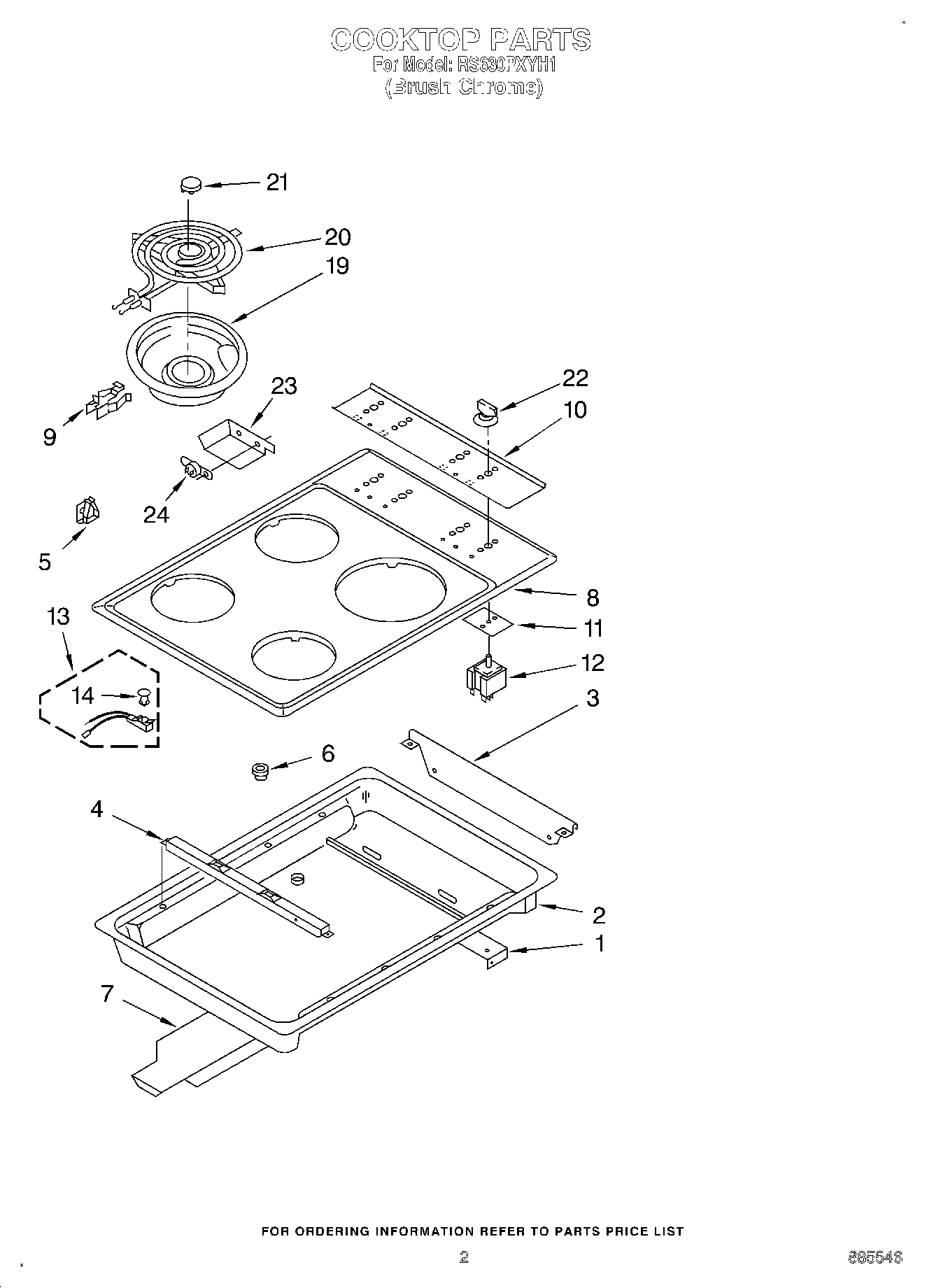

02 - COOKTOP
Common parts from model Whirlpool RS630PXYH1
Installation Instructions WPL LIT3147396 Contact Us For Availability
Brochure WPL LIT3181454 Contact Us For Availability
Tech Sheet WPL LIT3182751 Contact Us For Availability
Use & Care Guide WPL LIT3183766 Contact Us For Availability
Repair Parts List WPL LIT885546 Contact Us For Availability
1
End Cap (Screw (2)) WPL 308504 Contact Us For Availability
1
End Cap (R.H.) WPL 3148444 Contact Us For Availability
1
End Cap (L.H.) WPL 3148445 Contact Us For Availability
1
Screw, 8-18 x 1/2 (3) WPL 3148443 Contact Us For Availability
1
Liner, Door WPL 3170710 Contact Us For Availability
1
Harness, Wire (Oven) WPL 3182750 Contact Us For Availability
1
Support, Burner Box (2) WPL 310718 Contact Us For Availability
2
Seal, Glass WPL 3148183 Contact Us For Availability
2
Panel, Control WPL 3182829 Contact Us For Availability
2
Screw WPL 166681 Contact Us For Availability
2
Harness, Wire (Surface Unit) WPL 3147828 Contact Us For Availability
2
Box, Burner WPL 311021 Contact Us For Availability
3
Rail, Top WPL 3148616 Contact Us For Availability
3
Glass, Inner WPL 3169202 Contact Us For Availability
3
Harness, Wire (Infinite Switch) WPL 313464 Contact Us For Availability
3
Shield, Switch WPL 310716 Contact Us For Availability
4
Trim, Center WPL 3183358 Contact Us For Availability
4
screw (2) WPL 342043 Contact Us For Availability
4
Baffle, Insulation WPL 3148287 Contact Us For Availability
4
Support, Cooktop WPL 310717 Contact Us For Availability
5
Clip, Handle Mtg. (2) WPL 3148282 Contact Us For Availability
5
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
5
Rail, Bottom WPL 3183523 Contact Us For Availability
5
Screw, 8A x 5/16 (3) WPL 98520 Contact Us For Availability
5
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
5
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
5
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
5
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
5
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
5
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
5
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
5
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
5
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
5
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
5
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
5
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
5
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
5
Grease WPL 261582 Contact Us For Availability
5
Touch-Up, Oven (1/2 Pt.) WPL 261810 Contact Us For Availability
5
Coffee WPL 261886 Contact Us For Availability
5
Coffee (Uncut) WPL 261887 Contact Us For Availability
5
New Avocado WPL 261888 Contact Us For Availability
5
New Avocado (Uncut) WPL 261889 Contact Us For Availability
5
Harvest Gold WPL 261890 Contact Us For Availability
5
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
5
Mounting Hardware WPL 3171507 Contact Us For Availability
5
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
5
KIT, PORCELAIN REPAIR (WHITE WPL 799832 Contact Us For Availability
5
WPL 978883 WPL 978883 Contact Us For Availability
6
Lens, Amber WPL 313101 Contact Us For Availability
6
Bushing WPL 258109 Contact Us For Availability
7
Cover, Side (Right Side) WPL 3149027 Contact Us For Availability
7
Cover, Side (Left Side) WPL 3149028 Contact Us For Availability
7
Cover, Top Rear WPL 3147565 Contact Us For Availability
8
Bracket, Support WPL 3184170 Contact Us For Availability
8
screw (3) WPL 307748 Contact Us For Availability
8
Frame, Door WPL 3148235 Contact Us For Availability
8
Cooktop (Brushed Chrome) WPL 3183904 Contact Us For Availability
9
Support, Top Rail WPL 312752 Contact Us For Availability
9
Glass, Outer Pano WPL 3148185 Contact Us For Availability
10
Timer, Auto WPL 661459 Contact Us For Availability
10
Panel, Control WPL 3183218 Contact Us For Availability
11
Heat Seal WPL 309107 Contact Us For Availability
11
Screw (5) WPL 3149333 Contact Us For Availability
11
Motor, Timer WPL 309822 Contact Us For Availability
11
Top, Door Frame WPL 3148223 Contact Us For Availability
12
Switch, Infinite (Use W/6`` Surface Unit (2)) WPL 3148968 Contact Us For Availability
13
Indicator, Light (Includes No. 14) WPL 313462 Contact Us For Availability
14
Thermostat, Oven WPL 3183708 Contact Us For Availability
14
Lens, Indicator WPL 313602 Contact Us For Availability
15
Switch, Selector (4 Position) WPL 3149886 Contact Us For Availability
15
Screw (2) WPL 4159448 Contact Us For Availability
16
Light, Indicator (250V) WPL 314031 Contact Us For Availability
17
Switch, Rocker WPL 3182717 Contact Us For Availability
18
Handle, Oven Door WPL 3148228 Contact Us For Availability
20
Knob, Thermostat WPL 3183106 Contact Us For Availability
21
Knob, Selector WPL 3183112 Contact Us For Availability
21
Medallion, Surface Unit WPL 309195 Contact Us For Availability
22
Knob, Control (4) WPL 3183120 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
23
Bracket, Sensor WPL 3147830 Contact Us For Availability
24
Thermostat WPL 3147833 Contact Us For Availability
25
Trim, End Cap Top Rail WPL 3149900 Contact Us For Availability
28
Screw, 10-12 x 7/8 (2) WPL 308043 Contact Us For Availability
30
Switch, Door WPL 310345 Contact Us For Availability
31
Plate, Cover Broil WPL 3183005 Contact Us For Availability
33
Cover, Bottom WPL 310458 Contact Us For Availability
35
Screw, Black 8-15 x 1/2 (3) WPL 309029 Contact Us For Availability
35
Grill, Bottom WPL 310668 Contact Us For Availability
38
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
39
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
40
Panel, Back WPL 3182052 Contact Us For Availability
41
Cover, Rear WPL 311012 Contact Us For Availability
43
Insulation, Wrap WPL 309961 Contact Us For Availability
43
Insulation, Back WPL 311458 Contact Us For Availability
43
P WPL 3184208 Contact Us For Availability
× ![]()
