Model Whirlpool RS610PXYH0 – Common Parts & Diagrams

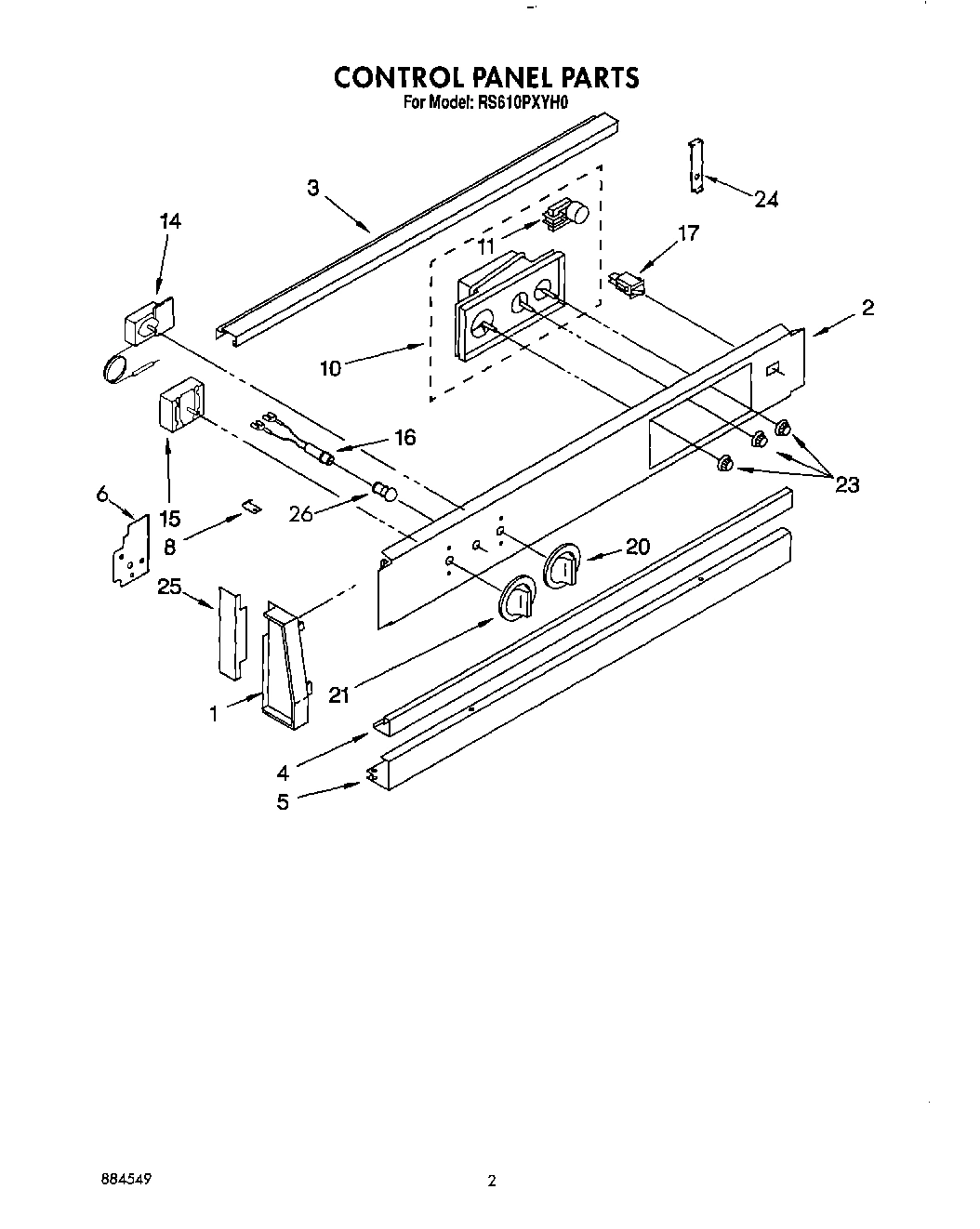

02 - CONTROL PANEL

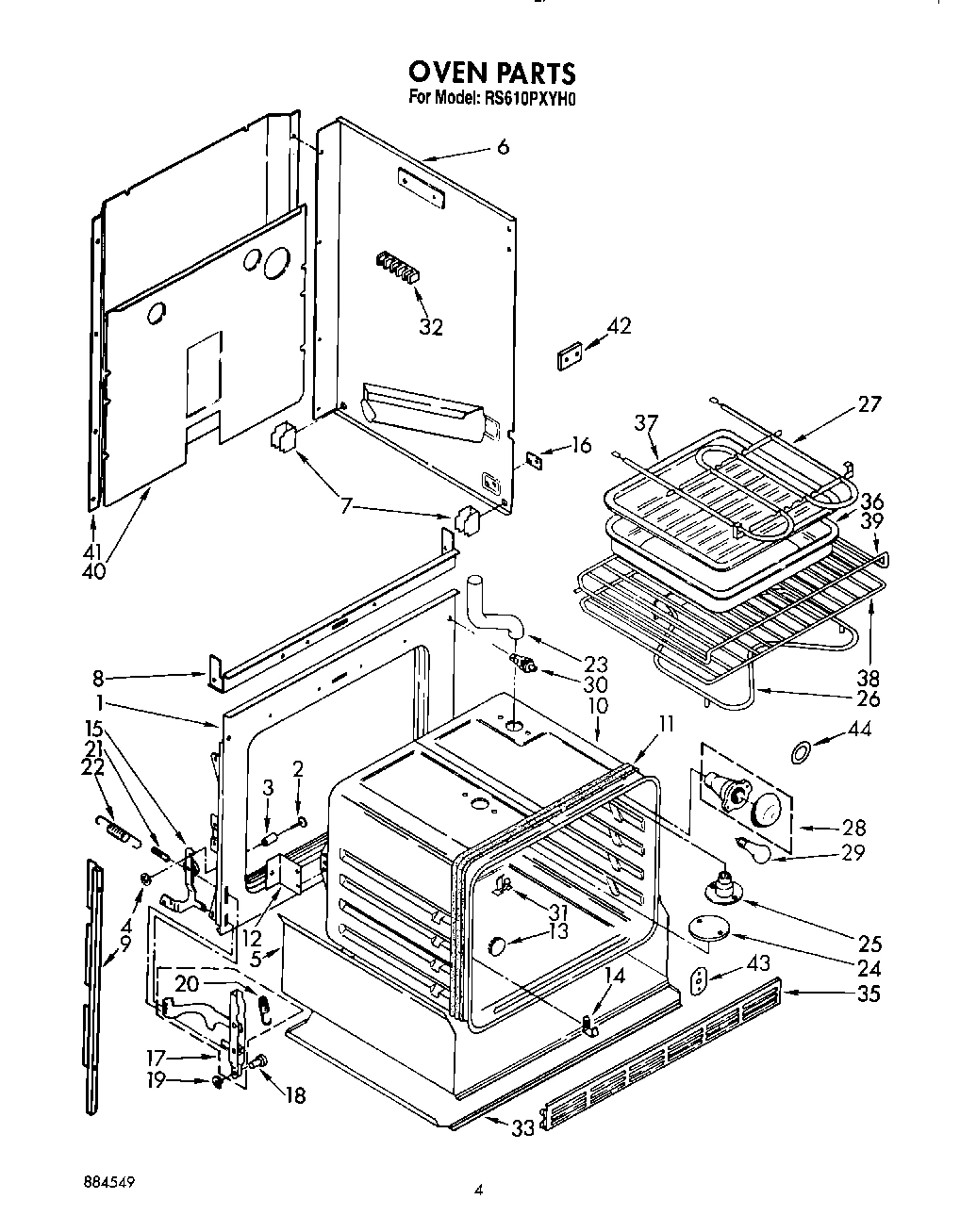

04 - OVEN, LIT/OPTIONAL

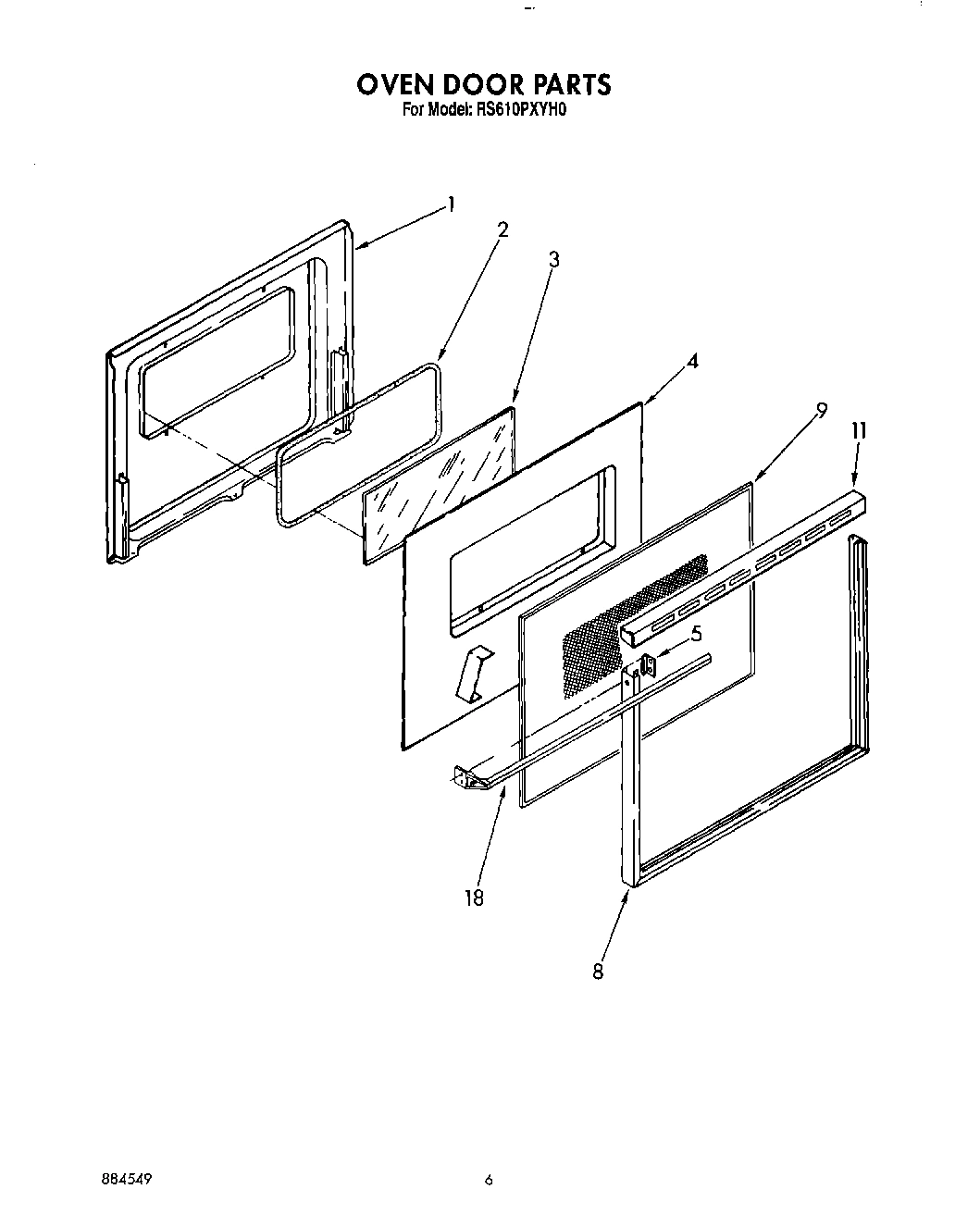

05 - OVEN DOOR, OPTIONAL

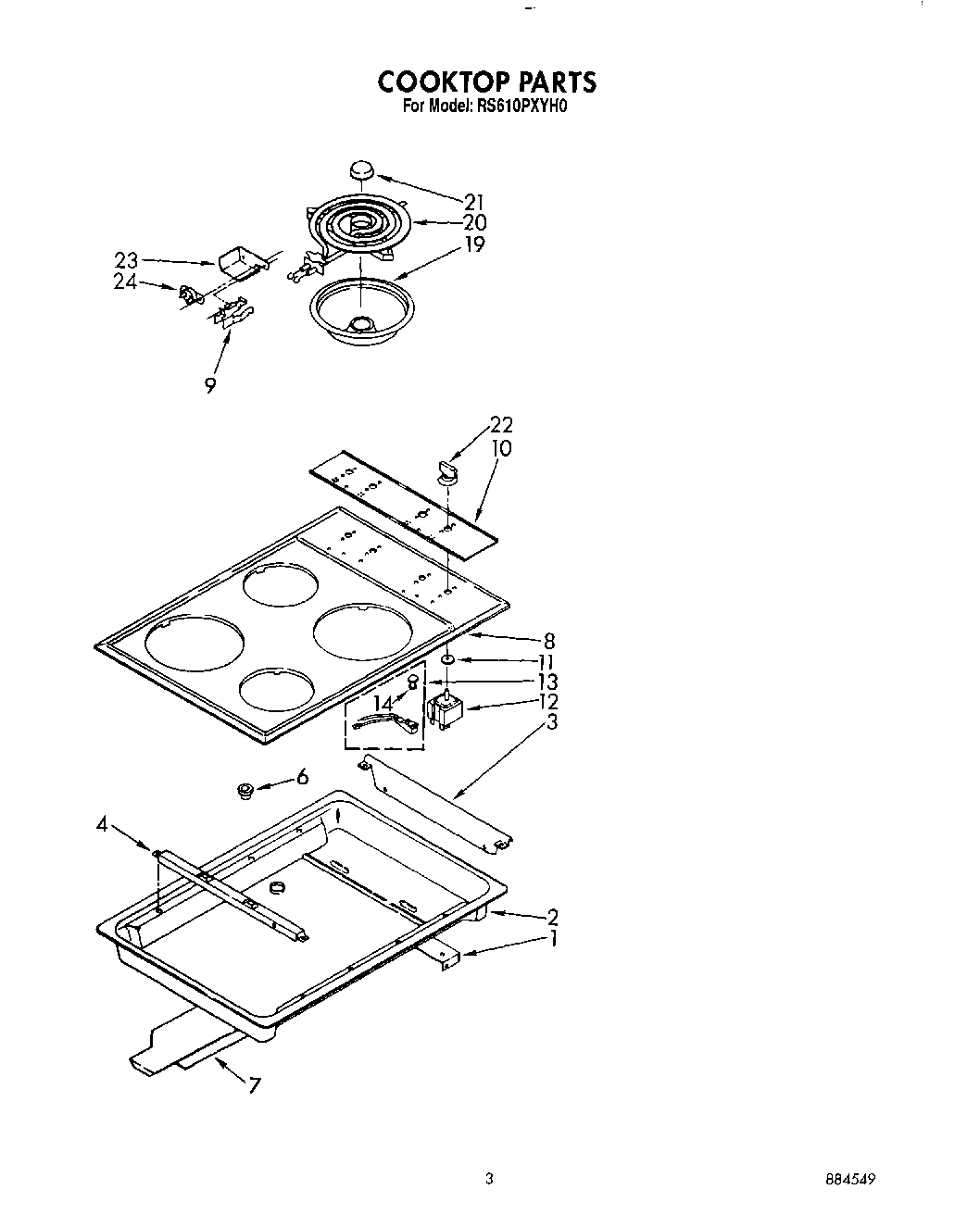

03 - COOKTOP

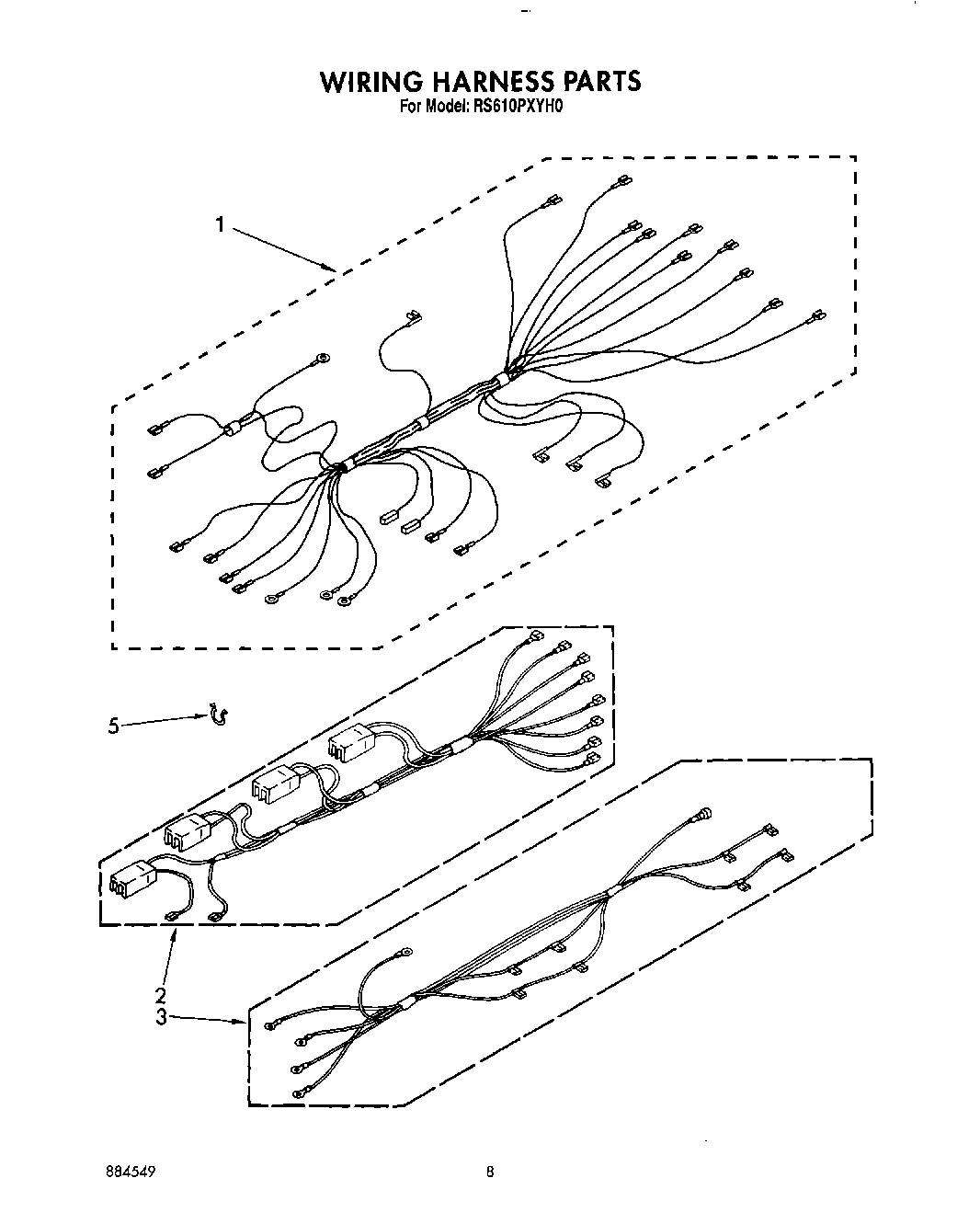

06 - WIRING HARNESS
Common parts from model Whirlpool RS610PXYH0
1
screw (6) WPL 3148443 Contact Us For Availability
1
Liner, Door WPL 3172220 Contact Us For Availability
1
Support, Burner Box (2) WPL 310718 Contact Us For Availability
1
Harness, Wire (Oven) WPL 3182750 Contact Us For Availability
2
Seal, Glass WPL 3148183 Contact Us For Availability
2
Burner Box WPL 311019 Contact Us For Availability
2
Screw WPL 166681 Contact Us For Availability
2
Harness, Wire (Surface Unit) WPL 3147828 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Glass, Inner WPL 3148179 Contact Us For Availability
3
Shield, Switch WPL 310716 Contact Us For Availability
3
Harness, Wire (Infinite Switch) WPL 313464 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Baffle, Insulation WPL 3148287 Contact Us For Availability
4
Support, Cooktop WPL 310717 Contact Us For Availability
4
screw (2) WPL 342043 Contact Us For Availability
5
Clip, Handle Mtg. (2) WPL 3148282 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
5
Screw (2) WPL 307748 Contact Us For Availability
6
Side Wrapper (Right Side) WPL 311006 Contact Us For Availability
6
Side Wrapper (Left Side) WPL 311009 Contact Us For Availability
6
Bushing WPL 258109 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Cover, Top Rear WPL 3147565 Contact Us For Availability
8
Baffle, Top Insulation WPL 3183796 Contact Us For Availability
8
Frame, Door WPL 3148235 Contact Us For Availability
8
Cooktop (Brushed Chrome) WPL 3183904 Contact Us For Availability
9
Side Trim R.S. WPL 310685 Contact Us For Availability
9
Side Trim L.S. WPL 310689 Contact Us For Availability
9
Glass, Outer Pano WPL 3148185 Contact Us For Availability
10
Screw (3) WPL 311056 Contact Us For Availability
10
Oven, 30`` Conventional WPL 3182032 Contact Us For Availability
10
Panel, Control WPL 3183218 Contact Us For Availability
11
Heat Seal WPL 309107 Contact Us For Availability
11
Top, Door Frame WPL 3148223 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Switch, Infinite (Use W/6`` Surface Unit (2)) WPL 3148968 Contact Us For Availability
13
Button, Plug WPL 3182814 Contact Us For Availability
13
Indicator Light (2) (Includes Lens No. 313602 WPL 313462 Contact Us For Availability
14
Lens, Light WPL 313602 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
16
Light, Indicator (250V) WPL 314031 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
17
Channel Arm (2) WPL 329714 Contact Us For Availability
18
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
18
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
18
Screw (5) WPL 3149333 Contact Us For Availability
18
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
18
Grease WPL 261582 Contact Us For Availability
18
Coffee WPL 261886 Contact Us For Availability
18
New Avocado WPL 261888 Contact Us For Availability
18
Harvest Gold WPL 261890 Contact Us For Availability
18
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
18
Handle, Oven Door WPL 3148228 Contact Us For Availability
18
Mounting Hardware WPL 3171507 Contact Us For Availability
18
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
18
KIT, PORCELAIN RE WPL 799832 Contact Us For Availability
18
WPL 978883 WPL 978883 Contact Us For Availability
19
Retainer Ring (2) WPL 307594 Contact Us For Availability
20
Spring, Door Stop (2) WPL 311092 Contact Us For Availability
21
Knob, Selector WPL 3183112 Contact Us For Availability
21
Medallion, Surface Unit WPL 309195 Contact Us For Availability
22
Knob, Control (4) WPL 3183120 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
23
Extension, Vent WPL 310835 Contact Us For Availability
23
Bracket, Sensor WPL 3147830 Contact Us For Availability
24
Thermostat, Sensor WPL 3147833 Contact Us For Availability
24
Eliminator, Smoke WPL 310840 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
26
Screw (4) WPL 312318 Contact Us For Availability
30
Switch, Door WPL 310345 Contact Us For Availability
31
Plug, Oven WPL 3169107 Contact Us For Availability
32
Screw (2) WPL 308043 Contact Us For Availability
33
Cover, Bottom & Top WPL 310458 Contact Us For Availability
35
Screw, Black 8-15 x 1/2 (3) WPL 309029 Contact Us For Availability
35
Grill, Bottom WPL 310668 Contact Us For Availability
38
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
39
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
40
Panel, Back WPL 3182052 Contact Us For Availability
41
Cover, Rear WPL 311012 Contact Us For Availability
42
Screw (4) WPL 3150532 Contact Us For Availability
42
Plate, Cover WPL 3183005 Contact Us For Availability
43
Plug, Oven WPL 3184208 Contact Us For Availability
44
Insulation, Wrap WPL 309961 Contact Us For Availability
44
Ins WPL 311458 Contact Us For Availability
× ![]()
