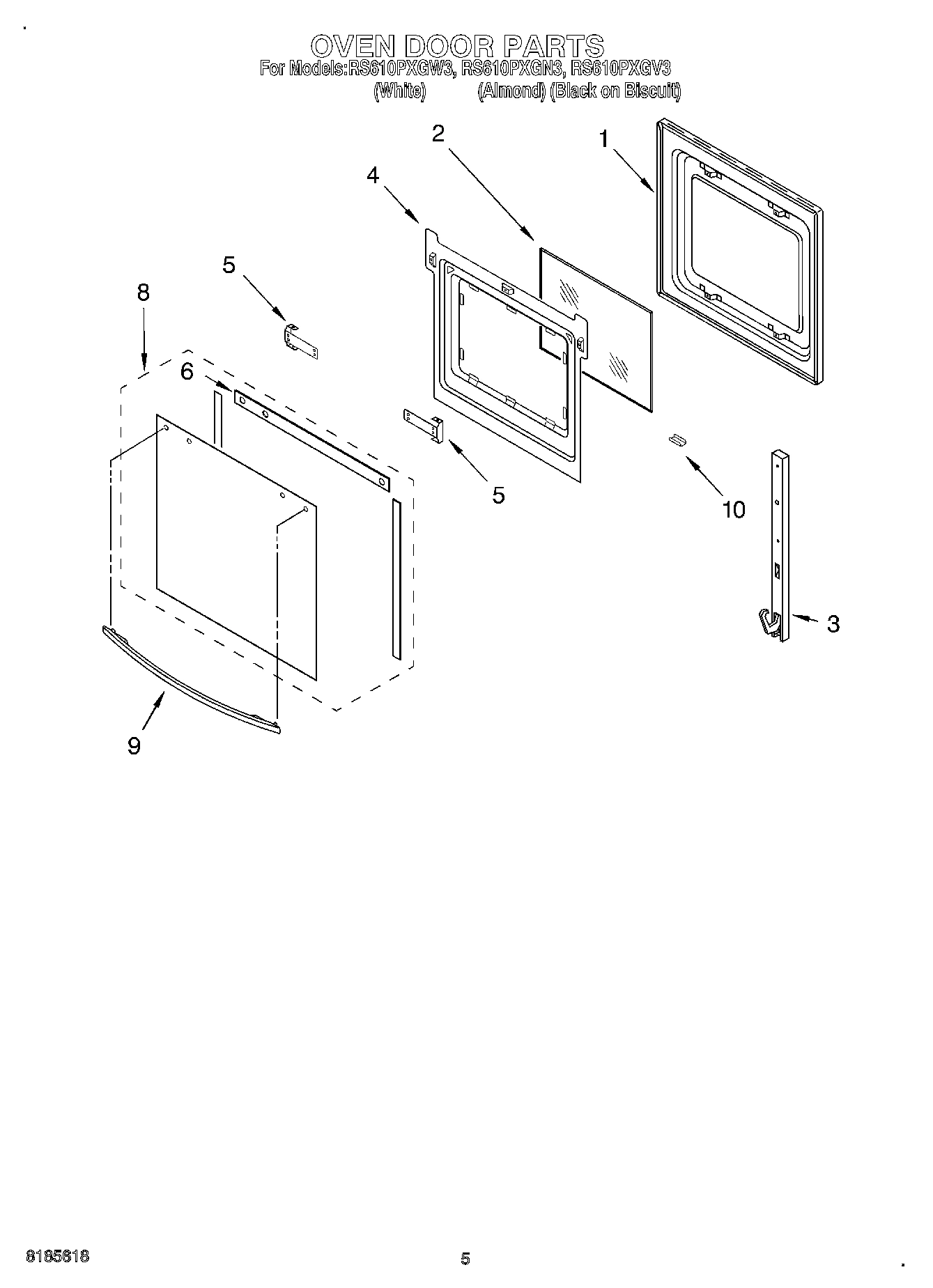

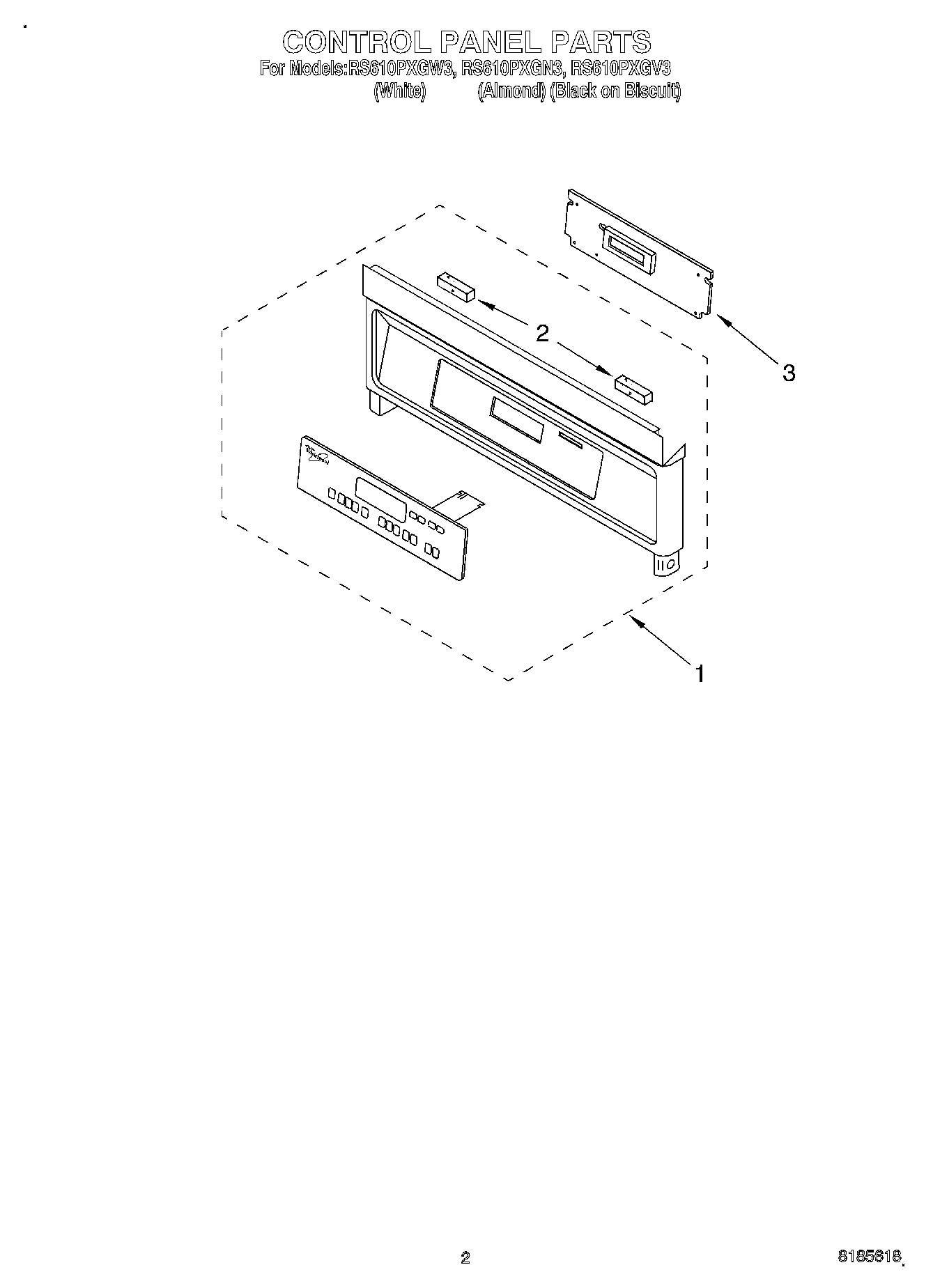

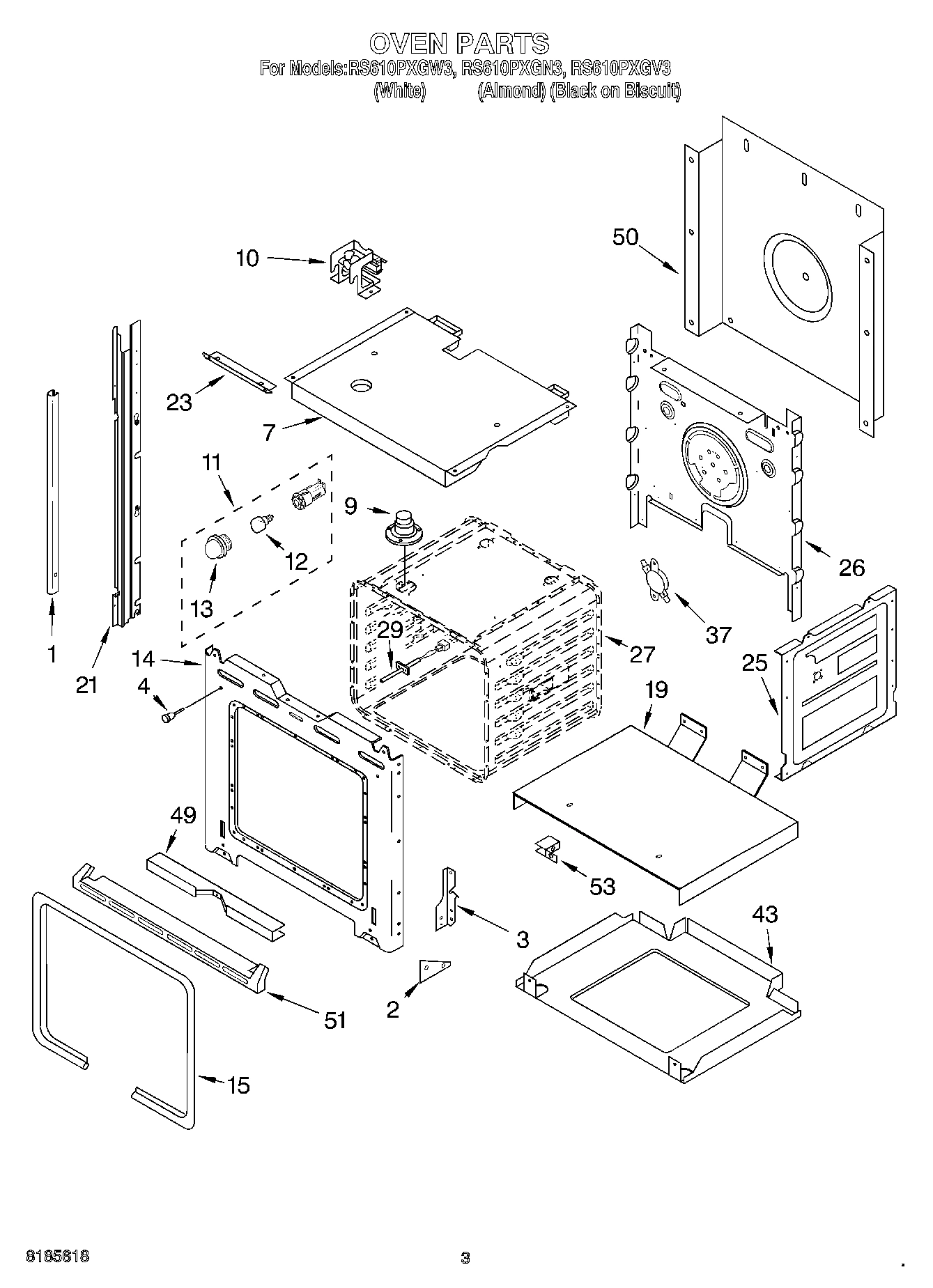

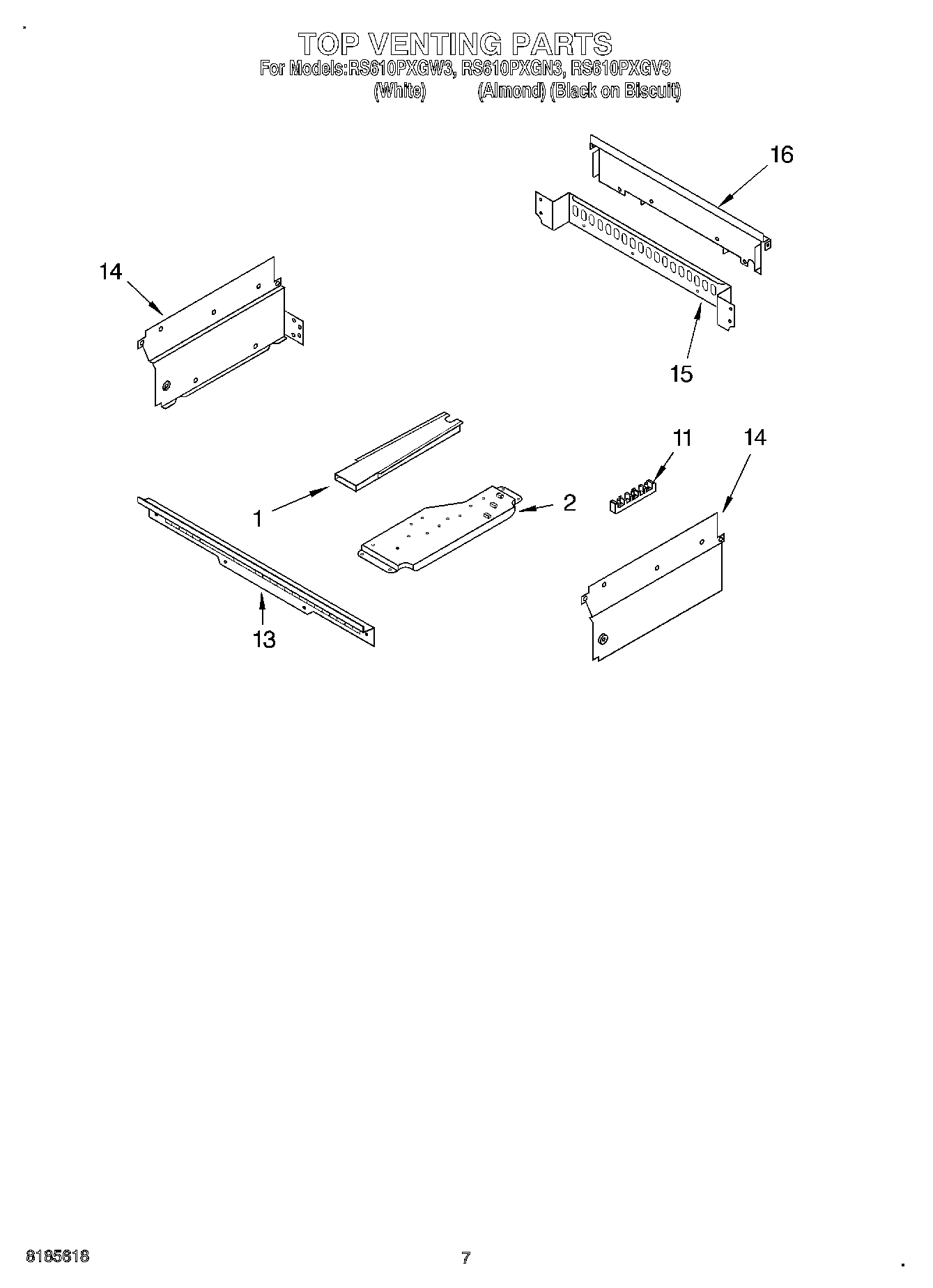

Model Whirlpool RS610PXGV3 ELECTRIC RANGE – Common Parts &amp; Diagrams

1

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

1

WP8281236 Whirlpool Screw In Stock WPL WP8281236 $2.51

1

WP9759413 Whirlpool Door Liner Backorder WPL WP9759413 $138.47

1

Screw WPL 4449040 Contact Us For Availability

1

Trim, Side (RH Black) WPL 4450844 Contact Us For Availability

1

Trim, Side (LH Black) WPL 4450847 Contact Us For Availability

1

Control Panel Assy. W/Membrane Switch WPL 4452843 Contact Us For Availability

2

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $79.44

2

WP4455509 Whirlpool Support Bracket Backorder WPL WP4455509 $27.76

2

Gasket, Control Panel WPL 4451034 Contact Us For Availability

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

3

WP4455523 Whirlpool Oven Door Hinge In Stock WPL WP4455523 $31.90

3

Reciever, Hinge (Right Hand) WPL 4455723 Contact Us For Availability

3

Reciever, Hinge (Left Hand) WPL 4455722 Contact Us For Availability

3

Microcomputer WPL 4453193 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

Retainer, Glass WPL 4451671 Contact Us For Availability

5

Bracket, Handle WPL 4450813 Contact Us For Availability

5

Screw (4) WPL 4451040 Contact Us For Availability

6

Seal, Top WPL 4451674 Contact Us For Availability

7

Top, Chassis WPL 4455286 Contact Us For Availability

8

WP9759641 Whirlpool Outer Door Glass Backorder WPL WP9759641 $143.45

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $38.10

9

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

9

Handle, Door WPL 4448854 Contact Us For Availability

10

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

10

Fan & Bracket Assy WPL 4451664 Contact Us For Availability

10

Retainer, Glass WPL 4450863 Contact Us For Availability

3183956 Whirlpool Oven Seal Switch Backorder WPL 3183956 $27.27

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WPW10734065 Whirlpool Light Backorder WPL WPW10734065 $35.32

Screw WPL 3400080 Contact Us For Availability

12

WP3191471 Whirlpool Infinite Switch Backorder WPL WP3191471 $78.99

12

WP3191472 Whirlpool Infinite Switch In Stock WPL WP3191472 $70.61

12

WP4173175 Whirlpool Light Bulb In Stock WPL WP4173175 $27.18

13

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

13

Lens, Light WPL 4452165 Contact Us For Availability

14

WP3195917 Whirlpool Clip Assembly In Stock WPL WP3195917 $3.70

14

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

14

Frame, Front WPL 4451740 Contact Us For Availability

15

3400855 Whirlpool Oven Screw Backorder WPL 3400855 $4.39

15

Gasket, Door WPL 4450493 Contact Us For Availability

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

Harness, Wire (Main) WPL 3191220 Contact Us For Availability

Harness, Wire (Light) WPL 4455592 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Cover, Rear WPL 3191842 Contact Us For Availability

Harness, Wire (Infinite Switch) WPL 3192236 Contact Us For Availability

Conduit WPL 4451163 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

Harness, Wire (EDC) WPL 4455745 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

19

Support, Insulation WPL 4451478 Contact Us For Availability

21

814371 Whirlpool Oven Rail Mount Backorder WPL 814371 $38.69

21

814372 Whirlpool Oven Rail Mount Backorder WPL 814372 $40.88

21

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

22

WP3196231 Whirlpool Knob In Stock WPL WP3196231 $11.02

23

Deflector WPL 4450051 Contact Us For Availability

25

Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability

26

Back, Chassis WPL 4452234 Contact Us For Availability

27

Liner, Oven (Not a Serviceable Part) WPL ARI124519A Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

37

WP4451354 Whirlpool Thermal Fuse Assembly Backorder WPL WP4451354 $16.23

43

Base, Chassis WPL 4455530 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

50

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $49.46

51

Trim, Bottom WPL 4448477 Contact Us For Availability

W11684730 Whirlpool Insulation Backorder WPL W11684730 $45.31

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

BRACKET-SUPPORT WPL 4449845 Contact Us For Availability

Insulation, Back WPL 4450365 Contact Us For Availability
