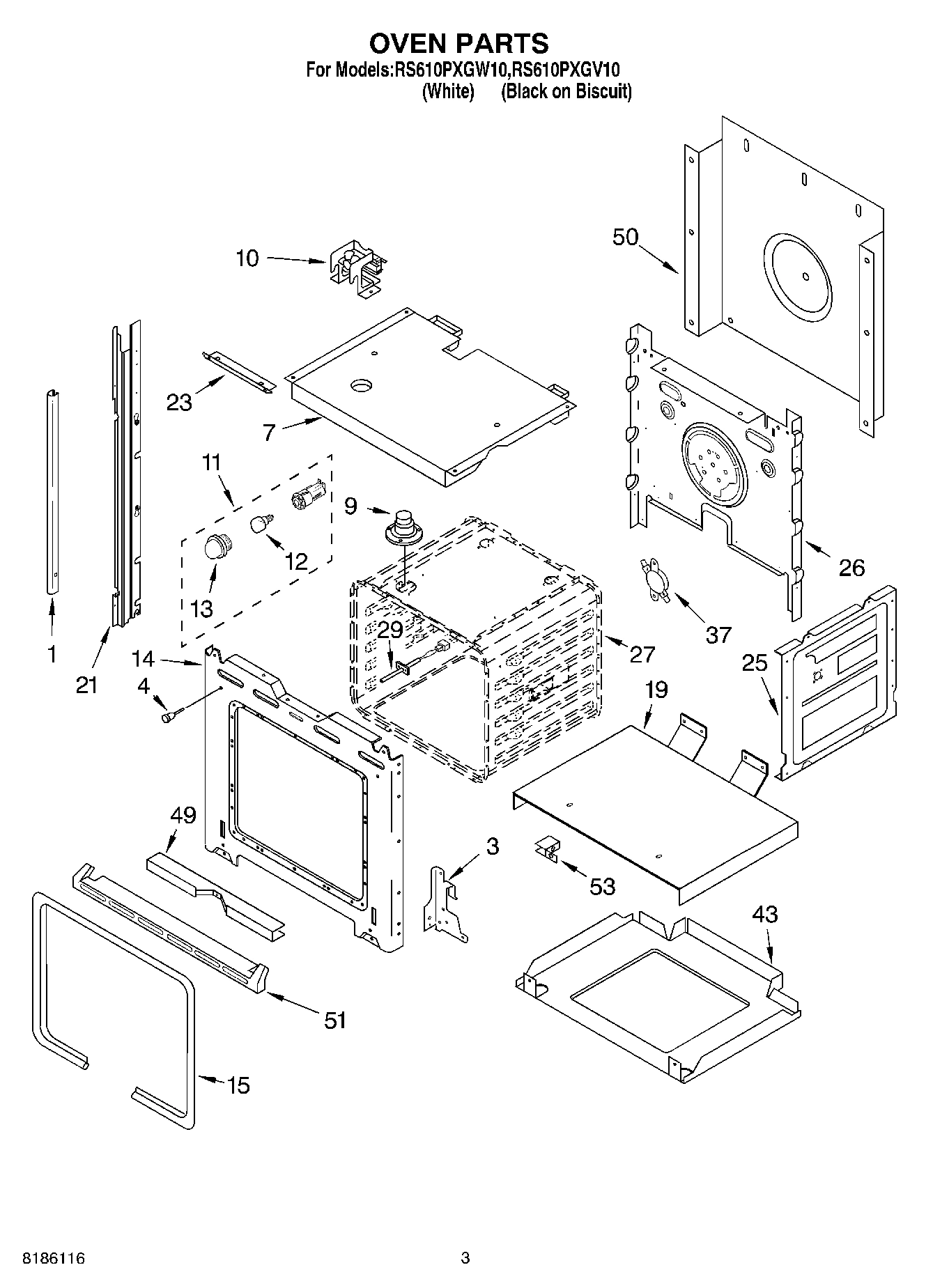

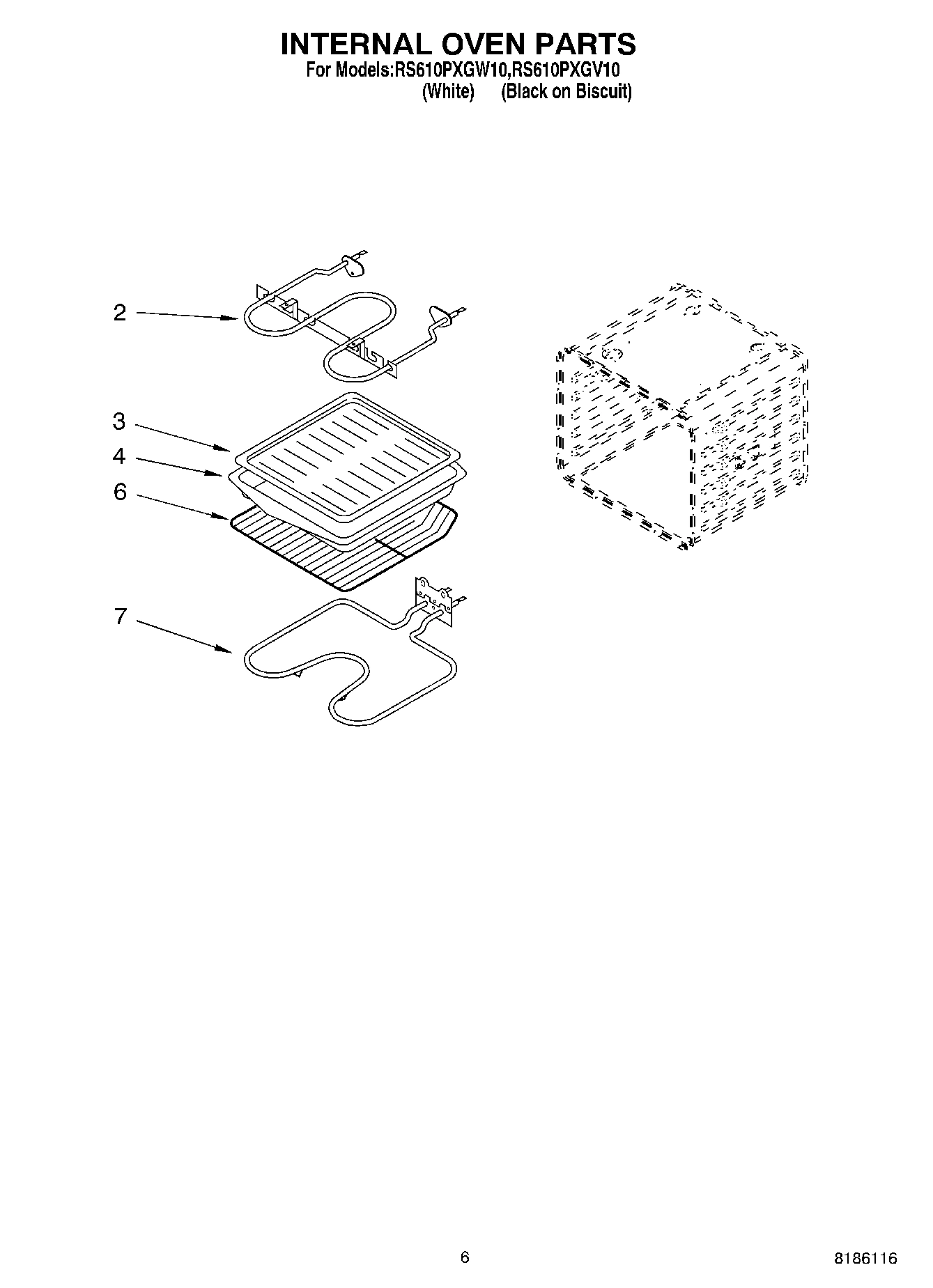

Model Whirlpool RS610PXGV10 30`` DROP-IN ELECTRIC STANDARD CLEAN OVEN – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

Harness, Wire (Main) WPL 3191220 Contact Us For Availability

Harness, Wire (Light) WPL 4455592 Contact Us For Availability

Harness, Wire (EDC) FE02313 Bushing WPL 8301875 Contact Us For Availability

NOTE: The screws and nuts required to attach WPL ARI124502A Contact Us For Availability

NOTE: The screws and nuts required to attach WPL ARI124503A Contact Us For Availability

1

4451759 Whirlpool Oven Exhaust Vent Backorder WPL 4451759 $32.70

1

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

1

WP8281236 Whirlpool Screw In Stock WPL WP8281236 $2.51

1

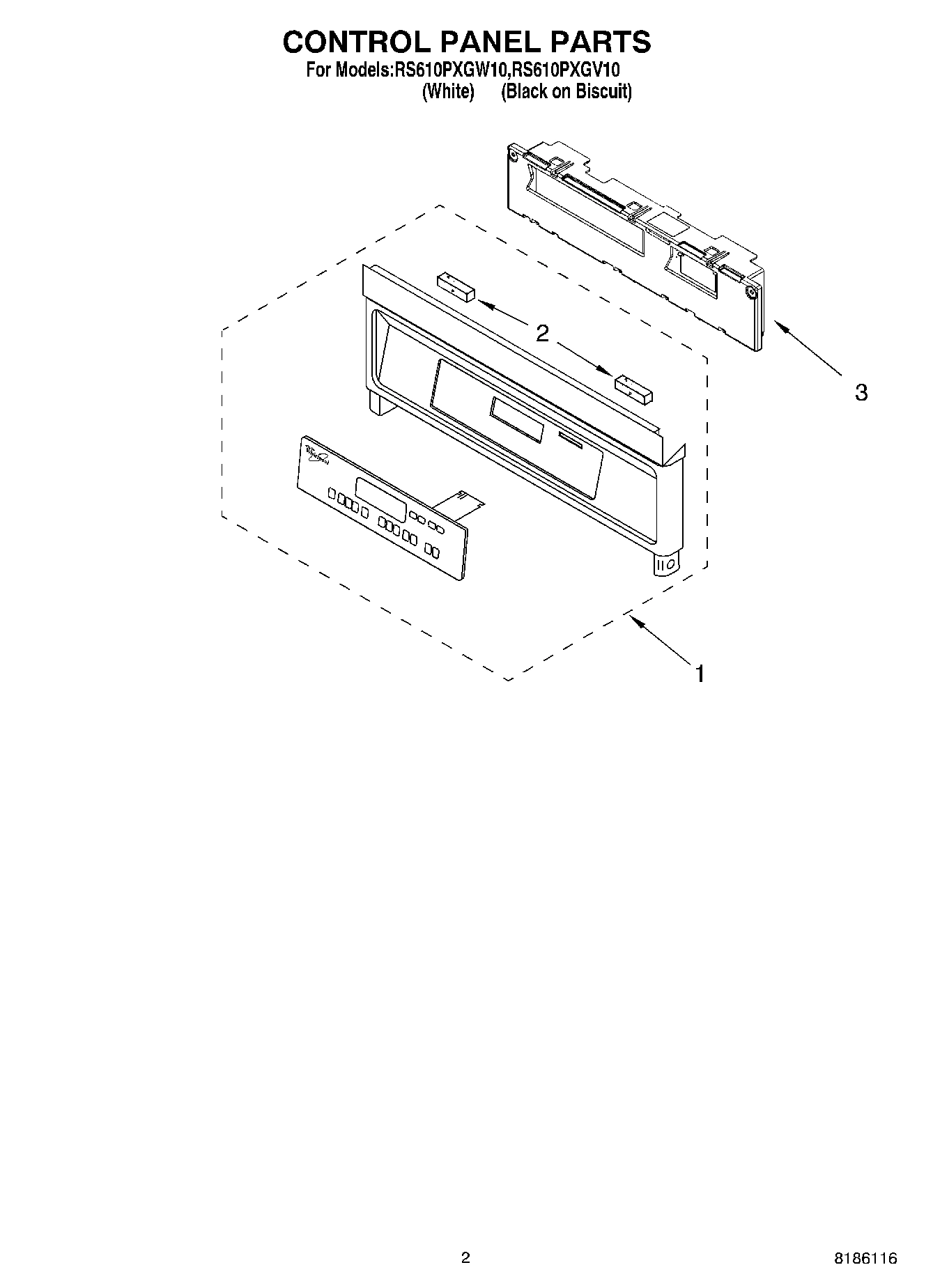

Control Panel Assy. W/Membrane Switch WPL 4456313 Contact Us For Availability

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Installation Instructions WPL LIT8300649 Contact Us For Availability

1

Use & Care Guide WPL LIT8300666 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT8302071 Contact Us For Availability

1

Trim, Side (RH Black) WPL 4450844 Contact Us For Availability

1

Trim, Side (LH Black) WPL 4450847 Contact Us For Availability

2

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $79.44

2

WP9760771 Whirlpool Electric Oven Broil Eleme In Stock WPL WP9760771 $71.24

2

Burner Box WPL 3192459 Contact Us For Availability

2

Gasket, Control Panel WPL 4451034 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

3

Assy, Control WPL 8301919 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

Bracket, Mounting WPL 3192575 Contact Us For Availability

5

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

5

Bracket, Handle WPL 4450813 Contact Us For Availability

6

WPW10179152 Whirlpool Rack Oven In Stock WPL WPW10179152 $63.24

7

WPW10207397 Whirlpool Oven Bake Element In Stock WPL WPW10207397 $45.71

7

Trim, Extension WPL 3192102 Contact Us For Availability

7

Top, Chassis WPL 4455865 Contact Us For Availability

8

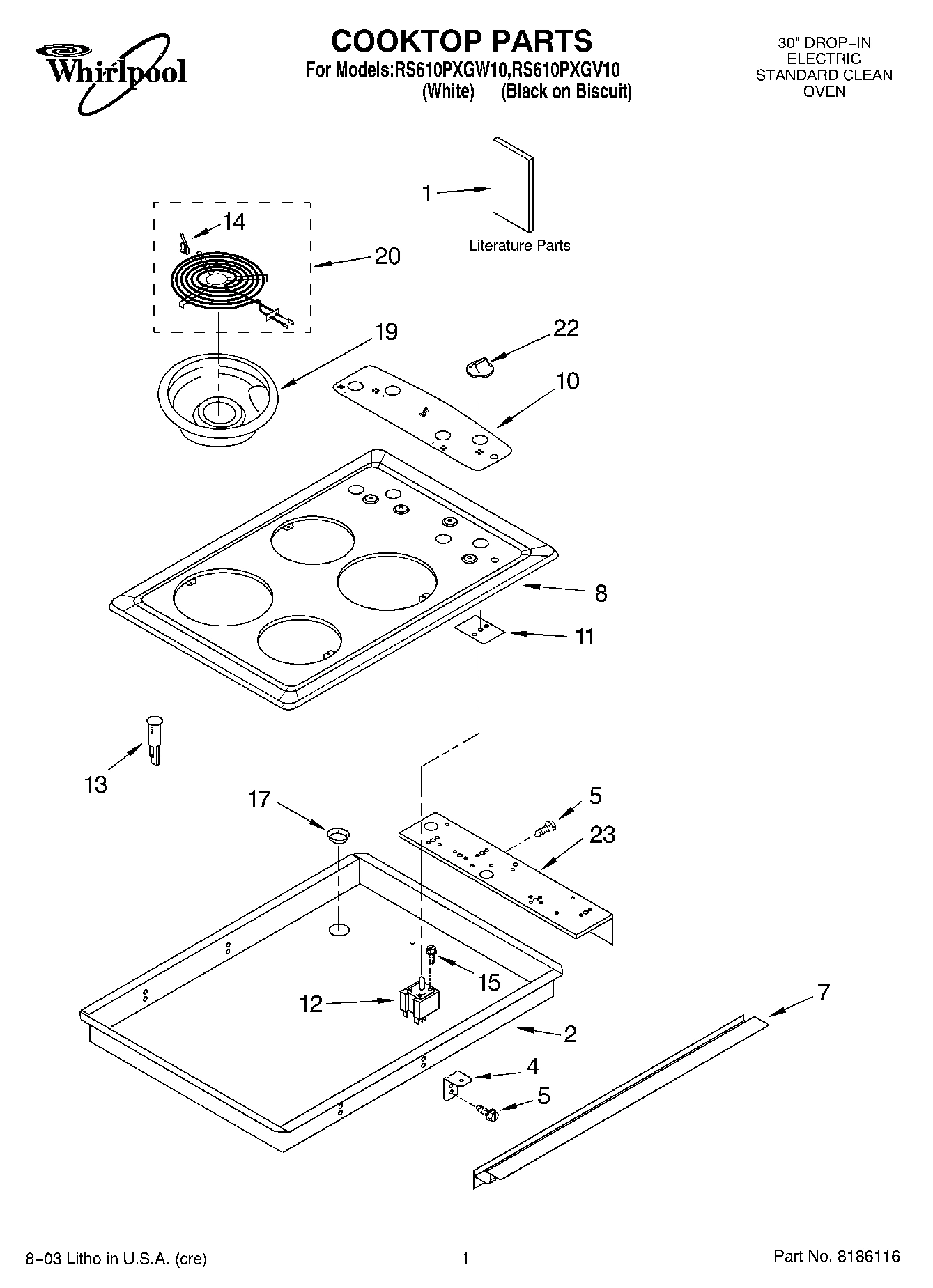

Cooktop (White) WPL 3191168 Contact Us For Availability

8

Cooktop (Biscuit) WPL 8284709 Contact Us For Availability

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $38.10

9

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

9

Handle, Door WPL 4448854 Contact Us For Availability

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

WP4451985 Whirlpool Noise Filter Board Backorder WPL WP4451985 $56.15

Fan & Bracket Assy WPL 4451664 Contact Us For Availability

Panel, Control WPL 3191228 Contact Us For Availability

3183956 Whirlpool Oven Seal Switch Backorder WPL 3183956 $27.27

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WPW10734065 Whirlpool Light Backorder WPL WPW10734065 $35.32

Screw WPL 3400080 Contact Us For Availability

12

WP3191471 Whirlpool Infinite Switch Backorder WPL WP3191471 $78.99

12

WP3191472 Whirlpool Infinite Switch In Stock WPL WP3191472 $70.61

12

WP4173175 Whirlpool Light Bulb In Stock WPL WP4173175 $27.18

13

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

13

WP4456181 Whirlpool Indicator Light In Stock WPL WP4456181 $35.32

13

Lens, Light WPL 4452165 Contact Us For Availability

WP3195917 Whirlpool Clip Assembly In Stock WPL WP3195917 $3.70

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

Screw WPL 4449040 Contact Us For Availability

Frame, Front WPL 4455612 Contact Us For Availability

15

3400855 Whirlpool Oven Screw Backorder WPL 3400855 $4.39

15

Gasket, Door WPL 4450493 Contact Us For Availability

19

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.04

19

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $2.12

19

Support, Insulation WPL 4451478 Contact Us For Availability

20

WP9761346 Whirlpool Stove Surface Burner Elem In Stock WPL WP9761346 $53.12

20

WPW10345407 Whirlpool Surface Element In Stock WPL WPW10345407 $63.64

21

814371 Whirlpool Oven Rail Mount Backorder WPL 814371 $38.69

21

814372 Whirlpool Oven Rail Mount Backorder WPL 814372 $40.88

21

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

22

WP3196231 Whirlpool Knob In Stock WPL WP3196231 $11.02

23

Bracket, Switch Mounting WPL 3192330 Contact Us For Availability

23

Deflector WPL 4450051 Contact Us For Availability

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $54.63

26

Back, Chassis WPL 4452234 Contact Us For Availability

27

Liner, Oven (Not serviceable) WPL ARI124504A Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

37

WP4451354 Whirlpool Thermal Fuse Assembly Backorder WPL WP4451354 $16.23

43

Base, Chassis WPL 4455530 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

50

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $49.46

51

Trim, Bottom WPL 4448477 Contact Us For Availability

W11684730 Whirlpool Insulation Backorder WPL W11684730 $45.31

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

Support, Bracket WPL 4449845 Contact Us For Availability

Insulation, Back WPL 4450365 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED INSULATION WPL ARI124505A Contact Us For Availability
