Model Whirlpool RS6100XKW0 – Common Parts & Diagrams
05 - COOK TOP
03 - OVEN

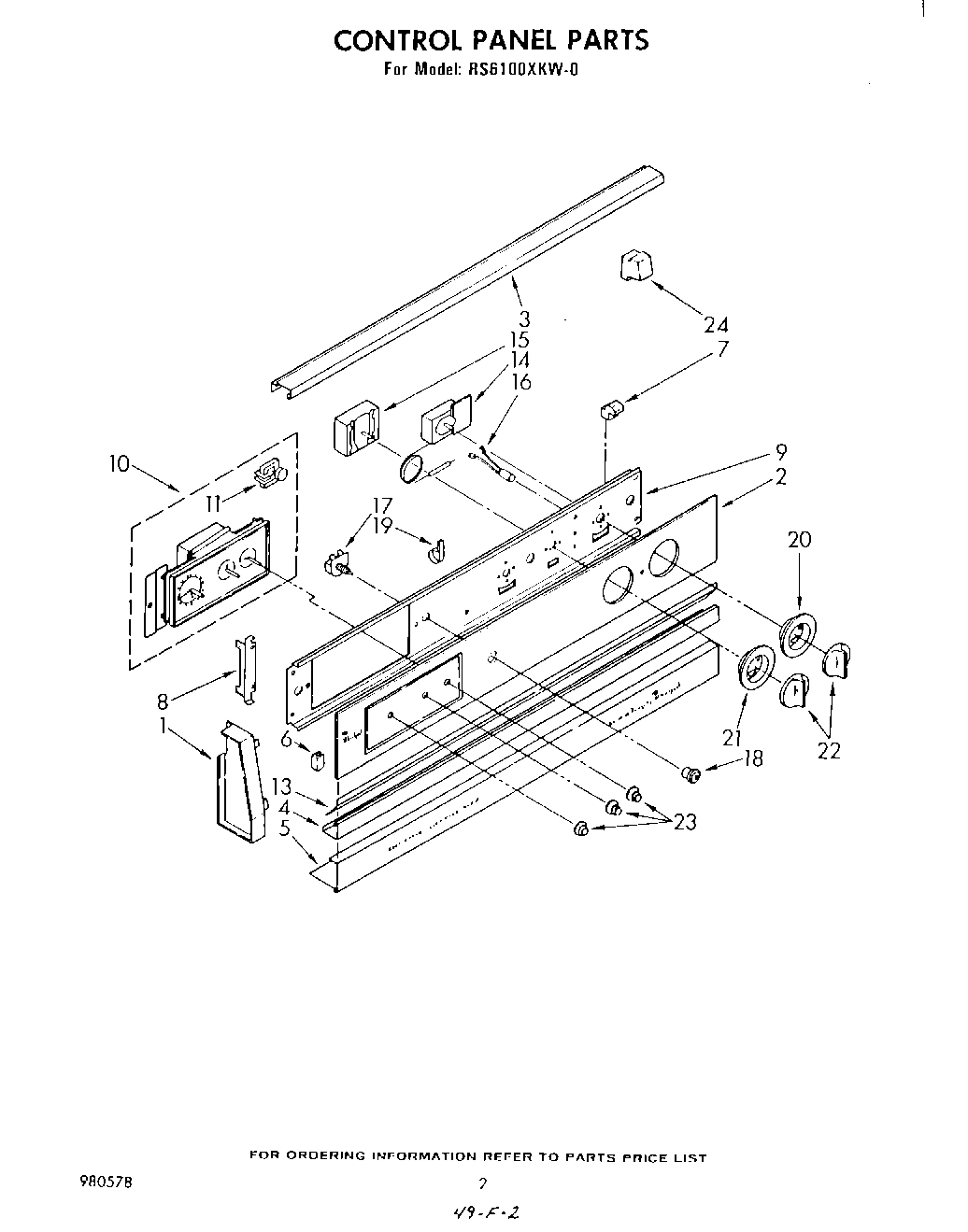

02 - CONTROL PANEL

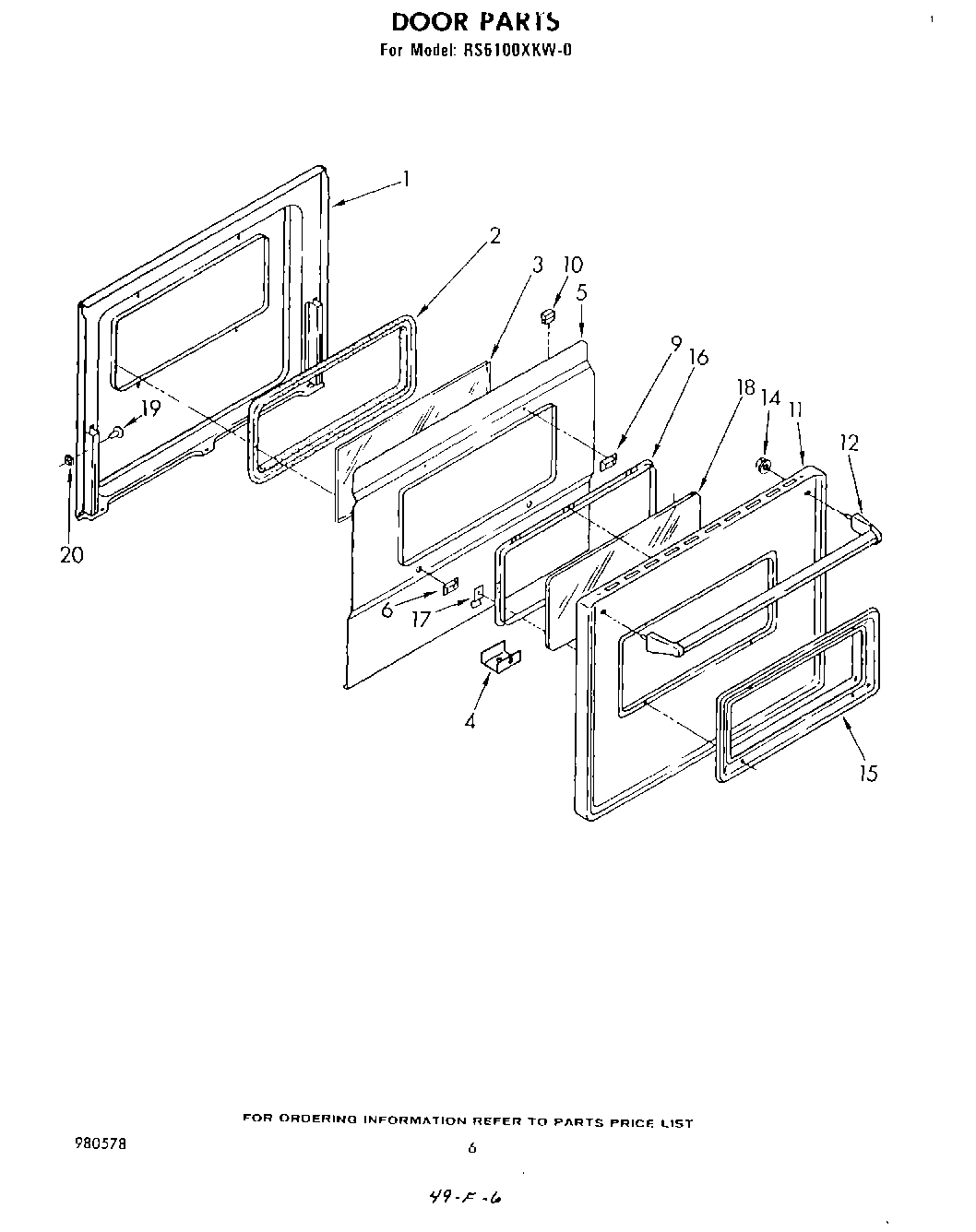

04 - DOOR , LITERATURE AND OPTIONAL
Common parts from model Whirlpool RS6100XKW0
WPL 261887 WPL 261887 Contact Us For Availability
WPL 261889 WPL 261889 Contact Us For Availability
WPL 261891 WPL 261891 Contact Us For Availability
WPL 285367 WPL 285367 Contact Us For Availability
WPL 285368 WPL 285368 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
1
Frame, Front WPL 328747 Contact Us For Availability
1
screw, (4) WPL 311056 Contact Us For Availability
1
End Cap (Screw (2)) WPL 308504 Contact Us For Availability
1
End Cap (L.H.) WPL 310826 Contact Us For Availability
1
End Cap (R.H.) WPL 310827 Contact Us For Availability
1
Liner, Door WPL 329687 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Control Panel, Glass WPL 312525 Contact Us For Availability
2
seal, pano glass WPL 258711 Contact Us For Availability
3
Rail, Top WPL 310819 Contact Us For Availability
3
glass, inner 30`` WPL 258988 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Trim, Center WPL 311195 Contact Us For Availability
4
Spacer, Door (2) WPL 309137 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
5
Screw (4) WPL 342043 Contact Us For Availability
5
Rail, Bottom WPL 312530 Contact Us For Availability
5
Baffle WPL 307924 Contact Us For Availability
6
Side Wrapper (Right Side) WPL 311006 Contact Us For Availability
6
Side Wrapper (Left Side) WPL 311009 Contact Us For Availability
6
Channel, Rubber (2) WPL 310842 Contact Us For Availability
6
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Retainer, Glass (4) WPL 310823 Contact Us For Availability
8
Baffle, Top Insulation WPL 310693 Contact Us For Availability
8
Bracket, Control Panel (2) WPL 310720 Contact Us For Availability
8
Screw (4) WPL 98520 Contact Us For Availability
9
SIDE TRIM R.S. (Side Trim R.S.) WPL 310685 Contact Us For Availability
9
Bracket, Control WPL 310727 Contact Us For Availability
9
Spacer, Baffle (2) WPL 258990 Contact Us For Availability
10
Oven, 30`` Conventional WPL 328758 Contact Us For Availability
10
Timer WPL 312803 Contact Us For Availability
10
Bumper, Rubber WPL 312783 Contact Us For Availability
11
Heat Seal WPL 309107 Contact Us For Availability
11
Motor, Timer WPL 309822 Contact Us For Availability
11
Panel (White) WPL 307888 Contact Us For Availability
11
Panel (New Avocado) WPL 307890 Contact Us For Availability
11
Panel (Coffee) WPL 307892 Contact Us For Availability
11
Panel (Harvest Gold) WPL 307894 Contact Us For Availability
11
Panel (Almond) WPL 307896 Contact Us For Availability
11
Panel (Screw, 8A x 5/8) WPL 309133 Contact Us For Availability
11
Panel (Toast) WPL 313175 Contact Us For Availability
11
Panel (Platinum) WPL 313176 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Handle, Door WPL 311564 Contact Us For Availability
13
Plug Button WPL 257314 Contact Us For Availability
13
Seal, Backguard WPL 255893 Contact Us For Availability
14
Thermostat, Oven (Alternate) WPL 310861 Contact Us For Availability
14
Thermostat, Oven (Alternate) WPL 311495 Contact Us For Availability
14
Thermostat, Oven (Screw, 6-32 x 1/4 (2)) WPL 487384 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
15
Switch, Selector (4 Position) WPL 310866 Contact Us For Availability
15
Window Frame 30`` WPL 309173 Contact Us For Availability
16
Glass Retainer 30`` WPL 307792 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
Light, Indicator (250 V) WPL 308753 Contact Us For Availability
17
Channel Arm (2) WPL 329713 Contact Us For Availability
17
Switch, Oven Light WPL 312581 Contact Us For Availability
17
Clip, Frame WPL 307731 Contact Us For Availability
18
Bezel Switch WPL 313030 Contact Us For Availability
18
Glass, Outer 30`` WPL 307732 Contact Us For Availability
18
Screw, 7-19 x 3/8 (8) WPL 313045 Contact Us For Availability
19
Retainer Ring (2) WPL 307594 Contact Us For Availability
19
Screw, 10-32 x 5/16 WPL 166681 Contact Us For Availability
19
Strain, Relief WPL 308609 Contact Us For Availability
19
Pin, Wedge WPL 312223 Contact Us For Availability
20
Escutcheon, Thermostat WPL 311065 Contact Us For Availability
20
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
20
Spring, Door Stop (2) WPL 311092 Contact Us For Availability
20
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
20
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
20
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
20
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
20
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
20
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
20
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
20
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
20
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
20
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
20
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
20
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
20
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
20
Rotisserie Kit WPL 242985 Contact Us For Availability
20
WPL 261582 WPL 261582 Contact Us For Availability
20
WPL 261810 WPL 261810 Contact Us For Availability
20
WPL 261825 WPL 261825 Contact Us For Availability
20
WPL 261886 WPL 261886 Contact Us For Availability
20
WPL 261888 WPL 261888 Contact Us For Availability
20
WPL 261890 WPL 261890 Contact Us For Availability
20
WPL 285365 WPL 285365 Contact Us For Availability
20
WPL 285366 WPL 285366 Contact Us For Availability
20
WPL 308500 WPL 308500 Contact Us For Availability
20
WPL 311409 WPL 311409 Contact Us For Availability
20
WPL 311433 WPL 311433 Contact Us For Availability
20
WPL 311896 WPL 311896 Contact Us For Availability
20
WPL 72108 WPL 72108 Contact Us For Availability
20
WPL 72112 WPL 72112 Contact Us For Availability
20
WPL 799351 WPL 799351 Contact Us For Availability
20
WPL 799832 WPL 799832 Contact Us For Availability
20
WPL 980578 WPL 980578 Contact Us For Availability
21
Medallion, Surface Unit WPL 309195 Contact Us For Availability
21
Screw, 8 x 1/4 (2) WPL 254225 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
23
Knob, Timer (3) WPL 312808 Contact Us For Availability
23
Extension, Vent WPL 310835 Contact Us For Availability
24
Eliminator, Smoke WPL 310840 Contact Us For Availability
24
Top, Support (2) WPL 312752 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
27
Unit, Broil (Screw, 10-32 x 5/8) WPL 246127 Contact Us For Availability
28
Socket, Oven Light (Alternate) WPL 307856 Contact Us For Availability
28
Socket, Oven Light (Screw, 10-12 x 7/8 (2)) WPL 308043 Contact Us For Availability
28
Socket, Oven Light (Alternate) WPL 310208 Contact Us For Availability
30
Switch, Door WPL 310345 Contact Us For Availability
31
WPL 310714 WPL 310714 Contact Us For Availability
31
WPL 310715 WPL 310715 Contact Us For Availability
33
WPL 310458 WPL 310458 Contact Us For Availability
34
WPL 311592 WPL 311592 Contact Us For Availability
35
WPL 309029 WPL 309029 Contact Us For Availability
35
WPL 310668 WPL 310668 Contact Us For Availability
38
WPL 308173 WPL 308173 Contact Us For Availability
39
WPL 308172 WPL 308172 Contact Us For Availability
40
WPL 310459 WPL 310459 Contact Us For Availability
41
WPL 311012 WPL 311012 Contact Us For Availability
× ![]()
