Model Whirlpool RS575PXR2 – Common Parts & Diagrams

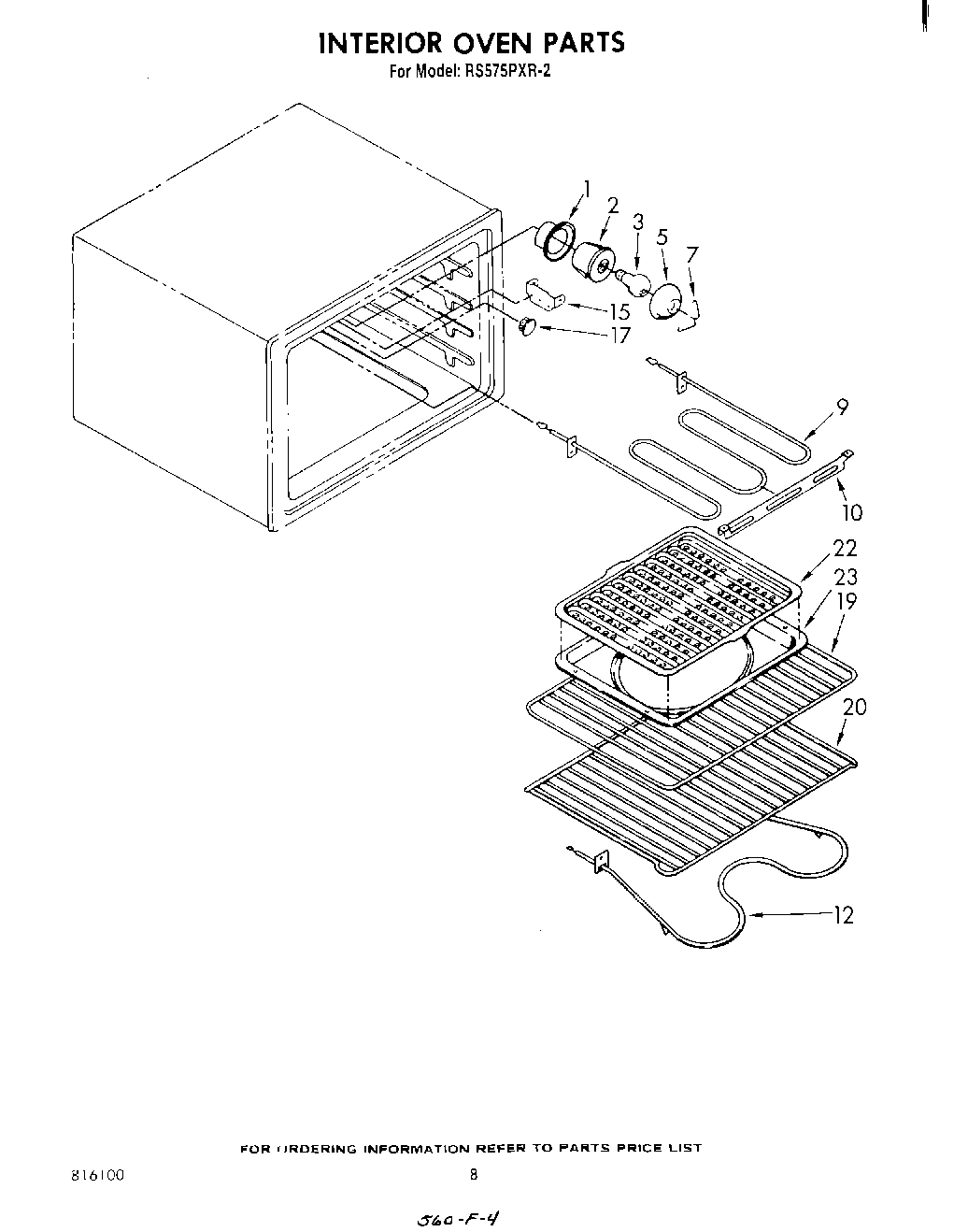

06 - INTERIOR OVEN

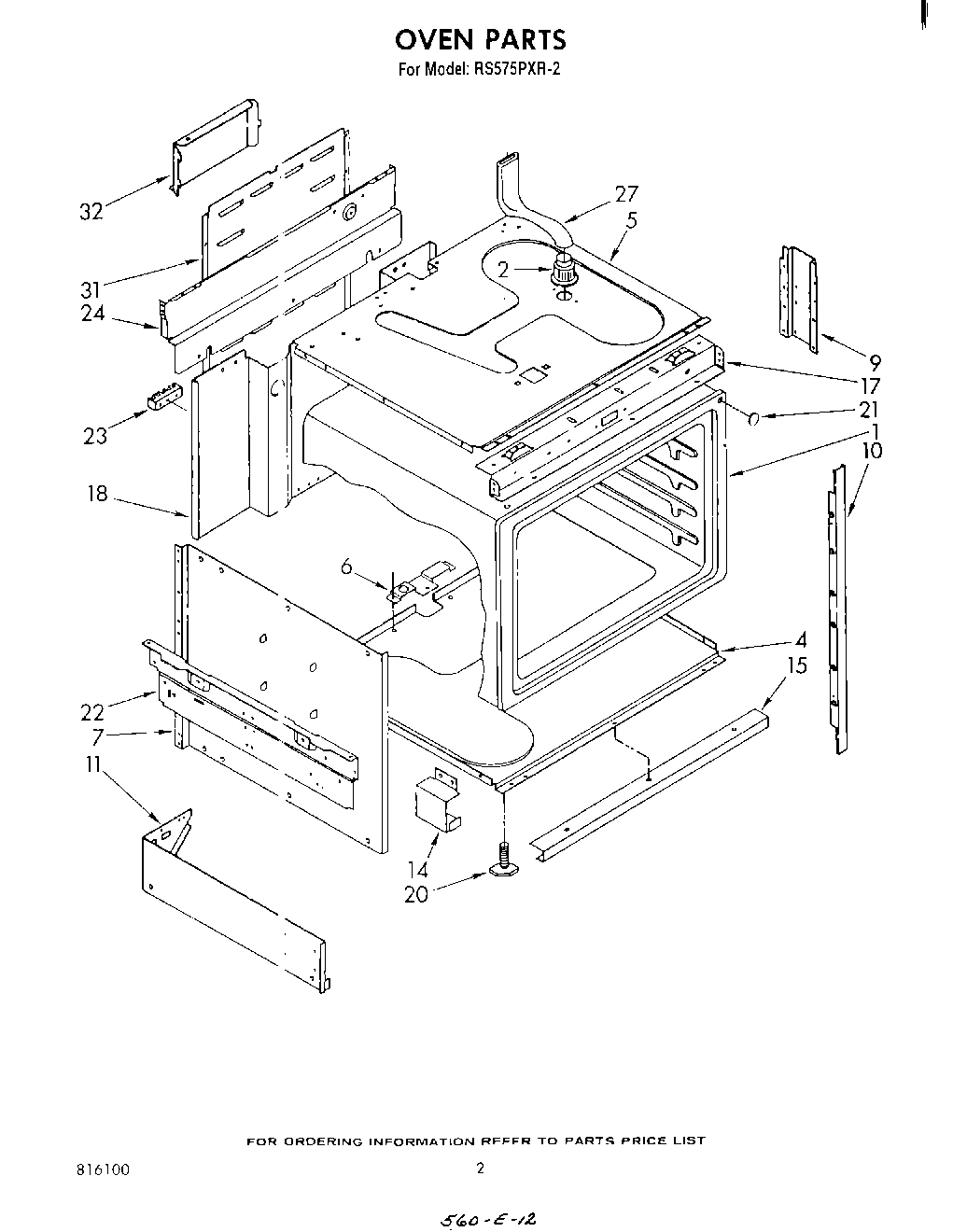

02 - OVEN

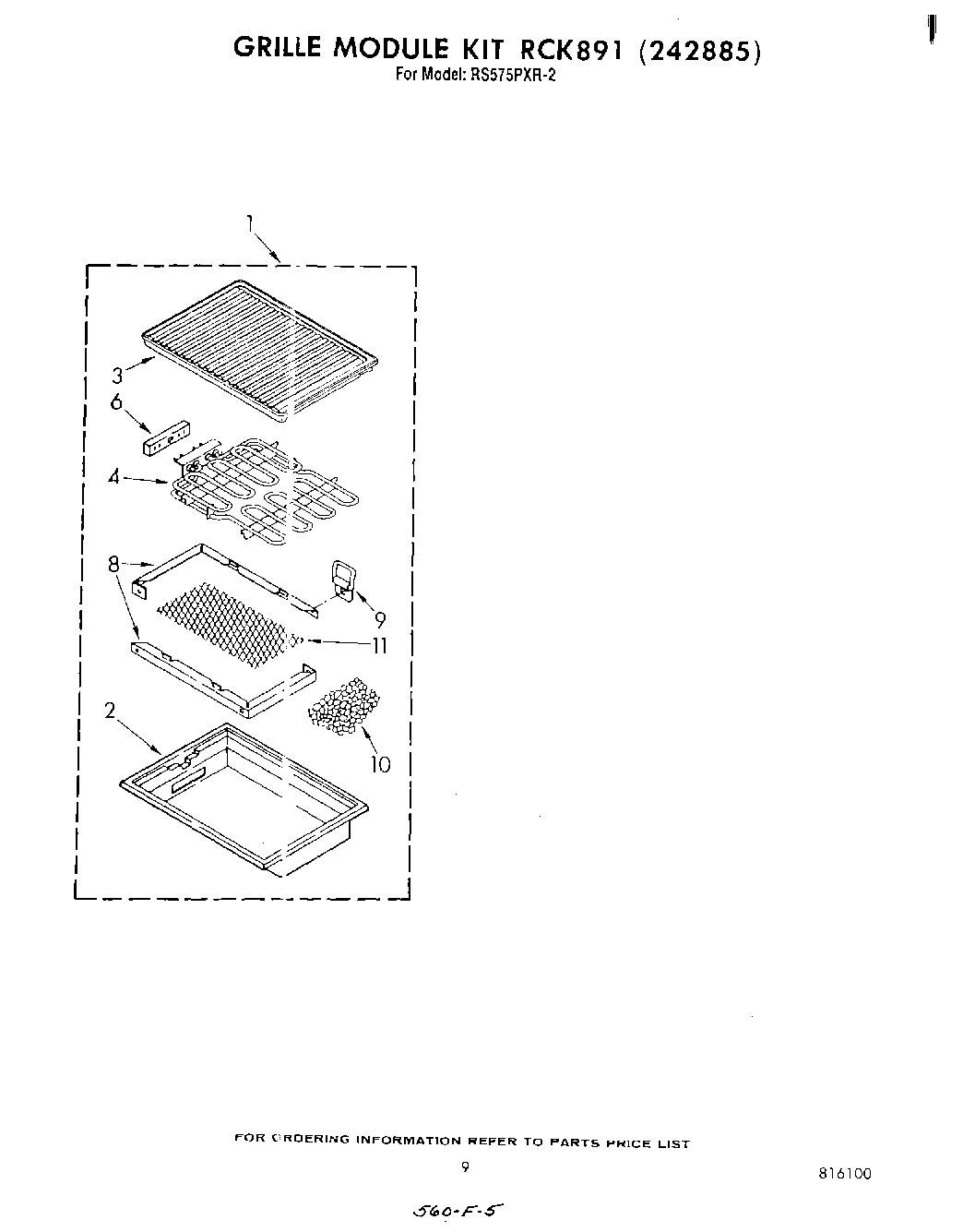

07 - GRILLE RCK 891 (242885) , LIT/OPTIONAL

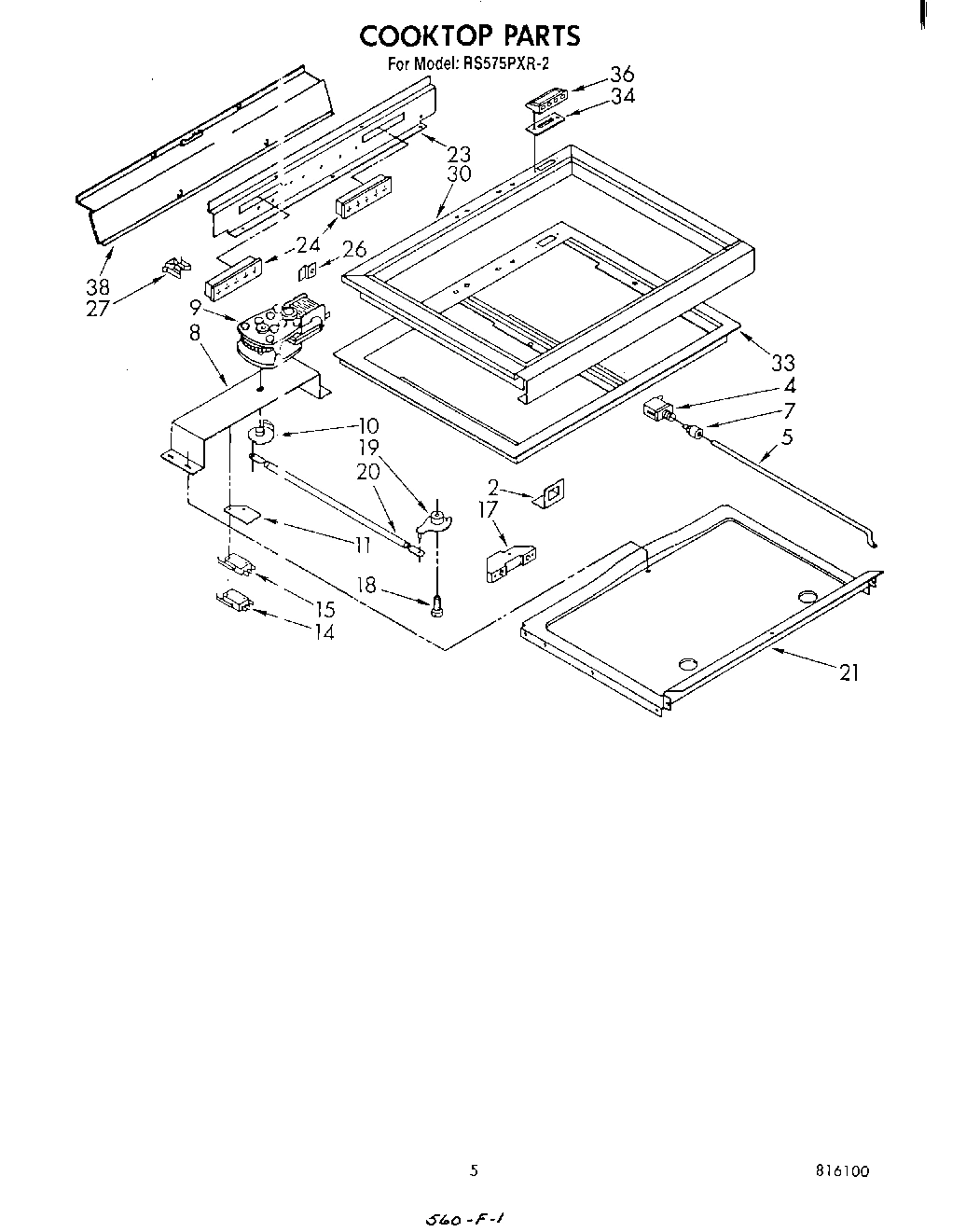

04 - COOK TOP

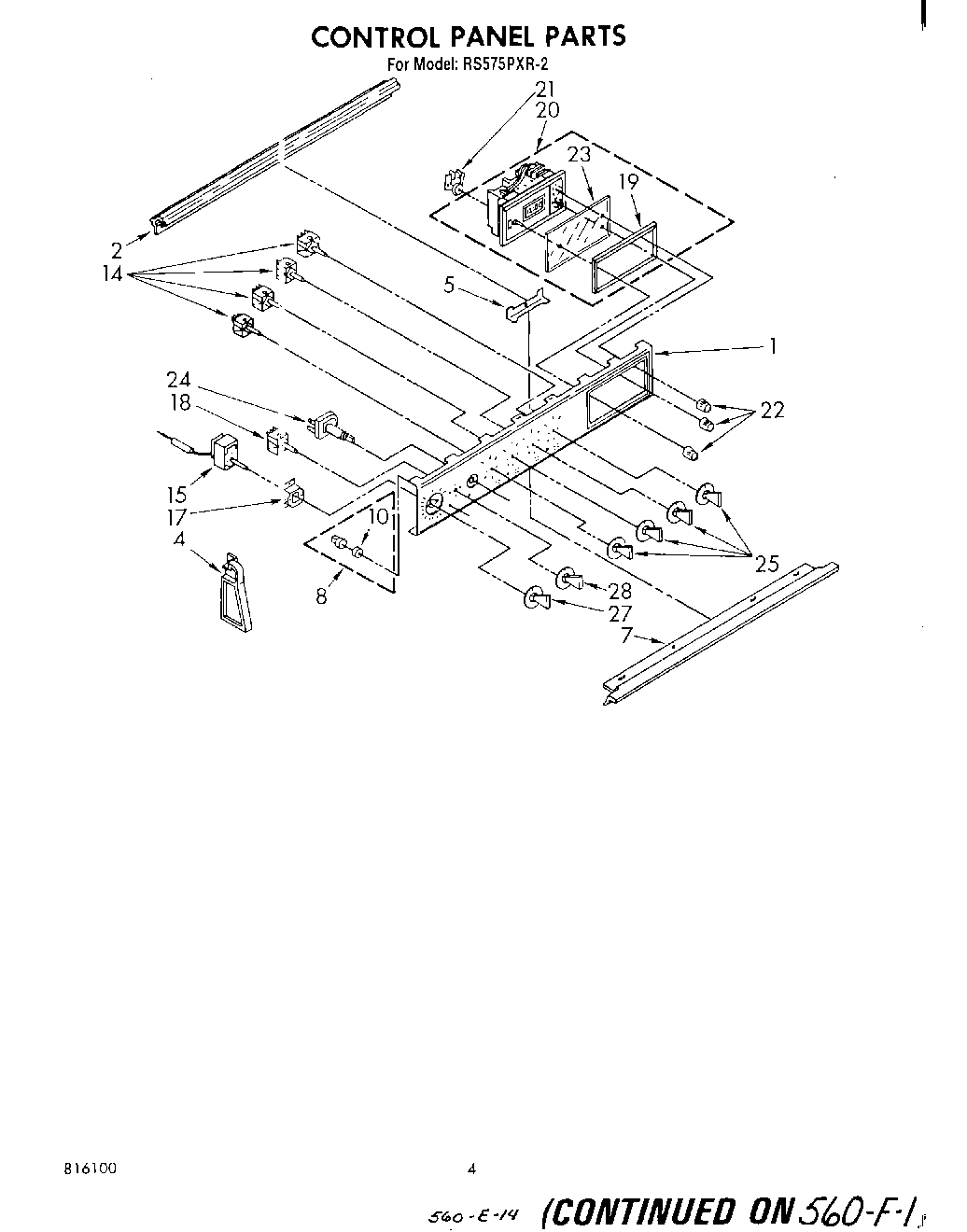

03 - CONTROL PANEL

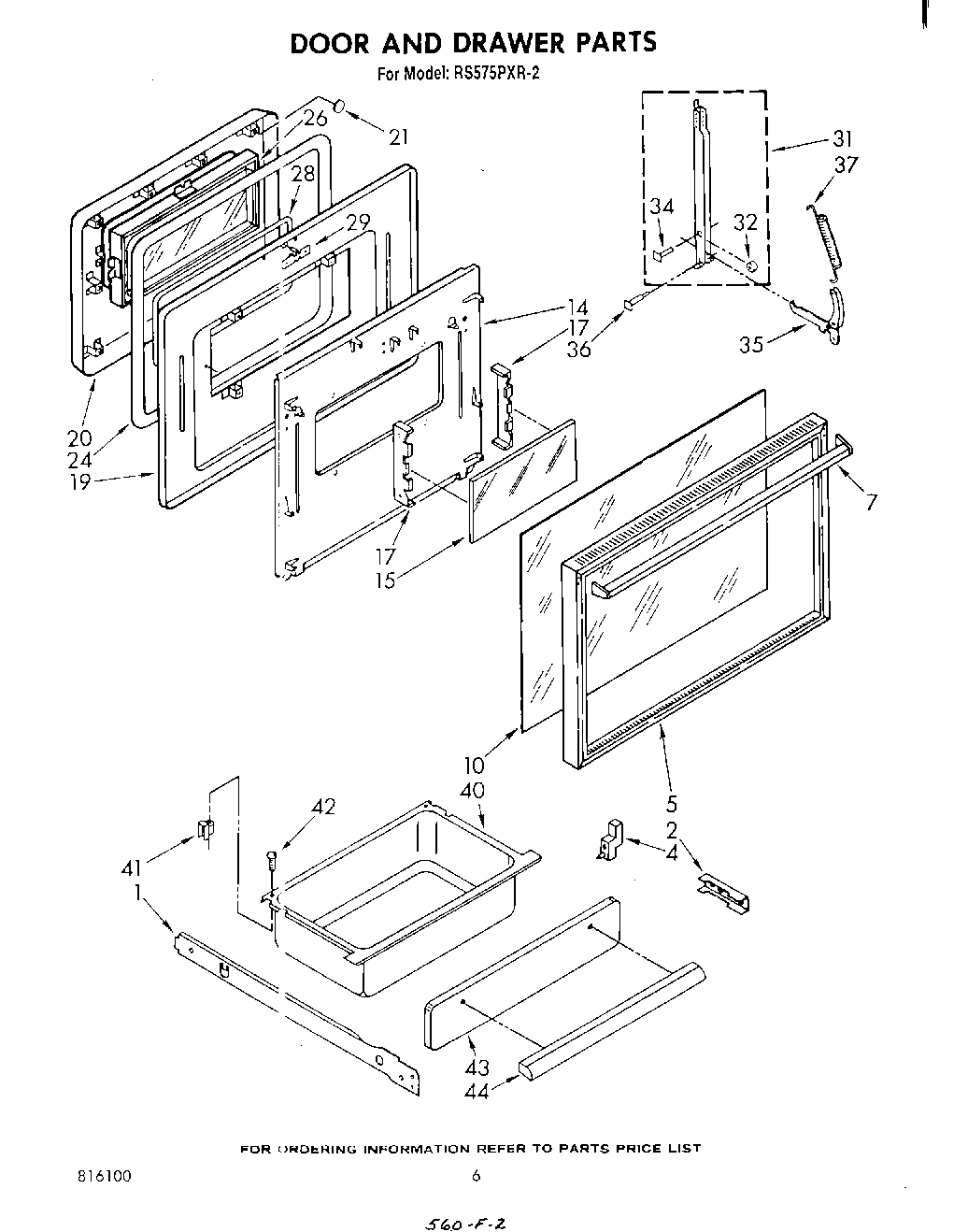

05 - DOOR AND DRAWER
Common parts from model Whirlpool RS575PXR2
WPL LIT816021 WPL LIT816021 Contact Us For Availability
WPL LIT816052 WPL LIT816052 Contact Us For Availability
WPL LIT816100 WPL LIT816100 Contact Us For Availability
WPL LIT877750 WPL LIT877750 Contact Us For Availability
WPL LIT877952 WPL LIT877952 Contact Us For Availability
1
Oven, Self Clean WPL 877807 Contact Us For Availability
1
Grill Kit, Complete WPL 242885 Contact Us For Availability
1
Panel, Control WPL 877712 Contact Us For Availability
1
Rail, Drawer (Right Side) WPL 816031 Contact Us For Availability
1
Rail, Drawer (Left Side) WPL 816032 Contact Us For Availability
2
Screw, 10-24 x 3/8 (2) WPL 241428 Contact Us For Availability
2
Vent Tube WPL 877898 Contact Us For Availability
2
Pan, Grill WPL 877548 Contact Us For Availability
2
Bracket, Door Latch Switch WPL 865961 Contact Us For Availability
2
Rail, Control Panel (Top) WPL 868819 Contact Us For Availability
2
Rail, Control Panel (Bottom) WPL 868820 Contact Us For Availability
2
Spacer, Drawer Rail (2) WPL 877727 Contact Us For Availability
3
Rack, Grill (2) WPL 877549 Contact Us For Availability
4
Retainer, Insulation (Bottom) WPL 816101 Contact Us For Availability
4
Screw, 10-24 x 7/8 (2) WPL 834649 Contact Us For Availability
4
Unit, Dual (2200W) WPL 877541 Contact Us For Availability
4
End Cap R.H. WPL 816034 Contact Us For Availability
4
End Cap L.H. WPL 816035 Contact Us For Availability
4
Guide, Drawer Front (2) WPL 868127 Contact Us For Availability
5
Retainer, Insulation (Top) WPL 877708 Contact Us For Availability
5
Push Rod, Switch WPL 877523 Contact Us For Availability
5
Bracket, Control Panel (Screw, 8-32 x 3/8 (2) WPL 595135 Contact Us For Availability
5
Bracket, Control Panel (Upper) WPL 868823 Contact Us For Availability
5
Bracket, Control Panel (Lower) WPL 868824 Contact Us For Availability
5
Frame, Oven Door WPL 816111 Contact Us For Availability
6
Bracket, Conduit WPL 816102 Contact Us For Availability
6
Receptacle, Male WPL 868437 Contact Us For Availability
6
Pushnut, 1/4`` WPL 868878 Contact Us For Availability
7
Retainer, Insulation Side (2) WPL 877721 Contact Us For Availability
7
Rod End, Switch WPL 877562 Contact Us For Availability
7
Deflector, Heat WPL 877698 Contact Us For Availability
7
Washer, Flat (4) WPL 877699 Contact Us For Availability
7
Screw, 6-32 x 1/2 (4) WPL 877889 Contact Us For Availability
7
Handle, Door WPL 877906 Contact Us For Availability
8
Frame, Basket (2) WPL 877542 Contact Us For Availability
8
Support, Latch Motor WPL 816114 Contact Us For Availability
8
Light, Indicator (125V) (Right Module, Left M WPL 877865 Contact Us For Availability
8
Light, Indicator (Lock, Oven) WPL 877900 Contact Us For Availability
9
Support, Front (2) WPL 877899 Contact Us For Availability
9
Handle, Basket (2) WPL 877543 Contact Us For Availability
9
Motor, Door Latch WPL 816113 Contact Us For Availability
10
Trim, Oven (Front) (2) WPL 877723 Contact Us For Availability
10
Rocks, Lava (4 Lbs.) WPL 868460 Contact Us For Availability
10
Pin, Spring WPL 816107 Contact Us For Availability
10
Cam, Door Latch WPL 816112 Contact Us For Availability
10
Lens, Indicator Light (5) WPL 868934 Contact Us For Availability
10
Glass, Outer (Black) WPL 877907 Contact Us For Availability
11
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
11
WPL 799344 WPL 799344 Contact Us For Availability
11
Side Panel (Lower) (Right Side) WPL 877724 Contact Us For Availability
11
Side Panel (Lower) (Left Side) WPL 877725 Contact Us For Availability
11
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
11
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
11
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
11
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
11
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
11
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
11
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
11
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
11
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
11
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
11
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
11
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
11
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
11
Rotisserie Kit (RCK 892) WPL 242886 Contact Us For Availability
11
Surface Unit Module, 1-6`` 1-8`` WPL 242903 Contact Us For Availability
11
Grease WPL 261582 Contact Us For Availability
11
Touch-Up, Oven (1 Oz.) WPL 261748 Contact Us For Availability
11
Coffee WPL 261886 Contact Us For Availability
11
Coffee (Uncut) WPL 261887 Contact Us For Availability
11
New Avocado WPL 261888 Contact Us For Availability
11
New Avocado (Uncut) WPL 261889 Contact Us For Availability
11
Harvest Gold WPL 261890 Contact Us For Availability
11
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
11
Griddle Kit (RCK 884) WPL 261950 Contact Us For Availability
11
WPL 72108 WPL 72108 Contact Us For Availability
11
WPL 799832 WPL 799832 Contact Us For Availability
11
WPL 834469 WPL 834469 Contact Us For Availability
11
WPL 834470 WPL 834470 Contact Us For Availability
11
WPL 877609 WPL 877609 Contact Us For Availability
11
WPL 877691 WPL 877691 Contact Us For Availability
11
WPL 877692 WPL 877692 Contact Us For Availability
11
WPL 877703 WPL 877703 Contact Us For Availability
11
WPL 877704 WPL 877704 Contact Us For Availability
11
WPL 877705 WPL 877705 Contact Us For Availability
11
WPL 877860 WPL 877860 Contact Us For Availability
11
WPL 877959 WPL 877959 Contact Us For Availability
11
WPL 978883 WPL 978883 Contact Us For Availability
11
Insulator, Limit Switch (2) WPL 834905 Contact Us For Availability
14
Shield, Toe (2) WPL 877709 Contact Us For Availability
14
Switch Limit (Lower) (Alternate) WPL 834906 Contact Us For Availability
14
Switch Limit (Lower) (Alternate) WPL 877877 Contact Us For Availability
14
Panel, Airwash WPL 816110 Contact Us For Availability
15
Screw, 10-24 x 1/2 WPL 486146 Contact Us For Availability
15
Channel, Oven Support (Lower) WPL 877726 Contact Us For Availability
15
Switch Limit (Upper) (Screw, 4-40 x 1-1/4 (2) WPL 834903 Contact Us For Availability
15
Switch Limit (Upper) (Alternate) WPL 868280 Contact Us For Availability
15
Switch Limit (Upper) (Alternate) WPL 877878 Contact Us For Availability
15
Thermostat WPL 877527 Contact Us For Availability
15
Glass, Inner WPL 868502 Contact Us For Availability
17
Bracket, Cooktop WPL 877522 Contact Us For Availability
17
Housing, Latch WPL 877614 Contact Us For Availability
17
Bracket, Thermostat Mounting WPL 816078 Contact Us For Availability
17
Retainer, Glass (2) WPL 868503 Contact Us For Availability
18
Back, Range (Lower) WPL 816103 Contact Us For Availability
18
Screw, 8-32 x 3/16 (2) WPL 877919 Contact Us For Availability
18
Switch, Oven Selector WPL 877901 Contact Us For Availability
19
Rack, Oven Regular WPL 865983 Contact Us For Availability
19
Latch, Door WPL 816105 Contact Us For Availability
19
Bezel, Clock WPL 834764 Contact Us For Availability
19
Liner, Oven Door WPL 877701 Contact Us For Availability
20
Rack, Oven (Offset) WPL 877951 Contact Us For Availability
20
Screw, Leveling (4) WPL 868880 Contact Us For Availability
20
Bar Tie WPL 816106 Contact Us For Availability
20
Timer, Range (Includes Illus. 21 & 22) WPL 816077 Contact Us For Availability
20
Baffle WPL 877540 Contact Us For Availability
21
Screw, 10-24 x 1/2 (2) WPL 680363 Contact Us For Availability
21
Plug Button (Light Switch Hole) WPL 251379 Contact Us For Availability
21
Panel, Subtop WPL 816079 Contact Us For Availability
21
Motor, Timer WPL 866403 Contact Us For Availability
21
Button, Plug 3/16 (2) WPL 142001 Contact Us For Availability
22
Panel Side, Upper (2) WPL 877711 Contact Us For Availability
22
Knob, Timer (3) WPL 255853 Contact Us For Availability
23
Pan, Broiler WPL 866218 Contact Us For Availability
23
Nut, Hex 10-32 (6) WPL 487836 Contact Us For Availability
23
Shield, Wire WPL 868833 Contact Us For Availability
23
Glass, Clock WPL 868843 Contact Us For Availability
24
Back, Range (Upper) WPL 877728 Contact Us For Availability
24
Receptacle, Porcelain (2) WPL 868420 Contact Us For Availability
24
Nut, Knurled 3/8-27 WPL 816036 Contact Us For Availability
24
Switch, Oven Light WPL 866148 Contact Us For Availability
24
Nut, Hex Flat 3/8-27 WPL 98754 Contact Us For Availability
24
Seal, Oven Door WPL 877590 Contact Us For Availability
25
Control Knob (4) (Surface Unit) WPL 877924 Contact Us For Availability
26
Clip, Receptacle (4) WPL 868421 Contact Us For Availability
26
Window WPL 877505 Contact Us For Availability
27
Tube, Oven Vent WPL 868829 Contact Us For Availability
27
Terminal Female WPL 816083 Contact Us For Availability
27
Knob, Thermostat WPL 868997 Contact Us For Availability
28
Screw, 10-24 x 1/2 (2) WPL 681151 Contact Us For Availability
28
Knob, Oven Selector WPL 868998 Contact Us For Availability
28
Seal, Window WPL 877506 Contact Us For Availability
29
Strike WPL 877507 Contact Us For Availability
30
Frame, Cooktop WPL 877714 Contact Us For Availability
31
Washer Flat (3) WPL 486608 Contact Us For Availability
31
Cover, Wiring WPL 816109 Contact Us For Availability
31
Screw, 10-24 x 1/2 (4) WPL 868430 Contact Us For Availability
31
Channel, Hinge (2) WPL 865972 Contact Us For Availability
32
Deflector, Air WPL 816104 Contact Us For Availability
32
Washer (2) WPL 816058 Contact Us For Availability
32
Roller,\ Door\ Stop (2) WPL 834471 Contact Us For Availability
33
Screw, 10-24 x 1/4 (6) WPL 868959 Contact Us For Availability
33
Cooktop, Modular WPL 877534 Contact Us For Availability
34
Gasket, Vent Tube WPL 816081 Contact Us For Availability
34
Rivet, Square Head (2) WPL 241423 Contact Us For Availability
35
Arm Assembly (2) WPL 865640 Contact Us For Availability
36
Pin, Hinge (2) WPL 877884 Contact Us For Availability
36
Cover, Vent WPL 816082 Contact Us For Availability
36
Clip, Retainer (2) WPL 877733 Contact Us For Availability
37
Spring, Door (2) WPL 241312 Contact Us For Availability
38
Shield, Wire WPL 816080 Contact Us For Availability
40
Nut, Hex 10-24 (2) WPL 441256 Contact Us For Availability
40
Drawer WPL 877716 Contact Us For Availability
41
Guide, Drawer (Rear) (2) WPL 877717 Contact Us For Availability
43
Panel, Drawer Black WPL 877734 Contact Us For Availability
44
Screw, 10-32 x 3/8 (4) WPL 877903 Contact Us For Availability
44
Handle, Drawer WPL 877718 Contact Us For Availability
× ![]()
