Model Whirlpool RS363BXTT2 – Common Parts & Diagrams
02 - INTERNAL OVEN
03 - EXTERNAL OVEN

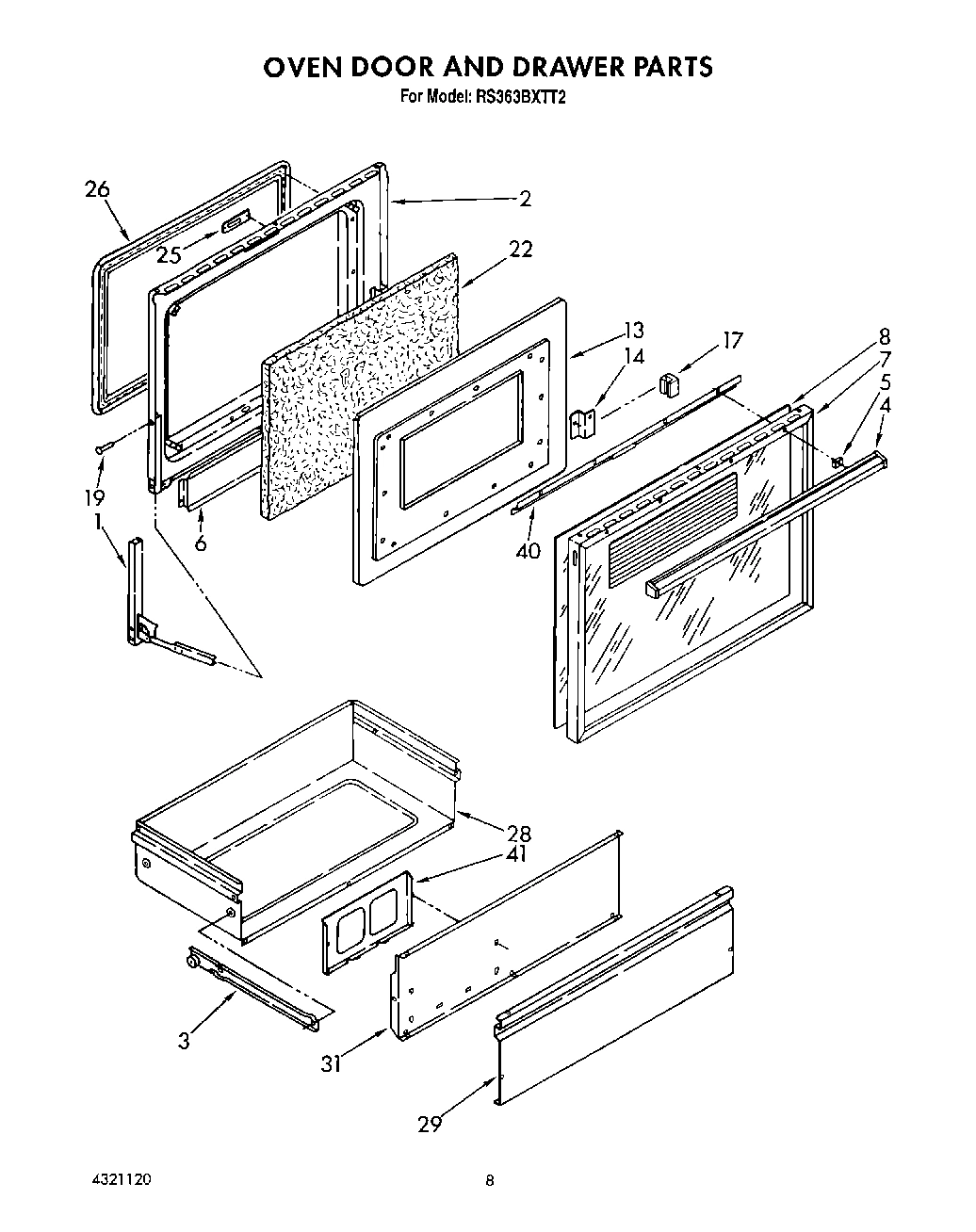

06 - OVEN DOOR AND DRAWER

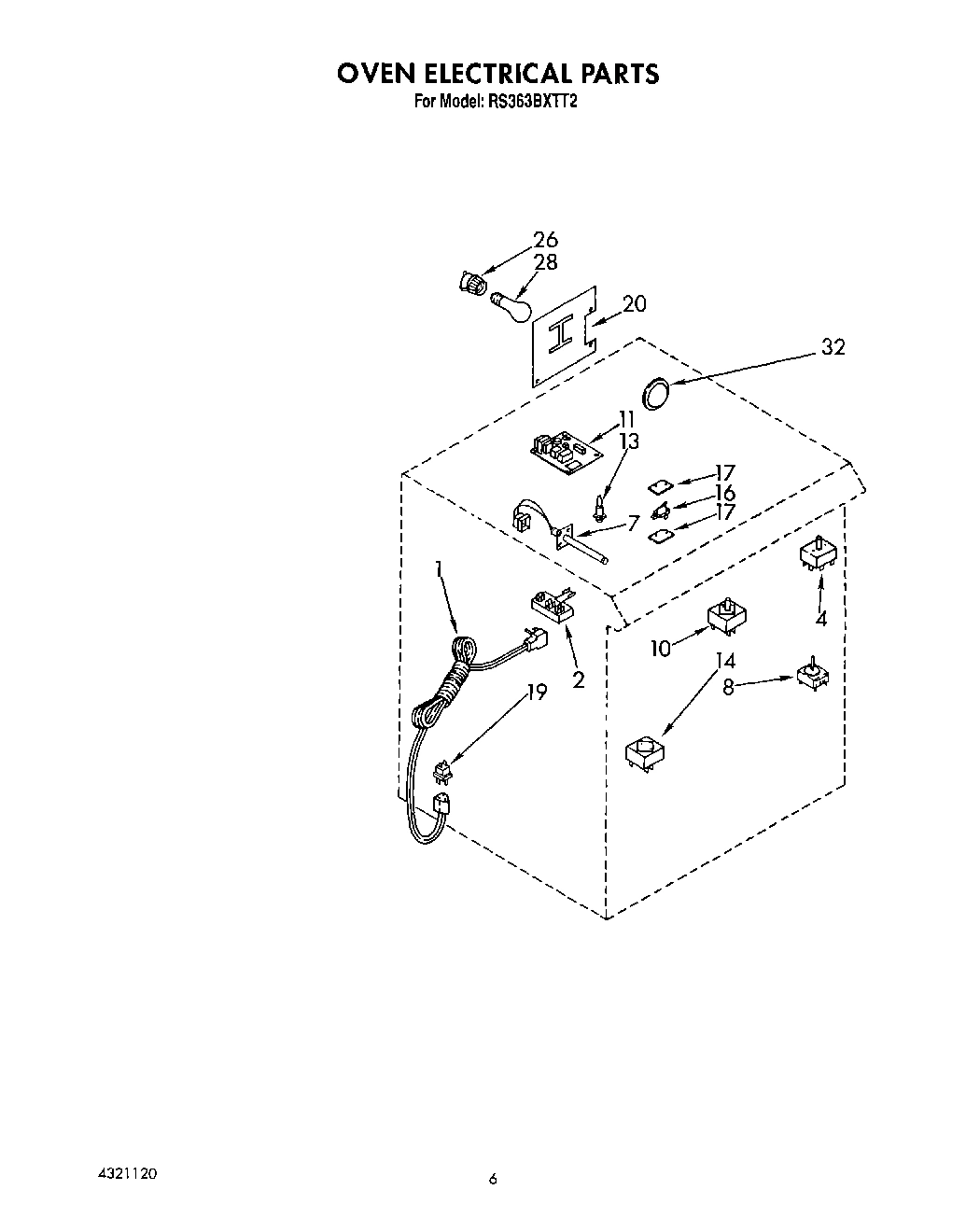

04 - OVEN ELECTRICAL

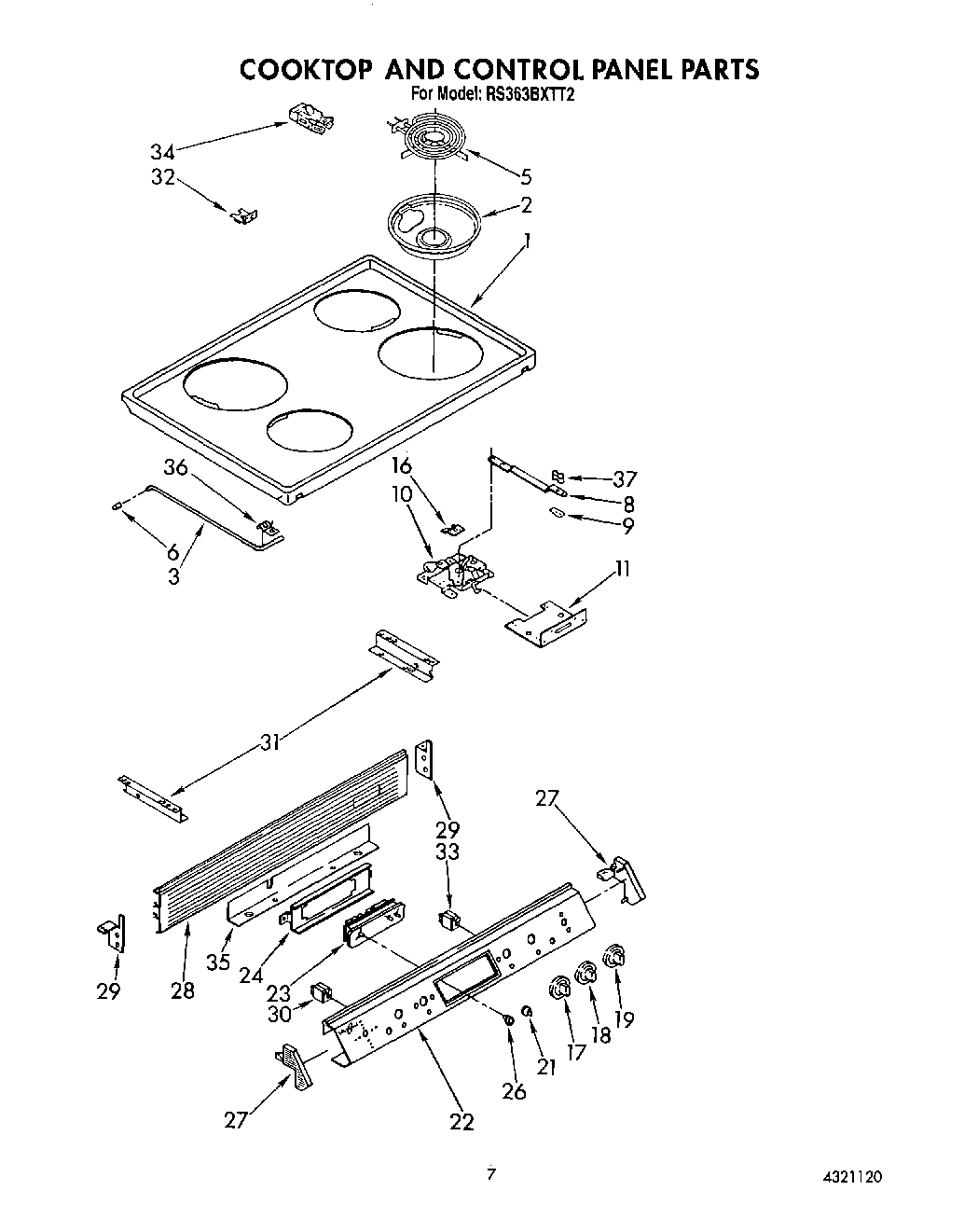

05 - COOKTOP AND CONTROL PANEL, LIT/OPTIONAL
Common parts from model Whirlpool RS363BXTT2
Guide, Use & Care WPL LIT4314828 Contact Us For Availability
Instructions, Installation WPL LIT4315481 Contact Us For Availability
List, Repair Parts WPL LIT4321120 Contact Us For Availability
Guide, Cooking WPL LIT786302 Contact Us For Availability
1
Element, Broil WPL 4315235 Contact Us For Availability
1
Frame, Front WPL 4320374 Contact Us For Availability
1
hinge, oven door (right side) WPL 786374 Contact Us For Availability
1
Hinge, Oven Door (Left Side) WPL 786375 Contact Us For Availability
1
Cord, Power WPL 786578 Contact Us For Availability
1
Top, Main (Chrome) WPL 4315239 Contact Us For Availability
2
Oven Liner WPL 4320828 Contact Us For Availability
2
Liner, Oven Door WPL 4320875 Contact Us For Availability
2
Screw, 8-32 X 5/8 (4) WPL 786755 Contact Us For Availability
2
Block, Terminal WPL 4315225 Contact Us For Availability
3
runner (l.h.) WPL 4320308 Contact Us For Availability
3
Runner (R.H.) WPL 4320309 Contact Us For Availability
3
Rod, Cooktop WPL 4157497 Contact Us For Availability
4
Baffle, Drip WPL 4315234 Contact Us For Availability
4
Handle WPL 786408 Contact Us For Availability
4
Switch, Selector WPL 786319 Contact Us For Availability
5
Vent Tube WPL 4315221 Contact Us For Availability
5
Track, Storage Draw (Left Side) WPL 4315769 Contact Us For Availability
5
Track, Storage Drawer (Rivet, Plastic (2)) WPL 786527 Contact Us For Availability
5
Spacer, Handle (4) WPL 786410 Contact Us For Availability
6
Baffle, Heat WPL 4320304 Contact Us For Availability
6
Top, Rod WPL 4157486 Contact Us For Availability
7
Smoke Eliminator WPL 4315224 Contact Us For Availability
7
Retainer, Bottom Insulation WPL 4320839 Contact Us For Availability
7
Frame WPL 786417 Contact Us For Availability
7
Sensor WPL 4315255 Contact Us For Availability
8
Flue Box WPL 4315227 Contact Us For Availability
8
Cover Box, Wiring WPL 4320936 Contact Us For Availability
8
Panel, Black Glass WPL 786418 Contact Us For Availability
8
Control, Thermostat WPL 4315247 Contact Us For Availability
8
Handle, Latch WPL 786376 Contact Us For Availability
9
Support, Handle WPL 786690 Contact Us For Availability
10
Flue Box Extension WPL 4315228 Contact Us For Availability
10
Retainer, Insulation (2) WPL 4315768 Contact Us For Availability
10
Switch, Infinite (4) WPL 4315248 Contact Us For Availability
10
Latch Assembly WPL 4315272 Contact Us For Availability
11
Panel, End (2) WPL 4321113 Contact Us For Availability
11
Circuit Board WPL 4315256 Contact Us For Availability
11
Bracket, Latch Mounting WPL 4315774 Contact Us For Availability
13
Insulation, Top & Rear WPL 4320838 Contact Us For Availability
13
Mounting Bracket, Control Board WPL 4315252 Contact Us For Availability
13
Retainer, Insulation WPL 4315799 Contact Us For Availability
13
Support, Circuit Board (4) WPL 4315254 Contact Us For Availability
14
Cover, Control Board WPL 4315233 Contact Us For Availability
14
bracket, glass support (4) WPL 786425 Contact Us For Availability
14
Fixed Setting Infinite Switch WPL 4315258 Contact Us For Availability
16
Rear Panel, Lower WPL 4321155 Contact Us For Availability
16
nut, 6-32 WPL 786748 Contact Us For Availability
16
bushing, snap WPL 786750 Contact Us For Availability
16
Switch, Oven Door Latch WPL 786669 Contact Us For Availability
16
screw, 4-40 x 5/8 (2) WPL 786751 Contact Us For Availability
16
Bracket, Switch WPL 786381 Contact Us For Availability
16
screw, 4-40 (2) WPL 786752 Contact Us For Availability
17
Trim, Side Panel (Right Hand) WPL 4321156 Contact Us For Availability
17
Trim, Side Panel (Left Hand) WPL 4321157 Contact Us For Availability
17
Bumper, Window (2) WPL 4179237 Contact Us For Availability
17
Insulator, Switch WPL 786380 Contact Us For Availability
17
Knob, Selector WPL 786562 Contact Us For Availability
18
Screw (2) WPL 4315273 Contact Us For Availability
18
Knob, Oven Control WPL 4315250 Contact Us For Availability
19
Pin, Hinge (2) WPL 786428 Contact Us For Availability
19
Plug, Male WPL 786570 Contact Us For Availability
19
Knob, Top Element WPL 4315251 Contact Us For Availability
20
Rack, Oven (2) WPL 786347 Contact Us For Availability
20
Retainer, Oven Light WPL 4315277 Contact Us For Availability
20
Filler, Front Frame WPL 4320801 Contact Us For Availability
21
Knob, Timer WPL 786434 Contact Us For Availability
22
Insulation, Door WPL 4315673 Contact Us For Availability
22
Control Panel WPL 4315245 Contact Us For Availability
23
Pan, Broiler WPL 4315109 Contact Us For Availability
23
Timer WPL 4315011 Contact Us For Availability
24
Mounting Bracket Timer WPL 4315012 Contact Us For Availability
25
Grid, Broiler WPL 786346 Contact Us For Availability
25
Leg, Leveling (4) WPL 786602 Contact Us For Availability
25
Plate, Latch (2) WPL 786671 Contact Us For Availability
25
Lens, Indicator Light WPL 4321150 Contact Us For Availability
26
gasket assembly WPL 4320302 Contact Us For Availability
26
Socket, Oven Lamp WPL 786653 Contact Us For Availability
26
Bushing, Clock WPL 4315007 Contact Us For Availability
27
Nut (4) WPL 4157527 Contact Us For Availability
27
Endcap (R.H.) WPL 4315008 Contact Us For Availability
27
Endcap (L.H.) WPL 4315009 Contact Us For Availability
28
Wrapper, Storage Drawer WPL 4320306 Contact Us For Availability
28
Rail, Back WPL 4315314 Contact Us For Availability
29
Panel, Drawer WPL 4314976 Contact Us For Availability
29
Endcap, Backrail (Right Hand) WPL 4315014 Contact Us For Availability
29
Endcap, Backrail (Left Hand) WPL 4315015 Contact Us For Availability
30
Indicator, Light (3) WPL 4315016 Contact Us For Availability
31
Liner, Door Panel WPL 4320307 Contact Us For Availability
31
Support, Backguard (R.H.) WPL 4315222 Contact Us For Availability
31
Support, Backguard (L.H.) WPL 4315223 Contact Us For Availability
32
Bracket, Oven Shell WPL 4320934 Contact Us For Availability
32
Hinge, Upper WPL 4315242 Contact Us For Availability
33
Switch, Oven Light WPL 4179328 Contact Us For Availability
33
Indicator, Light WPL 4315246 Contact Us For Availability
34
Cover, Sensor WPL 4315253 Contact Us For Availability
35
Anti Tip Kit WPL 4315756 Contact Us For Availability
35
Heat Shield WPL 4315275 Contact Us For Availability
36
Clamp, Rod WPL 4157539 Contact Us For Availability
37
Knob, Latch Handle WPL 786386 Contact Us For Availability
40
Baffle, Air WPL 786422 Contact Us For Availability
41
Rack, Literature WPL 786807 Contact Us For Availability
× ![]()
