Model Whirlpool RS363BXTT0 – Common Parts & Diagrams
03 - EXTERNAL OVEN
02 - INTERNAL OVEN

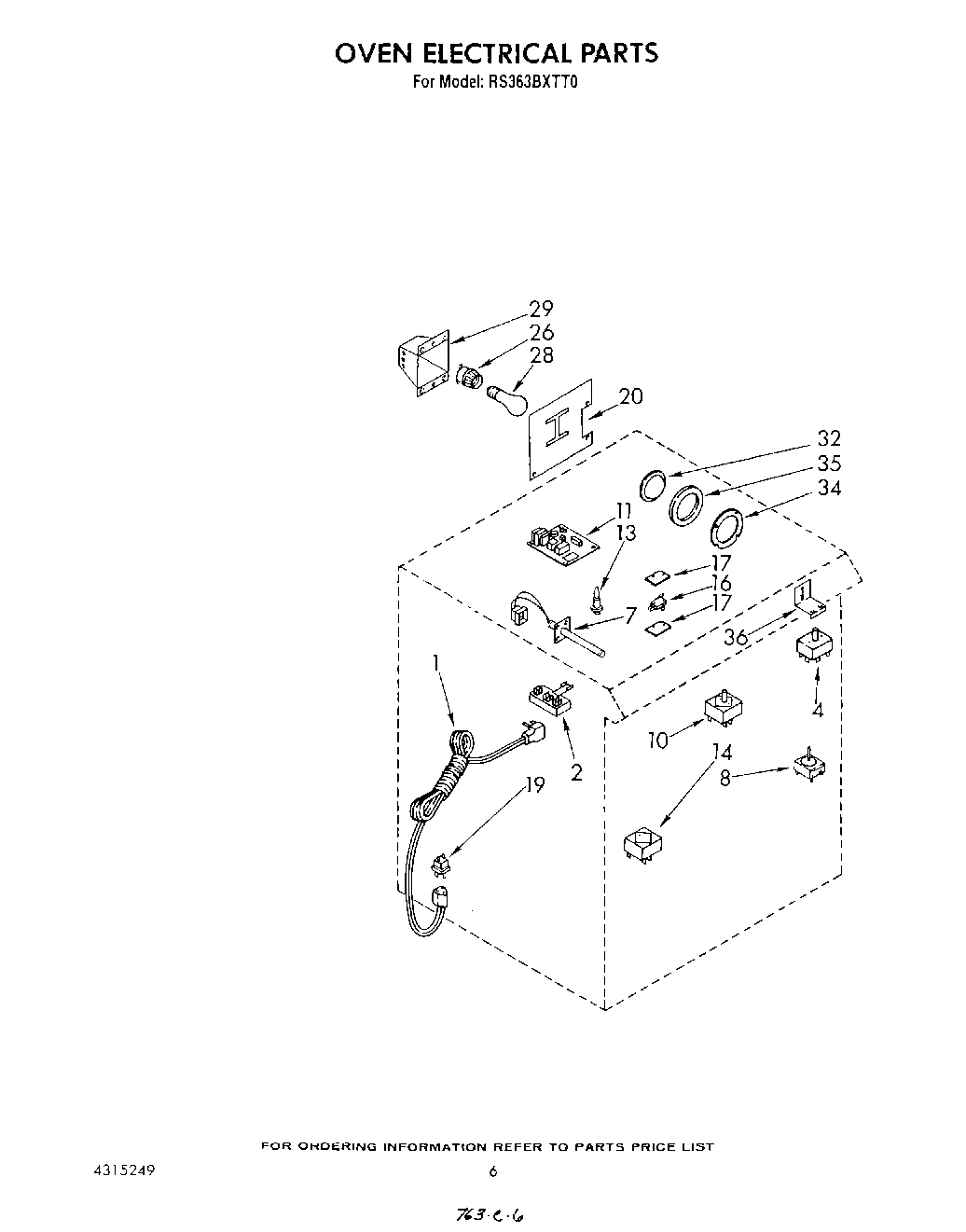

04 - OVEN ELECTRICAL

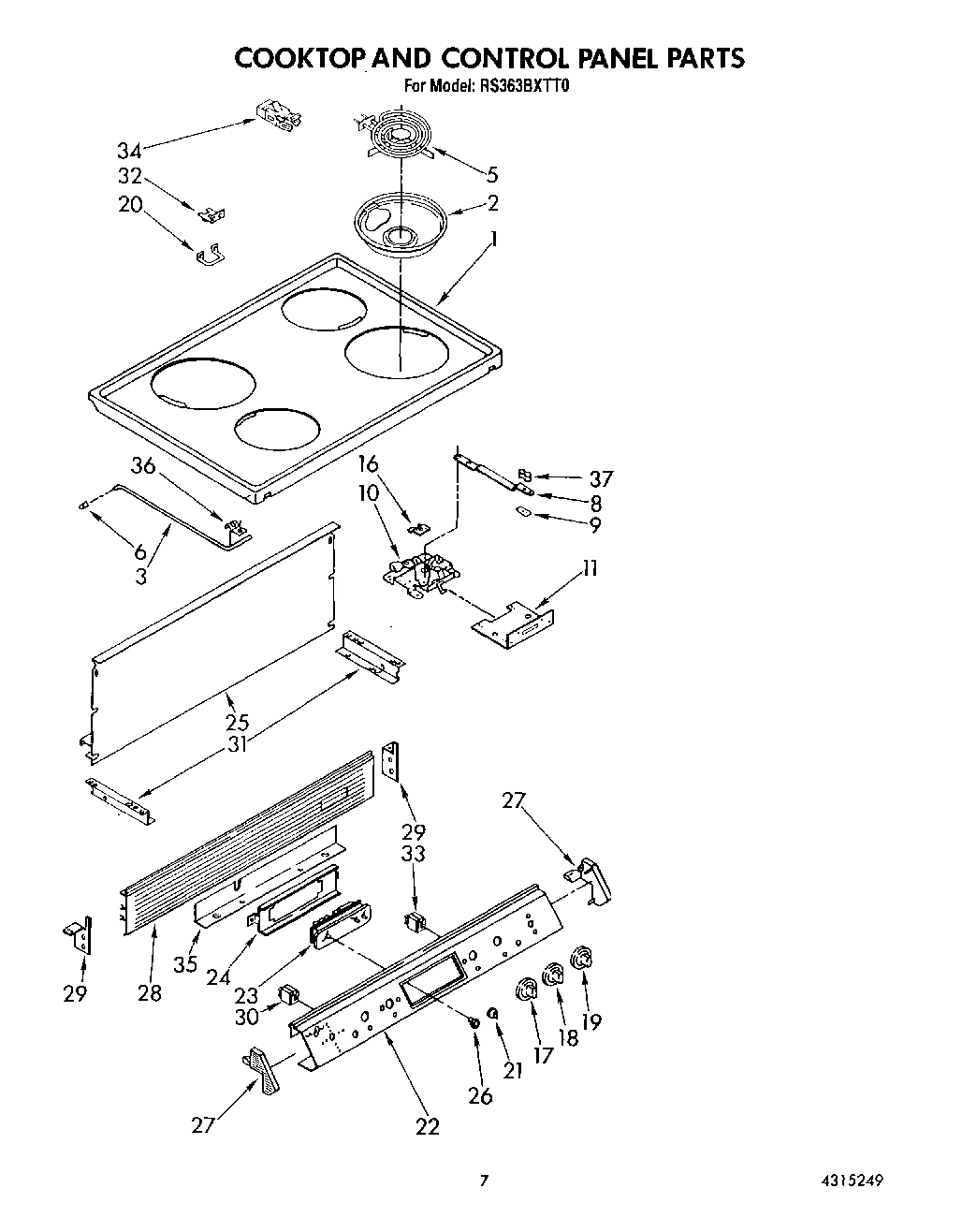

05 - COOKTOP AND CONTROL PANEL , LIT/OPTIONAL

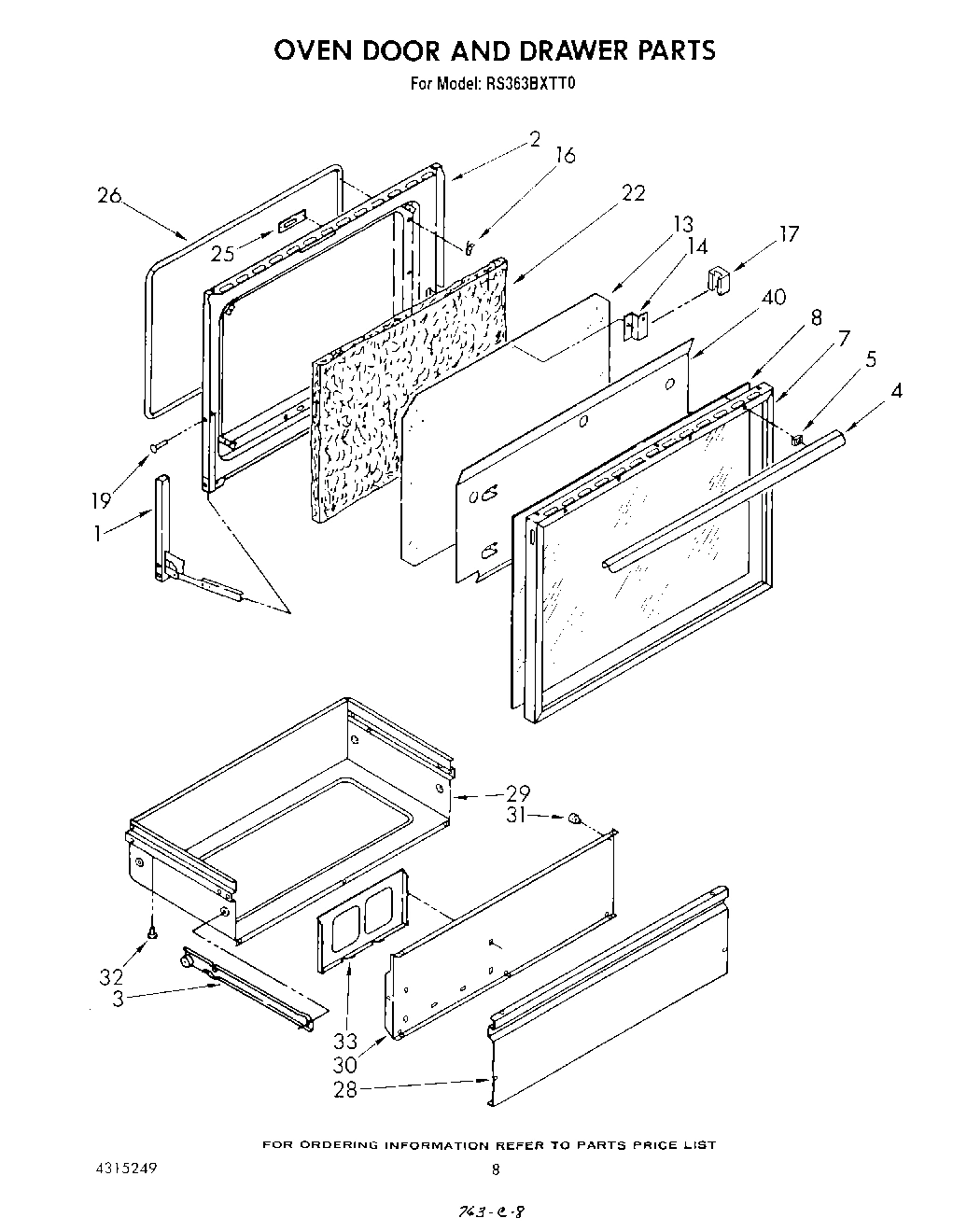

06 - OVEN DOOR AND DRAWER
Common parts from model Whirlpool RS363BXTT0
Guide, Use & Care WPL LIT4314828 Contact Us For Availability
Instructions, Installation WPL LIT4314830 Contact Us For Availability
List, Repair Parts WPL LIT4315249 Contact Us For Availability
Guide, Cooking WPL LIT786302 Contact Us For Availability
1
Frame, Front WPL 4179327 Contact Us For Availability
1
Element, Broil WPL 4315235 Contact Us For Availability
1
Cord, Power WPL 786578 Contact Us For Availability
1
Top, Main (Chrome) WPL 4315239 Contact Us For Availability
1
hinge, oven door (right side) WPL 786374 Contact Us For Availability
1
Hinge, Oven Door (Left Side) WPL 786375 Contact Us For Availability
2
Frame, Side (Right Side) WPL 786809 Contact Us For Availability
2
Frame, Side (Left Side) WPL 786810 Contact Us For Availability
2
Oven Liner WPL 4315278 Contact Us For Availability
2
Block, Terminal WPL 4315225 Contact Us For Availability
2
Liner, Oven Door WPL 786405 Contact Us For Availability
2
Screw, 8-32 X 5/8 (4) WPL 786755 Contact Us For Availability
3
Rod, Cooktop WPL 4157497 Contact Us For Availability
3
Runner (L.H.) WPL 786813 Contact Us For Availability
3
runner (R.H.) WPL 786814 Contact Us For Availability
4
Baffle, Drip WPL 4315234 Contact Us For Availability
4
Switch, Selector WPL 786319 Contact Us For Availability
4
Handle WPL 786408 Contact Us For Availability
5
Track, Storage Draw (Right Side) WPL 786811 Contact Us For Availability
5
Track, Storage Draw (Left Side) WPL 786812 Contact Us For Availability
5
Vent Tube WPL 4315221 Contact Us For Availability
5
Spacer, Handle (2) WPL 786410 Contact Us For Availability
6
Top, Rod WPL 4157486 Contact Us For Availability
7
Retainer, Bottom Insulation WPL 4315232 Contact Us For Availability
7
Sensor WPL 4315255 Contact Us For Availability
7
Frame WPL 786417 Contact Us For Availability
8
Cover Box, Wiring WPL 4315226 Contact Us For Availability
8
Flue Box WPL 4315227 Contact Us For Availability
8
Control, Thermostat WPL 4315247 Contact Us For Availability
8
Handle, Latch WPL 786376 Contact Us For Availability
8
Panel, Black Glass WPL 786418 Contact Us For Availability
9
Support, Handle WPL 786690 Contact Us For Availability
10
Retainer, Insulation (2) WPL 4315230 Contact Us For Availability
10
Flue Box Extension WPL 4315228 Contact Us For Availability
10
Switch, Infinite (4) WPL 4315248 Contact Us For Availability
10
Latch Assembly WPL 4315272 Contact Us For Availability
11
Panel, End (2) WPL 786369 Contact Us For Availability
11
Bracket, Support WPL 4315231 Contact Us For Availability
11
Circuit Board WPL 4315256 Contact Us For Availability
11
Bracket, Mounting Latch WPL 786378 Contact Us For Availability
13
Mounting Bracket, Control Board WPL 4315252 Contact Us For Availability
13
Channel, Oven WPL 4315274 Contact Us For Availability
13
Support, Circuit Board (4) WPL 4315254 Contact Us For Availability
13
Retainer, Insulation WPL 786423 Contact Us For Availability
14
Cover, Control Board WPL 4315233 Contact Us For Availability
14
Fixed Setting Infinite Switch WPL 4315258 Contact Us For Availability
14
Bracket, Glass Support (3) WPL 786425 Contact Us For Availability
16
Rear Panel, Lower WPL 4315229 Contact Us For Availability
16
nut, 6-32 WPL 786748 Contact Us For Availability
16
bushing, snap WPL 786750 Contact Us For Availability
16
Switch, Oven Door Latch WPL 786669 Contact Us For Availability
16
screw, 4-40 x 5/8 (2) WPL 786751 Contact Us For Availability
16
Bracket, Switch WPL 786381 Contact Us For Availability
16
screw, 4-40 (2) WPL 786752 Contact Us For Availability
16
Clip, Speed (15) WPL 786426 Contact Us For Availability
17
Trim, Side Panel (2) WPL 4315003 Contact Us For Availability
17
Insulator, Switch WPL 786380 Contact Us For Availability
17
Knob, Selector WPL 786562 Contact Us For Availability
17
Bumper, Window (2) WPL 4179237 Contact Us For Availability
18
Knob, Oven Control WPL 4315250 Contact Us For Availability
19
Insulator, Side Trim WPL 4315276 Contact Us For Availability
19
Plug, Male WPL 786570 Contact Us For Availability
19
Knob, Top Element WPL 4315251 Contact Us For Availability
19
Pin, Hinge (2) WPL 786428 Contact Us For Availability
20
Rack, Oven (2) WPL 786347 Contact Us For Availability
20
Hinge, Lower WPL 4315243 Contact Us For Availability
21
Knob, Timer WPL 786434 Contact Us For Availability
22
Control Panel WPL 4315245 Contact Us For Availability
23
Pan, Broiler WPL 786345 Contact Us For Availability
23
Timer WPL 4315011 Contact Us For Availability
24
Mounting Bracket Timer WPL 4315012 Contact Us For Availability
25
Leg, Leveling (4) WPL 786602 Contact Us For Availability
25
Grid, Broiler WPL 786346 Contact Us For Availability
25
Rear Cover WPL 4315259 Contact Us For Availability
25
Plate, Latch WPL 786671 Contact Us For Availability
26
Socket, Oven Lamp WPL 786653 Contact Us For Availability
26
Bushing, Clock WPL 4315007 Contact Us For Availability
26
Gasket Assembly WPL 786432 Contact Us For Availability
27
Nut (4) WPL 4157527 Contact Us For Availability
27
Endcap (R.H.) WPL 4315008 Contact Us For Availability
27
Endcap (L.H.) WPL 4315009 Contact Us For Availability
28
Rail, Back WPL 4315314 Contact Us For Availability
28
Panel, Drawer WPL 4314976 Contact Us For Availability
29
Housing, Oven Light WPL 4315224 Contact Us For Availability
29
Hook Bolt, Oven Shell WPL 786350 Contact Us For Availability
29
Endcap, Backrail (Right Hand) WPL 4315014 Contact Us For Availability
29
Endcap, Backrail (Left Hand) WPL 4315015 Contact Us For Availability
29
Wrapper, Drawer WPL 4179232 Contact Us For Availability
30
Indicator, Light (3) WPL 4315016 Contact Us For Availability
30
Liner, Drawer WPL 786668 Contact Us For Availability
31
Washer (4) WPL 786351 Contact Us For Availability
31
Support, Backguard (R.H.) WPL 4315222 Contact Us For Availability
31
Support, Backguard (L.H.) WPL 4315223 Contact Us For Availability
31
Bumper (2) WPL 786526 Contact Us For Availability
32
Rivet, Plastic (4) WPL 786527 Contact Us For Availability
32
Nut, Hex 10-32 (2) WPL 786352 Contact Us For Availability
32
Lens, Oven Light WPL 786574 Contact Us For Availability
32
Hinge, Upper WPL 4315242 Contact Us For Availability
33
Switch, Oven Light WPL 4179328 Contact Us For Availability
33
Indicator, Light WPL 4315246 Contact Us For Availability
33
Rack, Literature WPL 786807 Contact Us For Availability
34
Cover, Sensor WPL 4315253 Contact Us For Availability
34
Retainer, Oven Light Lens WPL 786575 Contact Us For Availability
35
Gasket, Oven Light WPL 786576 Contact Us For Availability
35
Heat Shield WPL 4315275 Contact Us For Availability
36
Clamp, Rod WPL 4157539 Contact Us For Availability
37
Knob, Latch WPL 786386 Contact Us For Availability
40
Baffle, Air WPL 786422 Contact Us For Availability
× ![]()
