Model Electrolux RS35BAH3 RANGE – Common Parts & Diagrams
02 - BODY PARTS
03 - DOOR PARTS

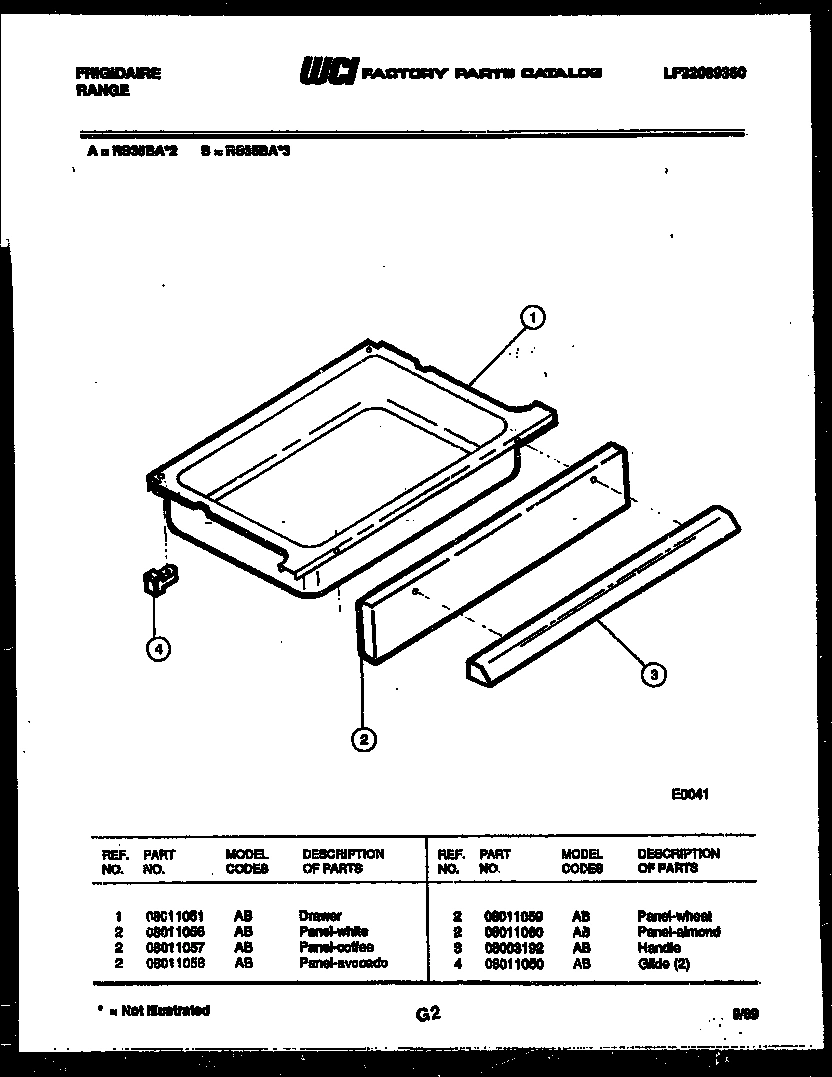

04 - DRAWER PARTS

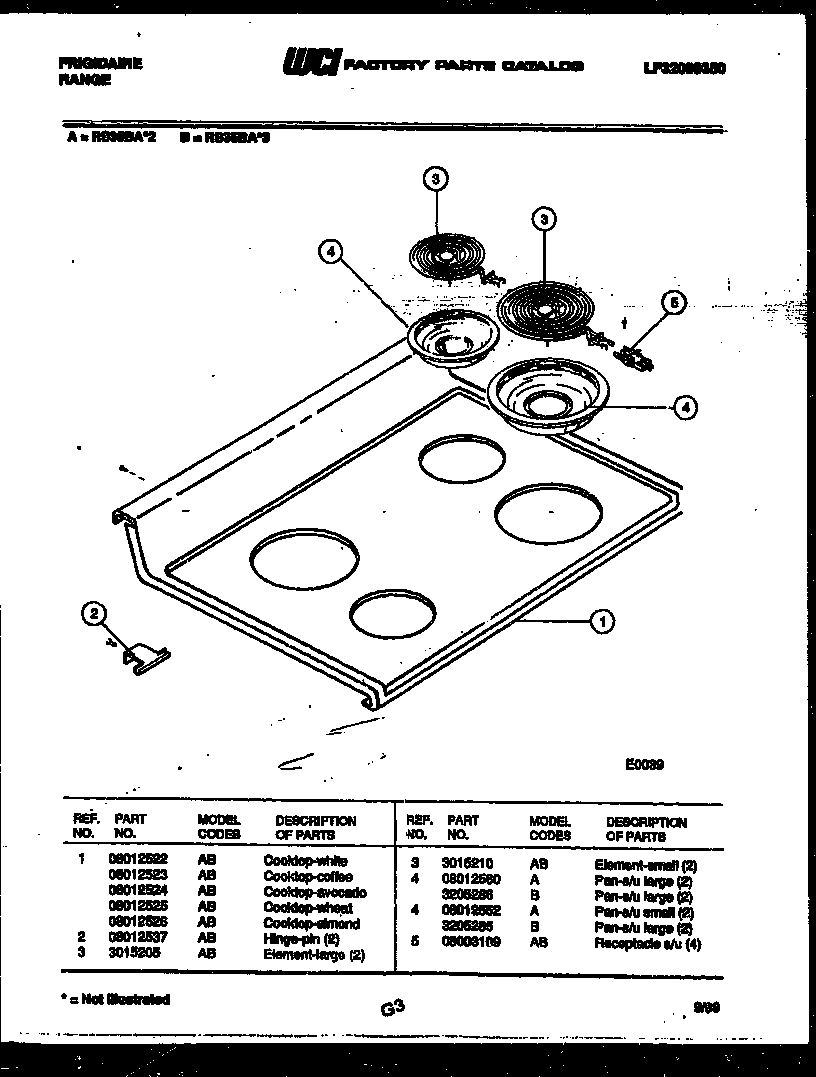

05 - COOKTOP PARTS

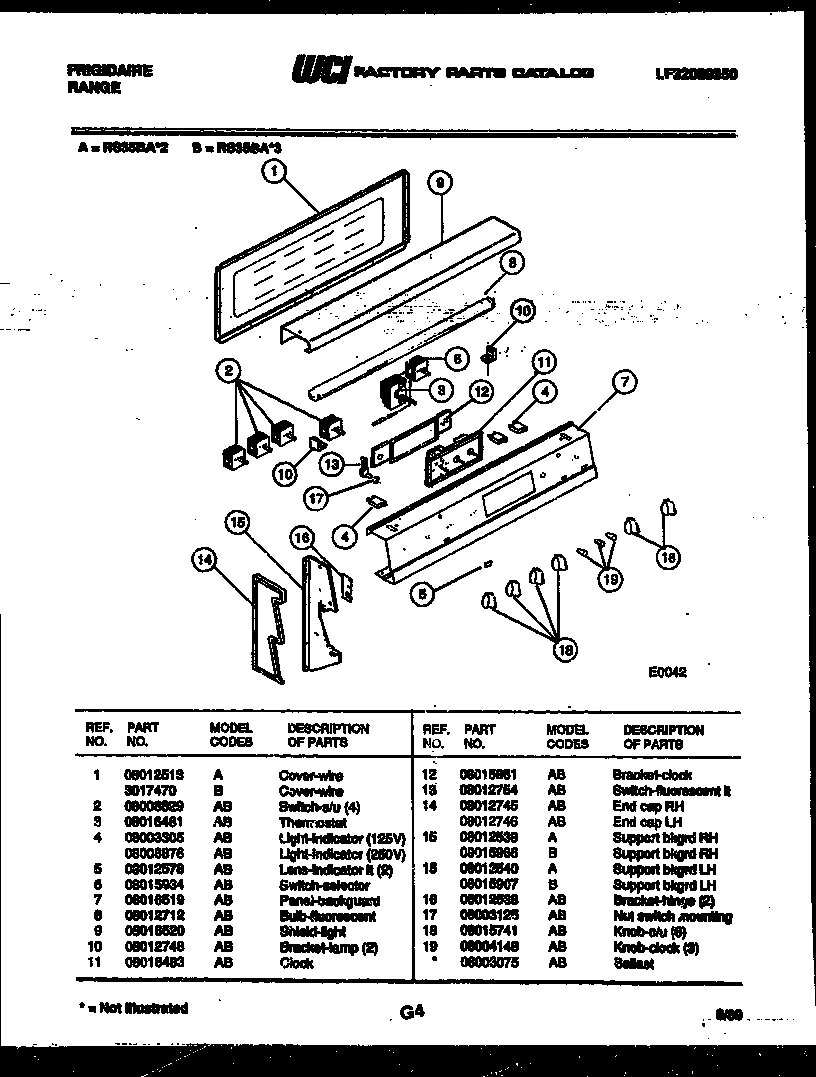

06 - BACKGUARD
Common parts from model Electrolux RS35BAH3 RANGE
*90396
WCI 08003075 WCI 08003075 Contact Us For Availability
1
BODY-OVEN WCI 3204603 Contact Us For Availability
1
WCI 08012547 WCI 08012547 Contact Us For Availability
1
WCI 08011051 WCI 08011051 Contact Us For Availability
1
WCI 08012526 WCI 08012526 Contact Us For Availability
1
WCI 3017470 WCI 3017470 Contact Us For Availability
2
FRAME WCI 08015939 Contact Us For Availability
2
PANEL, ALMOND WCI 08011060 Contact Us For Availability
2
HINGE - PIN (2) WCI 08012537 Contact Us For Availability
2
WCI 08008829 WCI 08008829 Contact Us For Availability
3
WCI 08012541 WCI 08012541 Contact Us For Availability
3
WCI 08003435 WCI 08003435 Contact Us For Availability
3
WCI 08003192 WCI 08003192 Contact Us For Availability
3
WCI 08016481 WCI 08016481 Contact Us For Availability
4
INSULATION-OVEN WRAP WCI 3008109 Contact Us For Availability
4
WCI 08015950 WCI 08015950 Contact Us For Availability
4
GLIDE (2) WCI 08011050 Contact Us For Availability
4
LIGHT-INDICATOR (125V) WCI 08003305 Contact Us For Availability
4A
WCI 08008876 WCI 08008876 Contact Us For Availability
5
WCI 3008960 WCI 3008960 Contact Us For Availability
5
SEAL WCI 08003268 Contact Us For Availability
5
LENS-INDICATOR LT (2) WCI 08012578 Contact Us For Availability
6
SWITCH, SELECTOR WCI 08015934 Contact Us For Availability
6
PANEL, END, RH (WHEAT) WCI 08012535 Contact Us For Availability
6
WCI 08012536 WCI 08012536 Contact Us For Availability
6
WCI 3205317 WCI 3205317 Contact Us For Availability
7
PANEL - BOTTOM WCI 3203574 Contact Us For Availability
7
SPACER (4) WCI 08011054 Contact Us For Availability
7
WCI 08016519 WCI 08016519 Contact Us For Availability
8
PANEL-BACK WCI 3017575 Contact Us For Availability
8
LINER WCI 3017393 Contact Us For Availability
8
BULB - FLUORESCENT WCI 08012712 Contact Us For Availability
9
WCI 3017481 WCI 3017481 Contact Us For Availability
9
INSULATION WCI 08013680 Contact Us For Availability
9
WCI 08016520 WCI 08016520 Contact Us For Availability
9A
GUSSET-REAR RH WCI 3017482 Contact Us For Availability
10
WCI 3200927 WCI 3200927 Contact Us For Availability
10
WCI 08003264 WCI 08003264 Contact Us For Availability
10
BRACKET, LAMP (2) WCI 08012748 Contact Us For Availability
11
WCI 32059294 WCI 32059294 Contact Us For Availability
11
WCI 3051822 WCI 3051822 Contact Us For Availability
11
WCI 08016483 WCI 08016483 Contact Us For Availability
12
WCI 08950070 WCI 08950070 Contact Us For Availability
12
BRACKET, CLOCK WCI 08015861 Contact Us For Availability
13
WCI 3200926 WCI 3200926 Contact Us For Availability
13
PIN (2) WCI 08012004 Contact Us For Availability
13
SWITCH-FLUORESCENT LT WCI 08012754 Contact Us For Availability
14
WCI 08012542 WCI 08012542 Contact Us For Availability
14
WCI 08003183 WCI 08003183 Contact Us For Availability
14
WCI 08012745 WCI 08012745 Contact Us For Availability
14A
WCI 08012746 WCI 08012746 Contact Us For Availability
15
WCI 08015738 WCI 08015738 Contact Us For Availability
15
SCREW HANDLE (4) WCI 3051860 Contact Us For Availability
15
SUPPORT BKGRD RH WCI 08015966 Contact Us For Availability
15
SUPPORT - BKGRD LH WCI 08015967 Contact Us For Availability
16
SPACER DRAWER GUIDE (2) WCI 08011055 Contact Us For Availability
16
WCI 08012538 WCI 08012538 Contact Us For Availability
17
WCI 08003103 WCI 08003103 Contact Us For Availability
17
NUT SWITCH MOUNTING WCI 08003125 Contact Us For Availability
18
GLIDE-DRAWER RH WCI 08015746 Contact Us For Availability
18
GLIDE-DRAWER LH WCI 08015747 Contact Us For Availability
18
KNOB - S/U (6) WCI 08015741 Contact Us For Availability
19
BUMPER (4) WCI 08003107 Contact Us For Availability
19
KNOB, CLOCK (3) WCI 08004148 Contact Us For Availability
22
PLATE-GROUNDING WCI 08003146 Contact Us For Availability
23
BRACKET-THERMO BULB WCI 08002854 Contact Us For Availability
25
COVER - WIRE WCI 3051856 Contact Us For Availability
26
CUP - OVEN LIGHT WCI 08011088 Contact Us For Availability
30
WCI 08011087 WCI 08011087 Contact Us For Availability
33
WCI 08002857 WCI 08002857 Contact Us For Availability
34
WCI 3205232 WCI 3205232 Contact Us For Availability
35
WCI 3205234 WCI 3205234 Contact Us For Availability
36
ROD COOKTOP SUPPORT WCI 08003079 Contact Us For Availability
37
WCI 08015948 WCI 08015948 Contact Us For Availability
× ![]()
