Model Electrolux RS34BFL2 RANGE – Common Parts & Diagrams

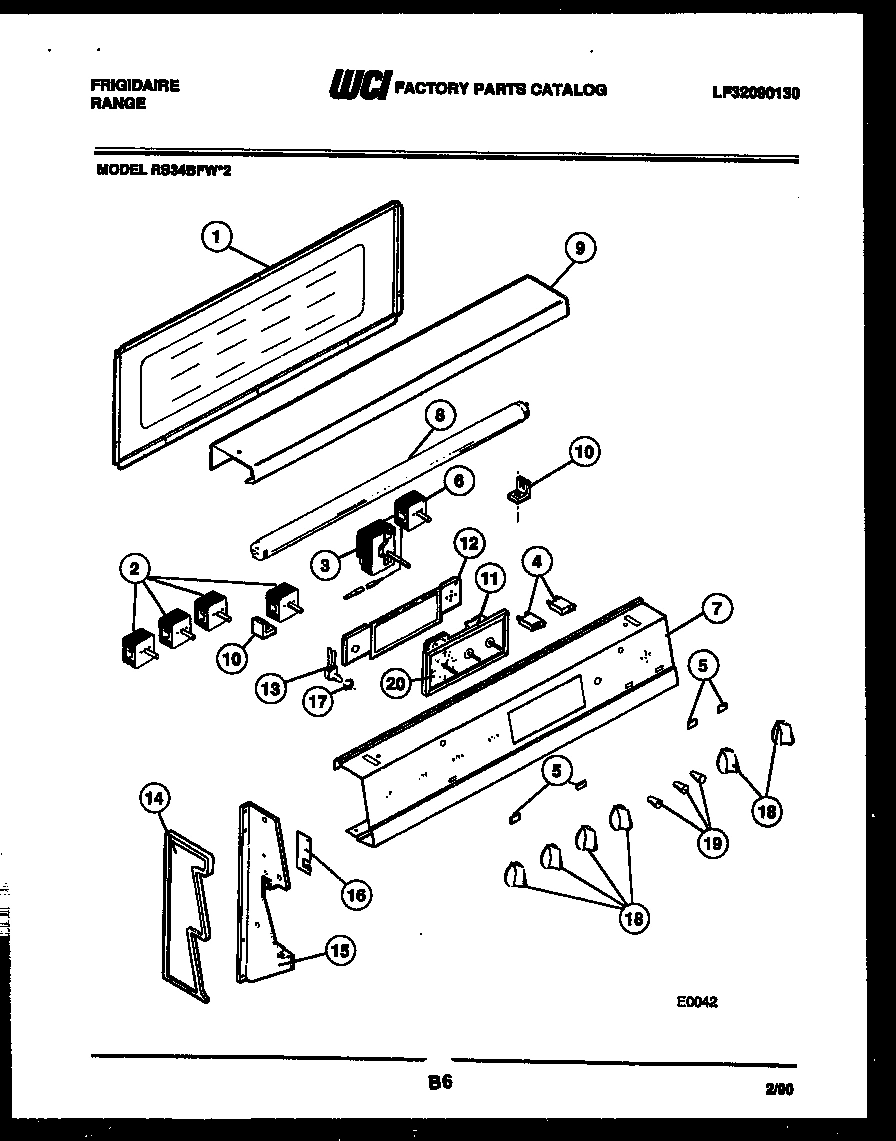

02 - BACKGUARD

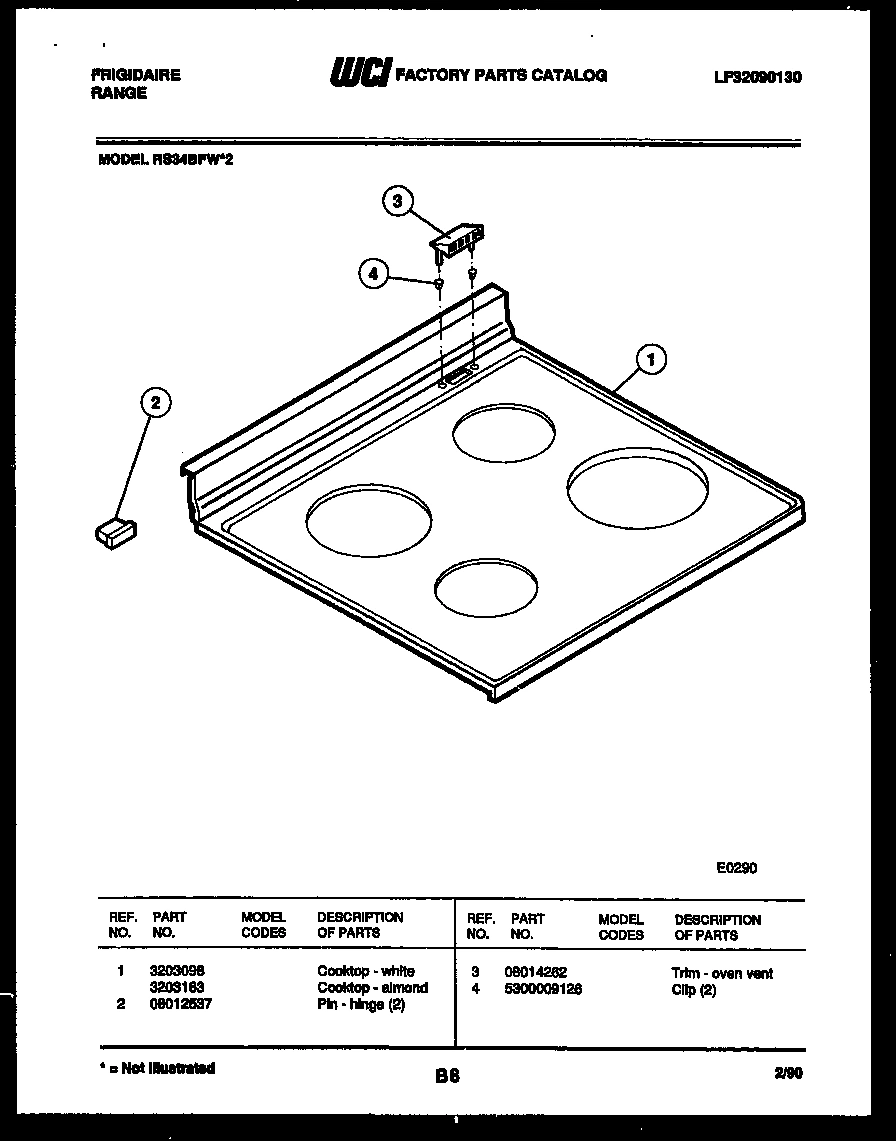

03 - COOKTOP PARTS
04 - DOOR PARTS
05 - BROILER PARTS
06 - DRAWER PARTS
07 - BODY PARTS
Common parts from model Electrolux RS34BFL2 RANGE
1
WCI 5301314211 WCI 5301314211 Contact Us For Availability
1
WCI 3203163 WCI 3203163 Contact Us For Availability
1
WCI 5308012547 WCI 5308012547 Contact Us For Availability
1
SURFACE UNIT SM (2) WCI 5308014249 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
1A
SURFACE UNIT MED (2) WCI 5303015206 Contact Us For Availability
2
PIN, HINGE (2) WCI 08012537 Contact Us For Availability
2
WCI 3206200 WCI 3206200 Contact Us For Availability
2
PAN, SM (2) WCI 5303051662 Contact Us For Availability
2
PANEL - ALMOND WCI 5301325100 Contact Us For Availability
2
TUBE-OVEN VENT WCI 3051742 Contact Us For Availability
2A
PAN - MED (2) WCI K5129601 Contact Us For Availability
3
WCI 08014262 WCI 08014262 Contact Us For Availability
3
WCI 530131771 WCI 530131771 Contact Us For Availability
3
STRAP, ANTI TURN (4) WCI 3051620 Contact Us For Availability
3
HANDLE WCI K1317834 Contact Us For Availability
3
INSULATION - OVEN WRAP WCI 3051521 Contact Us For Availability
4
WCI 3051841 WCI 3051841 Contact Us For Availability
4
INSULATION, OVEN BACK WCI 5303051630 Contact Us For Availability
4
GUIDE - DRWR REAR (2) WCI K001324091 Contact Us For Availability
5
LENS - IND LIGHT (3) WCI 5308006417 Contact Us For Availability
5
SEAL WCI 3206199 Contact Us For Availability
5
PANEL-SIDE RH-ALMD WCI 5308012529 Contact Us For Availability
5A
PANEL-SIDE LH-ALMD WCI 5308012530 Contact Us For Availability
6
SWITCH - SELECT WCI 08015934 Contact Us For Availability
6
WCI 5303207187 WCI 5303207187 Contact Us For Availability
6
HANGER, BROIL ELEMENT WCI 3205756 Contact Us For Availability
6
BACK WCI 3205757 Contact Us For Availability
7
WCI 5301324812 WCI 5301324812 Contact Us For Availability
7
WCI 3206275 WCI 3206275 Contact Us For Availability
8
WCI 5303017393 WCI 5303017393 Contact Us For Availability
8
WCI 3017481 WCI 3017481 Contact Us For Availability
8A
WCI 3017482 WCI 3017482 Contact Us For Availability
9
WCI 5308016520 WCI 5308016520 Contact Us For Availability
9
WCI 5303207391 WCI 5303207391 Contact Us For Availability
10
BRACKET, LAMP (2) WCI 08012748 Contact Us For Availability
10
WCI 08003264 WCI 08003264 Contact Us For Availability
10
WCI 3205294 WCI 3205294 Contact Us For Availability
11
WCI 08016483 WCI 08016483 Contact Us For Availability
11
WCI 5303207447 WCI 5303207447 Contact Us For Availability
11
COVER, SEAM WCI 3203082 Contact Us For Availability
12
BRACKET, CLOCK WCI 08015861 Contact Us For Availability
12
TUBE-VENT UPPER WCI 3051655 Contact Us For Availability
13
SWITCH, FLUORESCENT WCI 5308012754 Contact Us For Availability
13
WCI 5308015746 WCI 5308015746 Contact Us For Availability
13A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
14
WCI 08012745 WCI 08012745 Contact Us For Availability
14
SPACER, DRAWER RAIL (2) WCI 3051653 Contact Us For Availability
14A
WCI 08012746 WCI 08012746 Contact Us For Availability
15
SUPT, BACKGUARD RH WCI 08015966 Contact Us For Availability
15
GUIDE, DRAWER FRONT (2) WCI 3051654 Contact Us For Availability
15A
SUPT, BACKGUARD LH WCI 08015967 Contact Us For Availability
16
BRACKET, HINGE (2) WCI 5308012538 Contact Us For Availability
16
BUMPER, COOKTOP (4) WCI 5308003107 Contact Us For Availability
17
WCI 08003125 WCI 08003125 Contact Us For Availability
17
WCI 3019063 WCI 3019063 Contact Us For Availability
18
KNOB, S/U (6) WCI 5308015741 Contact Us For Availability
19
WCI 3016387 WCI 3016387 Contact Us For Availability
19
WCI K005025704 WCI K005025704 Contact Us For Availability
20
WCI 5308004154 WCI 5308004154 Contact Us For Availability
20
CHANNEL-ASSY HINGE WCI 3201631 Contact Us For Availability
21
WCI 3206079 WCI 3206079 Contact Us For Availability
22
WCI 3201632 WCI 3201632 Contact Us For Availability
24
WCI 3205539 WCI 3205539 Contact Us For Availability
25
GRILLE, BROILER WCI 3206091 Contact Us For Availability
26
WIRE, COVER WCI 5303051856 Contact Us For Availability
27
STRAP-GROUND WCI K1145190 Contact Us For Availability
28
WCI 3051511 WCI 3051511 Contact Us For Availability
32
RETAINER WCI 5303205904 Contact Us For Availability
33
WCI 3016281 WCI 3016281 Contact Us For Availability
34
WCI 5303207446 WCI 5303207446 Contact Us For Availability
35
BRACKET, VENT TUBE WCI 3051656 Contact Us For Availability
36
WCI 5303207389 WCI 5303207389 Contact Us For Availability
37
WCI 3017556 WCI 3017556 Contact Us For Availability
37A
ANTI-TIP KIT, (NON-ILLUSTRATED) WCI 3934063 Contact Us For Availability
37B
WCI 5300009126 WCI 5300009126 Contact Us For Availability
37C
BRACKET, THERMO BULB (NON-ILLUSTRATED) WCI 3051550 Contact Us For Availability
38
GASKET-VENT TUBE WCI 3051666 Contact Us For Availability
× ![]()
