Model Electrolux RS33BNL3 RANGE – Common Parts & Diagrams
02 - CONTROL PANEL
03 - COOKTOP PARTS

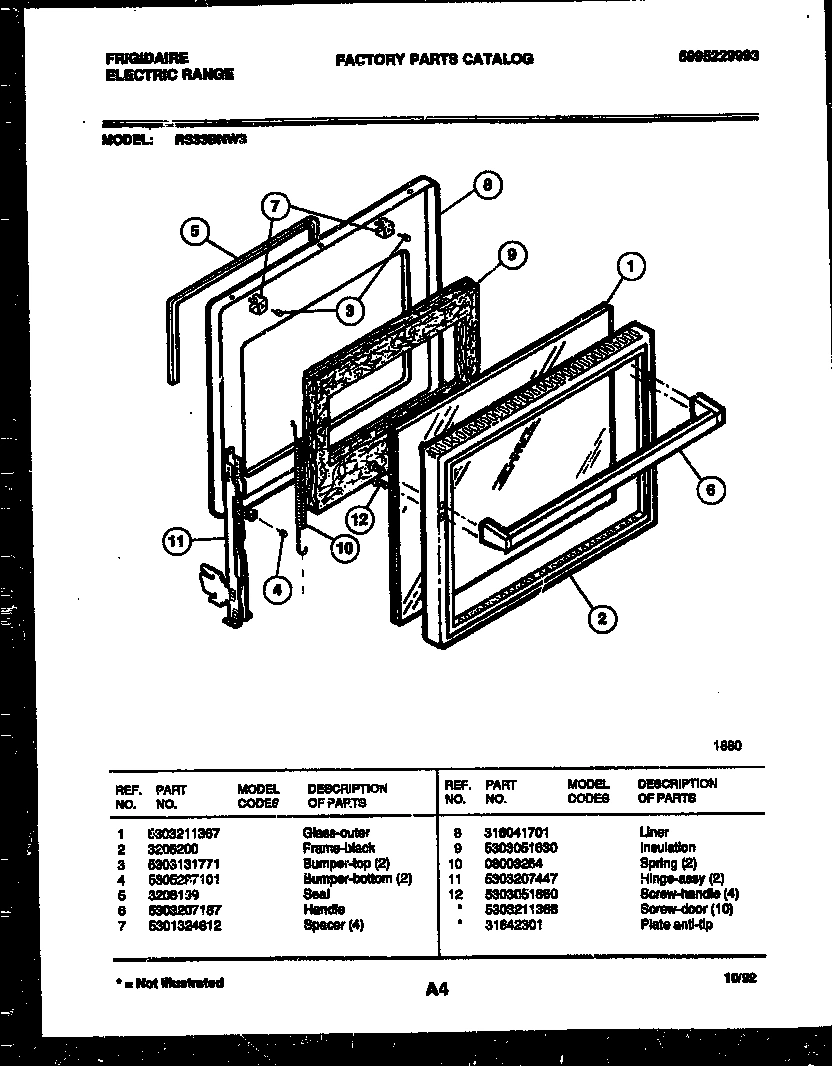

04 - DOOR PARTS

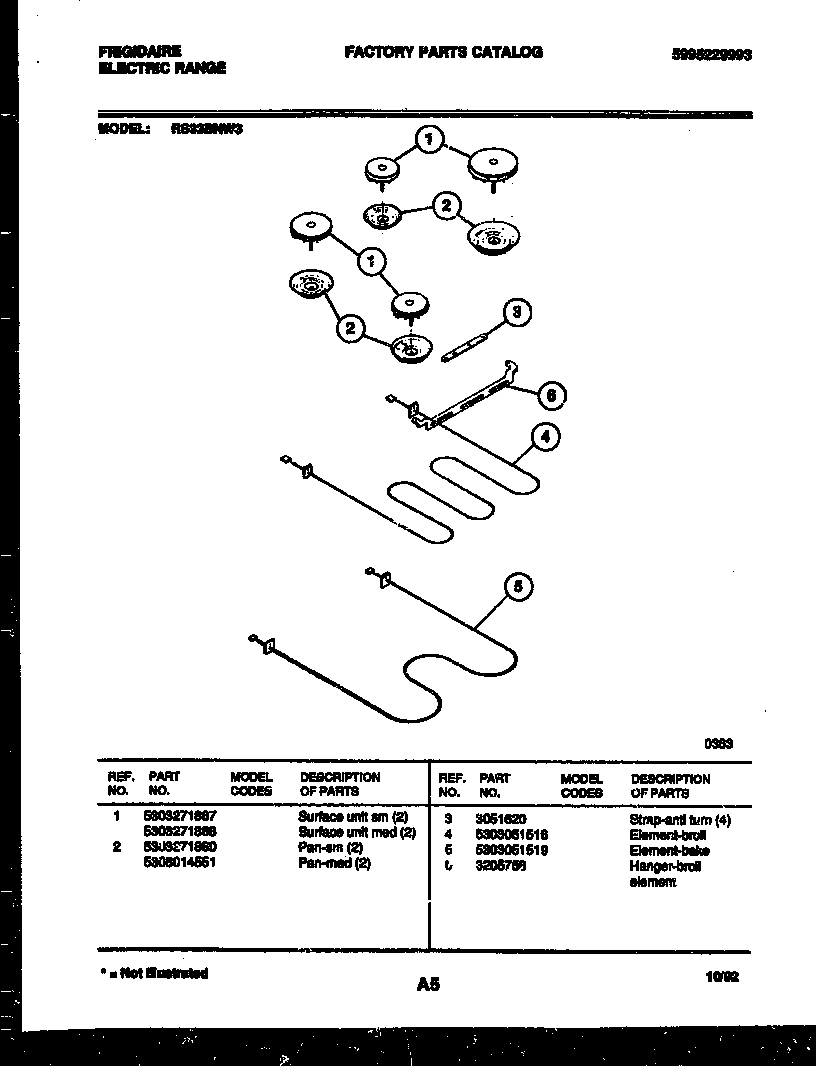

05 - BROILER PARTS

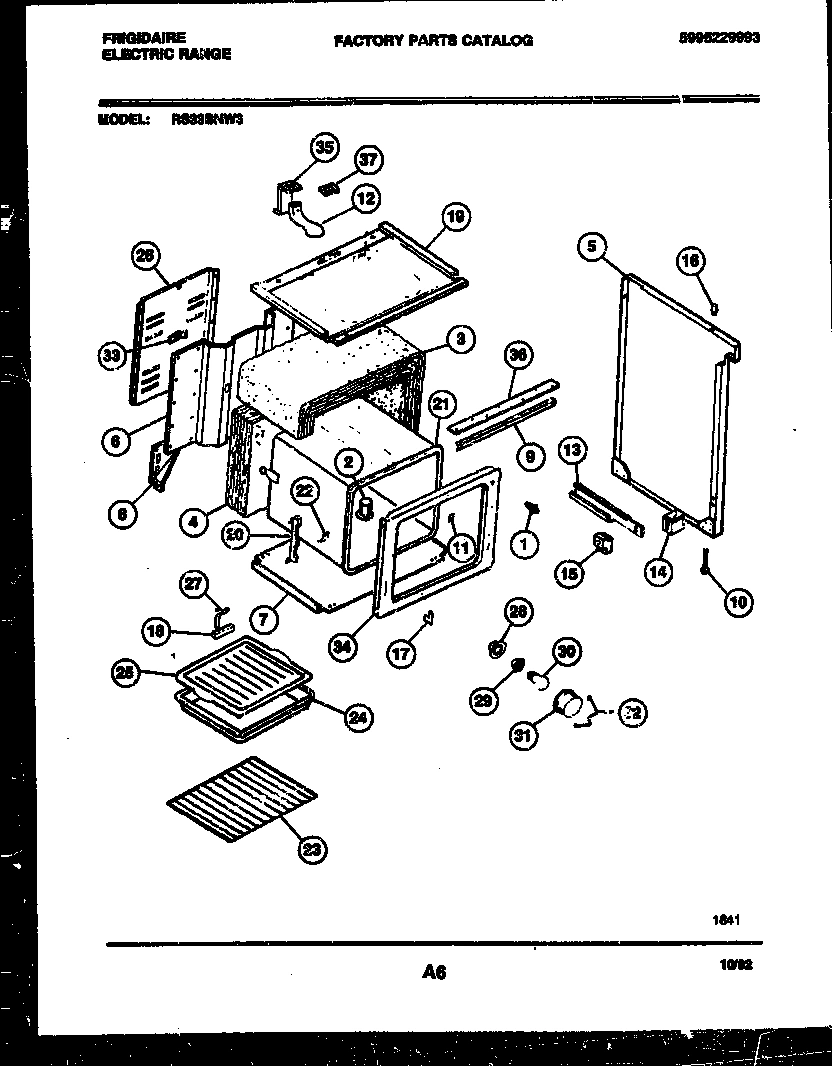

06 - BODY PARTS

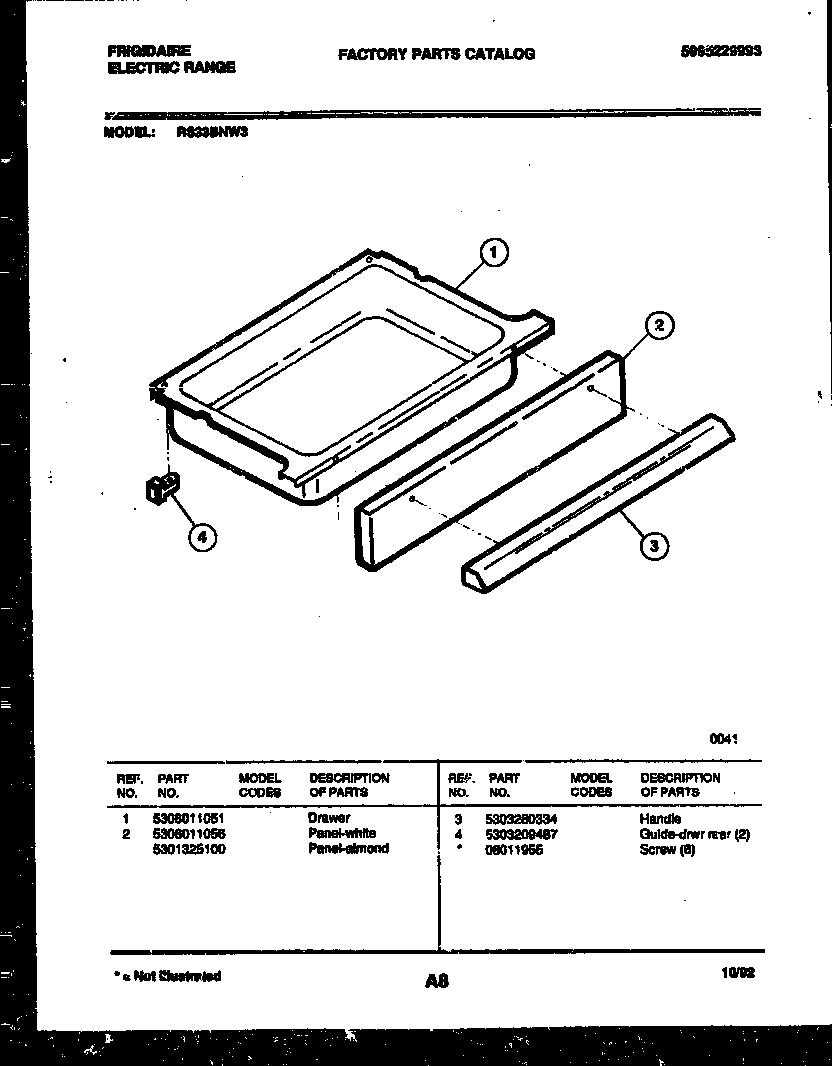

07 - DRAWER PARTS
Common parts from model Electrolux RS33BNL3 RANGE
*69088
WCI 31642301 WCI 31642301 Contact Us For Availability
*69093
WCI 19100210094 WCI 19100210094 Contact Us For Availability
*69093
PLATE-CONDUIT MTG WCI 3203574 Contact Us For Availability
*69093
CHANNEL, SUB TOP WCI 3205257 Contact Us For Availability
1
WCI 5301314211 WCI 5301314211 Contact Us For Availability
1
WCI 5303271867 WCI 5303271867 Contact Us For Availability
1
WCI 3203163 WCI 3203163 Contact Us For Availability
1
GLASS-OUTER WCI 5303211367 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
1A
SURFACE UNIT MED (2) WCI 5303271868 Contact Us For Availability
2
PIN, HINGE (2) WCI 08012537 Contact Us For Availability
2
FRAME-BLACK WCI 3206200 Contact Us For Availability
2
PAN - SM (2) WCI 5303271880 Contact Us For Availability
2
PAN-MED (2) WCI 5308014551 Contact Us For Availability
2
TUBE-OVEN VENT WCI 5303206498 Contact Us For Availability
2
PANEL - ALMOND WCI 5301325100 Contact Us For Availability
3
THERMOSTAT WCI 5308005306 Contact Us For Availability
3
WCI 08014262 WCI 08014262 Contact Us For Availability
3
BUMPER-TOP (2) WCI 5303131771 Contact Us For Availability
3
STRAP, ANTI TURN (4) WCI 3051620 Contact Us For Availability
3
INSULATION - OVEN WRAP WCI 3051521 Contact Us For Availability
3
HANDLE WCI 5303280334 Contact Us For Availability
4
GUIDE - DRWR REAR (2) WCI 5303209487 Contact Us For Availability
4
IND LITE (2) WCI 5303276663 Contact Us For Availability
4
CLIP (2) WCI 08012710 Contact Us For Availability
4
WCI 53035297101 WCI 53035297101 Contact Us For Availability
4
WCI 5303274967 WCI 5303274967 Contact Us For Availability
5
SEAL WCI 3206199 Contact Us For Availability
5
PANEL-SIDE RH-ALMD WCI 5308012529 Contact Us For Availability
5A
PANEL-SIDE LH-ALMD WCI 5308012530 Contact Us For Availability
6
SWITCH - SELECT WCI 5308016480 Contact Us For Availability
6
WCI 5303207187 WCI 5303207187 Contact Us For Availability
6
HANGER, BROIL ELEMENT WCI 3205756 Contact Us For Availability
6
BACK WCI 3205757 Contact Us For Availability
7
WCI 5301324812 WCI 5301324812 Contact Us For Availability
7
WCI 3206275 WCI 3206275 Contact Us For Availability
8
LINER WCI 316041701 Contact Us For Availability
8
WCI 3017481 WCI 3017481 Contact Us For Availability
8A
WCI 3017482 WCI 3017482 Contact Us For Availability
9
INSULATION WCI 5303051630 Contact Us For Availability
9
WCI 5303207391 WCI 5303207391 Contact Us For Availability
10
WCI 08003264 WCI 08003264 Contact Us For Availability
10
SCREW-LEVELING (4) WCI 5303205540 Contact Us For Availability
11
WCI 5303207447 WCI 5303207447 Contact Us For Availability
11
WCI 3202082 WCI 3202082 Contact Us For Availability
12
WCI 5303051860 WCI 5303051860 Contact Us For Availability
12
TUBE-VENT UPPER WCI 3051655 Contact Us For Availability
12A
WCI 5303211368 WCI 5303211368 Contact Us For Availability
13
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
13
WCI 5308015746 WCI 5308015746 Contact Us For Availability
14
SPACER, DRAWER RAIL (2) WCI 3051653 Contact Us For Availability
15
GUIDE, DRAWER FRONT (2) WCI 3051654 Contact Us For Availability
16
BRACKET-CLOCK MTG WCI 3204642 Contact Us For Availability
16
BUMPER, COOKTOP (4) WCI 5308003107 Contact Us For Availability
17
WCI 08003252 WCI 08003252 Contact Us For Availability
17
WCI 3019063 WCI 3019063 Contact Us For Availability
18
WCI 5303211384 WCI 5303211384 Contact Us For Availability
19
WCI 5303292687 WCI 5303292687 Contact Us For Availability
20
CHANNEL ASSY HINGES (2) WCI 3201631 Contact Us For Availability
21
WCI 5303202686 WCI 5303202686 Contact Us For Availability
22
SPACER-OVEN WCI 3201632 Contact Us For Availability
24
WCI 5303292688 WCI 5303292688 Contact Us For Availability
25
GRILLE - BROILER WCI 5303293176 Contact Us For Availability
26
WIRE, COVER WCI 5303051856 Contact Us For Availability
27
WCI 5301145190 WCI 5301145190 Contact Us For Availability
28
CUP-OVEN LIGHT WCI 5303271606 Contact Us For Availability
32
RETAINER WCI 5303205904 Contact Us For Availability
32A
ANTI-TIP KIT, (NON-ILLUSTRATED) WCI 3934063 Contact Us For Availability
33
WCI 3016281 WCI 3016281 Contact Us For Availability
34
FRONT - OVEN WCI 316042103 Contact Us For Availability
35
BRACKET, VENT TUBE WCI 3051656 Contact Us For Availability
36
WCI 5303207389 WCI 5303207389 Contact Us For Availability
37
GASKET-VENT TUBE WCI 3051666 Contact Us For Availability
× ![]()
