Model Whirlpool RS20CKXAL02 – Common Parts & Diagrams

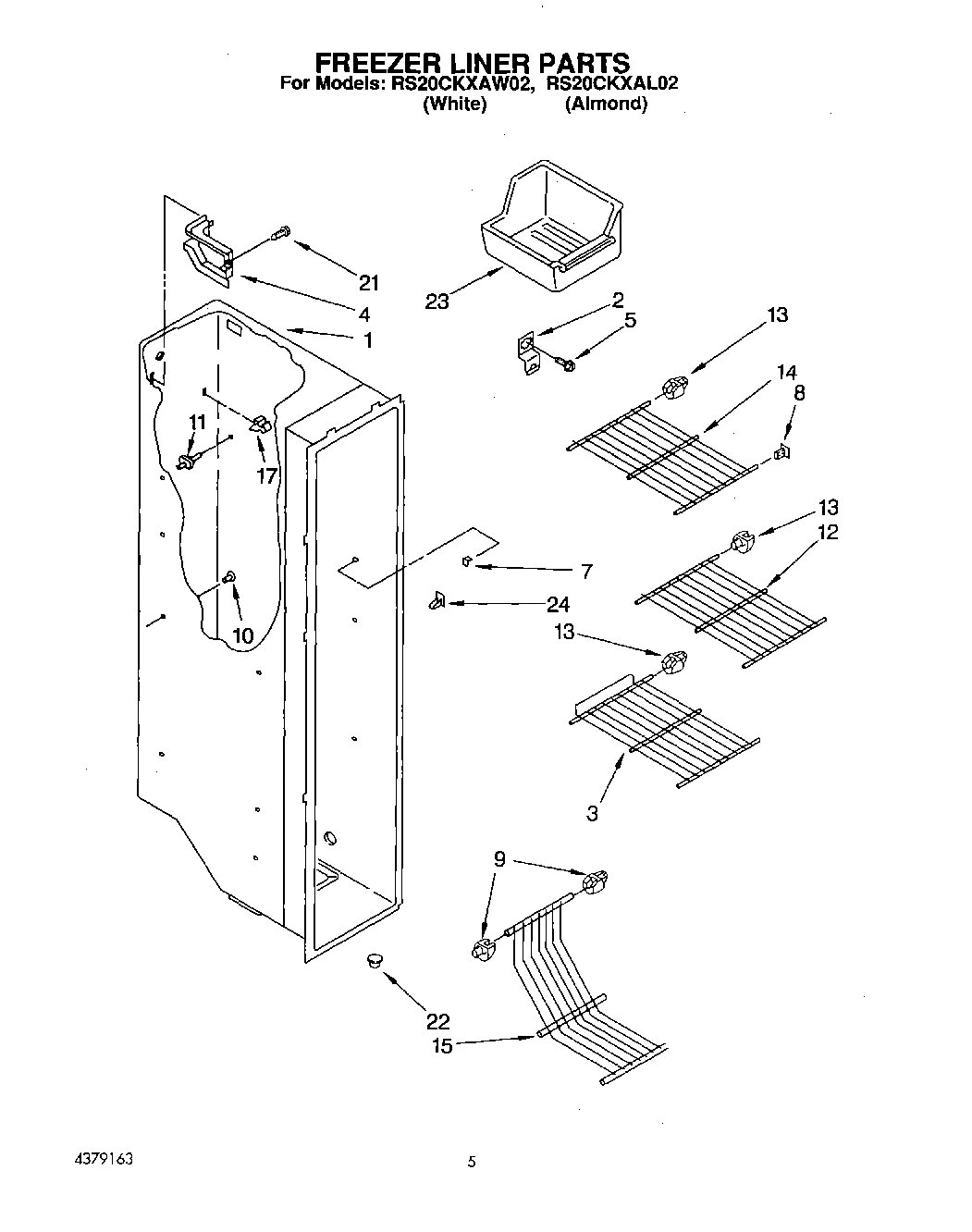

03 - FREEZER LINER

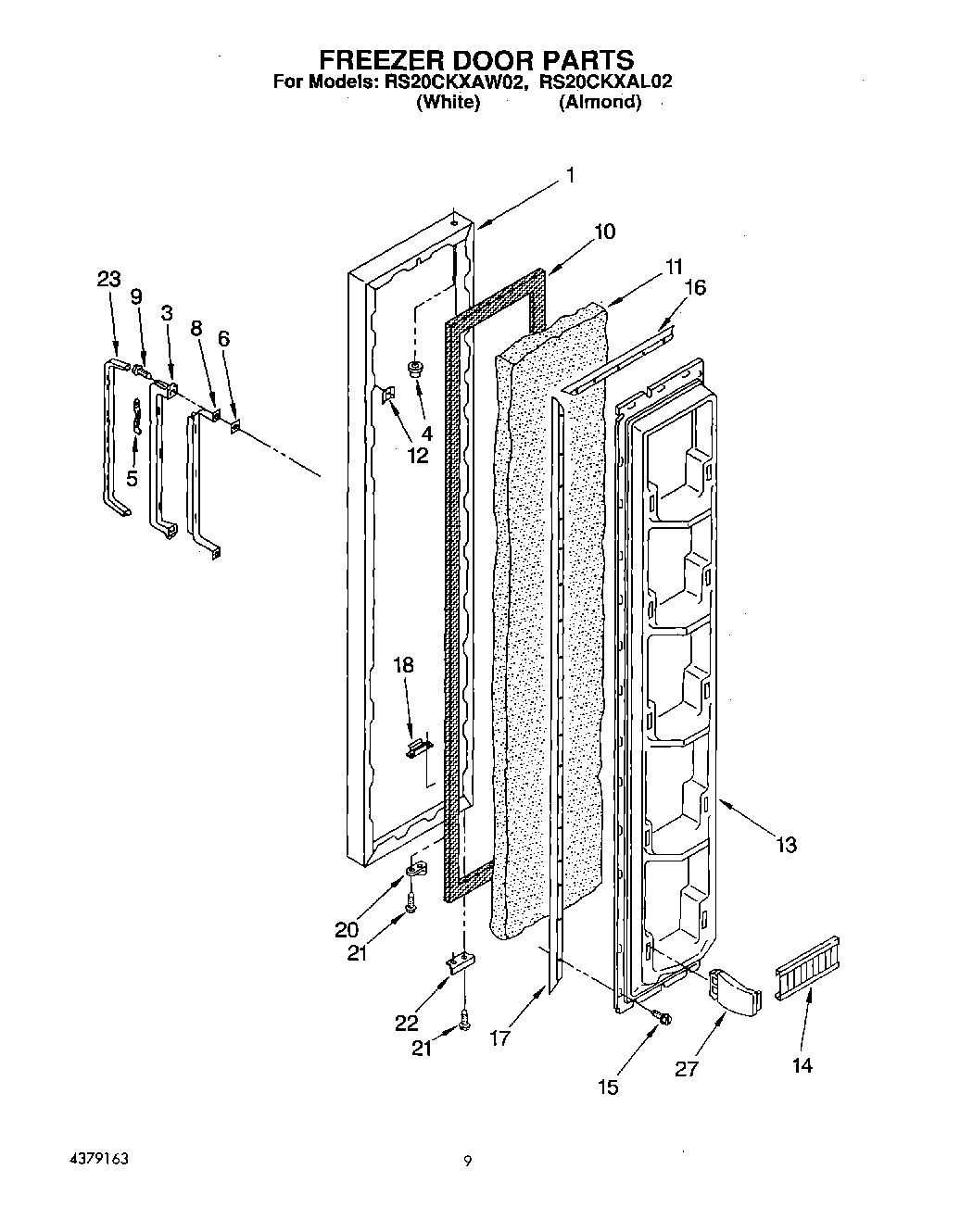

05 - FREEZER DOOR
07 - CONTROL
06 - AIR FLOW
08 - UNIT, LIT/OPTIONAL
02 - REFRIGERATOR LINER
04 - REFRIGERATOR DOOR
01 - CABINET
Common parts from model Whirlpool RS20CKXAL02
WPL LIT2152632 WPL LIT2152632 Contact Us For Availability
WPL LIT2163501 WPL LIT2163501 Contact Us For Availability
WPL LIT2169111 WPL LIT2169111 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI123772A Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 4362027 Contact Us For Availability
1
Refrigerator Door Panel (Almond (Also Order I WPL 4362028 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI123771A Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Trim, Shelf (5) WPL 1120852 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
5
Grommet WPL 509812 Contact Us For Availability
5
Screw, WPL 488454 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Door, Compartment WPL 2148289 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
7
Ladder, Shelf (2) WPL 1108433 Contact Us For Availability
8
Water Inlet Tube WPL 2155247 Contact Us For Availability
9
Cover, Unit Compartment WPL 2160505 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
10
Handle WPL 2147526 Contact Us For Availability
11
Shim, Handle (2) WPL 2147097 Contact Us For Availability
12
Harness, Fan, Evaporator, And Heater WPL 2161327 Contact Us For Availability
13
Shim, Hinge (2) WPL 1123515 Contact Us For Availability
13
Shelf, Cantilever (3) WPL 1118497 Contact Us For Availability
14
Reinforcement, Handle WPL 1127465 Contact Us For Availability
14
Hole, Plug (White) WPL 849391 Contact Us For Availability
14
Hole Plug (Almond) WPL 989958 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Relay (See Overload) WPL ARI123774A Contact Us For Availability
15
Crisper Cover WPL 1128981 Contact Us For Availability
15
Insert, Handle WPL 2147581 Contact Us For Availability
15
Hole Plug (White) WPL 1115352 Contact Us For Availability
15
Hole Plug (Almond) WPL 1115354 Contact Us For Availability
16
Hinge Bottom (R.H) WPL 2155320 Contact Us For Availability
17
Trim, Shelf WPL 1124421 Contact Us For Availability
17
Panel, Interior Door WPL 1129249 Contact Us For Availability
18
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
18
Tap, Plate WPL 2155335 Contact Us For Availability
19
Hinge Bottom (L.H) WPL 2155322 Contact Us For Availability
20
Control Box Harness WPL 2149185 Contact Us For Availability
20
Pan, Meat WPL 2152636 Contact Us For Availability
20
Retainer, Gasket WPL 1118301 Contact Us For Availability
20
Spacer, Hinge WPL 836196 Contact Us For Availability
21
Retainer, Gasket WPL 1117766 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Grille WPL 2155476 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Connecting Rod WPL 1123959 Contact Us For Availability
23
Clip, Heater (2) WPL 2161330 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
Escutcheon, Control Box WPL 2152647 Contact Us For Availability
25
Bracket, Door Stop WPL 2155334 Contact Us For Availability
26
Harness, Intermediate WPL 2153994 Contact Us For Availability
26
Cover, Conduit WPL 2150330 Contact Us For Availability
26
Handle, Reinforcement WPL 849445 Contact Us For Availability
27
Knob, Air Control WPL 1110562 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Trim, End Cap WPL 1110713 Contact Us For Availability
29
Seal, Hole WPL 1129056 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Heater, Defrost WPL 2161322 Contact Us For Availability
34
Capacitor WPL 2154565 Contact Us For Availability
36
Nameplate WPL 2160005 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
41
Air Baffle WPL 2155301 Contact Us For Availability
41
Drain Ferrule WPL 2155556 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Trim, Compartment Door WPL 1124432 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
55
WPL 978029 WPL 978029 Contact Us For Availability
55
WPL 876029 WPL 876029 Contact Us For Availability
55
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
55
WPL 799344 WPL 799344 Contact Us For Availability
55
Torx Key WPL 1117510 Contact Us For Availability
55
Clip, Wire And Water Tube WPL 2155658 Contact Us For Availability
55
xEnamel, Golden Wheat (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
55
Enamel, Golden Wheat (1 Qt. Uncut) WPL 261891 Contact Us For Availability
55
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
55
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
55
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
55
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
55
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
55
WPL 515393 WPL 515393 Contact Us For Availability
55
WPL 542639 WPL 542639 Contact Us For Availability
55
WPL 72112 WPL 72112 Contact Us For Availability
55
WPL 799340 WPL 799340 Contact Us For Availability
55
WPL 799833 WPL 799833 Contact Us For Availability
55
WPL 978028 WPL 978028 Contact Us For Availability
55
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
