Model Whirlpool RS20CKXAL01 – Common Parts & Diagrams
01 - CABINET

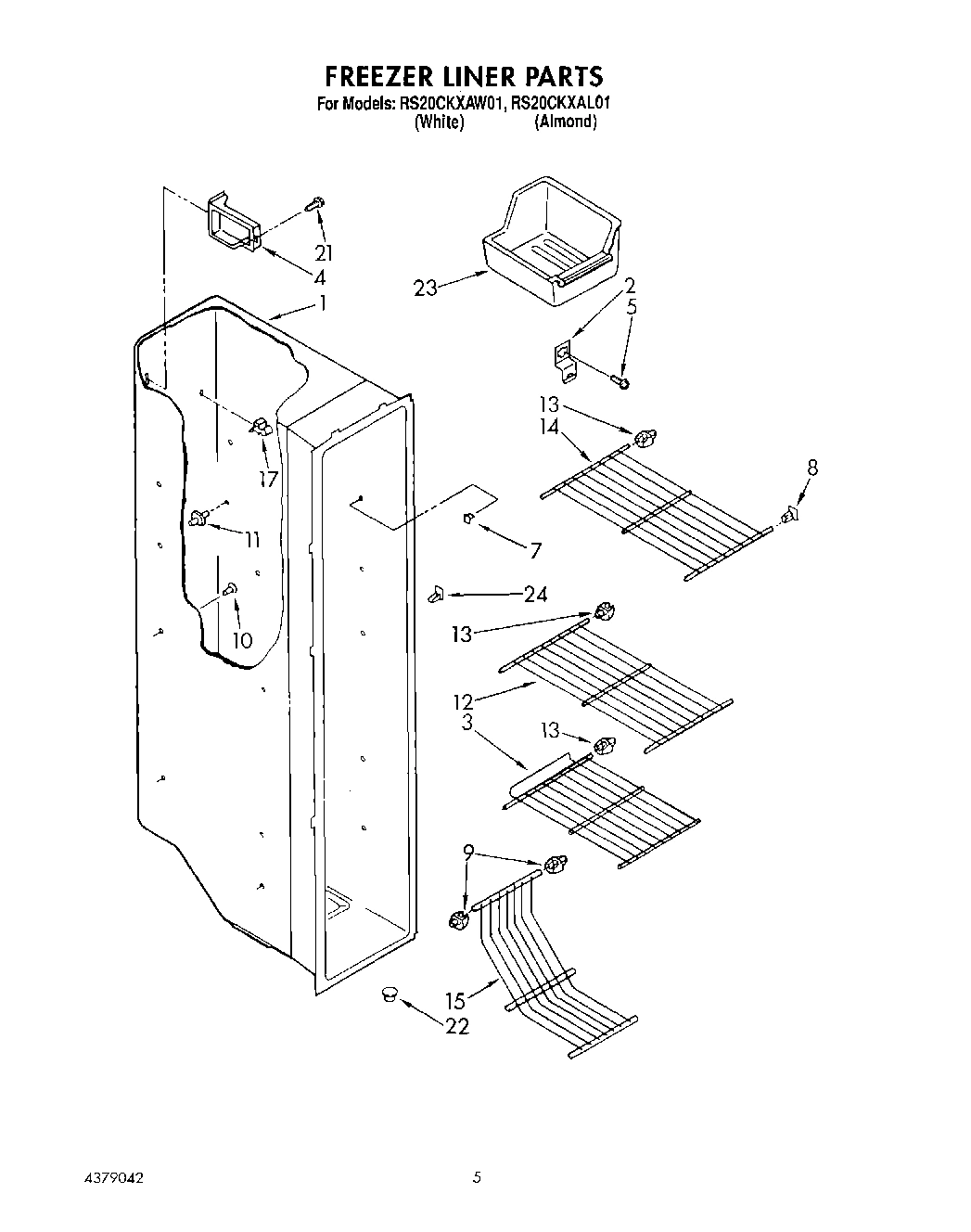

03 - FREEZER LINER
04 - REFRIGERATOR DOOR
07 - CONTROL
08 - UNIT, LIT/OPTIONAL
02 - REFRIGERATOR LINER
05 - FREEZER DOOR
06 - AIR FLOW
Common parts from model Whirlpool RS20CKXAL01
WPL LIT2152632 WPL LIT2152632 Contact Us For Availability
WPL LIT2155143 WPL LIT2155143 Contact Us For Availability
WPL LIT2163501 WPL LIT2163501 Contact Us For Availability
WPL LIT4379042 WPL LIT4379042 Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 2147643 Contact Us For Availability
1
Refrigerator Door Panel (Almond (Also Order I WPL 2147645 Contact Us For Availability
1
Control Box WPL 2155518 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI123768A Contact Us For Availability
1
Freezer, Door Panel (White) WPL 4362012 Contact Us For Availability
1
Freezer, Door Panel (Almond (Also Order Item WPL 4362013 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
3
Trim, Shelf (5) WPL 1120852 Contact Us For Availability
3
Handle WPL 2147526 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Condenser Assembly WPL 2154010 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
4
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
5
Handle, Reinforcement WPL 849445 Contact Us For Availability
6
Door, Compartment WPL 2148289 Contact Us For Availability
6
Shim, Handle (2) WPL 2147097 Contact Us For Availability
6
Defrost Timer WPL 2154984 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
7
Ladder, Shelf (2) WPL 1108433 Contact Us For Availability
8
Reinforcement, Handle WPL 1127465 Contact Us For Availability
8
Cover, Unit Compartment WPL 2160505 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Strap WPL 938384 Contact Us For Availability
12
Cover WPL 1108115 Contact Us For Availability
12
Harness, Fan, Evaporator, And Heater WPL 2161327 Contact Us For Availability
13
Shim, Hinge (2) WPL 1123515 Contact Us For Availability
13
Overload) (Service (Includes Relay) WPL 1108114 Contact Us For Availability
13
Shelf, Cantilever (3) WPL 1118497 Contact Us For Availability
13
Panel, Interior Door WPL 1129241 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Trim, Door Shelf WPL 1120856 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Relay (See Overload) WPL ARI123770A Contact Us For Availability
15
Crisper Cover WPL 1128981 Contact Us For Availability
16
Retainer, Gasket WPL 1117767 Contact Us For Availability
17
Panel, Interior Door WPL 1129249 Contact Us For Availability
17
Retainer, Gasket WPL 1117766 Contact Us For Availability
17
Capacitor (Production) WPL 2154565 Contact Us For Availability
17
Trim, Shelf WPL 1124421 Contact Us For Availability
18
Tap Plate WPL 988402 Contact Us For Availability
19
Screw, Grommit WPL 509812 Contact Us For Availability
20
Retainer, Gasket WPL 1118301 Contact Us For Availability
20
Control Box Harness WPL 2149185 Contact Us For Availability
20
Pan, Meat WPL 2152636 Contact Us For Availability
22
Bracket, Door Stop WPL 1115906 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Insert, Handle WPL 2147581 Contact Us For Availability
23
Connecting Rod WPL 1123959 Contact Us For Availability
23
Clip WPL 2161329 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Stud, Rear (5) WPL 1106982 Contact Us For Availability
25
Escutcheon, Control Box WPL 2152647 Contact Us For Availability
26
Harness, Intermediate WPL 2153994 Contact Us For Availability
26
Cover, Conduit WPL 2150330 Contact Us For Availability
27
Knob, Air Control WPL 1110562 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Trim, End Cap WPL 1110713 Contact Us For Availability
29
Seal, Hole WPL 1129056 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Heater, Defrost WPL 2162079 Contact Us For Availability
34
Clip, Heater WPL 2161330 Contact Us For Availability
36
Nameplate WPL 2160005 Contact Us For Availability
41
Air, Baffle WPL 1127938 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Trim, Compartment Door WPL 1124432 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire And Water Tube WPL 2155658 Contact Us For Availability
