Model Whirlpool RS20AKXDW00 – Common Parts & Diagrams

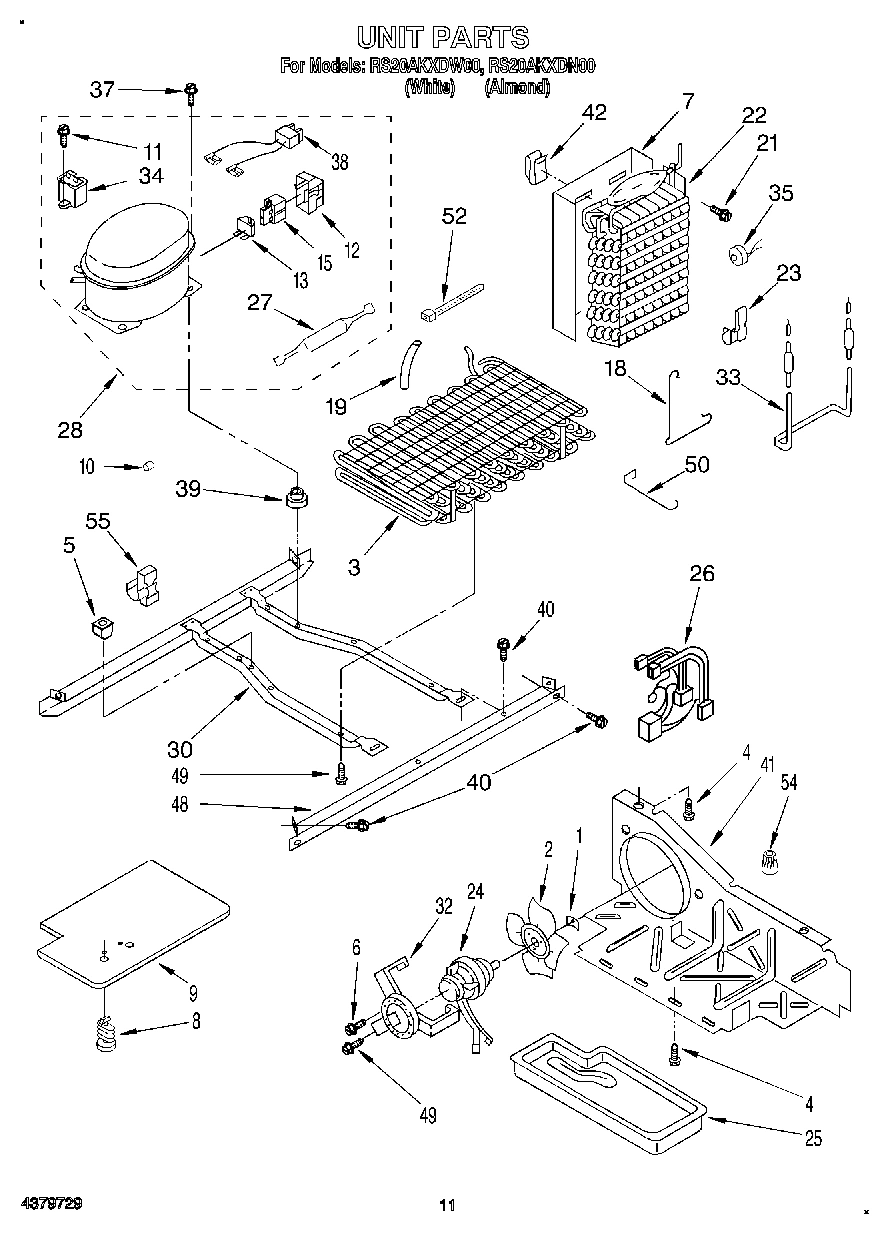

07 - UNIT

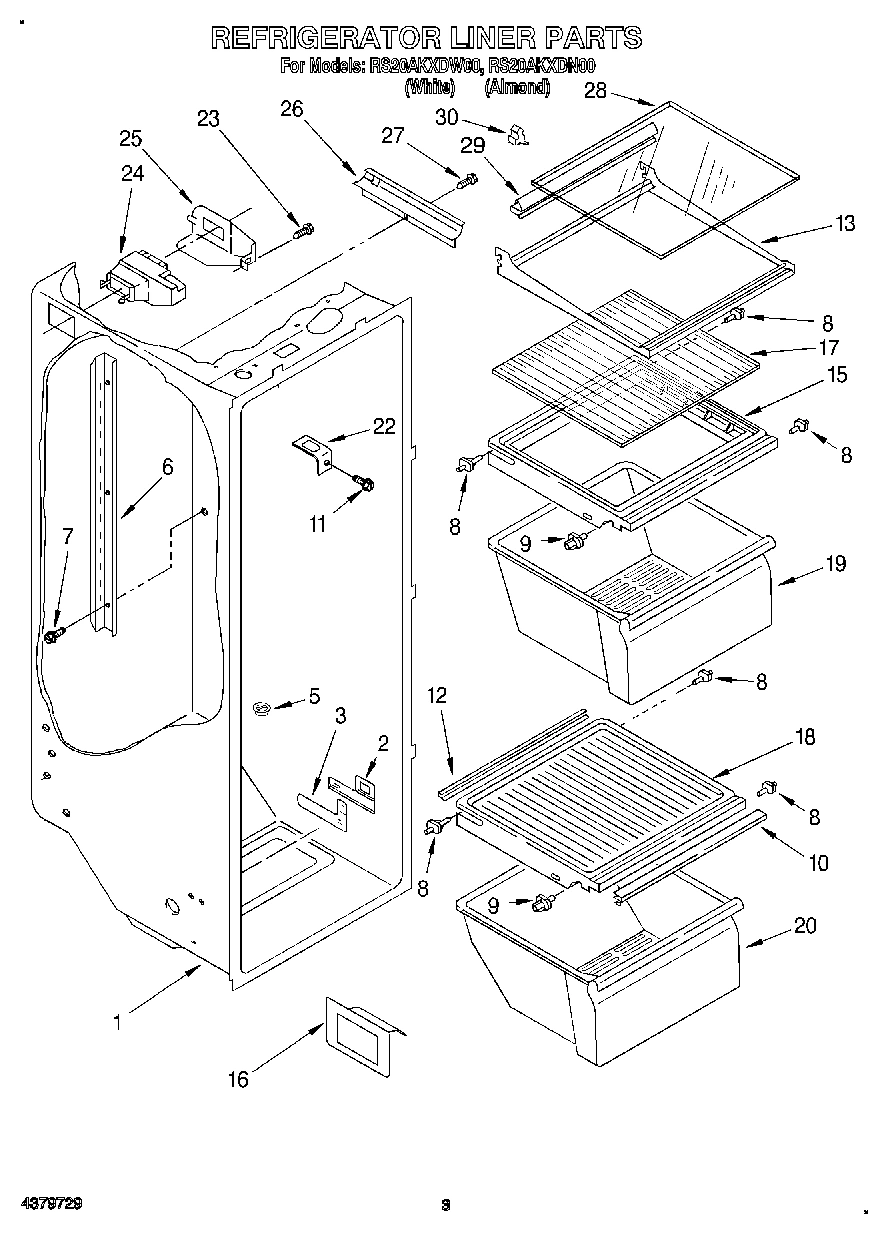

02 - REFRIGERATOR LINER

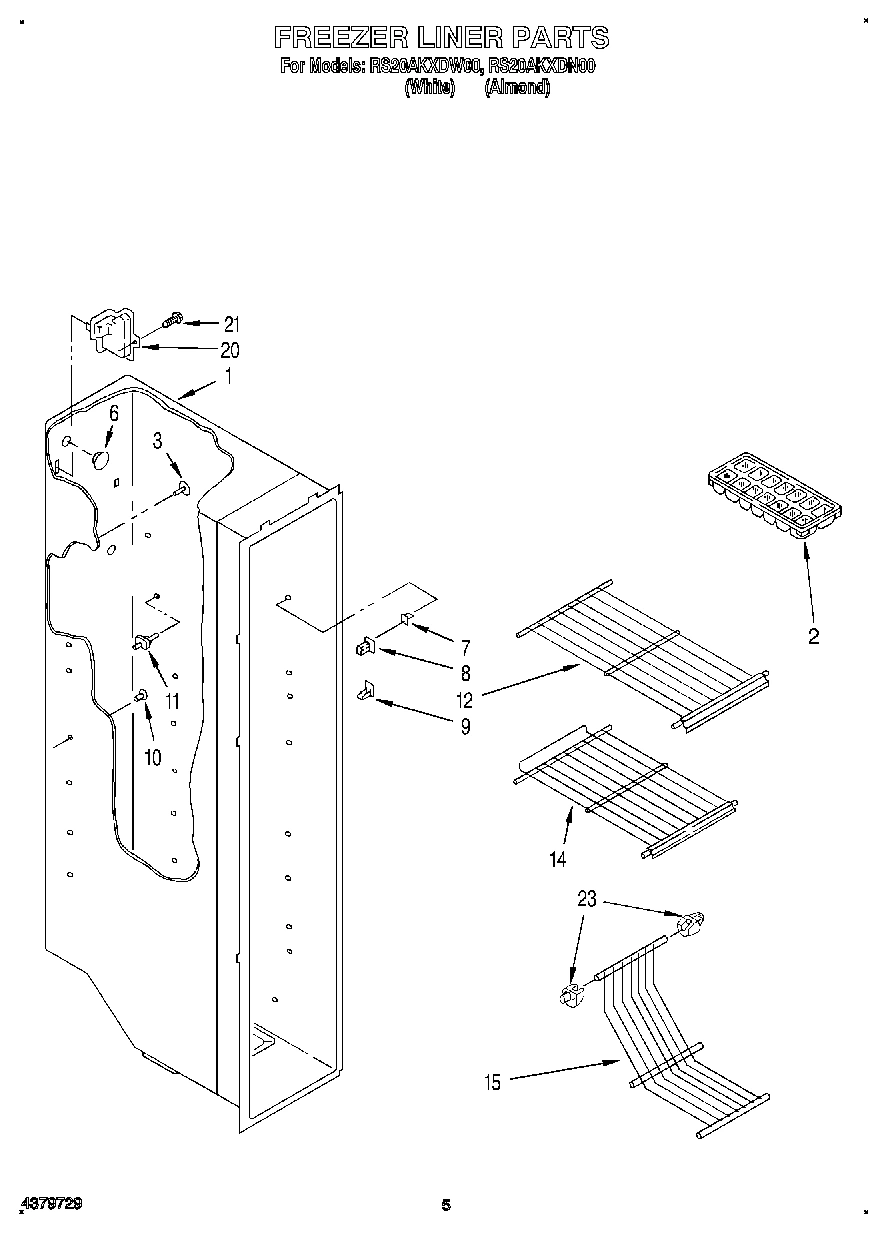

03 - FREEZER LINER

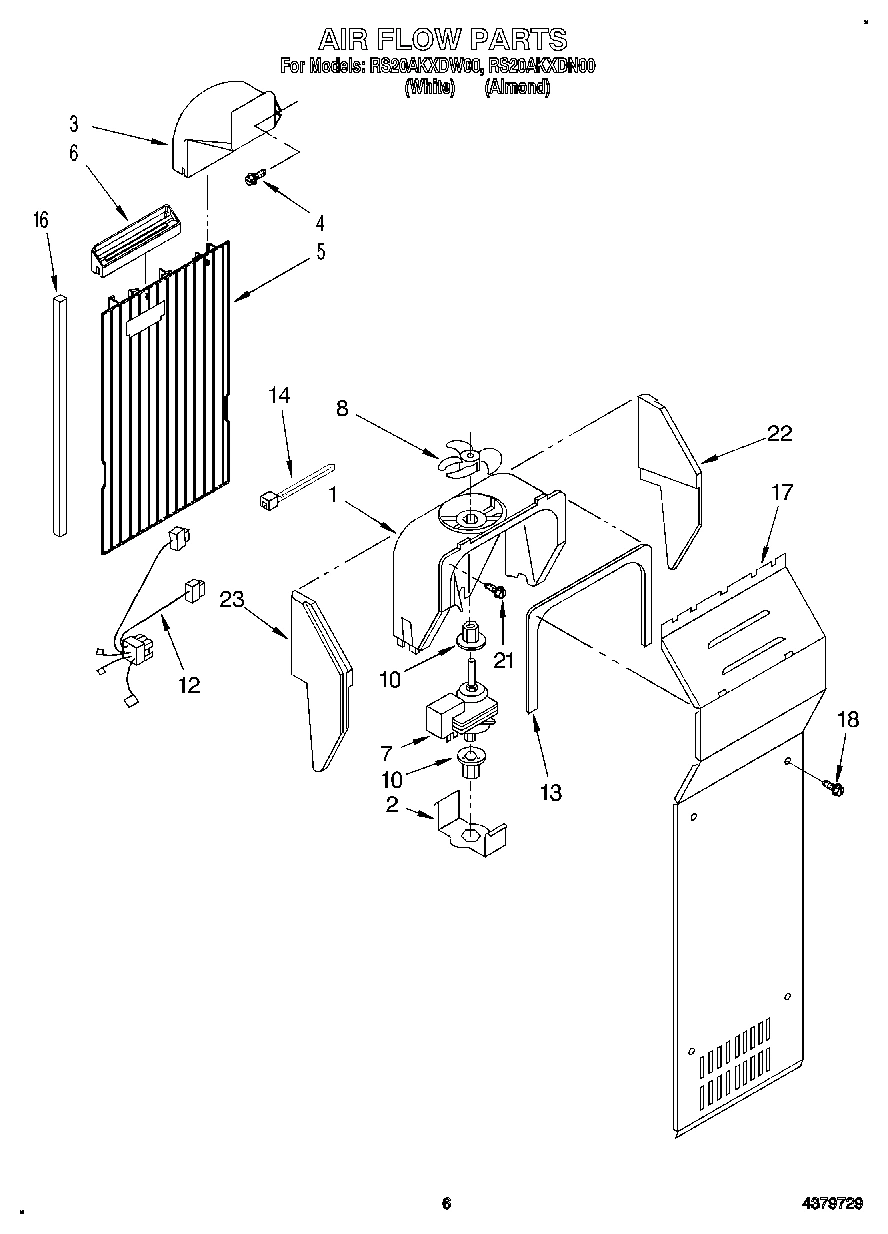

04 - AIR FLOW

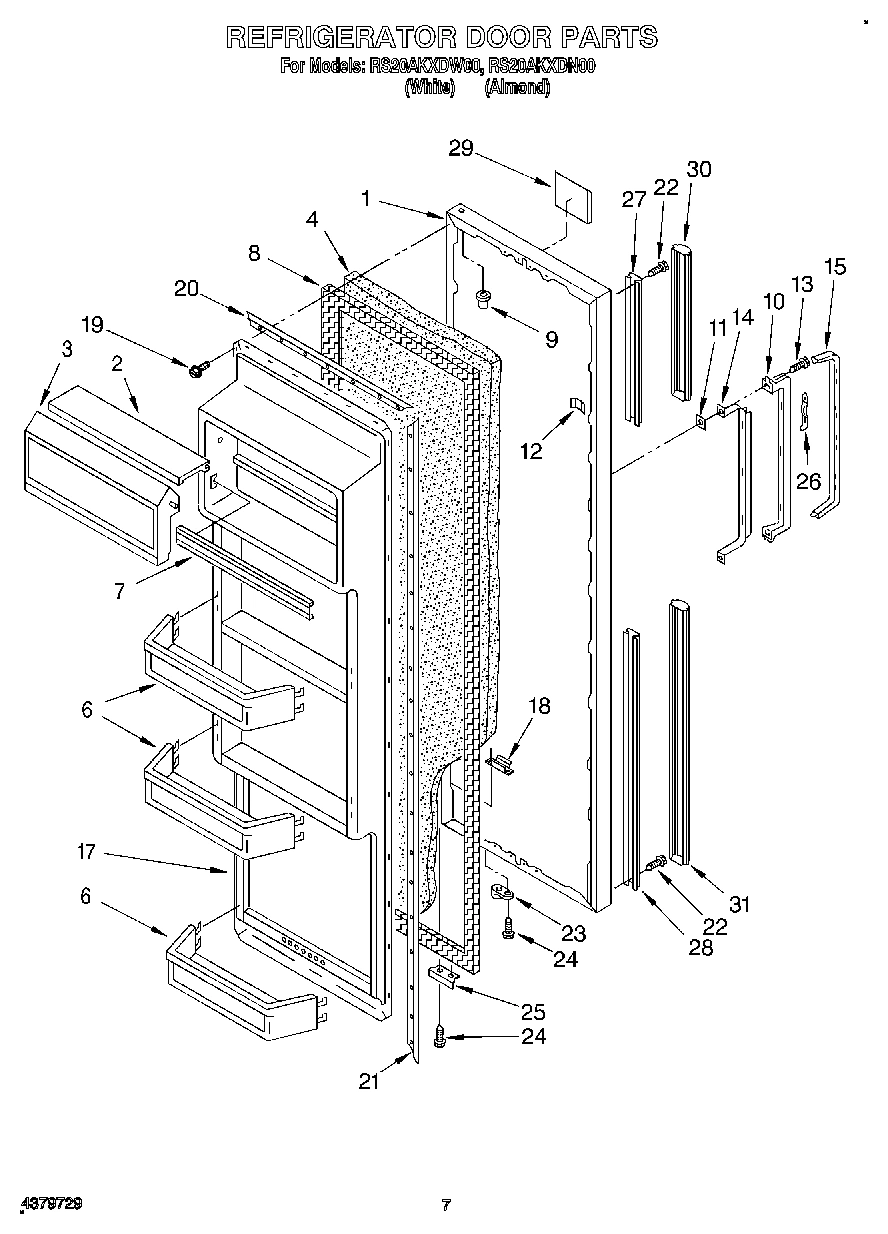

05 - REFRIGERATOR DOOR

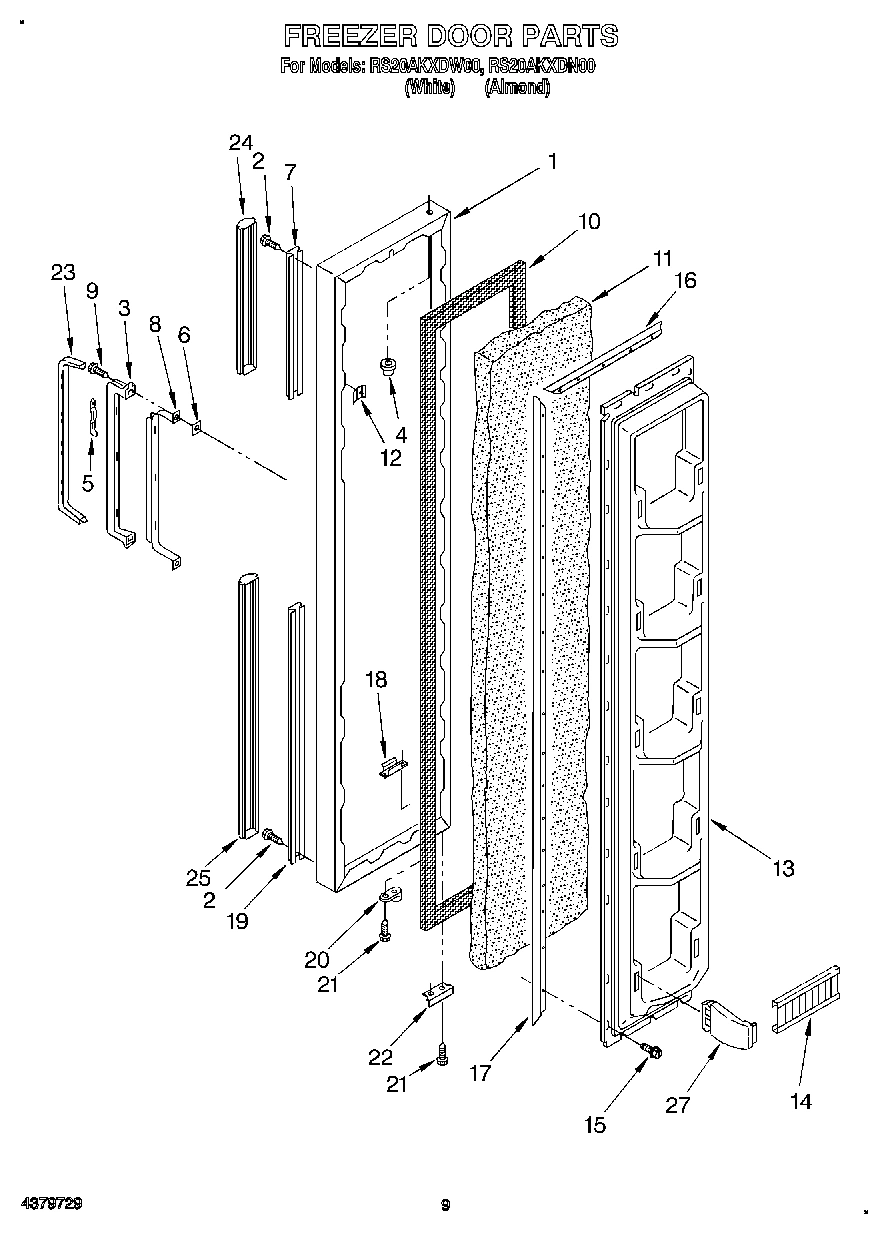

06 - FREEZER DOOR

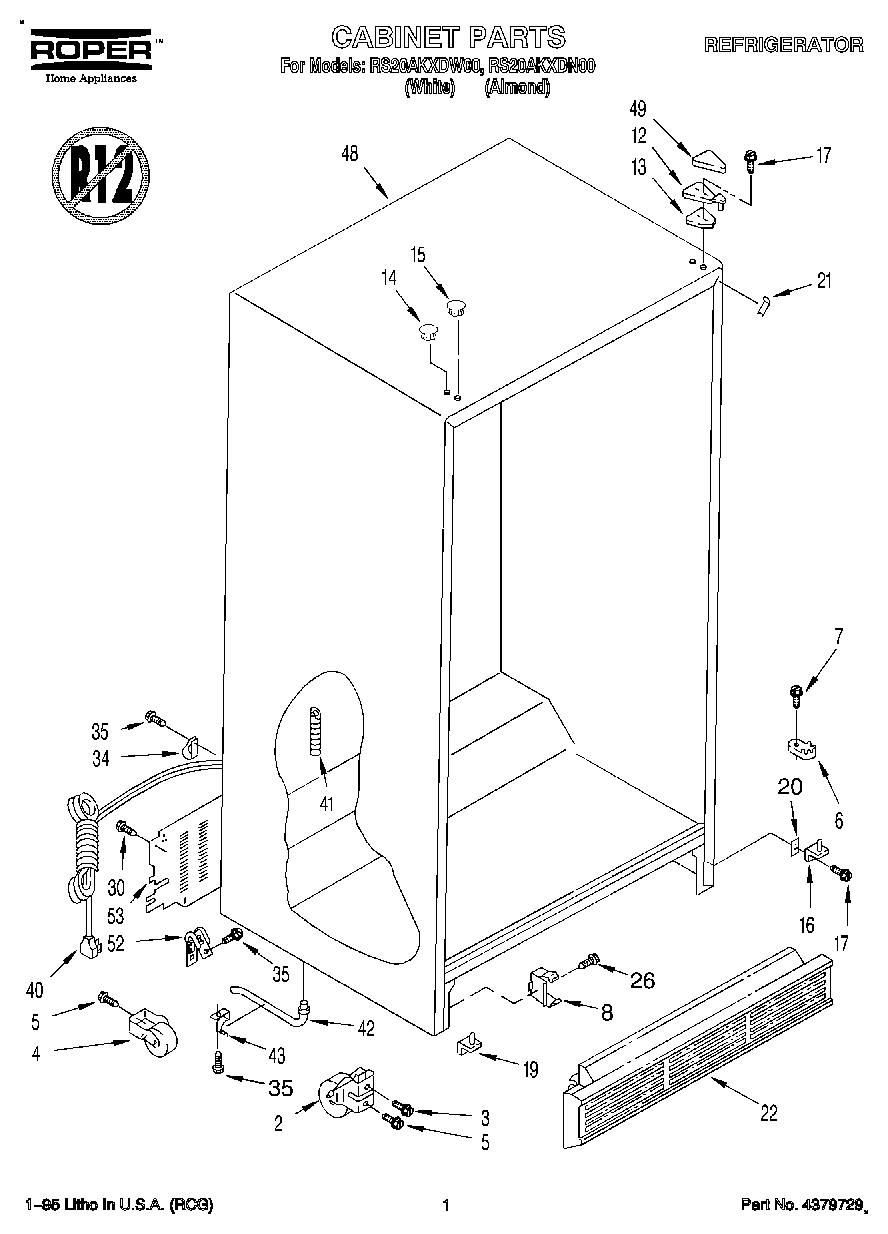

01 - CABINET

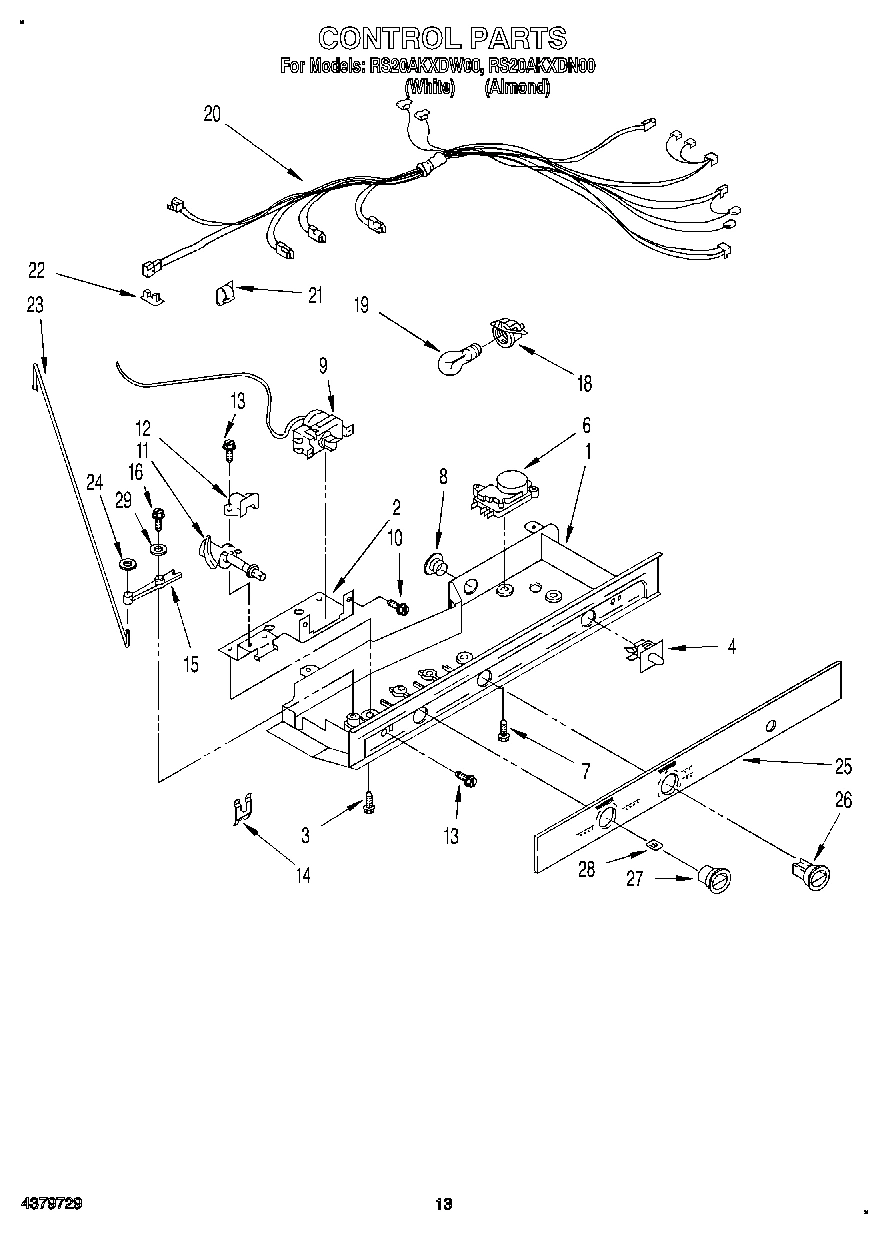

08 - CONTROL, LIT/OPTIONAL
Common parts from model Whirlpool RS20AKXDW00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2173306 WPL LIT2173306 Contact Us For Availability
WPL LIT2173379 WPL LIT2173379 Contact Us For Availability
WPL LIT2179908 WPL LIT2179908 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI123735A Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 4362029 Contact Us For Availability
1
Refrigerator Door Panel (Almond (Also Order I WPL 4362054 Contact Us For Availability
1
Freezer, Door Panel (White) WPL 4362036 Contact Us For Availability
1
Freezer, Door Panel (Almond (Also Order Item WPL 4362037 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Shelf, Compartment WPL 1116707 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Door, Compartment WPL 2173130 Contact Us For Availability
3
Handle (White) WPL 2147470 Contact Us For Availability
3
Handle (Almond) WPL 2170066 Contact Us For Availability
3
Screw WPL 489432 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
4
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
5
Handle, Reinforcement WPL 849445 Contact Us For Availability
6
Hole Plug WPL 655411 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Shelf Bin (3) WPL 2163644 Contact Us For Availability
6
Shim, Handle (2) WPL 2147097 Contact Us For Availability
6
Defrost Timer WPL 2162046 Contact Us For Availability
7
Support, Stud (10) WPL 946355 Contact Us For Availability
7
Retainer, Top WPL 2147898 Contact Us For Availability
7
Screw WPL 489240 Contact Us For Availability
8
Stud, Front (4) WPL 946356 Contact Us For Availability
8
Reinforcement, Handle WPL 1127465 Contact Us For Availability
9
Stud R.S. Rear (4) WPL 1106982 Contact Us For Availability
10
Grommet (10) WPL 1110779 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
12
Shelf WPL 2163612 Contact Us For Availability
12
Harness, Fan, Evaporator, And Heater WPL 2161478 Contact Us For Availability
13
Shim, Hinge (2) WPL 1123515 Contact Us For Availability
13
Panel, Interior Door WPL 1129241 Contact Us For Availability
14
Shelf (1) WPL 2174269 Contact Us For Availability
14
Shelf (2) WPL 2174270 Contact Us For Availability
14
Trim, Shelf (5) WPL 2163642 Contact Us For Availability
14
Hole, Plug (White) WPL 849391 Contact Us For Availability
14
Hole Plug (Almond) WPL 989958 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Trivet WPL 2148400 Contact Us For Availability
15
Hole Plug (White) WPL 1115352 Contact Us For Availability
15
Hole Plug (Almond) WPL 1115354 Contact Us For Availability
16
Retainer, Gasket WPL 1117767 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2155321 Contact Us For Availability
17
Panel, Interior WPL 2160928 Contact Us For Availability
17
Retainer, Gasket WPL 1117766 Contact Us For Availability
18
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
18
Tap, Plate WPL 2155335 Contact Us For Availability
19
Retainer (Bottom) WPL 2147896 Contact Us For Availability
19
Hinge Bottom (L.H.) WPL 2155323 Contact Us For Availability
20
Cover, Wiring WPL 2155401 Contact Us For Availability
20
Retainer, Gasket WPL 1118301 Contact Us For Availability
20
Spacer, Hinge WPL 836196 Contact Us For Availability
20
Control Box Harness WPL 2149185 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Bracket, Door Stop WPL 2155332 Contact Us For Availability
22
Grille (White) WPL 2155477 Contact Us For Availability
22
Grille (Almond) WPL 2155478 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Insert, Handle WPL 2147581 Contact Us For Availability
23
Connecting Rod WPL 1123959 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Insert, Top (White) WPL 2147472 Contact Us For Availability
24
Insert, Top (Almond) WPL 2170067 Contact Us For Availability
25
Insert, Bottom (White) WPL 2147471 Contact Us For Availability
25
Insert, Bottom (Almond) WPL 2170068 Contact Us For Availability
25
Escutcheon, Control Box WPL 2163622 Contact Us For Availability
26
Cover, Conduit WPL 2150330 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
Glass, Shelf WPL 2173179 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
WPL 876029 WPL 876029 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
Reflector WPL 1125594 Contact Us For Availability
29
Nameplate WPL 2163676 Contact Us For Availability
29
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
29
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
29
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
29
WPL 799833 WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI123733A Contact Us For Availability
55
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
