Model Whirlpool RMC305PDB4 30`` BUILT-IN ELECTRIC COMBO SENSOR/SC – Common Parts & Diagrams

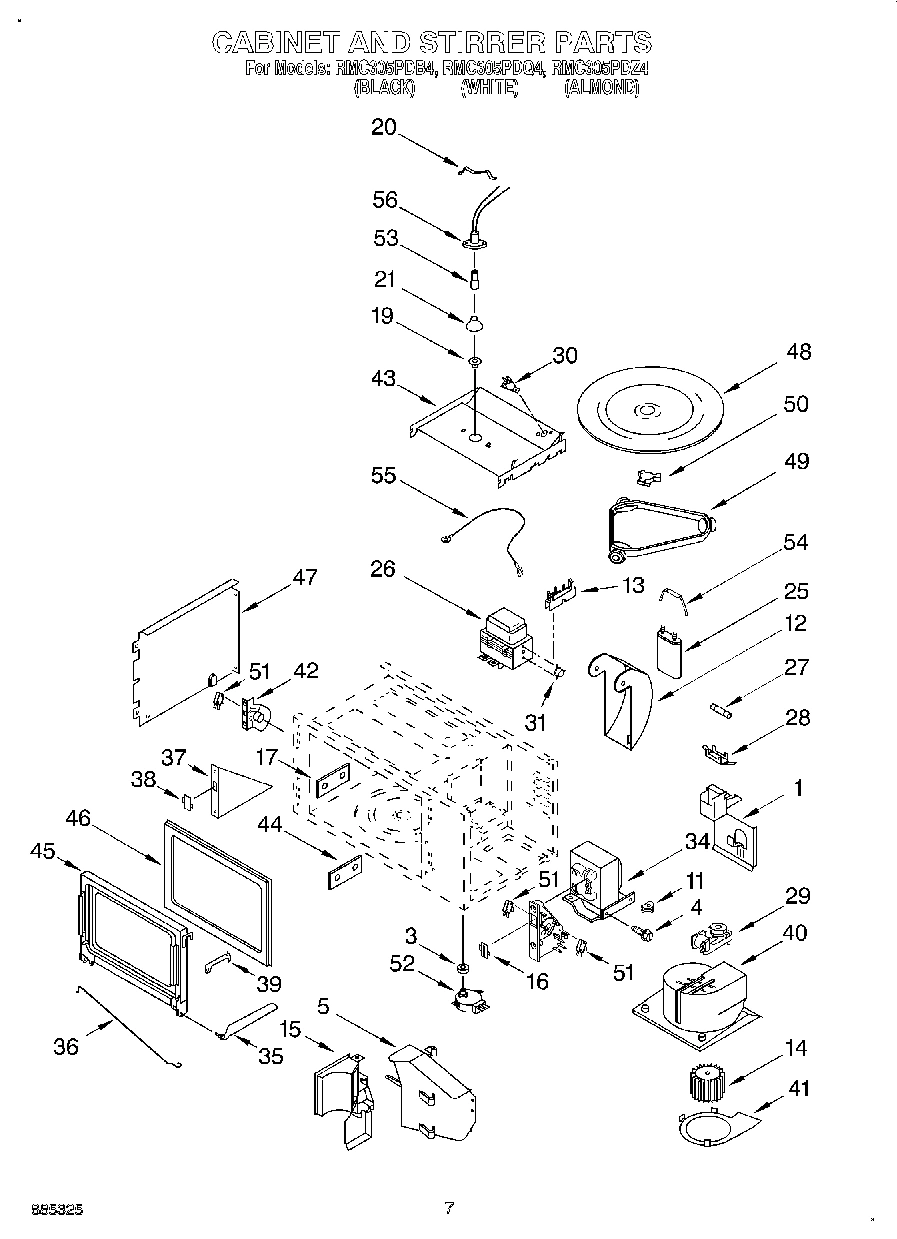

06 - CABINET AND STIRRER

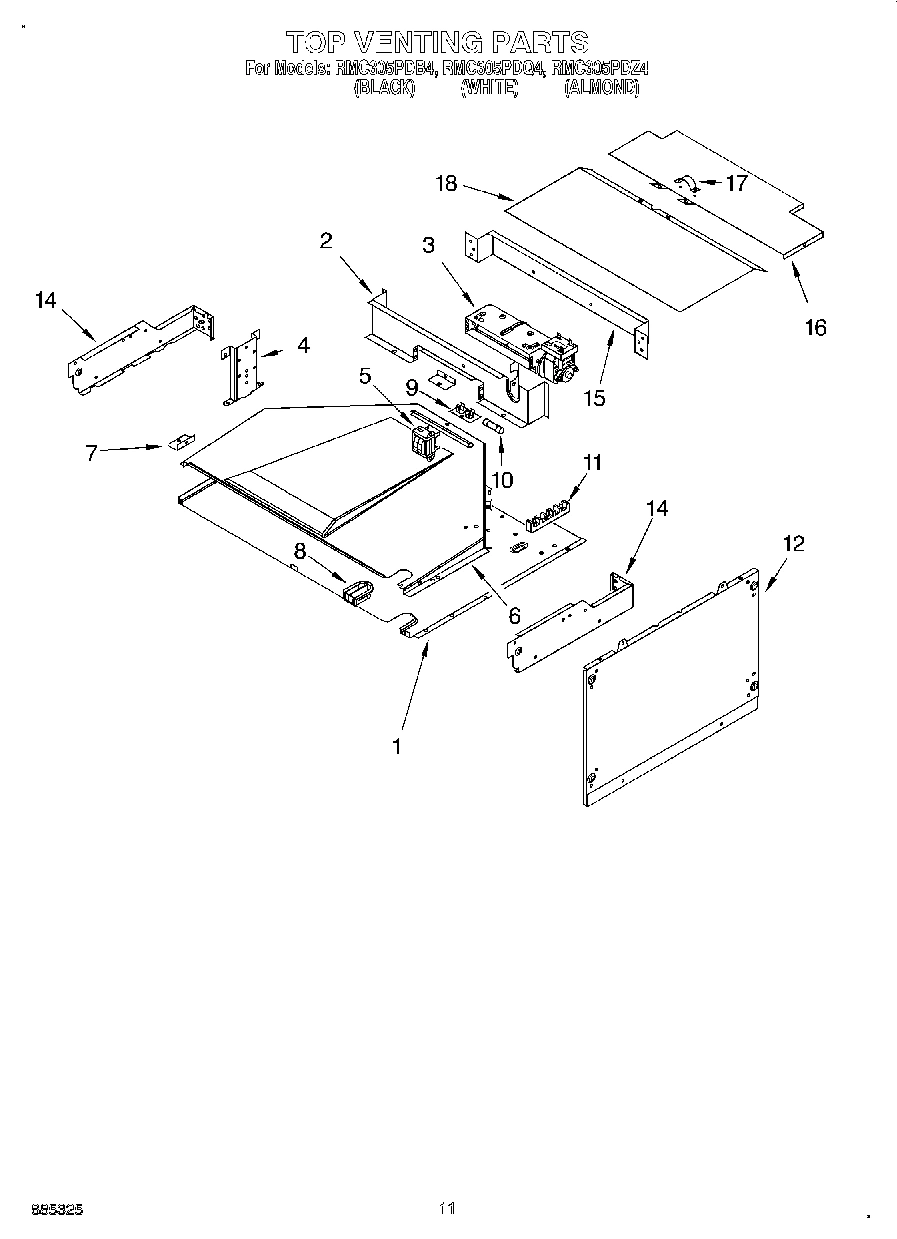

09 - TOP VENTING, OPTIONAL

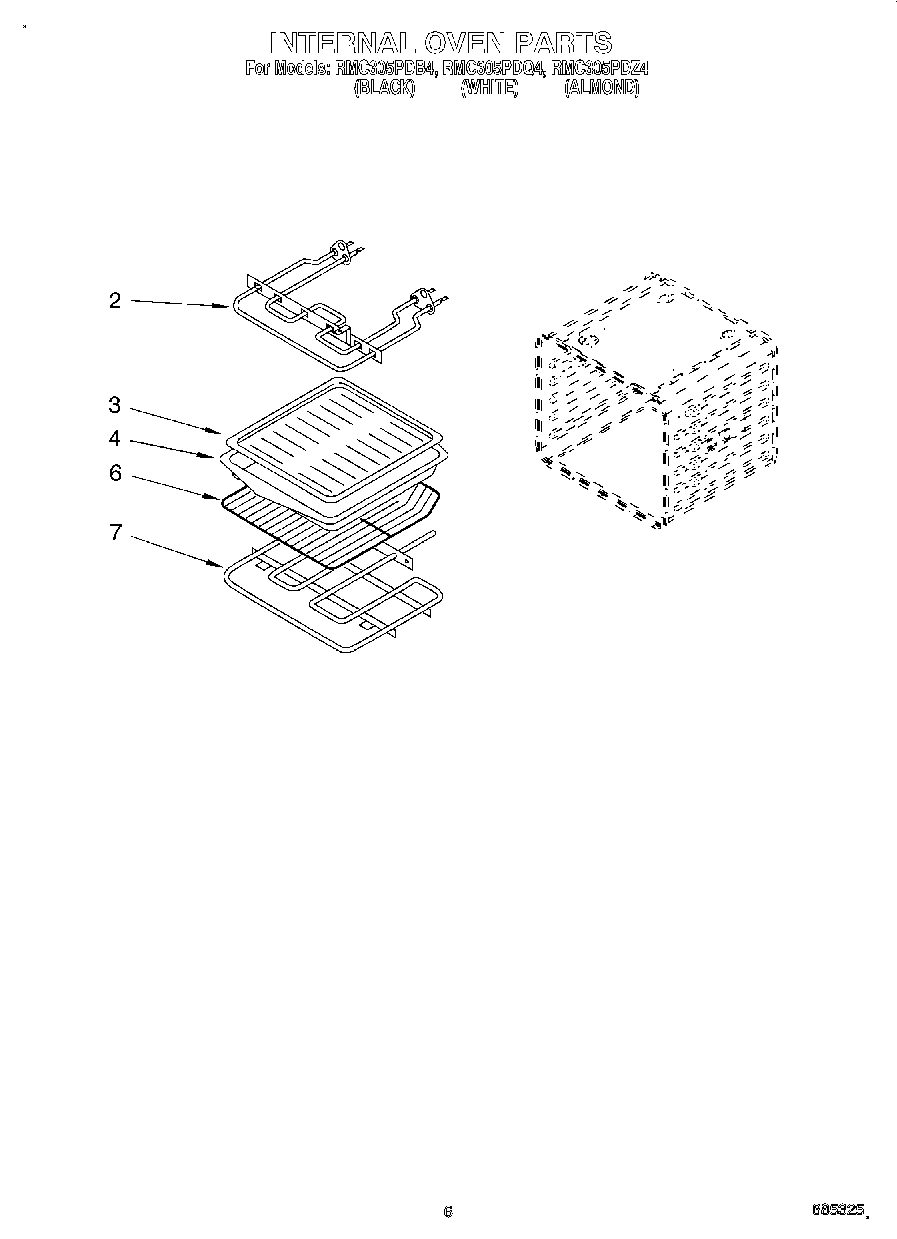

05 - INTERNAL OVEN

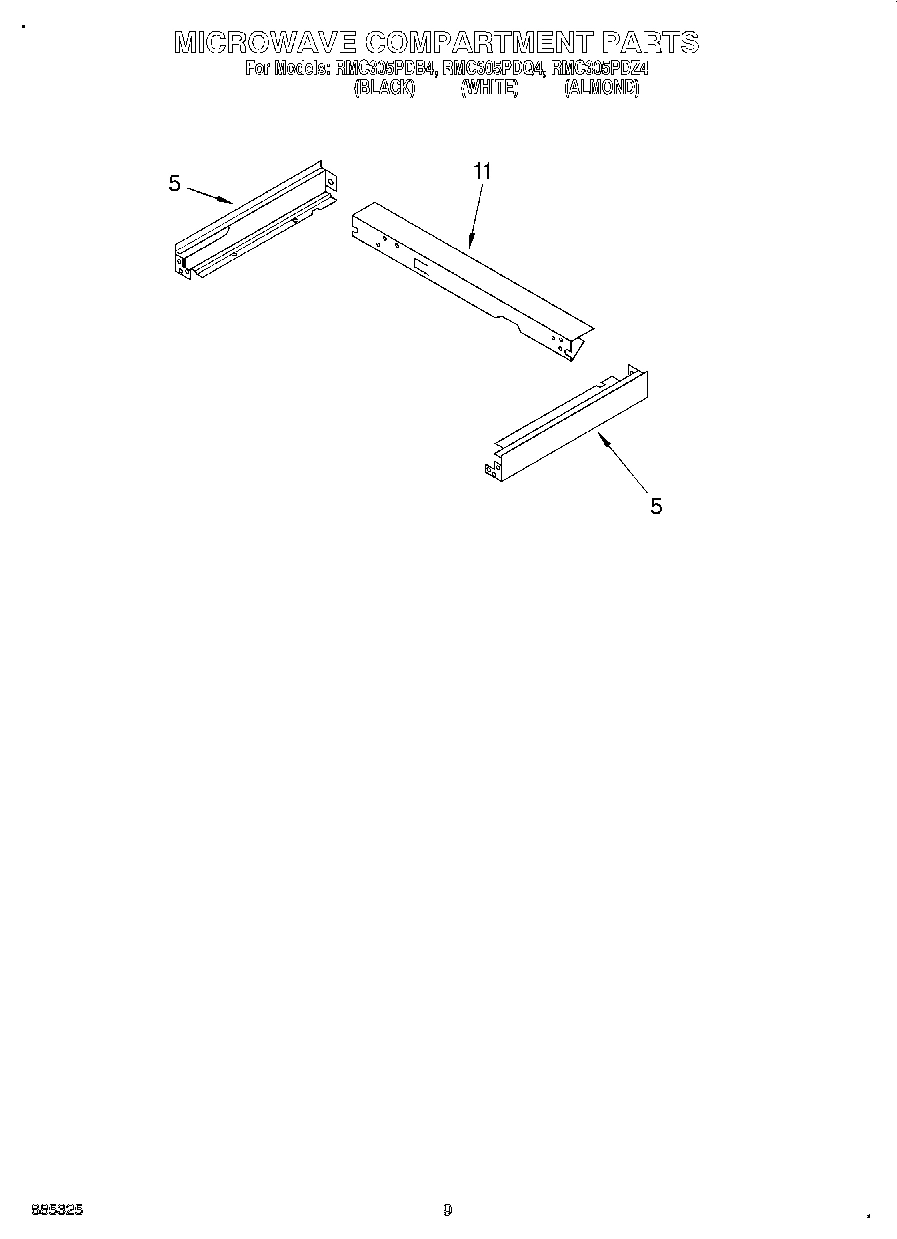

07 - MICROWAVE COMPARTMENT

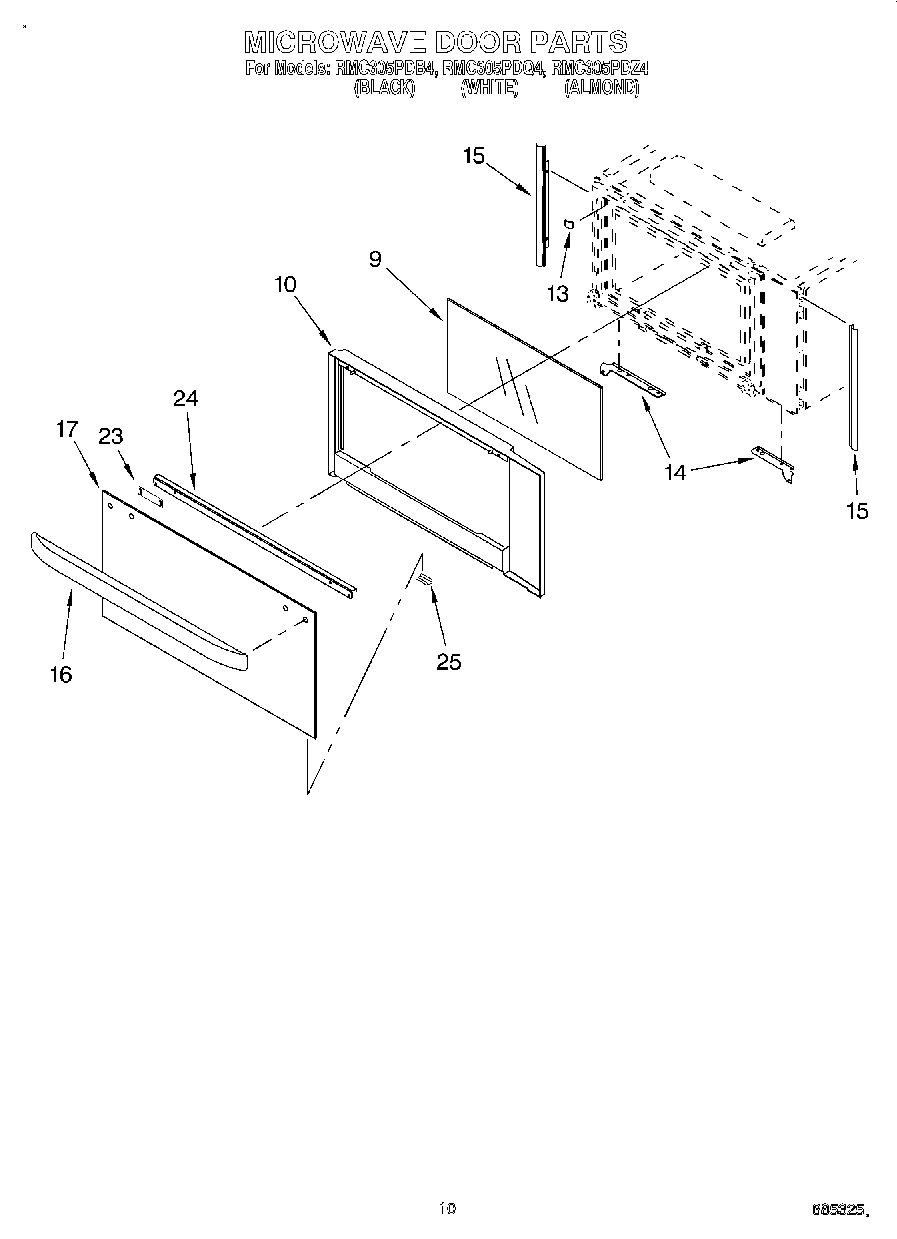

08 - MICROWAVE DOOR

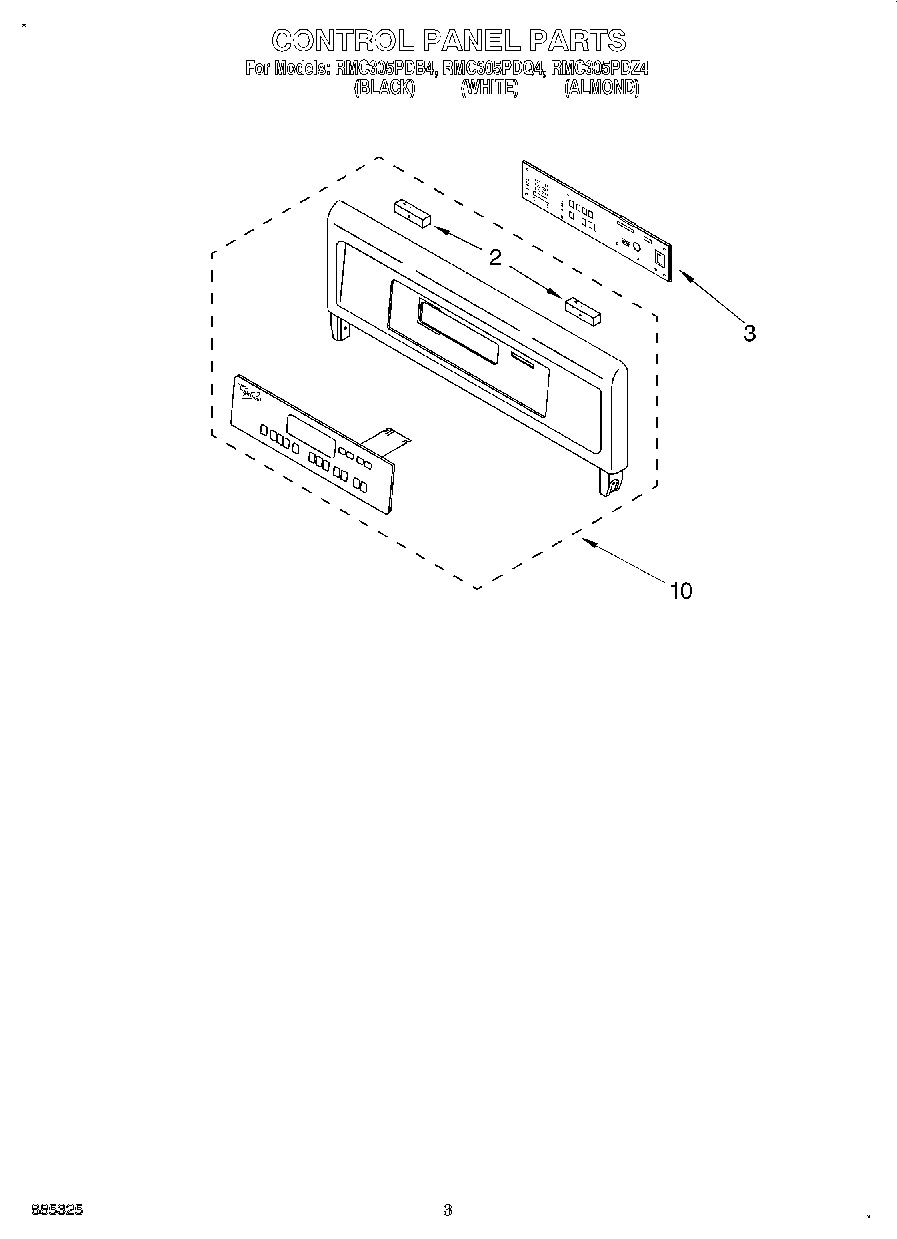

02 - CONTROL PANEL, LITERATURE

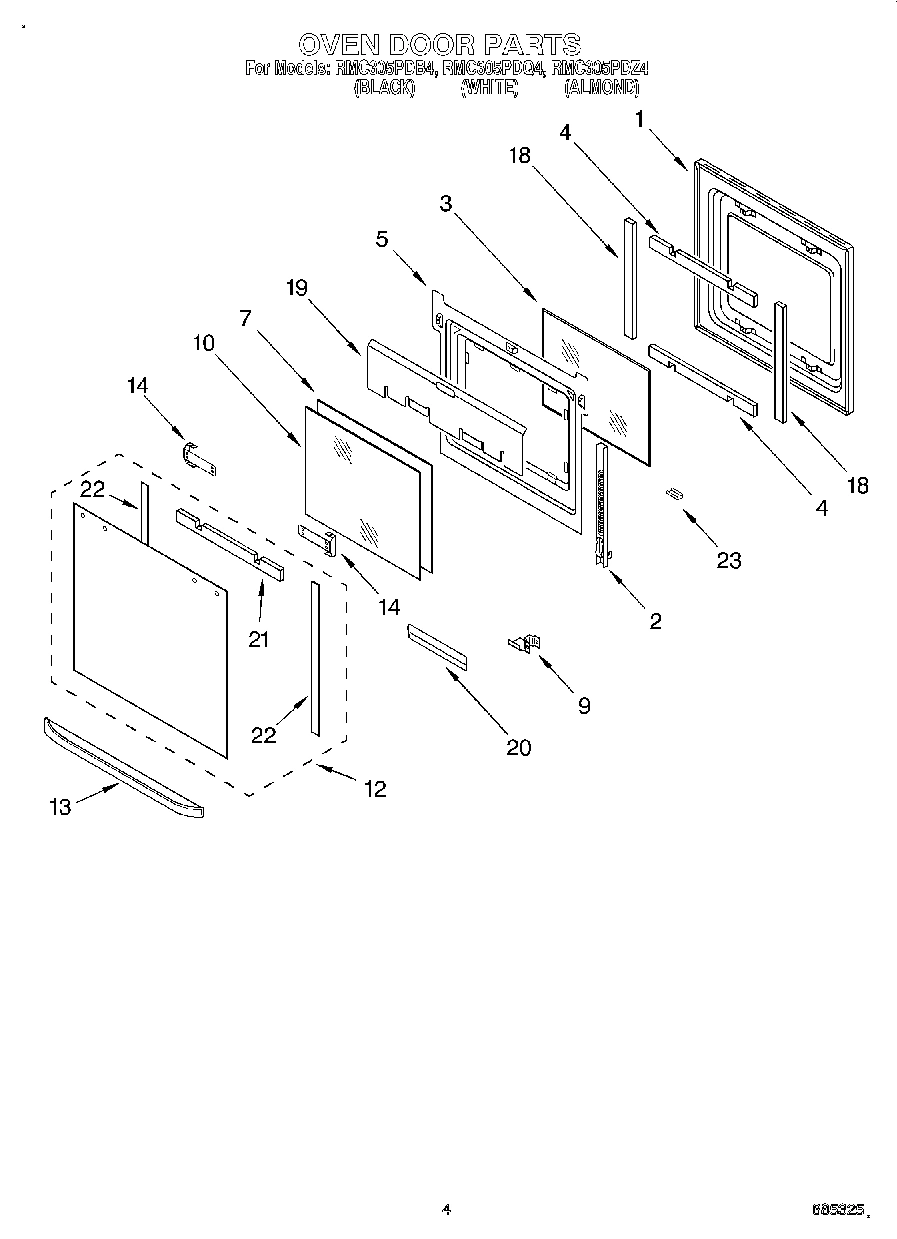

03 - OVEN DOOR

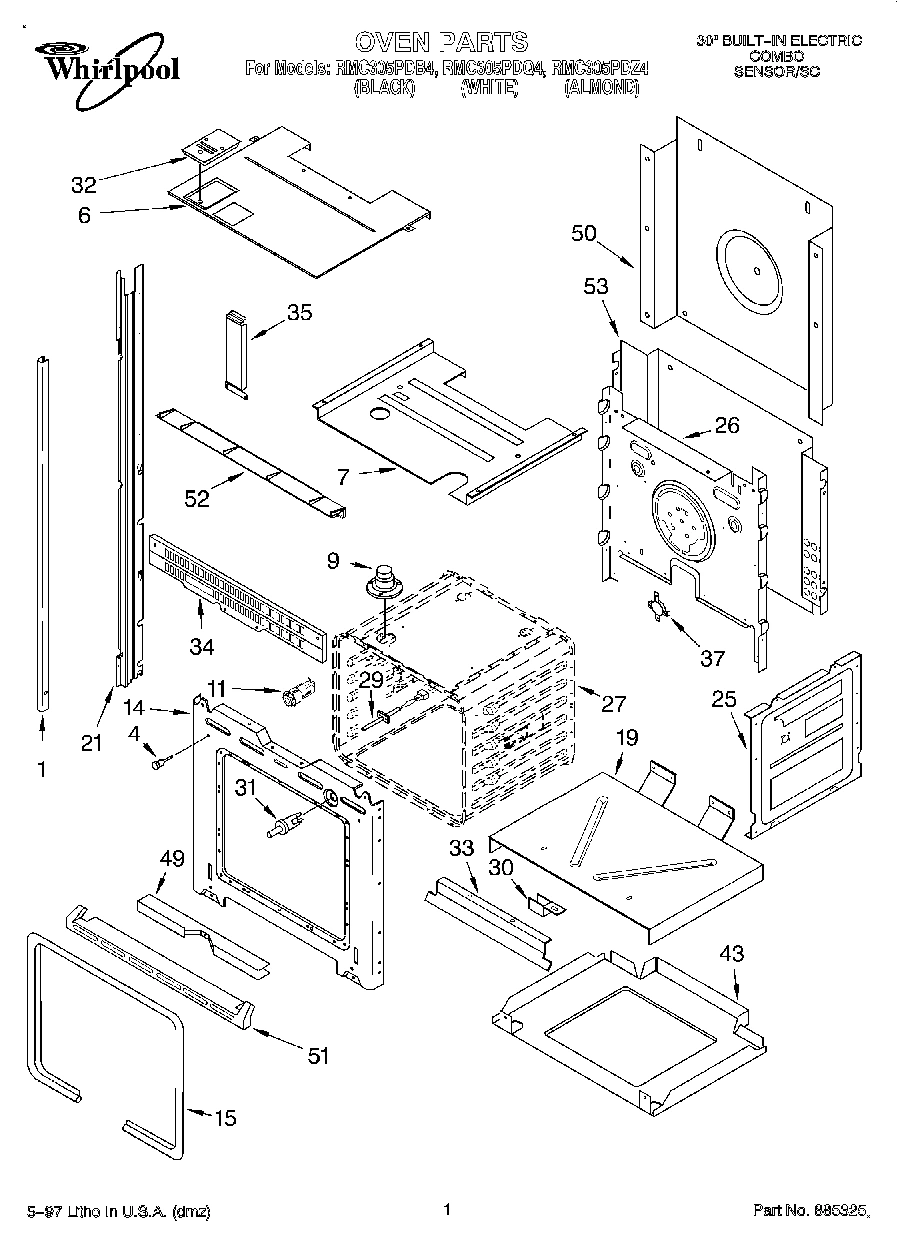

01 - OVEN

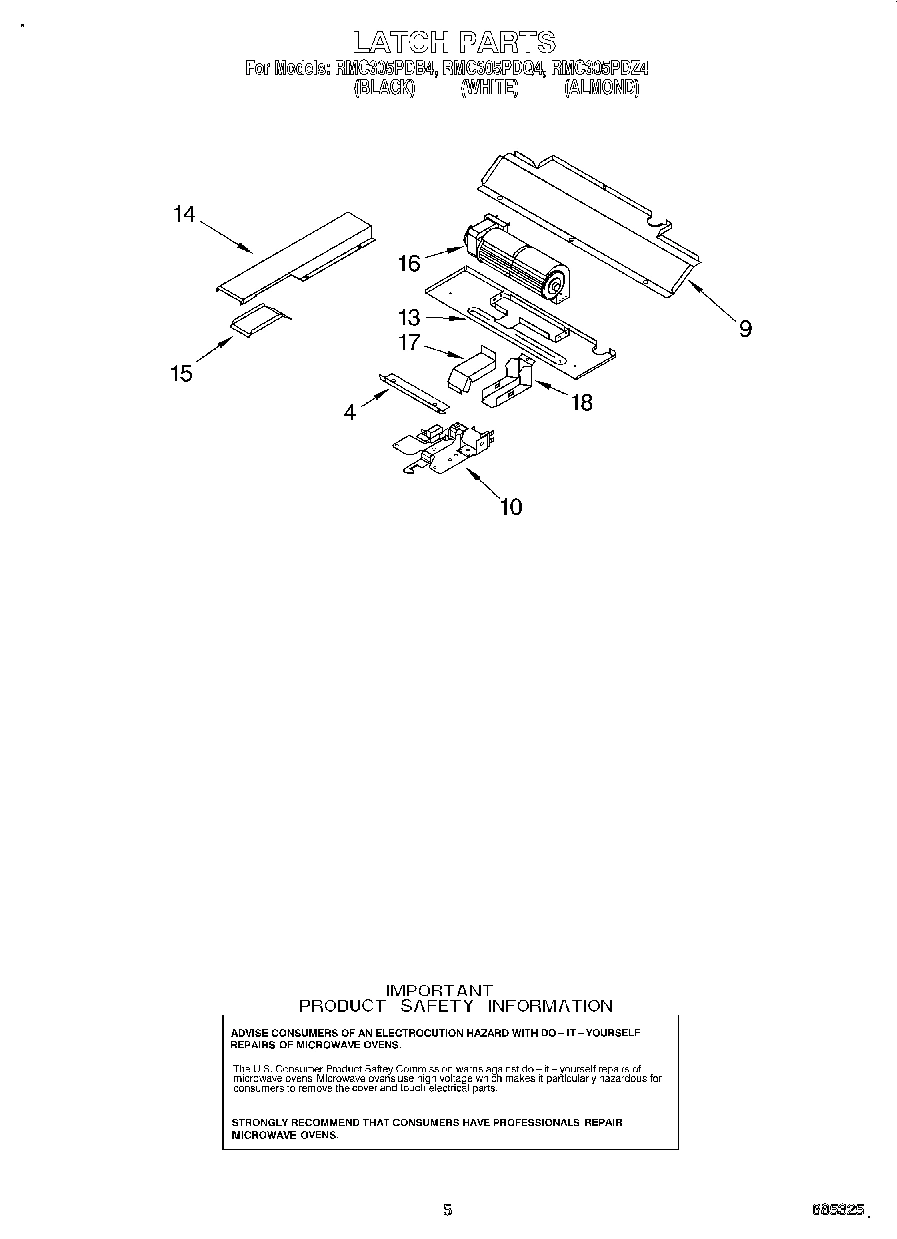

04 - LATCH
Common parts from model Whirlpool RMC305PDB4 30`` BUILT-IN ELECTRIC COMBO SENSOR/SC
Use & Care Guide (Microwave) WPL LIT4448978 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT4449869 Contact Us For Availability
Installation Instructions WPL LIT4450412 Contact Us For Availability
Cooking Guide (Label) WPL LIT4450785 Contact Us For Availability
Tech Sheet (Oven) WPL LIT4454772 Contact Us For Availability
1
Door Liner WPL 4450429 Contact Us For Availability
1
Trim, Side (Screw) WPL 4449041 Contact Us For Availability
1
Trim, Side (RH Black) WPL 4450856 Contact Us For Availability
1
Trim, Side (RH White) WPL 4450857 Contact Us For Availability
1
Trim, Side (RH Almond) WPL 4450858 Contact Us For Availability
1
Trim, Side (LH Black) WPL 4450859 Contact Us For Availability
1
Trim, Side (LH White) WPL 4450860 Contact Us For Availability
1
Trim, Side (LH Almond) WPL 4450861 Contact Us For Availability
2
Gasket WPL 4450356 Contact Us For Availability
3
Microcomputer WPL 4448877 Contact Us For Availability
4
Insulation, Top and Bottom Door WPL 4448680 Contact Us For Availability
4
Deflector, Latch WPL 4450051 Contact Us For Availability
5
Support Rails (Right Side) WPL 4450404 Contact Us For Availability
5
Support Rails (Left Side) WPL 4450405 Contact Us For Availability
5
Retainer, Glass WPL 4450423 Contact Us For Availability
6
Divider, Vent WPL 4451054 Contact Us For Availability
7
Partition WPL 4451166 Contact Us For Availability
9
Glass, Middle WPL 4450834 Contact Us For Availability
9
Retainer, Glass WPL 4450470 Contact Us For Availability
9
Tube, Vent WPL 4449009 Contact Us For Availability
9
Baffle, Rear WPL 4450408 Contact Us For Availability
10
Control Panel Assy W/Membrane Switch (Black M WPL 4451068 Contact Us For Availability
10
Control Panel Assy W/Membrane Switch (White M WPL 4451069 Contact Us For Availability
10
Control Panel Assy W/Membrane Switch (Almond WPL 4451070 Contact Us For Availability
10
Latch Assy WPL 4454710 Contact Us For Availability
11
Rear Channel WPL 4449703 Contact Us For Availability
12
Duct, Inlet WPL 4375260 Contact Us For Availability
12
Door Glass (Almond Model) WPL 4450704 Contact Us For Availability
12
Door Glass (White Model) WPL 4451213 Contact Us For Availability
13
Door Handle (Black Model) WPL 4448854 Contact Us For Availability
13
Tape, Foam WPL 4450265 Contact Us For Availability
13
Door Handle (White Model) WPL 4448855 Contact Us For Availability
13
Door Handle (Almond Model) WPL 4448856 Contact Us For Availability
13
Plate, Adapter WPL 4450522 Contact Us For Availability
14
Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
14
Frame, Front WPL 4450417 Contact Us For Availability
14
Extension, Top WPL 4449124 Contact Us For Availability
15
Filler, Side (Right Side) WPL 4449083 Contact Us For Availability
15
Filler, Side (Left) WPL 4449086 Contact Us For Availability
15
Extension, Bottom WPL 4449959 Contact Us For Availability
16
Blower WPL 4450919 Contact Us For Availability
17
Glass, Outer (Black Model) WPL 4450382 Contact Us For Availability
17
Glass, Outer (White Model) WPL 4450383 Contact Us For Availability
17
Glass, Outer (Almond Model) WPL 4450384 Contact Us For Availability
17
Vent, Top WPL 4449883 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
18
Filler Kit (Bl) WPL 4378944 Contact Us For Availability
18
Filler Kit (Wh) WPL 4378945 Contact Us For Availability
18
Filler Kit (Al) WPL 4378946 Contact Us For Availability
18
Ground (M/W) WPL 4450831 Contact Us For Availability
18
Harness, Latch WPL 4454709 Contact Us For Availability
18
Harness, Main (Also, Order Door Switch Harnes WPL 4454858 Contact Us For Availability
18
Harness, Switch (Also, Order Main Harness) WPL 4454871 Contact Us For Availability
18
WPL 591014 WPL 591014 Contact Us For Availability
18
Vent, Bottom WPL 4450406 Contact Us For Availability
19
Shield, Heat WPL 4450362 Contact Us For Availability
19
Support, Insulation WPL 4450542 Contact Us For Availability
20
Retainer, Glass WPL 4449031 Contact Us For Availability
21
Seal, Door Top WPL 4450837 Contact Us For Availability
22
Seal, Side WPL 4450838 Contact Us For Availability
23
Spacer WPL 4451055 Contact Us For Availability
23
Retainer, Glass-Clip (Black Model) WPL 4450863 Contact Us For Availability
23
Retainer, Glass-Clip (White Model) WPL 4450864 Contact Us For Availability
23
Retainer, Glass-Clip (Almond Model) WPL 4450865 Contact Us For Availability
24
Bracket, Handle WPL 4450961 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability
26
Back, Chassis WPL 4451169 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI123652A Contact Us For Availability
29
Sensor WPL 4450026 Contact Us For Availability
30
Thermostat WPL 4375279 Contact Us For Availability
30
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
31
Switch, Door WPL 4450819 Contact Us For Availability
32
Vent Box Assy WPL 4449369 Contact Us For Availability
33
Deflector, Vent WPL 4450280 Contact Us For Availability
34
Vent, Center WPL 4449074 Contact Us For Availability
35
Extension Filler WPL 4449906 Contact Us For Availability
37
Thermostat (TOD) (Temp.) SPST WPL 4450334 Contact Us For Availability
38
Inlet WPL 4375329 Contact Us For Availability
43
Base, Chassis WPL 4450527 Contact Us For Availability
44
Cover Plate WPL 4375338 Contact Us For Availability
46
Inner Frame CABINET PARTS WPL 4375340 Contact Us For Availability
50
Cover, Back WPL 4450543 Contact Us For Availability
51
Trim, Bottom (Black Model) WPL 4448477 Contact Us For Availability
51
Trim, Bottom (Screw) WPL 4159465 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448478 Contact Us For Availability
51
Trim, Bottom (Almond Model) WPL 4448862 Contact Us For Availability
52
Vent, Control WPL 4450791 Contact Us For Availability
53
Insulation, Bottom WPL 4450283 Contact Us For Availability
53
Insulation, Back WPL 4450365 Contact Us For Availability
53
Chassis, Back WPL 4450403 Contact Us For Availability
55
Cable WPL 4375350 Contact Us For Availability
× ![]()
