Model Whirlpool RMC275PVT00 27`` BUILT-IN ELECTRIC COMBO SENSOR/SC – Common Parts & Diagrams

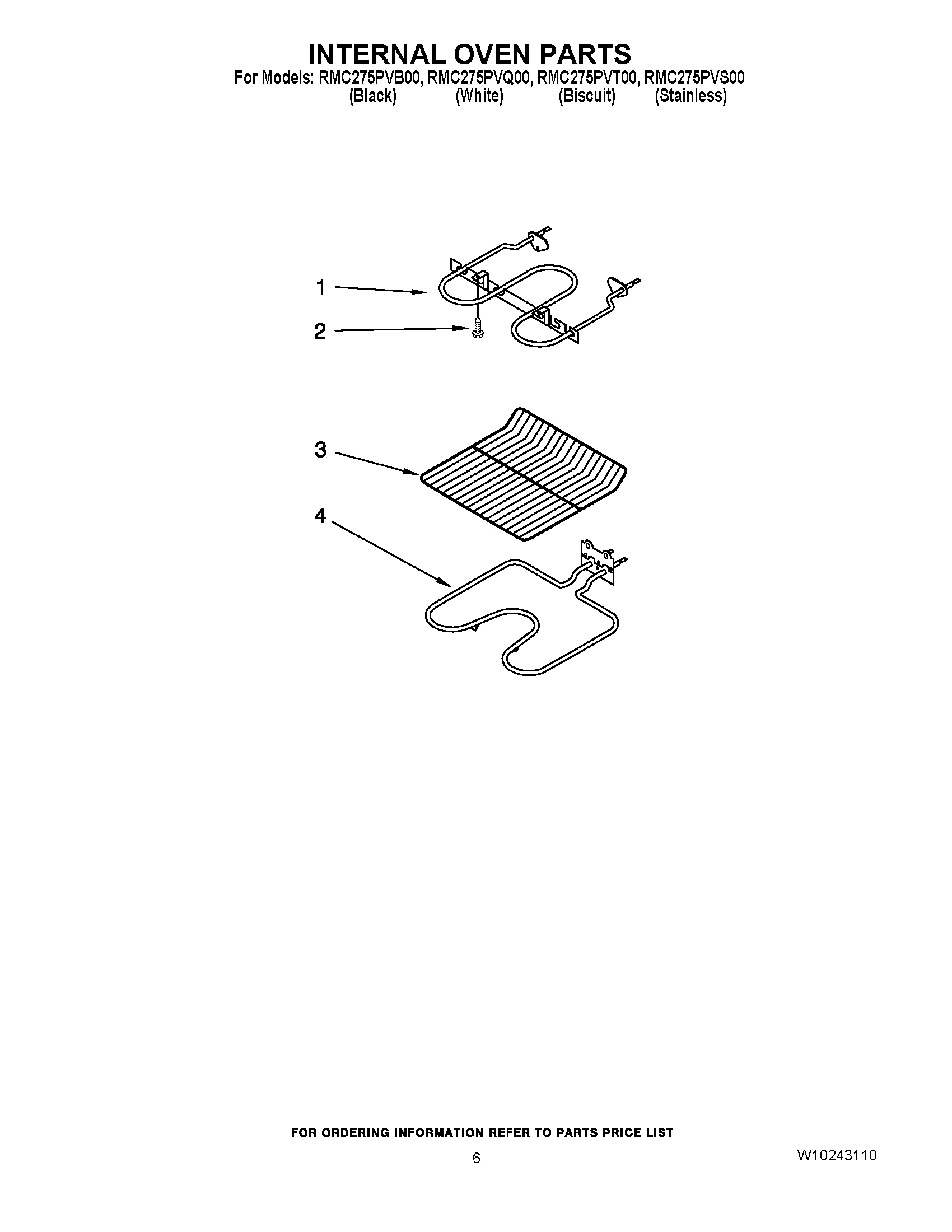

05 - INTERNAL OVEN PARTS

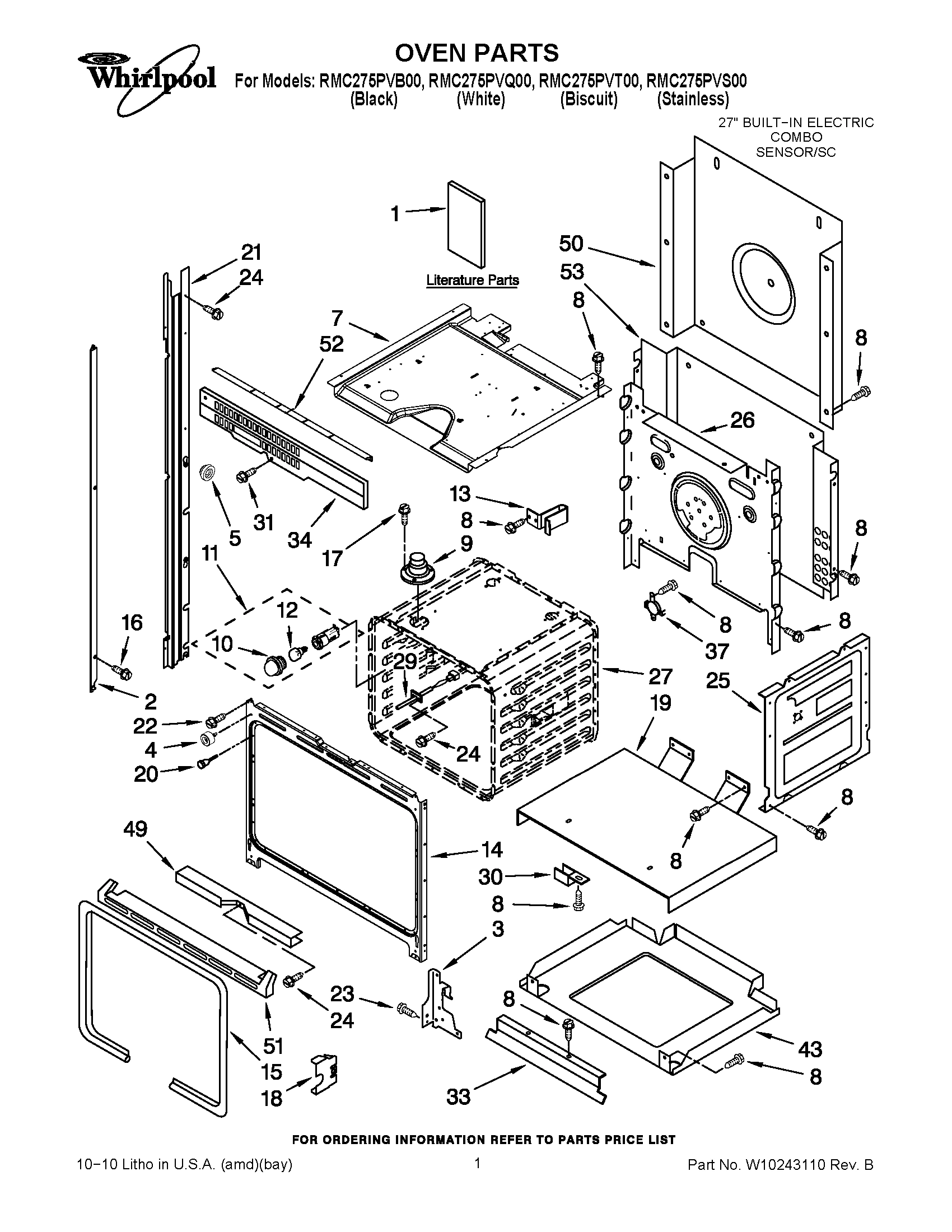

01 - OVEN PARTS
02 - CONTROL PANEL PARTS
04 - LATCH PARTS
03 - OVEN DOOR PARTS
10 - OPTIONAL PARTS (NOT INCLUDED)
08 - MICROWAVE DOOR PARTS
09 - TOP VENTING PARTS
06 - CABINET AND STIRRER PARTS
07 - MICROWAVE COMPARTMENT PARTS
Common parts from model Whirlpool RMC275PVT00 27`` BUILT-IN ELECTRIC COMBO SENSOR/SC
1
Panel, Door WPL 8303699 Contact Us For Availability
1
Bracket, Capacitor WPL 4375299 Contact Us For Availability
1
Support Rails (Right) WPL 4452551 Contact Us For Availability
1
Support Rails (Left) WPL 4452552 Contact Us For Availability
2
Switch, Membrane (Black) WPL W10172473 Contact Us For Availability
2
Trim, Side Right (Stainless) WPL W10145006 Contact Us For Availability
2
Trim, Side Left (Stainless) WPL W10145007 Contact Us For Availability
3
Rack, Oven WPL 4448715 Contact Us For Availability
3
Frame, Door WPL 8303555 Contact Us For Availability
3
Rubber Ring WPL 4375037 Contact Us For Availability
3
Rear Channel WPL 4452547 Contact Us For Availability
4
Board, Motorized Latch WPL 8301848 Contact Us For Availability
4
Insulation, Door WPL 4451721 Contact Us For Availability
4
Screw WPL 4375038 Contact Us For Availability
5
Bracket, Mounting (Right) WPL 4449141 Contact Us For Availability
5
Bracket, Mounting (Left) WPL 4449142 Contact Us For Availability
5
Control Panel (White) WPL 8302845 Contact Us For Availability
5
Retainer, Glass WPL 4457131 Contact Us For Availability
5
Air Duct, Magnetron WPL 4375314 Contact Us For Availability
6
Transformer, Control WPL 9760587 Contact Us For Availability
7
Glass, Inner WPL 9759224 Contact Us For Availability
7
Filler, Side WPL 4449083 Contact Us For Availability
8
RETAINER, DOOR GLASS WPL W10158497 Contact Us For Availability
10
Lens, Light WPL W10067870 Contact Us For Availability
10
Bracket, Handle WPL 4452330 Contact Us For Availability
11
Damper WPL 4375315 Contact Us For Availability
12
Assembly, Door Glass (Black) WPL W10200757 Contact Us For Availability
12
Duct, Inlet WPL 4375260 Contact Us For Availability
13
Insulation, Switch WPL 4375316 Contact Us For Availability
14
Bracket, Handle (Left) WPL 4455804 Contact Us For Availability
14
Fan Wheel WPL 4375322 Contact Us For Availability
15
Duct, Air WPL 4375317 Contact Us For Availability
16
Block, Side WPL 4375264 Contact Us For Availability
17
NAMEPLATE WPL W10175320 Contact Us For Availability
17
Cover Plate, Upper WPL 4375248 Contact Us For Availability
18
Cover, Top Front WPL 4452366 Contact Us For Availability
20
SUPPRESSOR WPL 8302143 Contact Us For Availability
21
Duct, Exhaust WPL 8303844 Contact Us For Availability
22
Screw WPL 4449040 Contact Us For Availability
24
Screw WPL 3400080 Contact Us For Availability
30
Thermostat WPL 8205652 Contact Us For Availability
36
Torison Spring WPL 4375326 Contact Us For Availability
37
Bracket, Hinge (Left) WPL 4375327 Contact Us For Availability
37
Bracket, Hinge (Right) WPL 4375328 Contact Us For Availability
38
Inlet WPL 4375329 Contact Us For Availability
39
Door Strap WPL 4375330 Contact Us For Availability
40
Fan Cap WPL 4375333 Contact Us For Availability
41
Fan Cap Bottom WPL 4375334 Contact Us For Availability
43
Base, Chassis WPL 4455529 Contact Us For Availability
43
Isolation Plate WPL 4375337 Contact Us For Availability
44
Cover Plate WPL 4375338 Contact Us For Availability
45
Door, Plate WPL 4375339 Contact Us For Availability
46
Inner Frame WPL 4375340 Contact Us For Availability
47
Side Plate (Left) WPL 4375341 Contact Us For Availability
47
Side Plate (Right) WPL 4375342 Contact Us For Availability
49
Ring Assembly WPL 4375344 Contact Us For Availability
51
Trim, Vent Bottom (Black) WPL W10207684 Contact Us For Availability
55
Cable WPL 4375350 Contact Us For Availability
56
Lamp Holder WPL 4375351 Contact Us For Availability
× ![]()
