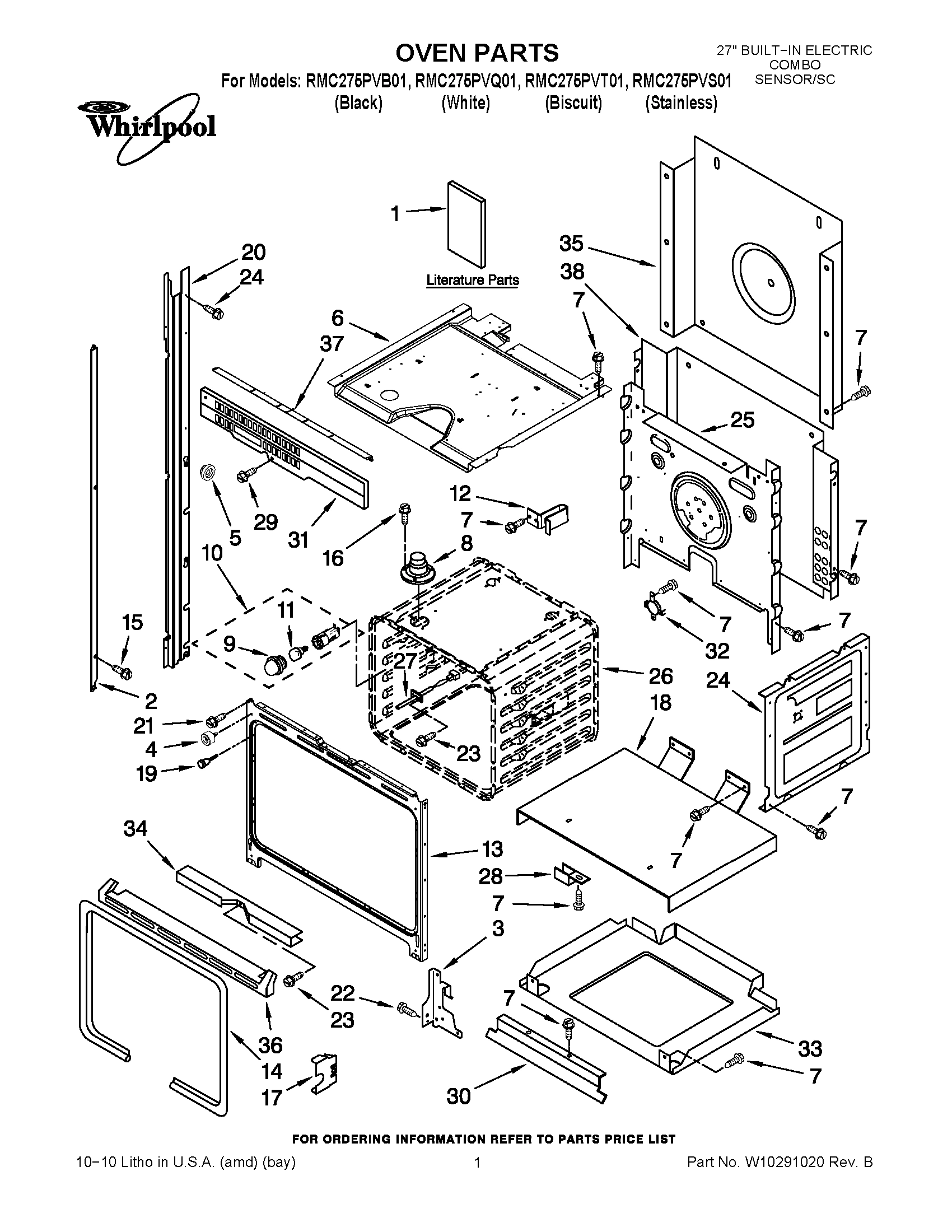

Model Whirlpool RMC275PVB01 27`` BUILT-IN ELECTRIC COMBO SENSOR/SC – Common Parts &amp; Diagrams

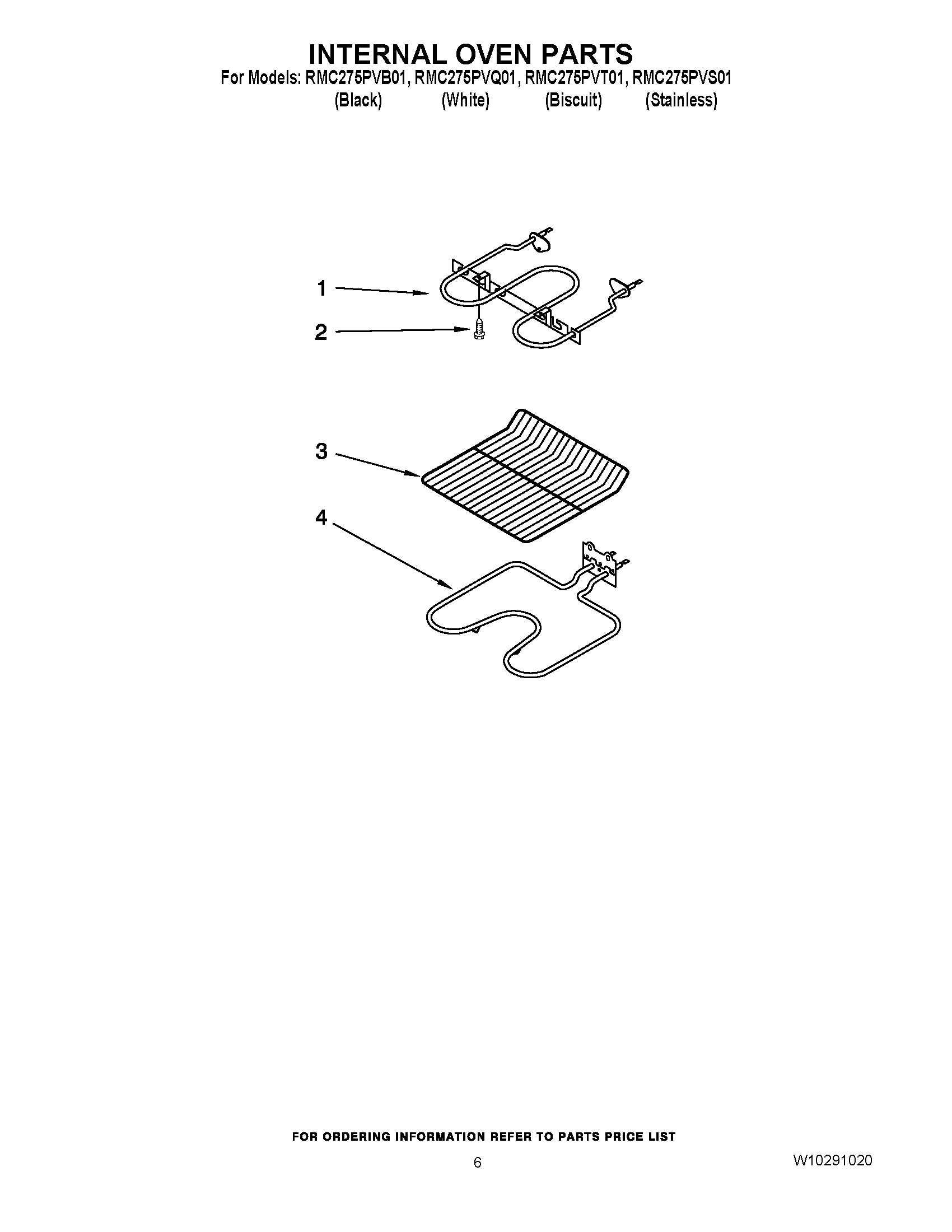

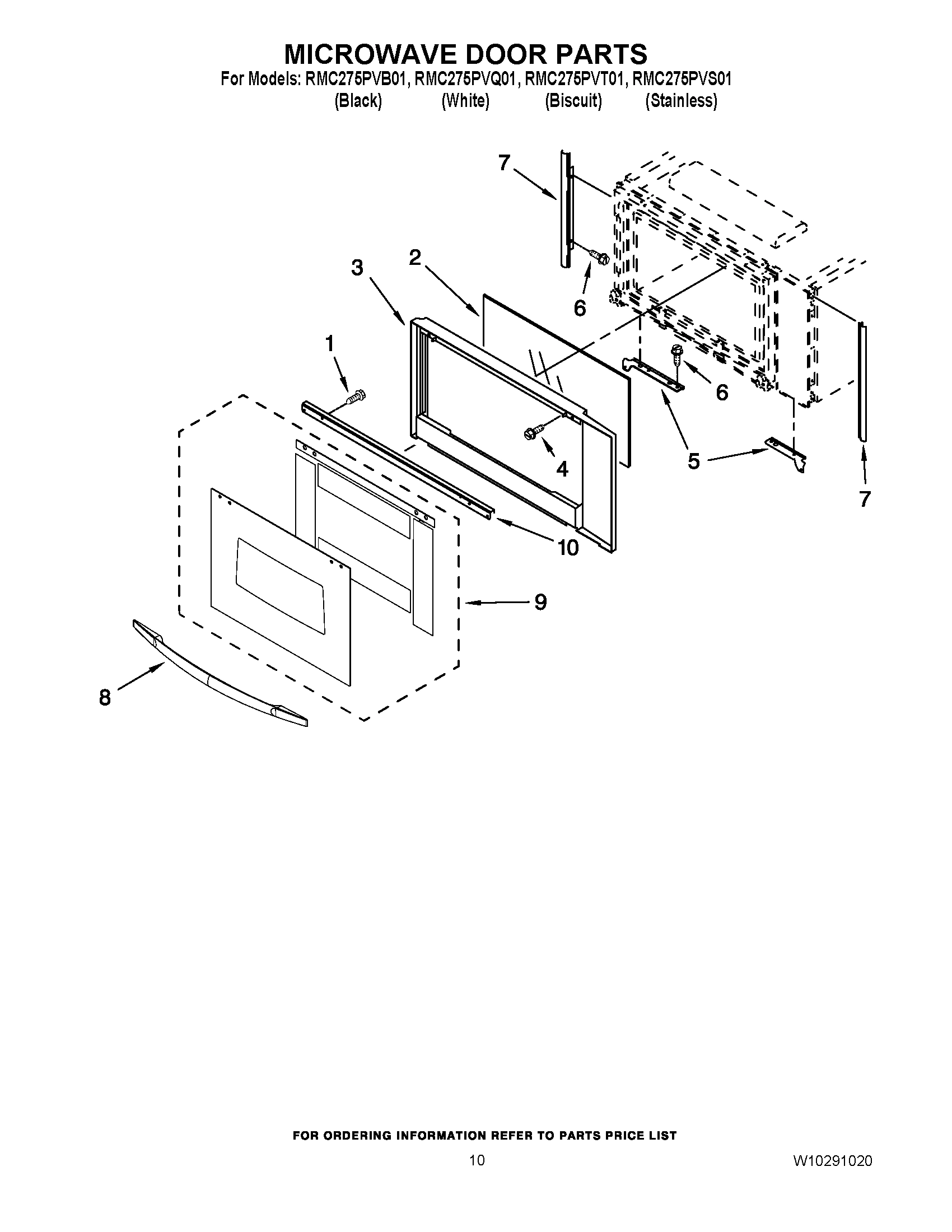

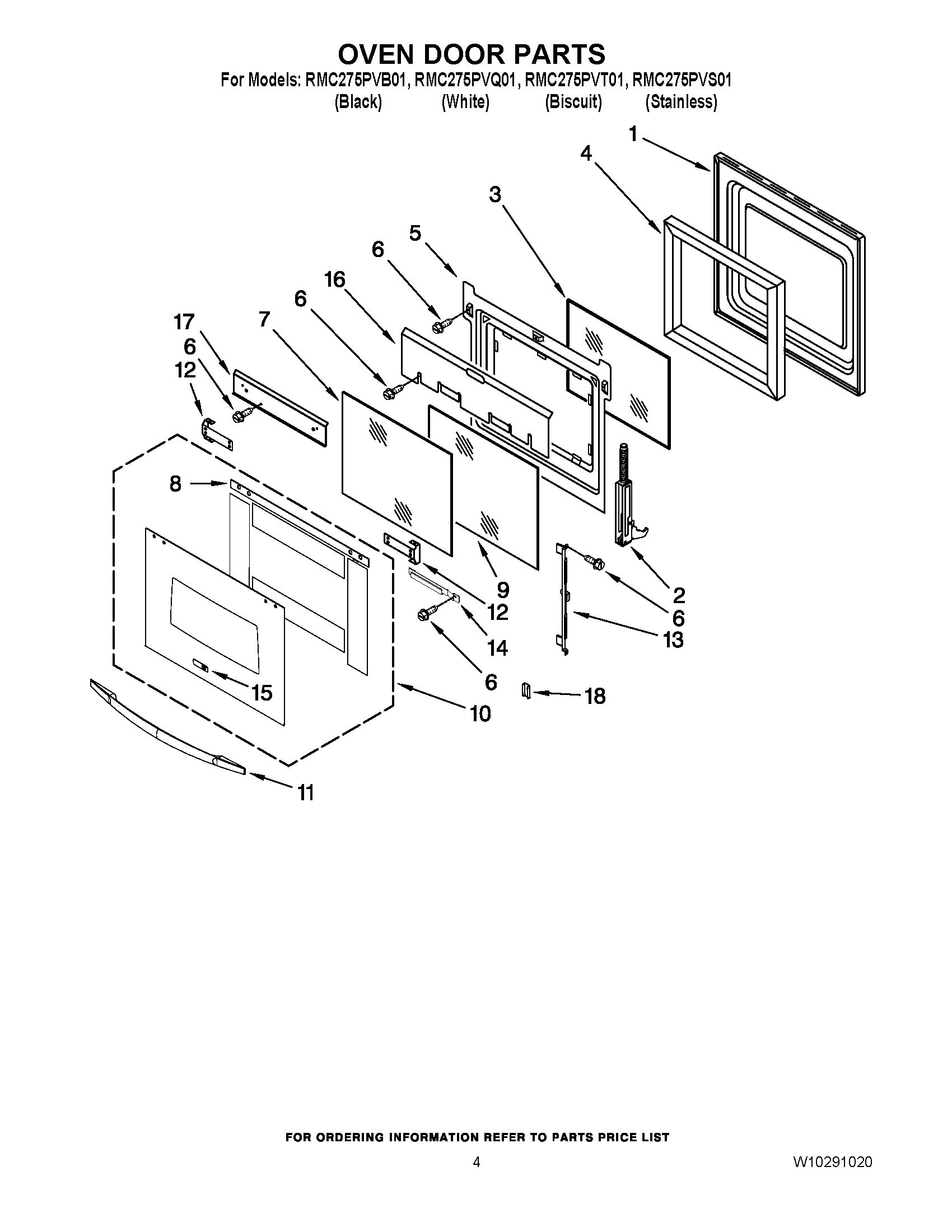

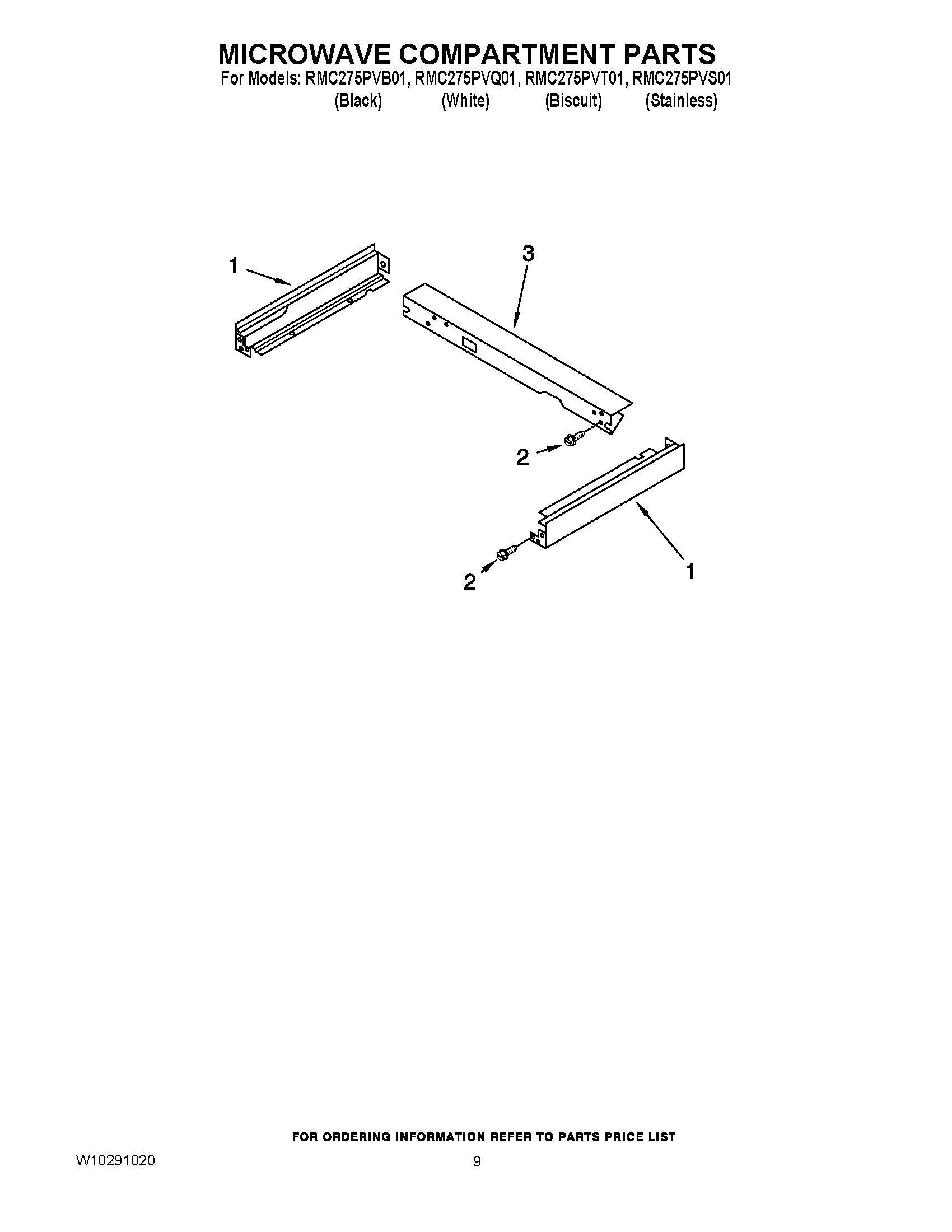

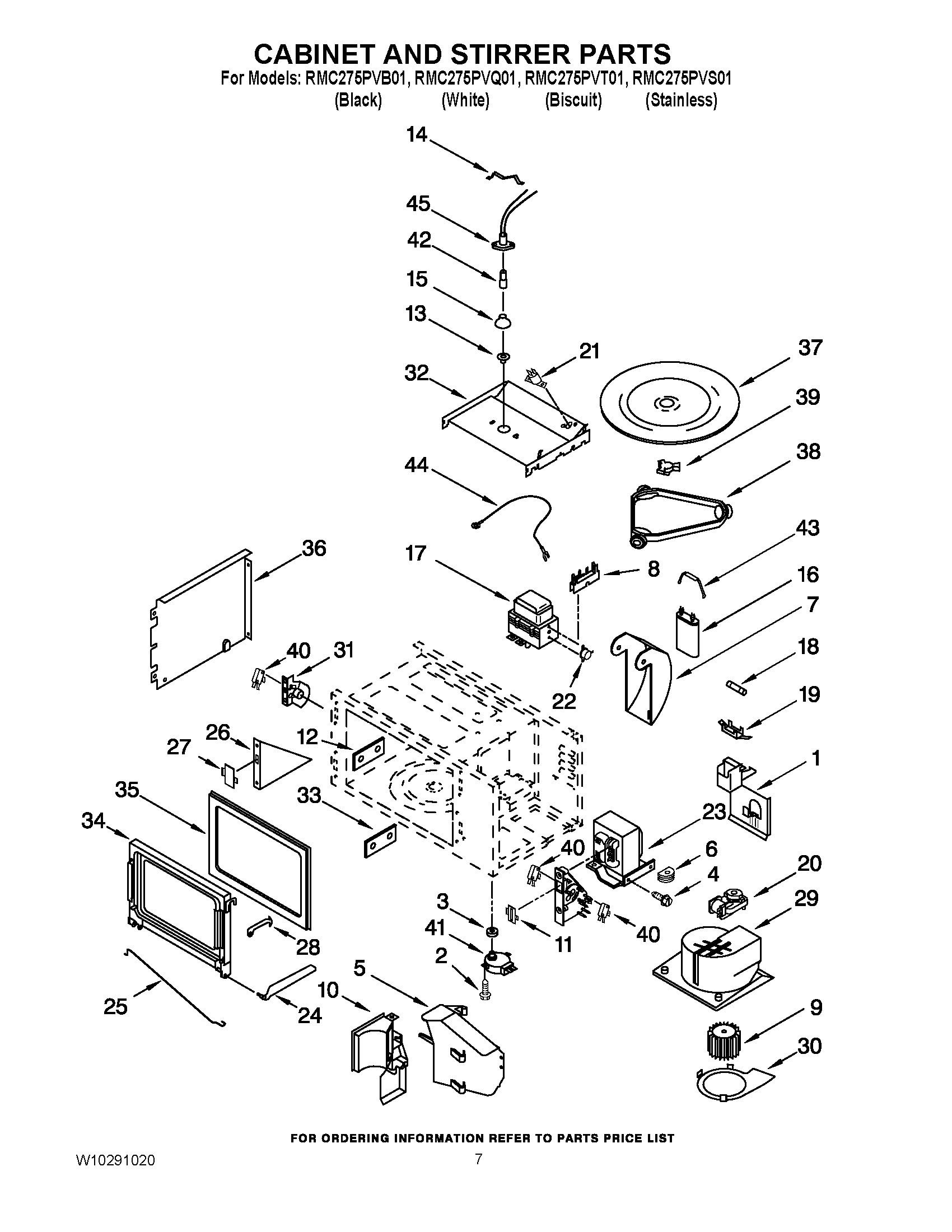

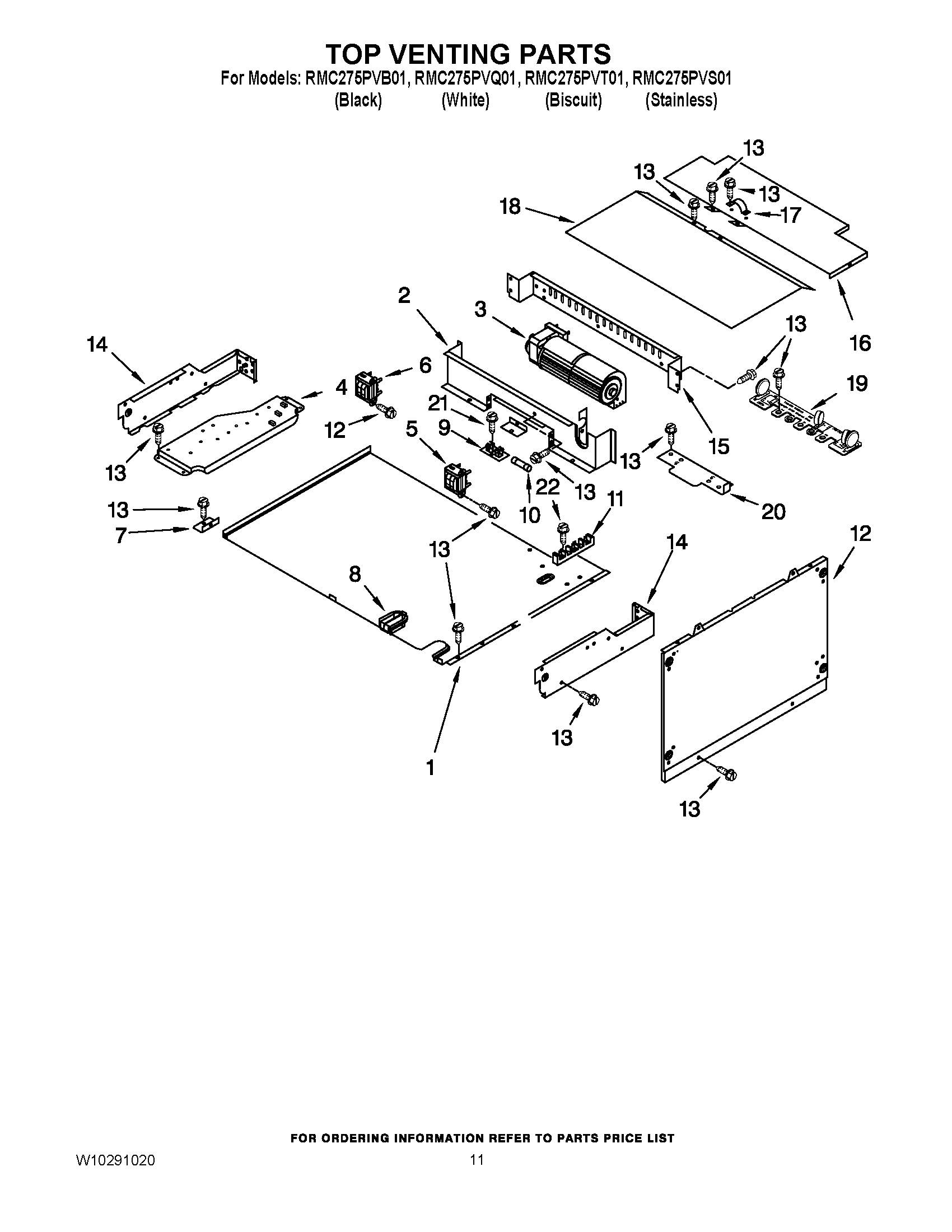

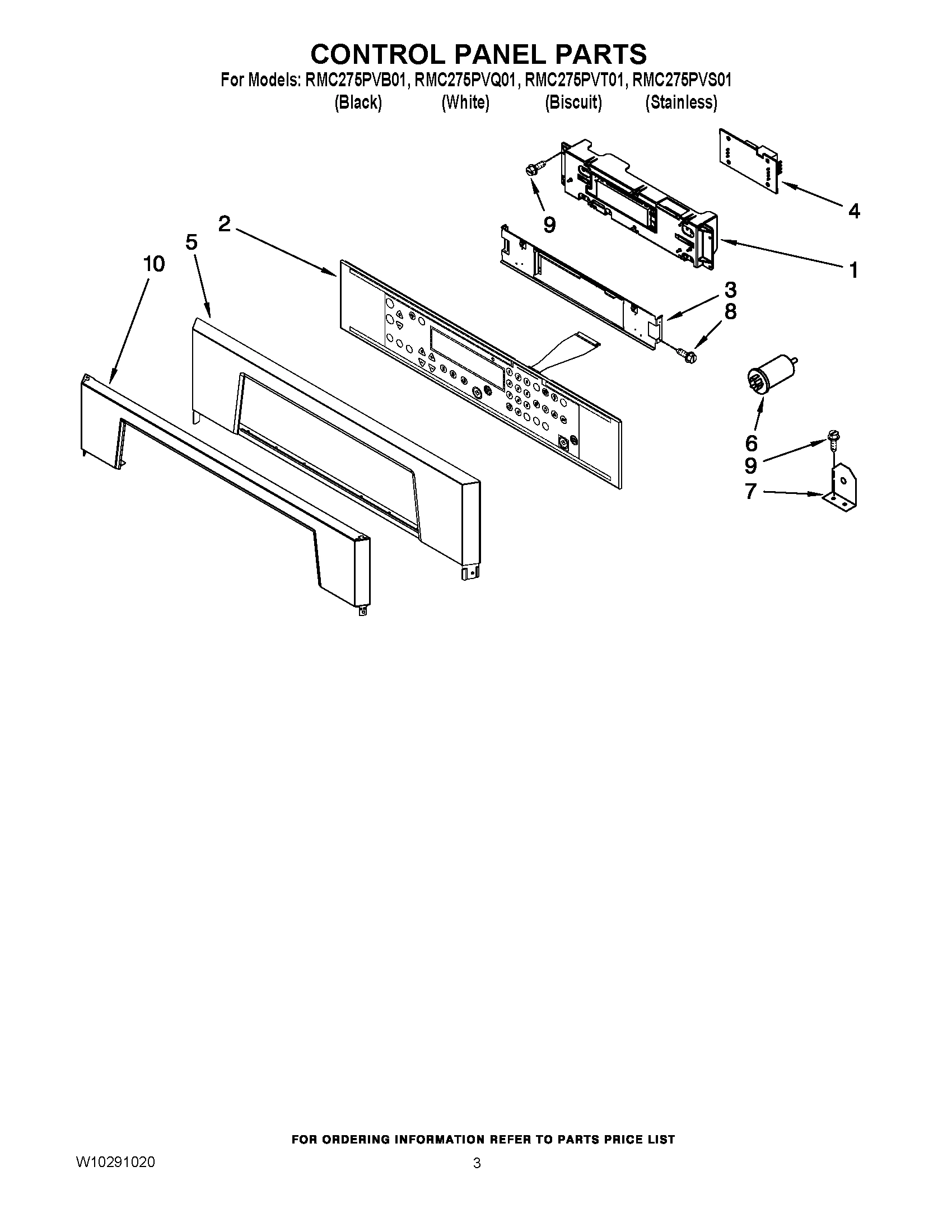

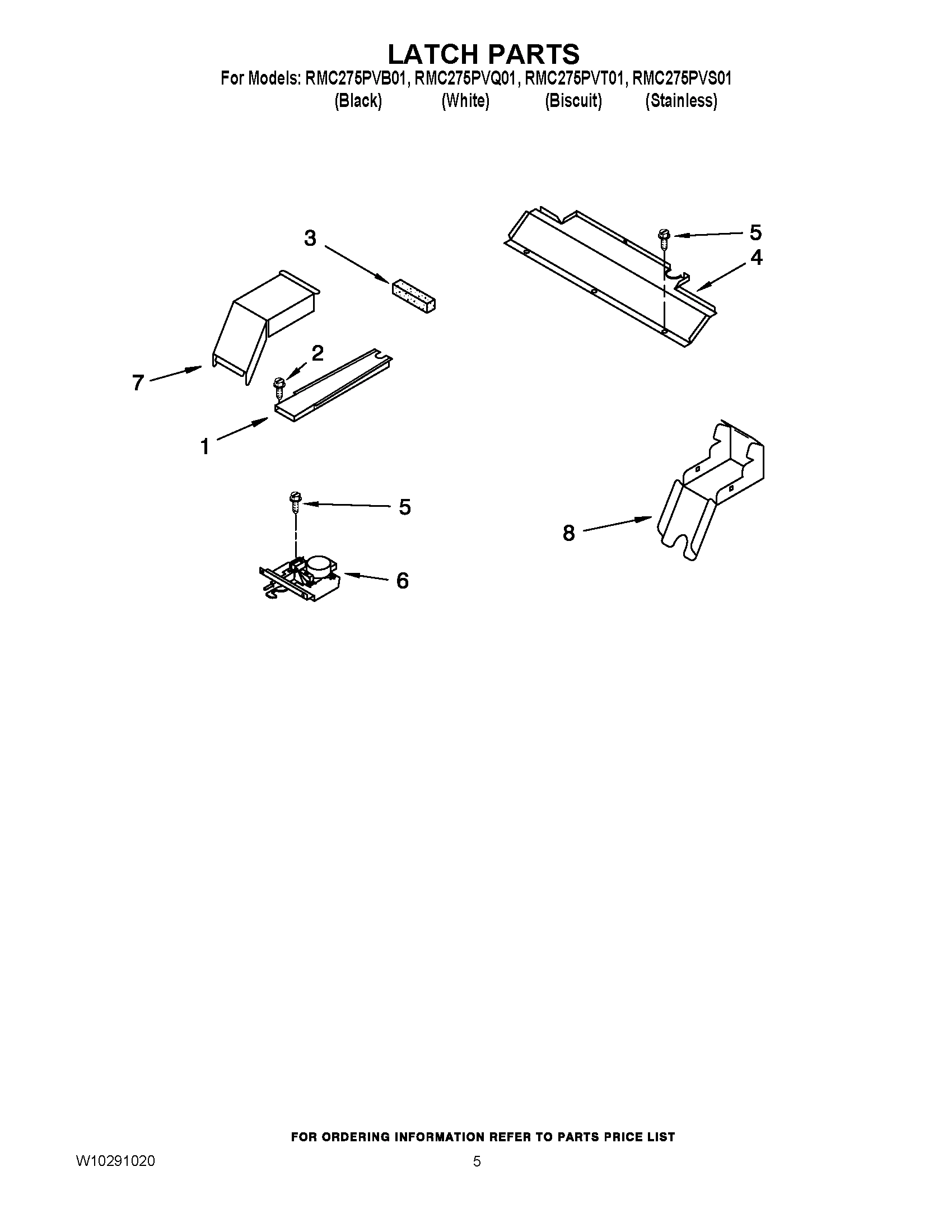

1

WP9760771 Whirlpool Electric Oven Broil Eleme In Stock WPL WP9760771 $80.78

1

Panel, Door WPL 8303699 Contact Us For Availability

1

Support Rails (Right) WPL 4452551 Contact Us For Availability

1

Support Rails (Left) WPL 4452552 Contact Us For Availability

1

Assembly, Control WPL W10105800 Contact Us For Availability

2

8206180 Whirlpool Microwave Screw Backorder WPL 8206180 $9.59

2

W10172474 Whirlpool Membrane Switch Backorder WPL W10172474 $185.64

2

WP9760571 Whirlpool Door Hinge In Stock WPL WP9760571 $52.49

2

WP9760572 Whirlpool Door Hinge Backorder WPL WP9760572 $44.10

2

WP9760575 Whirlpool Door Hinge (Right) In Stock WPL WP9760575 $49.61

2

WP9760576 Whirlpool Door Hinge (Left) In Stock WPL WP9760576 $40.22

2

Switch, Membrane (Black) WPL W10172473 Contact Us For Availability

2

Trim, Side Right (Stainless) WPL W10145006 Contact Us For Availability

2

Trim, Side Left (Stainless) WPL W10145007 Contact Us For Availability

2

Switch, Membrane (Biscuit) WPL W10172475 Contact Us For Availability

3

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $3.70

3

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $74.43

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $56.11

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $56.11

3

WPW10016550 Whirlpool Blower Cooling Fan In Stock WPL WPW10016550 $165.64

3

Rack, Oven WPL 4448715 Contact Us For Availability

3

Frame, Door WPL 8303555 Contact Us For Availability

3

Rear Channel WPL 4452547 Contact Us For Availability

3

Backer, Control WPL W10222957 Contact Us For Availability

4

W10105790 Whirlpool Bumper In Stock WPL W10105790 $4.85

4

WPW10207397 Whirlpool Oven Bake Element In Stock WPL WPW10207397 $52.29

4

Board, Motorized Latch WPL 8301848 Contact Us For Availability

4

Insulation, Door WPL 4451721 Contact Us For Availability

4

Baffle, Rear WPL 4450407 Contact Us For Availability

5

WP8302844 Whirlpool Control Panel Backorder WPL WP8302844 $156.73

5

WP9760588 Whirlpool Transformer In Stock WPL WP9760588 $95.80

5

Bracket, Mounting (Right) WPL 4449141 Contact Us For Availability

5

Bracket, Mounting (Left) WPL 4449142 Contact Us For Availability

5

Control Panel (White) WPL 8302845 Contact Us For Availability

5

Retainer, Glass WPL 4457131 Contact Us For Availability

5

Control Panel (Biscuit) WPL 8302846 Contact Us For Availability

6

WPW10195934 Whirlpool Door Latch In Stock WPL WPW10195934 $150.25

6

Transformer, Control WPL 9760587 Contact Us For Availability

6

Filter WPL 4451592 Contact Us For Availability

7

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

7

Glass, Inner WPL 9759224 Contact Us For Availability

7

Filler, Side WPL 4449083 Contact Us For Availability

7

Duct, Inlet WPL 4375260 Contact Us For Availability

7

Bracket, Filter WPL 4451632 Contact Us For Availability

8

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

SEAL, GLASS WPL 4452325 Contact Us For Availability

9

4454949 Whirlpool Oven Fuse Block Backorder WPL 4454949 $30.25

9

Lens, Light WPL W10067870 Contact Us For Availability

WPW10017410 Whirlpool Fuse In Stock WPL WPW10017410 $6.79

Assembly, Door Glass (Black) WPL W10200757 Contact Us For Availability

Bracket, Handle WPL 4452330 Contact Us For Availability

Trim, Control Panel (Stainless) WPL W10172170 Contact Us For Availability

Trim, Control Panel (Black) WPL W10172172 Contact Us For Availability

Trim, Control Panel (White) WPL W10172173 Contact Us For Availability

Trim, Control Panel (Biscuit) WPL W10172174 Contact Us For Availability

12

4455803 Whirlpool Oven Bracket Backorder WPL 4455803 $12.39

12

Bracket, Handle (Left) WPL 4455804 Contact Us For Availability

13

W11193483 Whirlpool Microwave Lamp Lens In Stock WPL W11193483 $38.25

13

WP9759229 Whirlpool Mounting Bracket Backorder WPL WP9759229 $63.73

14

WP4455381 Whirlpool Door Gasket In Stock WPL WP4455381 $71.22

15

423107022541 Whirlpool Microwave Reflector Backorder WPL 423107022541 $34.44

15

NAMEPLATE WPL W10175320 Contact Us For Availability

17

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

18

WP4375321 Whirlpool Microwave Fuse In Stock WPL WP4375321 $10.36

18

RETAINER, DOOR GLASS WPL W10158497 Contact Us For Availability

19

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $10.76

19

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $29.77

19

SUPPRESSOR WPL 8302143 Contact Us For Availability

20

8186527 Whirlpool Microwave Fan Motor Backorder WPL 8186527 $179.63

21

Screw WPL 4449040 Contact Us For Availability

21

Thermostat WPL 8205652 Contact Us For Availability

22

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

22

Screw WPL 3400080 Contact Us For Availability

23

WP4375286 Whirlpool Microwave Transformer In Stock WPL WP4375286 $159.20

23

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $2.51

24

WP4375323 Whirlpool Microwave Door Hinge In Stock WPL WP4375323 $54.90

24

WP4375324 Whirlpool Microwave Door Hinge In Stock WPL WP4375324 $54.73

25

WP4451008 Whirlpool Microwave Spring In Stock WPL WP4451008 $50.89

25

WP4452395 Whirlpool Spring Assembly In Stock WPL WP4452395 $54.00

26

Bracket, Hinge (Left) WPL 4375327 Contact Us For Availability

26

Bracket, Hinge (Right) WPL 4375328 Contact Us For Availability

27

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

27

Inlet WPL 4375329 Contact Us For Availability

28

Door Strap WPL 4375330 Contact Us For Availability

29

WP4450038 Whirlpool Screw In Stock WPL WP4450038 $2.51

29

Fan Cap WPL 4375333 Contact Us For Availability

30

Fan Cap Bottom WPL 4375334 Contact Us For Availability

31

W10727408 Whirlpool Microwave Switch In Stock WPL W10727408 $95.69

32

WP9759243 Whirlpool Thermostat In Stock WPL WP9759243 $33.45

32

Isolation Plate WPL 4375337 Contact Us For Availability

33

Cover Plate WPL 4375338 Contact Us For Availability

33

Base, Chassis WPL 4455529 Contact Us For Availability

34

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

34

Door, Plate WPL 4375339 Contact Us For Availability

35

Inner Frame WPL 4375340 Contact Us For Availability

36

Trim, Vent Bottom (Black) WPL W10207684 Contact Us For Availability

36

Side Plate (Left) WPL 4375341 Contact Us For Availability

36

Side Plate (Right) WPL 4375342 Contact Us For Availability

37

W11373838 Whirlpool Glass Tray In Stock WPL W11373838 $54.92

38

Ring Assembly WPL 4375344 Contact Us For Availability

39

WP8183788 Whirlpool Microwave Turn Shaft Backorder WPL WP8183788 $17.33

40

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $32.67

41

W10642989 Whirlpool Microwave Oven Turntable In Stock WPL W10642989 $79.94

42

WPW10440740 Whirlpool Microwave Light Bulb In Stock WPL WPW10440740 $13.58

43

WPW10687786 Whirlpool Microwave Diode In Stock WPL WPW10687786 $14.45

44

Cable WPL 4375350 Contact Us For Availability

45

Lamp Holder WPL 4375351 Contact Us For Availability

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

4450950 Whirlpool Oven Conduit Backorder WPL 4450950 $114.99

4452400 Whirlpool Microwave Wire Harness Backorder WPL 4452400 $28.38

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $9.88

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $3.93

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.64

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89
