Model Whirlpool RMC275PDQ1 27`` BUILT-IN ELECTRIC COMBO SENSOR/SC – Common Parts & Diagrams
06 - CABINET AND STIRRER
01 - OVEN

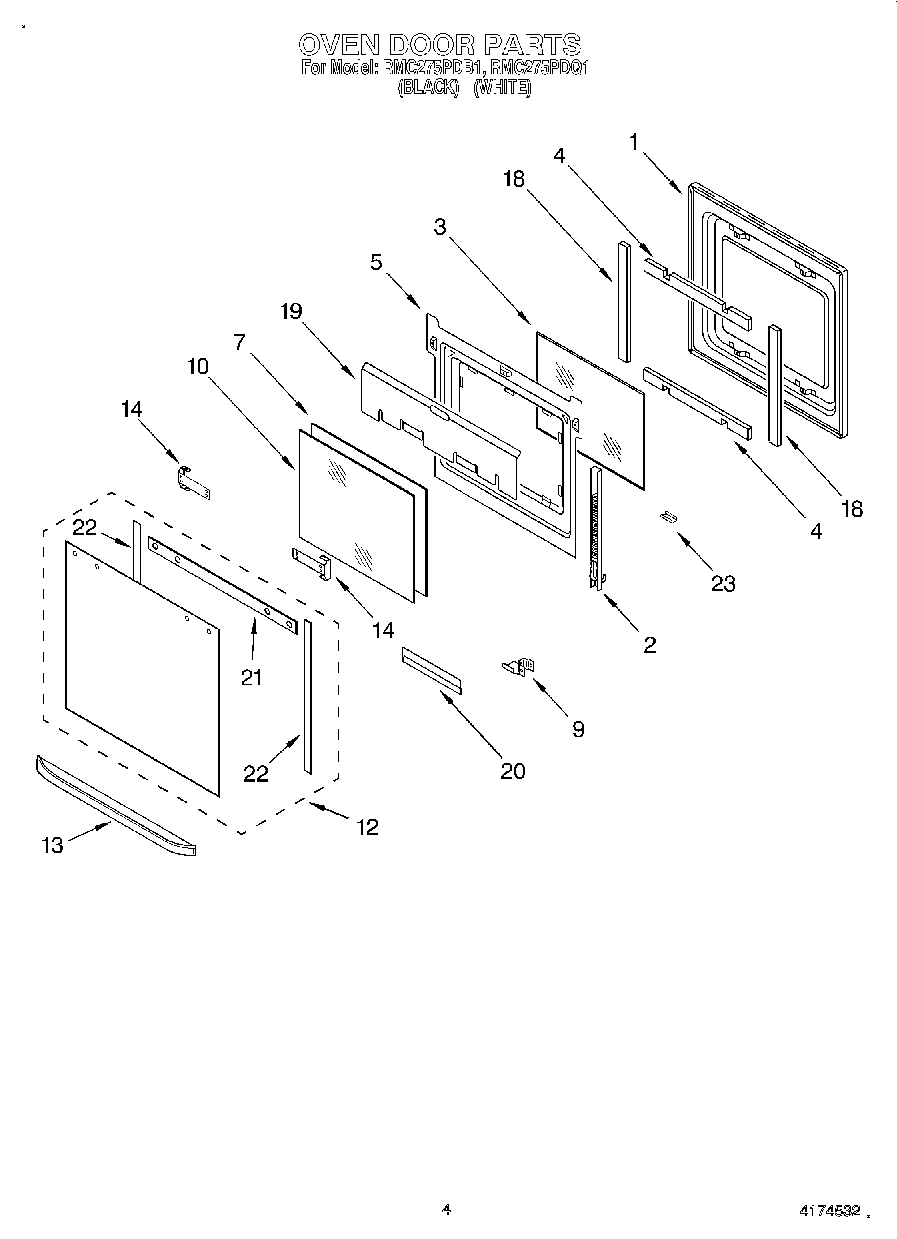

03 - OVEN DOOR

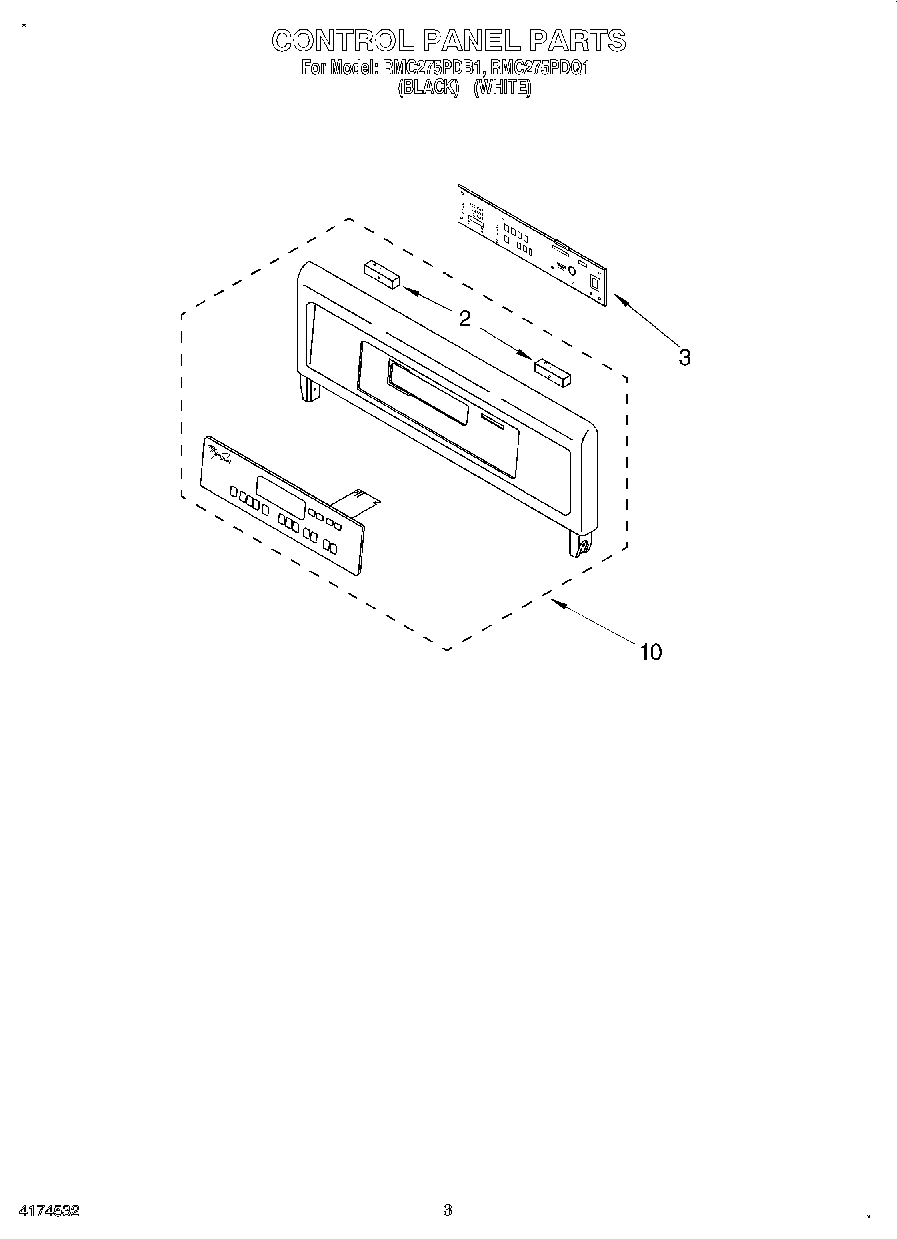

02 - CONTROL PANEL, LITERATURE

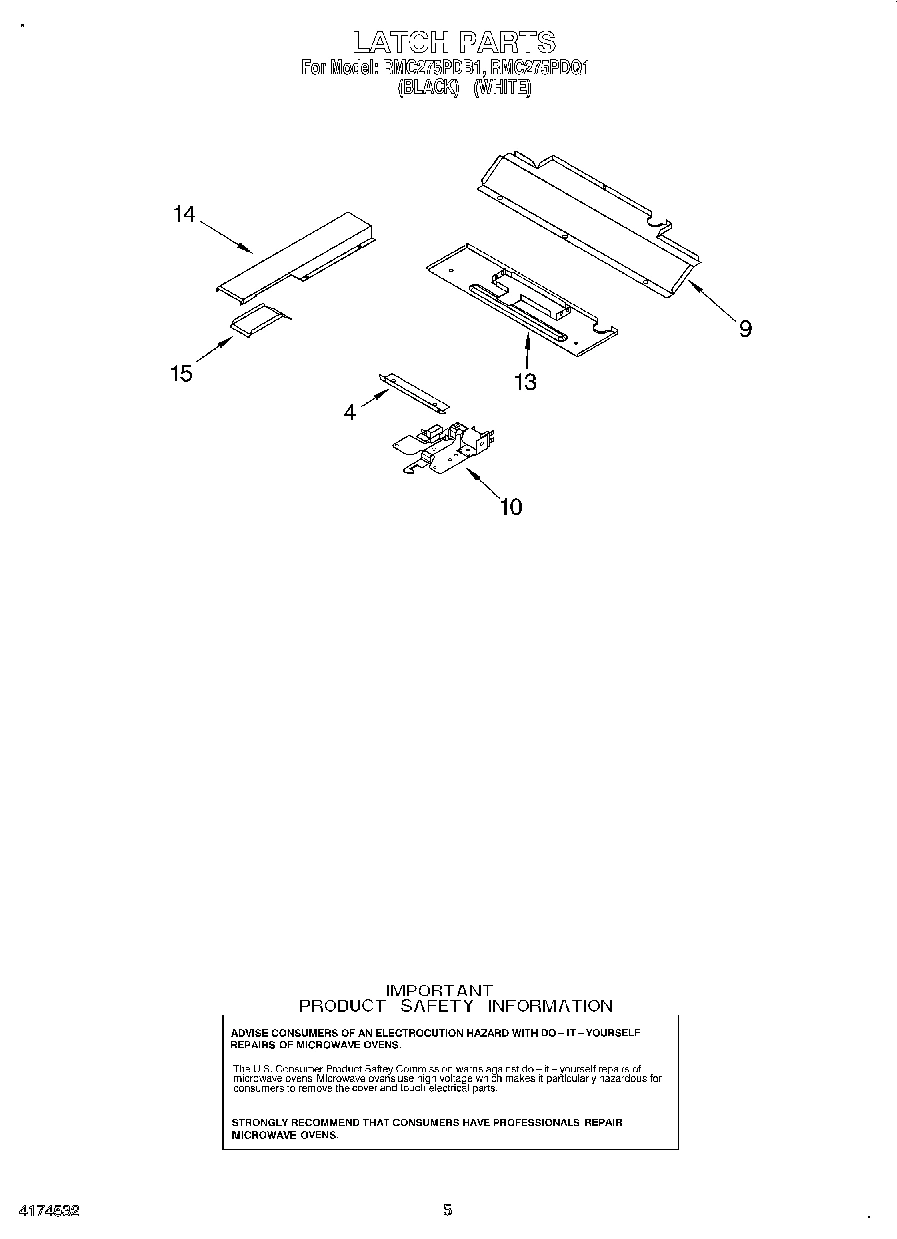

04 - LATCH

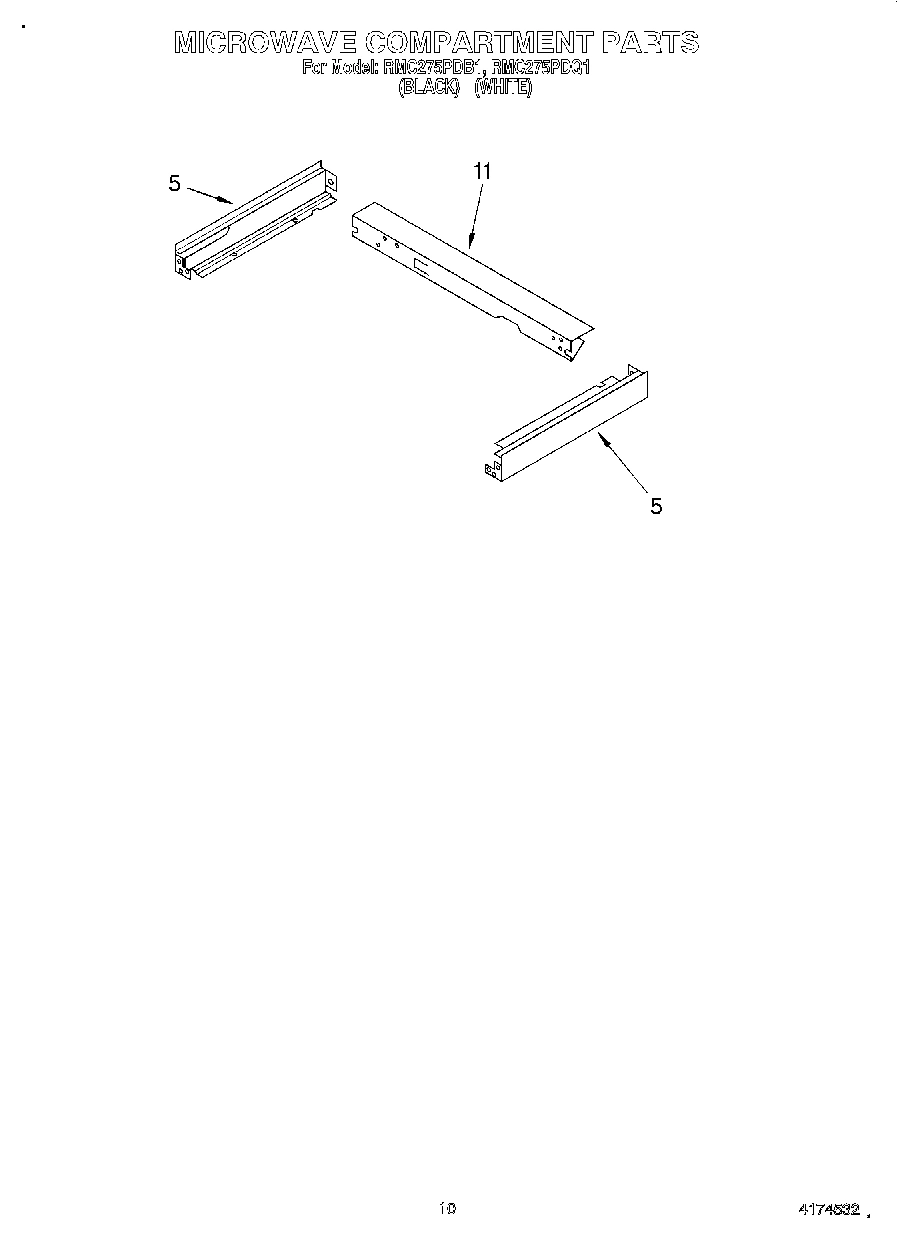

08 - MICROWAVE COMPARTMENT

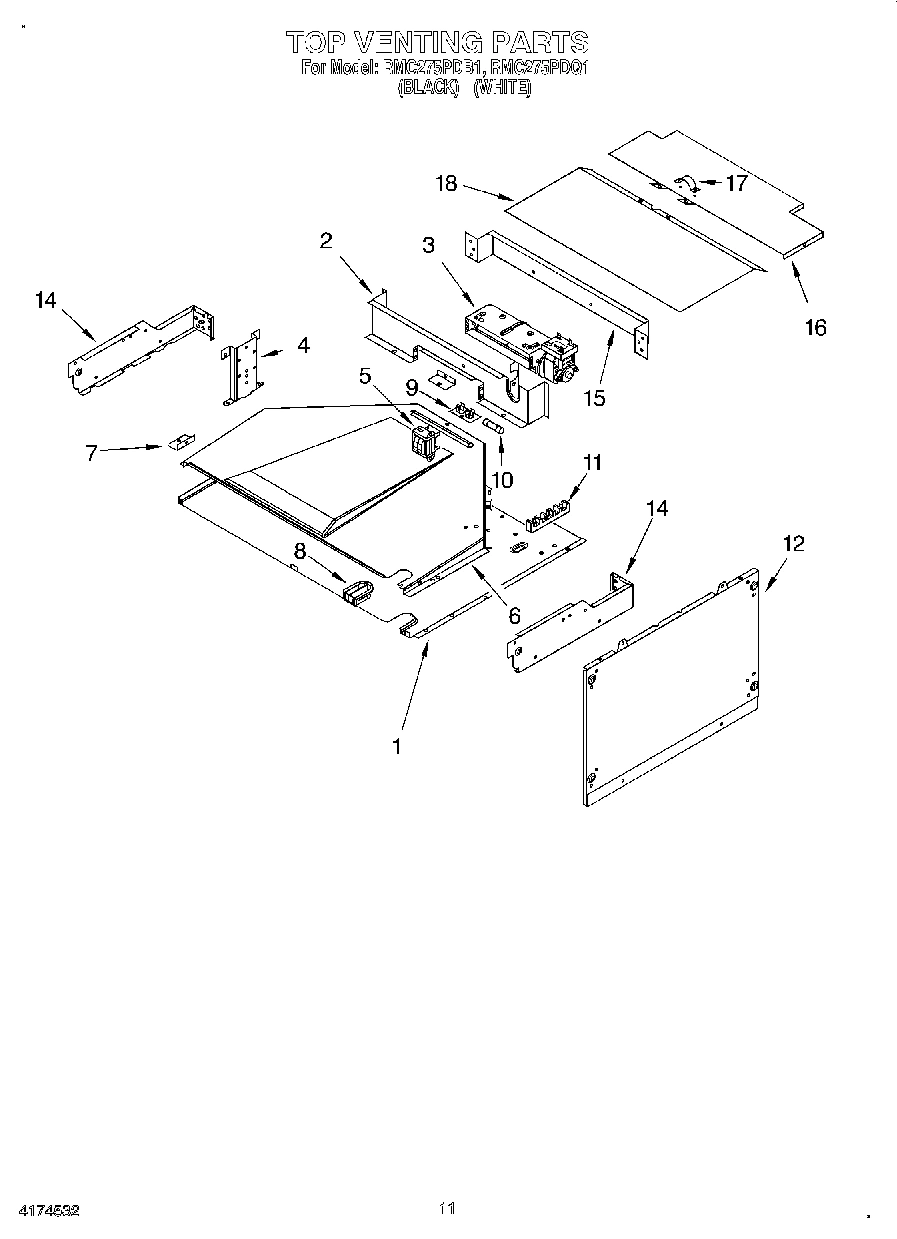

09 - TOP VENTING, OPTIONAL

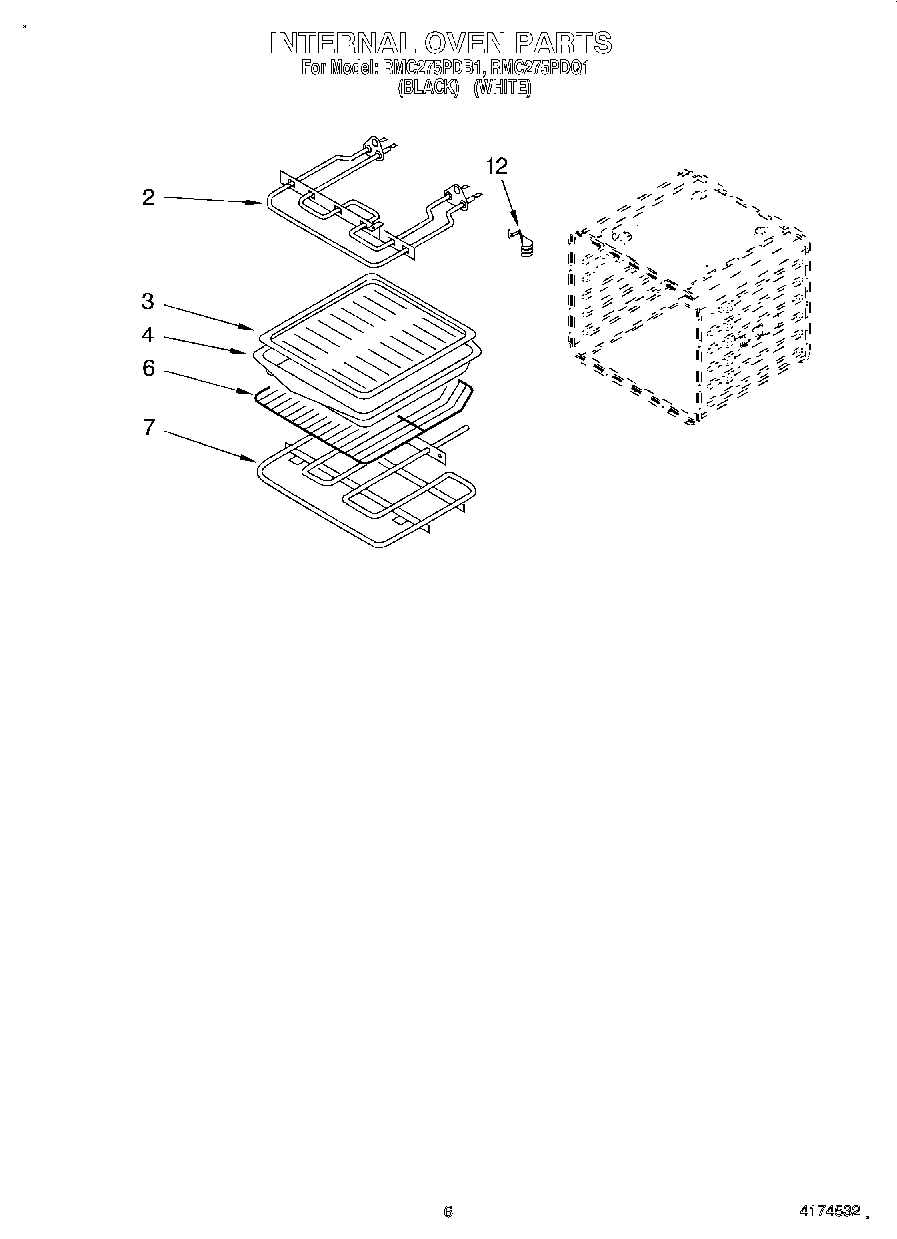

05 - INTERNAL OVEN

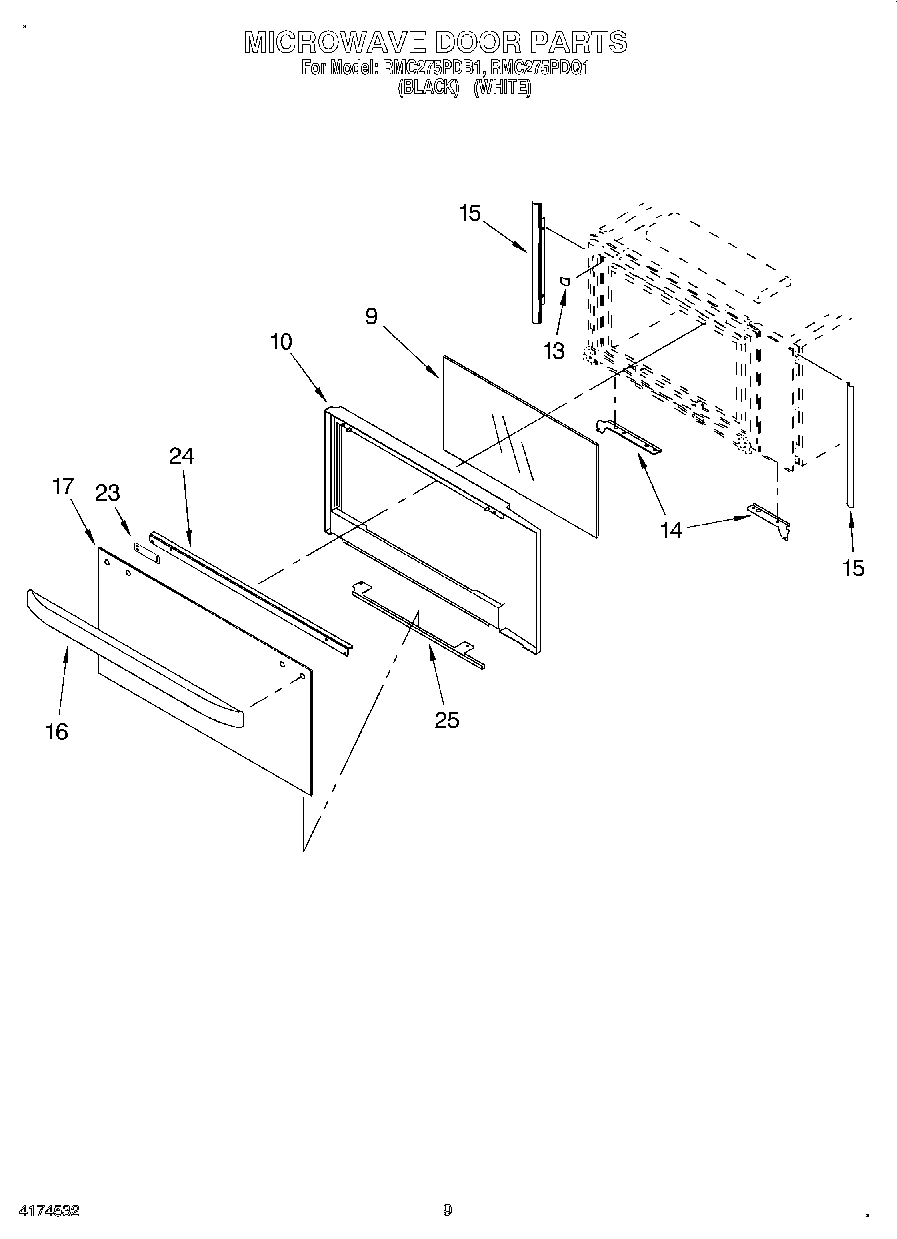

07 - MICROWAVE DOOR
Common parts from model Whirlpool RMC275PDQ1 27`` BUILT-IN ELECTRIC COMBO SENSOR/SC
Use & Care Guide (Microwave) WPL LIT4448978 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT4449869 Contact Us For Availability
Installation Instructions WPL LIT4450412 Contact Us For Availability
Cooking Guide (Label) WPL LIT4450785 Contact Us For Availability
Tech Sheet (Oven) WPL LIT4451056 Contact Us For Availability
1
Door Liner WPL 4450428 Contact Us For Availability
1
Cover, Top WPL 4450377 Contact Us For Availability
2
Gasket WPL 4450356 Contact Us For Availability
2
Baffle, Blower WPL 4448935 Contact Us For Availability
3
Microcomputer WPL 4448877 Contact Us For Availability
3
Blower WPL 4450920 Contact Us For Availability
4
Insulation, Top and Bottom Door WPL 4448679 Contact Us For Availability
4
Deflector, Latch WPL 4450051 Contact Us For Availability
4
Bracket, Transformer WPL 4450066 Contact Us For Availability
5
Retainer, Glass WPL 4450422 Contact Us For Availability
5
Support Rails (Right Side) WPL 4450404 Contact Us For Availability
5
Support Rails (Left Side) WPL 4450405 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
6
Exhaust Duct WPL 4450366 Contact Us For Availability
7
Bracket, Duct WPL 4450027 Contact Us For Availability
8
Grommet WPL 4449964 Contact Us For Availability
9
Retainer, Glass WPL 4450470 Contact Us For Availability
9
Baffle, Rear WPL 4450407 Contact Us For Availability
9
Glass, Middle WPL 4450834 Contact Us For Availability
10
Control Panel Assy W/Membrane Switch (Black M WPL 4451066 Contact Us For Availability
10
Control Panel Assy W/Membrane Switch (White M WPL 4451067 Contact Us For Availability
10
Latch, Assy WPL 4450332 Contact Us For Availability
10
Frame, Door WPL 4450945 Contact Us For Availability
11
Rear Channel WPL 4449702 Contact Us For Availability
12
Duct, Inlet WPL 4375260 Contact Us For Availability
12
Door Glass (Black Model) WPL 4450689 Contact Us For Availability
12
Door Glass (White Model) WPL 4450690 Contact Us For Availability
12
Side, Combo WPL 4450401 Contact Us For Availability
13
Safety Switch (Oven Temp) WPL 4450812 Contact Us For Availability
13
Plate, Adapter WPL 4450522 Contact Us For Availability
13
Tape, Foam WPL 4450265 Contact Us For Availability
14
Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Vent, Top WPL 4449124 Contact Us For Availability
15
Filler, Side WPL 4449083 Contact Us For Availability
15
Vent, Bottom WPL 4449959 Contact Us For Availability
15
Back, Control WPL 4450658 Contact Us For Availability
16
Handle, Door (Black Model) WPL 4448405 Contact Us For Availability
16
Handle, Door (White Model) WPL 4448406 Contact Us For Availability
16
Cover, Top Rear WPL 4450550 Contact Us For Availability
17
Glass, Outer (Black Model) WPL 4450379 Contact Us For Availability
17
Glass, Outer (White Model) WPL 4450380 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
18
Filler Kit (BL) WPL 4378950 Contact Us For Availability
18
Filler Kit (WH) WPL 4378951 Contact Us For Availability
18
Cover, Top Front WPL 4450553 Contact Us For Availability
18
Harness, Latch WPL 4450753 Contact Us For Availability
18
Ground (M/W) WPL 4450831 Contact Us For Availability
18
Harness, Door Switch WPL 4450951 Contact Us For Availability
18
Harness, Main WPL 4450989 Contact Us For Availability
18
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
19
Shield, Heat WPL 4450361 Contact Us For Availability
20
Retainer, Glass WPL 4449031 Contact Us For Availability
21
Seal, Door Top WPL 4450836 Contact Us For Availability
22
Seal, Side WPL 4450838 Contact Us For Availability
23
Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability
23
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
23
Spacer WPL 4451055 Contact Us For Availability
24
Screw WPL 4451040 Contact Us For Availability
24
Bracket, Handle WPL 4450024 Contact Us For Availability
25
Clip, Glass (Black Model) WPL 4450021 Contact Us For Availability
25
Clip, Glass (White Model) WPL 4450022 Contact Us For Availability
30
Thermostat WPL 4375279 Contact Us For Availability
38
Inlet WPL 4375329 Contact Us For Availability
44
Cover Plate WPL 4375338 Contact Us For Availability
46
Inner Frame WPL 4375340 Contact Us For Availability
48
Vent, Top WPL 4449883 Contact Us For Availability
50
Cover, Back WPL 4450543 Contact Us For Availability
51
Trim, Bottom (Screw) WPL 4450289 Contact Us For Availability
51
Trim, Bottom (Black Model) WPL 4448475 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448476 Contact Us For Availability
52
Vent, Control WPL 4450787 Contact Us For Availability
53
Insulation, Wrap WPL 4449315 Contact Us For Availability
53
Insulation, Bottom WPL 4450282 Contact Us For Availability
53
Insulation, Back WPL 4450364 Contact Us For Availability
53
Chassis, Back WPL 4450402 Contact Us For Availability
55
Cable WPL 4375350 Contact Us For Availability
× ![]()
