Model Whirlpool RM955PXPW1 – Common Parts & Diagrams

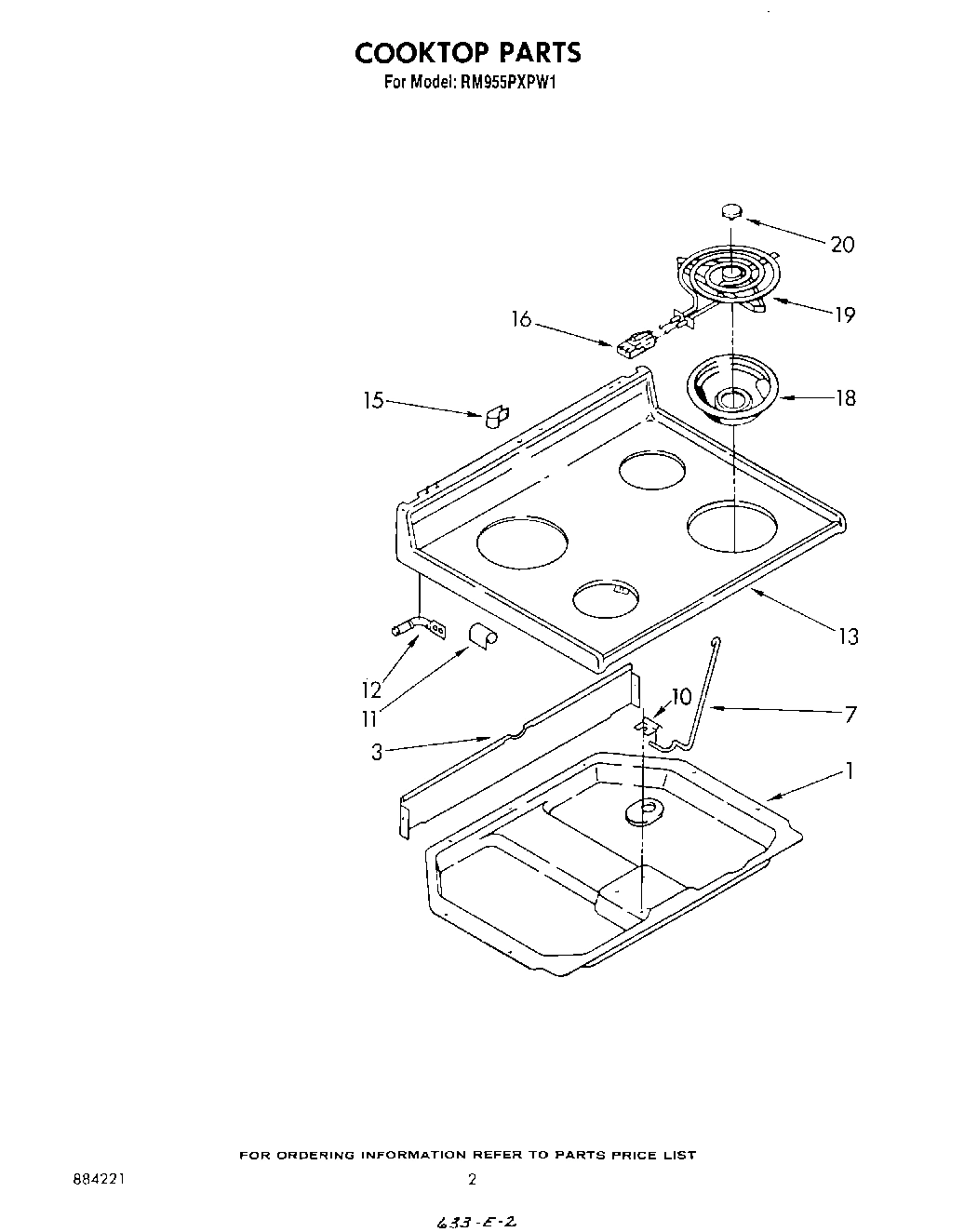

02 - COOK TOP

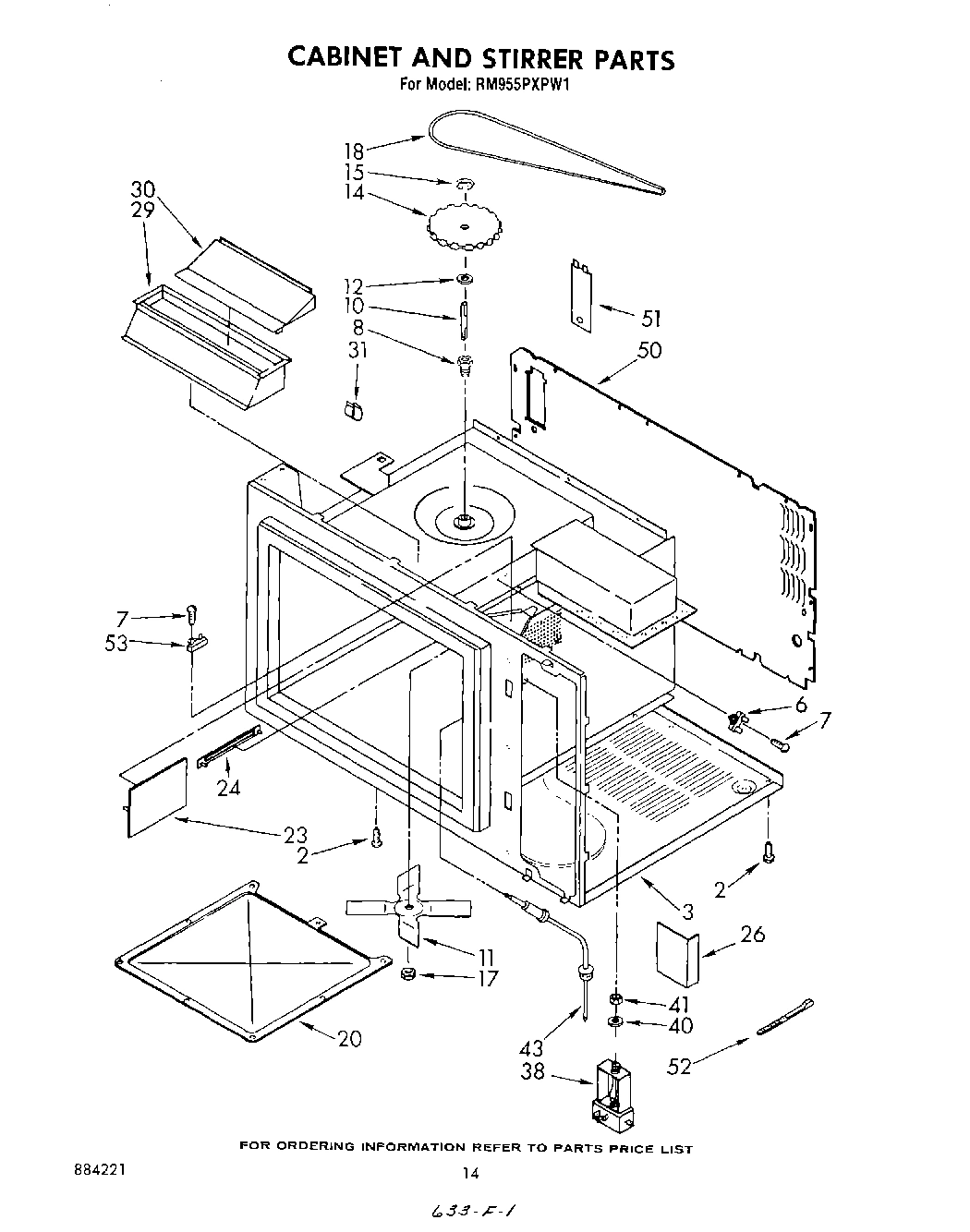

09 - CABINET AND STIRRER

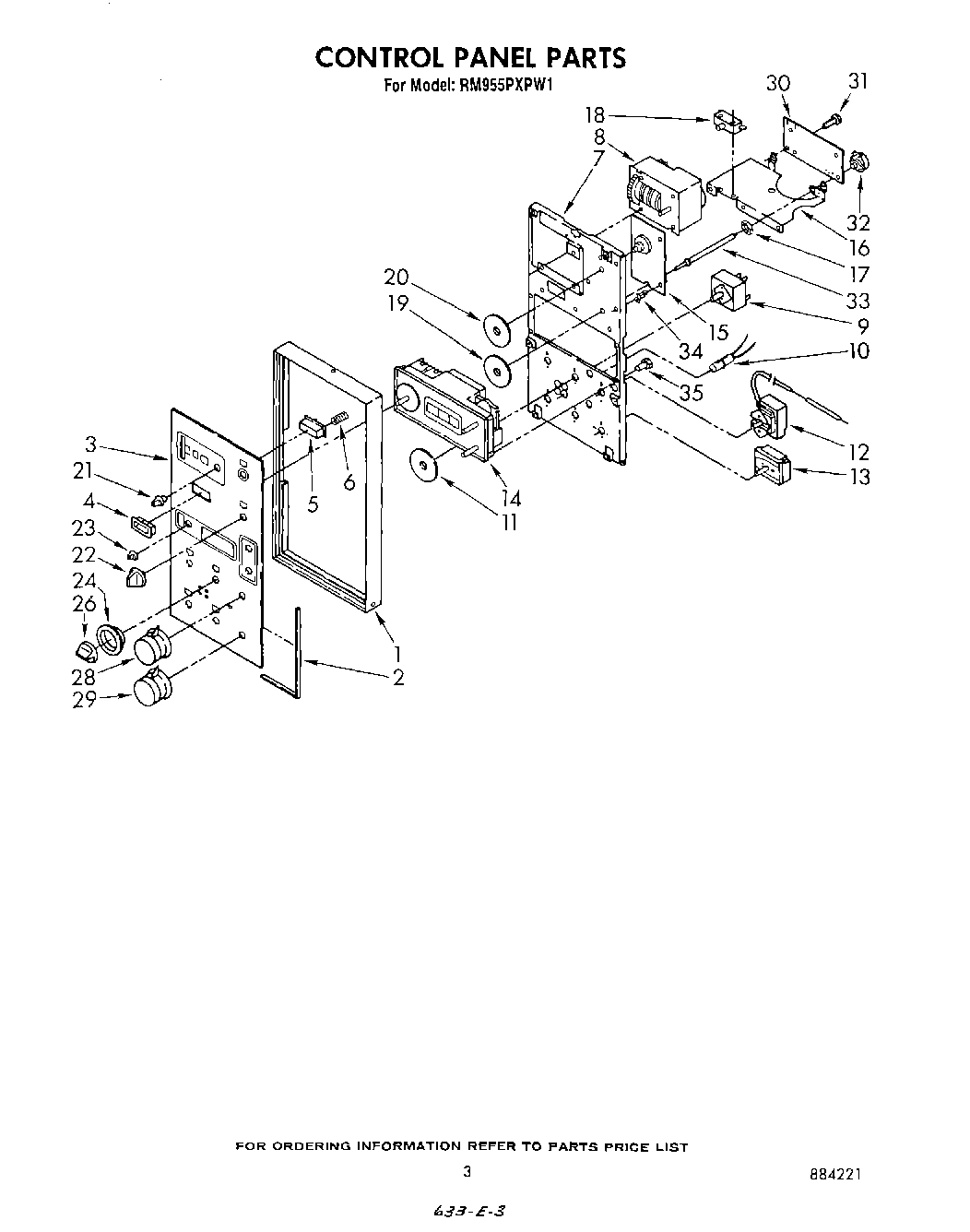

03 - CONTROL PANEL

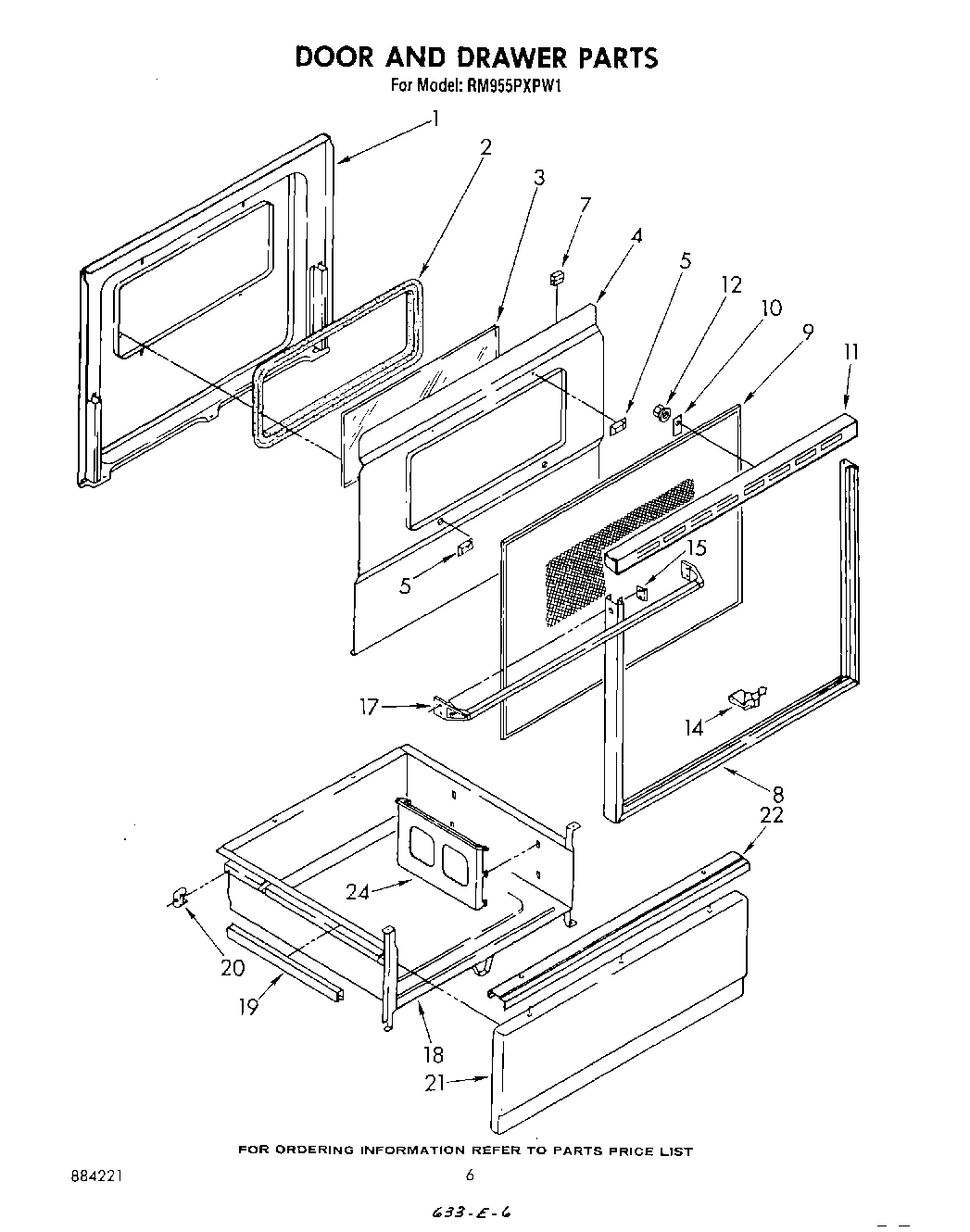

05 - DOOR AND DRAWER

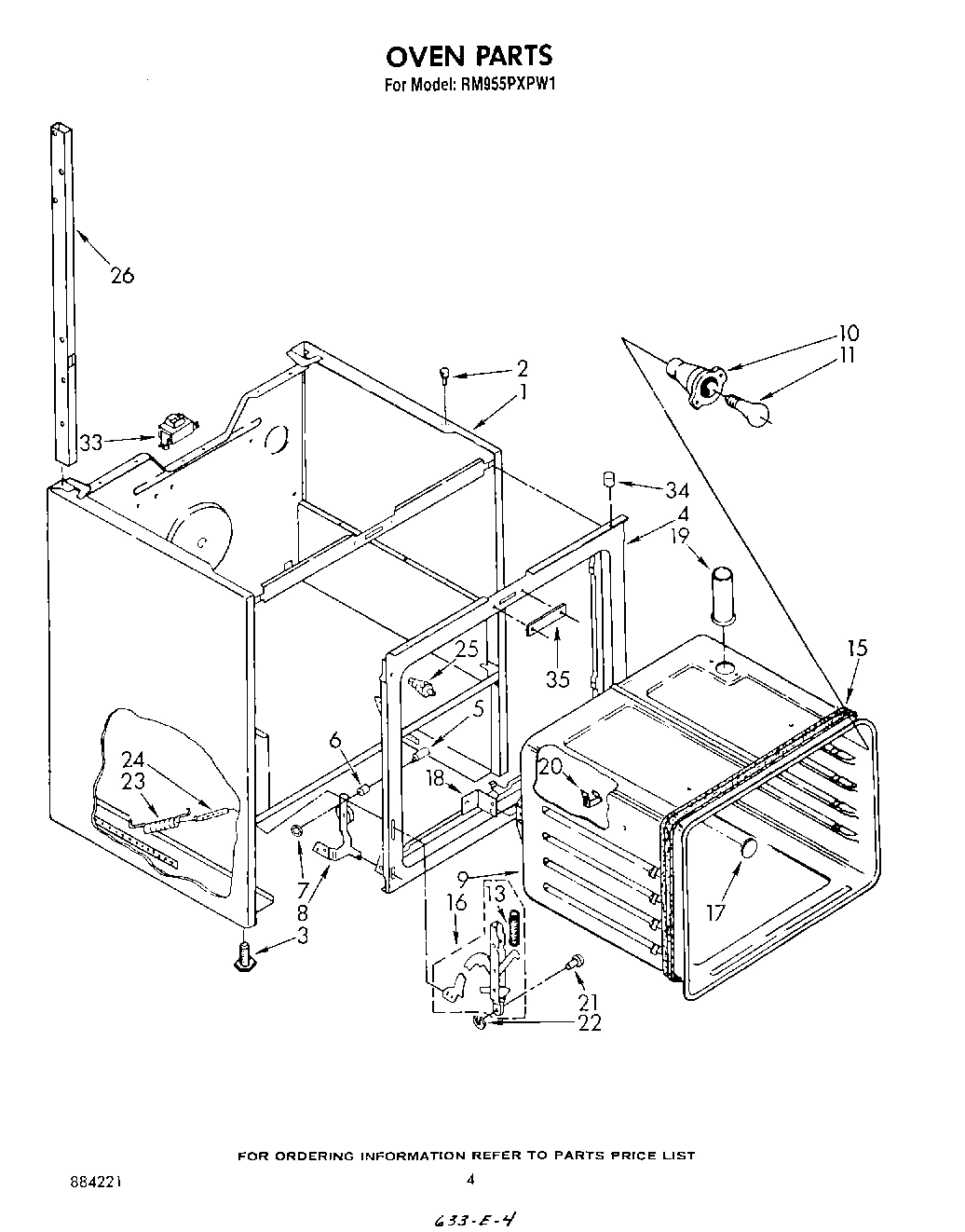

04 - OVEN

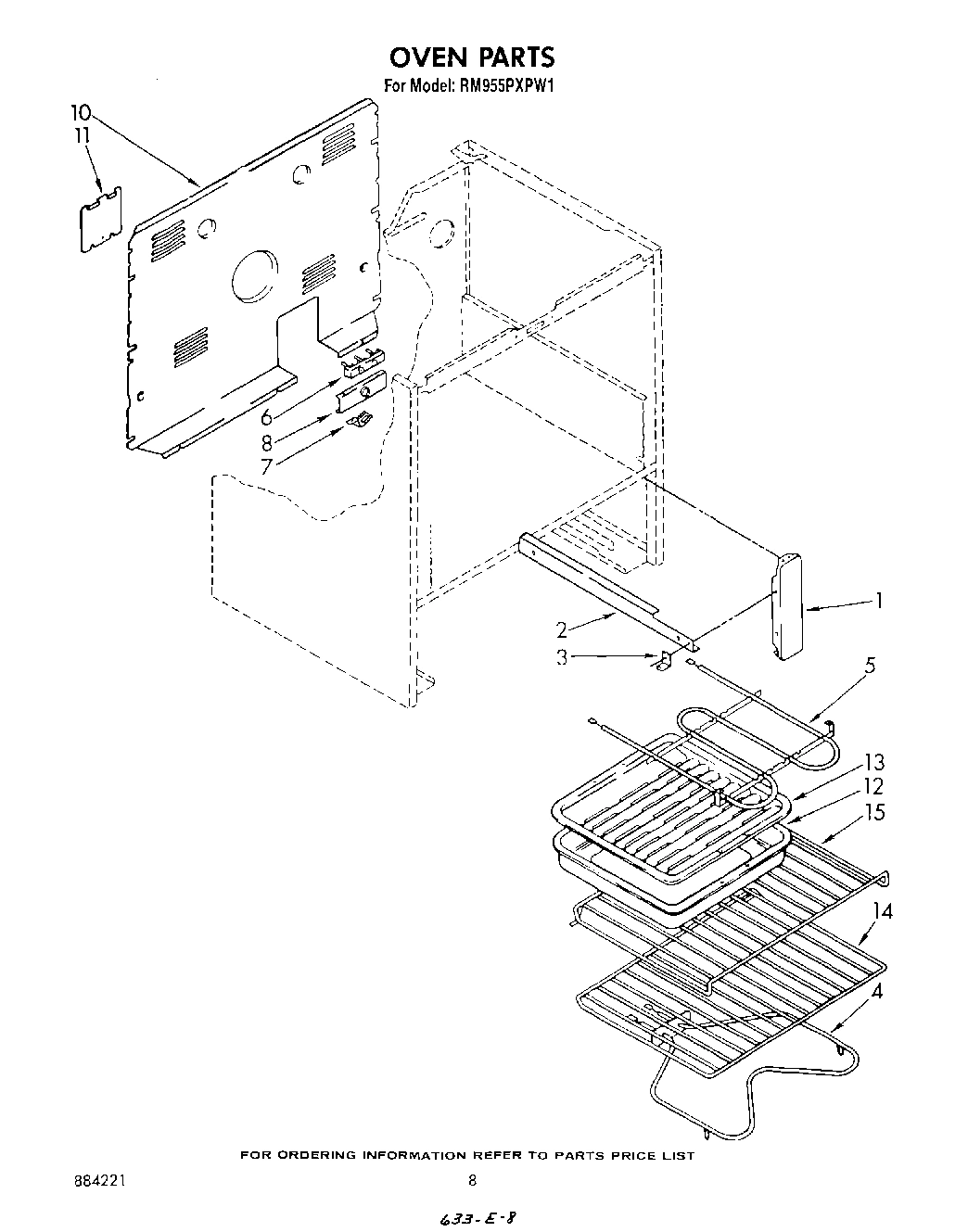

06 - OVEN (CONTINUED)

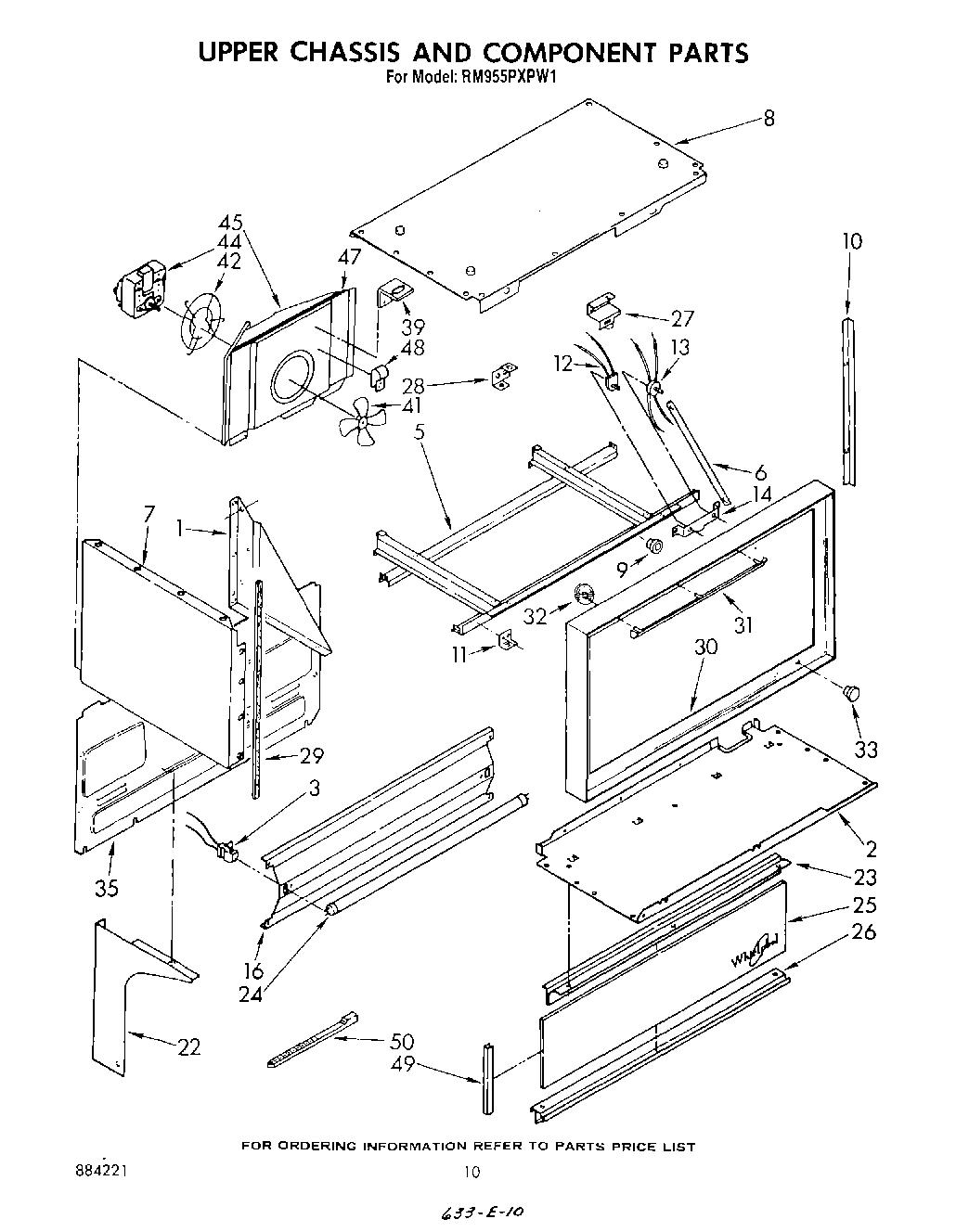

07 - UPPER CHASSIS AND COMPONENT
12 - SECTION

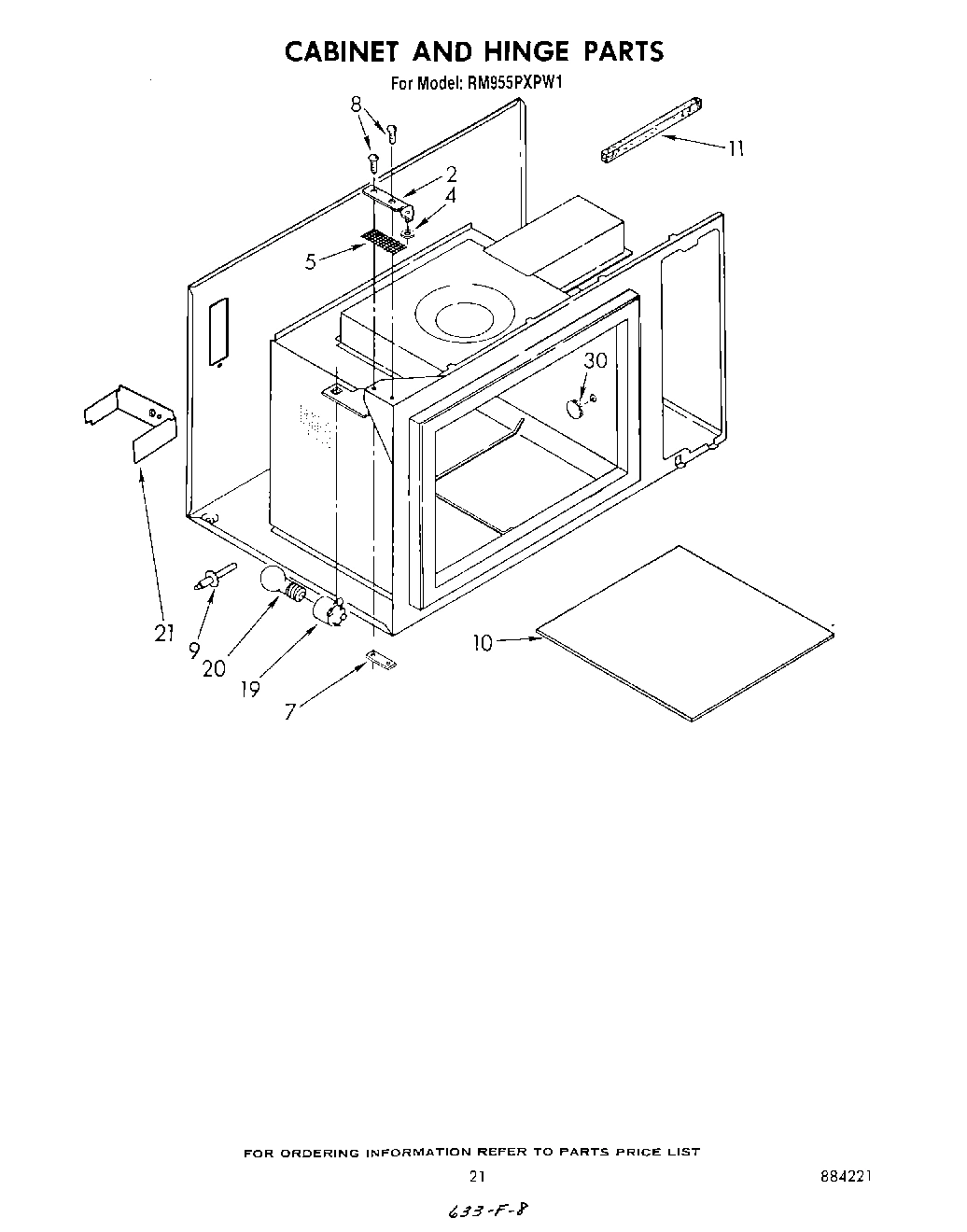

13 - CABINET AND HINGE

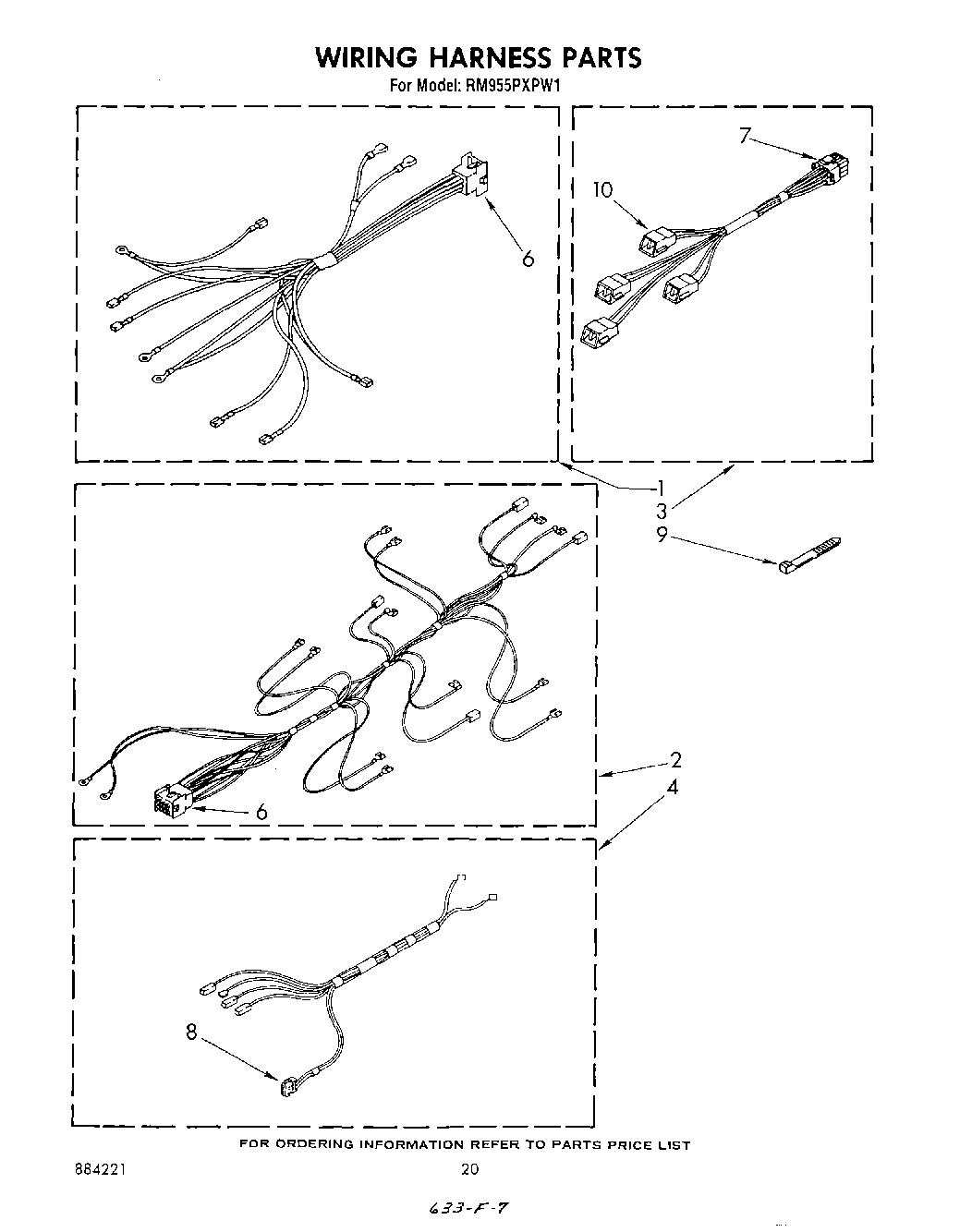

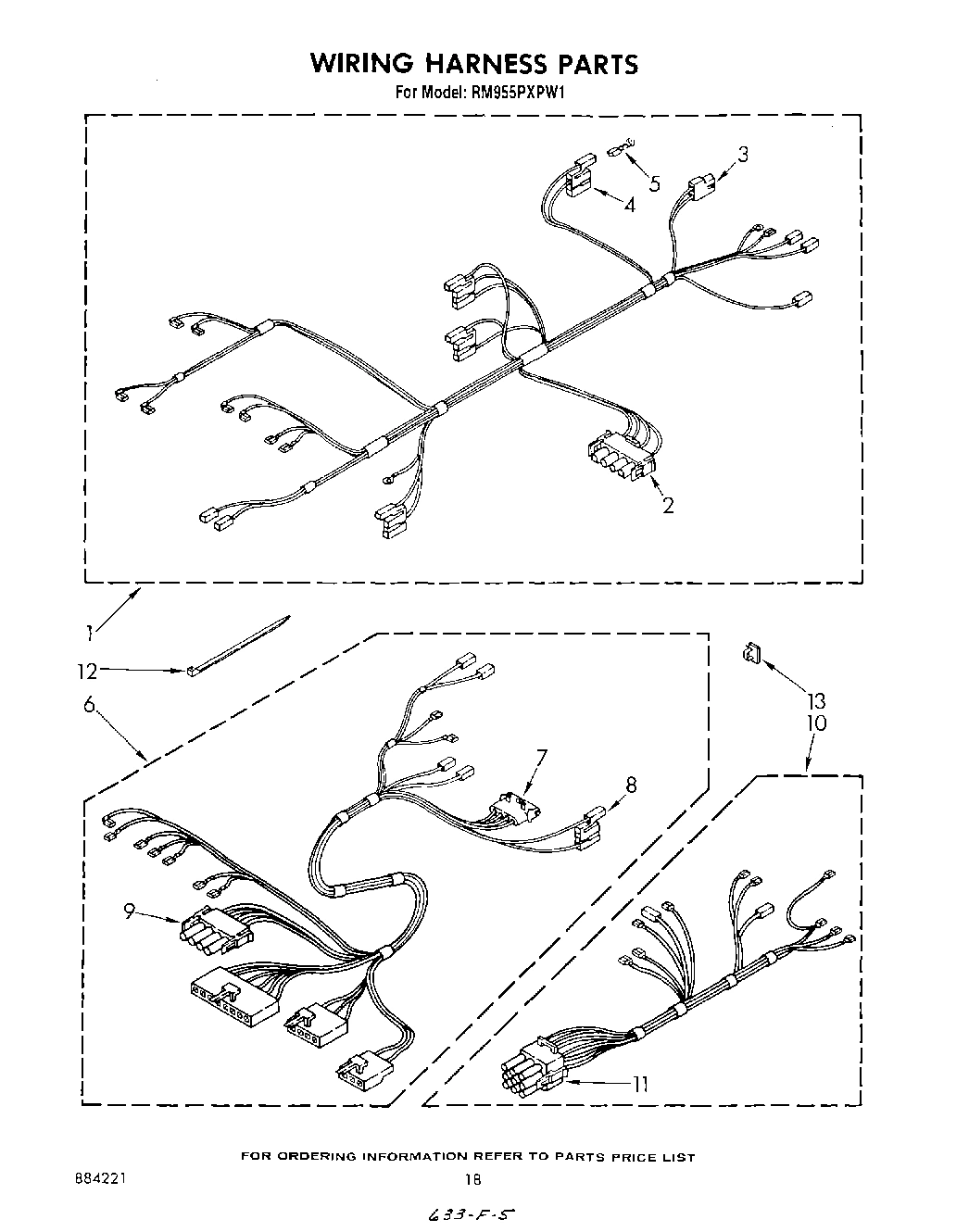

11 - WIRING HARNESS , LITERATURE AND OPTIONAL

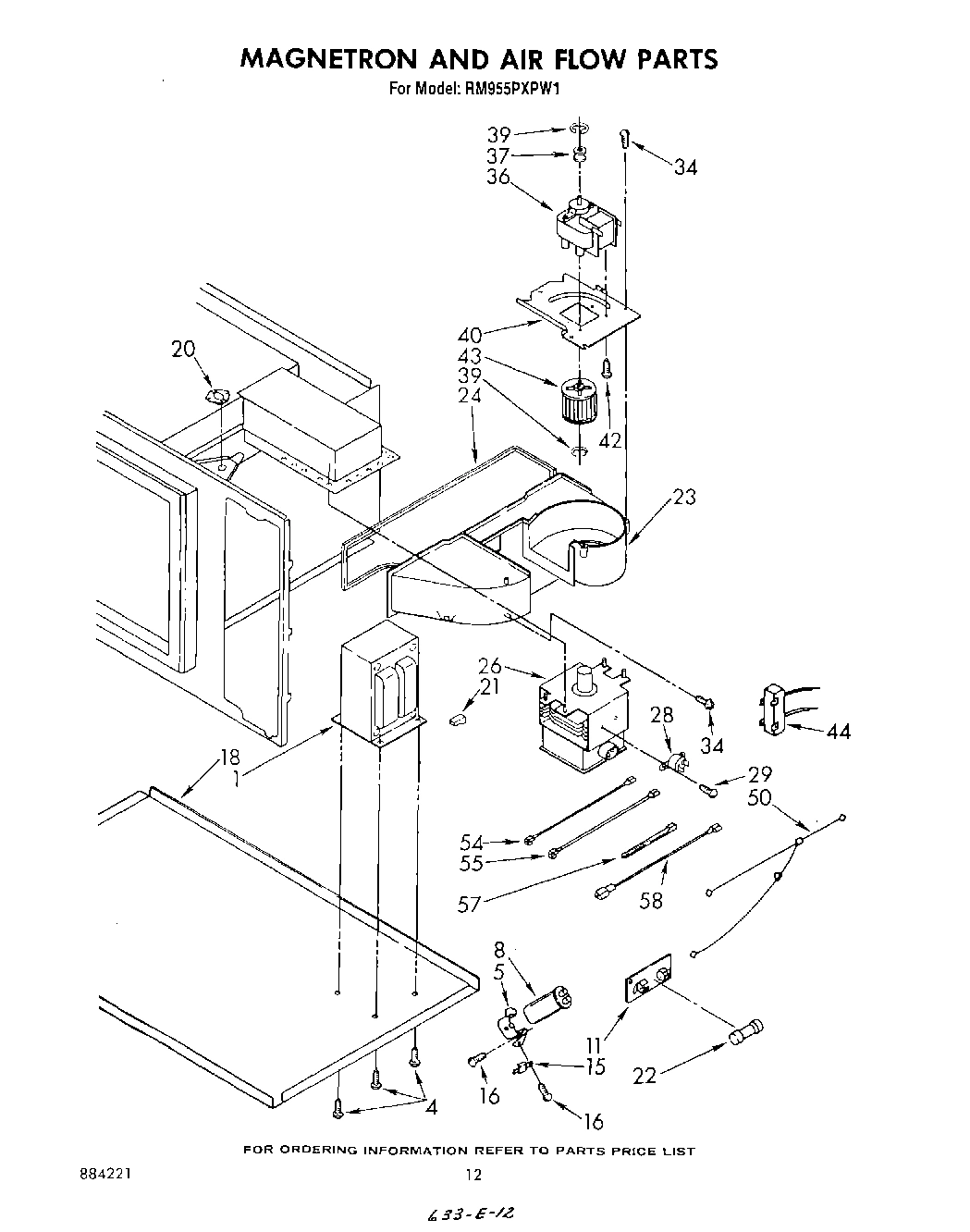

08 - MAGNETRON AND AIR FLOW

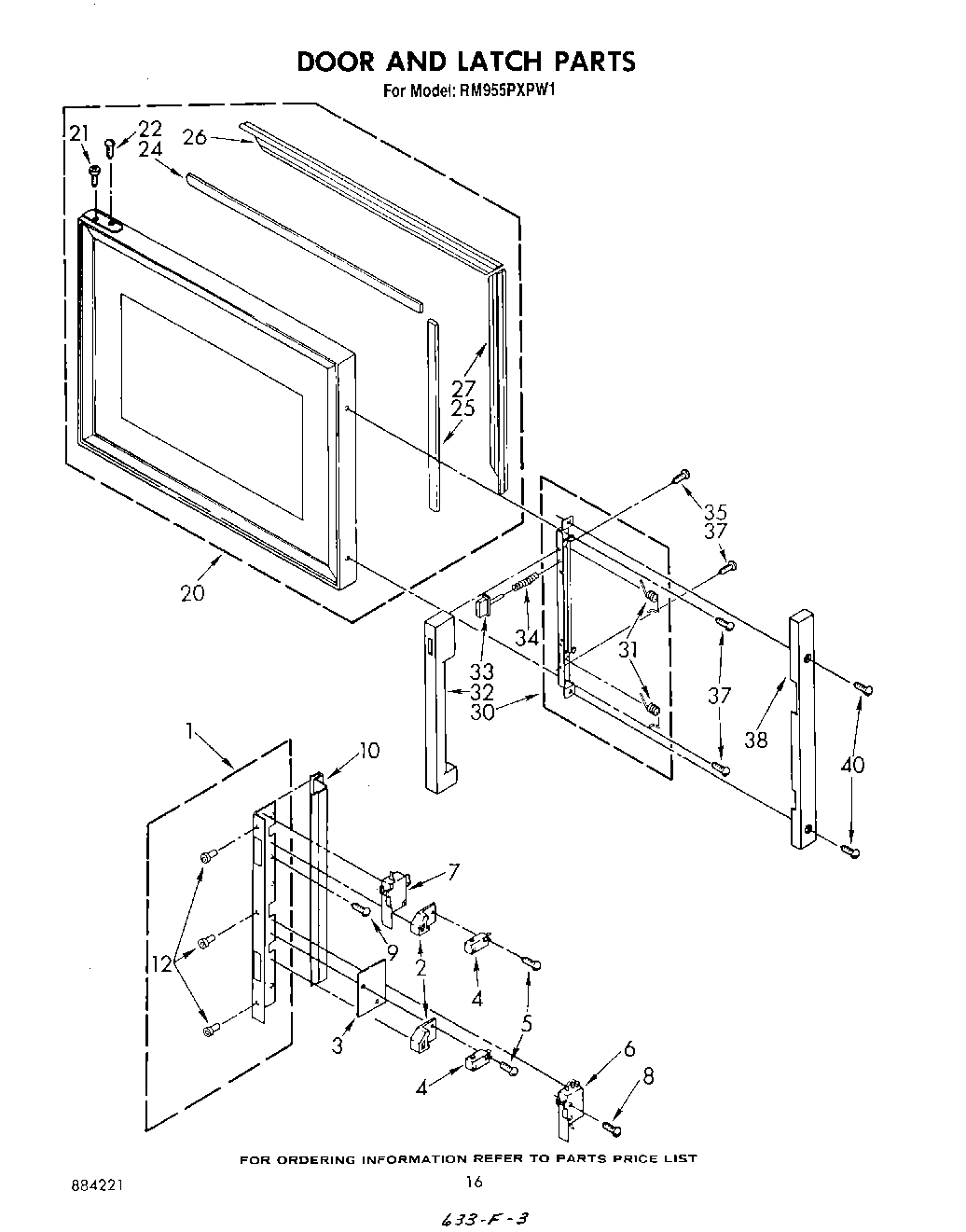

10 - DOOR AND LATCH
Common parts from model Whirlpool RM955PXPW1
WPL LIT311892 WPL LIT311892 Contact Us For Availability
WPL LIT312876 WPL LIT312876 Contact Us For Availability
WPL LIT312879 WPL LIT312879 Contact Us For Availability
WPL LIT313358 WPL LIT313358 Contact Us For Availability
WPL LIT313480 WPL LIT313480 Contact Us For Availability
WPL LIT3147632 WPL LIT3147632 Contact Us For Availability
WPL LIT884221 WPL LIT884221 Contact Us For Availability
1
Screw, 8-32 x 3/8 WPL 312713 Contact Us For Availability
1
Frame, Control Panel WPL 313404 Contact Us For Availability
1
liner, door WPL 329685 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Harvest Gold) WPL 330089 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
Main Chassis (Toast) WPL 330091 Contact Us For Availability
1
Main Chassis (Platinum) WPL 330092 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Gusset, R.H. WPL 312810 Contact Us For Availability
1
Gusset, L.H. WPL 312812 Contact Us For Availability
1
Harness, Wiring (Oven) WPL 310804 Contact Us For Availability
1
Harness, Wiring (Main) WPL 313414 Contact Us For Availability
1
Transformer 312848 (Alt.) 312849 (Alt.) WPL 661056 Contact Us For Availability
1
Bracket, Catch WPL 311354 Contact Us For Availability
2
Seal, Foam (2) WPL 313500 Contact Us For Availability
2
seal, pano glass WPL 258711 Contact Us For Availability
2
Bumper (4) WPL 312783 Contact Us For Availability
2
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
2
Rail R.H. (Includes Illus. 3) WPL 307982 Contact Us For Availability
2
rail l.h. (includes illus. 3) WPL 307983 Contact Us For Availability
2
Panel, Bottom WPL 313331 Contact Us For Availability
2
Harness Wiring (Infinite Switch) WPL 313419 Contact Us For Availability
2
Hinge Assembly (Bottom) WPL 330015 Contact Us For Availability
2
Hinge Assembly (Top) WPL 330016 Contact Us For Availability
2
Block, Disconnect WPL 310958 Contact Us For Availability
2
Catch (2) WPL 311795 Contact Us For Availability
3
Screw 8-18BT x 7/8 WPL 309170 Contact Us For Availability
3
Panel, Control WPL 313403 Contact Us For Availability
3
glass, inner 30`` WPL 258988 Contact Us For Availability
3
Glide, Front (2) WPL 307979 Contact Us For Availability
3
Socket Assembly L.H. WPL 313468 Contact Us For Availability
3
Socket Assembly R.H. WPL 313469 Contact Us For Availability
3
Harness Wiring (Surface Unit) WPL 311176 Contact Us For Availability
3
Block, Disconnect WPL 717252 Contact Us For Availability
3
Insulator WPL 313126 Contact Us For Availability
4
Bezel, Start WPL 313081 Contact Us For Availability
4
baffle, insulation WPL 307924 Contact Us For Availability
4
Frame, Front WPL 330166 Contact Us For Availability
4
Harness Wiring (AC Supply) WPL 313466 Contact Us For Availability
4
Washer, Flat WPL 312147 Contact Us For Availability
4
Housing WPL 310241 Contact Us For Availability
4
Screw, 10-32 x 1/2 Hex Washer W/Ground Ring ( WPL 312185 Contact Us For Availability
5
Button, Start WPL 313080 Contact Us For Availability
5
spacer, insulation baffle (4) WPL 258990 Contact Us For Availability
5
Pin, Hinge (2) WPL 307985 Contact Us For Availability
5
Screw, 10-32 x 5/8 (2) WPL 246127 Contact Us For Availability
5
Unit, Broil (208V) WPL 312308 Contact Us For Availability
5
Support, Frame WPL 328397 Contact Us For Availability
5
Hinge, Shim Locking (2) WPL 312744 Contact Us For Availability
5
Bracket, Capacitor WPL 312619 Contact Us For Availability
5
Screw, 4-40 x 3/4 Pan Head Thread Form (4) WPL 312717 Contact Us For Availability
6
Spring (2) WPL 310201 Contact Us For Availability
6
Snubber, Door (2) WPL 309111 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
6
Strap, Support (2) WPL 311933 Contact Us For Availability
6
Disconnect Block WPL 309409 Contact Us For Availability
6
Harness, Wiring (Control) WPL 313432 Contact Us For Availability
6
Switch, Light Monitor 313076 (Alt.) 313124 (A WPL 661145 Contact Us For Availability
7
Screw, 8-32 x 1/2 WPL 312248 Contact Us For Availability
7
Bracket, Control WPL 313140 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Side Panel L.H. (White) WPL 312261 Contact Us For Availability
7
Side Panel L.H. (Harvest Gold) WPL 312264 Contact Us For Availability
7
Side Panel L.H. (Almond) WPL 312265 Contact Us For Availability
7
Side Panel L.H. (White) WPL 312268 Contact Us For Availability
7
Side Panel L.H. (Harvest Gold) WPL 312271 Contact Us For Availability
7
Side Panel L.H. (Almond) WPL 312272 Contact Us For Availability
7
Side Panel L.H. (Toast) WPL 313161 Contact Us For Availability
7
Side Panel L.H. (Platinum) WPL 313162 Contact Us For Availability
7
Side Panel L.H. (Toast) WPL 313163 Contact Us For Availability
7
Side Panel L.H. (Platinum) WPL 313164 Contact Us For Availability
7
Plate, Nut (2) WPL 312741 Contact Us For Availability
7
Block, Disconnect (Female) WPL 310960 Contact Us For Availability
7
Switch 313075 (Alt.) 313125 (Alt.) WPL 661144 Contact Us For Availability
8
Timer, Digital WPL 313015 Contact Us For Availability
8
frame, door 30`` WPL 310427 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
8
Bracket, Service WPL 307970 Contact Us For Availability
8
Top Panel (White) WPL 312275 Contact Us For Availability
8
Top Panel (Harvest Gold) WPL 312278 Contact Us For Availability
8
Top Panel (Almond) WPL 312279 Contact Us For Availability
8
Top Panel (Toast) WPL 312280 Contact Us For Availability
8
Top Panel (Platinum) WPL 312281 Contact Us For Availability
8
Disconnect Block WPL 309105 Contact Us For Availability
8
Screw, 12-24 x 3/4 (2) WPL 312742 Contact Us For Availability
8
Block, Disconnect WPL 353425 Contact Us For Availability
8
Capacitor 312631 (Alt.) 312632 (Alt.) WPL 661004 Contact Us For Availability
8
Screw, 4-40 x 10 (2) WPL 310211 Contact Us For Availability
9
switch, infinite (4) WPL 308475 Contact Us For Availability
9
Screw, 8-32 x 3/8 Slot Hex Washer Head Self-T WPL 309080 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Glass, Outer WPL 309069 Contact Us For Availability
9
Oven (30`` Continuous Clean) WPL 329001 Contact Us For Availability
9
Bushing WPL 309552 Contact Us For Availability
9
Rivet (3) WPL 313456 Contact Us For Availability
9
Block, Disconnect WPL 310957 Contact Us For Availability
10
Light, Indicator (5) WPL 313517 Contact Us For Availability
10
hold down, glass (2) WPL 310705 Contact Us For Availability
10
Socket, Lamp 307856 (Alt.) 310208 (Alt.) WPL 660556 Contact Us For Availability
10
Cover, Rear WPL 307971 Contact Us For Availability
10
Angle, Side Panel R.H. WPL 309629 Contact Us For Availability
10
Shelf, Microwave 311058 (Alt.) 312579 (Alt.) WPL 660561 Contact Us For Availability
10
Harness, Selector Thermostat WPL 313436 Contact Us For Availability
10
Shield WPL 311359 Contact Us For Availability
11
Dial, Surface Unit (4) WPL 309489 Contact Us For Availability
11
Top, Door Frame WPL 310428 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Bracket, Frame Mounting (3) WPL 309454 Contact Us For Availability
11
Block, Disconnect WPL 309406 Contact Us For Availability
11
Seal, Foam WPL 313501 Contact Us For Availability
11
Block, Fuse WPL 309795 Contact Us For Availability
12
Thermostat WPL 309611 Contact Us For Availability
12
Push, Switch WPL 313484 Contact Us For Availability
12
Rivet, Pop (3) WPL 311928 Contact Us For Availability
13
Screw, 8-32 x 3/16 (2) WPL 308119 Contact Us For Availability
13
Switch, Selector (4 Pos.) WPL 310394 Contact Us For Availability
13
Spring, Door Stop WPL 308207 Contact Us For Availability
13
Switch, Fluorescent Light WPL 313483 Contact Us For Availability
13
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
13
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
13
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
13
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
13
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
13
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
13
Wire, White 14 Ga. 150 oC WPL 242826 Contact Us For Availability
13
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
13
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
13
Wire, Red 12 Ga. 150 oC WPL 242829 Contact Us For Availability
13
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
13
Wire, Yellow 14 Ga. 200 oC WPL 242832 Contact Us For Availability
13
Rotisserie Kit (RCK 81) WPL 242985 Contact Us For Availability
13
Touch-Up, Oven WPL 254323 Contact Us For Availability
13
Grease WPL 261582 Contact Us For Availability
13
Harvest Gold WPL 261891 Contact Us For Availability
13
Toast WPL 285365 Contact Us For Availability
13
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
13
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
13
Platinum (Uncut) WPL 285368 Contact Us For Availability
13
Browning Tray (Micro) WPL 307677 Contact Us For Availability
13
Rack, Meat (Micro) WPL 310878 Contact Us For Availability
13
Clip, Wire (2) WPL 313920 Contact Us For Availability
13
ADHESIV WPL 591014 Contact Us For Availability
13
WPL 72112 WPL 72112 Contact Us For Availability
13
WPL 799340 WPL 799340 Contact Us For Availability
13
WPL 799832 WPL 799832 Contact Us For Availability
13
WPL 978883 WPL 978883 Contact Us For Availability
14
Timer, Digital WPL 313520 Contact Us For Availability
14
clip, glass (10) WPL 310706 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
14
Bracket, Switch Mounting WPL 309455 Contact Us For Availability
15
Seal, Oven WPL 309107 Contact Us For Availability
15
Screw 4-40 x 5/8 (2) WPL 313489 Contact Us For Availability
15
P.C. Board (Temp Control) WPL 61501 Contact Us For Availability
15
Clip (2) WPL 311506 Contact Us For Availability
15
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
15
Rectifier, High Voltage 313831 (Alt.) WPL 661171 Contact Us For Availability
16
Screw, 8BT x 1/4 (3) WPL 254225 Contact Us For Availability
16
Bracket, P.C. Board WPL 313344 Contact Us For Availability
16
Channel, Arm (2) WPL 329712 Contact Us For Availability
16
Panel, Backguard WPL 313577 Contact Us For Availability
17
Handle, Oven Door WPL 312722 Contact Us For Availability
17
Palnut WPL 307640 Contact Us For Availability
17
Plug Button WPL 257314 Contact Us For Availability
18
Switch, Push WPL 310162 Contact Us For Availability
18
Screw (2) WPL 98106 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
18
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
18
Base, Chassis (Not Serviceable) WPL ARI123595A Contact Us For Availability
19
Dail WPL 313410 Contact Us For Availability
19
Protector, Drawer Side (2) WPL 309329 Contact Us For Availability
19
Vent, Oven WPL 307960 Contact Us For Availability
19
Socket, Snap-In WPL 307519 Contact Us For Availability
20
Fastener (4) WPL 313740 Contact Us For Availability
20
Dail, Temp. Selector WPL 313412 Contact Us For Availability
20
Glide, Rear (2) WPL 307980 Contact Us For Availability
20
Thermostat WPL 311719 Contact Us For Availability
20
Door WPL 329629 Contact Us For Availability
21
Knob, Timer WPL 313047 Contact Us For Availability
21
Panel Drawer (White) WPL 307935 Contact Us For Availability
21
Panel Drawer (Harvest Gold) WPL 307938 Contact Us For Availability
21
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
21
Panel, Drawer (Toast) WPL 313171 Contact Us For Availability
21
Panel, Drawer (Platinum) WPL 313172 Contact Us For Availability
21
Shield, Lamp WPL 309554 Contact Us For Availability
21
Housing Receptacle WPL 312813 Contact Us For Availability
22
Knob, Timer (2) WPL 313742 Contact Us For Availability
22
Handle, Drawer WPL 313337 Contact Us For Availability
22
End Trim R.H. (Screw, 10-12 x 7/8 (4)) WPL 308043 Contact Us For Availability
22
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
End Trim R.H. (White) WPL 330194 Contact Us For Availability
22
End Trim R.H. (Platinum End WPL 330195 Contact Us For Availability
22
WPL 330196 WPL 330196 Contact Us For Availability
22
WPL 330197 WPL 330197 Contact Us For Availability
22
WPL 330198 WPL 330198 Contact Us For Availability
22
WPL 330200 WPL 330200 Contact Us For Availability
22
WPL 330201 WPL 330201 Contact Us For Availability
22
WPL 330202 WPL 330202 Contact Us For Availability
22
WPL 330203 WPL 330203 Contact Us For Availability
22
WPL 330204 WPL 330204 Contact Us For Availability
23
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
23
Cover WPL 307516 Contact Us For Availability
23
Spring WPL 313311 Contact Us For Availability
23
WPL 313320 WPL 313320 Contact Us For Availability
23
Air Duct (Horizontal) WPL 312614 Contact Us For Availability
24
Cover, Rivet WPL 309437 Contact Us For Availability
24
Spring (4) WPL 308348 Contact Us For Availability
24
Bezel, Control Knob (4) WPL 309556 Contact Us For Availability
24
Rack, Literature WPL 357645 Contact Us For Availability
24
Seal, Top & Bottom (2) 311342 (Alt.) 311634 ( WPL 660574 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
25
WPL 313322 WPL 313322 Contact Us For Availability
25
Seal, Sides 311343 (Alt.) 311635 (Alt.) 31371 WPL 660575 Contact Us For Availability
26
Knob, Control (4) WPL 313307 Contact Us For Availability
26
Shield, Exhaust WPL 312577 Contact Us For Availability
26
Support, Tubing R.H. WPL 313327 Contact Us For Availability
26
Support, Tubing L.H. WPL 313329 Contact Us For Availability
26
WPL 313321 WPL 313321 Contact Us For Availability
26
Magnetron 311992 (Alt.) 311993 (Alt.) 311994 WPL 660595 Contact Us For Availability
26
Retainer, Top & Bottom Seals (2) WPL 311340 Contact Us For Availability
27
WPL 311953 WPL 311953 Contact Us For Availability
27
Retain, Side Seal (2) WPL 311341 Contact Us For Availability
28
Knob, Thermostat WPL 328709 Contact Us For Availability
28
WPL 312237 WPL 312237 Contact Us For Availability
28
Thermal Protector 312800 (Alt.) 313521 (Alt.) WPL 661165 Contact Us For Availability
29
Baffle, Air Exhaust WPL 309444 Contact Us For Availability
29
Screw WPL 310410 Contact Us For Availability
29
Knob, Selector WPL 328707 Contact Us For Availability
29
Screw, WPL 312782 Contact Us For Availability
30
Air Deflector WPL 311702 Contact Us For Availability
30
Board, Power Control WPL 329907 Contact Us For Availability
30
WPL 312599 WPL 312599 Contact Us For Availability
30
Hole Plug (4) WPL 312214 Contact Us For Availability
30
Latch Assembly WPL 329065 Contact Us For Availability
31
Clip, Air Cover (3) WPL 311149 Contact Us For Availability
31
WPL 309499 WPL 309499 Contact Us For Availability
31
Spring, Torsion (2) WPL 311352 Contact Us For Availability
32
Potentiometer WPL 60728 Contact Us For Availability
32
Handle, Door WPL 312351 Contact Us For Availability
33
Shaft, Potentiometer WPL 313345 Contact Us For Availability
33
Ballast 346772 (Alt.) 685591 (Alt.) WPL 660001 Contact Us For Availability
33
WPL 313030 WPL 313030 Contact Us For Availability
33
Button, Door Handle WPL 312349 Contact Us For Availability
34
Support (4) WPL 313087 Contact Us For Availability
34
Locator, Cooktop (2) WPL 311909 Contact Us For Availability
34
Spring, Compression WPL 310197 Contact Us For Availability
35
Nut, Extension (4) WPL 309645 Contact Us For Availability
35
Plate Cover WPL 310952 Contact Us For Availability
35
WPL 308112 WPL 308112 Contact Us For Availability
35
Screw, 8-32 Fillister Head Thread Form WPL 311959 Contact Us For Availability
36
Transmotor 312140 (Alt.) 312613 (Alt.) WPL 661003 Contact Us For Availability
37
Pulley, Motor WPL 311922 Contact Us For Availability
38
Jack, Probe WPL 313459 Contact Us For Availability
38
End Cap WPL 312350 Contact Us For Availability
39
WPL 308839 WPL 308839 Contact Us For Availability
39
``E`` Ring (2) WPL 311999 Contact Us For Availability
40
Washer Probe WPL 313105 Contact Us For Availability
40
Screw, 8-32 x 5/16 Thread Form Truss Head (2) WPL 310210 Contact Us For Availability
40
Bracket, Motor WPL 311916 Contact Us For Availability
41
Nut WPL 313104 Contact Us For Availability
41
WPL 307535 WPL 307535 Contact Us For Availability
41
WPL 307602 WPL 307602 Contact Us For Availability
42
WPL 247326 WPL 247326 Contact Us For Availability
42
WPL 310420 WPL 310420 Contact Us For Availability
43
Probe, Temperature 313044 (ALt.) WPL 661164 Contact Us For Availability
43
Wheel, Blower WPL 3147223 Contact Us For Availability
44
WPL 312389 WPL 312389 Contact Us For Availability
44
Reed Relay 312640 (Alt.) 312784 (Alt.) WPL 661005 Contact Us For Availability
45
WPL 312340 WPL 312340 Contact Us For Availability
48
WPL 254217 WPL 254217 Contact Us For Availability
49
WPL 313319 WPL 313319 Contact Us For Availability
50
Cover, Rear WPL 312257 Contact Us For Availability
50
Screw 11-16 x 1/2 WPL 346893 Contact Us For Availability
50
Screw, 10-32 x 5/16 (2) WPL 166681 Contact Us For Availability
50
Clip WPL 312763 Contact Us For Availability
50
Cable, Support WPL 312764 Contact Us For Availability
51
Cover, Light WPL 312379 Contact Us For Availability
54
Jumper, High Voltage (Black 6-5/16``) WPL 313129 Contact Us For Availability
55
Jumper, High Voltage Red (6-5/16``) WPL 313130 Contact Us For Availability
58
High Voltage Lead, Gray (7-11/16``) (2) WPL 313113 Contact Us For Availability
× ![]()
