Model Whirlpool RM778PXXB0 – Common Parts & Diagrams

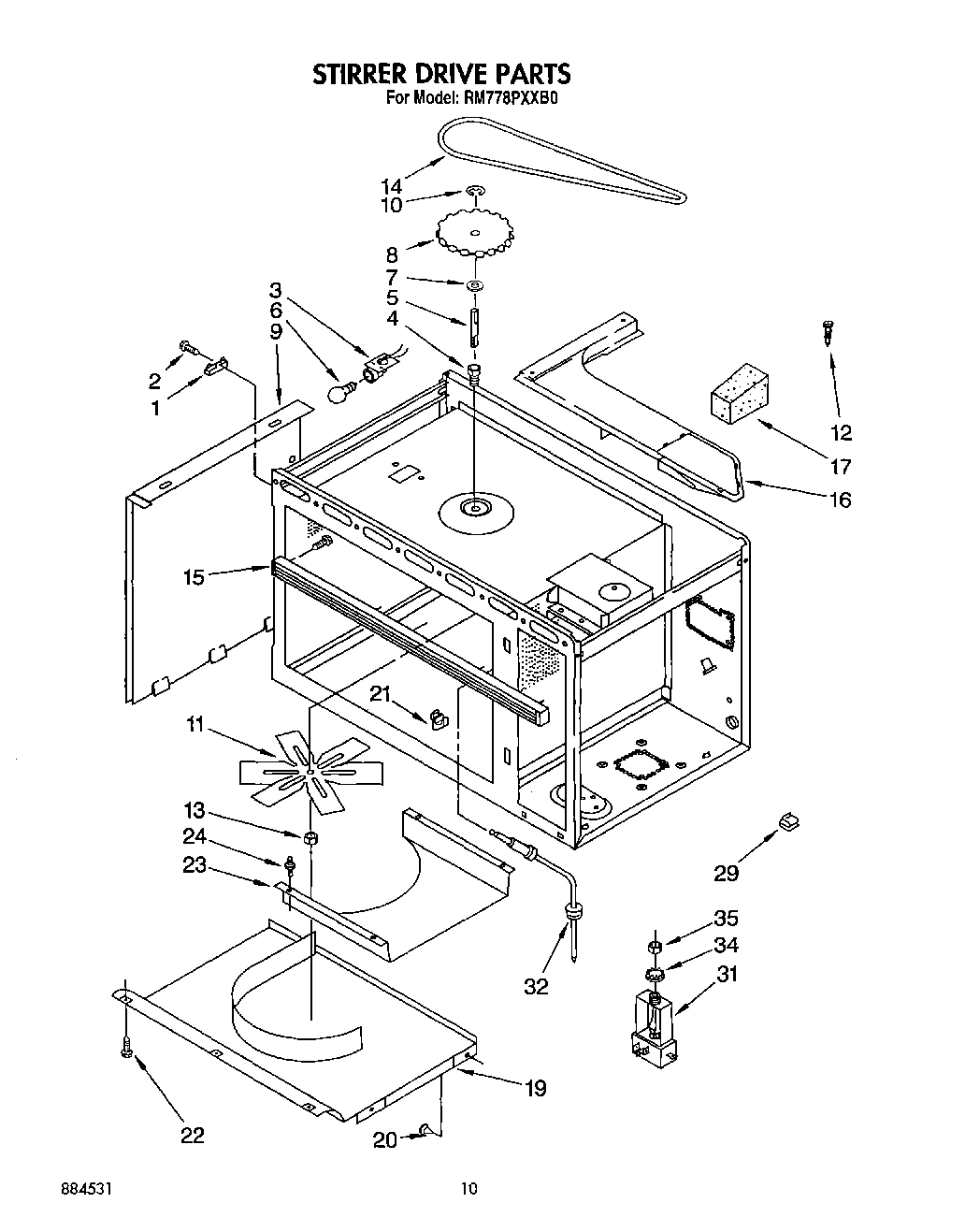

08 - STIRRER DRIVE

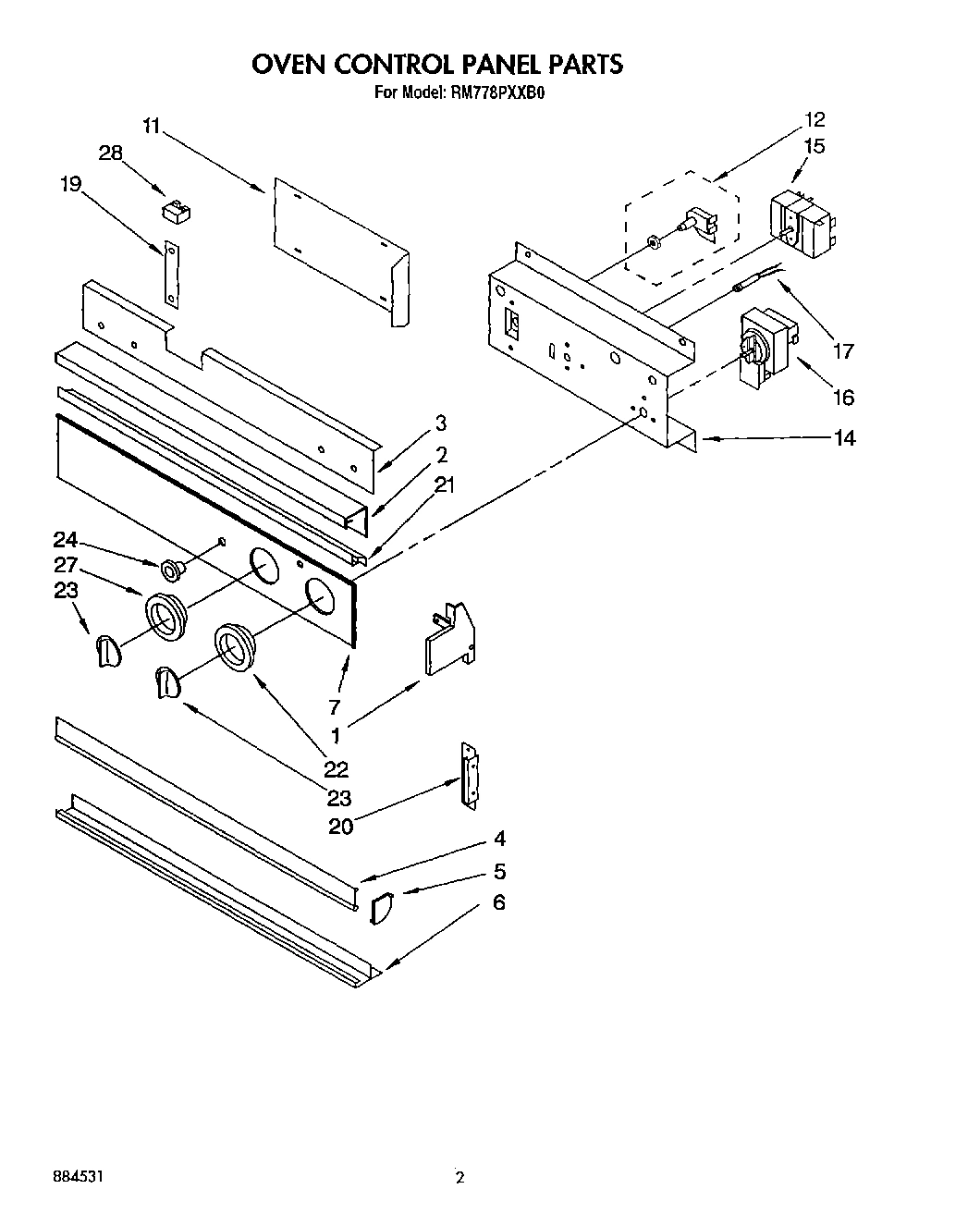

02 - OVEN CONTROL PANEL, LIT/OPTIONAL
04 - UNIT
03 - OVEN
05 - OVEN DOOR
06 - COMPONENT SHELF AND LATCH
11 - WIRING HARNESS
12 - DOOR AND LATCH
10 - CONTROL PANEL
07 - MAGNETRON AND AIR FLOW, OPTIONAL
09 - MICROWAVE COMPARTMENT
Common parts from model Whirlpool RM778PXXB0
WPL LIT311895 WPL LIT311895 Contact Us For Availability
WPL LIT3147571 WPL LIT3147571 Contact Us For Availability
WPL LIT3147573 WPL LIT3147573 Contact Us For Availability
WPL LIT3149228 WPL LIT3149228 Contact Us For Availability
WPL LIT3149232 WPL LIT3149232 Contact Us For Availability
WPL LIT3181680 WPL LIT3181680 Contact Us For Availability
WPL LIT3181730 WPL LIT3181730 Contact Us For Availability
WPL LIT3181731 WPL LIT3181731 Contact Us For Availability
WPL LIT3182395 WPL LIT3182395 Contact Us For Availability
WPL LIT884531 WPL LIT884531 Contact Us For Availability
1
End Cap (Left Hand) WPL 3181395 Contact Us For Availability
1
End Cap (Right Hand) WPL 3181396 Contact Us For Availability
1
Liner, Door WPL 3177599 Contact Us For Availability
1
Screw, Black (2) WPL 3178001 Contact Us For Availability
1
Harness, Wire Main Power WPL 3182034 Contact Us For Availability
1
Bracket, Catch WPL 311354 Contact Us For Availability
1
Frame, Control (Black Model) WPL 3182405 Contact Us For Availability
1
Frame, Control (White Model Panel) WPL 3182409 Contact Us For Availability
1
Transformer WPL 3147272 Contact Us For Availability
1
Frame, Outer (Black Model) WPL 3181369 Contact Us For Availability
1
Frame, Outer (White Model) WPL 3181997 Contact Us For Availability
2
Trim, Top (Black Model) WPL 3181391 Contact Us For Availability
2
Trim, Top (White Model) WPL 3181989 Contact Us For Availability
2
Element, Broil WPL 661415 Contact Us For Availability
2
Gasket, Window WPL 3178584 Contact Us For Availability
2
Harness, Wire Main, Microwave WPL 3147072 Contact Us For Availability
2
Catch (2) WPL 311795 Contact Us For Availability
2
Module, Control (White Model) WPL 3148269 Contact Us For Availability
2
Module, Control (Black Model) WPL 3182566 Contact Us For Availability
2
Block, Foam WPL 3182551 Contact Us For Availability
3
Trim, Oven Vent WPL 3181392 Contact Us For Availability
3
Cabinet, Back WPL 3177623 Contact Us For Availability
3
Spacer, Window WPL 3179693 Contact Us For Availability
3
Harness, Wiring (Control) WPL 3148057 Contact Us For Availability
3
Seal, Foam (Top) (Black Model) WPL 3182382 Contact Us For Availability
3
Seal, Foam (Top) (White Model) WPL 3182383 Contact Us For Availability
4
Door, Vent (Black Model) WPL 3181393 Contact Us For Availability
4
Door, Vent (White Model) WPL 3181988 Contact Us For Availability
4
Latch, Strike WPL 3177831 Contact Us For Availability
4
Switch, Latch WPL 3178668 Contact Us For Availability
4
Screw (2) WPL 98106 Contact Us For Availability
4
Harness, Wire A.C. Supply WPL 3148981 Contact Us For Availability
4
Screw (6) WPL 313818 Contact Us For Availability
4
screw, 10-32 x 1/2 (4) WPL 312185 Contact Us For Availability
4
Relay, Power 24VDC WPL 314125 Contact Us For Availability
4
Screw WPL 3179847 Contact Us For Availability
5
Screw 8-32 X 1/2 WPL 313679 Contact Us For Availability
5
End Trim (Vent Door) Left Hand (White Model R WPL 3148471 Contact Us For Availability
5
End Trim (Vent Door) Left Hand (White Model) WPL 3148472 Contact Us For Availability
5
End Trim (Vent Door) Left Hand (Black Model) WPL 3148697 Contact Us For Availability
5
End Trim (Vent Door) Left Hand (Black Model) WPL 3148698 Contact Us For Availability
5
Rack, Offset WPL 3180865 Contact Us For Availability
5
Insulation, Retainer WPL 3177718 Contact Us For Availability
5
Insulator, Switch WPL 3178185 Contact Us For Availability
5
Harness, Wire Microwave Power WPL 3182441 Contact Us For Availability
5
Screw 4-40x3/4 (8) WPL 312717 Contact Us For Availability
5
Bracket, Capacitor WPL 312619 Contact Us For Availability
5
rack, wire WPL 313663 Contact Us For Availability
6
Trim, Bottom WPL 3181397 Contact Us For Availability
6
screw (2) WPL 342043 Contact Us For Availability
6
screw (2) WPL 254225 Contact Us For Availability
6
Rack, Oven WPL 3180864 Contact Us For Availability
6
Cabinet, Top WPL 3178140 Contact Us For Availability
6
Bracket, Glass Mounting (2) WPL 4163855 Contact Us For Availability
6
Guard, Latch WPL 3177662 Contact Us For Availability
6
Harness, Wire Door Switch (Lower Oven) WPL 3185130 Contact Us For Availability
6
Trim, Shelf (Front) WPL 313614 Contact Us For Availability
7
Glass, Control (Black) WPL 3181387 Contact Us For Availability
7
Glass, Control (White Panel) WPL 3181995 Contact Us For Availability
7
Top, Module WPL 3177436 Contact Us For Availability
7
Glass, Door (Black Model) WPL 3179498 Contact Us For Availability
7
Glass, Door (White Model) WPL 3179500 Contact Us For Availability
7
Handle, Latch WPL 3180409 Contact Us For Availability
7
Screw (2) WPL 4159187 Contact Us For Availability
7
Insulator WPL 313126 Contact Us For Availability
7
Capacitor WPL 661004 Contact Us For Availability
7
Trim, Shelf (Rear) WPL 313615 Contact Us For Availability
8
Bracket, Element WPL 3180694 Contact Us For Availability
8
Side, Cabinet Left & Right Side WPL 3181695 Contact Us For Availability
8
Glass, Reflective WPL 4164243 Contact Us For Availability
8
Knob, Latch Handle WPL 3183293 Contact Us For Availability
8
Screw WPL 3183294 Contact Us For Availability
8
Standoff, Harness WPL 3179668 Contact Us For Availability
8
Switch, Monitor/ Oven light WPL 661144 Contact Us For Availability
8
Shelf, Cavity WPL 313639 Contact Us For Availability
9
Tube, Vent WPL 3181699 Contact Us For Availability
9
Frame, Door WPL 3180607 Contact Us For Availability
9
Rail, Microwave WPL 3179973 Contact Us For Availability
10
Handle, Door (Black Model) WPL 3179481 Contact Us For Availability
10
Handle, Door (White Model) WPL 3179483 Contact Us For Availability
10
Handle, Door (Screw (3)) WPL 4173601 Contact Us For Availability
10
Latch, Mechanism WPL 3178410 Contact Us For Availability
10
Switch, Monitor/ Oven Light WPL 661145 Contact Us For Availability
10
Seal, Foam WPL 3180456 Contact Us For Availability
11
Clip, Handle (2) WPL 3148282 Contact Us For Availability
11
screw (2) WPL 312713 Contact Us For Availability
11
Guard, Control Panel WPL 3182660 Contact Us For Availability
11
Plate, Mounting WPL 3177496 Contact Us For Availability
11
screw, 4-40 x 1 (2) WPL 310211 Contact Us For Availability
12
Switch, Oven Light (White Model) WPL 3179708 Contact Us For Availability
12
Switch, Oven Light (Black Model) WPL 3179891 Contact Us For Availability
12
Support, Module WPL 3180330 Contact Us For Availability
13
Window Package WPL 4164235 Contact Us For Availability
13
Screw (6) WPL 4170323 Contact Us For Availability
13
Switch, Electronic WPL 313120 Contact Us For Availability
13
Rectifier, High Voltage WPL 313830 Contact Us For Availability
13
Back, Microwave Compartment WPL 3181694 Contact Us For Availability
14
Plate, Mounting (Controls) WPL 3181388 Contact Us For Availability
14
Frame, Front WPL 3177682 Contact Us For Availability
14
Insulation, Door WPL 3180094 Contact Us For Availability
14
Screw 8-32 X 3/8 WPL 309080 Contact Us For Availability
15
Switch, Selector WPL 3178237 Contact Us For Availability
15
Screw (4) WPL 3179776 Contact Us For Availability
15
Seal, Door WPL 3179813 Contact Us For Availability
15
Shield, Door WPL 3181348 Contact Us For Availability
15
Rail, Chassis (2) WPL 3179972 Contact Us For Availability
16
Thermostat, Oven WPL 3178275 Contact Us For Availability
16
Clip, Oven Seal WPL 3179848 Contact Us For Availability
16
Trim, Top (Black Model) WPL 3179476 Contact Us For Availability
16
Trim, Top (White Model) WPL 3179478 Contact Us For Availability
16
Shield WPL 3149424 Contact Us For Availability
16
Air Duct (Horizontal) WPL 313578 Contact Us For Availability
16
Seal, Foam WPL 3182051 Contact Us For Availability
17
Light, Indicator WPL 4168598 Contact Us For Availability
17
Bracket, Switch WPL 3177681 Contact Us For Availability
17
Screw (2) WPL 4168863 Contact Us For Availability
17
Cap, Top WPL 3181364 Contact Us For Availability
17
Seal, Air Duct WPL 313752 Contact Us For Availability
18
Insulator, Switch WPL 3177923 Contact Us For Availability
18
Bumper, Door Glass WPL 3181701 Contact Us For Availability
19
Rail, Mounting (For Rubber Insert) WPL 3181398 Contact Us For Availability
19
Bottom, Modual WPL 3177621 Contact Us For Availability
19
Motor WPL 313641 Contact Us For Availability
20
Fastener, Cover (4) WPL 313740 Contact Us For Availability
20
Trim, Outer (2) WPL 3181385 Contact Us For Availability
20
Rail, Support (2) WPL 3179220 Contact Us For Availability
20
Pulley, Motor WPL 311922 Contact Us For Availability
21
Trim, Control (2) WPL 3181384 Contact Us For Availability
22
screw, 8-32 x 1/2 (3) WPL 313816 Contact Us For Availability
22
Escutcheon, Oven Thermostat (Black Model) WPL 3180524 Contact Us For Availability
22
Escutcheon, Oven Thermostat (White Model) WPL 3181508 Contact Us For Availability
22
Support, Oven WPL 3177434 Contact Us For Availability
22
Door, Inner (Black Model) WPL 3171012 Contact Us For Availability
22
Door, Inner (White Model) WPL 3171806 Contact Us For Availability
22
``E`` Ring (2) WPL 311999 Contact Us For Availability
23
Plate, Tunning (Includes Illus. No. 24) WPL 313735 Contact Us For Availability
23
Knob, Control (2) (White Model) WPL 3150372 Contact Us For Availability
23
Shield, Radiation WPL 3178612 Contact Us For Availability
23
Frame, Door (Black Model) WPL 3172234 Contact Us For Availability
23
Frame, Door (White Model) WPL 3182316 Contact Us For Availability
23
Bracket, Motor WPL 313601 Contact Us For Availability
24
Support (4) WPL 313739 Contact Us For Availability
24
Bezel Switch (Black Model) WPL 313030 Contact Us For Availability
24
Bezel Switch (White Model) WPL 3149170 Contact Us For Availability
24
Bracket, Hinge WPL 3177433 Contact Us For Availability
24
Screw (6) WPL 3179795 Contact Us For Availability
25
Side, Module (R.H. & L.H.) WPL 3177572 Contact Us For Availability
25
Latch, Complete WPL 329066 Contact Us For Availability
26
Screw (2) WPL 3179117 Contact Us For Availability
26
Back, Module WPL 3177556 Contact Us For Availability
26
Spring, Torsion (2) WPL 311352 Contact Us For Availability
26
Wheel, Blower WPL 3147223 Contact Us For Availability
27
Black Model WPL 3180525 Contact Us For Availability
27
White Model WPL 3181510 Contact Us For Availability
27
Liner, Oven WPL 3180828 Contact Us For Availability
28
WPL 3181386 WPL 3181386 Contact Us For Availability
28
Screw (4) WPL 3178000 Contact Us For Availability
28
Hinge, Door (2) WPL 3178298 Contact Us For Availability
29
Clip, Wire (2) WPL 311311 Contact Us For Availability
29
Button, Plug WPL 3185108 Contact Us For Availability
29
Screw (4) WPL 313820 Contact Us For Availability
29
Magnetron WPL 660595 Contact Us For Availability
30
Button, Plug WPL 3185109 Contact Us For Availability
31
Jack, Probe WPL 661209 Contact Us For Availability
31
Screw (2) WPL 313489 Contact Us For Availability
31
Nut (2) WPL 4159117 Contact Us For Availability
31
Switch, Door WPL 4173553 Contact Us For Availability
31
End Cap (Black Model) WPL 3148297 Contact Us For Availability
31
End Cap (White Model) WPL 3148298 Contact Us For Availability
32
Probe, Temperature WPL 313527 Contact Us For Availability
32
Screw 8-32 (5) WPL 313823 Contact Us For Availability
32
Thermal Protector WPL 661165 Contact Us For Availability
33
Retainer, Seal WPL 3179587 Contact Us For Availability
34
Washer WPL 313105 Contact Us For Availability
34
Vent, Lower Trim (White Model) WPL 3177792 Contact Us For Availability
34
Vent, Lower Trim (Screw (2)) WPL 3180022 Contact Us For Availability
34
Vent, Lower Trim (Black Model) WPL 3181847 Contact Us For Availability
34
Screw (2) WPL 312782 Contact Us For Availability
35
Nut WPL 313104 Contact Us For Availability
35
Vent, Tube (Upper, Female) WPL 3179944 Contact Us For Availability
35
Handle, Door (Black Model) WPL 314169 Contact Us For Availability
35
Handle, Door (White Model) WPL 3149218 Contact Us For Availability
36
Vent, Tube (Upper, Male) WPL 3181728 Contact Us For Availability
37
Button, Door Handle (Black Model) WPL 3149637 Contact Us For Availability
37
Button, Door Handle (White Model) WPL 3149638 Contact Us For Availability
37
Jumper, High Voltage Gray 8-11/16`` WPL 3147863 Contact Us For Availability
38
Spring, Compression WPL 310197 Contact Us For Availability
38
Jumper, High Voltage Red (6-5/16``) WPL 313130 Contact Us For Availability
39
Screw WPL 4159445 Contact Us For Availability
39
Cover, Cap Tube WPL 4168203 Contact Us For Availability
40
Screw WPL 346893 Contact Us For Availability
40
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
40
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
40
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
40
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
40
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
40
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
40
14 Ga. 150~c Rating (White) WPL 242826 Contact Us For Availability
40
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
40
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
40
16 Ga. 80~c Rating (Blue) WPL 242829 Contact Us For Availability
40
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
40
14 Ga. 200~c Rating (Yellow) WPL 242832 Contact Us For Availability
40
Harvest Gold WPL 261890 Contact Us For Availability
40
Harvest Gold WPL 261891 Contact Us For Availability
40
Toast WPL 285365 Contact Us For Availability
40
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
40
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
40
Platinum WPL 285368 Contact Us For Availability
40
Extension, Air Duct WPL 3147262 Contact Us For Availability
40
Hardware, Mtg. WPL 3171507 Contact Us For Availability
40
18 Ga. 80~c Rating (Yellow) WPL 350806 Contact Us For Availability
40
WPL 350941 WPL 350941 Contact Us For Availability
40
WPL 591014 WPL 591014 Contact Us For Availability
40
WPL 72112 WPL 72112 Contact Us For Availability
40
WPL 786020 WPL 786020 Contact Us For Availability
40
WPL 786032 WPL 786032 Contact Us For Availability
40
WPL 799832 WPL 799832 Contact Us For Availability
40
WPL 832985 WPL 832985 Contact Us For Availability
40
WPL 978883 WPL 978883 Contact Us For Availability
43
Bottom, Oven Main WPL 3177551 Contact Us For Availability
44
Plate, Cover WPL 4163883 Contact Us For Availability
45
Bracket, Conduit WPL 3177545 Contact Us For Availability
46
Insulation, Oven WPL 3177862 Contact Us For Availability
47
Insulation, Back WPL 3177872 Contact Us For Availability
× ![]()
