Model Whirlpool RM778PXT0 – Common Parts & Diagrams
07 - CABINET AND STIRRER
11 - CABINET AND HINGE

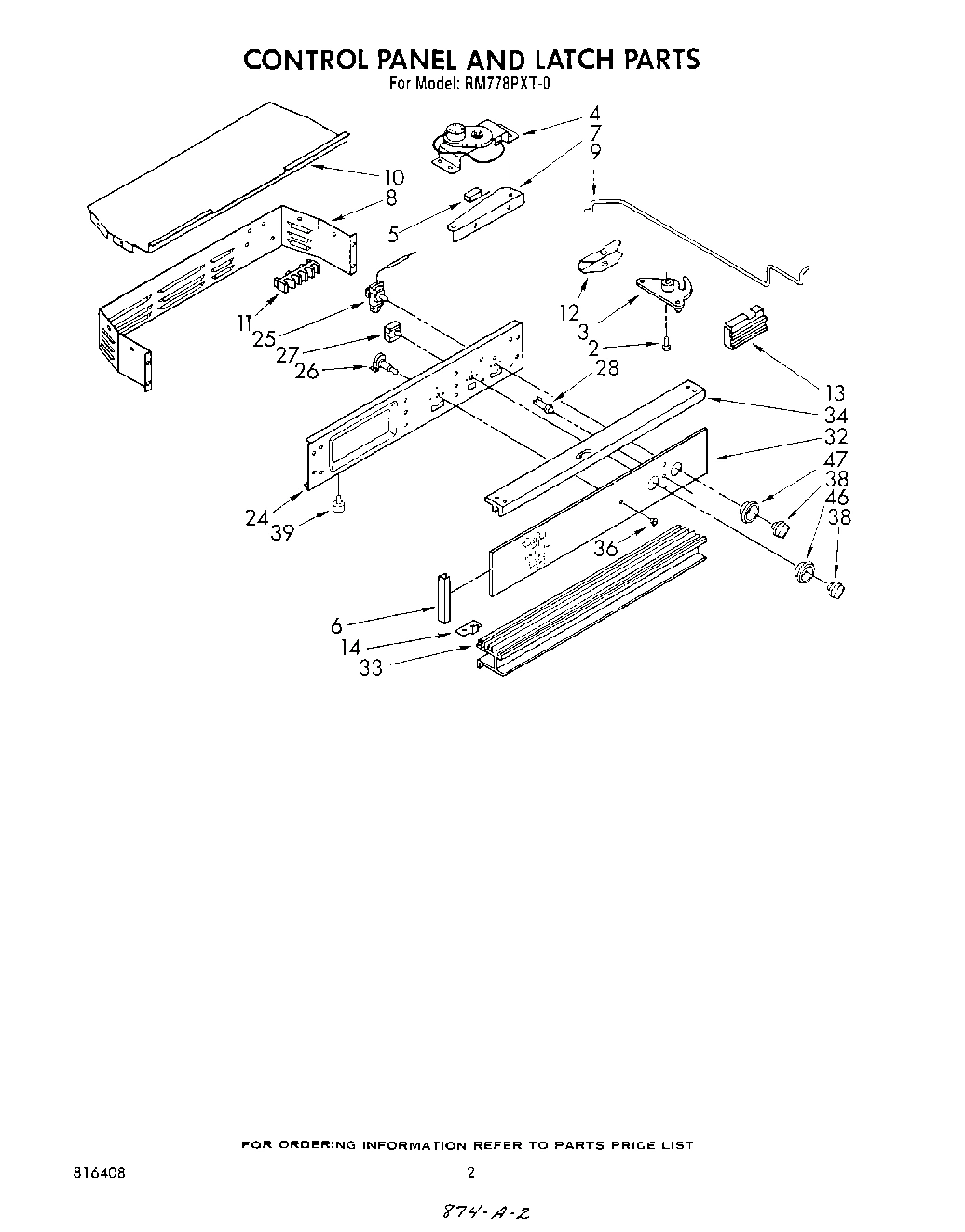

02 - CONTROL PANEL AND LATCH

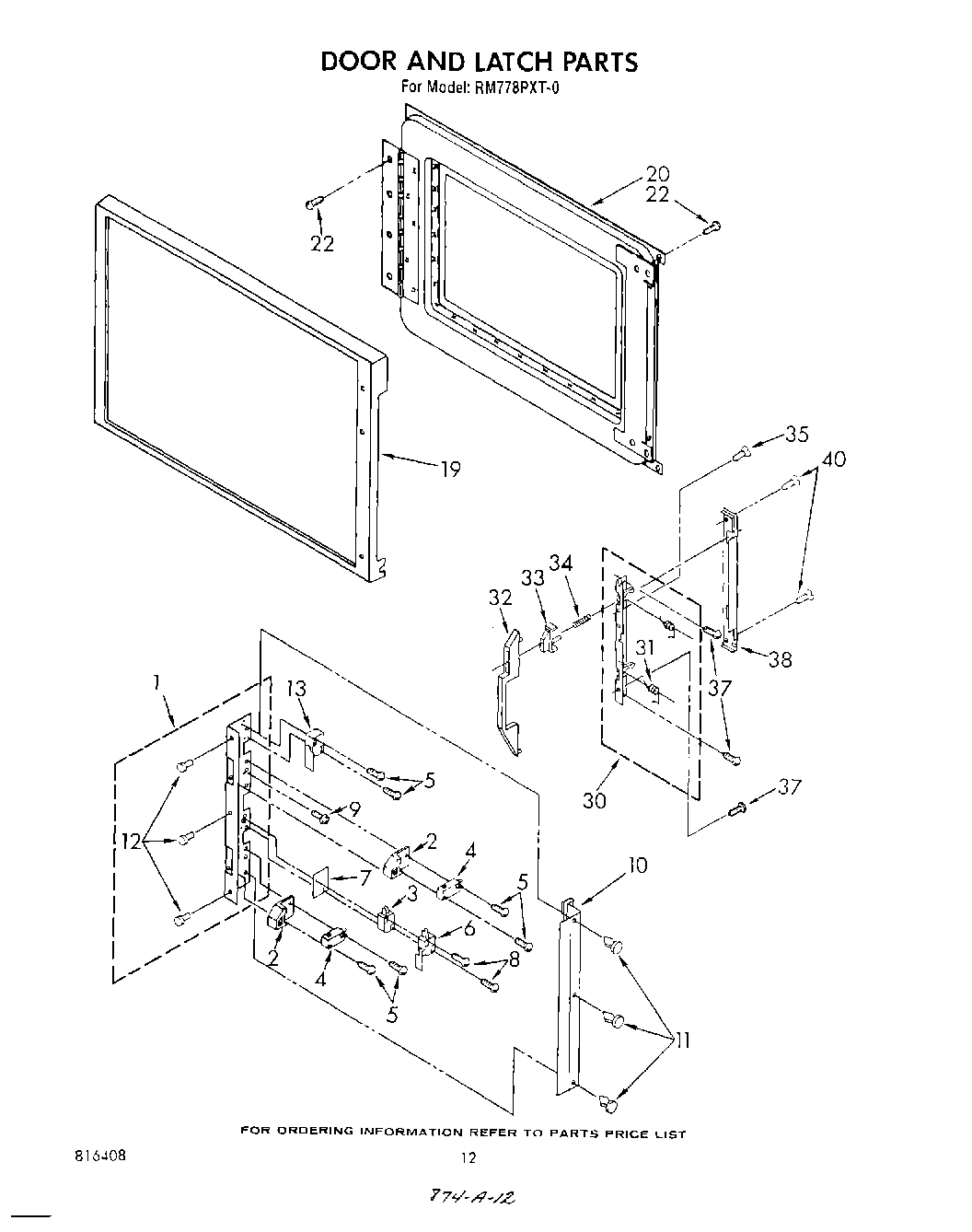

09 - DOOR AND LATCH

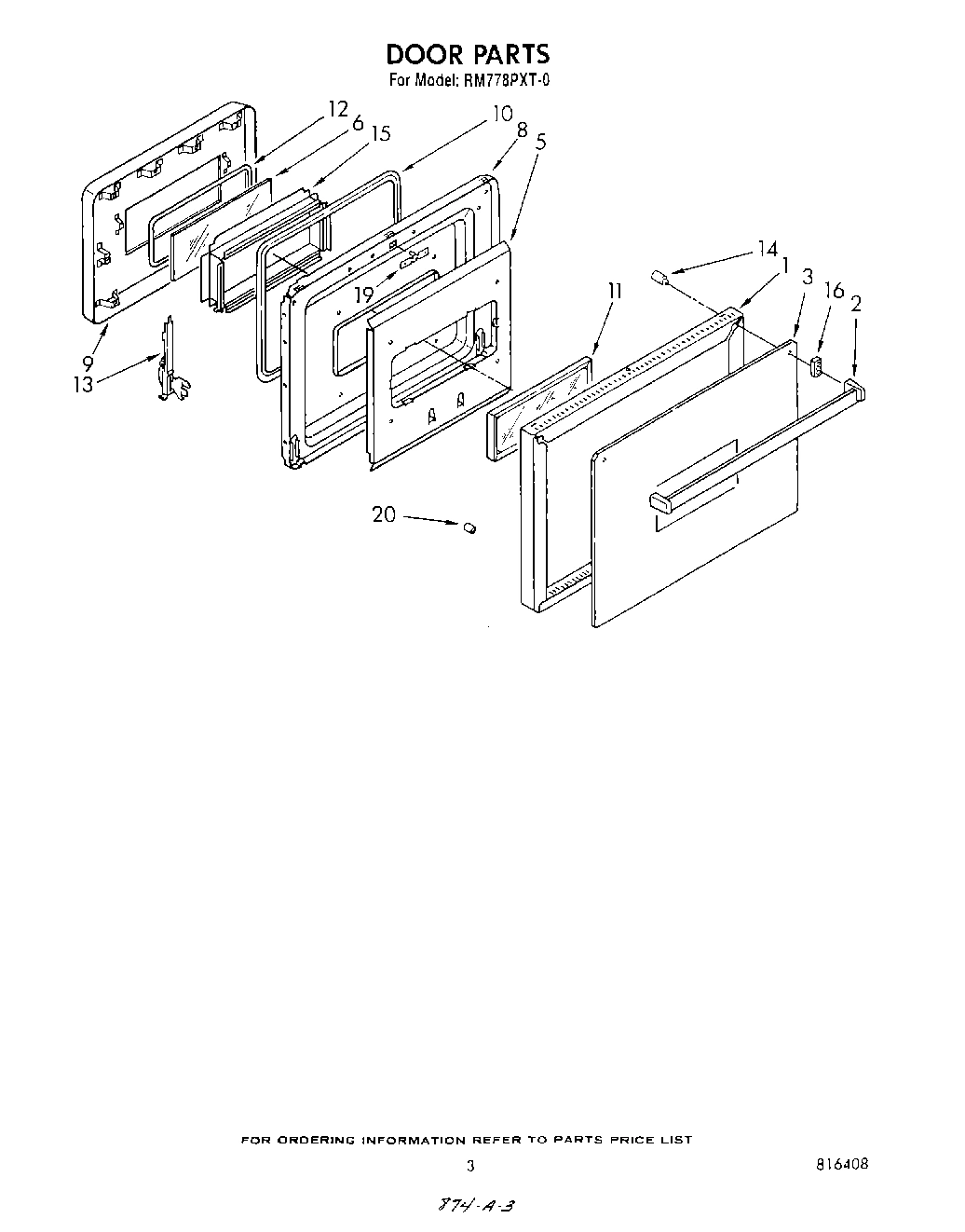

03 - DOOR

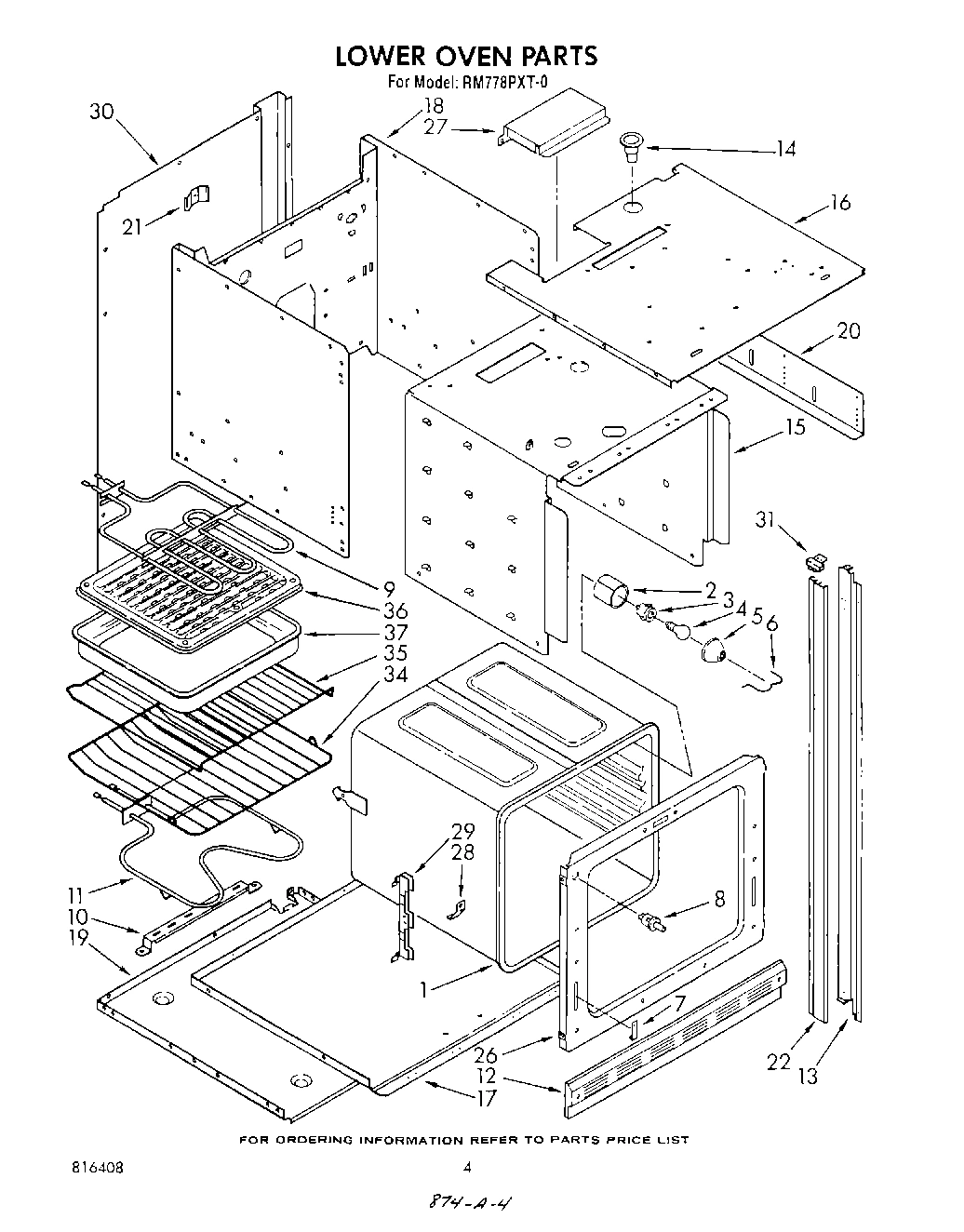

04 - LOWER OVEN

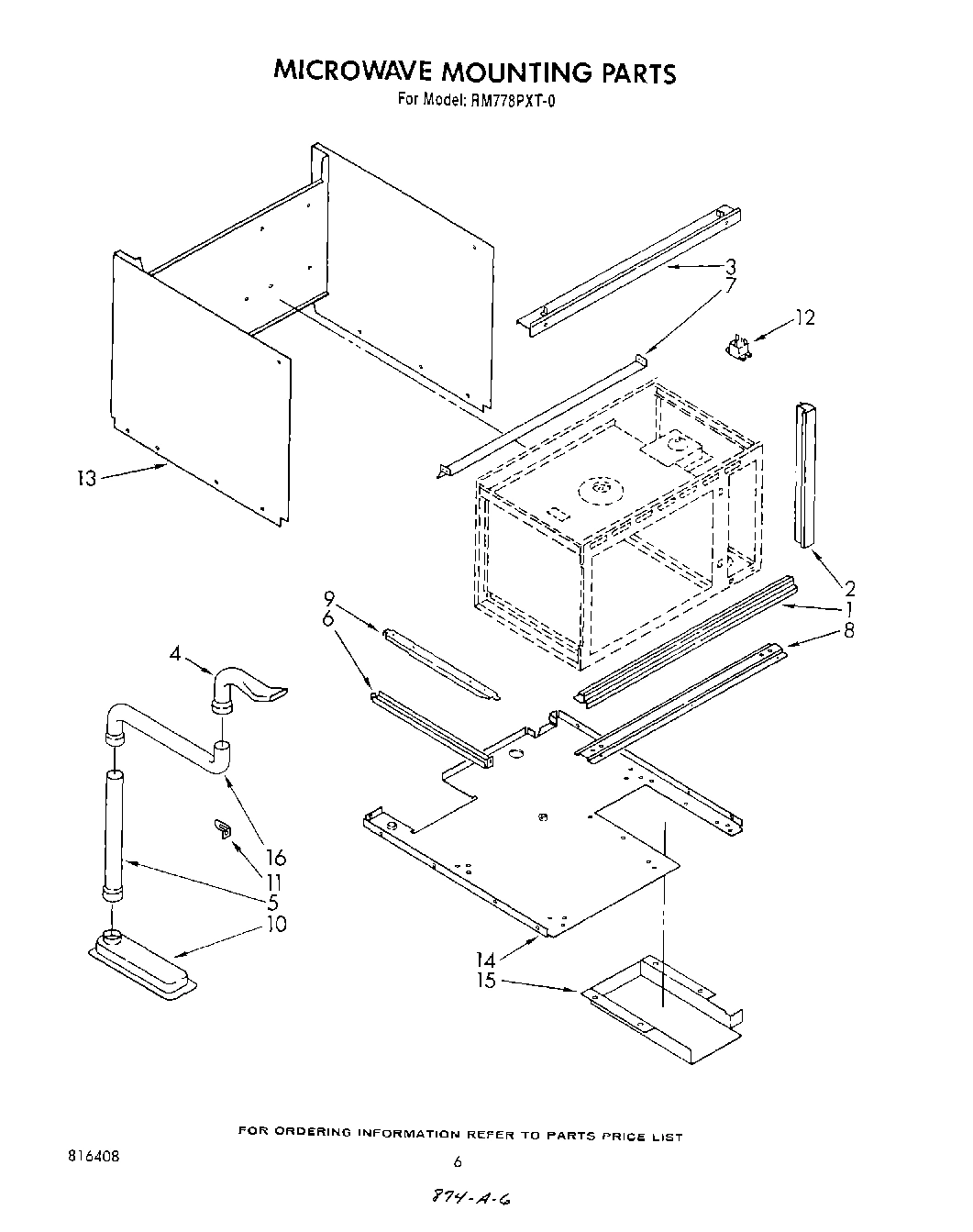

05 - MICROWAVE MOUNTING

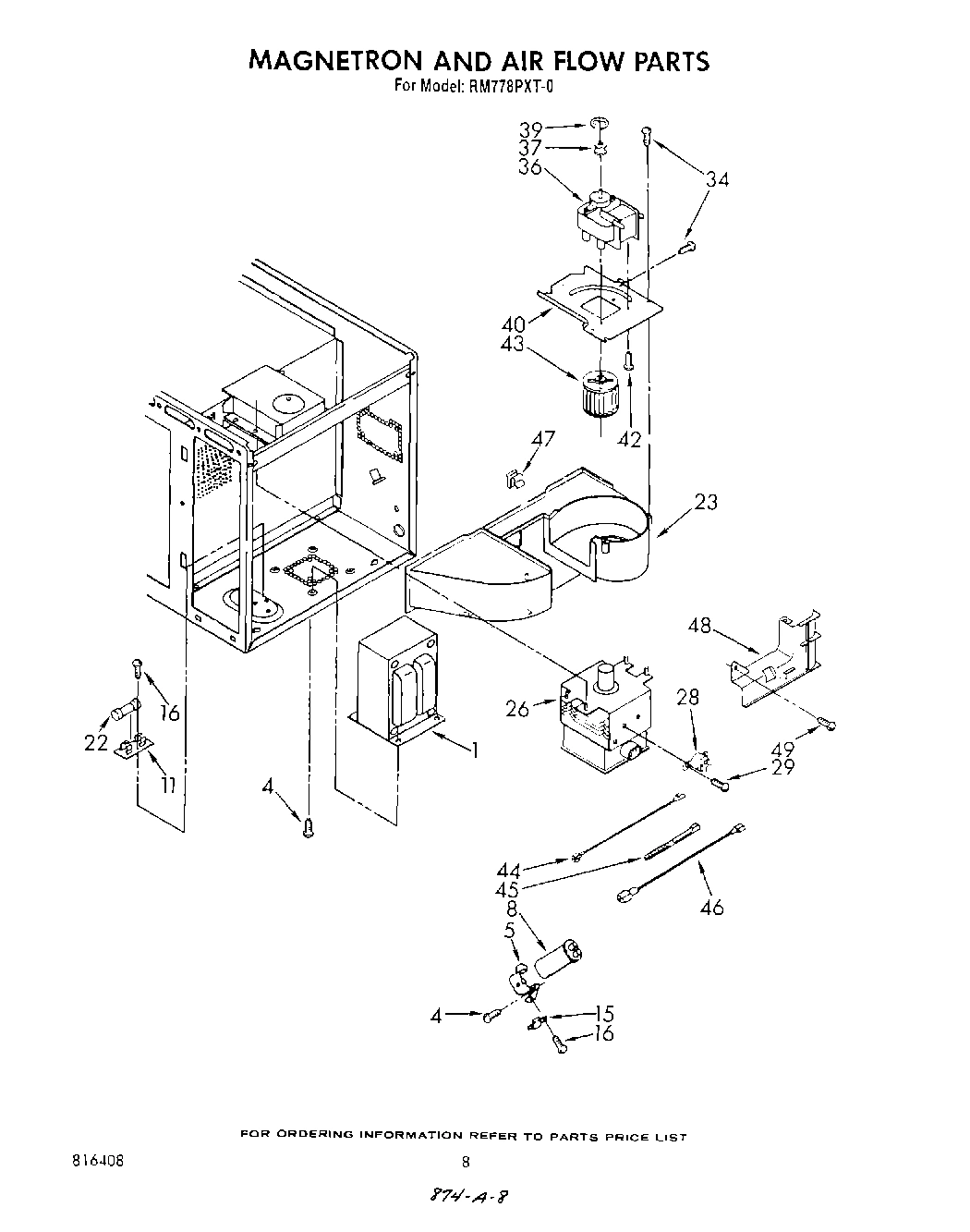

06 - MAGNETRON AND AIRFLOW

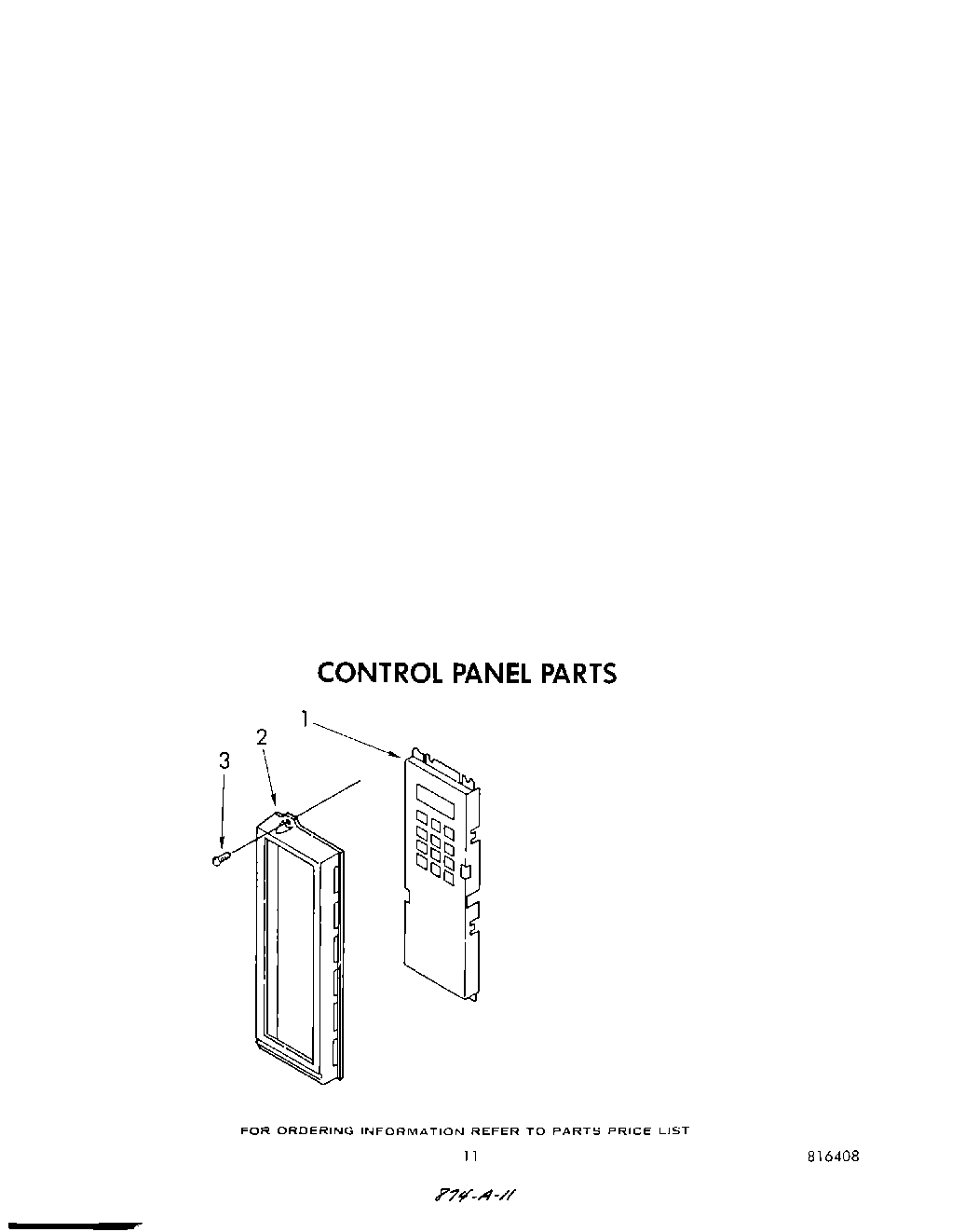

08 - CONTROL PANEL

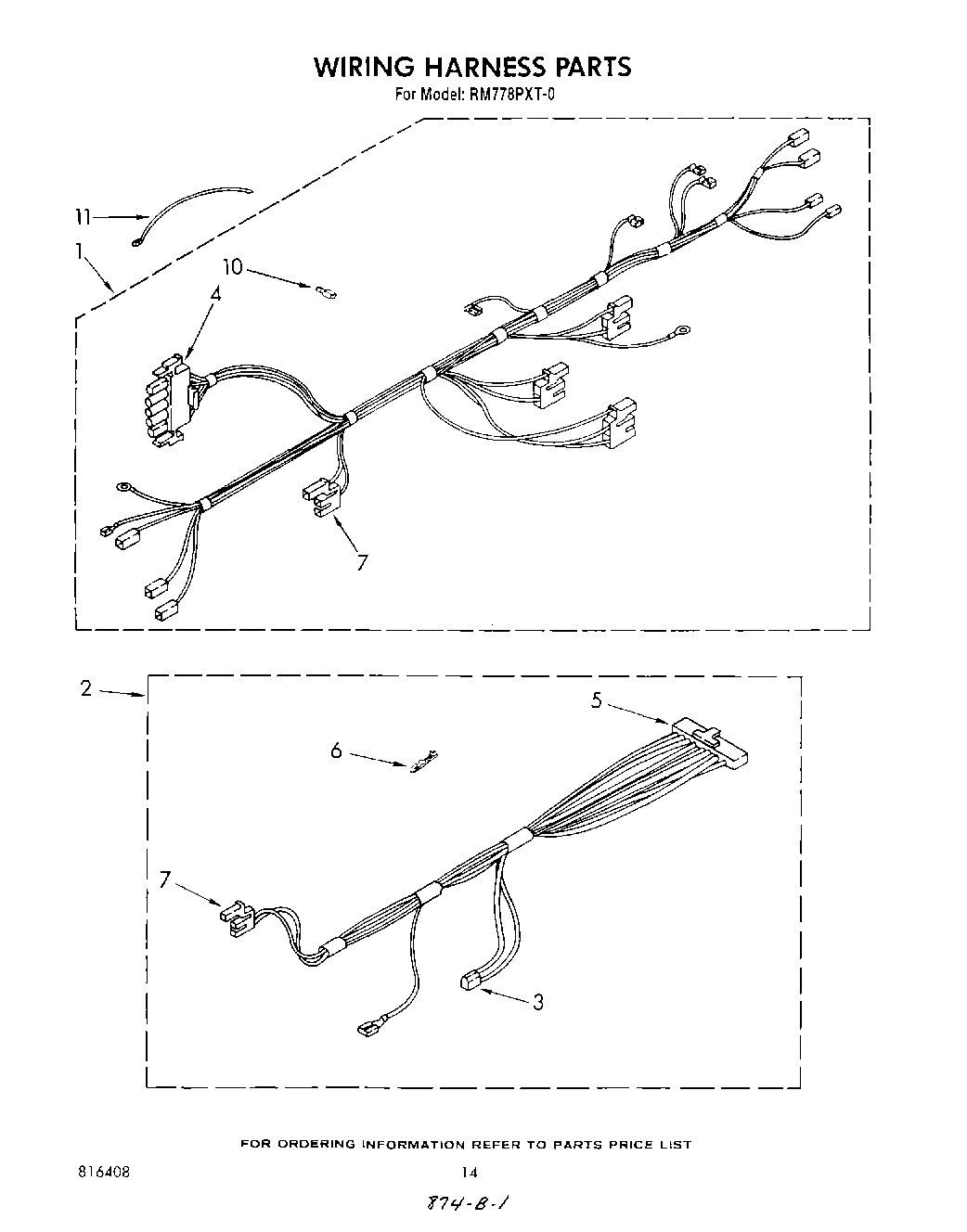

10 - WIRING HARNESS , LITERATURE AND OPTIONAL
Common parts from model Whirlpool RM778PXT0
WPL LIT311894 WPL LIT311894 Contact Us For Availability
WPL LIT313358 WPL LIT313358 Contact Us For Availability
WPL LIT816196 WPL LIT816196 Contact Us For Availability
WPL LIT816197 WPL LIT816197 Contact Us For Availability
WPL LIT816198 WPL LIT816198 Contact Us For Availability
WPL LIT816408 WPL LIT816408 Contact Us For Availability
1
Trim, Shelf (Front) WPL 313614 Contact Us For Availability
1
Bracket, Catch WPL 311354 Contact Us For Availability
1
Frame, Oven Door WPL 816354 Contact Us For Availability
1
Oven (27`` Pyro) WPL 816403 Contact Us For Availability
1
Extrusion, Bottom WPL 816347 Contact Us For Availability
1
Transformer WPL 3147853 Contact Us For Availability
1
Frame, Control Panel WPL 3148076 Contact Us For Availability
1
Harness, Wiring Main WPL 3147072 Contact Us For Availability
2
Trim, Shelf (Rear) WPL 313615 Contact Us For Availability
2
Axle, Latch WPL 877884 Contact Us For Availability
2
Catch (2) WPL 311795 Contact Us For Availability
2
Handle, Oven Door WPL 816358 Contact Us For Availability
2
Cup, Light WPL 816290 Contact Us For Availability
2
Extrusion, Side (2) WPL 816348 Contact Us For Availability
2
Microcomputer WPL 3147105 Contact Us For Availability
2
Harness, Wiring (Control) WPL 3148057 Contact Us For Availability
3
Shelf, Microwave (Install with Silastic 30757 WPL 313639 Contact Us For Availability
3
Latch, Door WPL 816384 Contact Us For Availability
3
Switch (Alt.) 313123 (Alt.) WPL 313075 Contact Us For Availability
3
Switch WPL 661144 Contact Us For Availability
3
Glass, Outer WPL 816356 Contact Us For Availability
3
Extrusion, Top WPL 816349 Contact Us For Availability
3
Screw, 8-32 x 3/16 (6) WPL 313818 Contact Us For Availability
3
Plug, Terminal WPL 314150 Contact Us For Availability
4
Socket WPL 330514 Contact Us For Availability
4
Motor, Latch Assembly WPL 816289 Contact Us For Availability
4
Elbow, Vent WPL 816361 Contact Us For Availability
4
Screw, 10-32 x 1/2 Hex Washer W/Ground Ring ( WPL 312185 Contact Us For Availability
4
Block, Disconnect WPL 311575 Contact Us For Availability
5
Switch, Latch (2) WPL 816454 Contact Us For Availability
5
Screw, 4-40 x 3/4 Pan Head Thread Form (4) WPL 312717 Contact Us For Availability
5
Panel, Airwash WPL 816351 Contact Us For Availability
5
Lens, Light WPL 877804 Contact Us For Availability
5
Tube, Vent WPL 816369 Contact Us For Availability
5
Bracket, Capacitor WPL 312619 Contact Us For Availability
5
Connector WPL 308565 Contact Us For Availability
6
Trim, Control Panel WPL 816331 Contact Us For Availability
6
Switch, Light Monitor (Alt.) 313124 (Alt.) WPL 313076 Contact Us For Availability
6
Switch, Light/ Monitor WPL 661145 Contact Us For Availability
6
Glass, Inner WPL 816364 Contact Us For Availability
6
Retainer, Lens WPL 816291 Contact Us For Availability
6
Channel, Slide (2) WPL 816375 Contact Us For Availability
6
Terminal WPL 312795 Contact Us For Availability
7
Rack WPL 816401 Contact Us For Availability
7
Plate, Motor Mounting WPL 816282 Contact Us For Availability
7
Insulator WPL 313126 Contact Us For Availability
7
Retainer, Door WPL 816379 Contact Us For Availability
7
Screw WPL 816421 Contact Us For Availability
7
Retainer, Microwave WPL 816394 Contact Us For Availability
7
Housing, Plug WPL 310241 Contact Us For Availability
8
Housing, Control WPL 816275 Contact Us For Availability
8
Screw, 4-40 x 10 (2) WPL 310211 Contact Us For Availability
8
Liner, Oven Door WPL 816345 Contact Us For Availability
8
Switch, Oven Light WPL 816321 Contact Us For Availability
8
Support, Bottom (2) WPL 816390 Contact Us For Availability
8
Capacitor (Alt.) 312632 (Alt.) WPL 312631 Contact Us For Availability
8
Capacitor WPL 661004 Contact Us For Availability
9
Rod, Latch WPL 816288 Contact Us For Availability
9
Screw, 8-32 x 3/8 Slot Hex Washer Head Self-T WPL 309080 Contact Us For Availability
9
Baffle, Weldment WPL 816360 Contact Us For Availability
9
Unit, Broil WPL 816295 Contact Us For Availability
9
Channel, Slide (2) WPL 816398 Contact Us For Availability
10
Cover, Housing WPL 816335 Contact Us For Availability
10
shield WPL 311360 Contact Us For Availability
10
Seal, Oven Door WPL 816368 Contact Us For Availability
10
Support, Broil Unit WPL 816297 Contact Us For Availability
10
Oven Vent WPL 816402 Contact Us For Availability
11
WPL 799344 WPL 799344 Contact Us For Availability
11
Fastener (2) WPL 313740 Contact Us For Availability
11
Screw WPL 816306 Contact Us For Availability
11
Nut, Hex 10 x 32 WPL 816307 Contact Us For Availability
11
Screw, Ground WPL 816308 Contact Us For Availability
11
Window Assembly WPL 816370 Contact Us For Availability
11
Unit, Bake WPL 816293 Contact Us For Availability
11
Bracket, Vent Tube WPL 816300 Contact Us For Availability
11
Leveler, Enamel WPL 206925 Contact Us For Availability
11
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
11
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
11
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
11
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
11
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
11
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
11
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
11
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
11
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
11
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
11
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
11
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
11
Rotisserie Kit WPL 242985 Contact Us For Availability
11
Touch-Up, Oven WPL 254323 Contact Us For Availability
11
Grease WPL 261582 Contact Us For Availability
11
Harvest Gold WPL 261890 Contact Us For Availability
11
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
11
Toast WPL 285365 Contact Us For Availability
11
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
11
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
11
Platinum (Uncut) WPL 285368 Contact Us For Availability
11
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
11
WPL 72112 WPL 72112 Contact Us For Availability
11
WPL 799340 WPL 799340 Contact Us For Availability
11
WPL 799832 WPL 799832 Contact Us For Availability
11
WPL 814023 WPL 814023 Contact Us For Availability
11
WPL 832985 WPL 832985 Contact Us For Availability
11
WPL 978883 WPL 978883 Contact Us For Availability
12
Housing, Latch WPL 877614 Contact Us For Availability
12
Rivet, Pop (3) WPL 311928 Contact Us For Availability
12
Seal, Window WPL 816363 Contact Us For Availability
12
Trim, Base WPL 816344 Contact Us For Availability
12
Screw WPL 816410 Contact Us For Availability
12
Power Relay WPL 816395 Contact Us For Availability
13
Cover, Latch WPL 816276 Contact Us For Availability
13
Switch, Miniature WPL 313120 Contact Us For Availability
13
Hinge Assy. (2) WPL 816385 Contact Us For Availability
13
Side Trim (Inner) (R.H.) WPL 816271 Contact Us For Availability
13
Side Trim (Inner) (L.H.) WPL 816305 Contact Us For Availability
13
Casing, Back and Sides WPL 816391 Contact Us For Availability
14
Bracket, Trim Mounting WPL 816374 Contact Us For Availability
14
Spacer, Door Handle (2) WPL 816353 Contact Us For Availability
14
Vent Tube WPL 816292 Contact Us For Availability
14
Casing, Bottom WPL 816392 Contact Us For Availability
15
Retainer, Glass WPL 816367 Contact Us For Availability
15
Insulation Retainer, Top and Sides WPL 816277 Contact Us For Availability
15
Duct, Air WPL 816393 Contact Us For Availability
15
Rectifier, High Voltage WPL 313830 Contact Us For Availability
16
Screw, 8-32 x 3/8 WPL 312713 Contact Us For Availability
16
Spacer, Handle WPL 816357 Contact Us For Availability
16
Casing, Top WPL 816396 Contact Us For Availability
16
Duct, Air WPL 816301 Contact Us For Availability
17
Insulation Retainer, Bottom WPL 816278 Contact Us For Availability
18
Casing, Back01 and Sides WPL 816279 Contact Us For Availability
19
Frame, Door WPL 3170441 Contact Us For Availability
19
Strike WPL 877507 Contact Us For Availability
19
Casing, Bottom WPL 816283 Contact Us For Availability
20
Stirrer Cover WPL 313563 Contact Us For Availability
20
Door, Inner WPL 3171012 Contact Us For Availability
20
Spacer, Glass WPL 816365 Contact Us For Availability
20
Support, Height WPL 816284 Contact Us For Availability
21
Spring, Oven (2) WPL 816287 Contact Us For Availability
22
screw, 8-32 x 1/2 (3) WPL 313816 Contact Us For Availability
22
Side Trim, Outer (2) WPL 816317 Contact Us For Availability
23
Air Duct (Horizontal) WPL 313578 Contact Us For Availability
24
Bracket, Control WPL 816309 Contact Us For Availability
25
Thermostat, Oven WPL 816413 Contact Us For Availability
26
Switch, Oven Light WPL 816383 Contact Us For Availability
26
Front Frame WPL 816386 Contact Us For Availability
26
Magnetron (Alt.) 311993 (Alt.) 311994 (Alt.) WPL 311992 Contact Us For Availability
26
Magnetron WPL 660595 Contact Us For Availability
27
Switch, Oven Selector WPL 816313 Contact Us For Availability
27
Cover, Motor WPL 816319 Contact Us For Availability
28
Indicator Light (2) (Lock, Oven) WPL 816315 Contact Us For Availability
28
Indicator Light (Clean) WPL 816316 Contact Us For Availability
28
Spacer, Oven WPL 816387 Contact Us For Availability
28
Thermal Prot01tor (Alt.) 313521 (Alt.) WPL 312800 Contact Us For Availability
28
Thermal Protector WPL 661165 Contact Us For Availability
29
Channel Assembly, Hinge (2) WPL 816388 Contact Us For Availability
29
Screw, 6A x 3/8 (2) WPL 312782 Contact Us For Availability
30
Latch Assembly WPL 329066 Contact Us For Availability
30
Cover, Rear WPL 816378 Contact Us For Availability
31
Spring, Torsion (2) WPL 311352 Contact Us For Availability
31
End Cap, Top WPL 816333 Contact Us For Availability
32
Panel, Glass (Control) WPL 816269 Contact Us For Availability
32
Handle, Door WPL 314169 Contact Us For Availability
33
Trim, Vent WPL 816322 Contact Us For Availability
34
Trim, Top WPL 816346 Contact Us For Availability
34
Spring, Compression WPL 310197 Contact Us For Availability
34
Rack, Oven Regular WPL 816342 Contact Us For Availability
35
Screw (2) WPL 313820 Contact Us For Availability
35
Rack, Oven Offset WPL 816343 Contact Us For Availability
36
Bezel, Switch WPL 816332 Contact Us For Availability
36
Grill, Broiler Pan WPL 816381 Contact Us For Availability
36
Transmotor WPL 313641 Contact Us For Availability
37
Pan, Broiler WPL 816382 Contact Us For Availability
37
Pulley, Motor WPL 311922 Contact Us For Availability
38
Probe Jack WPL 3148557 Contact Us For Availability
38
End Cap WPL 3148297 Contact Us For Availability
39
Washer, Internal Lock WPL 313105 Contact Us For Availability
39
Bumper (6) WPL 868363 Contact Us For Availability
39
``E`` Ring (2) WPL 311999 Contact Us For Availability
40
Screw, 8-22 (4) WPL 313823 Contact Us For Availability
40
Bracket, Motor WPL 313601 Contact Us For Availability
41
Nut WPL 313104 Contact Us For Availability
43
Probe, Temperature WPL 816400 Contact Us For Availability
43
Wheel, Blower WPL 3147223 Contact Us For Availability
44
Jumper, High Voltage Red (6-5/16``) WPL 313130 Contact Us For Availability
46
High Voltage Lead, Gray 6-3/4`` (2) WPL 3147863 Contact Us For Availability
47
Escutcheon, Thermostat WPL 311066 Contact Us For Availability
47
Clip WPL 311311 Contact Us For Availability
48
Air Duct WPL 3147262 Contact Us For Availability
49
Screw 11-16 x 1/2 WPL 346893 Contact Us For Availability
× ![]()
