Model Whirlpool RM288PXV7 – Common Parts & Diagrams

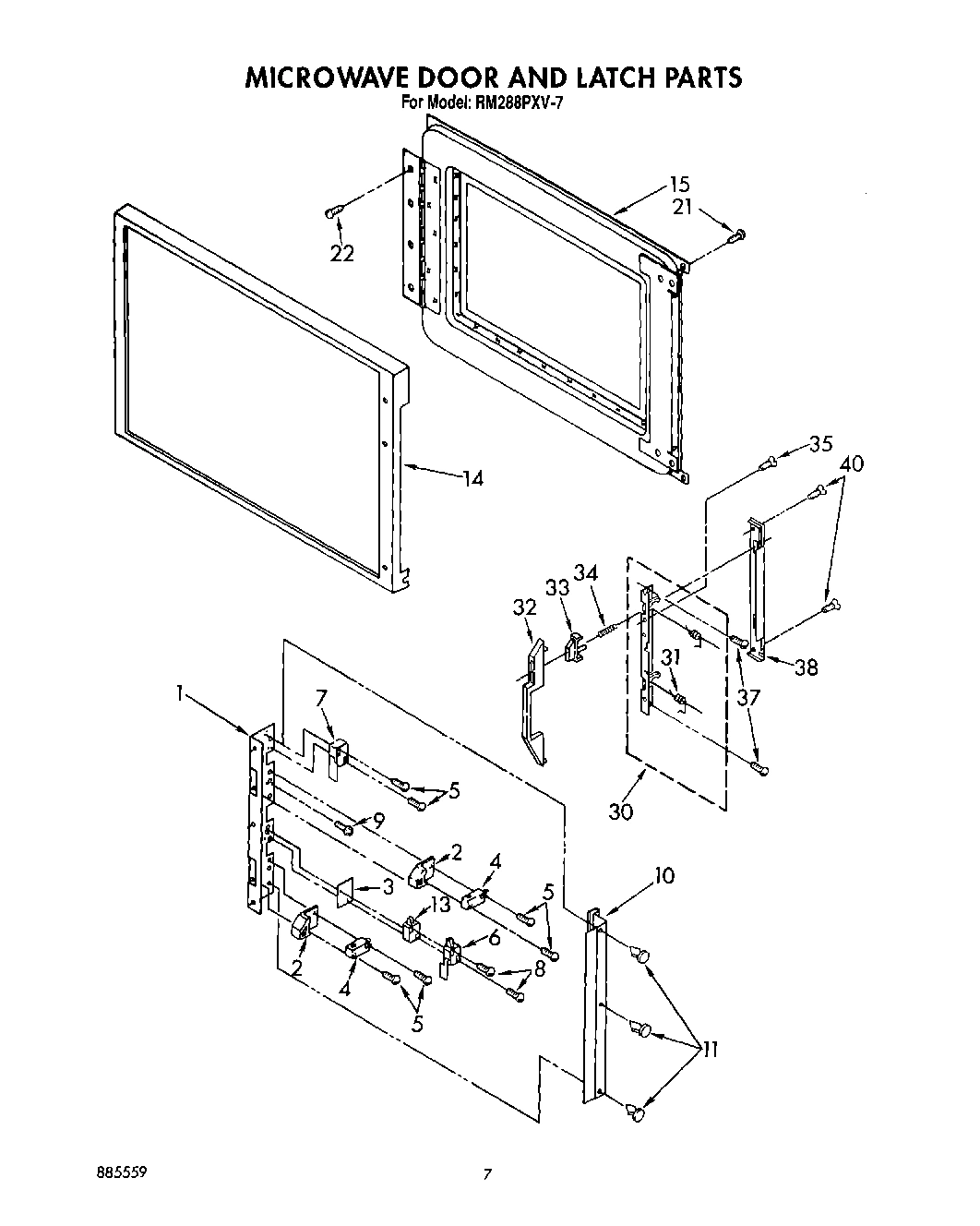

05 - MICROWAVE DOOR AND LATCH

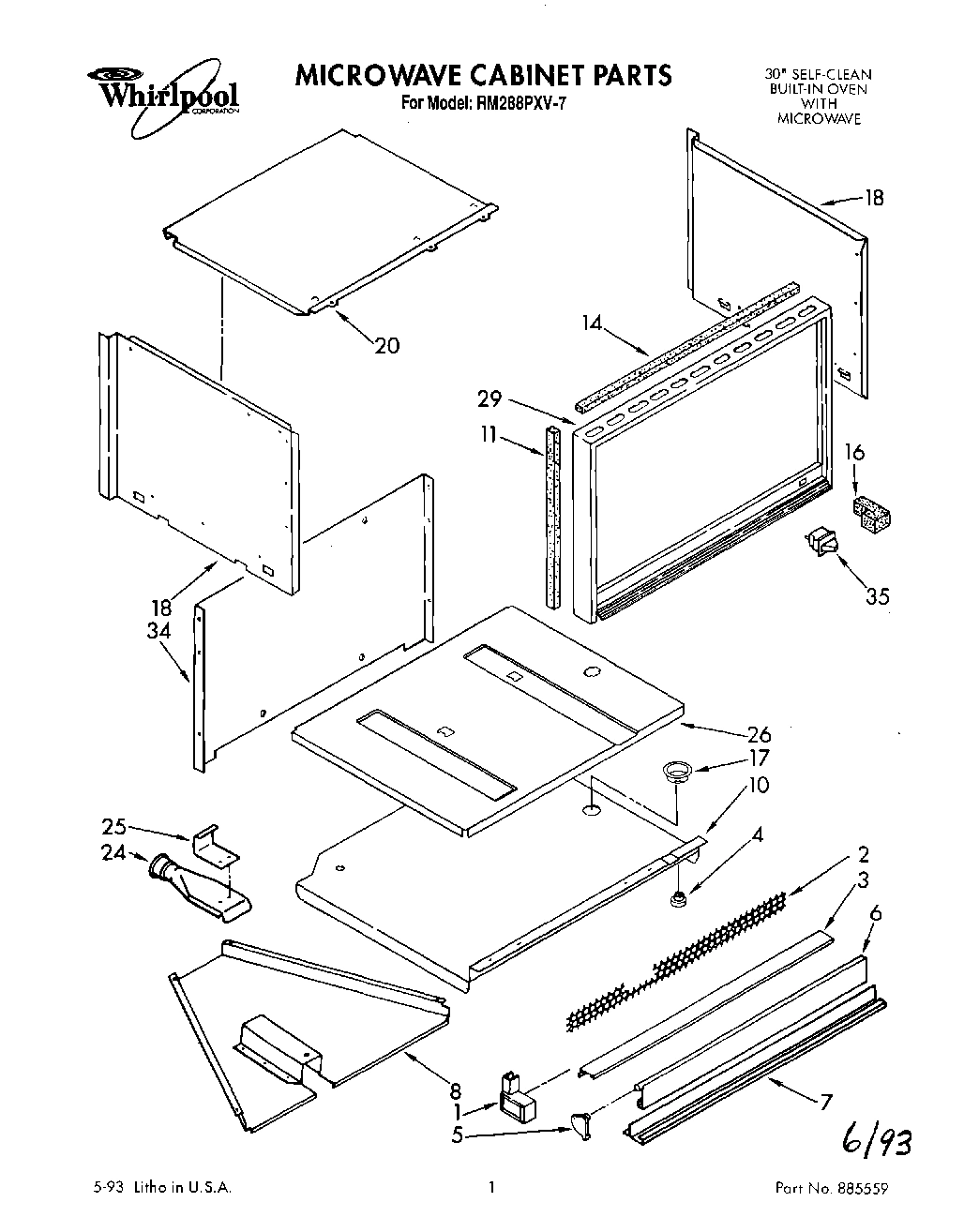

01 - SECTION

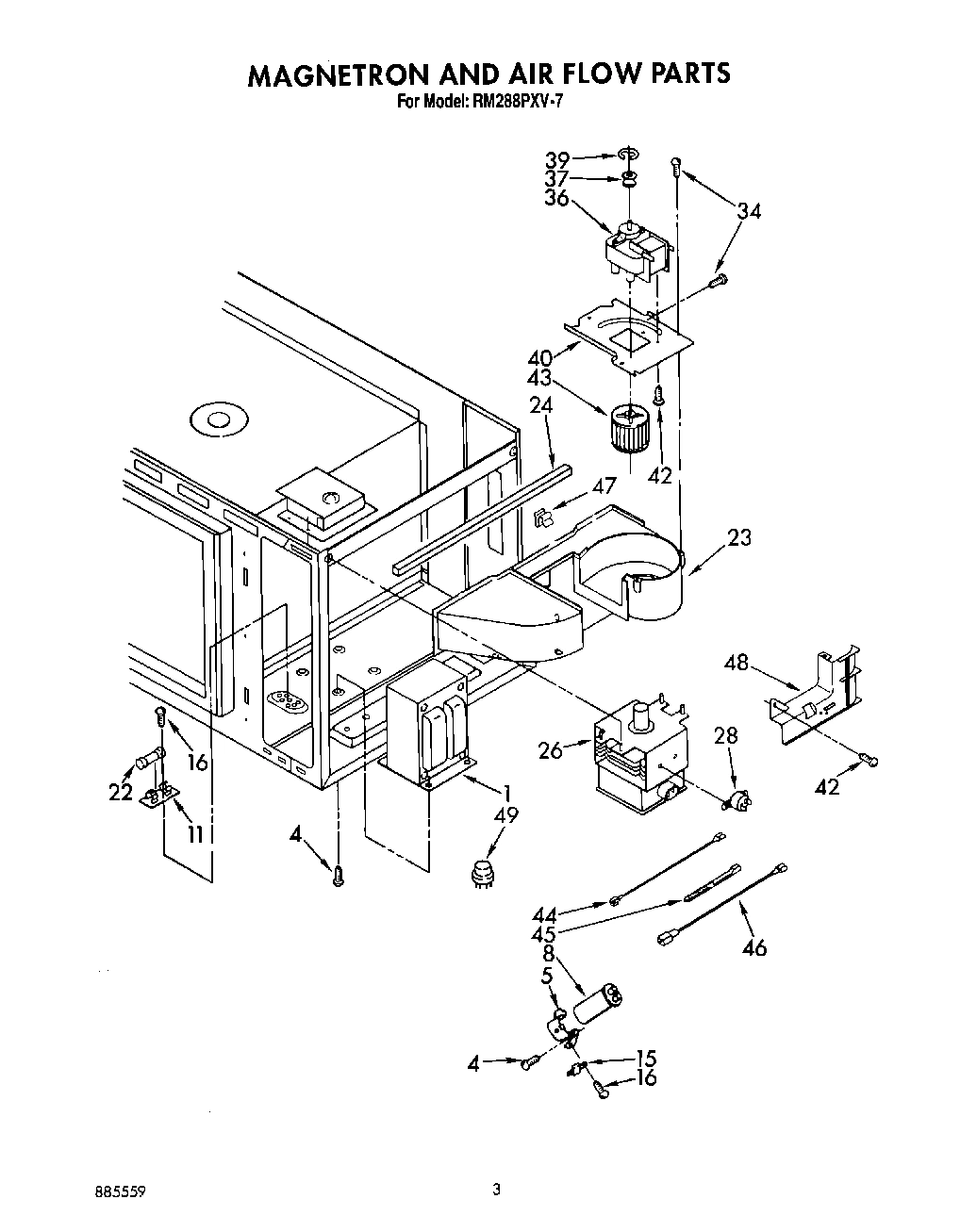

02 - MAGNETRON AND AIR FLOW

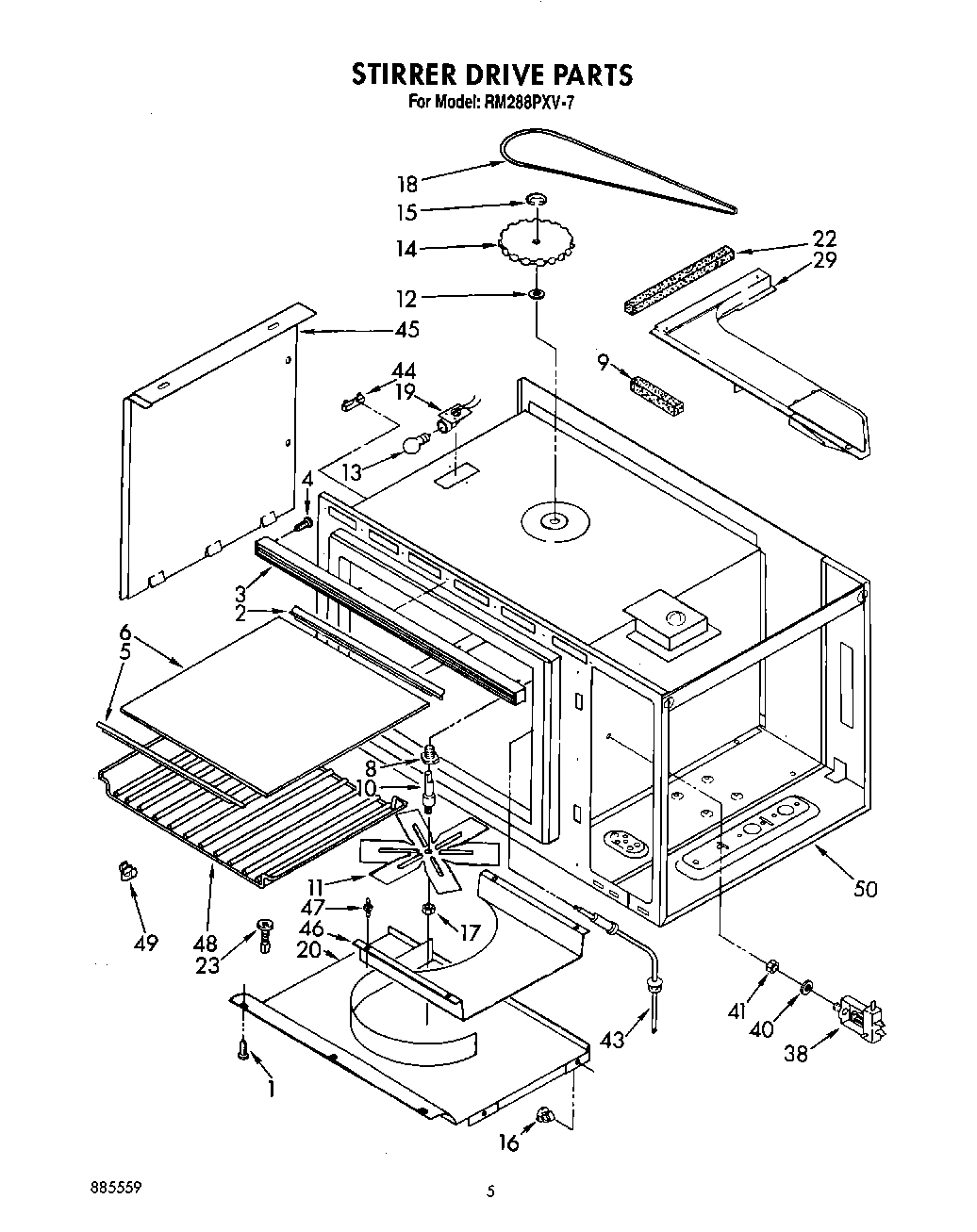

04 - STIRRER DRIVE, OPTIONAL

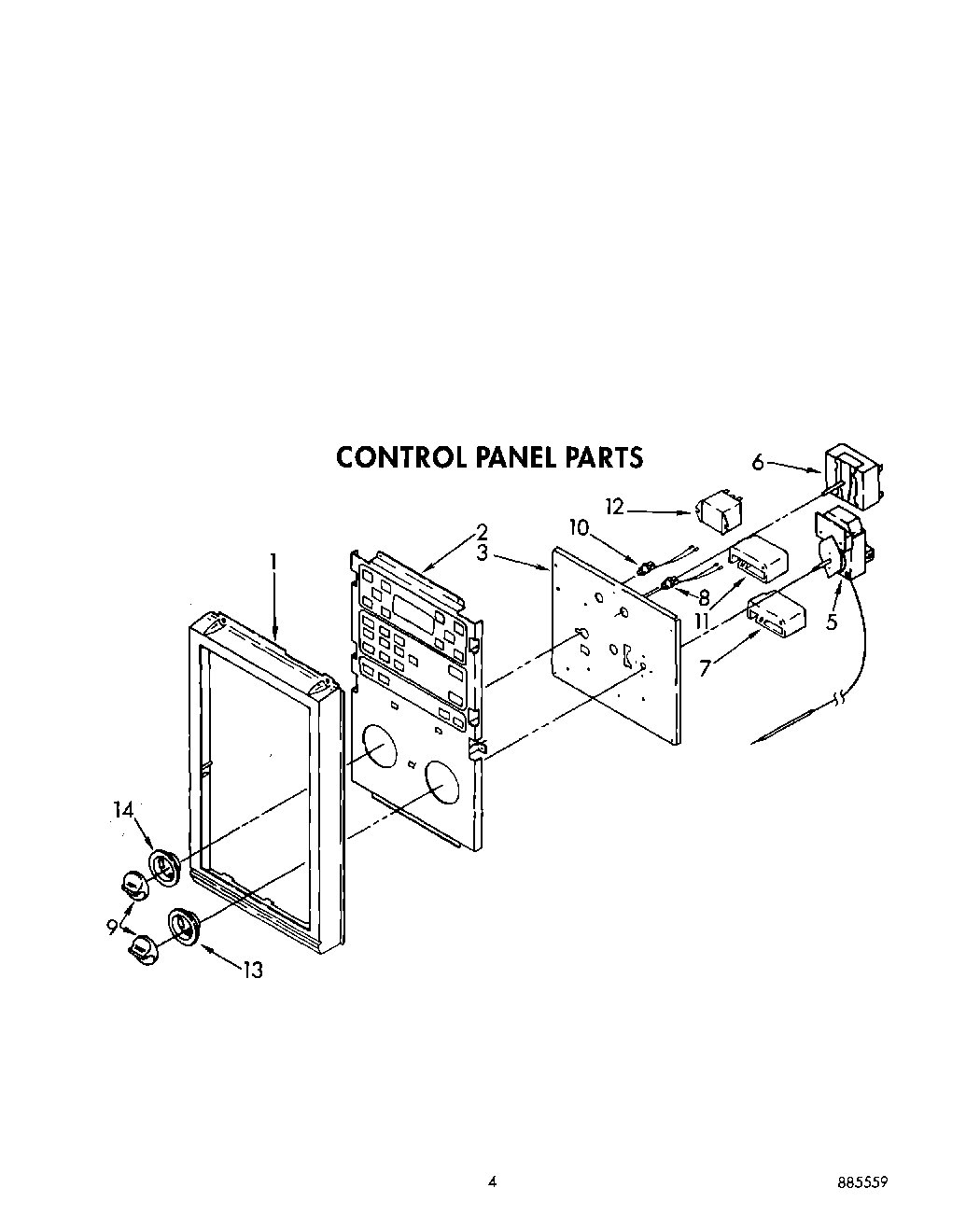

03 - CONTROL PANEL

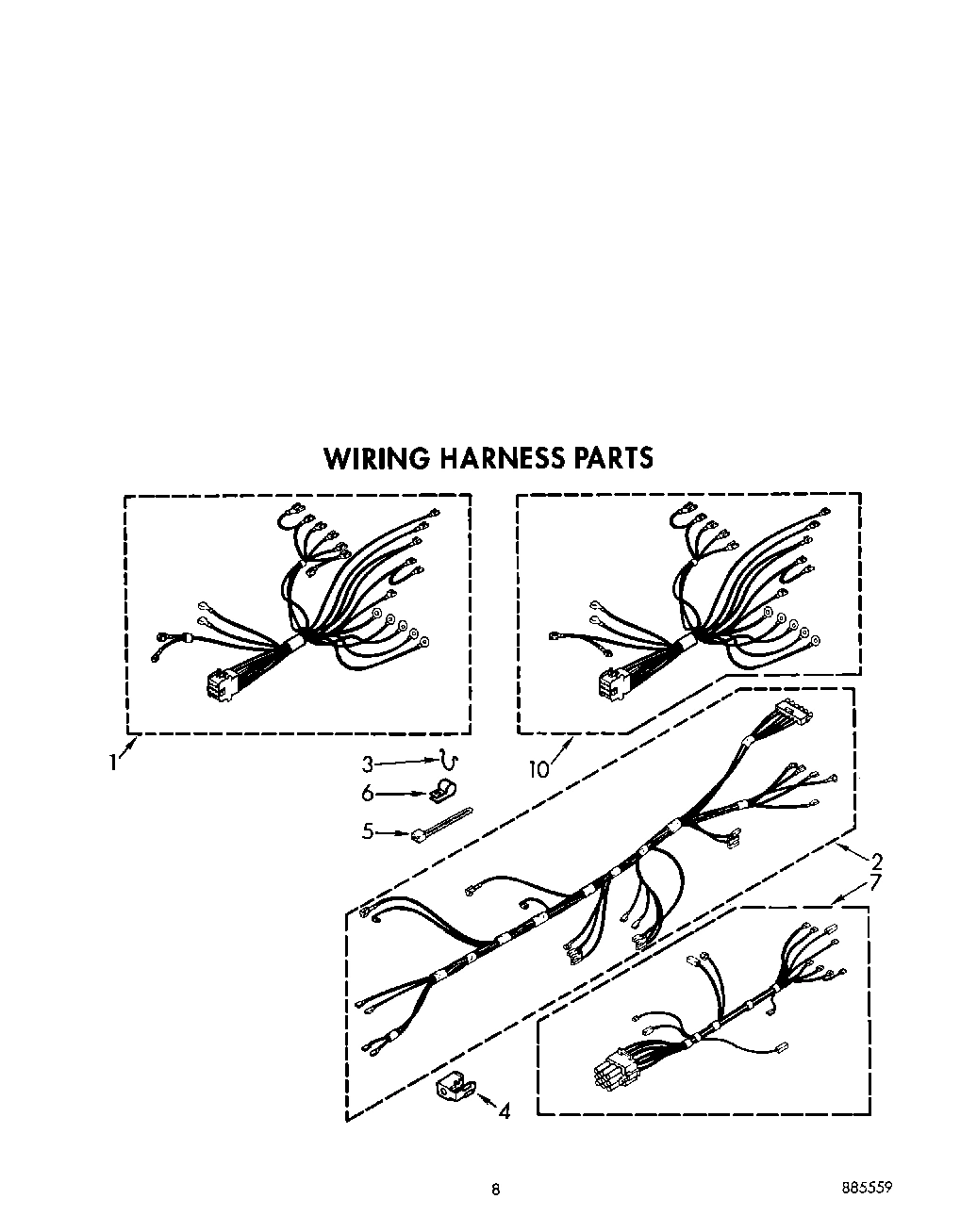

06 - WIRING HARNESS

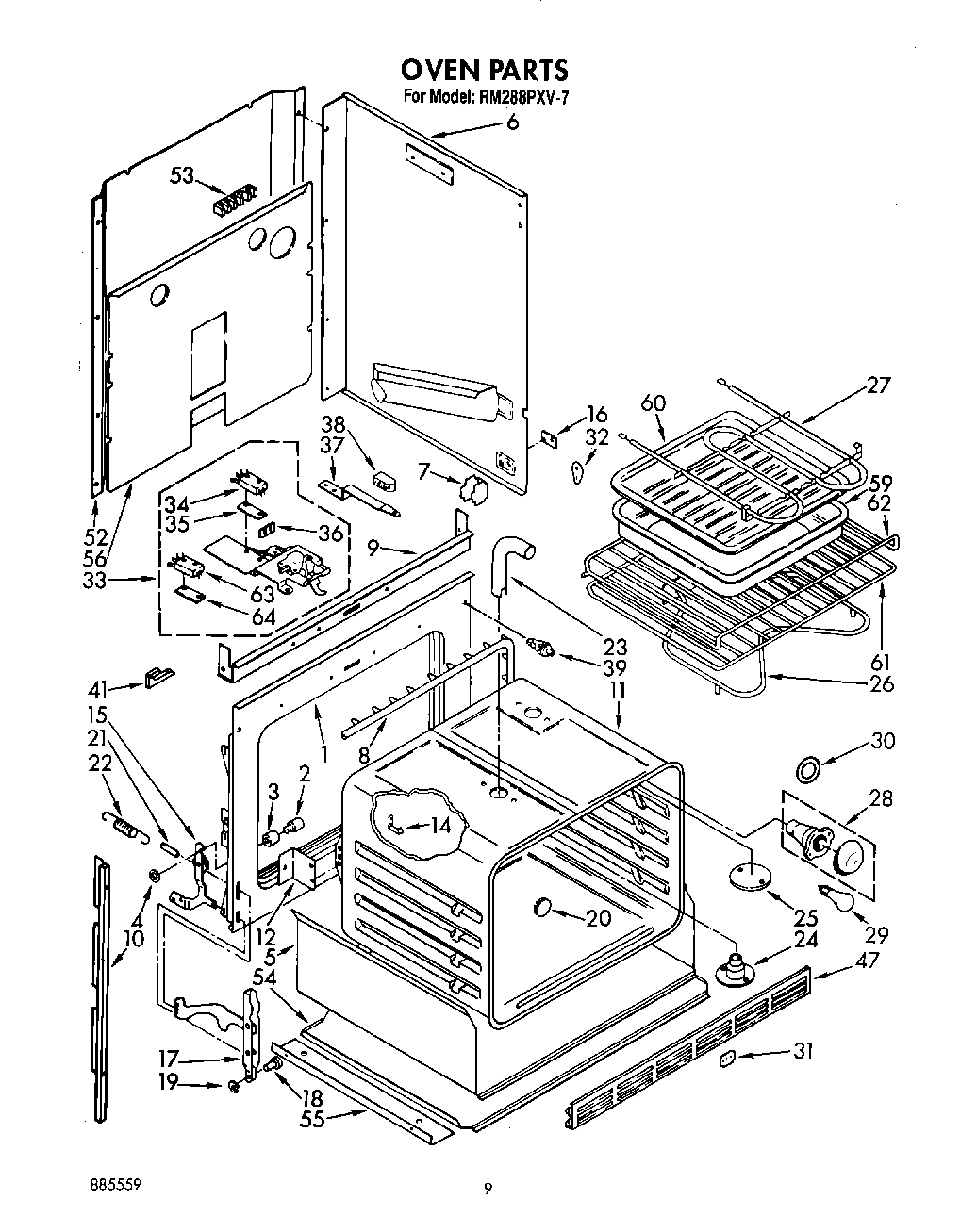

07 - OVEN, LITERATURE

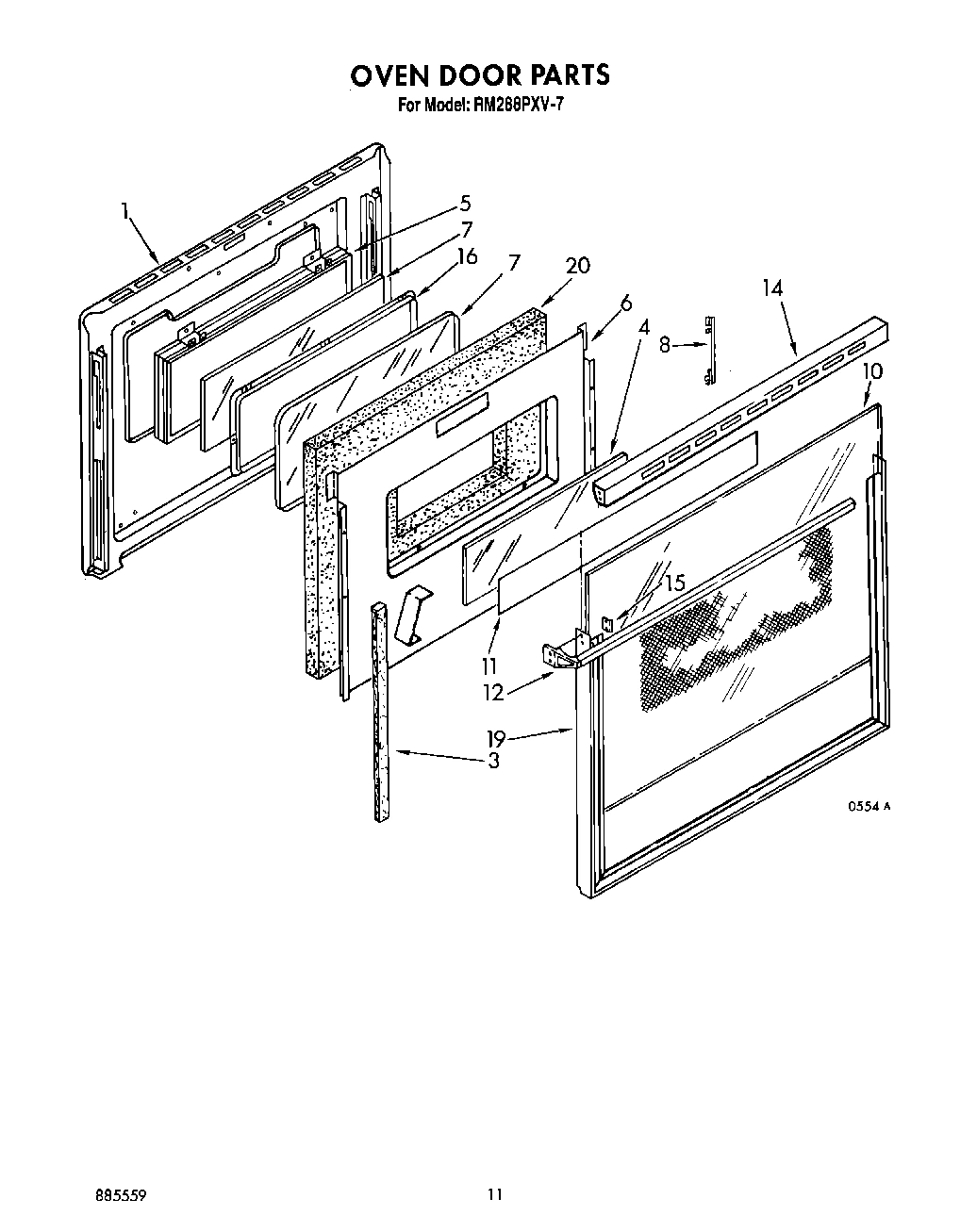

08 - OVEN DOOR
Common parts from model Whirlpool RM288PXV7
WPL LIT311895 WPL LIT311895 Contact Us For Availability
WPL LIT312901 WPL LIT312901 Contact Us For Availability
WPL LIT312913 WPL LIT312913 Contact Us For Availability
WPL LIT313358 WPL LIT313358 Contact Us For Availability
WPL LIT3147287 WPL LIT3147287 Contact Us For Availability
WPL LIT3147571 WPL LIT3147571 Contact Us For Availability
WPL LIT3147575 WPL LIT3147575 Contact Us For Availability
WPL LIT3149026 WPL LIT3149026 Contact Us For Availability
WPL LIT3181454 WPL LIT3181454 Contact Us For Availability
WPL LIT885559 WPL LIT885559 Contact Us For Availability
1
End Cap, L.H. WPL 3148928 Contact Us For Availability
1
End Cap, R.H. WPL 3148929 Contact Us For Availability
1
Transformer WPL 3147272 Contact Us For Availability
1
Frame, Control Panel WPL 3182412 Contact Us For Availability
1
screw WPL 309080 Contact Us For Availability
1
Wiring Harness (Main) WPL 3147938 Contact Us For Availability
1
Frame, Front WPL 3176700 Contact Us For Availability
1
Liner, Door WPL 3172218 Contact Us For Availability
2
Trim, Oven Vent WPL 3187410 Contact Us For Availability
2
Trim, Shelf (Rear) WPL 313615 Contact Us For Availability
2
Module, Control WPL 3148272 Contact Us For Availability
2
Wiring Harness Main (Microwave) WPL 3147554 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
3
screw (2) WPL 342043 Contact Us For Availability
3
Trim, Top WPL 3148678 Contact Us For Availability
3
Screw, 8-32 x 3/16 (4) WPL 313818 Contact Us For Availability
3
Deflector, Air WPL 3149300 Contact Us For Availability
3
Bracket, Control (Mounting) WPL 3147282 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
4
Snap Bushing WPL 309552 Contact Us For Availability
4
Screw, 10-32 x 1/2 Hex Washer W/Ground Ring ( WPL 312185 Contact Us For Availability
4
screw (3) WPL 3150025 Contact Us For Availability
4
Adaptor, Terminal WPL 3147832 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Glass, Clear WPL 3169202 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
End Trim, Vent Door L.H. WPL 3148697 Contact Us For Availability
5
End Trim, Vent Door R.H. WPL 3148698 Contact Us For Availability
5
Bracket, Capacitor WPL 312619 Contact Us For Availability
5
Trim, Shelf (Front) WPL 313614 Contact Us For Availability
5
Thermostat WPL 3148931 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
6
Door, Vent WPL 3148617 Contact Us For Availability
6
Shelf, Glass WPL 313639 Contact Us For Availability
6
Screw, 8-32 x 3/16 (2) WPL 308119 Contact Us For Availability
6
Switch, Selector WPL 661452 Contact Us For Availability
6
Side Wrapper (Right Side) WPL 311006 Contact Us For Availability
6
Side Wrapper (Left Side) WPL 311009 Contact Us For Availability
6
Retainer, Window WPL 3148159 Contact Us For Availability
7
Trim, Bottom WPL 3148618 Contact Us For Availability
7
Switch, Bake (4) WPL 314210 Contact Us For Availability
7
Wiring Harness Select./Thermostat WPL 3147916 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
8
Box Air WPL 3170178 Contact Us For Availability
8
Capacitor WPL 661004 Contact Us For Availability
8
Bushing, Stirrer WPL 312023 Contact Us For Availability
8
Light, Indicator (4) WPL 3147517 Contact Us For Availability
8
Seal, Door WPL 3185197 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
9
Seal, Foam WPL 3147599 Contact Us For Availability
9
Baffle, Top Insulation WPL 3183796 Contact Us For Availability
10
Support Plate WPL 3147494 Contact Us For Availability
10
Shaft, Stirrer WPL 312026 Contact Us For Availability
10
Light, Indicator WPL 3149034 Contact Us For Availability
10
Screw (2) WPL 312006 Contact Us For Availability
10
Wiring Harness Control Panel WPL 3147559 Contact Us For Availability
10
Side Trim L.H. WPL 310685 Contact Us For Availability
10
Side Trim (R.H.) WPL 310689 Contact Us For Availability
10
Glass, Panel WPL 3148185 Contact Us For Availability
11
Seal, Foam (2) WPL 3147595 Contact Us For Availability
11
Stirrer Blade WPL 313595 Contact Us For Availability
11
Screw, No.6 WPL 314215 Contact Us For Availability
11
Switch, Broil WPL 314209 Contact Us For Availability
11
Oven (30`` Pyro) WPL 3182032 Contact Us For Availability
11
Foil, Door WPL 3148184 Contact Us For Availability
12
Screw, 6AB x 3/8 (2) WPL 246131 Contact Us For Availability
12
Washer, Nylon WPL 312025 Contact Us For Availability
12
Relay, Power WPL 314125 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Handle, Door WPL 3148228 Contact Us For Availability
13
Escutcheon, Thermostat WPL 311073 Contact Us For Availability
14
Seal, Foam (2) WPL 3147596 Contact Us For Availability
14
Screw, 8BT x 1/4 WPL 254225 Contact Us For Availability
14
Pulley, Stirrer Blade WPL 311923 Contact Us For Availability
14
Trim, Panel WPL 3148223 Contact Us For Availability
14
Screw (5) WPL 3182345 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Rectifier, High Voltage WPL 313830 Contact Us For Availability
15
``E`` Ring WPL 311999 Contact Us For Availability
15
Hinge, Ear (Right Side) WPL 3185662 Contact Us For Availability
15
Hinge, Ear (Left Side) WPL 3185663 Contact Us For Availability
16
Seal, Foam (2) WPL 3147750 Contact Us For Availability
16
Fastener (4) WPL 313740 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
screw (6) WPL 3148443 Contact Us For Availability
16
Frame, Inner Glass WPL 3148234 Contact Us For Availability
17
Channel Arm (2) WPL 3185664 Contact Us For Availability
17
Bushing, Snap WPL 3147647 Contact Us For Availability
18
Side Panel, R.H. WPL 3147492 Contact Us For Availability
18
Side Panel, L.H. WPL 3147493 Contact Us For Availability
19
Socket, Light WPL 330514 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Frame, Glass Panel WPL 3148235 Contact Us For Availability
20
Panel, Top WPL 3147499 Contact Us For Availability
20
Screw, 8-32 x 1/2 WPL 313816 Contact Us For Availability
20
Stirrer Cover WPL 313563 Contact Us For Availability
20
Plug, Button WPL 3182814 Contact Us For Availability
20
Insulation, Door WPL 3147951 Contact Us For Availability
22
Seal, Foam WPL 313753 Contact Us For Availability
23
Air Duct (Horizontal) WPL 313578 Contact Us For Availability
23
Fastener WPL 310423 Contact Us For Availability
23
Tube, Vent WPL 312697 Contact Us For Availability
24
Vent Tube WPL 312696 Contact Us For Availability
24
Seal, Foam WPL 313752 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
25
Support, Vent Tube WPL 312698 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
26
Panel, Support WPL 3147498 Contact Us For Availability
26
Magnetron WPL 660595 Contact Us For Availability
27
Screw WPL 3150532 Contact Us For Availability
28
Screw, WPL 312782 Contact Us For Availability
28
Thermal Protector WPL 661165 Contact Us For Availability
29
Frame, Outer WPL 3149798 Contact Us For Availability
29
Baffle, Air WPL 3147003 Contact Us For Availability
31
Cover, Plate WPL 3184208 Contact Us For Availability
32
Coverplate WPL 3183005 Contact Us For Availability
33
Screw (2) WPL 311056 Contact Us For Availability
33
Latch Assembly WPL 3171148 Contact Us For Availability
34
Cover, Rear WPL 3147491 Contact Us For Availability
34
Safety Switch WPL 308185 Contact Us For Availability
34
Screw (2) WPL 98106 Contact Us For Availability
35
Screw (2) WPL 307748 Contact Us For Availability
35
Insulator, Switch WPL 309245 Contact Us For Availability
36
Motor, Fan WPL 313641 Contact Us For Availability
36
Screw, 6 x 3/8 (2) WPL 309258 Contact Us For Availability
36
Terminal, Shield WPL 313035 Contact Us For Availability
37
Pulley, Motor WPL 311922 Contact Us For Availability
37
Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability
37
Latch, Handle WPL 310825 Contact Us For Availability
38
Probe Jack WPL 661209 Contact Us For Availability
38
Screw, 8 x 5/16 WPL 3183294 Contact Us For Availability
38
WPL 3184039 WPL 3184039 Contact Us For Availability
39
WPL 310345 WPL 310345 Contact Us For Availability
40
Bracket, Motor WPL 313601 Contact Us For Availability
40
Washer Probe WPL 313105 Contact Us For Availability
41
Nut WPL 313104 Contact Us For Availability
41
WPL 3149142 WPL 3149142 Contact Us For Availability
43
Wheel, Blower WPL 3147223 Contact Us For Availability
43
Probe, Temperature WPL 313527 Contact Us For Availability
44
screw WPL 312713 Contact Us For Availability
44
Jumper, High Voltage Red (6-5/16``) WPL 313130 Contact Us For Availability
44
Fuse, Thermal WPL 313855 Contact Us For Availability
45
Cover, Side WPL 3147004 Contact Us For Availability
46
High Voltage Lead, Gray 7-11/16`` (2) WPL 3147863 Contact Us For Availability
46
Plate, Tuning WPL 313735 Contact Us For Availability
47
Clip WPL 311311 Contact Us For Availability
47
Support (4) WPL 313739 Contact Us For Availability
47
WPL 309029 WPL 309029 Contact Us For Availability
47
WPL 310668 WPL 310668 Contact Us For Availability
48
Screw WPL 346893 Contact Us For Availability
48
Extension, Air Duct WPL 3147262 Contact Us For Availability
48
rack, wire WPL 313663 Contact Us For Availability
49
Sensor, Gas WPL 3147060 Contact Us For Availability
50
Leveler, Enamel WPL 206925 Contact Us For Availability
50
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
50
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
50
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
50
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
50
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
50
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
50
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
50
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
50
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
50
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
50
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
50
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
50
Touch-Up, Oven WPL 254323 Contact Us For Availability
50
Grease WPL 261582 Contact Us For Availability
50
Harvest Gold WPL 261890 Contact Us For Availability
50
Harvest Gold WPL 261891 Contact Us For Availability
50
WPL 3171507 WPL 3171507 Contact Us For Availability
50
WPL 3171640 WPL 3171640 Contact Us For Availability
50
WPL 591014 WPL 591014 Contact Us For Availability
50
WPL 799340 WPL 799340 Contact Us For Availability
50
WPL 799832 WPL 799832 Contact Us For Availability
50
WPL 978883 WPL 978883 Contact Us For Availability
52
WPL 3182052 WPL 3182052 Contact Us For Availability
53
WPL 308043 WPL 308043 Contact Us For Availability
53
WPL 3147001 WPL 3147001 Contact Us For Availability
54
WPL 310458 WPL 310458 Contact Us For Availability
55
WPL 311592 WPL 311592 Contact Us For Availability
56
WPL 311012 WPL 311012 Contact Us For Availability
61
WPL 308173 WPL 308173 Contact Us For Availability
62
WPL 308172 WPL 308172 Contact Us For Availability
63
WPL 3148669 WPL 3148669 Contact Us For Availability
64
WPL 310433 WPL 310433 Contact Us For Availability
64
WPL 310435 WPL 310435 Contact Us For Availability
64
WPL 3147864 WPL 3147864 Contact Us For Availability
64
WPL 3149328 WPL 3149328 Contact Us For Availability
× ![]()
