Model Whirlpool RM288PXV0 – Common Parts & Diagrams
05 - MAGNETRON AND AIR FLOW
03 - OVEN DOOR

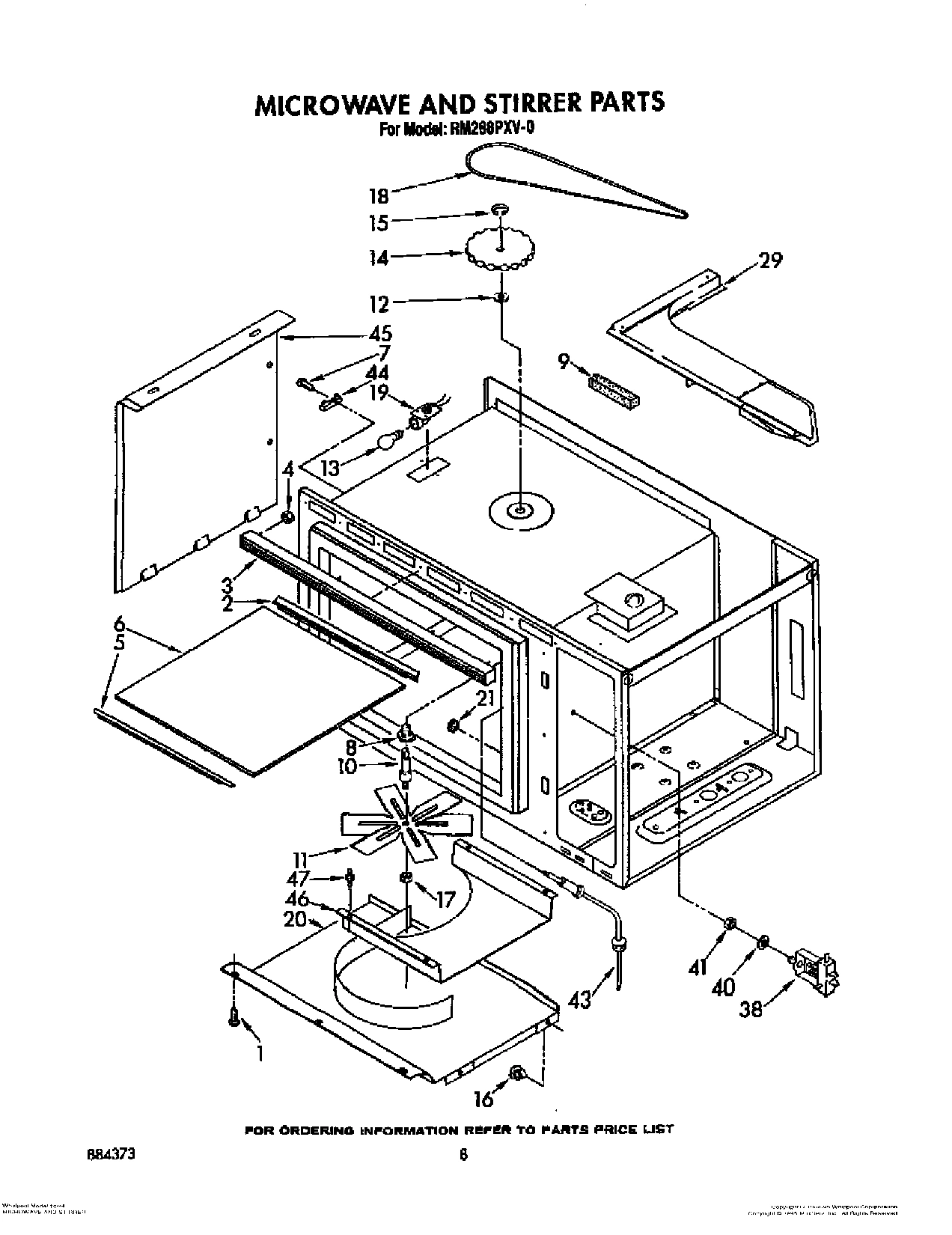

06 - MICROWAVE AND STIRRER
07 - MICROWAVE DOOR

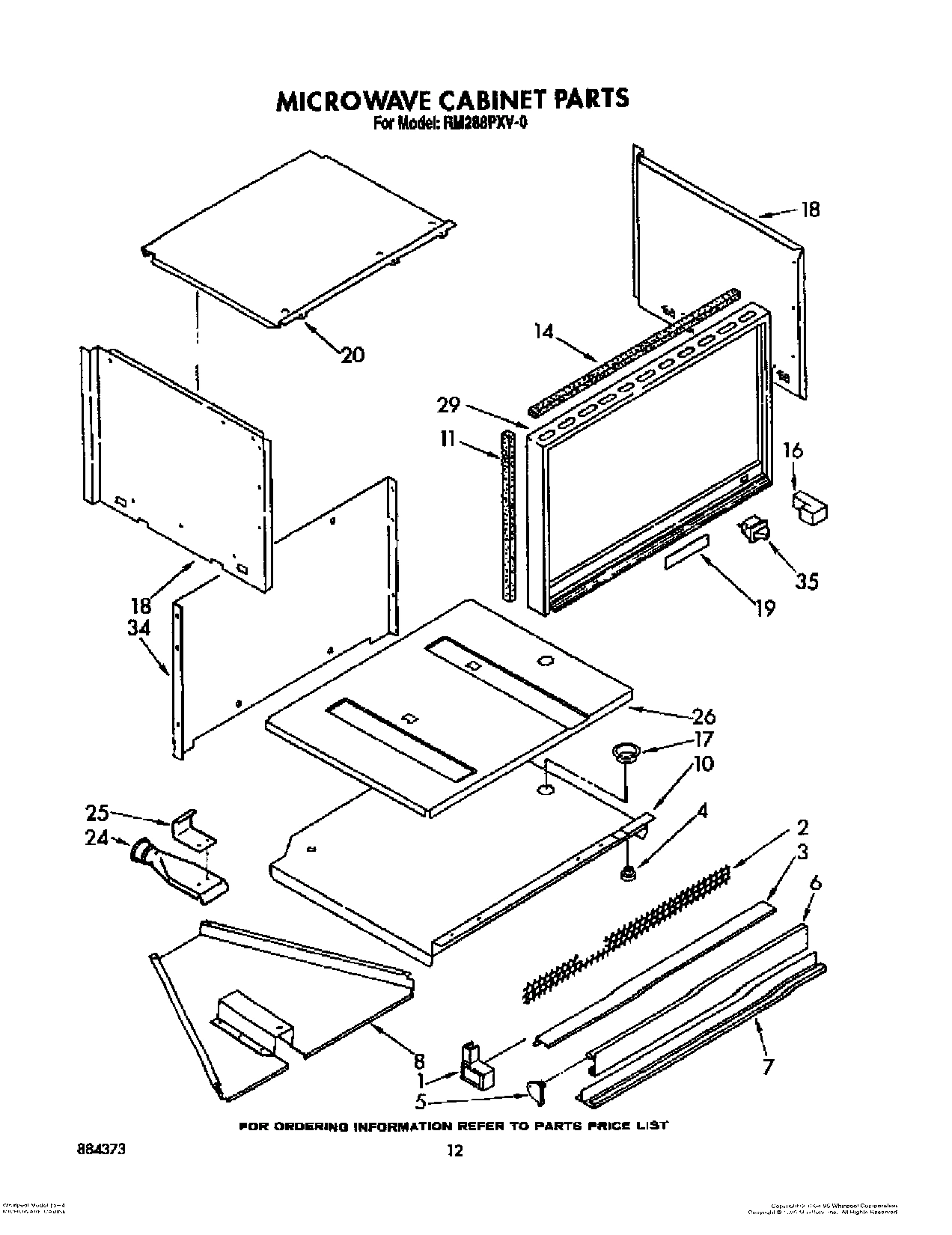

08 - MICROWAVE CABINET

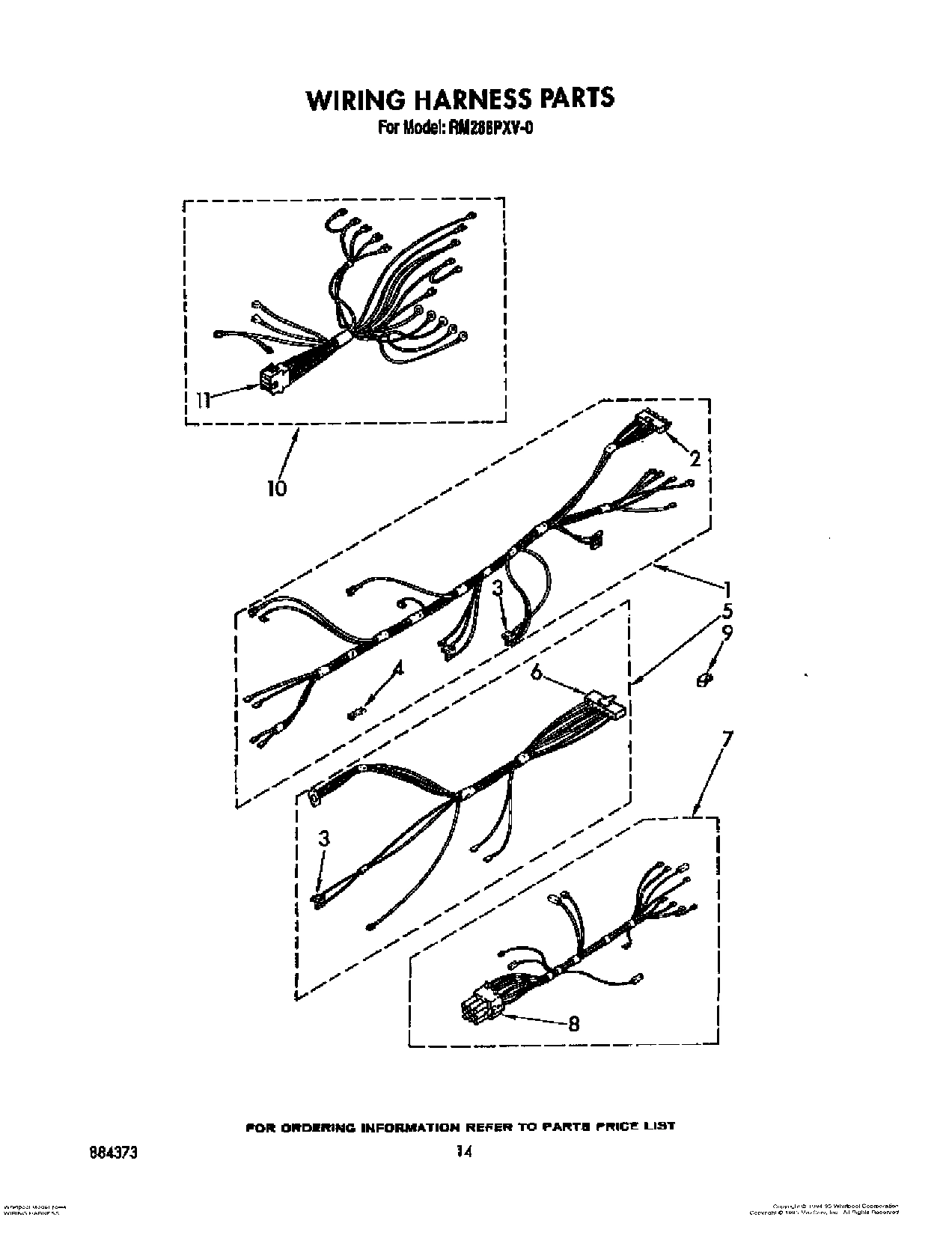

09 - WIRING HARNESS, LIT/OPTIONAL

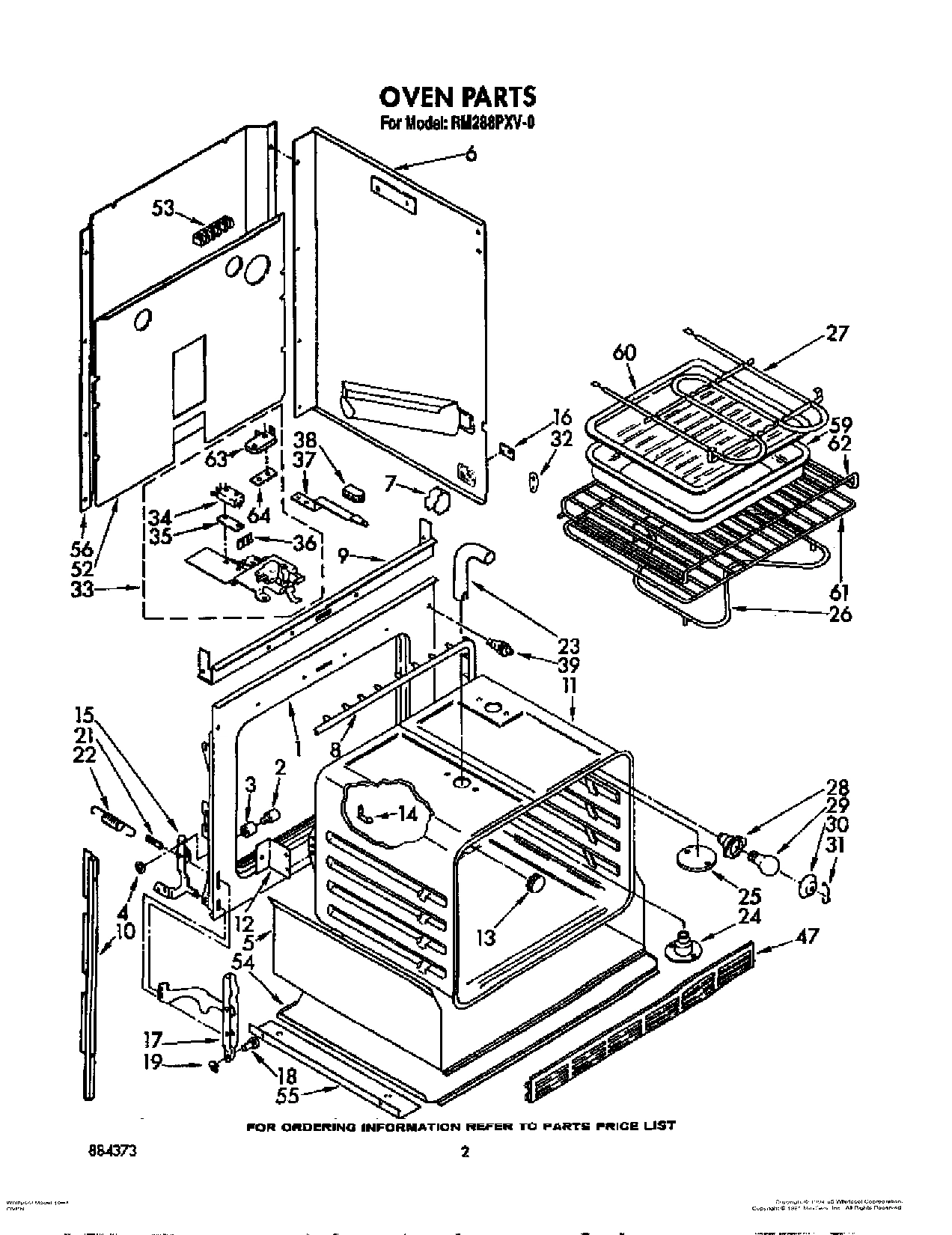

02 - OVEN

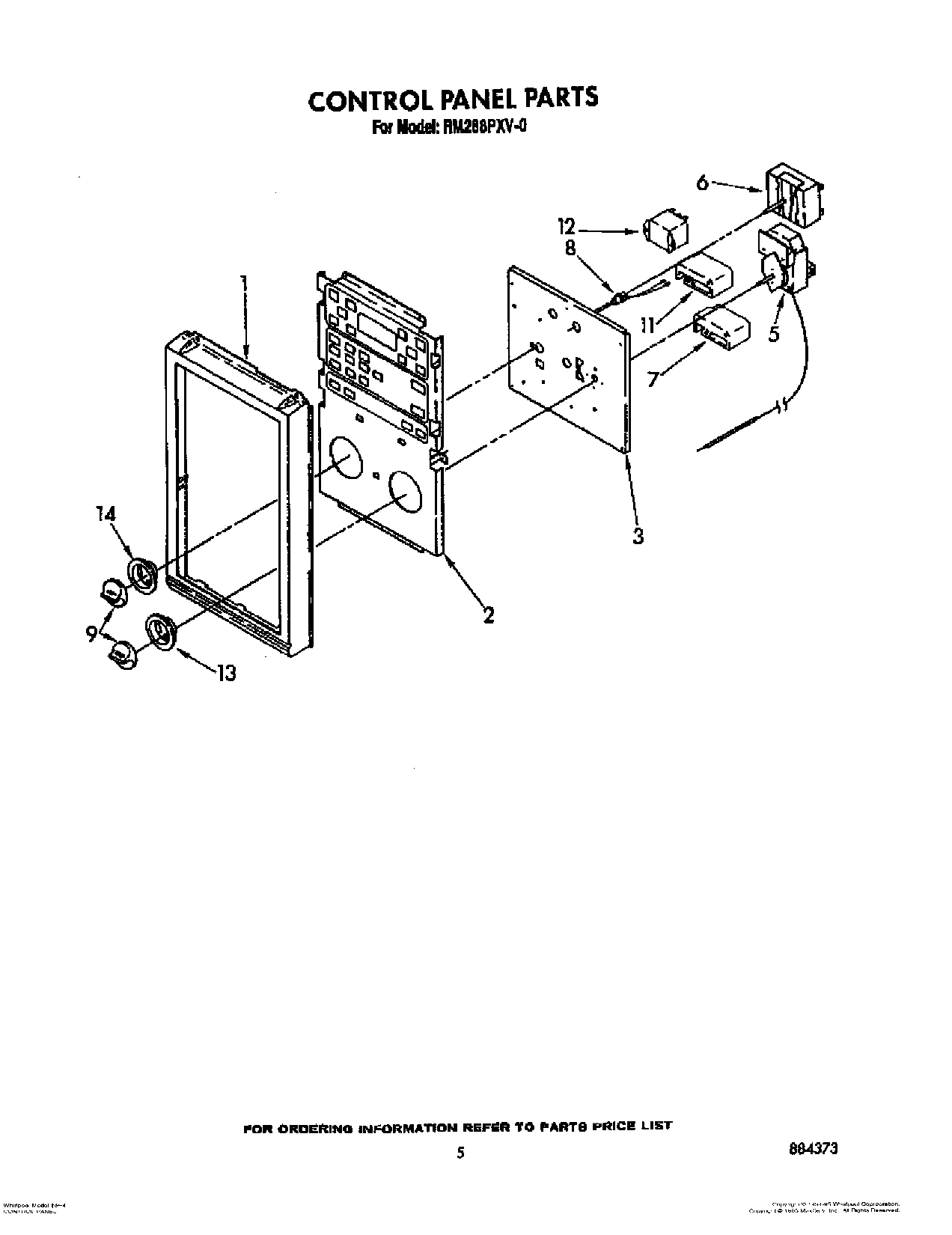

04 - CONTROL PANEL
Common parts from model Whirlpool RM288PXV0
NOTE: The screws and nuts required to attach WPL ARI123537A Contact Us For Availability
WPL LIT311895 WPL LIT311895 Contact Us For Availability
WPL LIT312899 WPL LIT312899 Contact Us For Availability
WPL LIT312901 WPL LIT312901 Contact Us For Availability
WPL LIT313358 WPL LIT313358 Contact Us For Availability
WPL LIT3147287 WPL LIT3147287 Contact Us For Availability
WPL LIT3149026 WPL LIT3149026 Contact Us For Availability
WPL LIT884373 WPL LIT884373 Contact Us For Availability
WPL 308043 WPL 308043 Contact Us For Availability
WPL 246127 WPL 246127 Contact Us For Availability
1
Liner, Door WPL 3170706 Contact Us For Availability
1
Screw, 8-32 x 3/8 WPL 312713 Contact Us For Availability
1
Bracket, Catch WPL 311354 Contact Us For Availability
1
End Cap, L.H. WPL 3148928 Contact Us For Availability
1
End Cap, R.H. WPL 3148929 Contact Us For Availability
1
Wiring Harness (Main) WPL 3147938 Contact Us For Availability
1
Frame, Front WPL 3170855 Contact Us For Availability
1
Frame, Control Panel WPL 3148090 Contact Us For Availability
2
Trim, Shelf (Rear) WPL 313615 Contact Us For Availability
2
Catch (2) WPL 311795 Contact Us For Availability
2
Trim, Oven Vent WPL 312432 Contact Us For Availability
2
Connector, Housing WPL 311575 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Module, Control WPL 3148984 Contact Us For Availability
3
Screw, 8-32 x 3/16 (4) WPL 313818 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
3
Deflector, Air WPL 3148435 Contact Us For Availability
3
Insulator WPL 313126 Contact Us For Availability
3
screw (2) WPL 342043 Contact Us For Availability
3
Trim, Top WPL 3148678 Contact Us For Availability
3
Housing WPL 310241 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Bracket, Control (Mounting) WPL 3147282 Contact Us For Availability
4
Glass, Reflective WPL 3148178 Contact Us For Availability
4
Nut (3) WPL 3147378 Contact Us For Availability
4
Snap Bushing WPL 309552 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Trim, Shelf (Front) WPL 313614 Contact Us For Availability
5
Screw, 4-40 x 3/4 Pan Head Thread Form (6) WPL 312717 Contact Us For Availability
5
End Trim, Vent Door L.H. WPL 3148697 Contact Us For Availability
5
End Trim, Vent Door R.H. WPL 3148698 Contact Us For Availability
5
Harness, Wiring (Control) WPL 3147560 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
5
Thermostat WPL 3148931 Contact Us For Availability
6
Retainer, Window WPL 3148159 Contact Us For Availability
6
Shelf, Glass (Also Order No. 307576 silastic) WPL 313639 Contact Us For Availability
6
Switch, Light Monitor (Alt.) WPL 313076 Contact Us For Availability
6
Switch, Light Monitor (Alt.) WPL 313124 Contact Us For Availability
6
Switch, Light/ Monitor WPL 661145 Contact Us For Availability
6
Door, Vent WPL 3148617 Contact Us For Availability
6
Connector, Housing WPL 308565 Contact Us For Availability
6
Side Wrapper (Right Side) WPL 311006 Contact Us For Availability
6
Side Wrapper (Left Side) WPL 311009 Contact Us For Availability
6
Screw, 8-32 x 3/16 (2) WPL 308119 Contact Us For Availability
6
Switch, Selector WPL 3147235 Contact Us For Availability
7
Switch, Door WPL 313120 Contact Us For Availability
7
Screw, 10A x 1/2 (2) WPL 309100 Contact Us For Availability
7
Trim, Bottom WPL 3148618 Contact Us For Availability
7
Harness, Wiring Select./Thermostat WPL 3147916 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Switch, Bake (4) WPL 314211 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
8
Bushing, Stirrer WPL 312023 Contact Us For Availability
8
Screw, 4-40 x 10 (2) WPL 310211 Contact Us For Availability
8
Box Air WPL 3170178 Contact Us For Availability
8
Block, Disconnect (Male) WPL 309406 Contact Us For Availability
8
Seal, Door WPL 3148284 Contact Us For Availability
8
Light, Indicator (4) WPL 3147517 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
9
Seal, Foam WPL 3147599 Contact Us For Availability
9
Screw, 8-32 x 3/8 Slot Hex Washer Head Self-T WPL 309080 Contact Us For Availability
9
Baffle, Top Insulation WPL 310693 Contact Us For Availability
10
Glass, Panel WPL 3148185 Contact Us For Availability
10
Shaft, Stirrer WPL 312026 Contact Us For Availability
10
shield WPL 311360 Contact Us For Availability
10
Support Plate WPL 3147494 Contact Us For Availability
10
Harness, Wiring (Oven) WPL 3147587 Contact Us For Availability
10
Side Trim L.H. WPL 3149139 Contact Us For Availability
10
Side Trim R.H. WPL 3149140 Contact Us For Availability
11
Foil, Door WPL 3148184 Contact Us For Availability
11
Stirrer Blade WPL 313595 Contact Us For Availability
11
Fastener WPL 313740 Contact Us For Availability
11
Seal, Foam (2) WPL 3147595 Contact Us For Availability
11
Leveler, Enamel WPL 206925 Contact Us For Availability
11
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
11
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
11
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
11
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
11
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
11
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
11
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
11
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
11
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
11
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
11
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
11
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
11
Touch-Up, Oven WPL 254323 Contact Us For Availability
11
Grease WPL 261582 Contact Us For Availability
11
Rotisserie Kit (RCK 79) WPL 261881 Contact Us For Availability
11
Harvest Gold WPL 261890 Contact Us For Availability
11
Harvest Gold WPL 261891 Contact Us For Availability
11
Disconnect, Female Block WPL 309409 Contact Us For Availability
11
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
11
WPL 799340 WPL 799340 Contact Us For Availability
11
WPL 799832 WPL 799832 Contact Us For Availability
11
WPL 832985 WPL 832985 Contact Us For Availability
11
WPL 978883 WPL 978883 Contact Us For Availability
11
Oven (30`` Pyro) WPL 328756 Contact Us For Availability
11
Screw, No.6 WPL 314215 Contact Us For Availability
11
Switch, Broil WPL 314209 Contact Us For Availability
12
Handle, Door WPL 3148228 Contact Us For Availability
12
Washer, Nylon WPL 312025 Contact Us For Availability
12
Rivet, Pop (3) WPL 311928 Contact Us For Availability
12
Screw, 6AB x 3/8 (2) WPL 246131 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Relay, Power WPL 314125 Contact Us For Availability
13
Shield, Door WPL 3149680 Contact Us For Availability
13
Switch, Miniature (Alt.) WPL 313075 Contact Us For Availability
13
Switch, Miniature (Alt.) WPL 313123 Contact Us For Availability
13
Switch, Miniature WPL 661144 Contact Us For Availability
13
Plug Button WPL 257314 Contact Us For Availability
13
Escutcheon, Thermostat WPL 311073 Contact Us For Availability
14
Screw, 8BT x 1/4 WPL 254225 Contact Us For Availability
14
screw (3) WPL 307748 Contact Us For Availability
14
Trim, Panel WPL 3148223 Contact Us For Availability
14
Pulley, Stirrer Blade WPL 311923 Contact Us For Availability
14
Frame, Door WPL 3170441 Contact Us For Availability
14
Seal, Foam (2) WPL 3147596 Contact Us For Availability
15
Clip, Mounting (2) WPL 3148282 Contact Us For Availability
15
``E`` Ring WPL 311999 Contact Us For Availability
15
Door, Inner WPL 3171012 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
16
screw (6) WPL 3148443 Contact Us For Availability
16
Frame, Inner Glass WPL 3148234 Contact Us For Availability
16
Seal, Foam (2) WPL 3147750 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
17
Bushing, Snap WPL 3147647 Contact Us For Availability
17
Channel Arm (2) WPL 329713 Contact Us For Availability
18
Side Panel, R.H. WPL 3147492 Contact Us For Availability
18
Side Panel, L.H. WPL 3147493 Contact Us For Availability
19
Frame, Glass Panel WPL 3148235 Contact Us For Availability
19
Socket, Light WPL 330514 Contact Us For Availability
19
Adhesive WPL 312330 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
20
Stirrer Cover WPL 313563 Contact Us For Availability
20
Panel, Top WPL 3147497 Contact Us For Availability
21
Plug, Hole (4) WPL 312215 Contact Us For Availability
23
Tube, Vent WPL 312697 Contact Us For Availability
24
Vent Tube WPL 312696 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
25
Support, Vent Tube WPL 312698 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
26
Panel, Support WPL 3147496 Contact Us For Availability
28
Socket, Oven Light (Alt.) WPL 307856 Contact Us For Availability
28
Socket, Oven Light (Alt.) WPL 310208 Contact Us For Availability
28
Socket, Oven Light WPL 660556 Contact Us For Availability
29
Baffle, Air WPL 3147002 Contact Us For Availability
29
Frame, Outer WPL 3148867 Contact Us For Availability
30
Latch Assembly WPL 329066 Contact Us For Availability
30
Cover, Light WPL 308039 Contact Us For Availability
31
Spring, Torsion (2) WPL 311352 Contact Us For Availability
31
Retainer, Light WPL 308038 Contact Us For Availability
32
Handle, Door WPL 314169 Contact Us For Availability
32
Coverplate WPL 311982 Contact Us For Availability
33
Screw (2) WPL 311056 Contact Us For Availability
33
Latch Assembly WPL 3171148 Contact Us For Availability
34
Spring, Compression WPL 310197 Contact Us For Availability
34
Cover, Rear WPL 3147491 Contact Us For Availability
34
Safety Switch WPL 308185 Contact Us For Availability
34
Screw (2) WPL 98106 Contact Us For Availability
35
WPL 309245 WPL 309245 Contact Us For Availability
36
WPL 309258 WPL 309258 Contact Us For Availability
36
WPL 313035 WPL 313035 Contact Us For Availability
37
Screw, 8-32 x 7/16 Hex Washer Head Thread For WPL 313820 Contact Us For Availability
37
WPL 308422 WPL 308422 Contact Us For Availability
37
WPL 310825 WPL 310825 Contact Us For Availability
38
Jack, Probe WPL 3147071 Contact Us For Availability
38
End Cap WPL 3148297 Contact Us For Availability
38
WPL 246135 WPL 246135 Contact Us For Availability
38
WPL 311253 WPL 311253 Contact Us For Availability
39
WPL 310345 WPL 310345 Contact Us For Availability
40
Bracket, Motor WPL 313601 Contact Us For Availability
40
Washer Probe WPL 313105 Contact Us For Availability
40
Screw, 8-22 Thread Form Truss Head (4) WPL 313823 Contact Us For Availability
41
Nut WPL 313104 Contact Us For Availability
41
Label, Guide (Defrost Guide) WPL 3147571 Contact Us For Availability
41
Label, Guide (Auto-Set Time & Temp) WPL 3147573 Contact Us For Availability
43
Wheel, Blower WPL 3147223 Contact Us For Availability
43
Probe, Temperature WPL 313527 Contact Us For Availability
44
Jumper, High Voltage Red (6-5/16``) WPL 313130 Contact Us For Availability
44
Fuse, Thermal WPL 313855 Contact Us For Availability
45
Screw, 8-32 x 1/2 (4) WPL 313816 Contact Us For Availability
45
Cover, Side WPL 3147004 Contact Us For Availability
46
High Voltage Lead, Gray 7-11/16`` (2) WPL 3147863 Contact Us For Availability
46
Plate, Tuning WPL 313735 Contact Us For Availability
47
Clip WPL 311311 Contact Us For Availability
47
Support (4) WPL 313739 Contact Us For Availability
47
WPL 309029 WPL 309029 Contact Us For Availability
47
WPL 310668 WPL 310668 Contact Us For Availability
48
Extension, Air Duct WPL 3147262 Contact Us For Availability
49
Fuse, Thermal WPL 3147275 Contact Us For Availability
52
WPL 310459 WPL 310459 Contact Us For Availability
53
WPL 3147001 WPL 3147001 Contact Us For Availability
54
WPL 310458 WPL 310458 Contact Us For Availability
55
WPL 311592 WPL 311592 Contact Us For Availability
56
WPL 311012 WPL 311012 Contact Us For Availability
61
WPL 308173 WPL 308173 Contact Us For Availability
62
WPL 308172 WPL 308172 Contact Us For Availability
63
WPL 3148669 WPL 3148669 Contact Us For Availability
64
WPL 3147864 WPL 3147864 Contact Us For Availability
× ![]()
