Model Whirlpool RM288PXS9 – Common Parts & Diagrams
04 - MAGNETRON AND AIRFLOW
09 - CONTROL COMPONENT

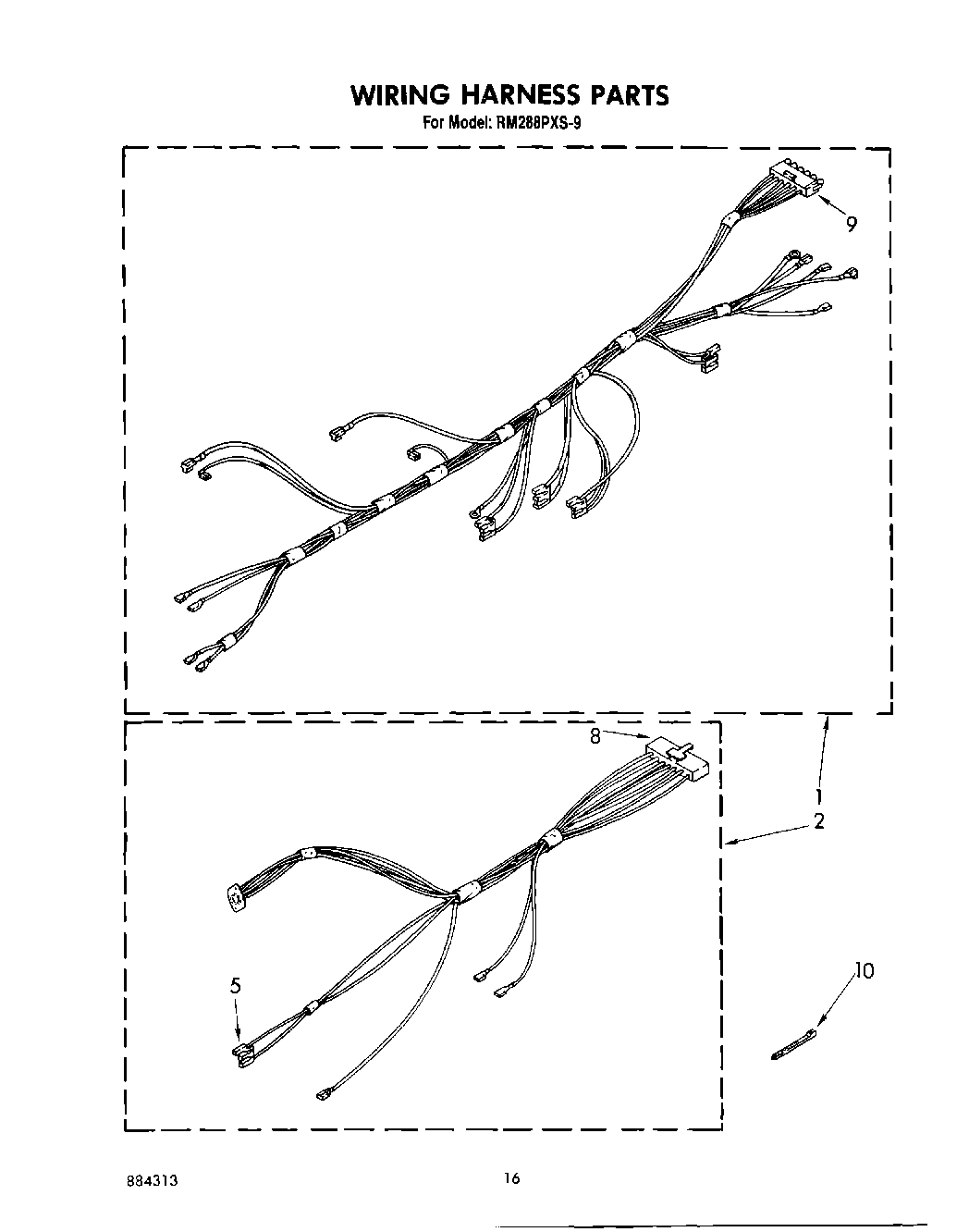

11 - LIT/OPTIONAL

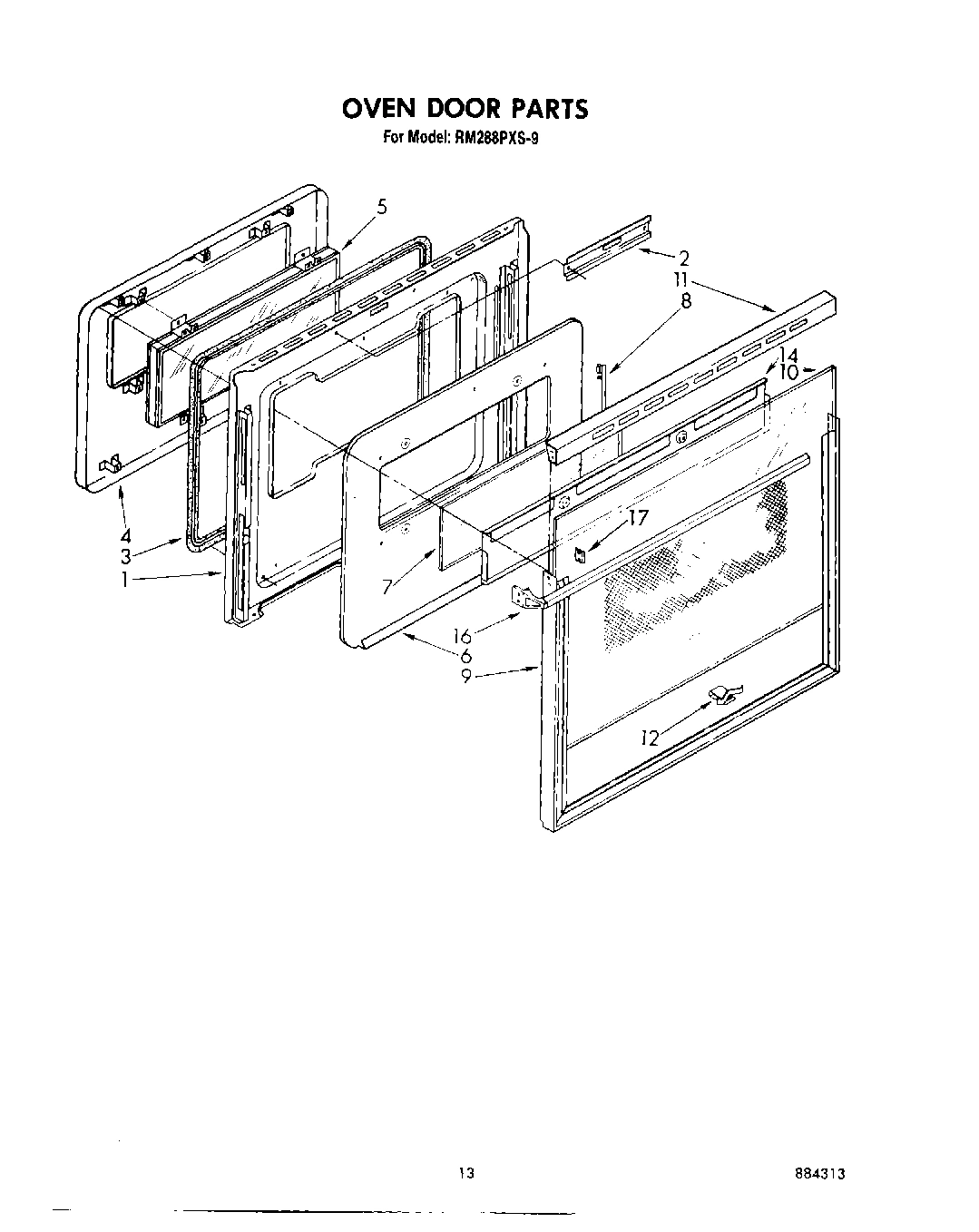

08 - OVEN DOOR

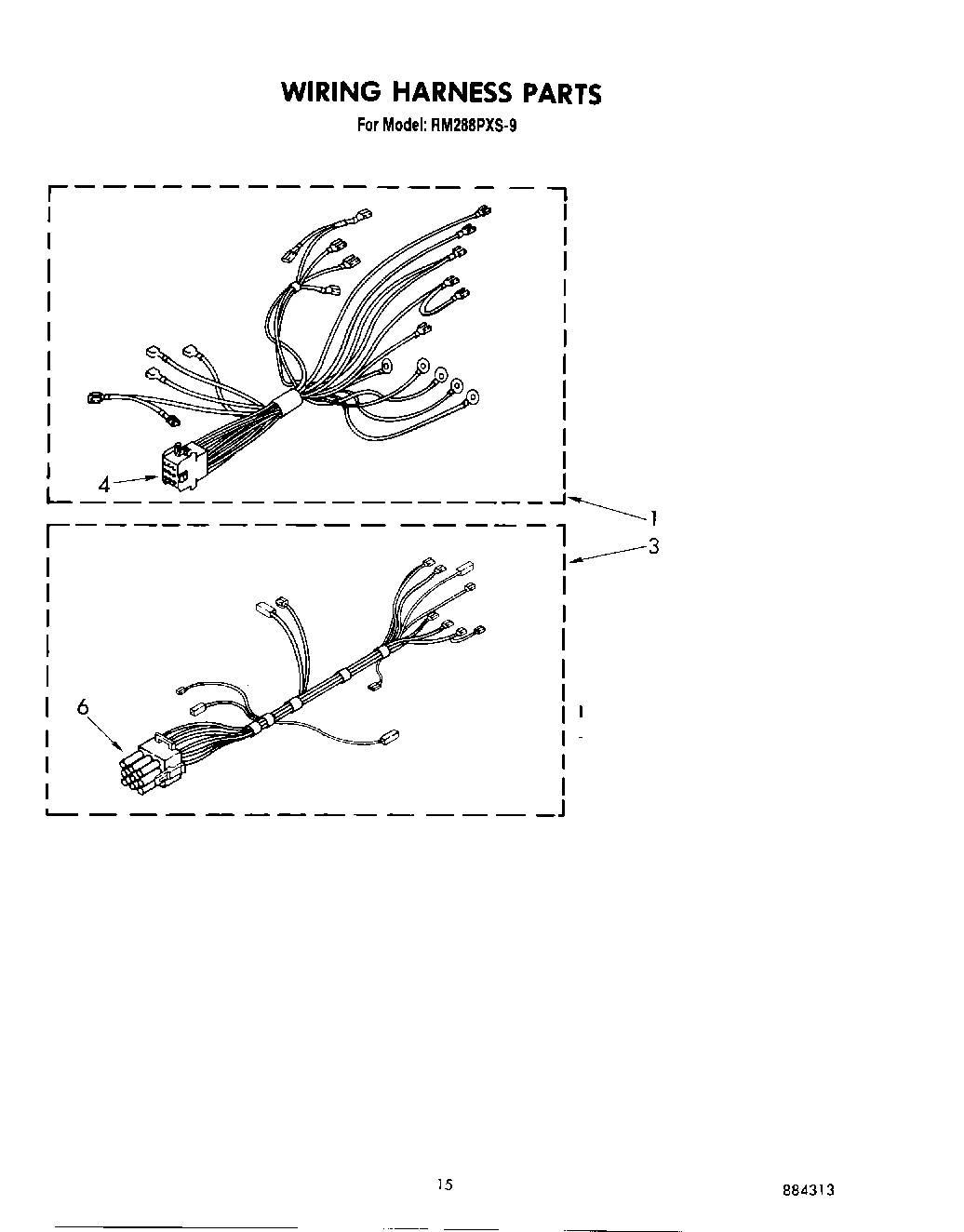

10 - WIRING HARNESS

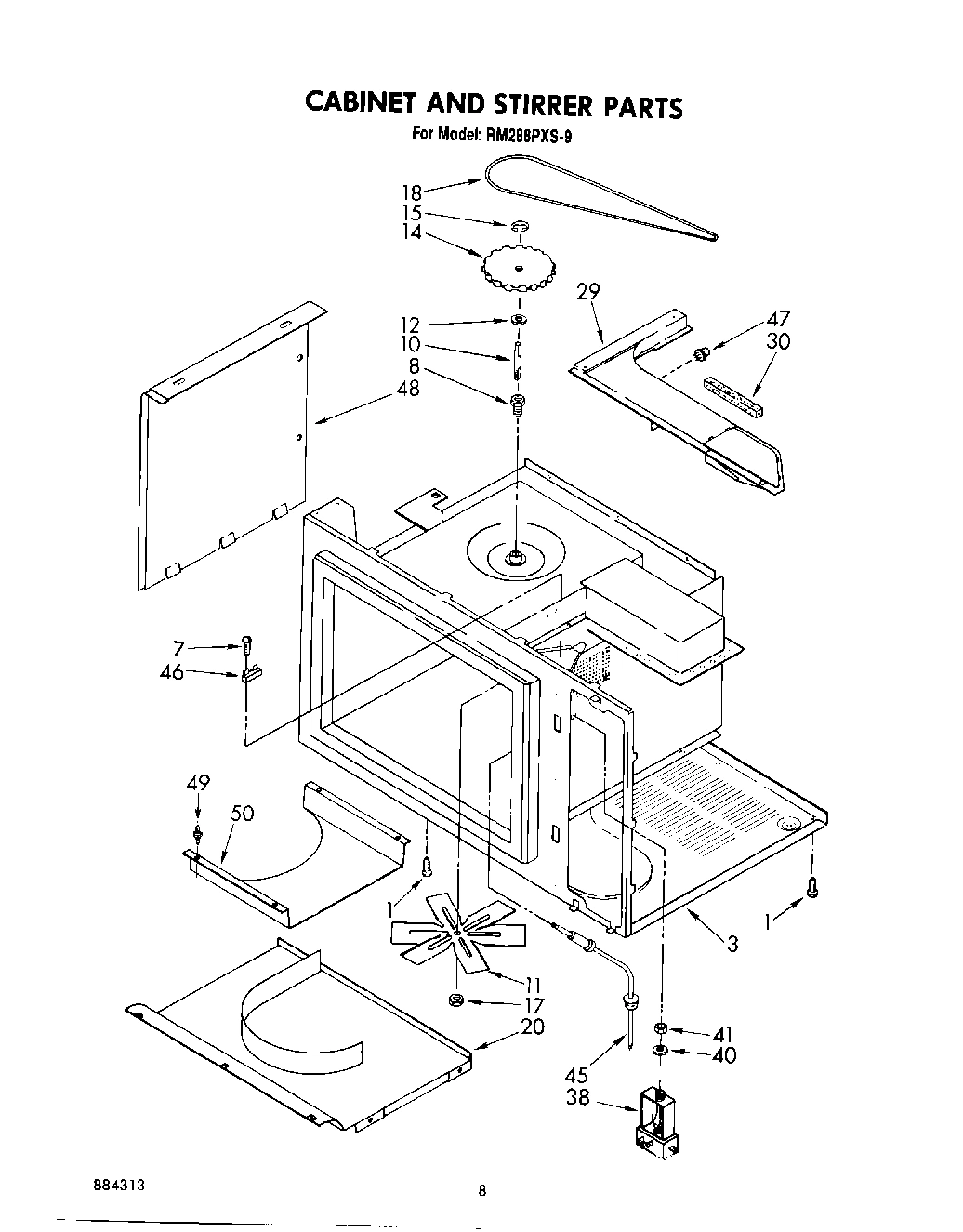

05 - CABINET AND STIRRER

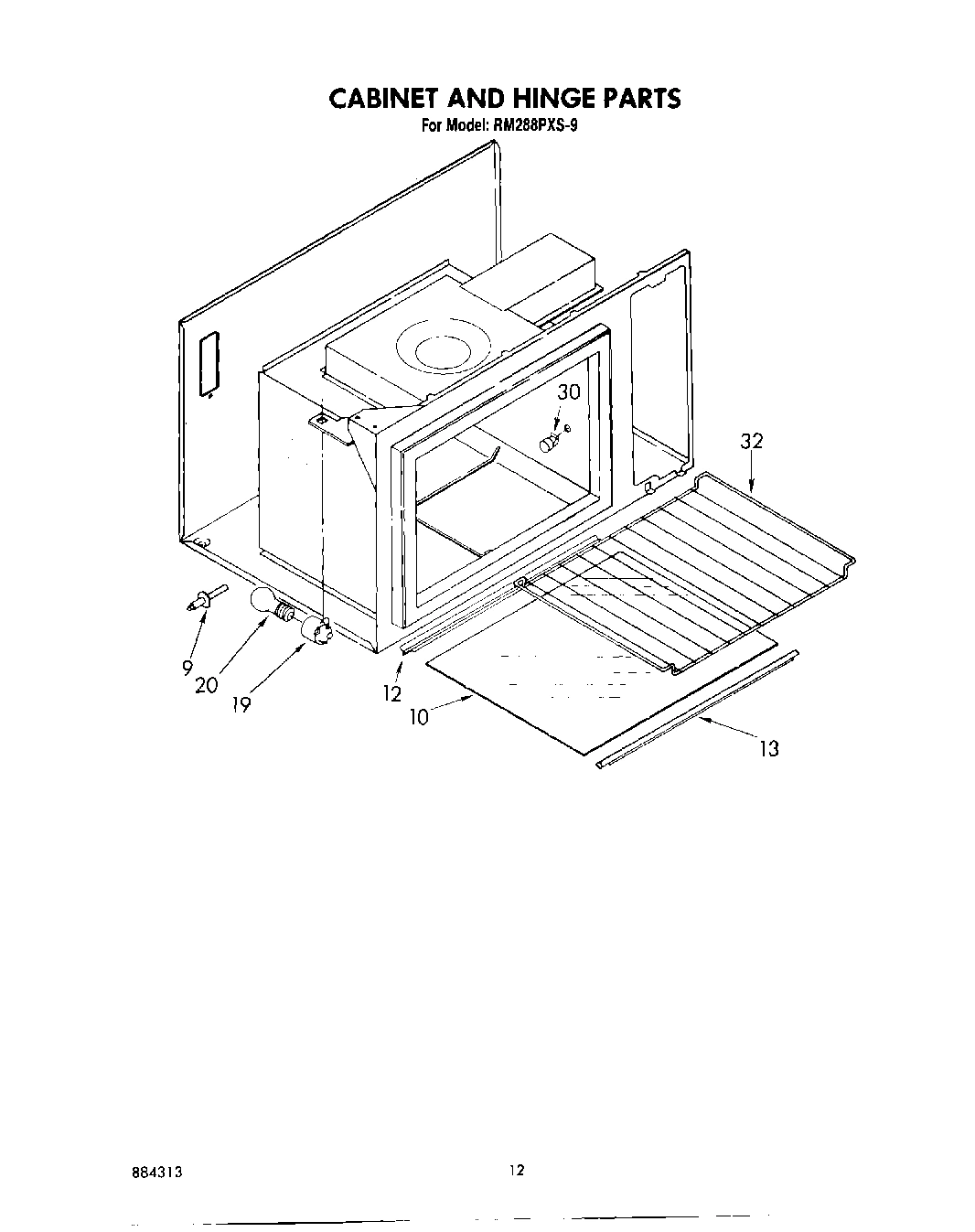

07 - CABINET AND HINGE

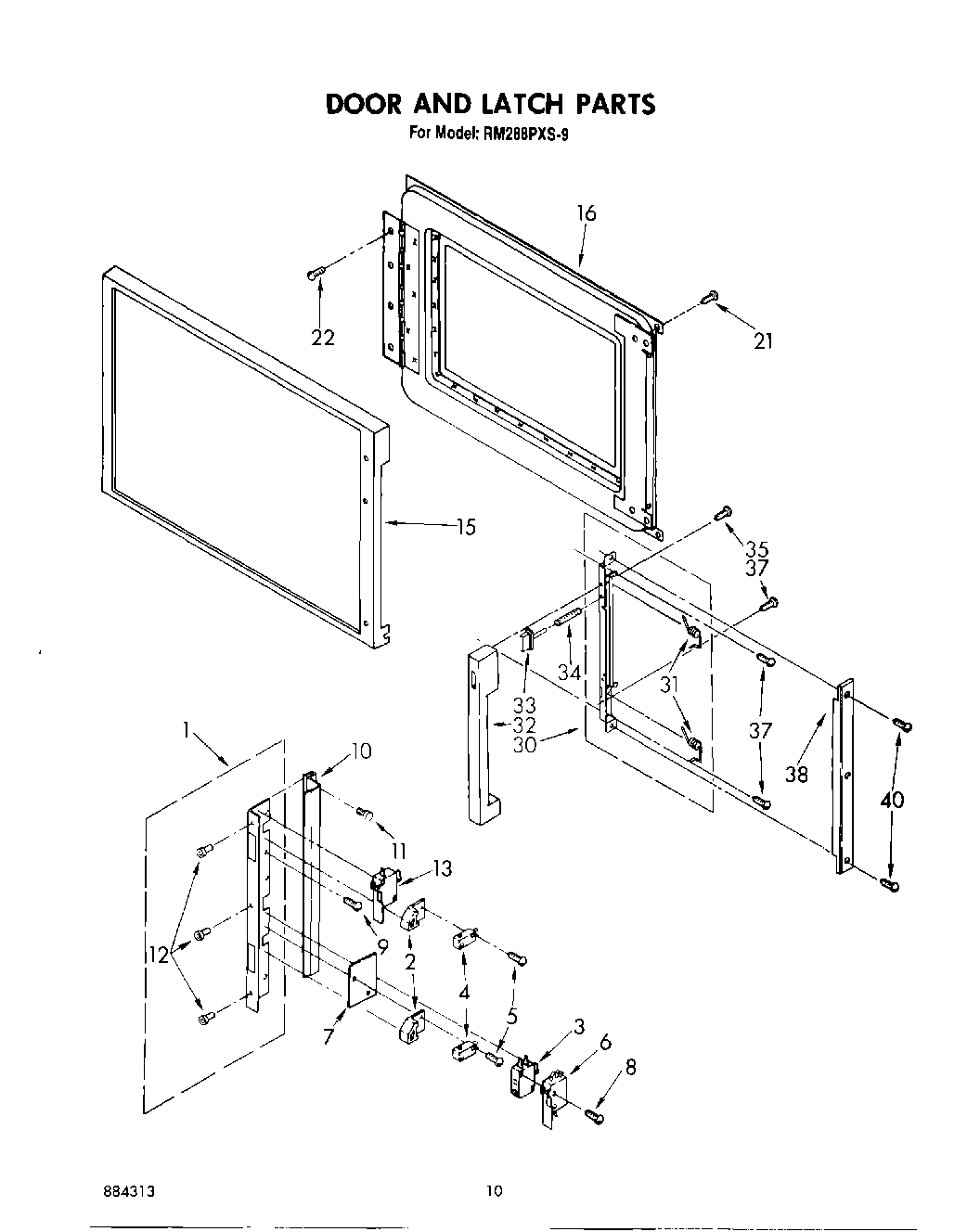

06 - DOOR AND LATCH

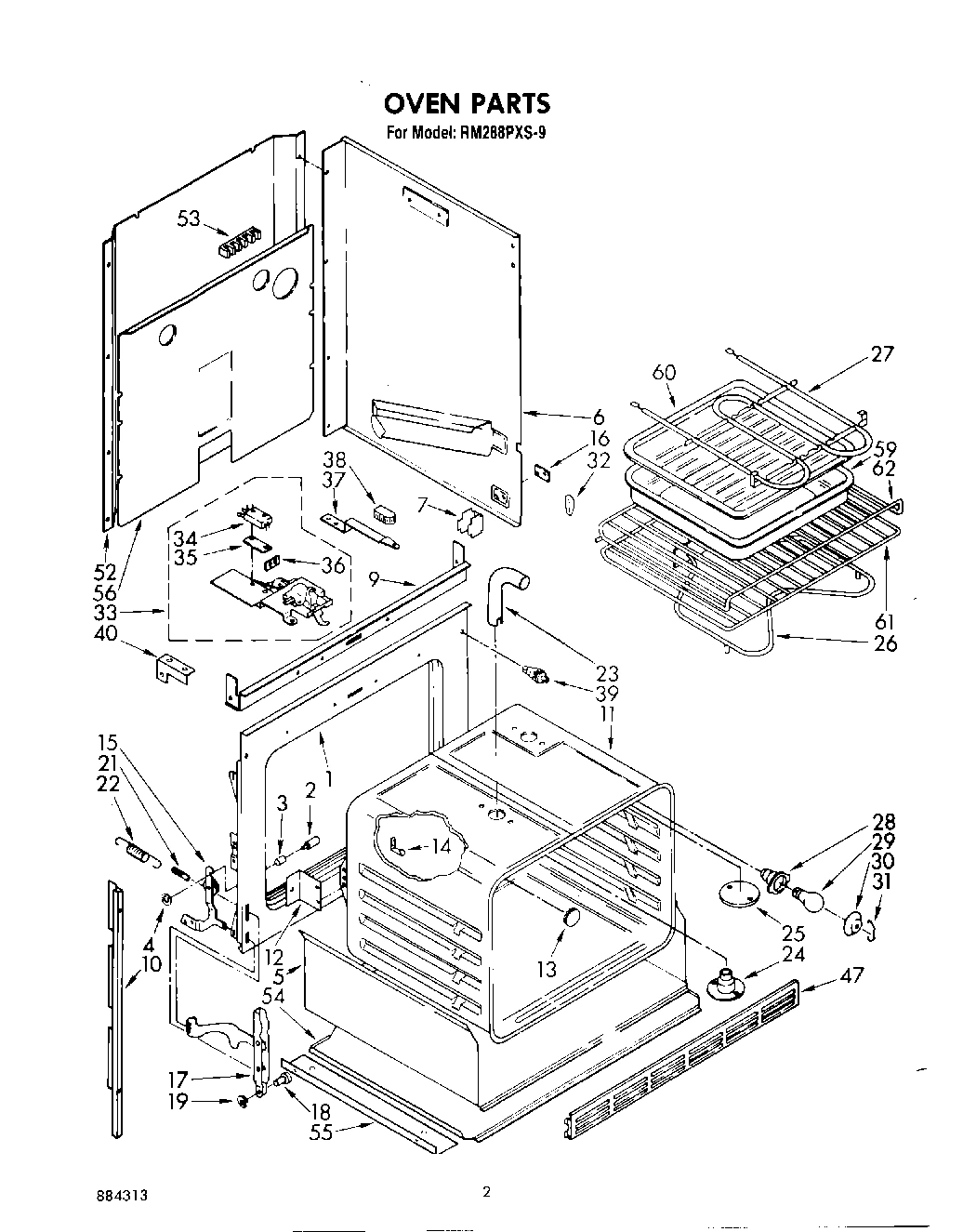

02 - OVEN

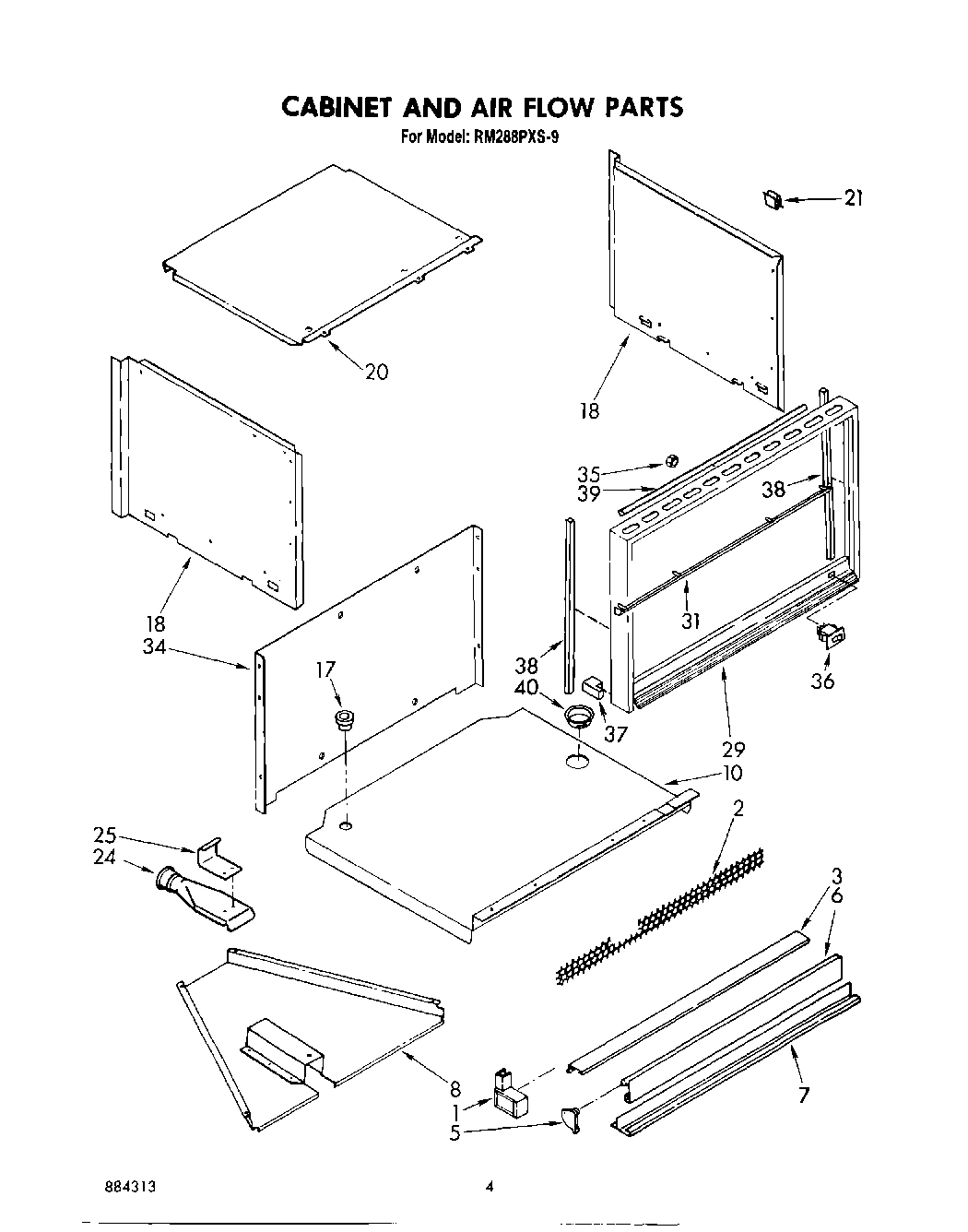

03 - CABINET AND AIRFLOW
Common parts from model Whirlpool RM288PXS9
WPL LIT311895 WPL LIT311895 Contact Us For Availability
WPL LIT312889 WPL LIT312889 Contact Us For Availability
WPL LIT312893 WPL LIT312893 Contact Us For Availability
WPL LIT313358 WPL LIT313358 Contact Us For Availability
WPL LIT3147287 WPL LIT3147287 Contact Us For Availability
WPL LIT3147967 WPL LIT3147967 Contact Us For Availability
WPL LIT884313 WPL LIT884313 Contact Us For Availability
1
Frame, Control Panel WPL 3148090 Contact Us For Availability
1
Harness, Wiring (Main) WPL 3147554 Contact Us For Availability
1
Liner, Door WPL 329694 Contact Us For Availability
1
Harness, Wiring (Oven) WPL 3147586 Contact Us For Availability
1
Screw, 8-32 x 3/8 WPL 312713 Contact Us For Availability
1
Bracket, Catch WPL 311354 Contact Us For Availability
1
Frame, Front WPL 328747 Contact Us For Availability
1
End Cap, L.H. WPL 311649 Contact Us For Availability
1
End Cap, R.H. WPL 311650 Contact Us For Availability
2
Switch Membrane (Control Module) WPL 3147199 Contact Us For Availability
2
Harness, Wiring (Control) WPL 3147559 Contact Us For Availability
2
Screw, 10-24 x 1/2 (2) WPL 247326 Contact Us For Availability
2
Channel, Latch WPL 308033 Contact Us For Availability
2
Catch (2) WPL 311795 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Trim, Oven Vent WPL 312432 Contact Us For Availability
3
Bracket, Control (Mounting) WPL 3147282 Contact Us For Availability
3
Screw, 6A x 3/8 WPL 246131 Contact Us For Availability
3
Seal, Fiberglass WPL 311904 Contact Us For Availability
3
Harness, Wiring (Thermostat/ Selector) WPL 3147296 Contact Us For Availability
3
Base, Cabinet (Not Serviceable) WPL ARI123536A Contact Us For Availability
3
Insulator, Switch WPL 313126 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Trim, Top WPL 312446 Contact Us For Availability
4
Panel, Inner WPL 327898 Contact Us For Availability
4
Disconnect Block, Female WPL 309409 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
5
Thermostat WPL 313533 Contact Us For Availability
5
Housing WPL 310241 Contact Us For Availability
5
Window Package WPL 330038 Contact Us For Availability
5
Screw, 4-40 x 5/8 (6) WPL 312717 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
5
End Trim, Vent (Left Side) WPL 310832 Contact Us For Availability
5
End Trim, Vent (Right Side) WPL 310833 Contact Us For Availability
6
Switch, Selector WPL 312289 Contact Us For Availability
6
Retainer, Insulation WPL 308021 Contact Us For Availability
6
Disconnect Block Male WPL 309406 Contact Us For Availability
6
(Alt.) WPL 313076 Contact Us For Availability
6
(Alt.) WPL 313124 Contact Us For Availability
6
Switch, Light/ Monitor WPL 661145 Contact Us For Availability
6
Side Wrapper (Right Side) WPL 311006 Contact Us For Availability
6
Side Wrapper (Left Side) WPL 311009 Contact Us For Availability
6
Door, Vent WPL 312447 Contact Us For Availability
7
Switch, Bake WPL 314211 Contact Us For Availability
7
Glass (6.81`` x 18.31``) WPL 309842 Contact Us For Availability
7
Switch, Door WPL 313120 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
screw (2) WPL 342043 Contact Us For Availability
7
Screw, 10A x 1/2 (2) WPL 309100 Contact Us For Availability
7
Trim, Bottom WPL 311190 Contact Us For Availability
8
Light, Indictor (4) WPL 3147517 Contact Us For Availability
8
Housing, Connector WPL 308565 Contact Us For Availability
8
Retainer, Glass WPL 309843 Contact Us For Availability
8
Bushing, Stirrer WPL 312023 Contact Us For Availability
8
Screw, 4-40 x 10 (2) WPL 310211 Contact Us For Availability
8
Box Air WPL 3170178 Contact Us For Availability
9
Connector WPL 311575 Contact Us For Availability
9
Frame, Door WPL 310427 Contact Us For Availability
9
Rivet (3) WPL 313456 Contact Us For Availability
9
Screw, 8-32 x 3/8 Slot Hex Washer Head Self-T WPL 309080 Contact Us For Availability
9
Baffle, Top Insulation WPL 310693 Contact Us For Availability
10
Leveler, Enamel WPL 206925 Contact Us For Availability
10
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
10
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
10
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
10
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
10
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
10
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
10
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
10
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
10
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
10
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
10
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
10
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
10
Touch-Up, Oven (Self-Clean) WPL 254323 Contact Us For Availability
10
Grease WPL 261582 Contact Us For Availability
10
Rotisserie Kit (RCK 79) WPL 261881 Contact Us For Availability
10
Harvest Gold WPL 261890 Contact Us For Availability
10
Harvest Gold WPL 261891 Contact Us For Availability
10
Toast WPL 285365 Contact Us For Availability
10
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
10
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
10
Platinum WPL 285368 Contact Us For Availability
10
Browning Tray (Micro) WPL 307677 Contact Us For Availability
10
Rack, Meat (Micro) WPL 310878 Contact Us For Availability
10
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
10
WPL 72112 WPL 72112 Contact Us For Availability
10
WPL 799340 WPL 799340 Contact Us For Availability
10
WPL 799832 WPL 799832 Contact Us For Availability
10
WPL 978883 WPL 978883 Contact Us For Availability
10
Glass, Outer WPL 309069 Contact Us For Availability
10
Shaft, Stirrer WPL 312026 Contact Us For Availability
10
Shelf, Microwave (Install with Silastic No. 3 WPL 313639 Contact Us For Availability
10
shield WPL 311360 Contact Us For Availability
10
Side Trim L.H. WPL 310685 Contact Us For Availability
10
Side Trim (R.H.) WPL 310689 Contact Us For Availability
10
Support Plate WPL 3147494 Contact Us For Availability
11
screw WPL 314215 Contact Us For Availability
11
Switch, Broil WPL 314209 Contact Us For Availability
11
Top, Door Frame WPL 310428 Contact Us For Availability
11
Stirrer Blade WPL 313595 Contact Us For Availability
11
Fastener (2) WPL 313740 Contact Us For Availability
11
Oven (30`` Pyro) WPL 328756 Contact Us For Availability
12
Relay, Power WPL 314125 Contact Us For Availability
12
clip, glass (10) WPL 310706 Contact Us For Availability
12
Washer, Nylon WPL 312025 Contact Us For Availability
12
Trim, Shelf (Front) WPL 313614 Contact Us For Availability
12
Rivet, Pop (3) WPL 311928 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
13
Escutcheon, Thermostat WPL 311073 Contact Us For Availability
13
Trim, Shelf (Rear) WPL 313615 Contact Us For Availability
13
(Alt.) WPL 313075 Contact Us For Availability
13
(Alt.) WPL 313123 Contact Us For Availability
13
Switch, Miniature WPL 661144 Contact Us For Availability
13
Plug Button WPL 257314 Contact Us For Availability
14
Baffle, Heat WPL 309056 Contact Us For Availability
14
Pulley, Stirrer Blade WPL 311923 Contact Us For Availability
15
``E`` Ring WPL 311999 Contact Us For Availability
15
Frame, Door WPL 3170441 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
16
Handle, Oven Door WPL 312721 Contact Us For Availability
16
Door, Inner WPL 330451 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
17
Clip (2) WPL 314235 Contact Us For Availability
17
Channel Arm (2) WPL 329713 Contact Us For Availability
17
Snap Bushing WPL 309552 Contact Us For Availability
18
Side Panel, R.H. WPL 3147492 Contact Us For Availability
18
Side Panel, L.H. WPL 3147493 Contact Us For Availability
19
Socket, Complete WPL 330514 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
20
Stirrer Cover WPL 313563 Contact Us For Availability
20
Panel, Top WPL 3147495 Contact Us For Availability
21
Clip (2) WPL 311311 Contact Us For Availability
23
Tube, Vent WPL 312697 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
24
Vent Tube WPL 312696 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
25
Screw 8BT x 1/4 (2) WPL 254225 Contact Us For Availability
25
Support, Vent Tube WPL 312698 Contact Us For Availability
27
Screw, 10-32 x 5/8 (4) WPL 246127 Contact Us For Availability
27
Unit, Broil (208V) WPL 312308 Contact Us For Availability
28
(Alt.) WPL 307856 Contact Us For Availability
28
(Alt.) WPL 310208 Contact Us For Availability
28
Socket, Oven Light WPL 660556 Contact Us For Availability
29
Baffle, Air WPL 3147003 Contact Us For Availability
29
Frame WPL 3170093 Contact Us For Availability
30
Seal, Foam WPL 3147599 Contact Us For Availability
30
Screw, 10A x 2 (4) WPL 161463 Contact Us For Availability
30
Latch Assembly WPL 329066 Contact Us For Availability
30
Cover, Light WPL 308039 Contact Us For Availability
31
Spring, Torsion (2) WPL 311352 Contact Us For Availability
31
Retainer, Light WPL 308038 Contact Us For Availability
31
Grill, Air WPL 314032 Contact Us For Availability
32
rack, wire WPL 313663 Contact Us For Availability
32
Handle, Door WPL 314169 Contact Us For Availability
32
Coverplate WPL 311982 Contact Us For Availability
33
Screw (2) WPL 311056 Contact Us For Availability
33
Latch Assembly WPL 328585 Contact Us For Availability
34
Spring, Compression WPL 310197 Contact Us For Availability
34
Safety Switch WPL 308185 Contact Us For Availability
34
Screw WPL 98106 Contact Us For Availability
34
Cover, Rear WPL 3147491 Contact Us For Availability
35
WPL 309245 WPL 309245 Contact Us For Availability
35
Nut (3) WPL 3147378 Contact Us For Availability
36
Motor WPL 313641 Contact Us For Availability
36
WPL 309258 WPL 309258 Contact Us For Availability
36
WPL 313035 WPL 313035 Contact Us For Availability
37
Pulley, Motor WPL 311922 Contact Us For Availability
37
Screw, 8-32 x 7/16 (2) WPL 313820 Contact Us For Availability
37
WPL 308422 WPL 308422 Contact Us For Availability
37
WPL 310825 WPL 310825 Contact Us For Availability
37
Seal, Foam (2) WPL 3147750 Contact Us For Availability
38
WPL 246135 WPL 246135 Contact Us For Availability
38
Jack, Probe WPL 3147071 Contact Us For Availability
38
End Cap WPL 3147521 Contact Us For Availability
38
WPL 311253 WPL 311253 Contact Us For Availability
38
Seal, Foam (2) WPL 3147595 Contact Us For Availability
39
WPL 310345 WPL 310345 Contact Us For Availability
39
Seal, Foam (2) WPL 3147596 Contact Us For Availability
40
Bracket, Motor WPL 313601 Contact Us For Availability
40
WPL 307748 WPL 307748 Contact Us For Availability
40
Washer Probe WPL 313105 Contact Us For Availability
40
Screw, 8-32 x 5/16 (5) WPL 313823 Contact Us For Availability
40
WPL 312320 WPL 312320 Contact Us For Availability
40
Bushing, Snap WPL 3147647 Contact Us For Availability
41
Nut WPL 313104 Contact Us For Availability
43
Wheel, Blower WPL 3147223 Contact Us For Availability
45
(Alt.) WPL 313044 Contact Us For Availability
45
(Alt.) WPL 313527 Contact Us For Availability
45
Probe, Temperature WPL 661164 Contact Us For Availability
46
Fuse, Thermal WPL 313855 Contact Us For Availability
47
screw (2) WPL 313818 Contact Us For Availability
47
Sensor, Gas WPL 3147060 Contact Us For Availability
47
WPL 309029 WPL 309029 Contact Us For Availability
47
WPL 310668 WPL 310668 Contact Us For Availability
48
Screw, 8-32 x 1/2 (4) WPL 313816 Contact Us For Availability
48
Cover, Side WPL 3147004 Contact Us For Availability
49
Support (4) WPL 313739 Contact Us For Availability
50
Plate, Tuning WPL 313735 Contact Us For Availability
52
WPL 310459 WPL 310459 Contact Us For Availability
53
WPL 308043 WPL 308043 Contact Us For Availability
54
Jumper, High boltage Black 6-15/16`` WPL 312793 Contact Us For Availability
54
WPL 310458 WPL 310458 Contact Us For Availability
55
Jumper, High Voltage Black 6-5/16`` WPL 313130 Contact Us For Availability
55
WPL 311592 WPL 311592 Contact Us For Availability
56
WPL 311012 WPL 311012 Contact Us For Availability
58
High Voltage Lead, Gray 7-11/16`` (2) WPL 3147863 Contact Us For Availability
61
Extentsion, Air Duct WPL 3147262 Contact Us For Availability
61
WPL 308173 WPL 308173 Contact Us For Availability
62
WPL 308172 WPL 308172 Contact Us For Availability
× ![]()
