Model Whirlpool RM288PXP1 – Common Parts & Diagrams

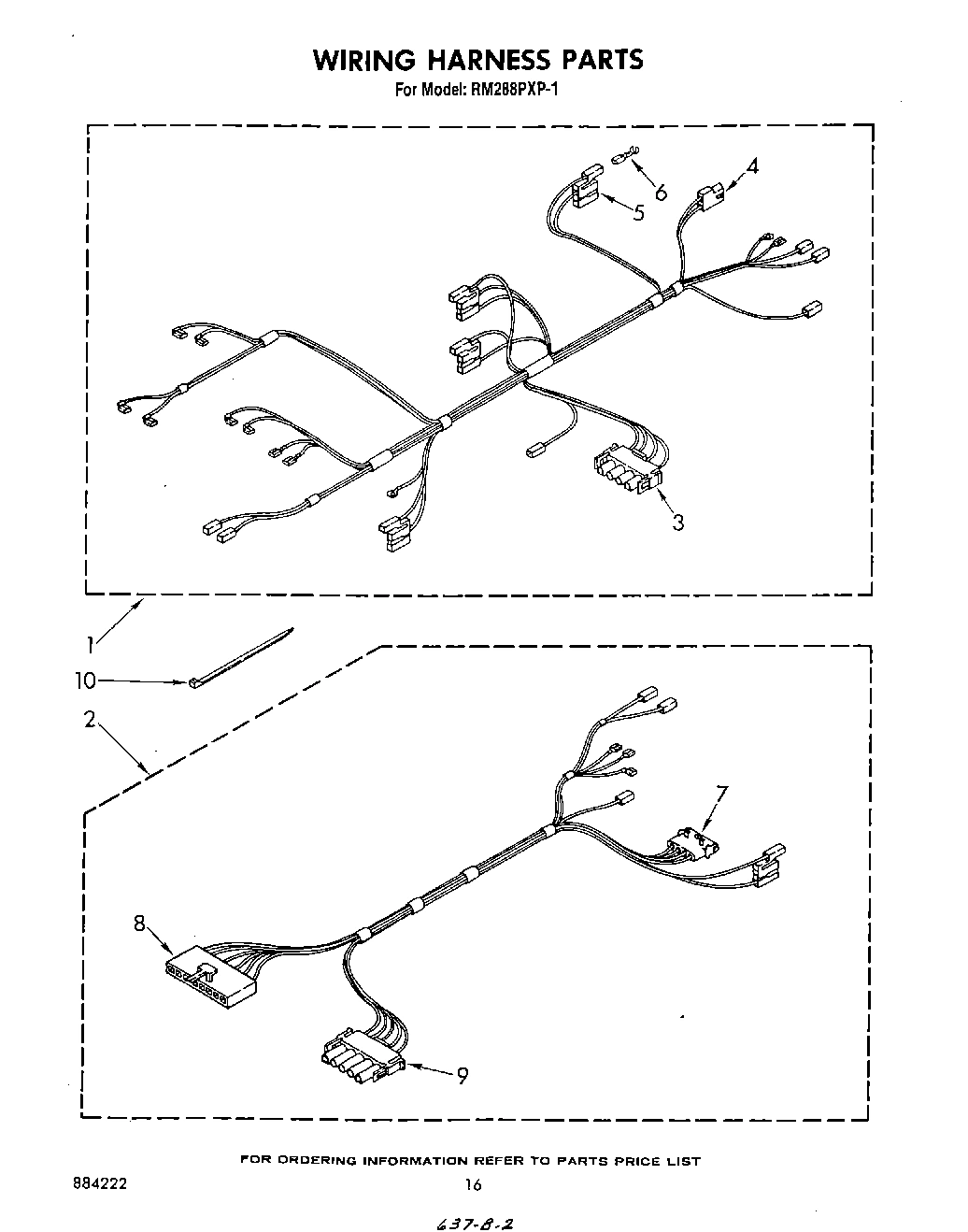

10 - WIRING HARNESS , LITERATURE AND OPTIONAL

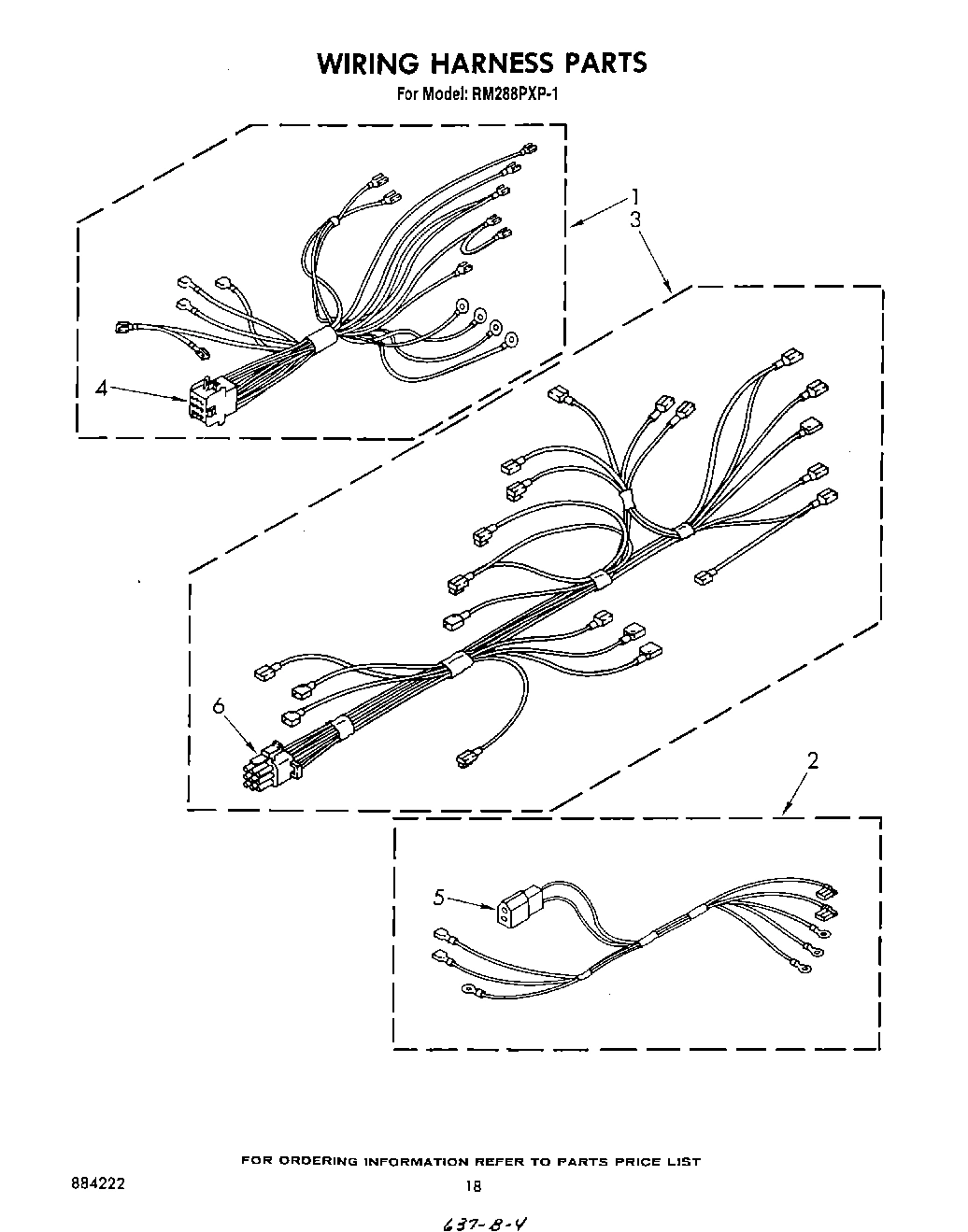

11 - SECTION

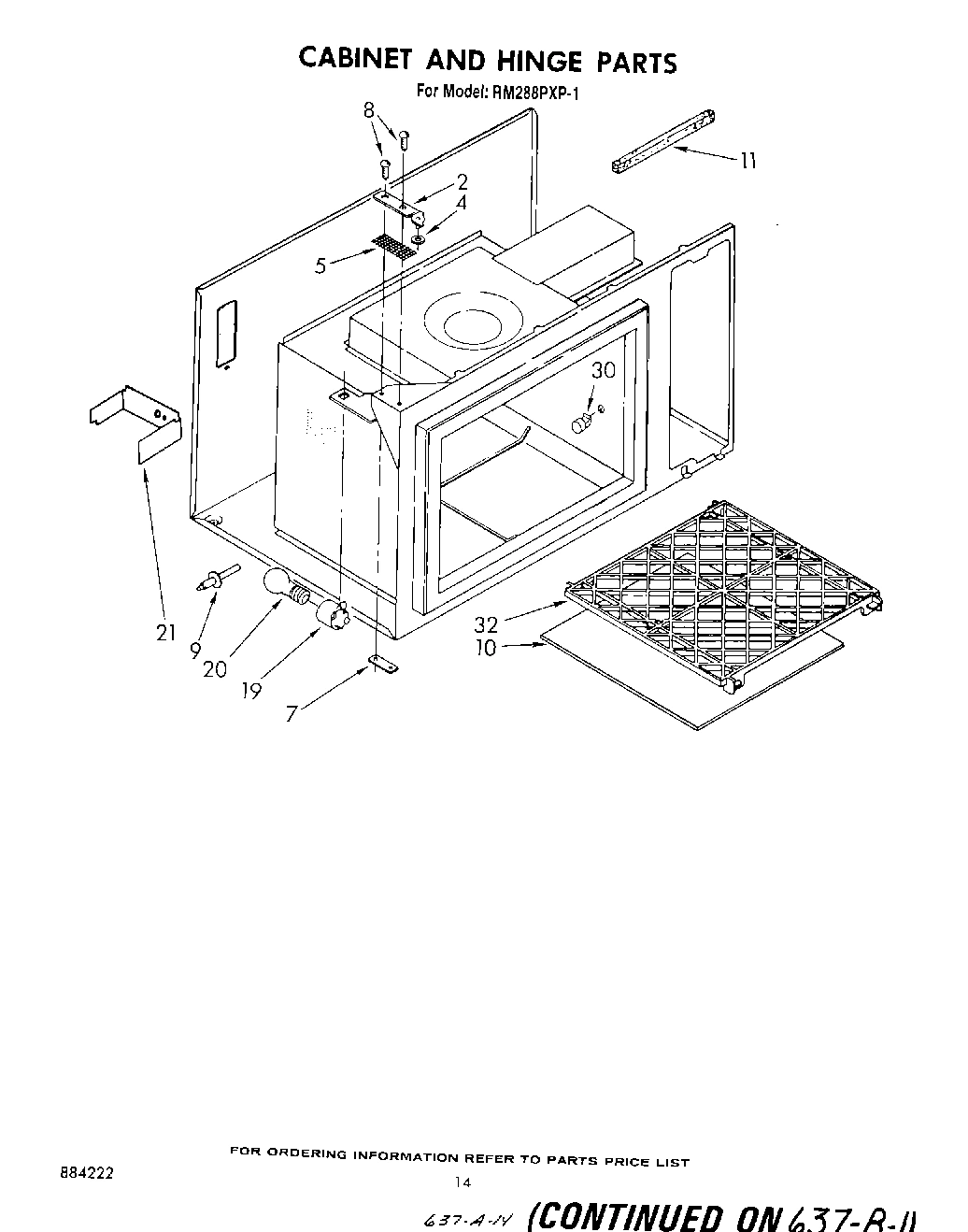

08 - CABINET AND HINGE

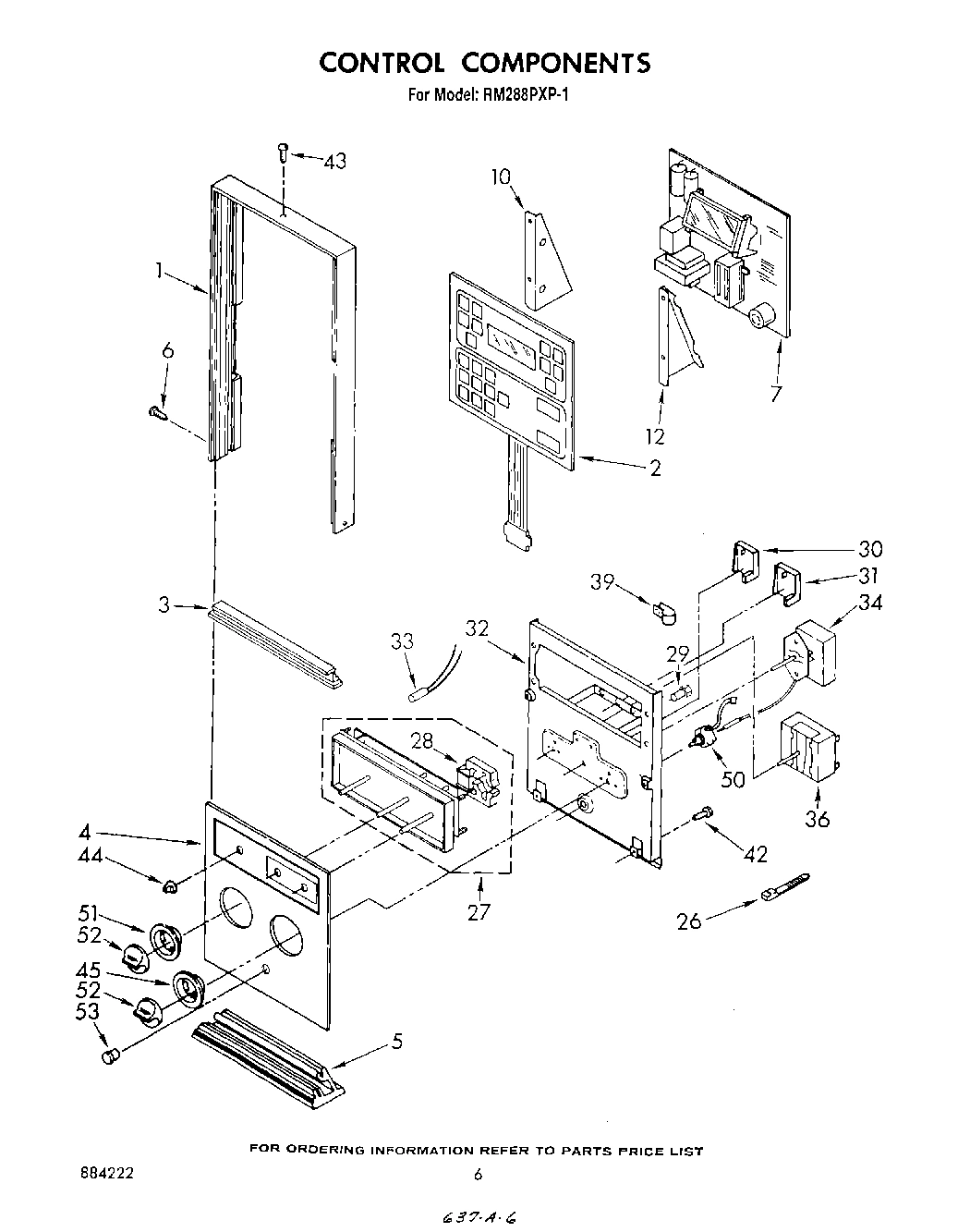

04 - CONTROL COMPONENTS

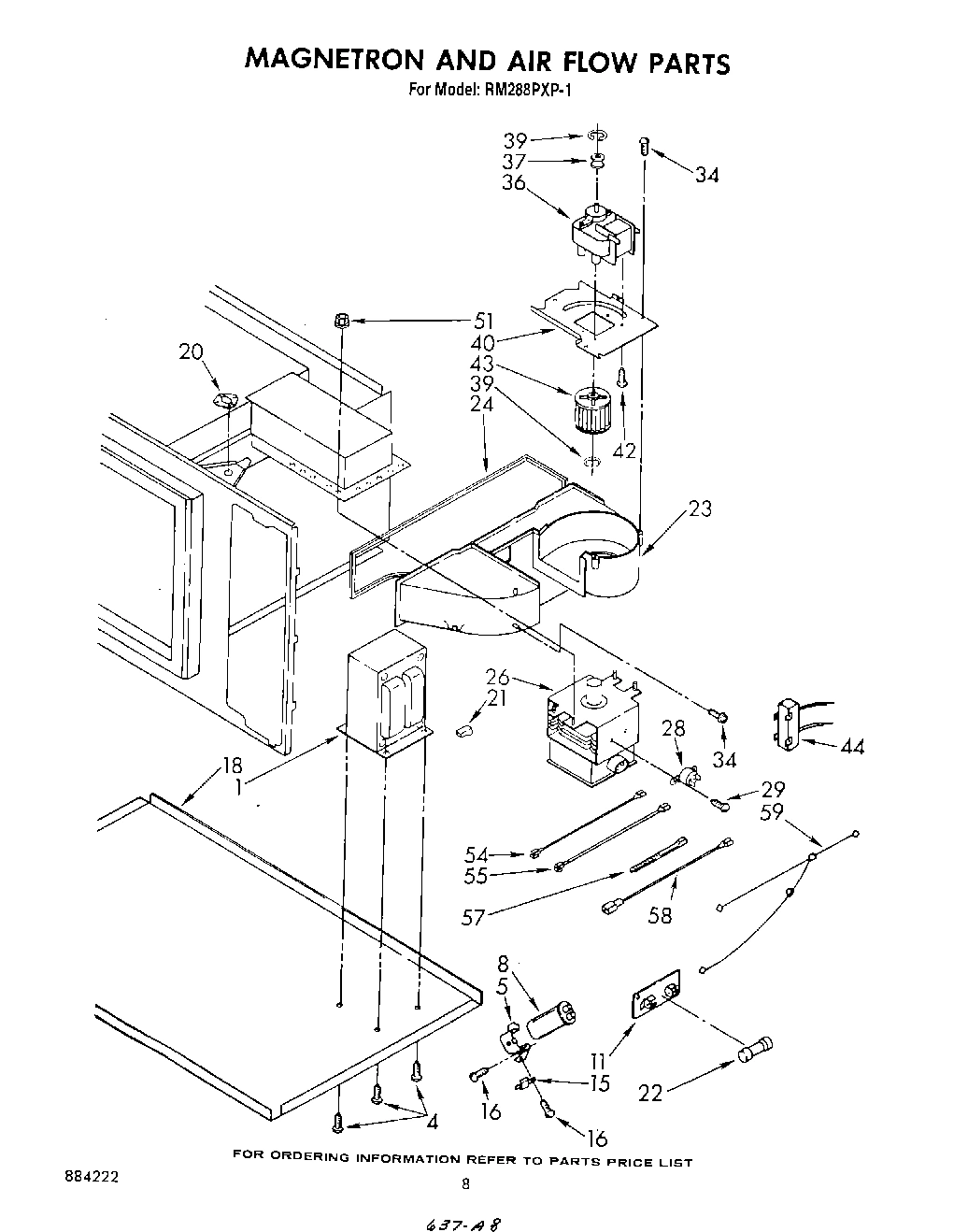

05 - MAGNETRON AND AIR FLOW

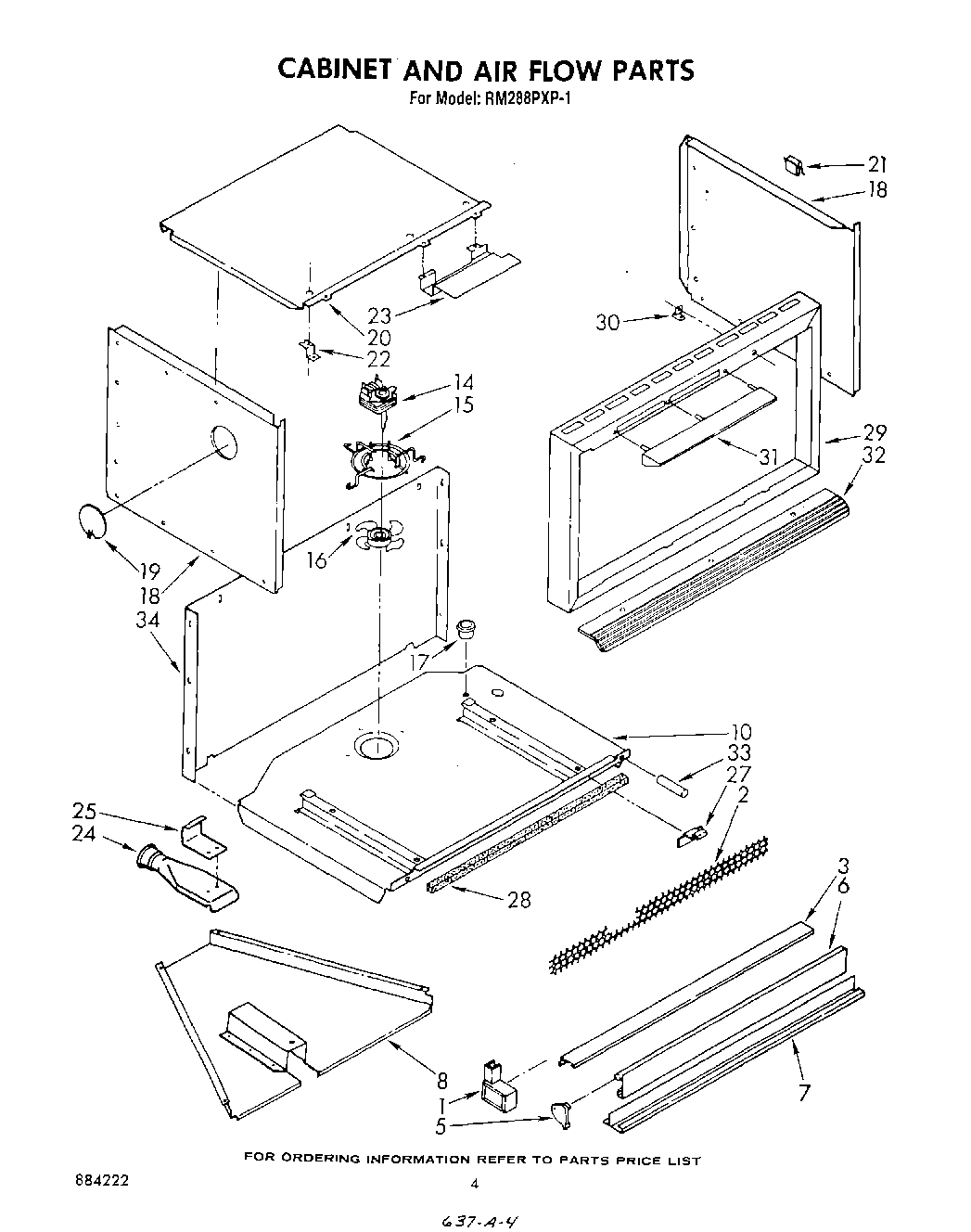

03 - CABINET AND AIR FLOW

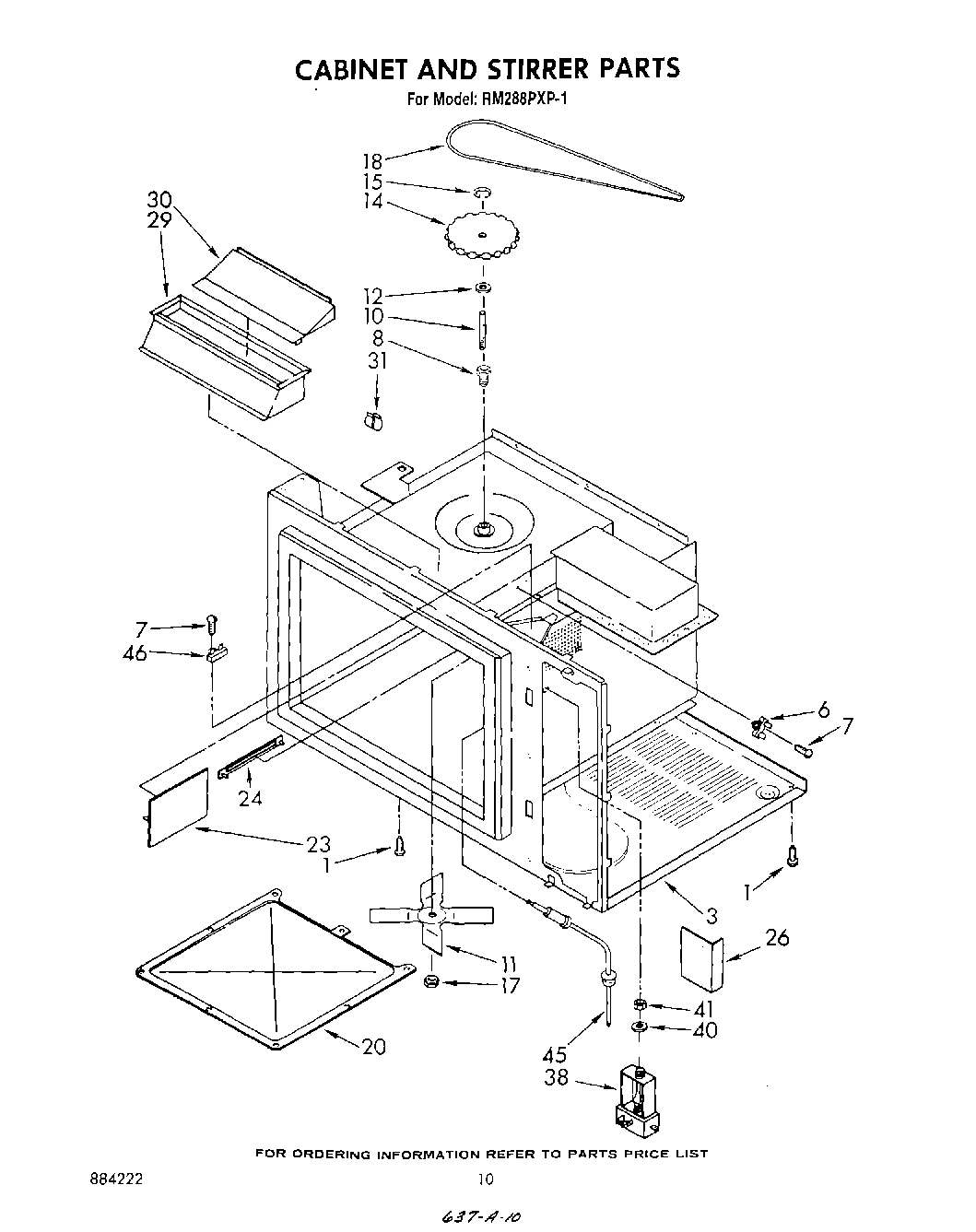

06 - CABINET AND STIRRER

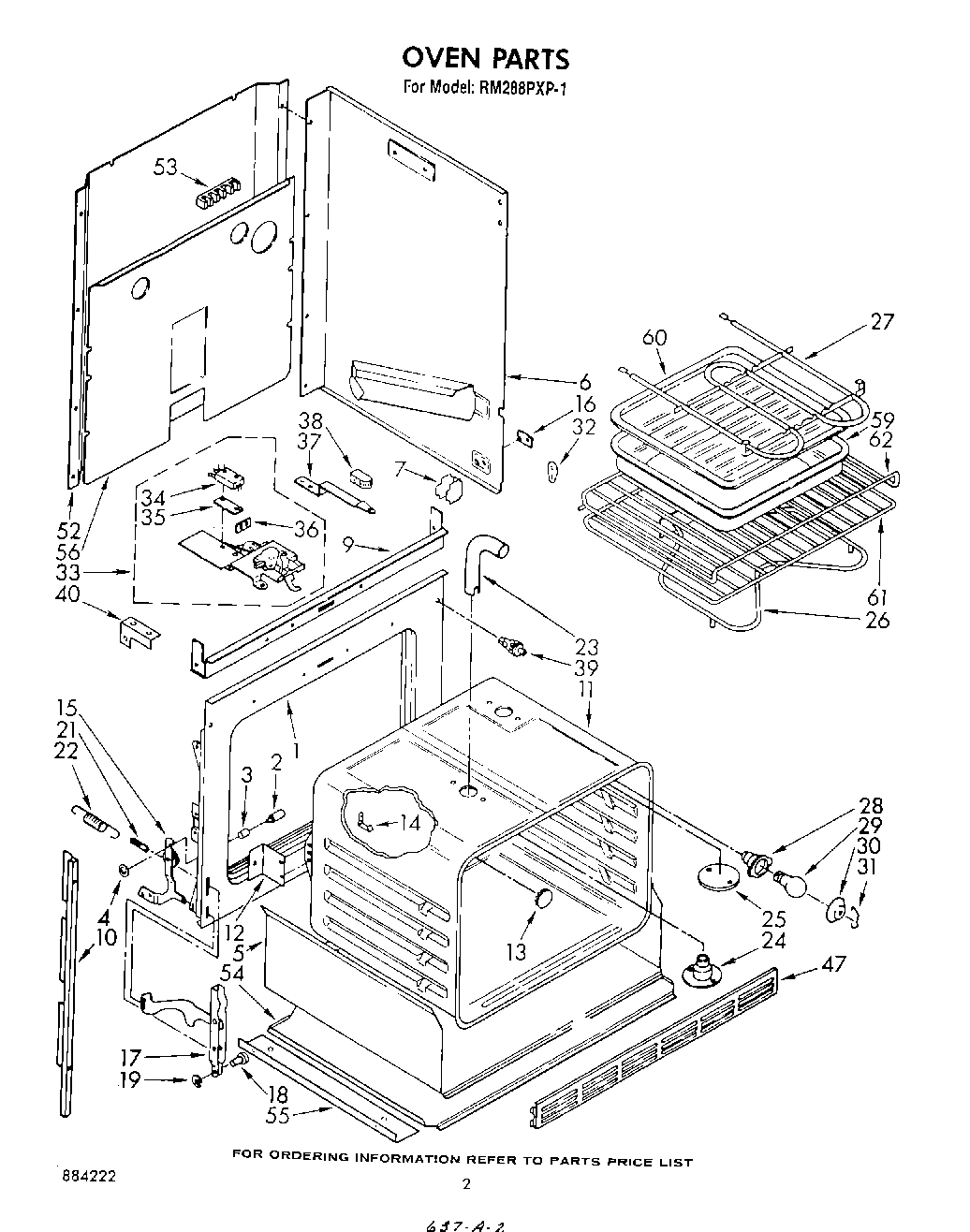

02 - OVEN

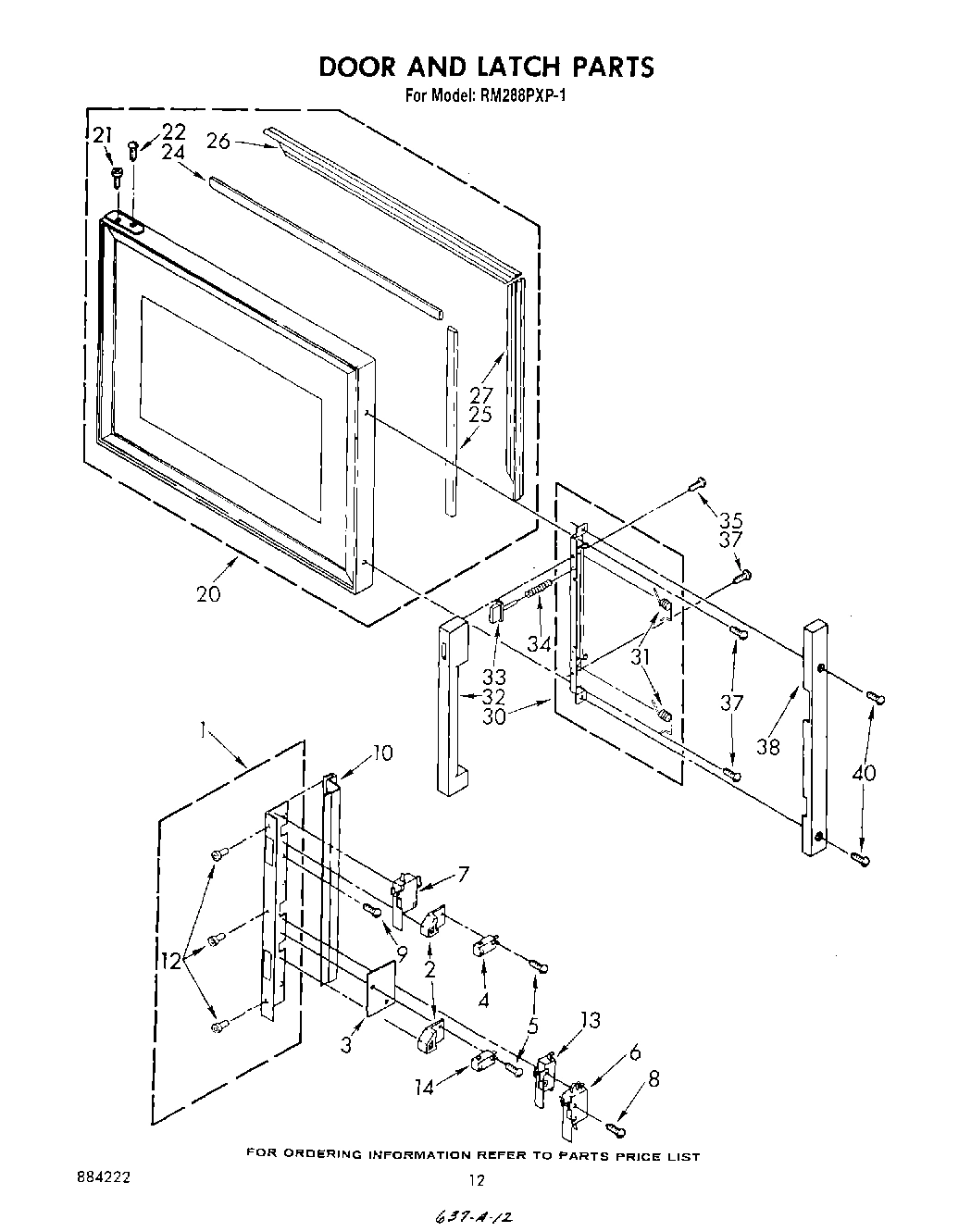

07 - DOOR AND LATCH

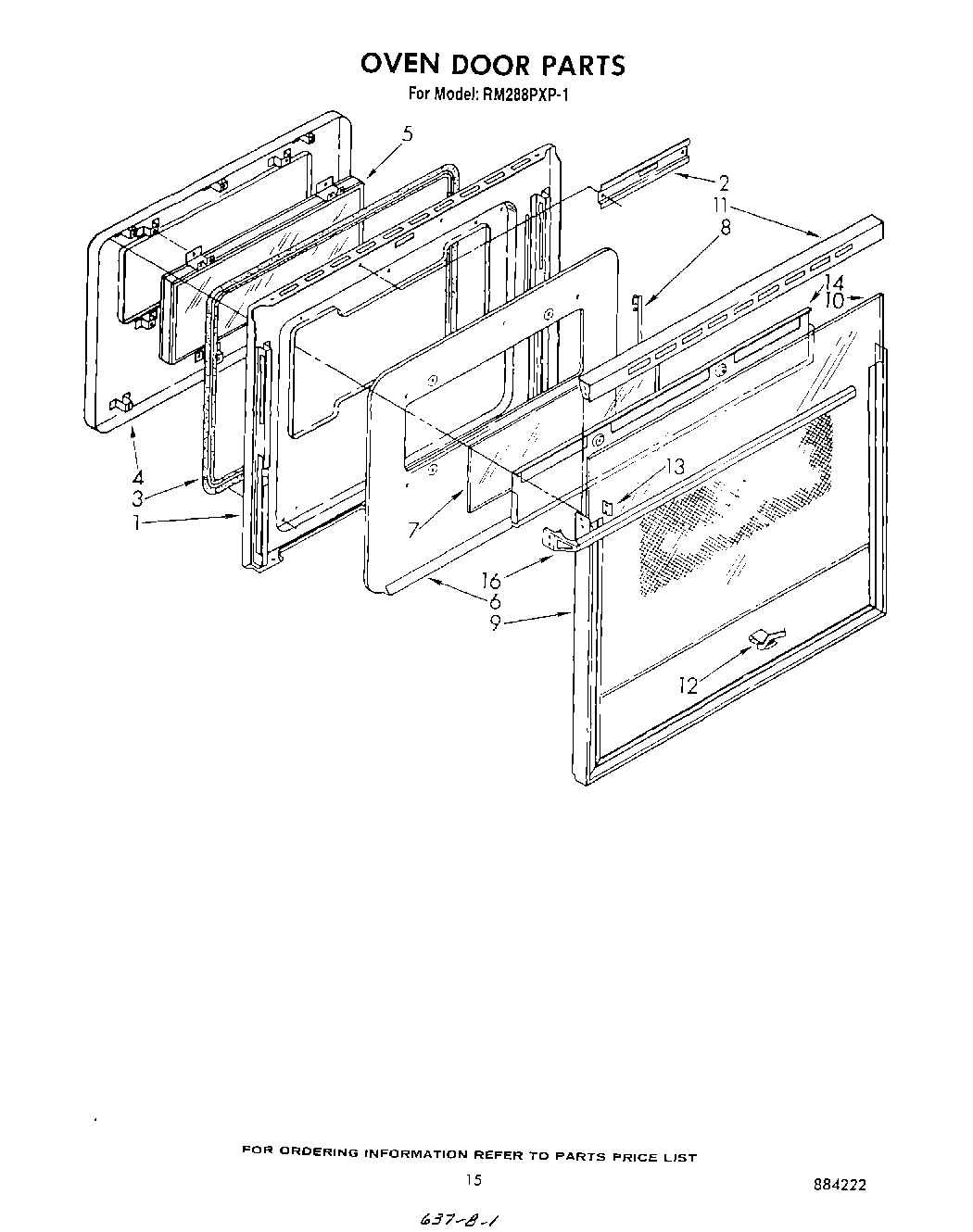

09 - OVEN DOOR
Common parts from model Whirlpool RM288PXP1
WPL 308043 WPL 308043 Contact Us For Availability
WPL 312308 WPL 312308 Contact Us For Availability
1
Harness, Wiring (Oven) WPL 311793 Contact Us For Availability
1
Screw, 8-32 x 3/8 WPL 312713 Contact Us For Availability
1
Frame, Control Panel WPL 312602 Contact Us For Availability
1
Transformer (Alt.) WPL 312848 Contact Us For Availability
1
Transformer (Alt.) WPL 312849 Contact Us For Availability
1
Transformer WPL 661056 Contact Us For Availability
1
End Cap, L.H. WPL 311649 Contact Us For Availability
1
End Cap, R.H. WPL 311650 Contact Us For Availability
1
Frame, Front WPL 328747 Contact Us For Availability
1
Screw (2) WPL 311056 Contact Us For Availability
1
Bracket, Catch WPL 311354 Contact Us For Availability
1
Liner, Door WPL 329694 Contact Us For Availability
2
Harness, Wiring (AC Supply) WPL 313465 Contact Us For Availability
2
Hinge Assembly (Bottom) WPL 330015 Contact Us For Availability
2
Hinge Assembly (Top) WPL 330016 Contact Us For Availability
2
Membrane, Switch WPL 313100 Contact Us For Availability
2
Trim, Oven Vent WPL 312432 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Catch (2) WPL 311795 Contact Us For Availability
2
Channel, Latch WPL 308033 Contact Us For Availability
2
Screw (2) WPL 311054 Contact Us For Availability
3
Harness, Wiring (Thermostat/ Selector) WPL 313418 Contact Us For Availability
3
Splice Panel WPL 312743 Contact Us For Availability
3
Screw, 6A x 3/8 WPL 246131 Contact Us For Availability
3
Trim, Top WPL 312446 Contact Us For Availability
3
Base, Cabinet (Not Serviceable) WPL ARI123534A Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Insulator, Switch WPL 313126 Contact Us For Availability
3
Seal, Fiberglass WPL 311904 Contact Us For Availability
4
Disconnect Block, Female WPL 309409 Contact Us For Availability
4
Washer, Flat WPL 312147 Contact Us For Availability
4
Seal, Foam WPL 308297 Contact Us For Availability
4
Control Panel, Glass WPL 313135 Contact Us For Availability
4
Screw, 10-32 x 1/2 Hex Washer W/Ground Ring ( WPL 312185 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Panel, Inner WPL 327898 Contact Us For Availability
5
Hinge, Shim Locking (2) WPL 312744 Contact Us For Availability
5
Bottom Cap, Control Panel WPL 312603 Contact Us For Availability
5
Bracket, Capacitor WPL 312619 Contact Us For Availability
5
End Trim, Vent (Left Side) WPL 310832 Contact Us For Availability
5
End Trim, Vent (Right Side) WPL 310833 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
5
Screw, 4-40 x 5/8 Pan Head Thread Form (4) WPL 312717 Contact Us For Availability
5
Window Package WPL 330038 Contact Us For Availability
6
Disconnect Block Male WPL 309406 Contact Us For Availability
6
Screw, No. 8 (2) WPL 348689 Contact Us For Availability
6
Door, Vent WPL 312447 Contact Us For Availability
6
Thermal Fuse (Includes Illus.7) WPL 313440 Contact Us For Availability
6
Side Wrapper (Right Side) WPL 311006 Contact Us For Availability
6
Side Wrapper (Left Side) WPL 311009 Contact Us For Availability
6
Switch, Light Monitor (Alt.) WPL 313076 Contact Us For Availability
6
Switch, Light Monitor (Alt.) WPL 313124 Contact Us For Availability
6
Switch, Light/ Monitor WPL 661145 Contact Us For Availability
6
Retainer, Insulation WPL 308021 Contact Us For Availability
7
Plate, Nut (2) WPL 312741 Contact Us For Availability
7
Board, Power Control WPL 61533 Contact Us For Availability
7
screw (2) WPL 342043 Contact Us For Availability
7
Screw, 10A x 1/2 (2) WPL 309100 Contact Us For Availability
7
Trim, Bottom WPL 311190 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Switch, Door WPL 313120 Contact Us For Availability
7
Glass (6.81`` x 18.31``) WPL 309842 Contact Us For Availability
8
Screw, 12-24 x 3/4 (4) WPL 312742 Contact Us For Availability
8
capacitor (alt.) WPL 312631 Contact Us For Availability
8
Capacitor (Alt.) WPL 312632 Contact Us For Availability
8
Capacitor WPL 661004 Contact Us For Availability
8
Box Air WPL 329829 Contact Us For Availability
8
Bushing, Stirrer WPL 312023 Contact Us For Availability
8
Screw, 4-40 x 10 (2) WPL 310211 Contact Us For Availability
8
Retainer, Glass WPL 309843 Contact Us For Availability
9
Rivet (3) WPL 313456 Contact Us For Availability
9
Baffle, Top Insulation WPL 310693 Contact Us For Availability
9
Screw, 8-32 x 3/8 Slot Hex Washer Head Self-T WPL 309080 Contact Us For Availability
9
Frame, Door WPL 310427 Contact Us For Availability
10
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
10
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
10
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
10
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
10
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
10
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
10
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
10
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
10
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
10
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
10
Touch-Up, Oven (Self-Clean) WPL 254323 Contact Us For Availability
10
Grease WPL 261582 Contact Us For Availability
10
Rotisserie Kit (RCK 79) WPL 261881 Contact Us For Availability
10
Harvest Gold WPL 261890 Contact Us For Availability
10
Harvest Gold WPL 261891 Contact Us For Availability
10
Toast WPL 285365 Contact Us For Availability
10
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
10
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
10
Platinum WPL 285368 Contact Us For Availability
10
Browning Tray (Micro) WPL 307677 Contact Us For Availability
10
Rack, Meat (Micro) WPL 310878 Contact Us For Availability
10
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
10
WPL 72112 WPL 72112 Contact Us For Availability
10
WPL 799340 WPL 799340 Contact Us For Availability
10
WPL 799832 WPL 799832 Contact Us For Availability
10
WPL 978883 WPL 978883 Contact Us For Availability
10
Shelf, Microwave (Alt.) WPL 311058 Contact Us For Availability
10
Shelf, Microwave (Alt.) (Install W/Silastic N WPL 312579 Contact Us For Availability
10
Shelf, Microwave WPL 660561 Contact Us For Availability
10
Bracket, P.C. Board WPL 313098 Contact Us For Availability
10
Support Plate WPL 329828 Contact Us For Availability
10
Shaft, Stirrer WPL 312026 Contact Us For Availability
10
Fastener (2) WPL 313740 Contact Us For Availability
10
Side Trim L.H. WPL 310685 Contact Us For Availability
10
Side Trim (R.H.) WPL 310689 Contact Us For Availability
10
shield WPL 311360 Contact Us For Availability
10
Glass, Outer WPL 309069 Contact Us For Availability
11
Seal, Foam WPL 313501 Contact Us For Availability
11
Block, Fuse WPL 309795 Contact Us For Availability
11
Screw, 10A x 1/2 (2) (Black) WPL 307748 Contact Us For Availability
11
Stirrer Blade WPL 309976 Contact Us For Availability
11
Oven (30`` Pyro) WPL 328756 Contact Us For Availability
11
Top, Door Frame WPL 310428 Contact Us For Availability
12
Bracket, P.C. Board WPL 313099 Contact Us For Availability
12
Washer, Nylon WPL 312025 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Rivet, Pop (3) WPL 311928 Contact Us For Availability
12
clip, glass (10) WPL 310706 Contact Us For Availability
13
Plug Button WPL 257314 Contact Us For Availability
13
Switch, Miniature (Alt.) WPL 313075 Contact Us For Availability
13
Switch, Miniature (Alt.) WPL 313123 Contact Us For Availability
13
Switch, Miniature WPL 661144 Contact Us For Availability
13
Clip (2) WPL 311506 Contact Us For Availability
14
Nut, 6-32 Hex (2) WPL 307602 Contact Us For Availability
14
Motor Fan (Alternate) WPL 310221 Contact Us For Availability
14
Motor, Fan (Alternate) WPL 310921 Contact Us For Availability
14
Motor Fan WPL 660544 Contact Us For Availability
14
Pulley, Stirrer Blade WPL 311923 Contact Us For Availability
14
Baffle, Heat WPL 309056 Contact Us For Availability
15
rectifier, high voltage (alt.) WPL 313831 Contact Us For Availability
15
rectifier, high voltage WPL 661171 Contact Us For Availability
15
``E`` Ring WPL 311999 Contact Us For Availability
15
Mount, Fan Motor WPL 310420 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
16
WPL 313415 WPL 313415 Contact Us For Availability
16
Blade, Fan WPL 307535 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
Handle, Oven Door WPL 312721 Contact Us For Availability
17
Snap Bushing WPL 308410 Contact Us For Availability
17
Channel Arm (2) WPL 329713 Contact Us For Availability
18
Base, Chassis (Not Serviceable) WPL ARI123533A Contact Us For Availability
18
Side Panel, L.H. WPL 311643 Contact Us For Availability
18
Side Panel, R.H. WPL 311644 Contact Us For Availability
18
Belt, Drive WPL 311958 Contact Us For Availability
19
Socket, Snap-In WPL 307519 Contact Us For Availability
19
Cover, Light WPL 311698 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
20
Thermostat WPL 311719 Contact Us For Availability
20
Panel, Top WPL 313470 Contact Us For Availability
20
Stirrer Cover WPL 313689 Contact Us For Availability
20
Door WPL 329630 Contact Us For Availability
21
Shield, Lamp WPL 309554 Contact Us For Availability
21
Housing Receptacle WPL 312813 Contact Us For Availability
21
Clip (2) WPL 311311 Contact Us For Availability
21
Clip (3) WPL 338177 Contact Us For Availability
22
Bracket, Support WPL 311696 Contact Us For Availability
23
Air Duct (Horizontal) WPL 312614 Contact Us For Availability
23
Probe, Shield WPL 311687 Contact Us For Availability
23
Cover WPL 307516 Contact Us For Availability
23
Tube, Vent WPL 312697 Contact Us For Availability
24
Vent Tube WPL 312696 Contact Us For Availability
24
Cover, Rivet WPL 309437 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
24
Seal, Top & Bottom (2) (Alternate) WPL 311342 Contact Us For Availability
24
Seal, Top & Bottom (2) (Alternate) WPL 311634 Contact Us For Availability
24
Seal, Top & Bottom (2) WPL 660574 Contact Us For Availability
25
Screw 8BT x 1/4 (2) WPL 254225 Contact Us For Availability
25
Support, Vent Tube WPL 312698 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
25
Seal, Sides (Alternate) WPL 311343 Contact Us For Availability
25
Seal, Sides (Alternate) WPL 311635 Contact Us For Availability
25
Seal, Sides WPL 660575 Contact Us For Availability
26
Magnetron (Alt.) WPL 311992 Contact Us For Availability
26
Magnetron (Alt.) WPL 311993 Contact Us For Availability
26
Magnetron (Alt.) WPL 311994 Contact Us For Availability
26
Magnetron (Alt.) WPL 311995 Contact Us For Availability
26
Magnetron (Alt.) WPL 313034 Contact Us For Availability
26
Magnetron WPL 660595 Contact Us For Availability
26
Shield, Exhaust Probe WPL 312577 Contact Us For Availability
26
Retainer, Top & Bottom Seals (2) WPL 311340 Contact Us For Availability
27
Timer, Auto (Includes Illus. 28) WPL 309434 Contact Us For Availability
27
Bracket, Front Support WPL 311638 Contact Us For Availability
27
Screw, 10-32 x 5/8 (4) WPL 246127 Contact Us For Availability
27
Retain, Side Seal (2) WPL 311341 Contact Us For Availability
28
Motor, Timer WPL 308443 Contact Us For Availability
28
Thermal Protector (Alt.) WPL 312800 Contact Us For Availability
28
Thermal Protector (Alt.) WPL 313521 Contact Us For Availability
28
Thermal Protector WPL 661165 Contact Us For Availability
28
Seal Foam WPL 309814 Contact Us For Availability
28
Socket, Oven Light (Alt.) WPL 307856 Contact Us For Availability
28
Socket, Oven Light (Alt.) WPL 310208 Contact Us For Availability
28
Socket, Oven Light WPL 660556 Contact Us For Availability
29
Nut, Aluminum (4) WPL 309645 Contact Us For Availability
29
Screw, 6A x 3/8 (2) WPL 312782 Contact Us For Availability
29
Frame, Outer WPL 312600 Contact Us For Availability
29
Baffle, Air Exhaust WPL 309444 Contact Us For Availability
30
Screw, 10A x 2 (4) WPL 161463 Contact Us For Availability
30
Support, Shelf (4) WPL 311286 Contact Us For Availability
30
Switch, Broil WPL 310643 Contact Us For Availability
30
Bracket, Control Panel Mounting WPL 311697 Contact Us For Availability
30
Air Deflector WPL 311702 Contact Us For Availability
30
Cover, Light WPL 308039 Contact Us For Availability
30
Latch Assembly WPL 329065 Contact Us For Availability
31
Switch, Bake WPL 311585 Contact Us For Availability
31
Deflector, Air WPL 309499 Contact Us For Availability
31
Pushnut, Ziptwist (3) WPL 310953 Contact Us For Availability
31
Clip, Air Cover (3) WPL 311149 Contact Us For Availability
31
Retainer, Light WPL 308038 Contact Us For Availability
31
Spring, Torsion (2) WPL 311352 Contact Us For Availability
32
Shelf, Convenience WPL 311318 Contact Us For Availability
32
Bracket, Control Mounting WPL 329772 Contact Us For Availability
32
Hood, Lower Vent WPL 311700 Contact Us For Availability
32
Coverplate WPL 311982 Contact Us For Availability
32
Handle, Door WPL 312351 Contact Us For Availability
33
Indicator Light 250V (3) WPL 313494 Contact Us For Availability
33
Grommet, Plastic (2) WPL 311692 Contact Us For Availability
33
Screw, 10A x 1-5/8 (2) WPL 311699 Contact Us For Availability
33
WPL 328585 WPL 328585 Contact Us For Availability
33
Button, Door Handle WPL 312349 Contact Us For Availability
34
Thermostat, Oven (Lower) WPL 313530 Contact Us For Availability
34
Cover, Rear WPL 311651 Contact Us For Availability
34
WPL 308185 WPL 308185 Contact Us For Availability
34
WPL 98106 WPL 98106 Contact Us For Availability
34
Spring, Compression WPL 310197 Contact Us For Availability
35
WPL 309245 WPL 309245 Contact Us For Availability
35
Screw, 8-32 Fillister Head Thread Form WPL 311959 Contact Us For Availability
36
Screw, 8-32 x 3/16 (2) WPL 308119 Contact Us For Availability
36
Switch, Selector WPL 310006 Contact Us For Availability
36
Motor (Alt.) WPL 311998 Contact Us For Availability
36
Motor (Alt.) WPL 312478 Contact Us For Availability
36
Motor WPL 661000 Contact Us For Availability
36
WPL 309258 WPL 309258 Contact Us For Availability
36
WPL 313035 WPL 313035 Contact Us For Availability
37
Pulley, Motor WPL 311922 Contact Us For Availability
37
WPL 308422 WPL 308422 Contact Us For Availability
37
WPL 310825 WPL 310825 Contact Us For Availability
38
WPL 246135 WPL 246135 Contact Us For Availability
38
Jack, Probe WPL 313458 Contact Us For Availability
38
WPL 311253 WPL 311253 Contact Us For Availability
38
WPL 312350 WPL 312350 Contact Us For Availability
39
WPL 310345 WPL 310345 Contact Us For Availability
40
Bracket, Motor WPL 311916 Contact Us For Availability
40
Washer Probe WPL 313105 Contact Us For Availability
40
WPL 312320 WPL 312320 Contact Us For Availability
40
WPL 310210 WPL 310210 Contact Us For Availability
41
Nut WPL 313104 Contact Us For Availability
43
Screw, 8-32 x 1/2 WPL 312248 Contact Us For Availability
43
Wheel, Blower WPL 3147223 Contact Us For Availability
44
Spring (3) WPL 313311 Contact Us For Availability
44
Reed Relay (Alt.) WPL 312640 Contact Us For Availability
44
Reed Relay (Alt.) WPL 312784 Contact Us For Availability
44
Reed Relay WPL 661005 Contact Us For Availability
45
Escutcheon WPL 311073 Contact Us For Availability
45
Probe, Temperature (Alt.) WPL 313044 Contact Us For Availability
45
Probe, Temperature (Alt.) WPL 313527 Contact Us For Availability
45
Probe, Temperature WPL 661164 Contact Us For Availability
47
WPL 309029 WPL 309029 Contact Us For Availability
47
WPL 310668 WPL 310668 Contact Us For Availability
50
Switch, Push WPL 311441 Contact Us For Availability
51
Flange Nut (4) WPL 310300 Contact Us For Availability
52
WPL 310459 WPL 310459 Contact Us For Availability
53
Bezel Switch WPL 313030 Contact Us For Availability
54
Jumper, High Voltage (Black 6-5/16``) WPL 313129 Contact Us For Availability
54
WPL 310458 WPL 310458 Contact Us For Availability
55
Jumper, High Voltage Black 6-5/16`` WPL 313130 Contact Us For Availability
55
WPL 311592 WPL 311592 Contact Us For Availability
56
WPL 311012 WPL 311012 Contact Us For Availability
58
High Voltage Lead, Gray (7-11/16``) (2) WPL 313113 Contact Us For Availability
59
Screw 11-16 x 1/2 WPL 346893 Contact Us For Availability
59
Screw, 10-32 x 5/16 (2) WPL 166681 Contact Us For Availability
59
Clip WPL 312763 Contact Us For Availability
59
Cable, Support WPL 312764 Contact Us For Availability
61
WPL 308173 WPL 308173 Contact Us For Availability
62
WPL 308172 WPL 308172 Contact Us For Availability
× ![]()
