Model Whirlpool RM278PXL2 – Common Parts & Diagrams
08 - CABINET AND HINGE
03 - CABINET AND AIR FLOW

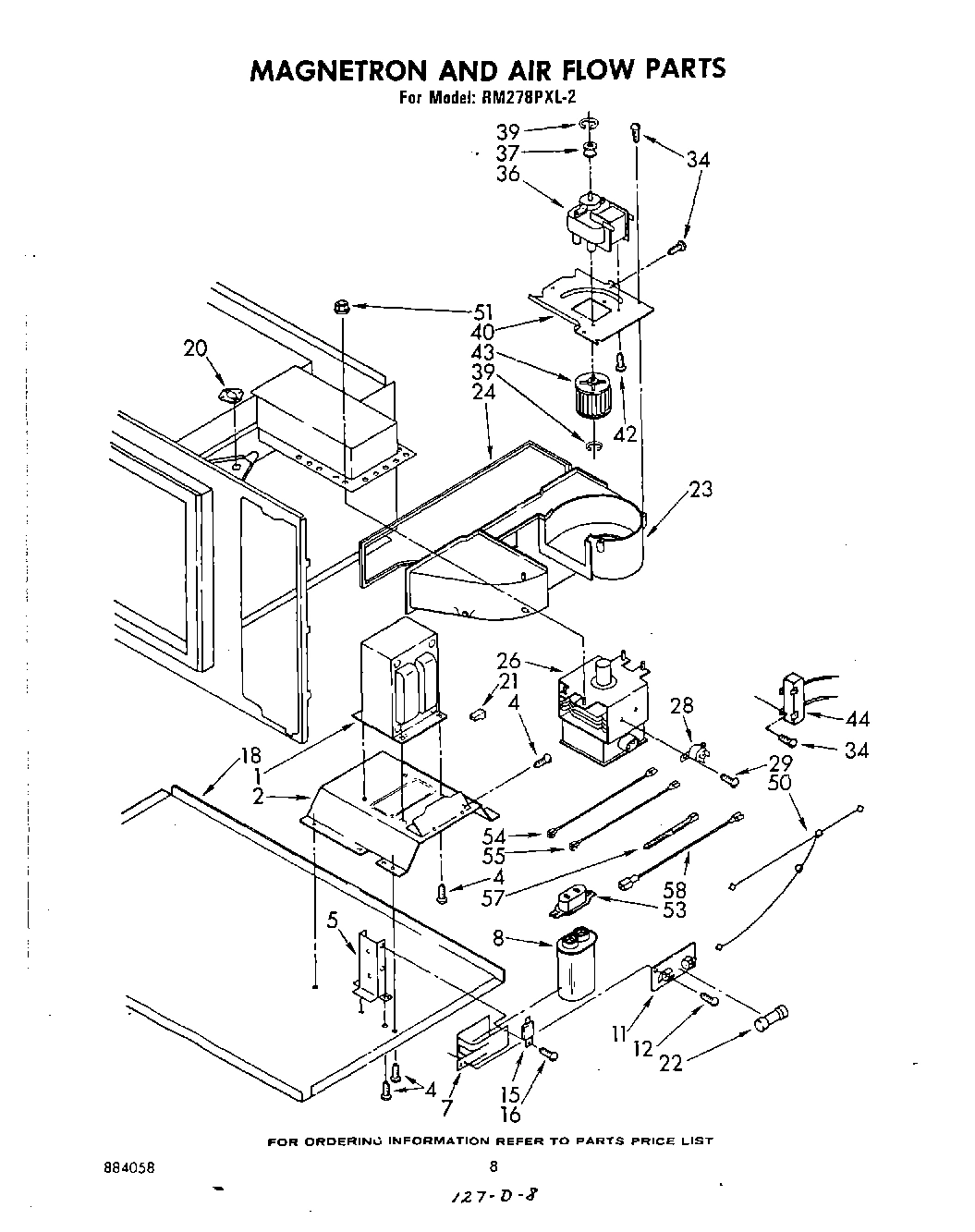

05 - MAGNETRON AND AIR FLOW

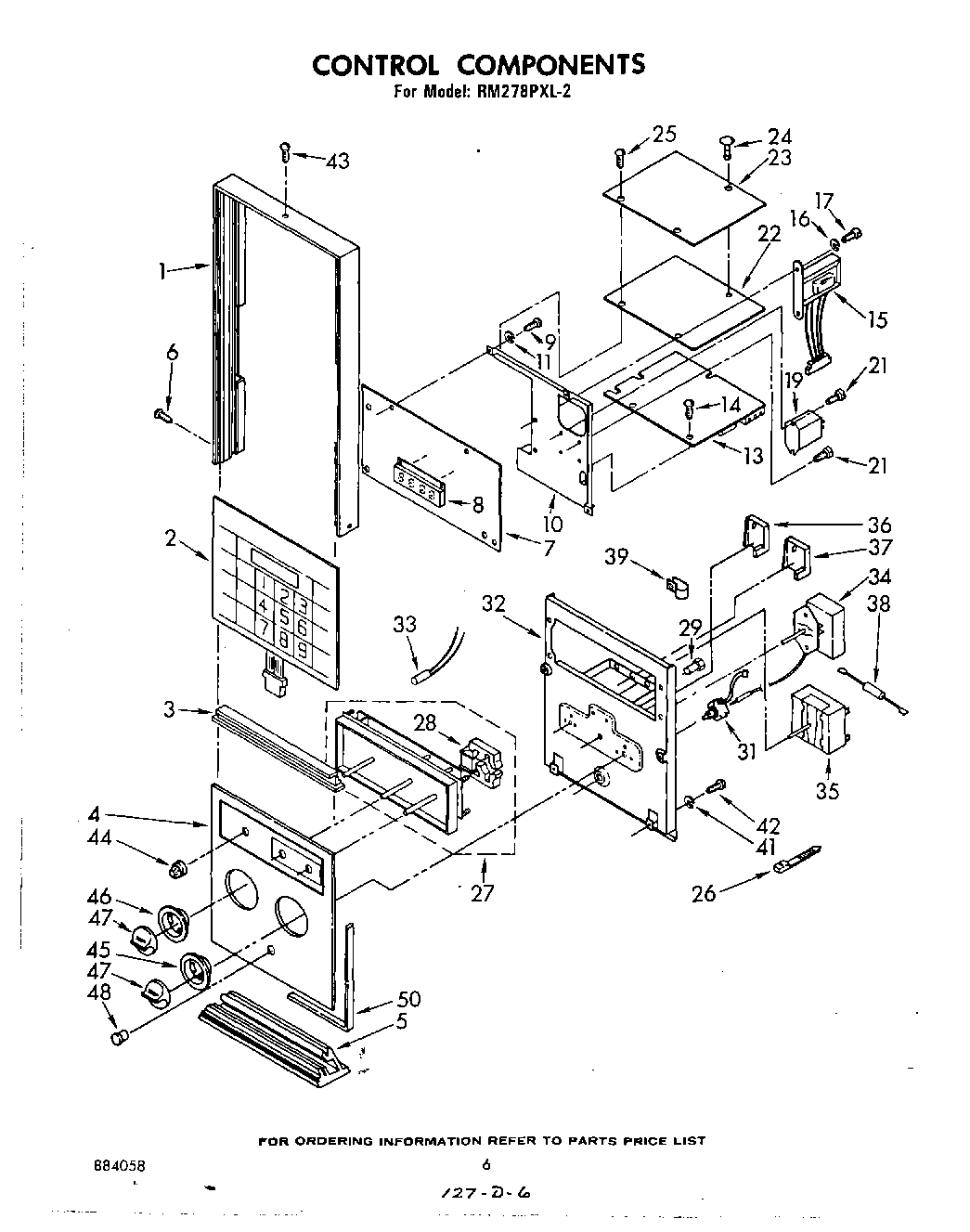

04 - CONTROL COMPONENTS

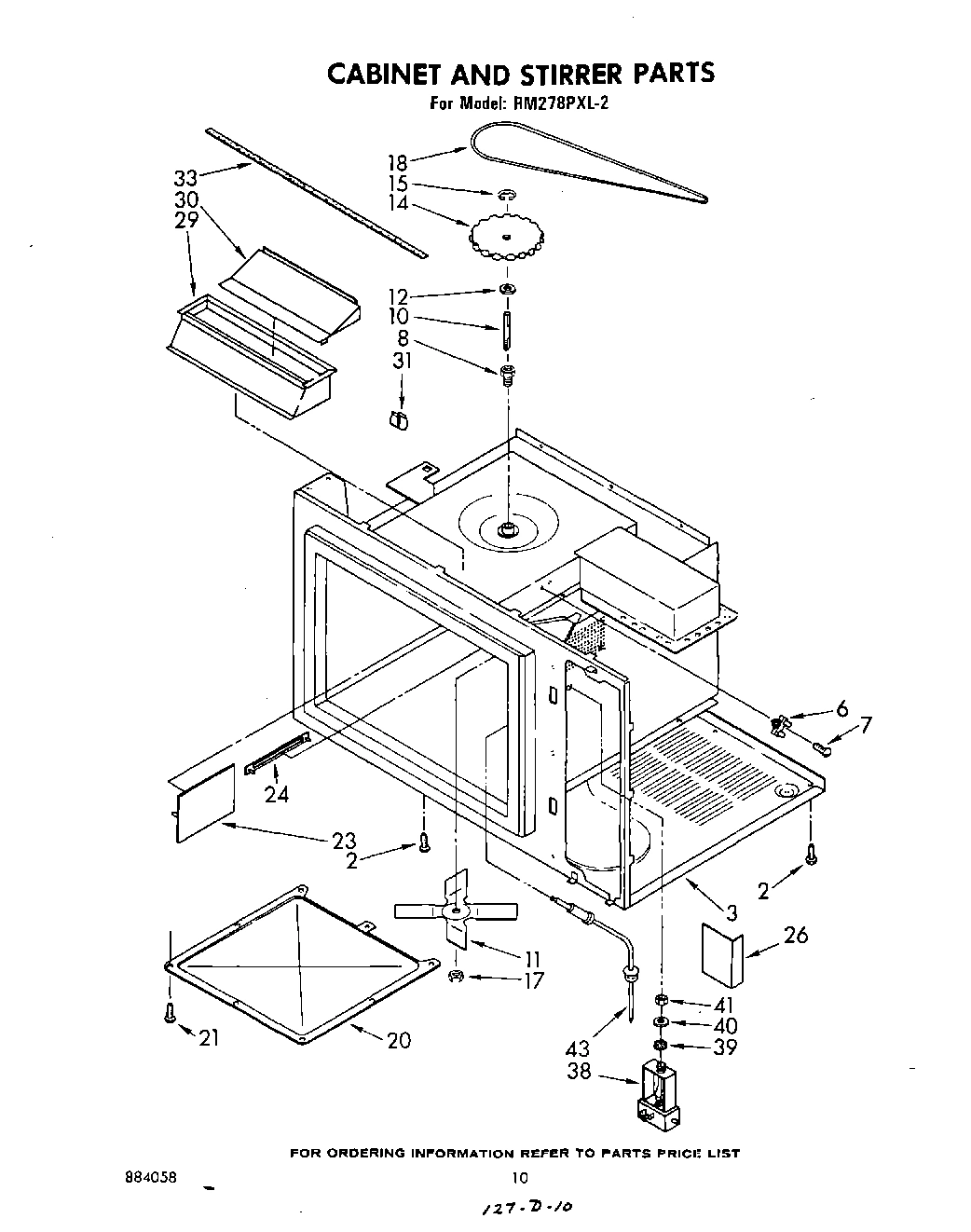

06 - CABINET AND STIRRER

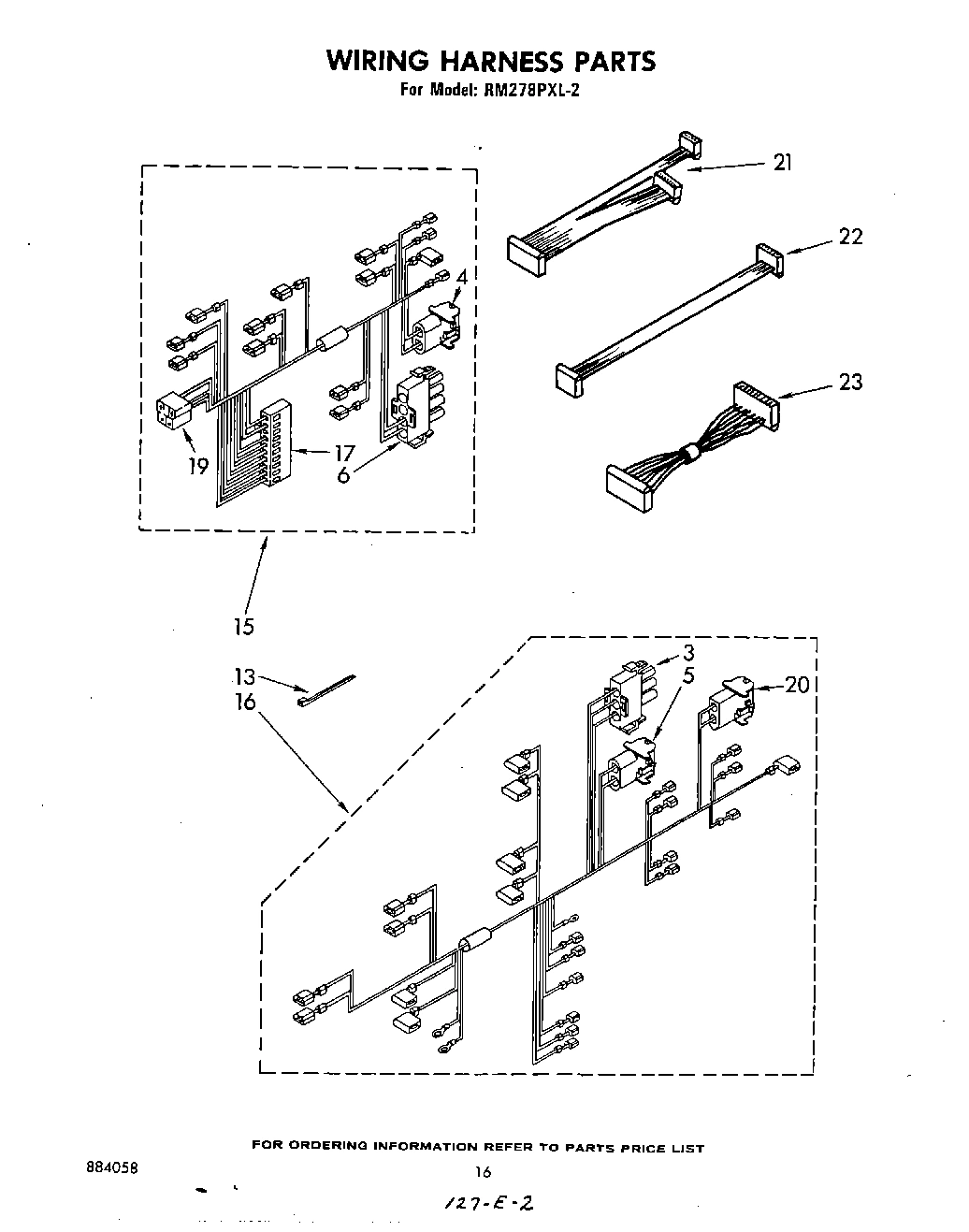

10 - WIRING HARNESS , LITERATURE AND OPTIONAL

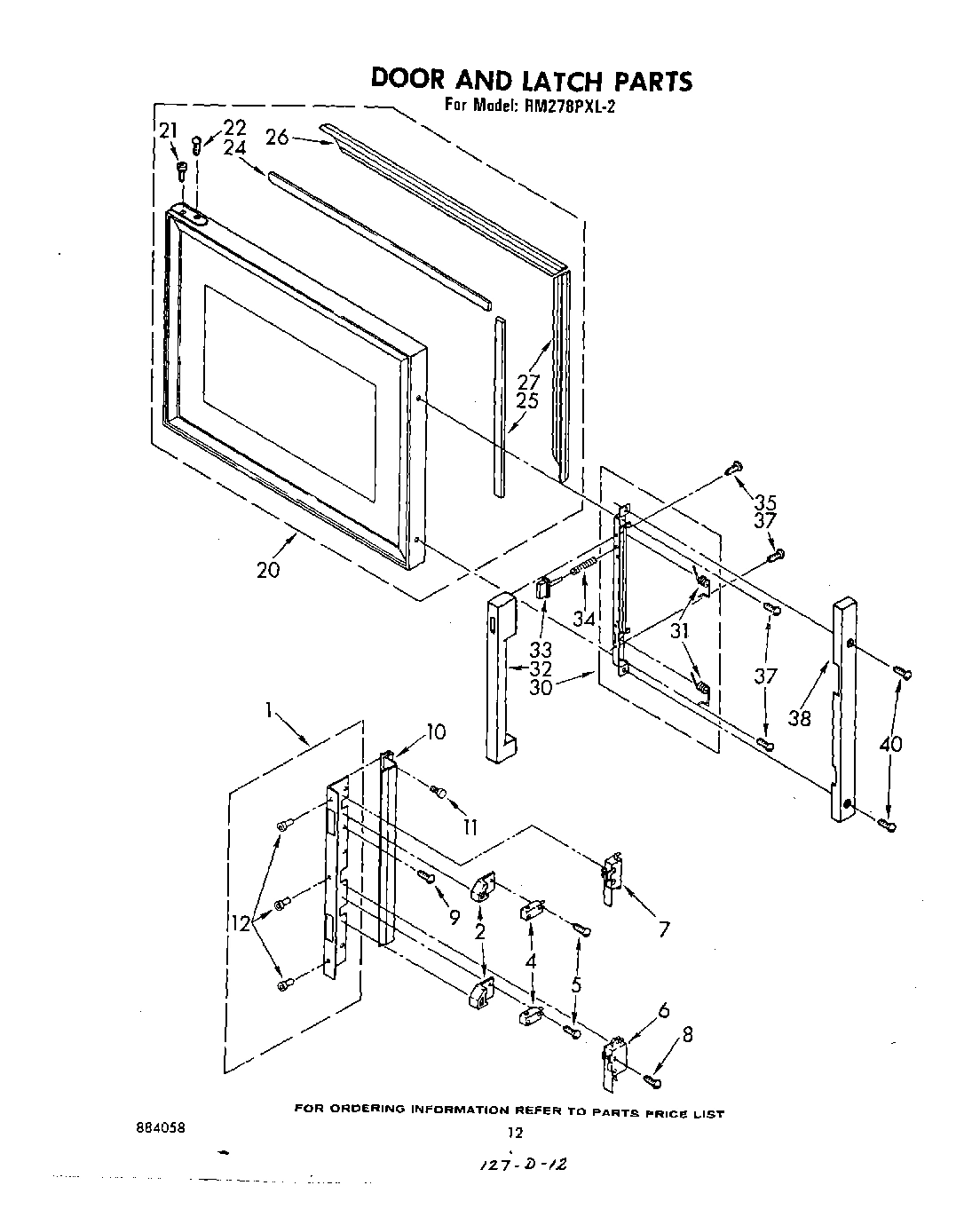

07 - DOOR AND LATCH

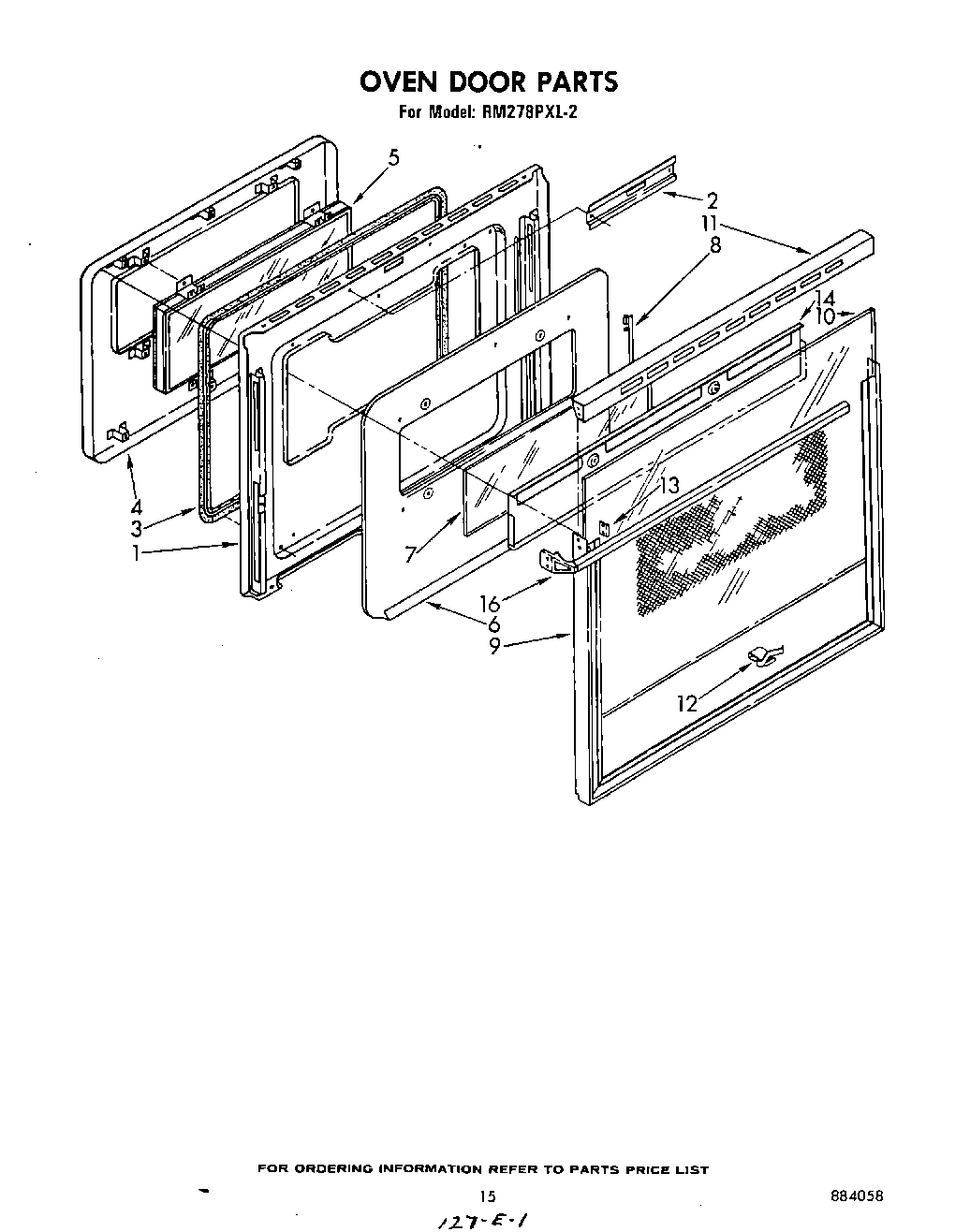

09 - OVEN DOOR

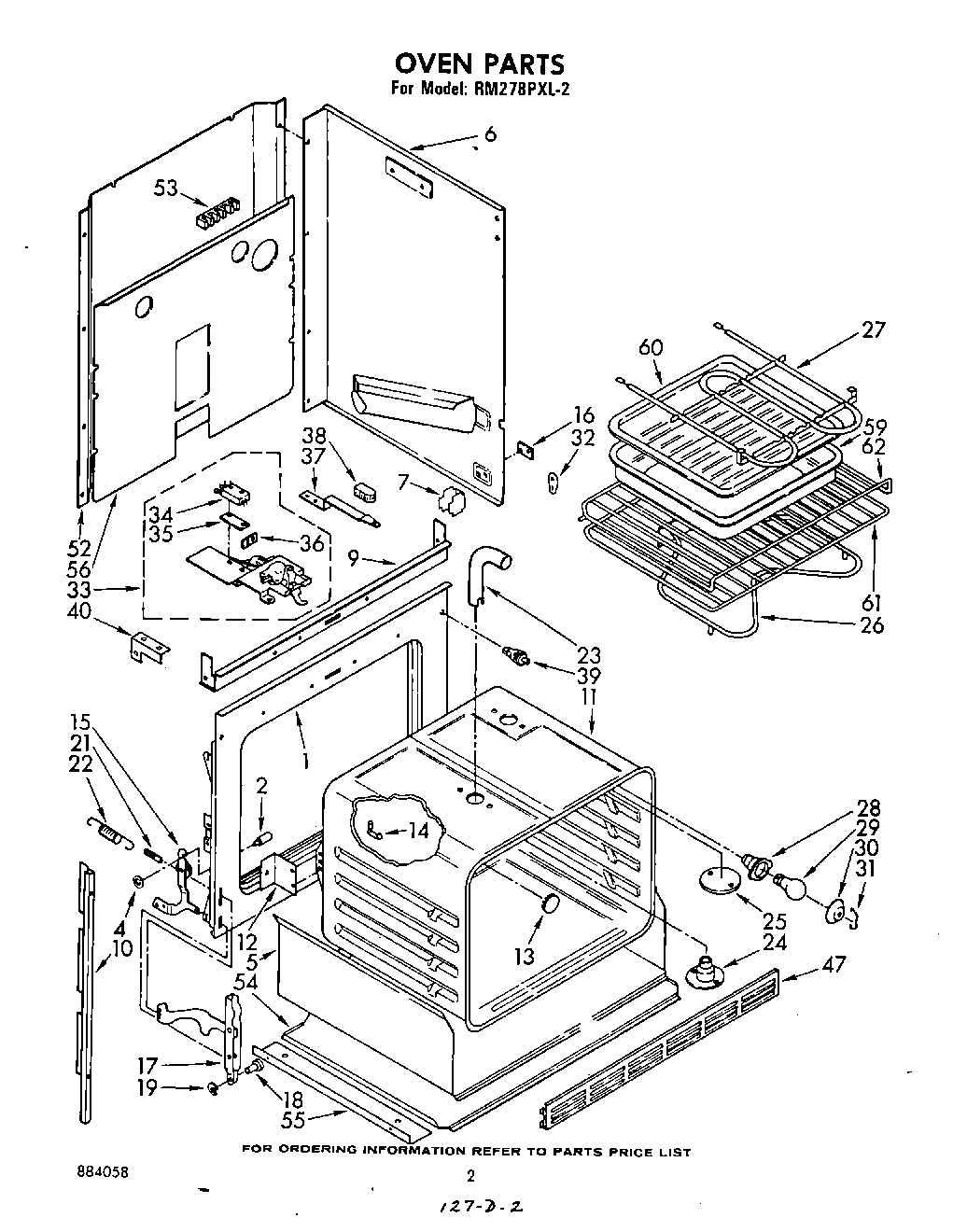

02 - OVEN
Common parts from model Whirlpool RM278PXL2
WPL 799344 WPL 799344 Contact Us For Availability
WPL 261891 WPL 261891 Contact Us For Availability
WPL 799340 WPL 799340 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
1
Transformer (Alternate) WPL 312848 Contact Us For Availability
1
Transformer (Alternate) WPL 312849 Contact Us For Availability
1
Frame, Control Panel WPL 312602 Contact Us For Availability
1
Bracket, Catch WPL 311354 Contact Us For Availability
1
Liner, Door WPL 329694 Contact Us For Availability
1
Frame, Front WPL 328747 Contact Us For Availability
2
Bracket, Transformer WPL 312645 Contact Us For Availability
2
Touch Module WPL 312618 Contact Us For Availability
2
Catch (2) WPL 311795 Contact Us For Availability
2
Channel, Latch WPL 308033 Contact Us For Availability
2
Screw (2) WPL 311054 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
3
Splice Panel WPL 312743 Contact Us For Availability
3
Base, Cabinet (Not Serviceable) WPL ARI123494A Contact Us For Availability
3
Plug, Circuit (4 Terminal) WPL 310958 Contact Us For Availability
3
Seal, Fiberglass WPL 311904 Contact Us For Availability
4
Screw, 10-32 x 1/2 Hex Washer W/Ground Ring ( WPL 312185 Contact Us For Availability
4
Control Panel, Glass WPL 312423 Contact Us For Availability
4
Plug, Circuit (2 Terminal) WPL 310957 Contact Us For Availability
4
Panel, Inner WPL 327898 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
5
End Trim, Vent (Right Side) WPL 310833 Contact Us For Availability
5
Bracket, Capacitor WPL 311917 Contact Us For Availability
5
Bottom Cap, Control Panel WPL 312603 Contact Us For Availability
5
Cap, Circuit (2 Terminal) WPL 310959 Contact Us For Availability
5
Screw, 4-40 x 3/4 Pan Head Thread Form (4) WPL 312717 Contact Us For Availability
5
Window Package WPL 309844 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
6
Door, Vent WPL 312447 Contact Us For Availability
6
Screw, No. 8 (2) WPL 348689 Contact Us For Availability
6
Thermal Fuse (Includes Illus. 7) WPL 309279 Contact Us For Availability
6
Cap, Circuit (4 Terminal) WPL 310960 Contact Us For Availability
6
Switch, Light/ Monitor WPL 311355 Contact Us For Availability
6
Retainer, Insulation WPL 308021 Contact Us For Availability
6
Side Wrapper (Right Side) WPL 311006 Contact Us For Availability
6
Side Wrapper (Left Side) WPL 311009 Contact Us For Availability
7
screw (2) WPL 342043 Contact Us For Availability
7
Screw, 10A x 1/2 (2) WPL 309100 Contact Us For Availability
7
Trim, Bottom WPL 311190 Contact Us For Availability
7
Strap, Capacitor WPL 311918 Contact Us For Availability
7
Screw, 8-32 x 3/8 WPL 312713 Contact Us For Availability
7
Display Assembly (Includes Illus. 8) WPL 61027 Contact Us For Availability
7
Clip (2) WPL 61053 Contact Us For Availability
7
Switch, Door WPL 311356 Contact Us For Availability
7
Glass (6.81`` x 18.31``) WPL 309842 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
8
Box Air WPL 329829 Contact Us For Availability
8
Capacitor (Alternate) WPL 312631 Contact Us For Availability
8
Capacitor (Alternate) WPL 312632 Contact Us For Availability
8
Display, Clock (Yellow) WPL 60776 Contact Us For Availability
8
Bushing, Stirrer WPL 312023 Contact Us For Availability
8
Retainer, Glass WPL 309843 Contact Us For Availability
9
Screw, 8-32 x 3/8 Slot Hex Washer Head Self-T WPL 309080 Contact Us For Availability
9
Frame, Door WPL 310427 Contact Us For Availability
9
Baffle, Top Insulation WPL 310693 Contact Us For Availability
10
Support Plate WPL 329828 Contact Us For Availability
10
Bracket, P.C. Board WPL 309485 Contact Us For Availability
10
Shaft, Stirrer WPL 312026 Contact Us For Availability
10
shield WPL 311360 Contact Us For Availability
10
Glass, Outer WPL 309069 Contact Us For Availability
10
Side Trim L.H. WPL 310685 Contact Us For Availability
10
Side Trim (R.H.) WPL 310689 Contact Us For Availability
11
Screw, 10A x 1/2 (2) (Black) WPL 307748 Contact Us For Availability
11
Fuseblock WPL 311941 Contact Us For Availability
11
Stirrer Blade WPL 309976 Contact Us For Availability
11
Fastener WPL 310423 Contact Us For Availability
11
Top, Door Frame WPL 310428 Contact Us For Availability
11
Oven (30`` Pyro) WPL 328756 Contact Us For Availability
12
Washer, Nylon WPL 312025 Contact Us For Availability
12
Rivet, Pop (3) WPL 311928 Contact Us For Availability
12
clip, glass (10) WPL 310706 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
13
Power Supply Assembly WPL 60792 Contact Us For Availability
13
Clip (2) WPL 311506 Contact Us For Availability
13
Plug Button WPL 257314 Contact Us For Availability
14
Motor Fan (Alternate) WPL 310221 Contact Us For Availability
14
Motor, Fan (Alternate) WPL 310921 Contact Us For Availability
14
Pulley, Stirrer Blade WPL 311923 Contact Us For Availability
14
Baffle, Heat WPL 309056 Contact Us For Availability
15
Nut, 6-32 Hex (2) WPL 307602 Contact Us For Availability
15
Mount, Fan Motor WPL 310420 Contact Us For Availability
15
Rectifier, High Voltage WPL 312482 Contact Us For Availability
15
``E`` Ring WPL 311999 Contact Us For Availability
15
Transformer & Harness Assembly WPL 60355 Contact Us For Availability
15
Harness Control Panel WPL 312556 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
16
Blade, Fan WPL 307535 Contact Us For Availability
16
Harness, Interlock WPL 312392 Contact Us For Availability
16
Handle, Oven Door WPL 312721 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
17
Snap Bushing WPL 308410 Contact Us For Availability
17
Connector, Board WPL 308566 Contact Us For Availability
17
Channel Arm (2) WPL 329713 Contact Us For Availability
18
Side Panel, L.H. WPL 311643 Contact Us For Availability
18
Side Panel, R.H. WPL 311644 Contact Us For Availability
18
Base, Chassis (Not Serviceable) WPL ARI123493A Contact Us For Availability
18
Belt, Drive WPL 311958 Contact Us For Availability
19
Cover, Light WPL 311698 Contact Us For Availability
19
Relay, Power (12V) (Alternate) WPL 310370 Contact Us For Availability
19
Relay, Power (12V) (Alternate) WPL 310372 Contact Us For Availability
19
Connector, Relay WPL 308568 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
20
Panel, Top WPL 311641 Contact Us For Availability
20
Thermostat WPL 311719 Contact Us For Availability
20
Cover, Stirrer WPL 309441 Contact Us For Availability
20
Disconnect Block WPL 717252 Contact Us For Availability
20
Door WPL 329629 Contact Us For Availability
21
Clip (2) WPL 311772 Contact Us For Availability
21
Housing Receptacle WPL 312813 Contact Us For Availability
21
Screw, 6 x 3/8 (2) WPL 309258 Contact Us For Availability
21
Display Harness WPL 312574 Contact Us For Availability
22
Bracket, Support WPL 311696 Contact Us For Availability
22
Microcomputer Assembly WPL 60779 Contact Us For Availability
22
Power Supply Harness WPL 312575 Contact Us For Availability
23
Probe, Shield WPL 311687 Contact Us For Availability
23
Air Duct (Horizontal) WPL 312614 Contact Us For Availability
23
Protector Assembly WPL 328430 Contact Us For Availability
23
Cover WPL 307516 Contact Us For Availability
23
Leveler, Enamel WPL 206925 Contact Us For Availability
23
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
23
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
23
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
23
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
23
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
23
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
23
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
23
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
23
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
23
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
23
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
23
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
23
Touch-Up, Oven WPL 254323 Contact Us For Availability
23
Grease WPL 261582 Contact Us For Availability
23
Rotisserie Kit WPL 261881 Contact Us For Availability
23
Harvest Gold WPL 261890 Contact Us For Availability
23
Browning Tray (Micro) WPL 307677 Contact Us For Availability
23
Book, Cooking Guide WPL 308500 Contact Us For Availability
23
Booklet, Probe WPL 309600 Contact Us For Availability
23
COOKBOOK (Microwave) WPL 310848 Contact Us For Availability
23
Rack, Meat (Micro) WPL 310878 Contact Us For Availability
23
Guide, Bi-Level Cooking WPL 310929 Contact Us For Availability
23
Installation Instructions WPL 311436 Contact Us For Availability
23
Use & Care Guide WPL 312412 Contact Us For Availability
23
Tech Sheet WPL 312415 Contact Us For Availability
23
Touch Harness WPL 312576 Contact Us For Availability
23
WPL 591014 WPL 591014 Contact Us For Availability
23
WPL 799351 WPL 799351 Contact Us For Availability
23
WPL 799832 WPL 799832 Contact Us For Availability
23
WPL 884058 WPL 884058 Contact Us For Availability
23
Tube, Vent WPL 312697 Contact Us For Availability
24
Vent Tube WPL 312696 Contact Us For Availability
24
Rivet WPL 310951 Contact Us For Availability
24
Cover, Rivet WPL 309437 Contact Us For Availability
24
Seal, Top & Bottom (2) (Alternate) WPL 311342 Contact Us For Availability
24
Seal, Top & Bottom (2) (Alternate) WPL 311634 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
25
Support, Vent Tube WPL 312698 Contact Us For Availability
25
Seal, Sides (Alternate) WPL 311343 Contact Us For Availability
25
Seal, Sides (Alternate) WPL 311635 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
26
Magnetron (Alternate) WPL 311992 Contact Us For Availability
26
Magnetron (Alternate) WPL 311993 Contact Us For Availability
26
Magnetron (Alternate) WPL 311994 Contact Us For Availability
26
Shield, Exhaust WPL 312577 Contact Us For Availability
26
Retainer, Top & Bottom Seals (2) WPL 311340 Contact Us For Availability
27
Screw, 10-24 x 1/2 (4) WPL 247326 Contact Us For Availability
27
Bracket, Front Support WPL 311638 Contact Us For Availability
27
Timer, Auto WPL 309434 Contact Us For Availability
27
Retain, Side Seal (2) WPL 311341 Contact Us For Availability
27
Unit, Broil (Screw, 10-32 x 5/8 (4)) WPL 246127 Contact Us For Availability
28
Seal Foam WPL 309814 Contact Us For Availability
28
Thermostat, Fixed WPL 307564 Contact Us For Availability
28
Motor, Timer WPL 308443 Contact Us For Availability
28
Socket, Oven Light (Alternate) WPL 307856 Contact Us For Availability
28
Socket, Oven Light (Alternate) WPL 310208 Contact Us For Availability
29
Frame, Outer WPL 312600 Contact Us For Availability
29
Screw, 6A x 3/8 (2) WPL 310410 Contact Us For Availability
29
Nut, Aluminum (4) WPL 309645 Contact Us For Availability
29
Baffle, Air Exhaust WPL 309444 Contact Us For Availability
30
Bracket, Control Panel Mounting WPL 311697 Contact Us For Availability
30
Air Deflector WPL 311702 Contact Us For Availability
30
Latch Assembly WPL 329065 Contact Us For Availability
30
Cover, Light WPL 308039 Contact Us For Availability
31
Deflector, Air WPL 309499 Contact Us For Availability
31
Pushnut, Ziptwist (3) WPL 310953 Contact Us For Availability
31
Switch, Push WPL 311441 Contact Us For Availability
31
Clip, Air Cover (3) WPL 311149 Contact Us For Availability
31
Spring, Torsion (2) WPL 311352 Contact Us For Availability
31
Retainer, Light WPL 308038 Contact Us For Availability
32
Hood, Lower Vent WPL 311700 Contact Us For Availability
32
Bracket, Control Mounting WPL 329772 Contact Us For Availability
32
Handle, Door WPL 312351 Contact Us For Availability
32
Coverplate WPL 311982 Contact Us For Availability
33
Grommet, Plastic (2) WPL 311692 Contact Us For Availability
33
Screw, 10A x 1-5/8 (2) WPL 311699 Contact Us For Availability
33
Indicator Light 250V (3) WPL 311550 Contact Us For Availability
33
Seal, Foam WPL 309813 Contact Us For Availability
33
Button, Door Handle WPL 312349 Contact Us For Availability
33
Screw (2) WPL 311056 Contact Us For Availability
33
Latch Assembly WPL 328585 Contact Us For Availability
34
Cover, Rear WPL 311651 Contact Us For Availability
34
Thermostat (Lower Oven) WPL 310020 Contact Us For Availability
34
screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability
34
S WPL 98106 Contact Us For Availability
34
Spring, Compression WPL 310197 Contact Us For Availability
34
Safety Switch WPL 308185 Contact Us For Availability
35
Screw, 8-32 x 3/16 WPL 308119 Contact Us For Availability
35
Selector Switch WPL 310006 Contact Us For Availability
35
Screw, 8-32 Fillister Head Thread Form WPL 311959 Contact Us For Availability
35
WPL 309245 WPL 309245 Contact Us For Availability
36
Motor, Fan (Alternate) WPL 311998 Contact Us For Availability
36
Motor, Fan (Alternate) WPL 312478 Contact Us For Availability
36
Switch, Broil WPL 310643 Contact Us For Availability
36
WPL 310100 WPL 310100 Contact Us For Availability
37
Pulley, Motor WPL 311922 Contact Us For Availability
37
Switch, Bake WPL 311585 Contact Us For Availability
37
WPL 308422 WPL 308422 Contact Us For Availability
37
WPL 310825 WPL 310825 Contact Us For Availability
38
Resistor & Terminal Assembly WPL 328923 Contact Us For Availability
38
Jack, Probe WPL 309654 Contact Us For Availability
38
End Cap WPL 312350 Contact Us For Availability
38
WPL 246135 WPL 246135 Contact Us For Availability
38
WPL 311253 WPL 311253 Contact Us For Availability
39
WPL 310345 WPL 310345 Contact Us For Availability
39
Washer, Internal Lock WPL 312796 Contact Us For Availability
40
Bracket, Motor WPL 311916 Contact Us For Availability
40
Washer Probe WPL 309769 Contact Us For Availability
40
Screw, 8-32 x 5/16 Thread Form Truss Head (2) WPL 310210 Contact Us For Availability
40
WPL 312320 WPL 312320 Contact Us For Availability
41
Lockwasher WPL 138473 Contact Us For Availability
41
Nut WPL 309768 Contact Us For Availability
43
Wheel, Blower WPL 311920 Contact Us For Availability
43
Screw, 8-32 x 1/2 WPL 312248 Contact Us For Availability
43
Probe, Temperature (Alternate) WPL 311439 Contact Us For Availability
43
Probe, Temperature (Alternate) WPL 312174 Contact Us For Availability
44
Knob, Timer (3) WPL 312808 Contact Us For Availability
44
Reed Relay (Alternate) WPL 312640 Contact Us For Availability
44
Reed Relay (Alternate) WPL 312784 Contact Us For Availability
45
Escutcheon Thermo WPL 311073 Contact Us For Availability
46
Screw, 8A x 3/8 WPL 254225 Contact Us For Availability
47
WPL 309029 WPL 309029 Contact Us For Availability
47
WPL 310668 WPL 310668 Contact Us For Availability
48
Bezel, Switch WPL 308784 Contact Us For Availability
50
Screw 11-16 x 1/2 WPL 346893 Contact Us For Availability
50
Screw, 10-32 x 5/16 WPL 166681 Contact Us For Availability
50
Clip WPL 312763 Contact Us For Availability
50
Cable, Support WPL 312764 Contact Us For Availability
50
Foam WPL 308297 Contact Us For Availability
51
Flange Nut (4) WPL 310300 Contact Us For Availability
52
WPL 310459 WPL 310459 Contact Us For Availability
53
Cover, Capacitor WPL 312294 Contact Us For Availability
53
WPL 308043 WPL 308043 Contact Us For Availability
54
Jumper, High Voltage (Black 5-1/2``) WPL 312792 Contact Us For Availability
54
WPL 310458 WPL 310458 Contact Us For Availability
55
Jumper, High Voltage, Red (7-7/8``) WPL 312794 Contact Us For Availability
55
WPL 311592 WPL 311592 Contact Us For Availability
56
WPL 311012 WPL 311012 Contact Us For Availability
58
High Voltage Lead, Gray 6-3/4`` (2) WPL 312301 Contact Us For Availability
61
WPL 308173 WPL 308173 Contact Us For Availability
62
WPL 308172 WPL 308172 Contact Us For Availability
× ![]()
